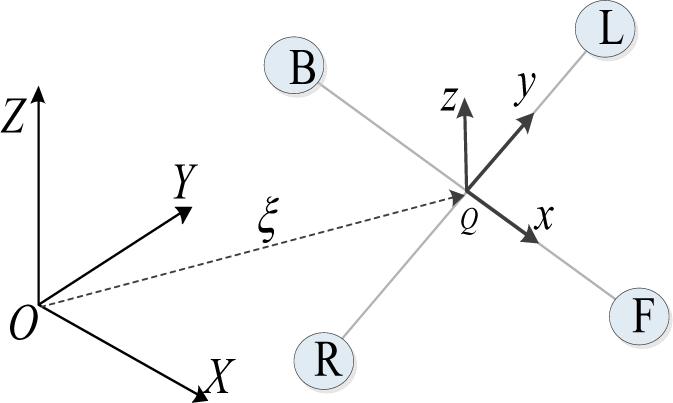

Figure 1.
The definition of quadrotor’s position coordinate system

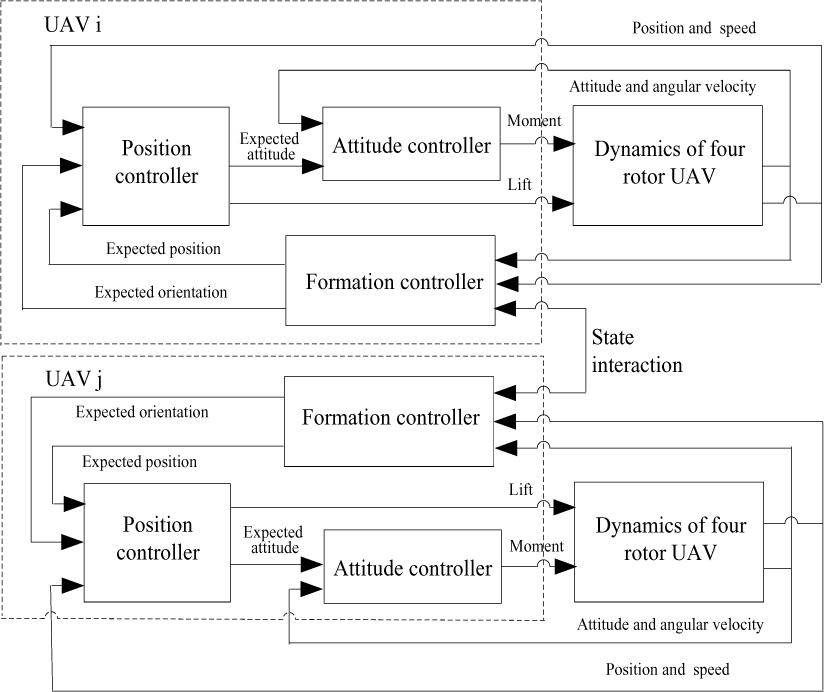

Figure 2.
Structure of the formation control system

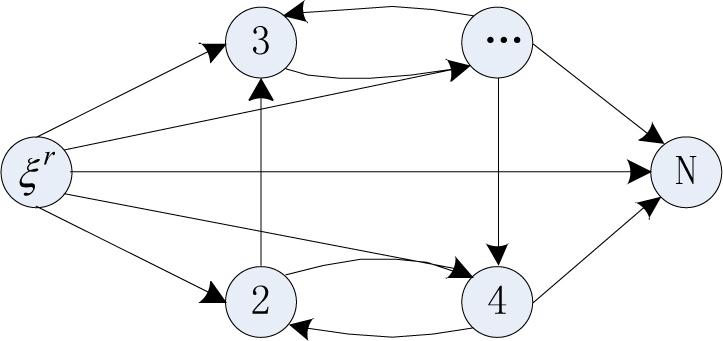

Figure 3.
Communication topology graph

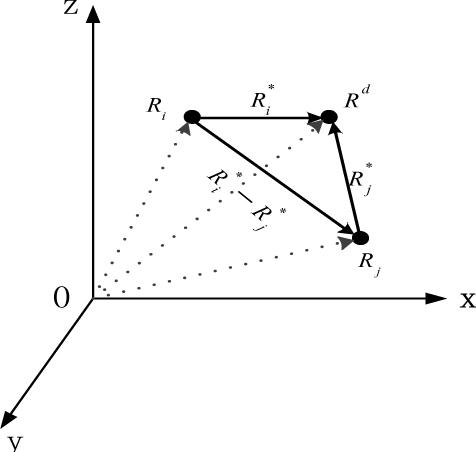

Figure 4.
The position relationship among formation members

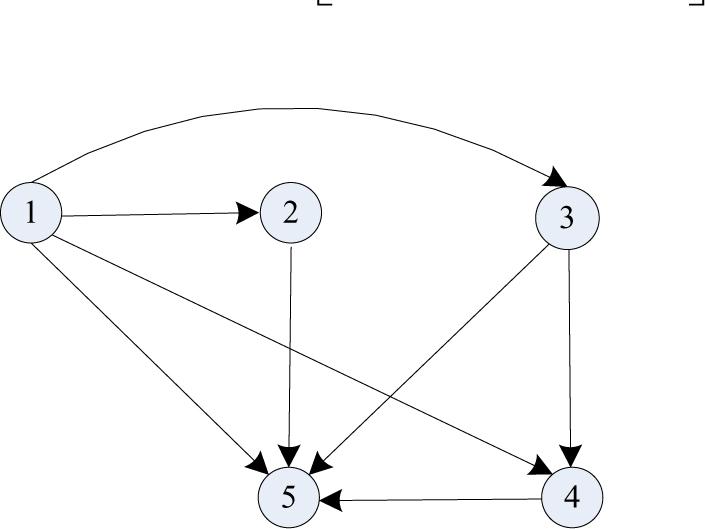

Figure 5.
Quadrotor’s communication topology in the simulation experiments

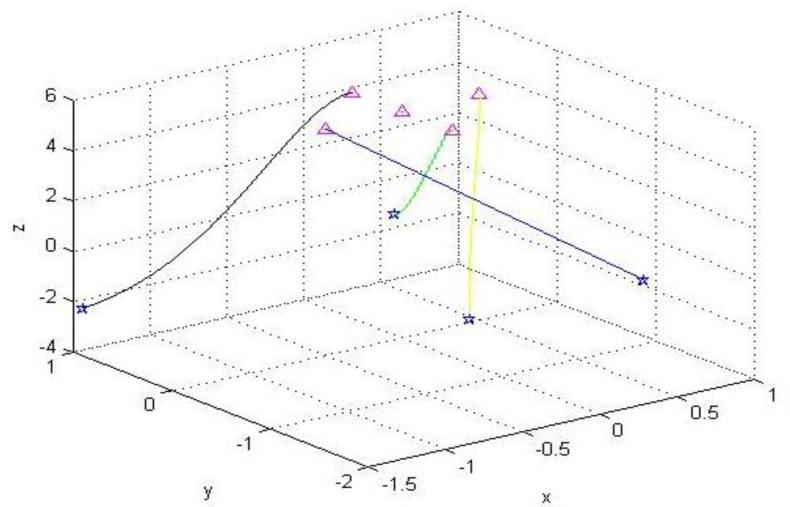

Figure 6.
Simulation curve of the generation of the quadrotors formation

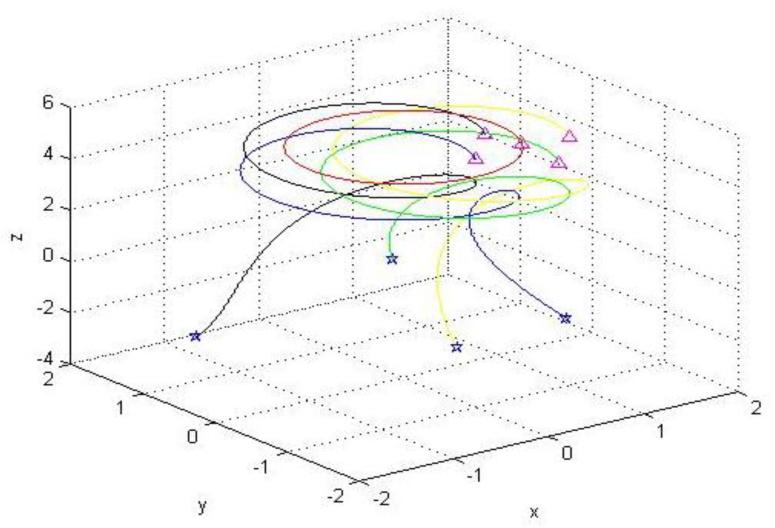

Figure 7.
Simulation curve of quadrotor formation maneuver

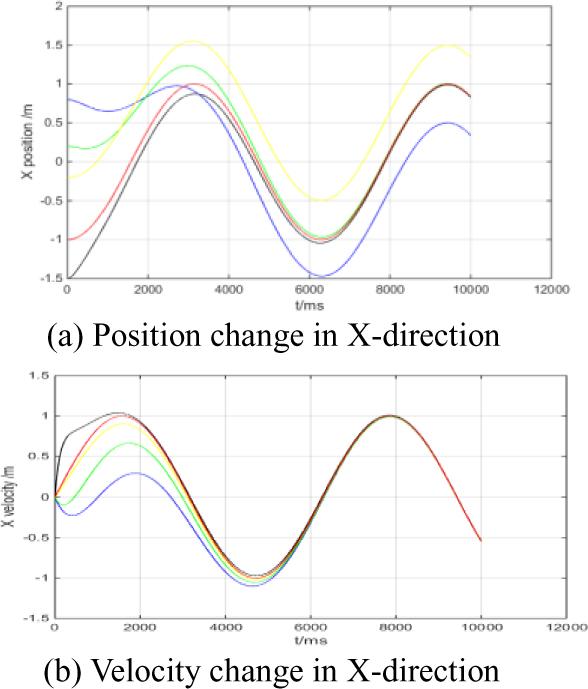

Figure 8.
Curve of each quadrotor’s position and velocity change in X-direction

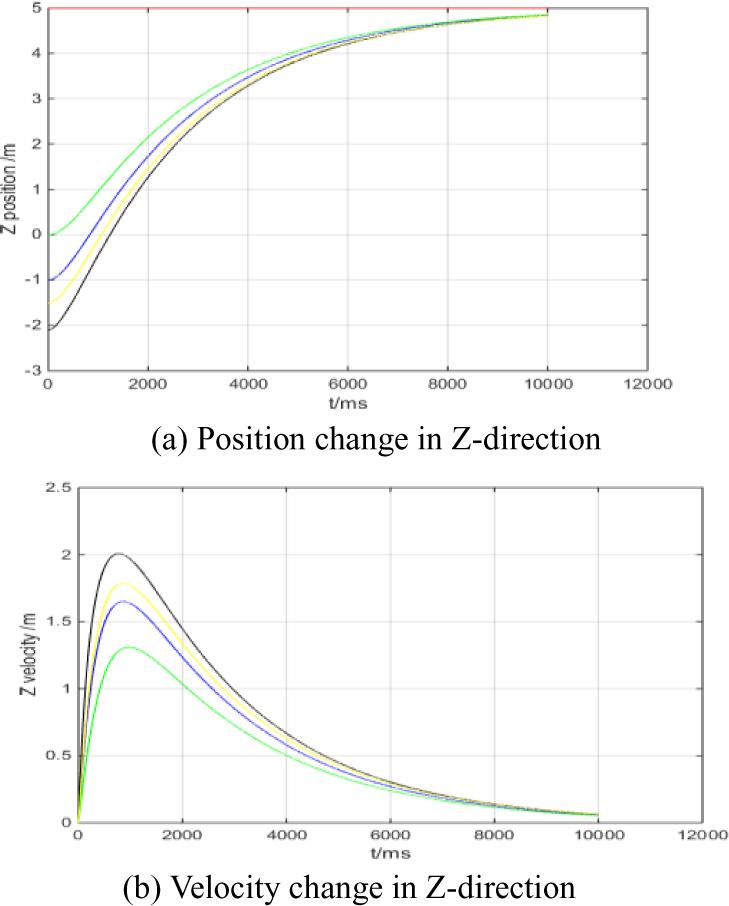

Figure 9.
Curve of each quadrotor’s positon and velocity change in Z-direction
