Study on the Influence of Stiffness of Beam–Column Connections on the Seismic Behavior of Composite Moment Resisting Frames

Architecture, Civil Engineering, Environment
Volume 14 (2021): Issue 3 (September 2021)
By: Ahmed KHEMIS,  Messaoud TITOUM,  Aida MAZOZ and  Amar LOUZAI
Open Access
|Oct 2021

Figures & Tables

Figure 1.

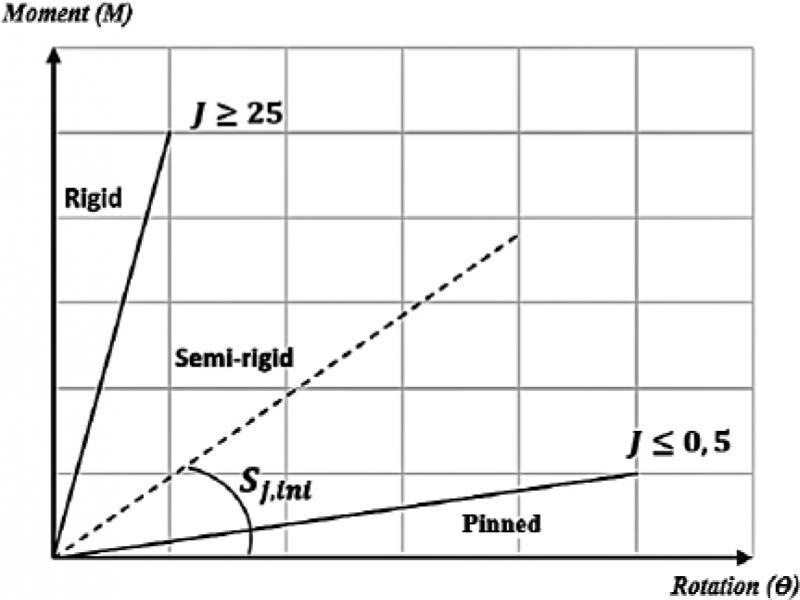

Boundaries for stiffness classification of beam-column joints for non-braced frames
Boundaries for stiffness classification of beam-column joints for non-braced frames

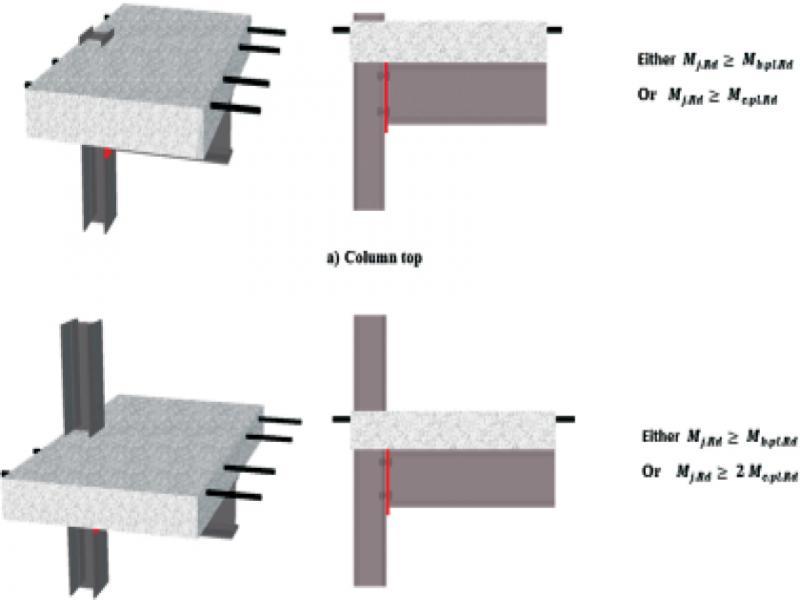

Figure 2

Full strength assembly
Full strength assembly

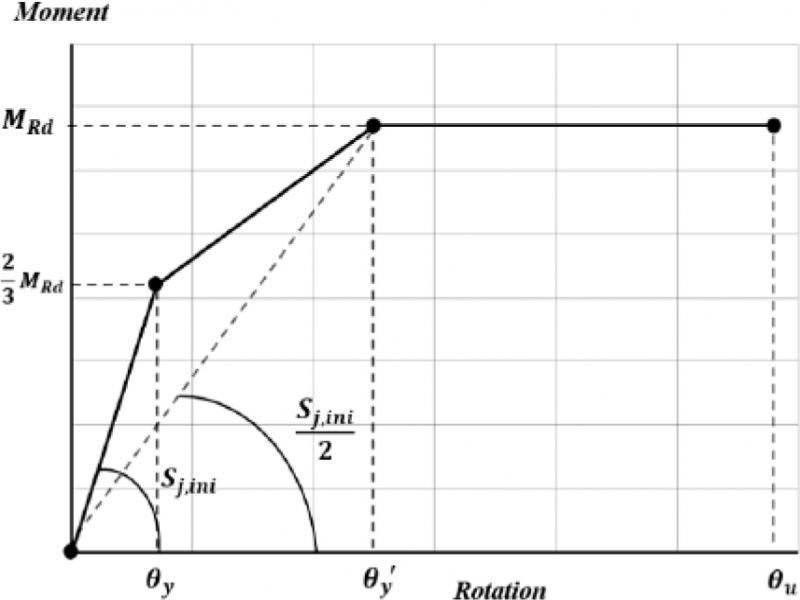

Figure 3

Moment-Rotation Relationship of bolted end plate connection proposed by Eurocode 4
Moment-Rotation Relationship of bolted end plate connection proposed by Eurocode 4

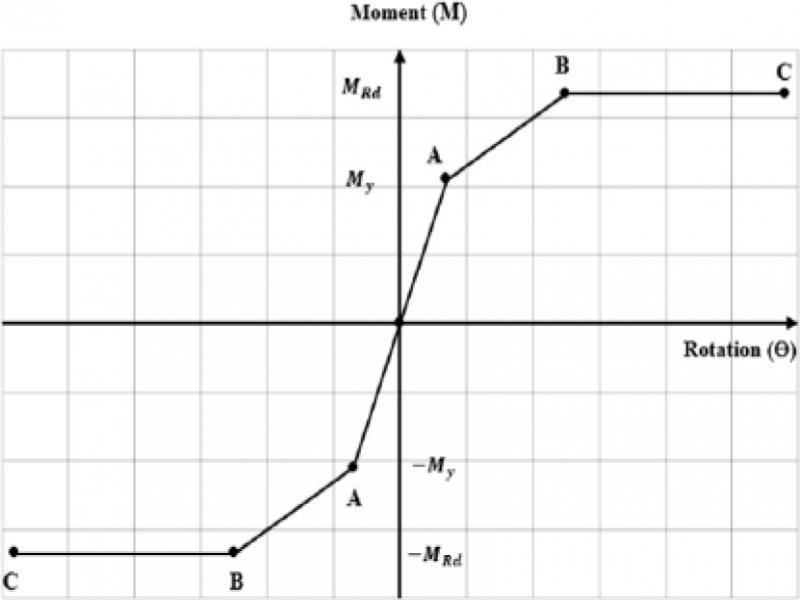

Figure 4.

Complete behavior of a column-beam composite joint
Complete behavior of a column-beam composite joint

Figure 5.

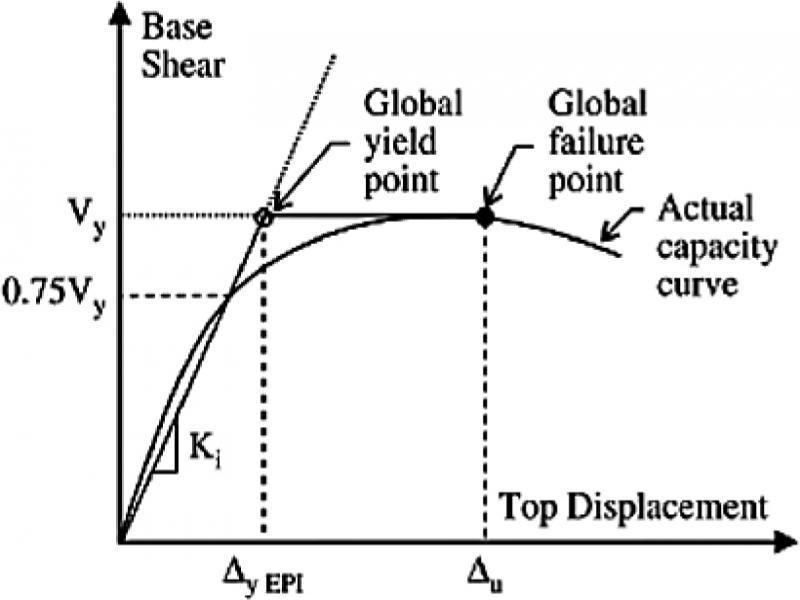

EPI idealizations of actual capacity curve [12]
EPI idealizations of actual capacity curve [12]

Figure 6.

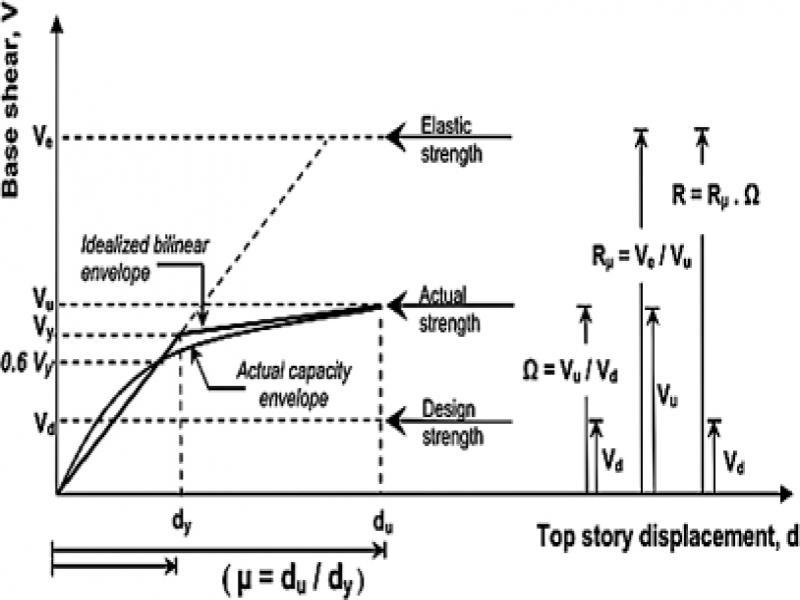

Relationship between seismic behavior factor (R), over-strength factor (Ω), ductility factor (Rµ) and global ductility µ [26]
Relationship between seismic behavior factor (R), over-strength factor (Ω), ductility factor (Rµ) and global ductility µ [26]

Figure 7.

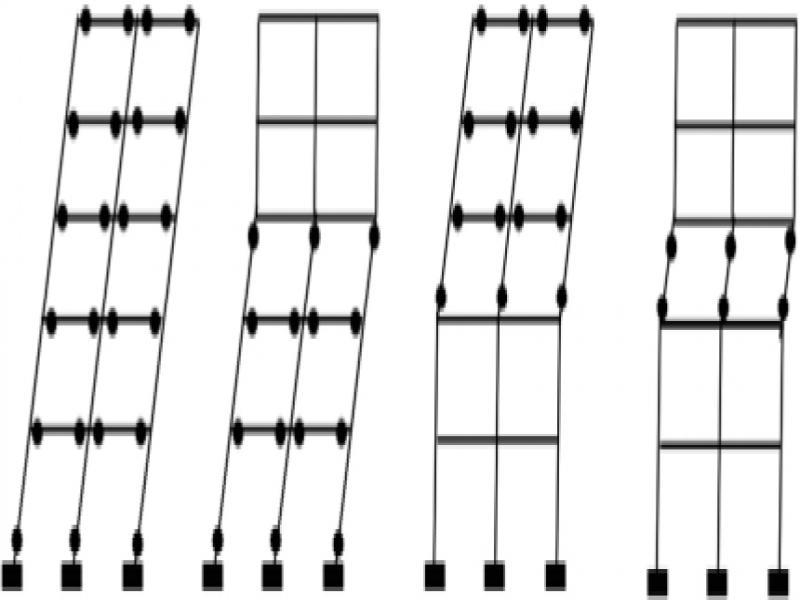

Four overall instability cases [27]
Four overall instability cases [27]

Figure 8.

Plastic hinge behavior of composite beam [21]
Plastic hinge behavior of composite beam [21]

Figure 9.

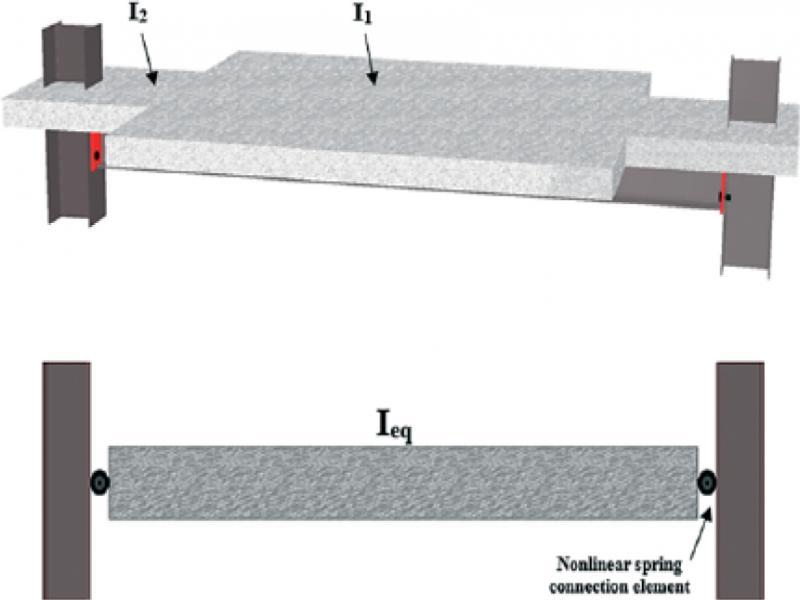

The equivalent section of the beam
The equivalent section of the beam

Figure 10.

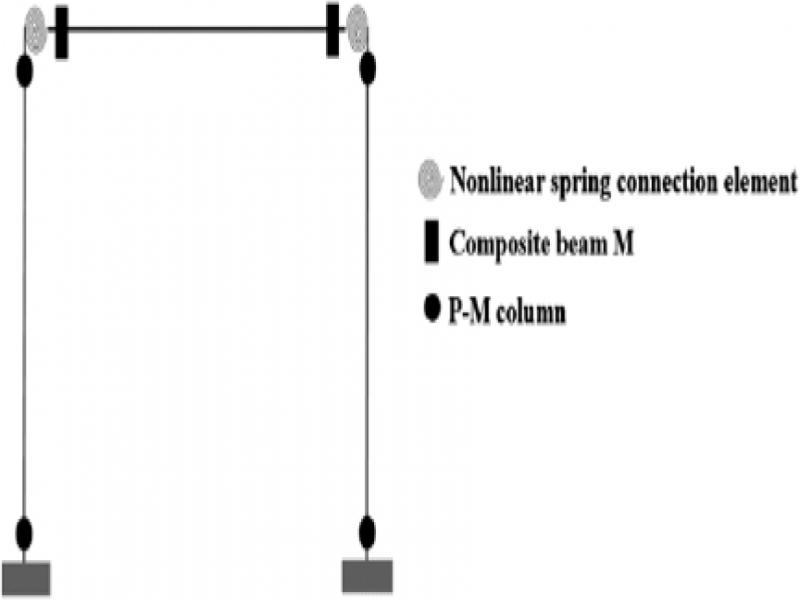

Modelling of elements in SAP 2000 [21]
Modelling of elements in SAP 2000 [21]

Figure 11.

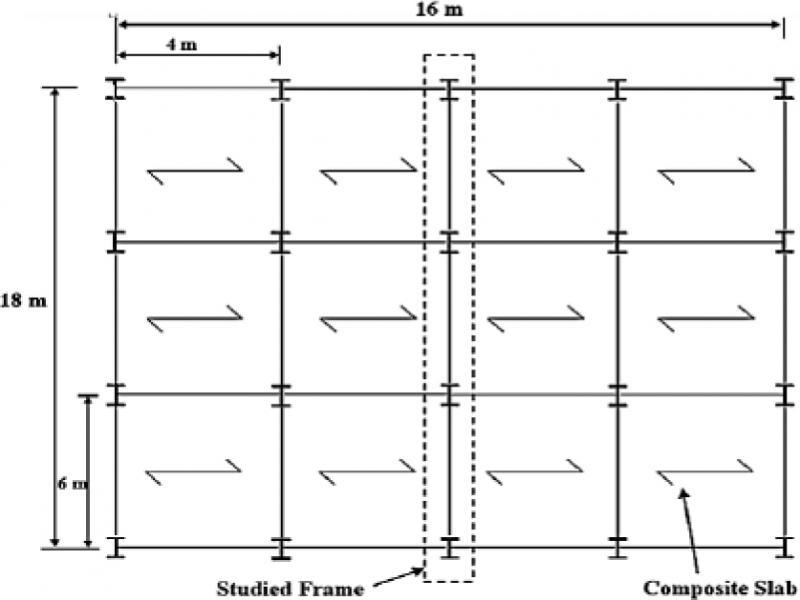

Plan view of buildings at 3, 4 and 5 storey levels containing the studied frames
Plan view of buildings at 3, 4 and 5 storey levels containing the studied frames

Fig. 12.

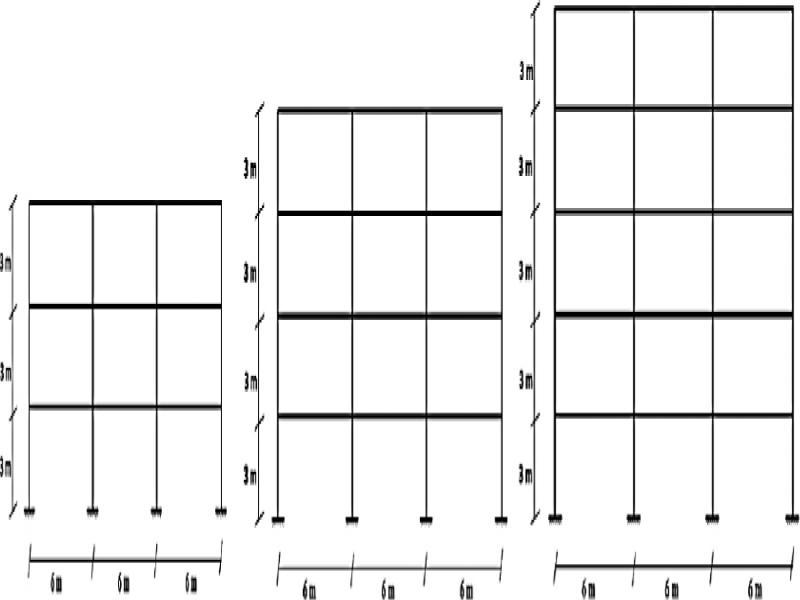

Studied frames
Studied frames

Fig. 13.

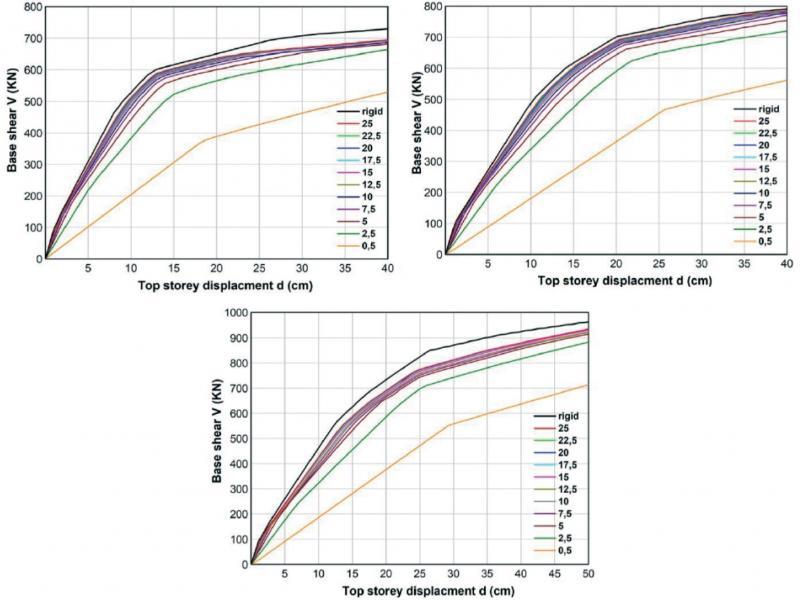

Pushover curves for rigid and semi-rigid composite frames (a) 3 storeys (b) 4 storeys (c) 5 storeys
Pushover curves for rigid and semi-rigid composite frames (a) 3 storeys (b) 4 storeys (c) 5 storeys

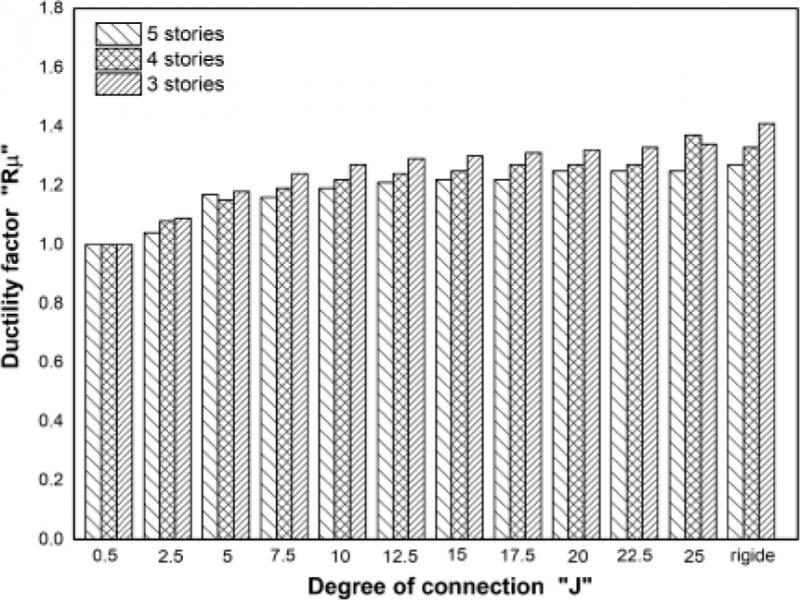

Figure 14.

The effect of degree of connection J and the number of storeys levels on the ductility factor
The effect of degree of connection J and the number of storeys levels on the ductility factor

Figure 15.

The distribution of plastic hinges in frames with a J=0.5 at the limit instant of the appearance of inter-storey drift criteria
The distribution of plastic hinges in frames with a J=0.5 at the limit instant of the appearance of inter-storey drift criteria

Figure 16.

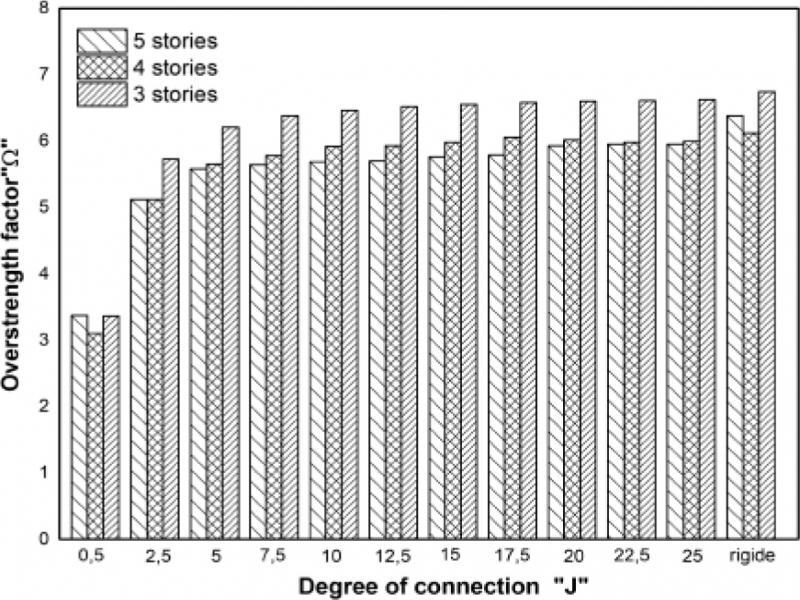

The effect of the degree of connection on the overstrength factor of the different frames (3, 4 and 5 storeys)
The effect of the degree of connection on the overstrength factor of the different frames (3, 4 and 5 storeys)

Fig 17.

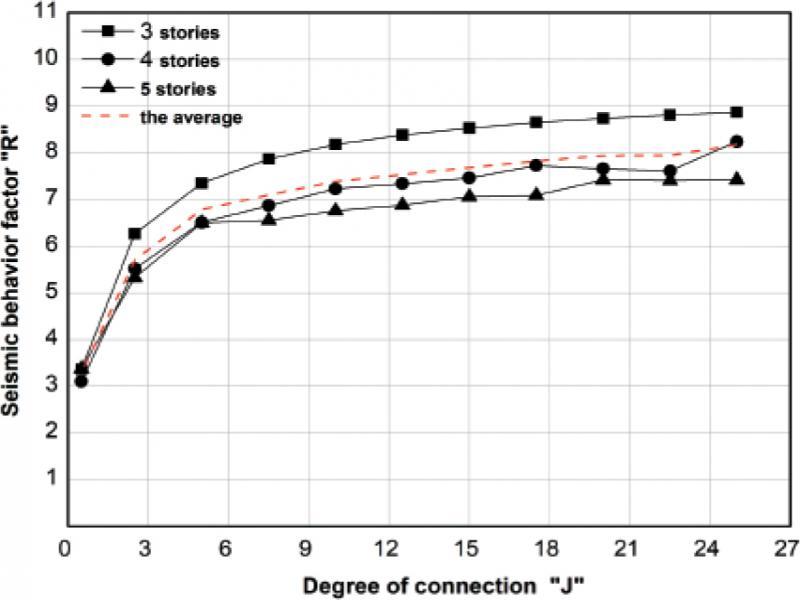

The effect of the degree of connection on the behavior factor of the different frames (3, 4 and 5 storeys)
The effect of the degree of connection on the behavior factor of the different frames (3, 4 and 5 storeys)

Fig 18.

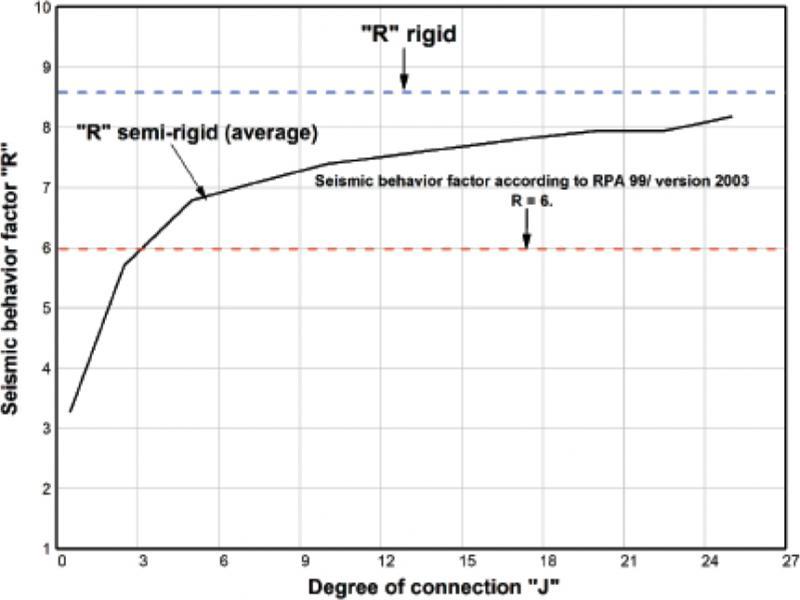

Comparison between the variation of the behavior factor R as a function of the degree of connection
Comparison between the variation of the behavior factor R as a function of the degree of connection

Fig 19.

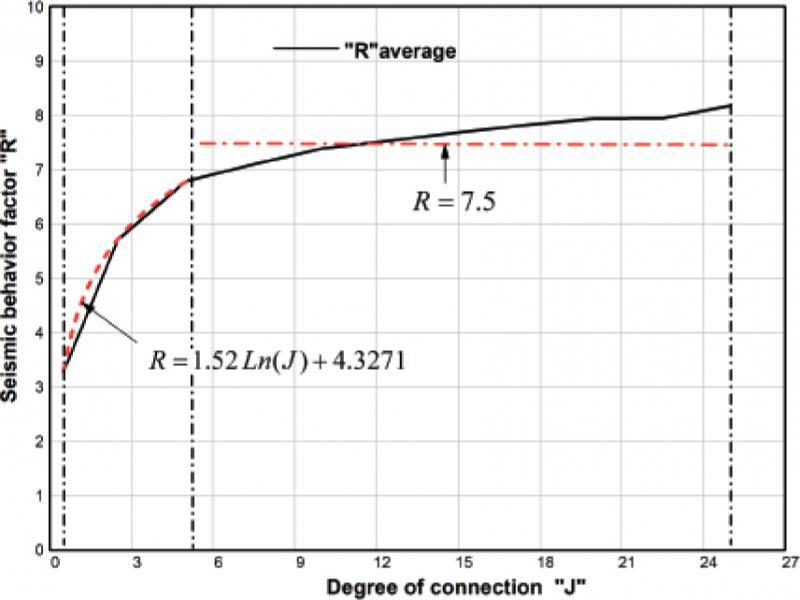

The Simplification usage of the behavior factor values in the design of semi-rigid composite structures
The Simplification usage of the behavior factor values in the design of semi-rigid composite structures

Moment-Rotation (M-θ) Kela (ion for the composite beam [21]

Hogatng (Liu fît: all. 2011)sagging
Length ftf plestic hinge Lp=1,75·ht
Yield curvature ϕ y = E x y y b Yield curvature ϕ y = Z ⋅ f y ⋅ L 6 ⋅ E ⋅ I b
Yield moment M y ′ = E ⋅ I ′ ⋅ ϕ y Yield moment M y = f x y y m o ⋅ Z e
Ultimate moment M u ′ = M P ′ Ultimate moment M u = f y y m o ⋅ Z p
Ultimate curvature ϕ u = 10 ⋅ ε x y y p b ′ Ultimato rotaOion θU from table 5–6 of FEMA 356:2000 [29]

Geometrical and mechanical characteristics of composite frames

Storey levelColumnsBeams
three-storey frame1, 2 and 3HEB 300 Concrete slab: Thickness, hc=80 mm, Effective widths:beff+ = 1050 mm, beff- = 750 mm, Compressive strength,fck = 25 N/mm2, Tensile strength, ft = 3 N/mm2,Ec = 29000 N/mm2. Reinforcing bars: 6Ø12, Yield stress, fyr = 500 N/mm2. Er = 200000 N/mm2. Steel beam: IPE300 (S235), Ea=210000 N/mm2. Stud shear connectors: Diameter × length=19 mm × 60 mm, Degree of shearconnection, η=100%.
four-storey frame1, 2, 3and 4HEB 400
five-storey frame1,2 and 3HEB 550
4 and 5HEB 400

Yield displacement Δy, limit displacement Δu, Fundamental Period T, ductility factor Rμ, design shear force Vd, ultimate shear force Vu, overstrength factor Ω and the behavior factor R of frames with 5 storeys

Degree of connectionΔy [cm]Δu [cm]T[s]RμVd [kN]Vu [kN]ΩR
Rigid18.3923.290.7531.27124.37794.006.388.09
25.018.2022.700.8071.25740.045.957.42
22.518.2822.760.8121.25739.935.957.41
20.018.2222.940.8191.25768,805.937.42
17.517.8921.900.8281.22720.535.797.09
15.017.9621.990.8371.22716.435.767.06
12.518.2222.000.8531.21708.975.706.88
10.018.5121.990.8741.19707.285.696.76
7.518.9222.010.9061.16701.665.646.56
5.019.4522.670.9621.17693.735.586.50
2.521.2122.081.0871.04636.275.125.33
0.522.3022.221.4411.00418.663.373.37

The joint stiffnesses correspond to the degrees of connection

JMRd [kN·m]Sj,ini [kN·m/rad]θu [rad]
0.5197.812540.130.053
2.512700.63
525401.25
7.538101.88
1050802.50
12.563503.13
1576203.75
17.588904.38
20101605.00
22.5114305.63
25127006.25

The coordinates of the points in Figure 4

Moment(KN-m)Rotation(rad)
Point A ± 2 3 MRd ± M R d S j , i n i
Point B±MRd ± 2 M R d S j , i n i
Point C±MRd±θu

Yield displacement Δy, limit displacement Δu, Fundamental Period T, ductility factor Rμ, design shear force Vd, ultimate shear force Vu, overstrength factor Ω and the behavior factor R of frames with 4 storeys

Degree of connectionΔy [cm]Δu [cm]T[s]RμVd [kN]Vu [kN]ΩR
Rigid14,4819,230.6661.33112.45688.376.128.13
25.014,0119,230.7141.37 675.216.008.24
22.515,0619,160.7191.27 672.845.987.61
20.015,3319,520.7251.27 676.896.027.66
17.515,6419,940.7331.27 681.446.067.73
15.015,6719,540.7431.25 672.085.987.46
12.515,7219,460.7561.24 667.075.937.34
10.016,0819,650.7751.22 665.165.927.23
7.516,2519,320.8051.19 649.685.786.87
5.016,9419,510.8581.15 635.245.656.51
2.517,8619,260.9811.08 575.635.125.52
0.519,1919,141.3701.00 348.273.103.10

Yield displacement Δy, limit displacement Δu, Fundamental Period T, ductility factor Rμ, design shear force Vd, ultimate shear force Vu, overstrength factor Ω and the behavior factor R of frames with 3 storeys

Degree of connectionΔy [cm]Δu [cm]T[s]RμVd [kN]Vu [kN]ΩR
rigid10.6114.980.5711.4191.26615.316.749.52
25.011.1914.980.6061.34604.596.628.87
22.511.2414.980.6101.33603.476.618.81
20.011.3114.980.6141.32602.136.608.74
17.511.4014.980.6201.31600.426.588.65
15.011.5114.980.6281.30598.166.558.53
12.511.6514.980.6381.29594.946.528.38
10.011.8314.980.6531.27589.766.468.18
7.512.1314.980.6761.24581.796.387.87
5.012.6514.990.7181.18566.506.217.35
2.513.7115.000.8171.09523.215.736.27
0.518.6615.011.1641.00306.293.363.36
