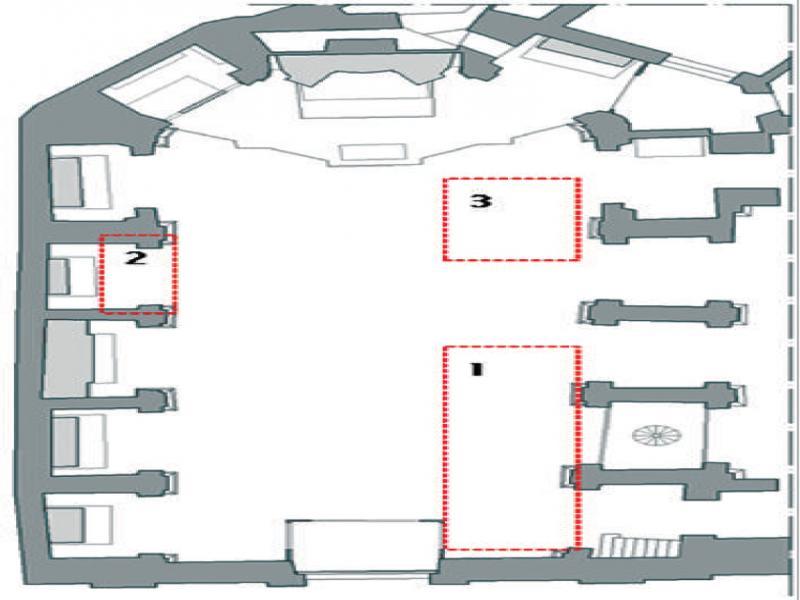

Figure 1.
Archaeological exploration conducted in the interior from the Capilla de la Comunión of Algemesí. Source: authors

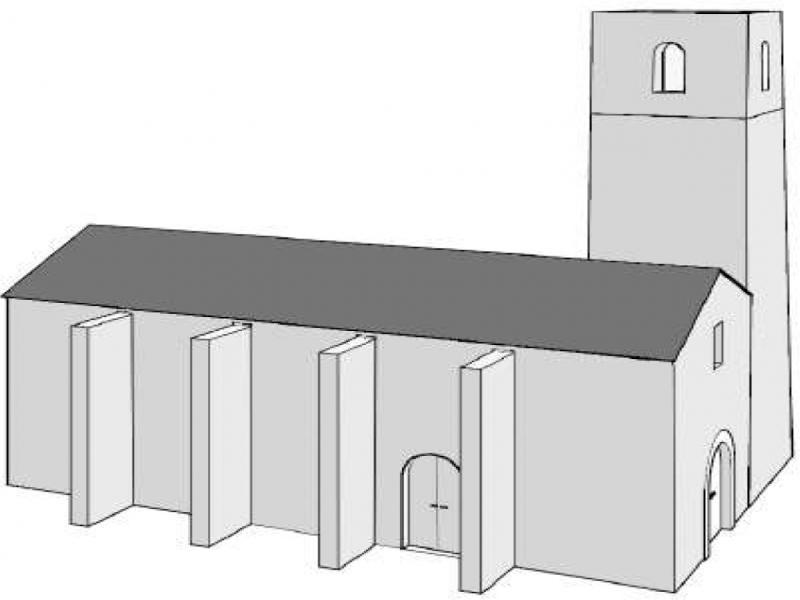

Figure 2.
Exterior three-dimensional modelling of the disappeared Algemesí diaphragm arches church. Source: authors

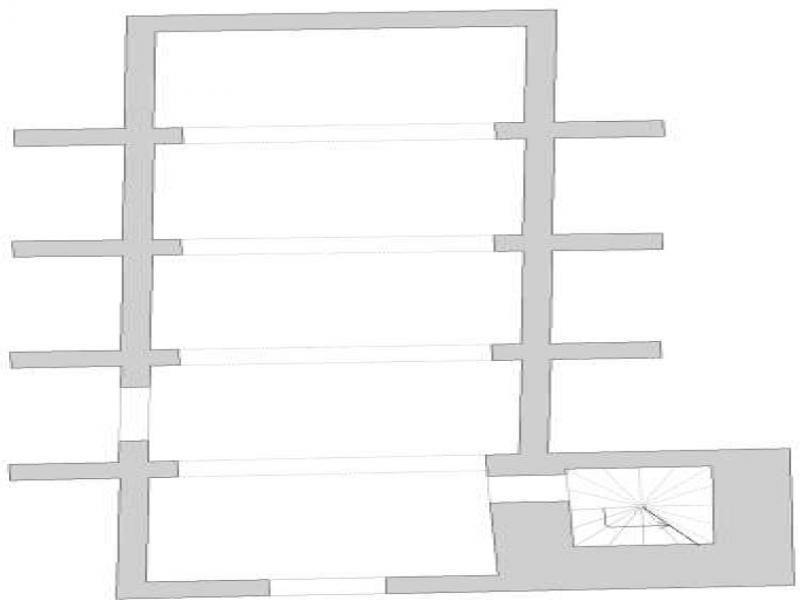

Figure 3.
Hypothetical plant of the church of Algemesí in the thirteenth century. Source: authors

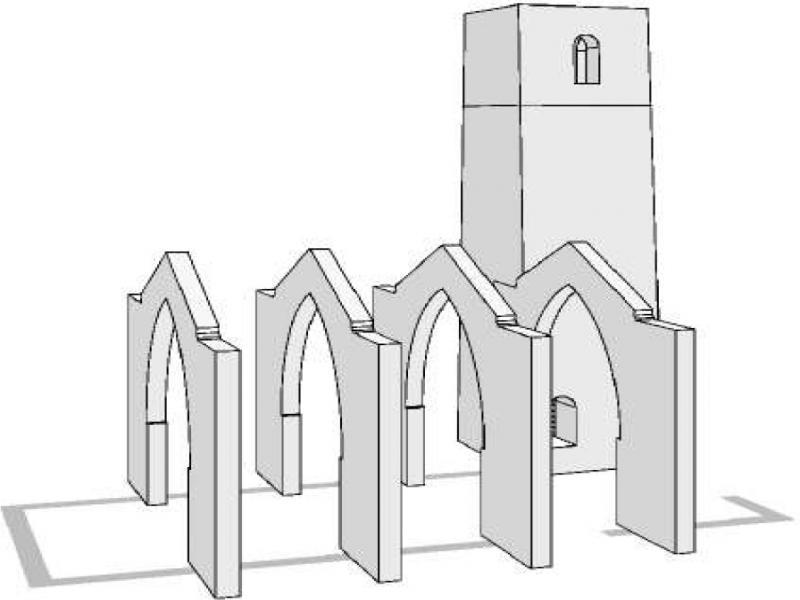

Figure 4.
Three-dimensional modelling of the diaphragmatic structure of the disappeared church of Algemesí. Source: authors

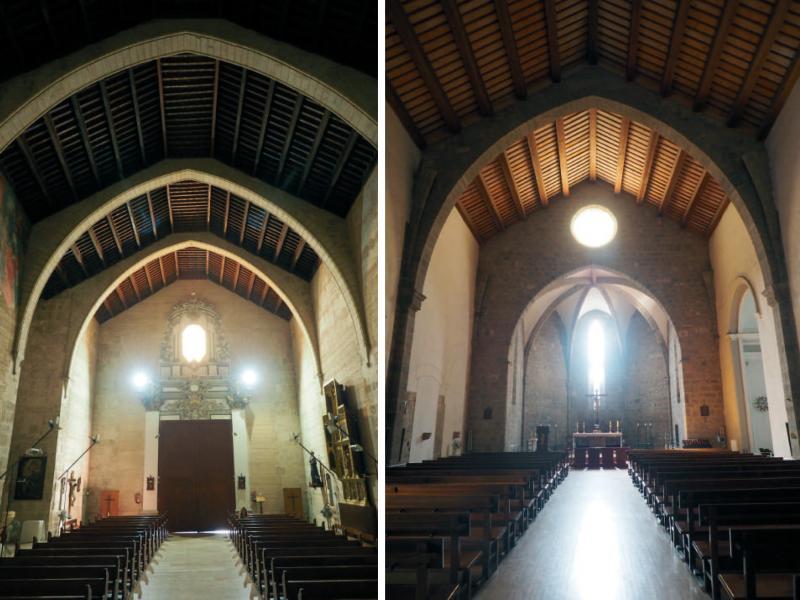

Figure 5.
Church of San Pedro, Xàtiva (left). Church El Salvador, Sagunto (right). Source: authors

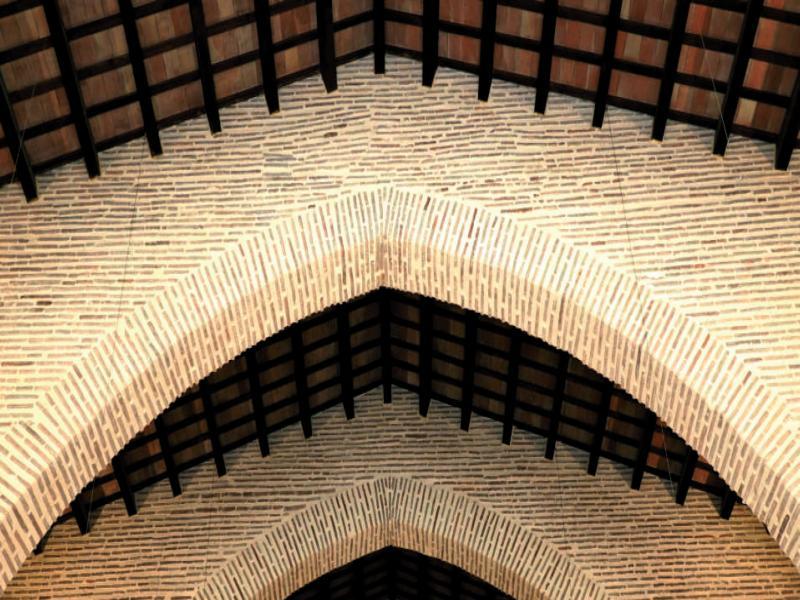

Figure 6.
Ancient Church of La Sangre, Nules. Source: authors

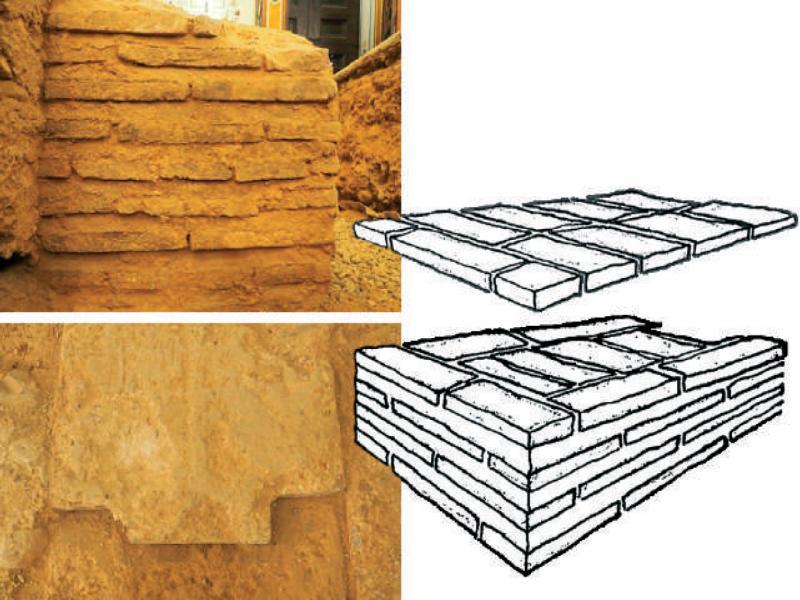

Figure 7.
Archaeological remains and sketch of the brickwork of the diaphragmatic arches of the 13th century Algemesí church (exploration 1). Source: authors

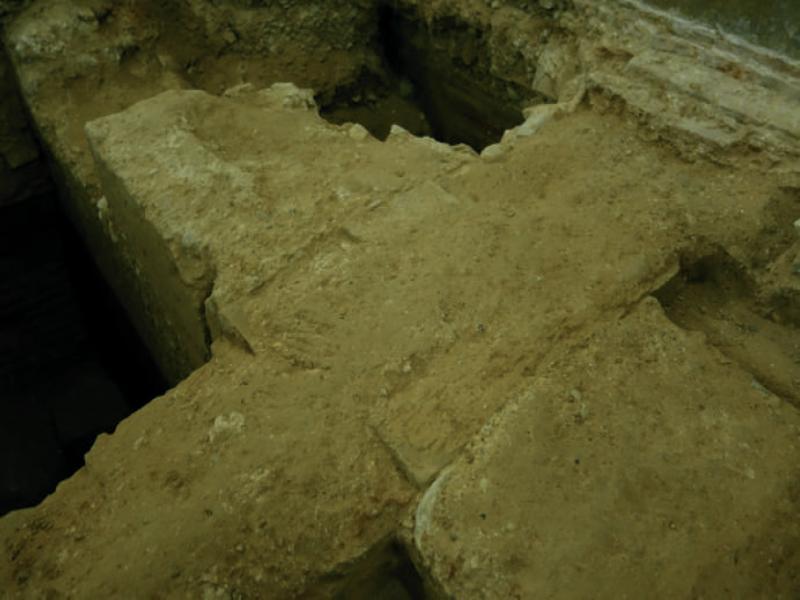

Figure 8.
Vestiges of one of the buttresses of the primitive church of Algemesí (exploration 1). Source: authors

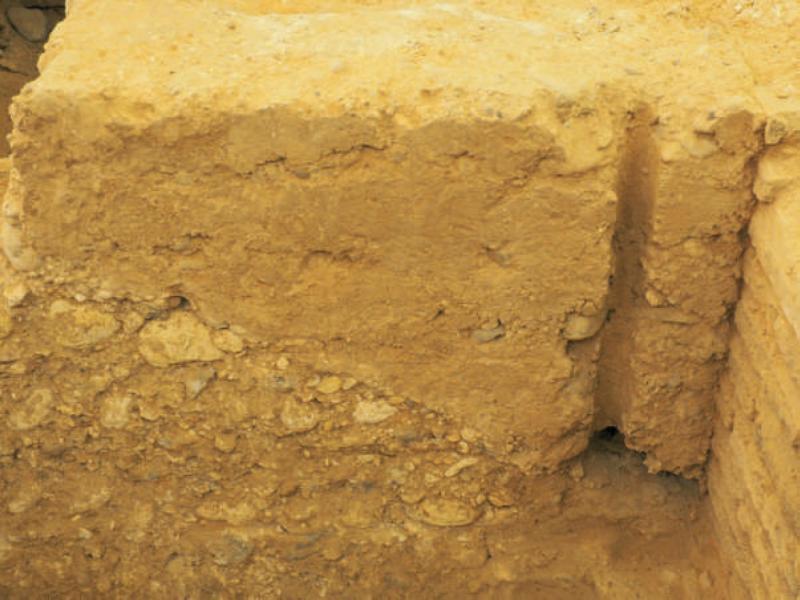

Figure 9.
Ruins of the fence wall (exploration 1). Source: authors

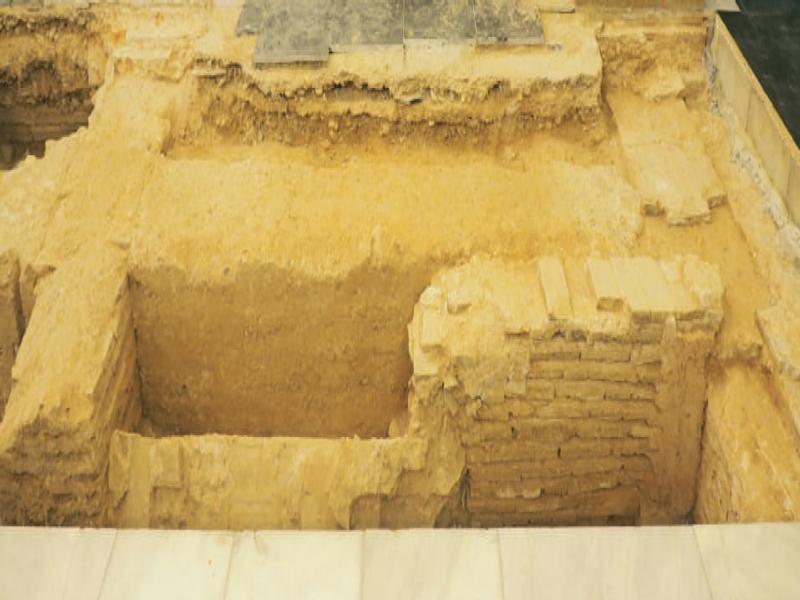

Figure 10.
Hypothetical length of the boundary wall (exploration 1). Source: authors

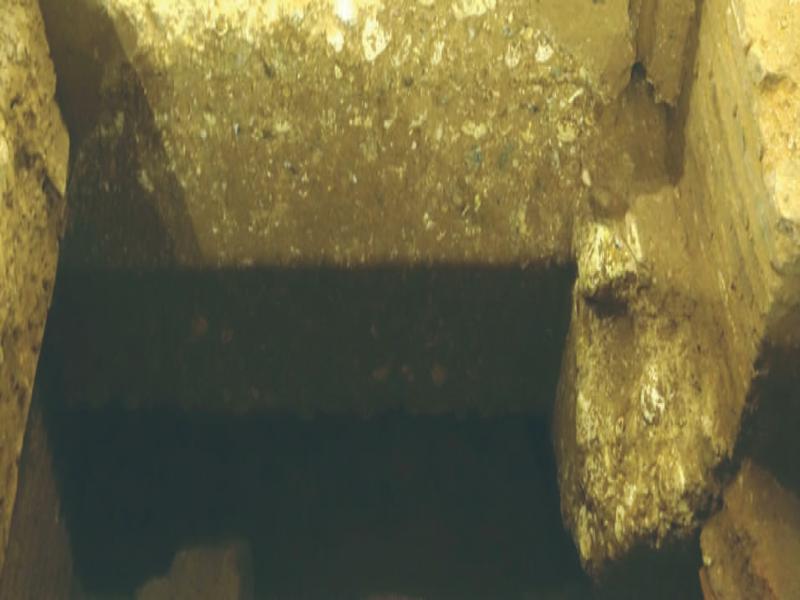

Figure 11.
Foundations: Boundary wall in the central area and, on the right side, one of the diaphragm arches (exploration 1). Source: authors

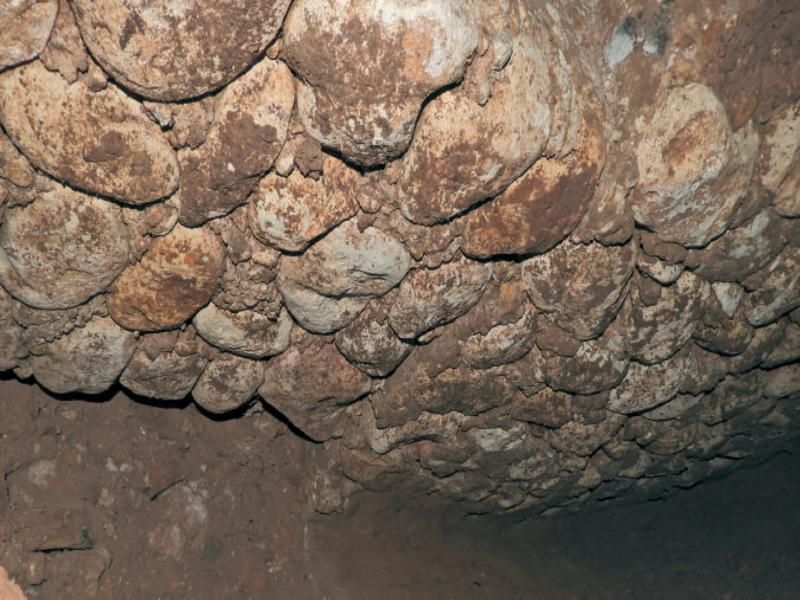

Figure 12.
Regularization layer (top view, exploration 1). Source: authors

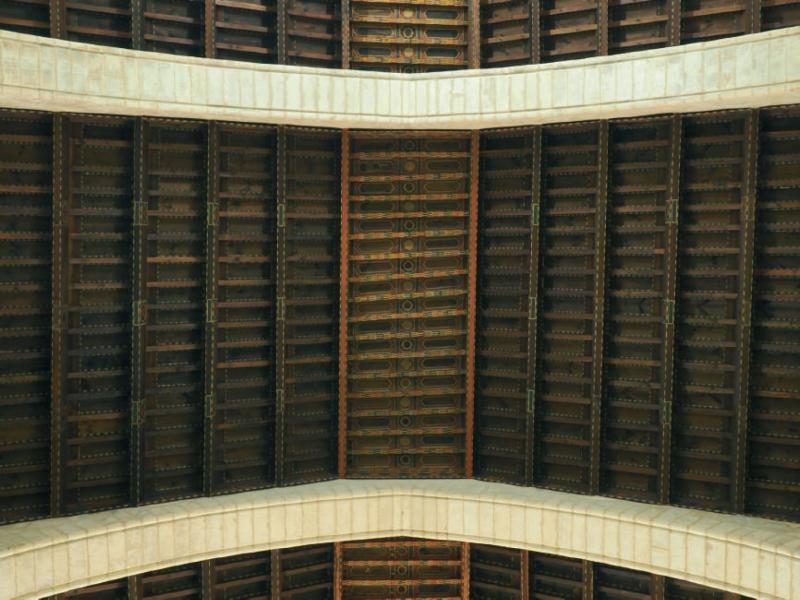

Figure 13.
Roofing church San Pedro, Xàtiva. Source: authors
Figure 14.
Hermitage of San Roque de Ternils, Carcaixent. Source: authors

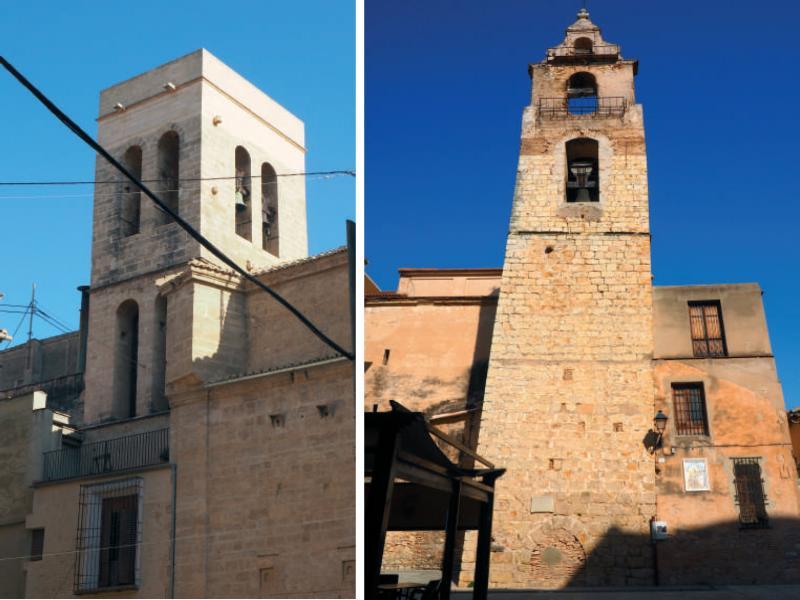

Figure 15.
Bell tower church Santísimo Cristo del Salvador, Valencia (left). Old bell tower Santa Catalina church, Alzira (right). Source: authors

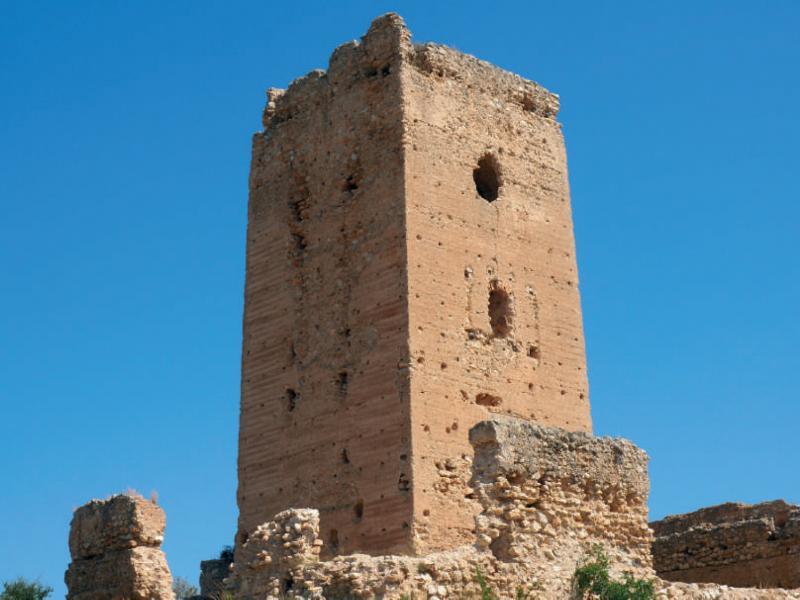

Figure 16.
Tower of the castle of Aledua, Llombai. Source: authors

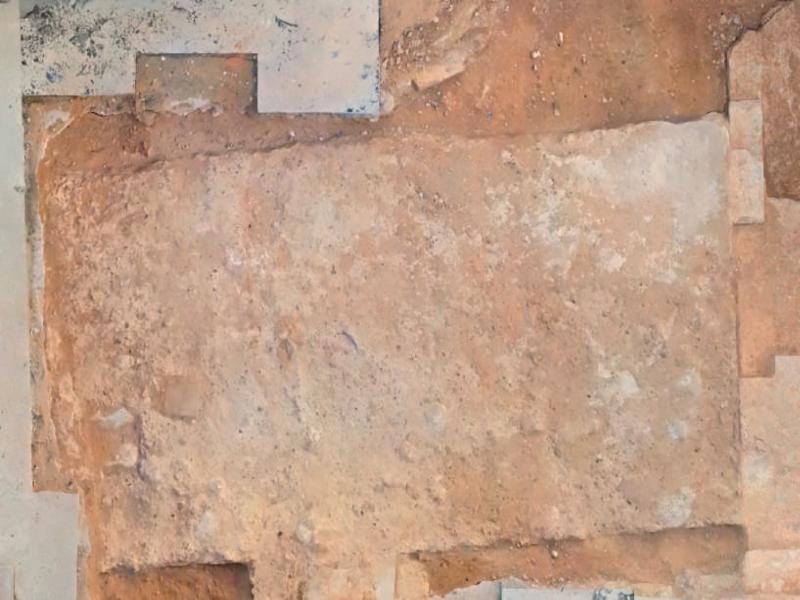

Figure 17.
Lateral wall of the 13th century bell tower, the bottom of which used the buttress of the diaphragm arch to close the structure (exploration 1). Source: authors

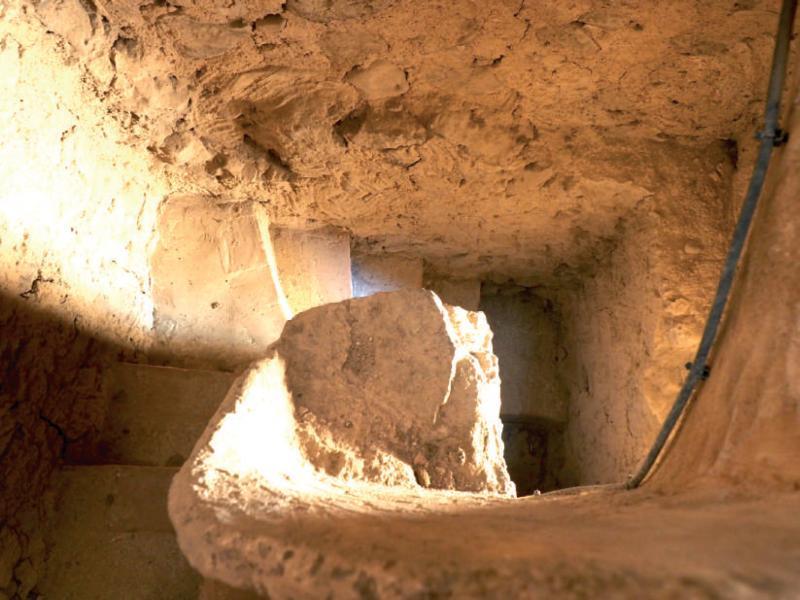

Figure 18.
Lateral wall of the 13th century bell tower, the bottom of which used the buttress of the diaphragm arch to close the structure (exploration 1). Source: authors

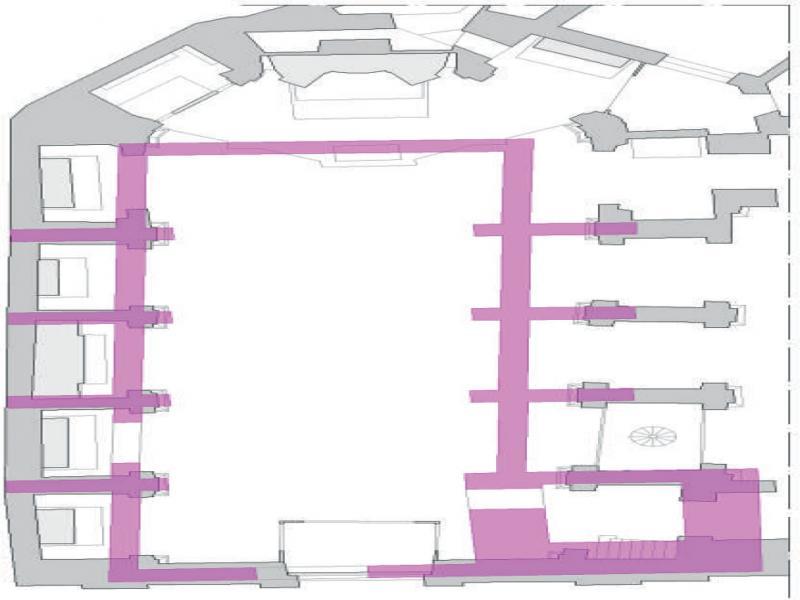

Figure 19.
Hypothetical plant of the church of Algemesí in the 13th century with respect to the floor of the current Capilla de la Comunión. Source authors
