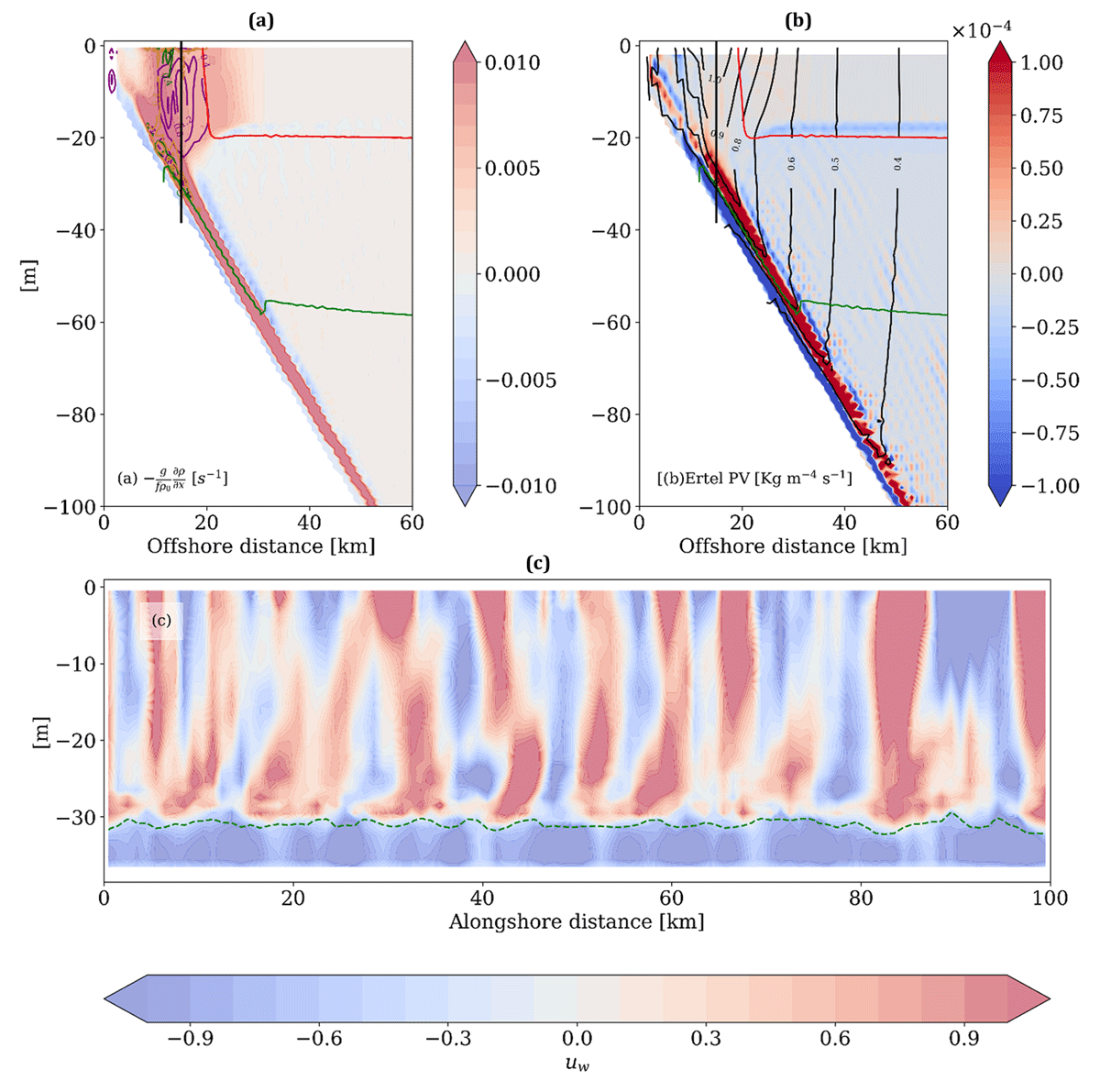

Corrected Caption Figure 7
Instability diagnostics after the onset of instability (ti = 6) for UPSLOPE, summer. (a): Thermal wind overlapped with contours of cpe (purple lines) and cmke (green lines). Contour lines show the interval (0.4, 1.6) · 10–8, with every interval given by 0.4 · 10–8. Thermocline and halocline are given by the dashed red and green lines, respectively. The vertical solid black line marks the frontal jet location alongshore section in (c) is taken. (b) PV field superimposed on the contours of alongshore velocity (coastal jet; black lines). (c) Alongshore section of normalized cross-shore velocity uw at the frontal jet location (black solid line in (a)).

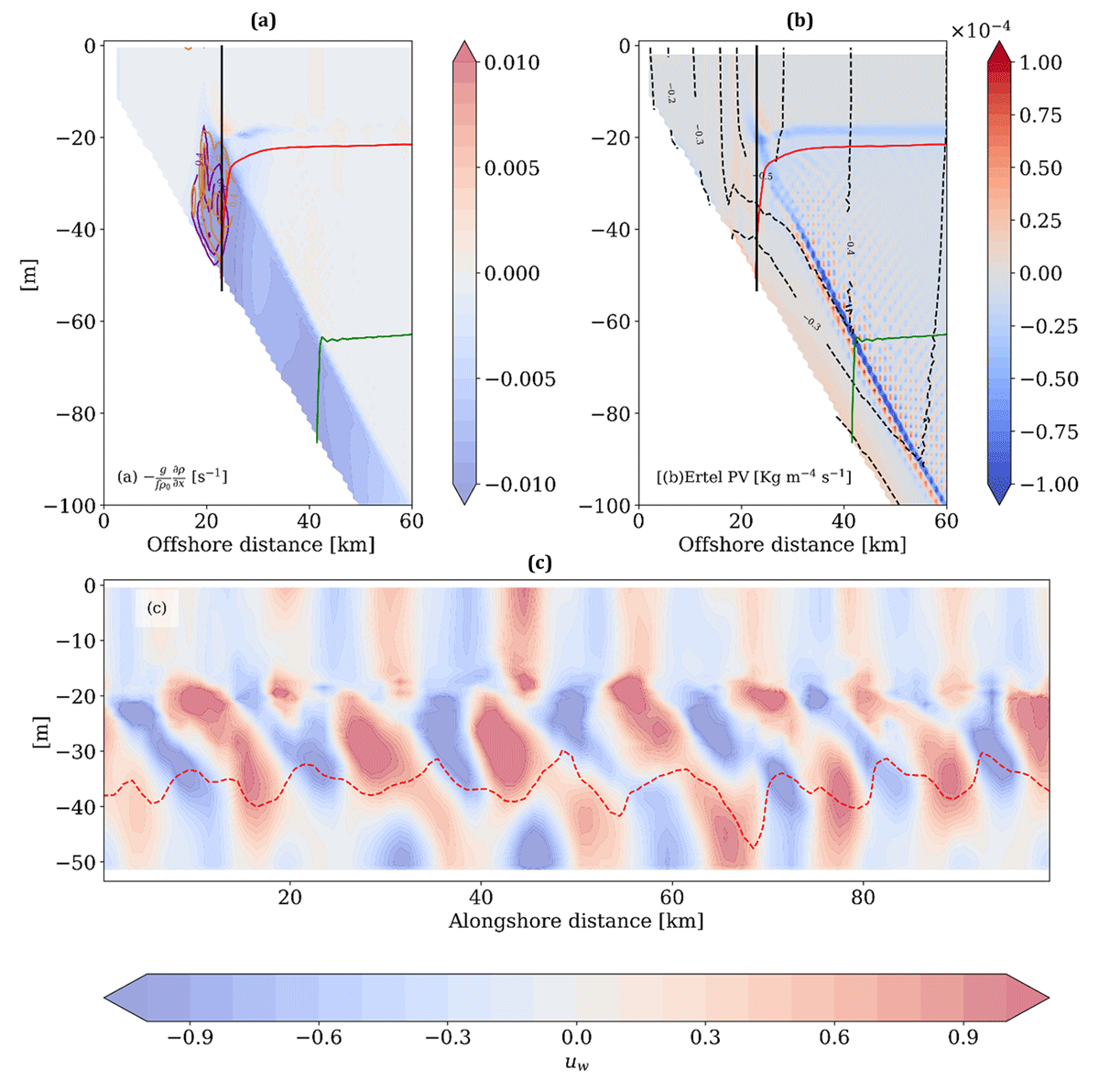

Figure 8
Same as Figure 7 but for DOWNSLOPE, summer, ti = 18.

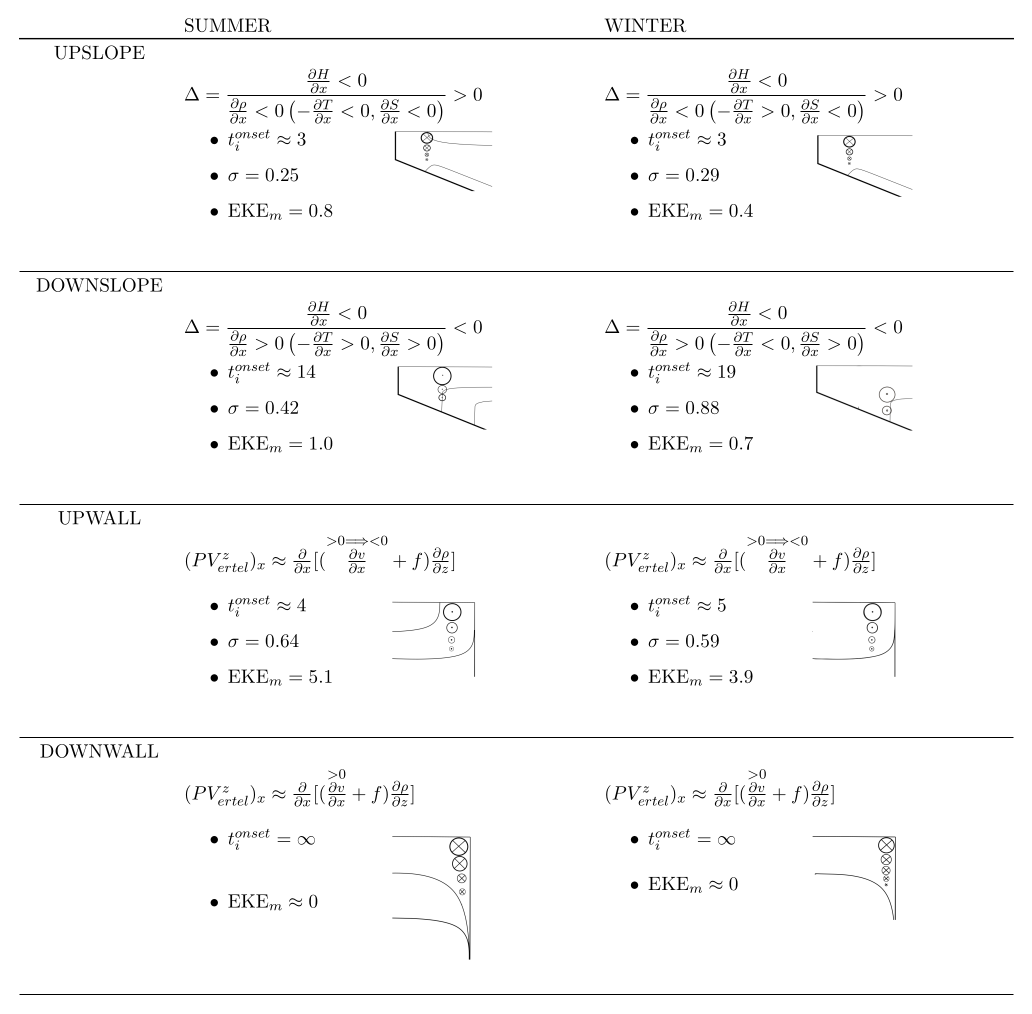

Corrected Caption Figure 4
A schematic summary of the instability diagnostics for the different model configurations. EKE is given in 10–6 m2 s–2. Growth rate in day–1. See text for details. Signs in the brackets in the bottom two rows (PV gradient condition) refer to the sign of the cross-shore PV gradient.
