Ultrasonographic inferior vena cava collapsibility and distensibility indices for detecting the volume status of critically ill pediatric patients Cover

Ultrasonographic inferior vena cava collapsibility and distensibility indices for detecting the volume status of critically ill pediatric patients

Journal of Ultrasonography
Volume 20 (2020): Issue 82 (January 2020)
By: Dincer Yildizdas and  Nagehan Aslan
Open Access
|Sep 2020

Figures & Tables

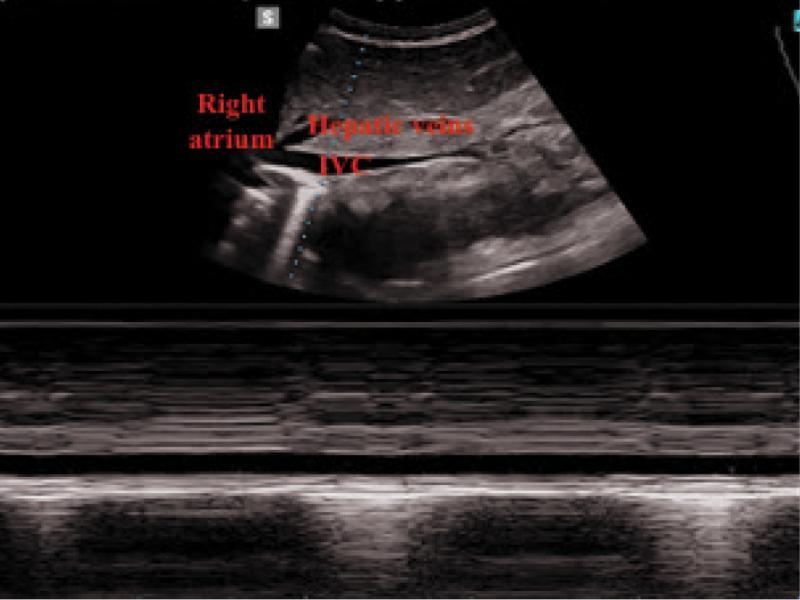

Fig. 1.

M-Mode images of the inferior vena cava draining into the right atrium
M-Mode images of the inferior vena cava draining into the right atrium

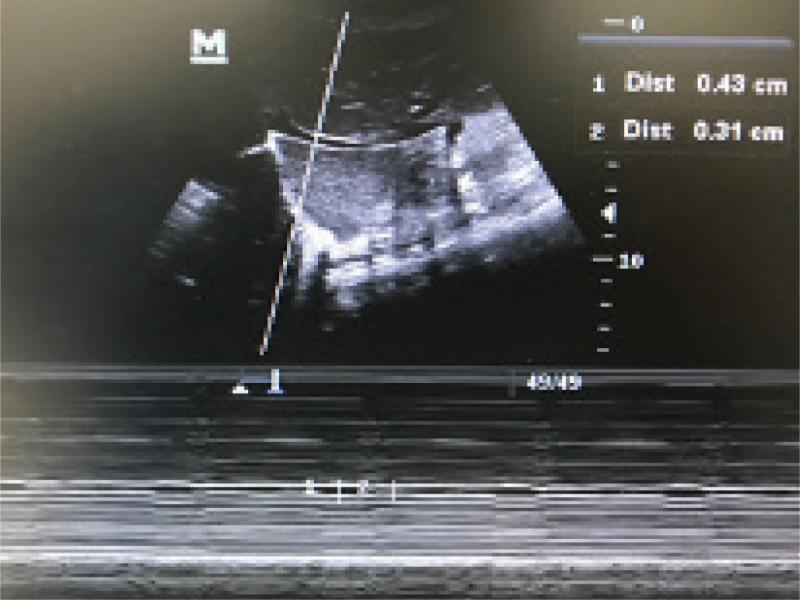

Fig. 2.

Maximum and minimum diameter measurements of the inferior vena cava on breathing circulation IVC
Maximum and minimum diameter measurements of the inferior vena cava on breathing circulation IVC

The aim, formulas, benefits and question marks for the IVC collapsibility index and the IVC distensibility index

IVC collabsibility index IVC distensibility index
Aim Volume status assessment in spontaneously breathing patientsVolume status assessment in mechanically ventilated patients
Method IVC images are acquired in the sagittal section.Images of the IVC draining into the right atrium are obtained while the probe is in the subxiphoid area and the liver is taken in the acoustic window.
Minimum IVC diameter on inspiration and maximum IVC diameter on expiration are measured.Maximum IVC diameter on inspiration and minimum IVC diameter on expiration are measured.
Formula (Maximum diameter on expiration – minimum diameter on inspiration)Maximum diameter on expirationMaximum diameter on inspiration – minimum diameter on expirationMinimum diameter on expiration
Benefits Quick, non-invasive, easy, repeatable, trustworthy and objective method for volume status evaluation17
Question marks There are no well-determined limits for the IVC collapsibility index and distensibility index in the pediatric age group in the published literature.Pediatric intensivists still use limitations described for adult patients for managing fluid therapy (for IVC collapsibility index >50%, for IVC distensibility index >18%).Further studies on large groups of critically ill pediatric patients could help to determine ultrasonographically measured pediatric IVC index limits
IVC: Inferior vena cava
DOI: https://doi.org/10.15557/jou.2020.0034 | Journal eISSN: 2451-070X | Journal ISSN: 2084-8404
Journal RSS Feed
Language: English
Page range: 205 - 209
Submitted on: Apr 25, 2019
Accepted on: Jul 13, 2020
Published on: Sep 28, 2020
Published by: MEDICAL COMMUNICATIONS Sp. z o.o.
In partnership with: Paradigm Publishing Services
Publication frequency: 4 issues per year
Keywords:
inferior vena cava,
pediatric,
point-of-care ultrasound,
volume status
