Prognosis estimation under the light of metabolic tumor parameters on initial FDG-PET/CT in patients with primary extranodal lymphoma

Patient no	Age	Gender	Histology	Organ	Presentation site	Rec/Met	Ex	SUV max	SUV mean	MTV	TLG	DFS	OS
1	52	M	DLBC	GIS	Colon	-	-	7.6	4.5	12.5	56.3	44	44
2	75	M	DLBC	GIS	Stomach	-	-	26.9	15.2	1212	18422	40	40
3	45	M	DLBC	GIS	Pancreas	+	+	20	13.1	113	1483	10	18
4	65	M	DLBC	GIS	Jejunum	-	-	10	4.5	7	31.3	67	67
5	52	F	DLBC	GIS	Colon	+	-	8.6	5.8	37.3	216.4	23	143
6	72	F	DLBC	GIS	Stomach	+	+	27.4	18.1	29.9	541.3	8	26
7	69	M	MC	GIS	Stomach	-	+	10	5.2	70.1	367.6	35	35
8	64	F	MALT	GIS	Stomach	-	-	5.1	2.6	57	148.2	63	63
9	52	F	DLBC	GIS	Rectum	+	-	14.8	7.1	13.7	97.7	4	39
10	82	M	DLBC	GIS	Stomach	-	+	15	8.8	90.1	792.8	48	48
11	50	M	DLBC	GIS	Ileum	-	-	6.1	4.4	35.2	154.8	27	27
12	25	M	MALT	GIS	Duodenum	-	-	6.6	4.1	30.8	126.3	122	122
13	47	M	DLBC	GIS	Stomach	-	-	9.9	5.7	96	547.2	111	111
14	65	F	MALT	GIS	Stomach	-	-	10.1	6	135.2	811.2	88	88
15	62	M	MC	GIS	Jejunum	-	-	5.2	3.1	29	89.9	40	40
16	80	F	DLBC	GIS	Stomach	-	-	5.2	2.85	10	28.5	59	59
17	35	M	DLBC	GIS	Stomach	-	-	39.9	21.1	144	3037	17	17
18	87	M	T cell	GIS	Colon	-	-	7.2	4	14.3	57.2	5	5
19	33	M	MALT	GIS	Stomach	-	-	3.2	2	17.9	36.5	34	34
20	57	M	MALT	GIS	Ileum	-	-	7.6	4	18.2	72.8	61	61
21	61	F	DLBC	GIS	Stomach	-	+	20.1	11.15	32.1	358.2	70	70
22	56	M	DLBC	GIS	Stomach	-	+	15.1	8.3	50.5	419.1	123	123
23	49	M	MALT	GIS	Stomach	-	-	3.45	2.8	8.5	23.75	57	57
24	77	M	MALT	GIS	Stomach	-	-	2.9	2.7	7.9	21.25	160	160
25	21	M	Burkitt	GIS	Colon	+	-	10.6	5.2	468	2423	7	32
26	60	M	DLBC	Testis	L;R testicle	+	-	14.8	8.1	98	793.8	21	34
27	53	M	DLBC	Testis	L testicle	-	-	6.5	4	124	496	50	50
28	66	M	DLBC	Testis	L testicle	-	-	7.2	3.8	45	171	101	101
29	68	M	DLBC	Testis	R testicle	+	+	6.9	4.5	143	643.5	16	26
30	67	M	DLBC	Testis	L testicle	+	+	7.8	4.3	112.5	483.7	24	88
31	2	M	Burkitt	Testis	R testicle	-	-	7.5	3.8	33	125.4	42	42
32	21	M	DLBC	Testis	L testicle	+	+	8.6	5.7	128	729.6	9	12
33	57	M	DLBC	Testis	L testicle	+	+	9.5	6.2	77	477.4	35	47
34	56	F	DLBC	CNS	Corpus callosum	+	+	19.2	10.4	43.9	456.4	8	58
35	31	M	DLBC	CNS	Occipital lobe	+	+	9.8	6.5	36.3	236	6	27
36	52	F	MALT	CNS	R orbit	-	-	3.1	2	5.6	11.2	119	119
37	49	M	DLBC	CNS	Frontoparietal lobe;cerebellum	+	+	16.2	8.9	183	1628.7	6	9
38	66	F	DLBC	CNS	Parietooccipital lobe	+	-	9.8	7.2	30.2	217.2	9	30
39	64	M	MC	CNS	R orbit	+	-	3.7	2.9	2.6	7.45	19	38
40	40	F	DLBC	CNS	Cerebellum	+	-	17.5	10.5	10	105	3	7
41	66	M	MALT	CNS	R orbit	-	-	5.8	3.8	1.95	7.4	33	33
42	45	M	DLBC	CNS	Occipital lobe; cerebellum	+	+	22.3	12.4	63.3	782.2	3	3
43	60	M	MALT	CNS	L orbit	-	-	7.1	4.5	2.6	11.8	36	36
44	34	F	DLBC	CNS	Cerebellum; lateral ventricle	+	+	15.6	8.2	21.8	180.1	9	11
45	50	F	DLBC	Bone	Sacrum	-	-	29.1	13.3	218	2896	34	34
46	45	F	DLBC	Bone	Maxilla	+	+	12.2	6.9	29	200.1	18	24
47	85	M	T cell	Bone	Maxilla	+	-	10.5	6.2	14	88	43	95
48	53	F	DLBC	Bone	Mandible	-	-	6.4	3.5	8.2	28.4	64	64
49	69	M	DLBC	Bone	Ethmoid bone	-	-	7.2	5.1	23	117.3	76	76
50	66	M	DLBC	Bone	Distal femur	-	+	8.5	6.4	13	83.2	43	43
51	69	F	DLBC	Bone	Sacrum	-	+	13.6	7.9	190	1501	93	93
52	49	M	DLBC	Bone	Sphenoid bone	-	-	5.7	3.2	61.4	196.5	129	129
53	43	F	DLBC	Bone	T11 vertebrae	-	-	7.2	4.8	8.2	39.4	59	59
54	49	M	DLBC	Bone	Mandible	-	-	13.2	7.5	17.2	129	119	119
55	15	F	DLBC	Bone	Ilium;sacrum	-	-	6.8	4.3	39.2	168.6	114	114
56	27	M	DLBC	Bone	Sphenoid bone	+	-	9.1	5.6	22	123.2	36	123
57	23	M	DLBC	Bone	Iliac bone	-	-	9.7	6.1	43.5	265.4	31	31
58	23	M	T cell	HN	Nose	+	+	9.1	5.7	38.2	217.7	13	35
59	42	M	DLBC	HN	Nasopharynx	-	-	7.1	3.9	9	35.1	100	100
60	39	F	DLBC	HN	Velum (palatum molle)	-	-	18.6	10.2	20	203	41	41
61	41	M	Burkitt	HN	Gum	+	+	16.6	8.5	18.6	158.1	16	23
62	54	M	MC	HN	Nasopharynx	-	-	7.9	4.4	5	22	127	127
63	75	M	T cell	HN	Parotid gland	+	+	10.2	6.6	27.6	182.2	13	29
64	53	M	T cell	HN	Nose	-	-	11.2	6.4	8.3	53.1	133	133
65	41	F	Burkitt	Breast	R breast	+	-	42	14.5	108	1555	10	63
66	36	M	MALT	Lung	L lung	-	-	3.8	2.3	7.75	17.7	50	50
67	48	M	MALT	Lung	R lung	-	-	6.4	3.95	109.9	431.8	53	53

CNS = Central Nervous System; DLBC = Diffuse Large B Cell; GIS = Gastrointestinal System; HN = Head and Neck; F = Female; M = Male; MALT = Mucosa-associated Lymphoid Tissue; MC = Mantle Cell; L = Left; R = Right; Rec = Recurrence

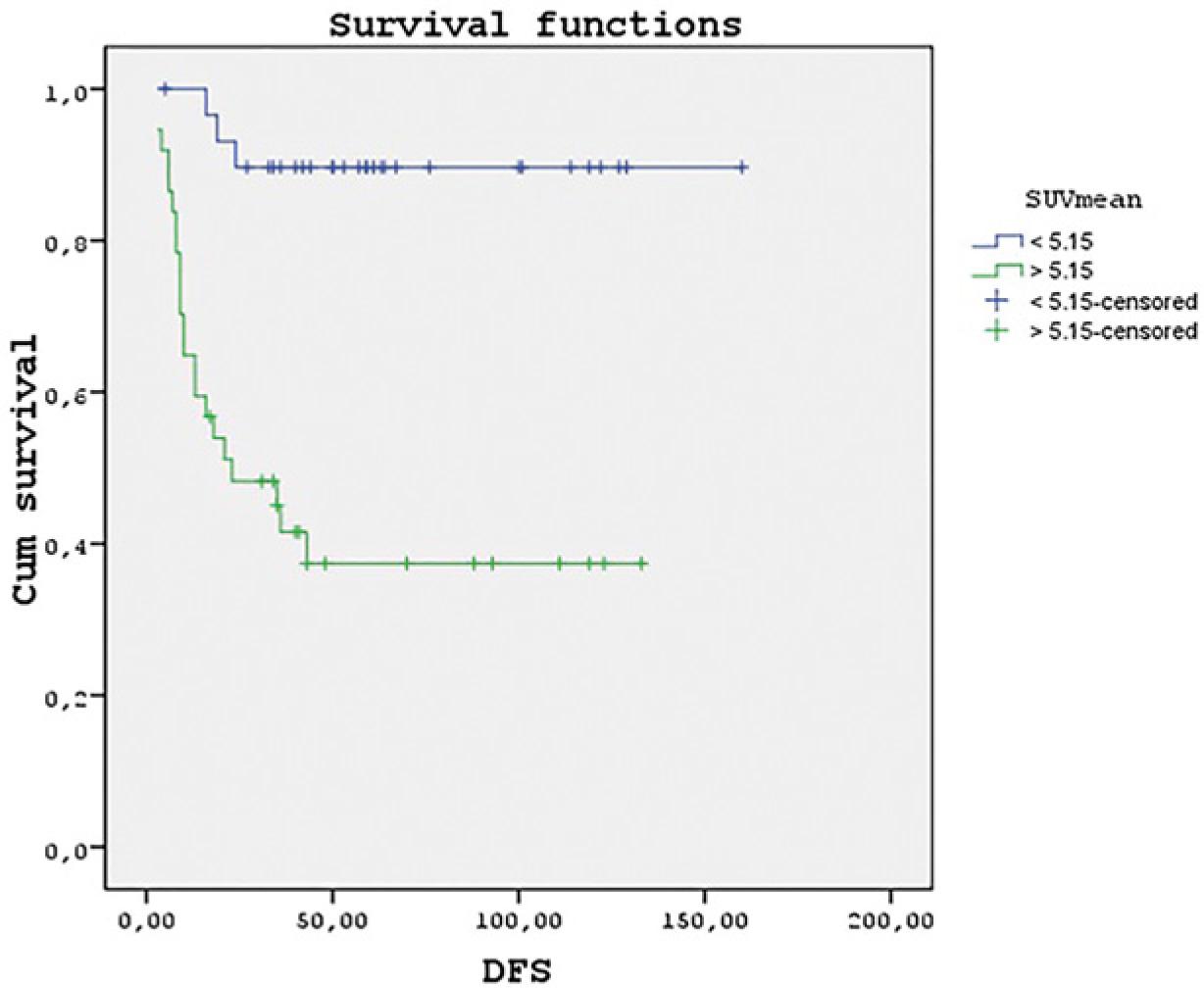

Kaplan-Meier curve of SUVmean with a cut-off value of 5.15.

Table 2

Univariate Cox regression analysis.

Factors	Significance (p value)	Hazard Ratio	95% CI for Hazard Ratio
Factors	Significance (p value)	Hazard Ratio	Lower	Upper
Sex*	0.363	0.495	0.108	2.254
Age	0.080	0.971	0.939	1,004
DLBC**	0.265		Reference
Mantle Cell	0.672	0.550	0.034	8.783
T Cell	0.038	10.535	1.135	97.758
Burkitt	0.720	1.535	0.147	15.982
MALT	0.962	0.000	0.000	-
GIS***	0.000		Reference
Testis	0.163	3.503	0,602	20.378
CNS	0.000	216.611	20.786	2257.305
Bone	0.898	1.135	0.165	7.818
Head and
neck	0.916	0.879	0.080	9.709
Lungs	0.999	3.422	0.000	-
SUVmax	0.032	0.680	0.478	0.968
SUVmean	0.000	3.630	1.791	7.355
MTV	0.001	1,035	1.015	1.056
TLG	0.011	0.996	0.993	0.999

Reference groups: *male sex, **DLBC,***GIS

Table 3

Multivariate Cox regression analysis.

Factors	Significance (p value)	Hazard Ratio	95% CI for Hazard Ratio
Factors	Significance (p value)	Hazard Ratio	Lower	Upper
SUVmean	0.000	1.418	1.226	1.640
MTV	0.000	1.020	1.009	1.031
TLG	0.002	0.998	0.996	0.999

Table 4

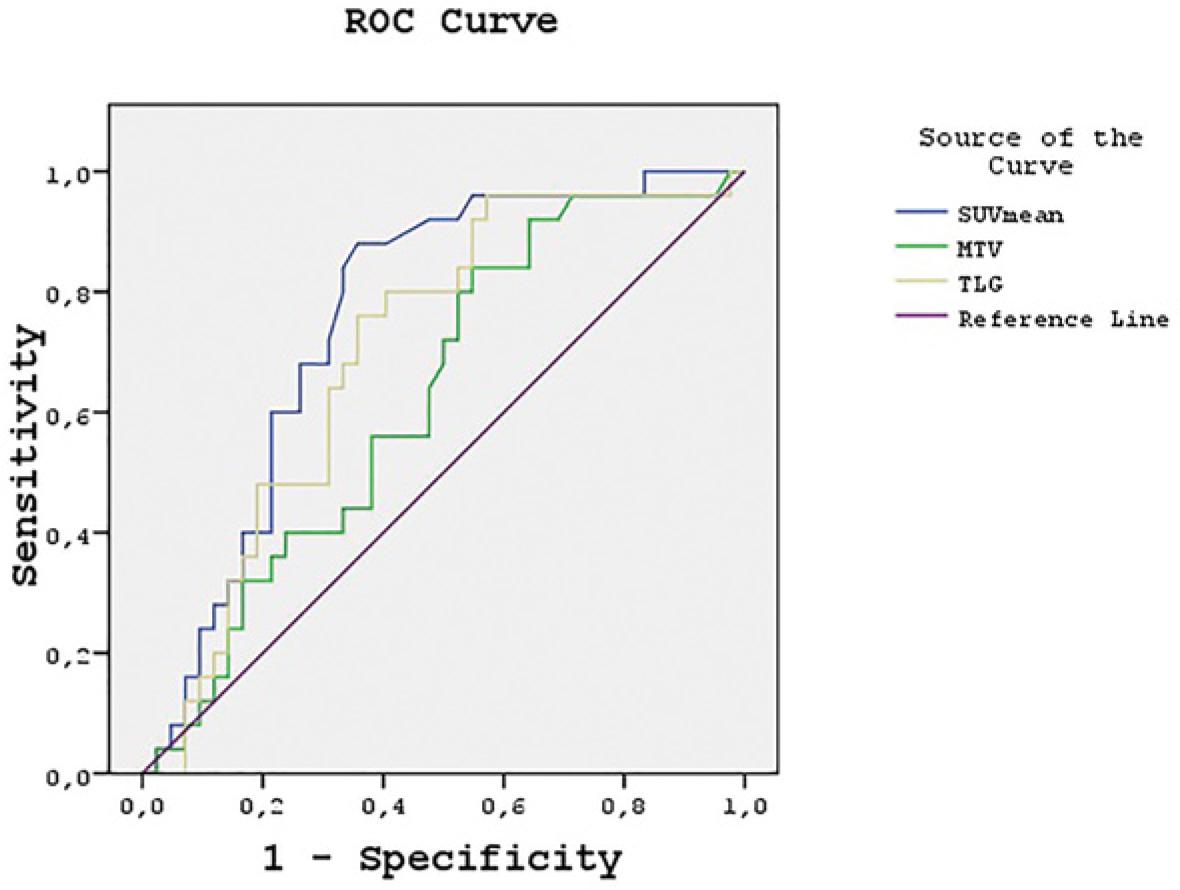

Cut-off values, sensitivity, specificity of SUVmean, MTV and TLG.

Factors	Cut-off Value	Sensitivity (%)	Specificity (%)
SUVmean	5.15	88	64
MTV (cm³)	18.4	84	45
TLG	175.55	76	64

There was a mass in antrum of stomach on transaxial CT **(A)**, PET **(B)**, fusion **(C)** and MIP images **(D)** (arrows) of a 60-year old female patient with primary gastric lymphoma of DLBC type. She had metabolic tumor parameters of SUVmax: 11, SUVmean: 5, MTV:34 cm³, TLG:150. Her outcome was excellent with a DFS and OS of 111 months.

61-year old female patient was diagnosed with primary CNS lymphoma of DLBC type. There was a mass in right periventricular region adjacent to right thalamus on transaxial PET **(A)**, CT **(B)** and fusion **(C)** images (arrows). She was in serious risk because of her high metabolic tumor parameters (SUVmax: 35, SUVmean: 25, MTV: 425 cm³, TLG: 2543) and died of the disease 11 months after the diagnosis.
