Investigation on nonlinear optical and dielectric properties of L-arginine doped ZTC crystal to explore photonic device applications Cover

Investigation on nonlinear optical and dielectric properties of L-arginine doped ZTC crystal to explore photonic device applications

Materials Science-Poland
Volume 34 (2016): Issue 3 (September 2016)
By: ,  ,   and
Open Access
|Sep 2016
Figures & tables

Figures & Tables

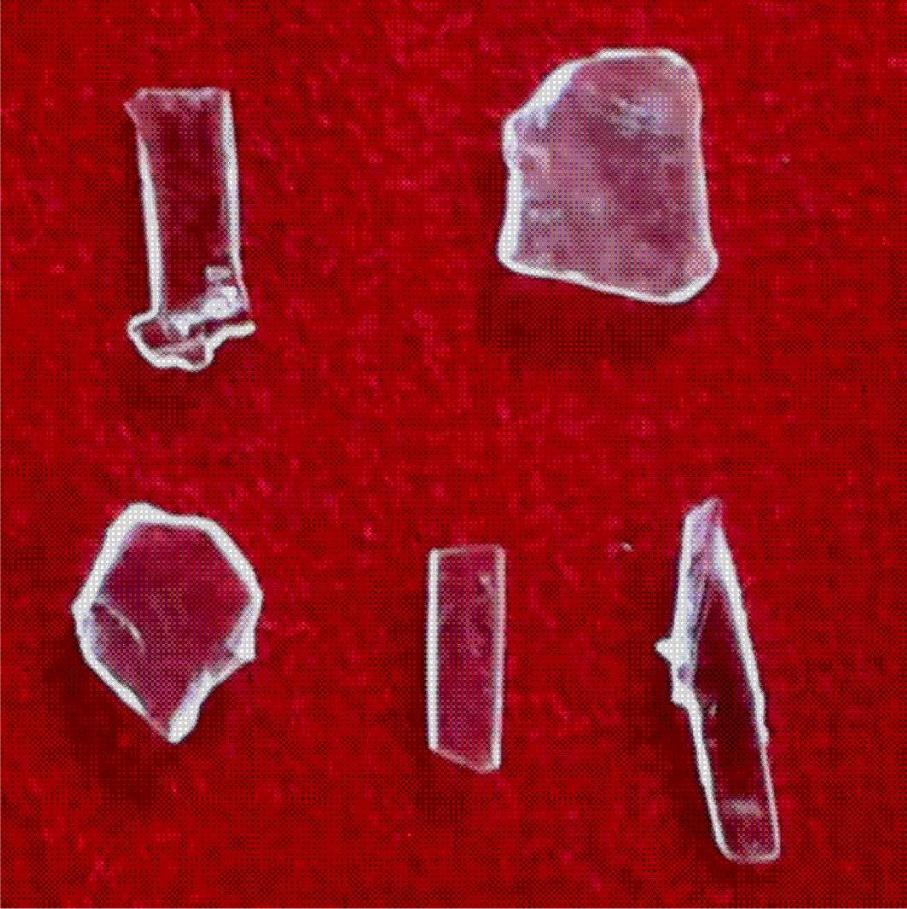

Fig. 1

Photograph of LA-ZTC crystals.

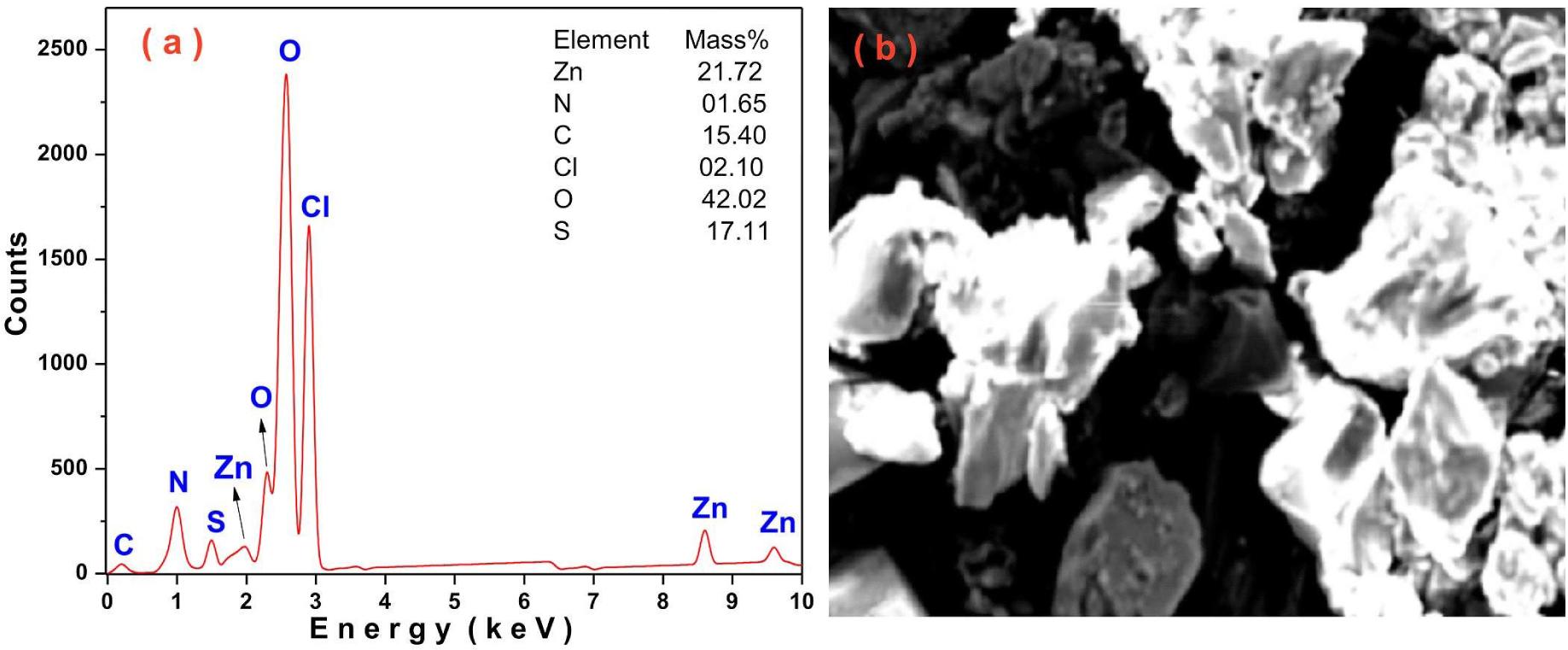

Fig. 2

(a) EDS spectrum of LA-ZTC crystal, (b) SEM micrograph of LA-ZTC crystal.

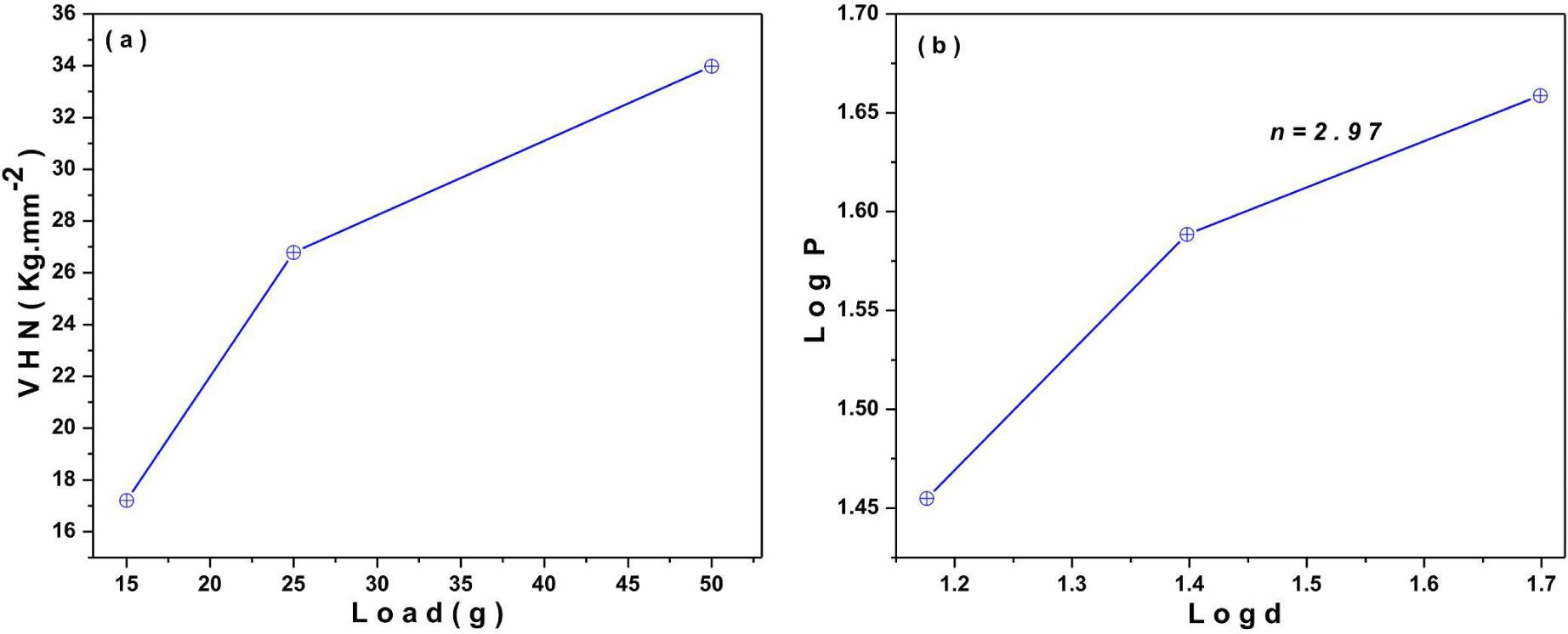

Fig. 3

(a) Load dependent hardness (b) logP vs. logd.

Table 1

Hardness parameters of LA-ZTC crystal.

Load [g]VHN [kG/mm2]C11 [GPa]σy [Pa]
1517.22.49 × 1056020510
2526.795.41 × 1059377294
5033.988.20 × 10511894007

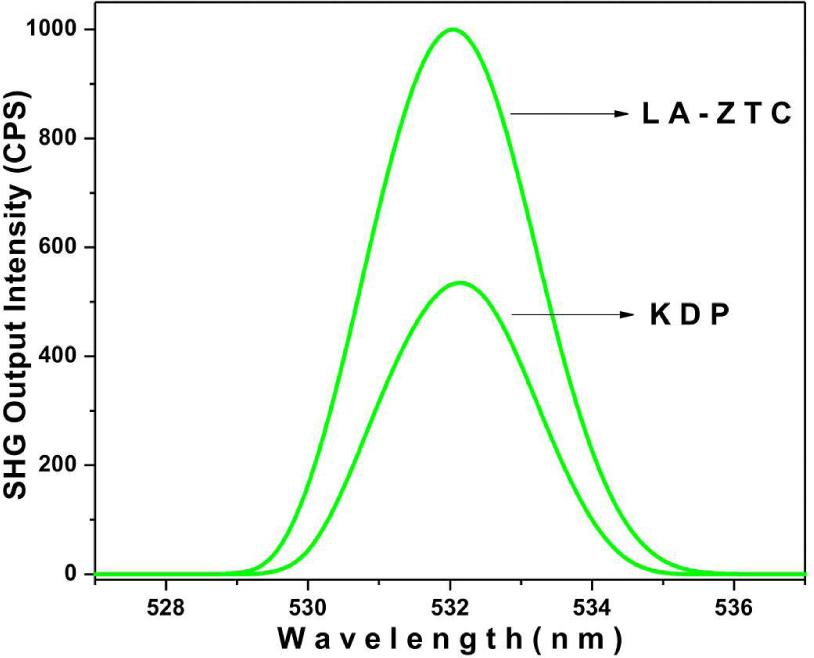

Fig. 4

Plot of SHG output intensity.

Table 2

Optical resolution of Z-scan setup.

ParametersMagnitude
Laser wavelength (λ)632.8 nm
Laser power (P)10 mW
Lens focal length (f)20 cm
Optical path distance (Z)113 cm
Beam waist radius (ωa1 mm
Aperture radius (ra)1.5 mm
Incident intensity at the focus (Io)2.3375 KW/m2

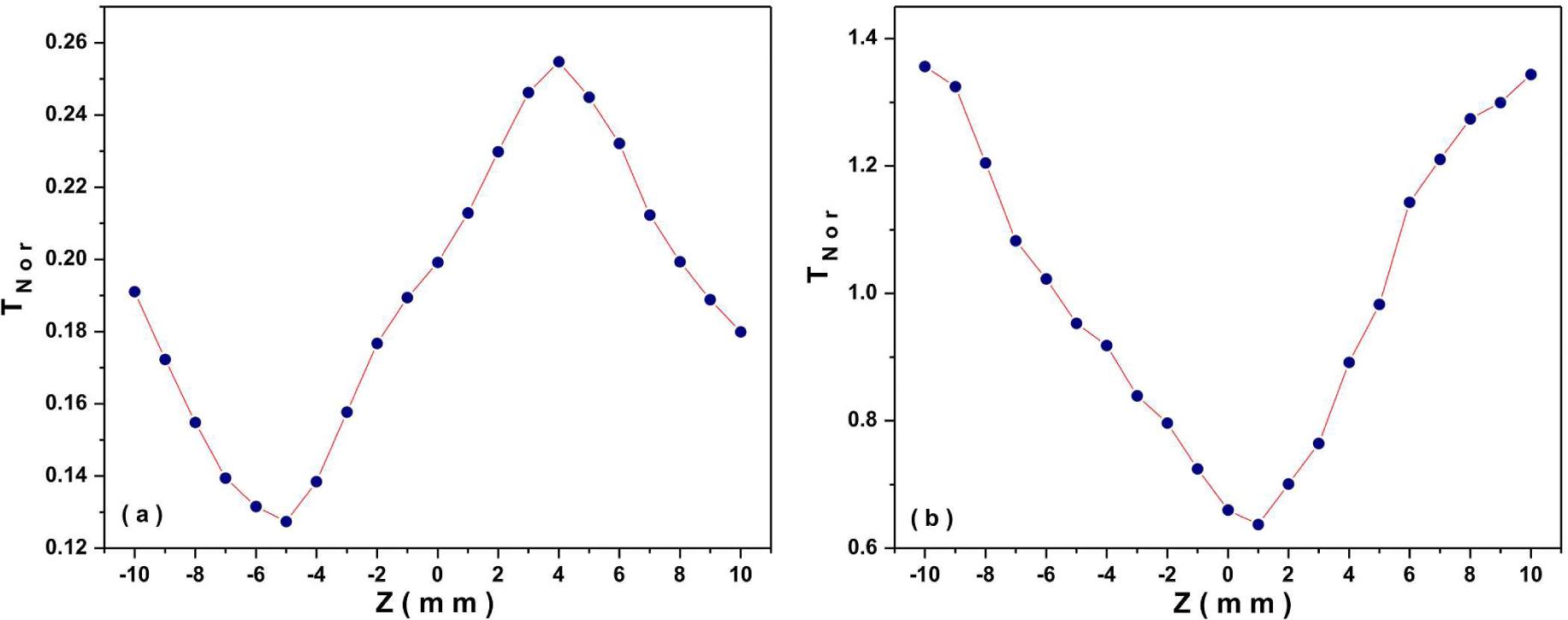

Fig. 5

Z-scan transmittance curve with (a) closed and (b) open aperture.

Table 3

TONLO parameters of LA-ZTC crystal.

Crystaln2 [cm2/W]β [cm/W]χ3 [esu]
LA-ZTC**4.45 × 10−98.2 × 10−42.43 × 10−3
ZTC [24]−6.64 × 10−8−7.25 × 10−33.6 × 10−6
α—LiIO3 [25]5.46 × 10−73.951.63 × 10−3

** Present study

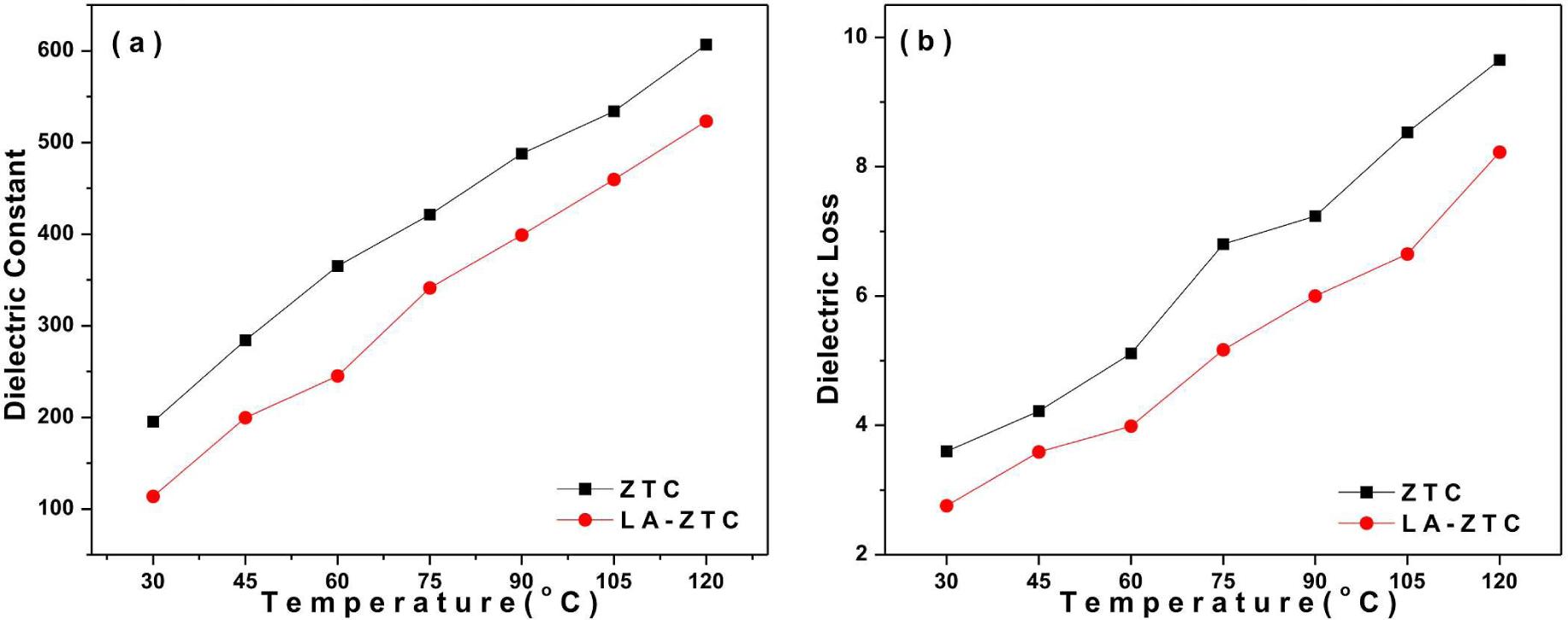

Fig. 6

Temperature dependent (a) dielectric constant, (b) dielectric loss.

DOI: https://doi.org/10.1515/msp-2016-0070 | Journal eISSN: 2083-134X (formerly 2083-124X) | Journal ISSN: 2083-1331
Journal RSS Feed
Language: English
Page range: 548 - 554
Submitted on: Oct 25, 2015
Accepted on: May 27, 2016
Published on: Sep 12, 2016
Published by: Wroclaw University of Science and Technology
In partnership with: Paradigm Publishing Services
Keywords:
crystal growth,
spectroscopic studies,
microhardness studies,
SHG efficiency test,
Z-scan analysis,
dielectric studies
