Water foodprint (WF) (green, blue and total) and ET of main crops depending on the three soil types in Marchfeld, (ET= actual evapotranspiration during the crop growing period)Tabelle 2_ Wasser-Fußabdruck (WF) (grün, blau und Summe) und ET der wichtigsten Nutzpflanzen in Abhängigkeit der drei Bodenklassen in der Region Marchfeld, (ET= aktuelle Evapotranspiration während der Vegetationsperiode)
| Soil 1 | Green WF | Blue WF | Total WF | ET |
|---|---|---|---|---|
| m3/kg | m3/kg | m3/kg | mm | |
| Grain maize | 0.74 | 0.24 | 0.98 | 429.1 |
| Potatoes | 0.21 | 0.18 | 0.39 | 481.1 |
| Spring barley | 0.29 | 0.17 | 0.46 | 308.8 |
| Sugar beet | 0.20 | 0.16 | 0.36 | 515.0 |
| Sunflower | 0.84 | 0.51 | 1.35 | 464.4 |
| Winter wheat | 0.49 | 0.29 | 0.78 | 588.6 |
| Soil 2 | ||||
| Grain maize | 0.58 | 0.17 | 0.75 | 469.2 |
| Potatoes | 0.22 | 0.17 | 0.39 | 481.7 |
| Spring barley | 0.27 | 0.20 | 0.47 | 356.8 |
| Sugar beet | 0.21 | 0.15 | 0.36 | 512.3 |
| Sunflower | 0.93 | 0.35 | 1.28 | 434.2 |
| Winter wheat | 0.52 | 0.26 | 0.78 | 589.2 |
| Soil 3 | ||||
| Grain maize | 0.52 | 0.18 | 0.70 | 490.1 |
| Potatoes | 0.22 | 0.17 | 0.39 | 482.3 |
| Spring barley | 0.27 | 0.20 | 0.47 | 359.5 |
| Sugar beet | 0.21 | 0.15 | 0.36 | 514.0 |
| Sunflower | 0.94 | 0.35 | 1.29 | 436.8 |
| Winter wheat | 0.53 | 0.26 | 0.79 | 589.9 |

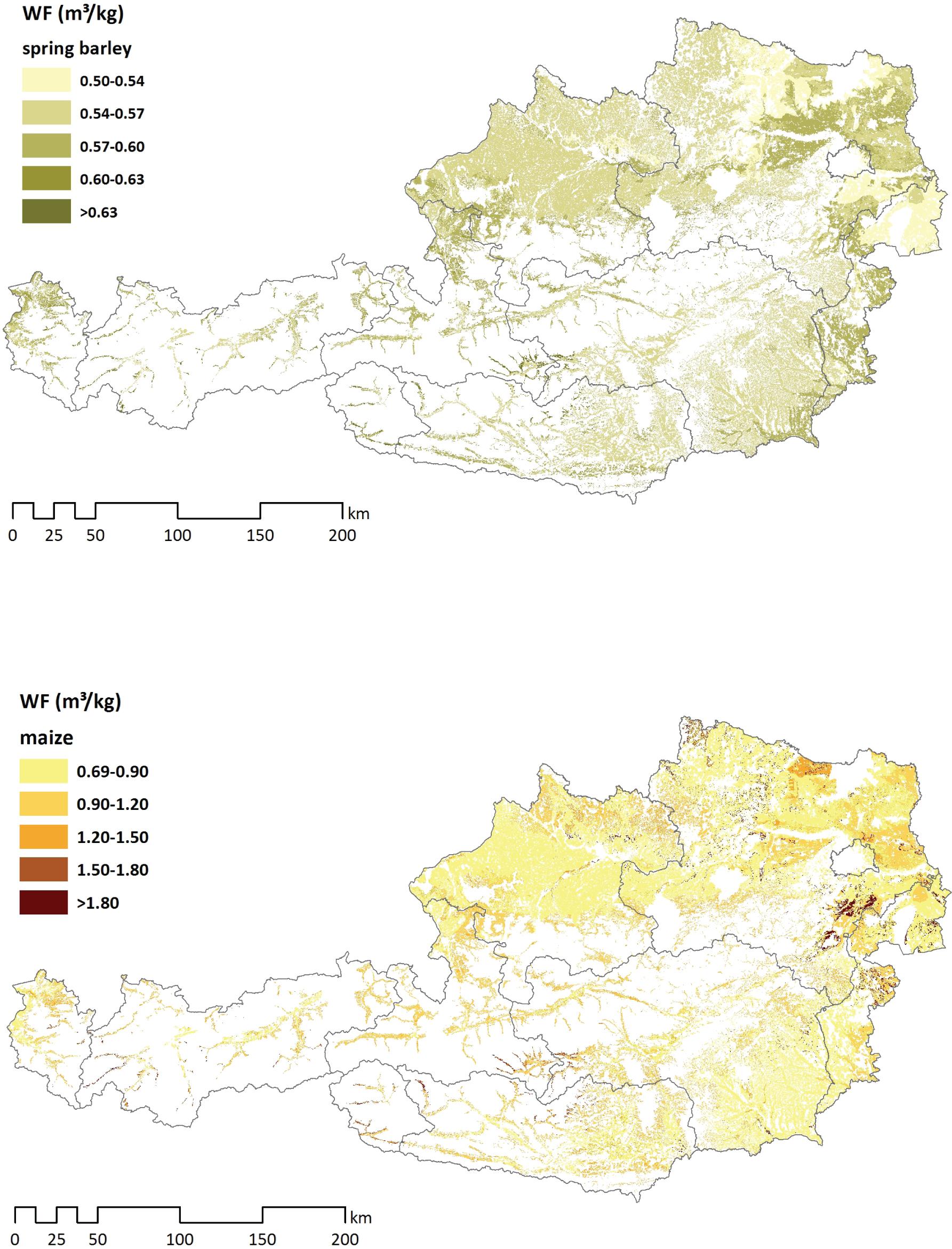

Austrian green water footprint (WF) for spring barley and grain maize classified by annual mean temperature and precipitation sums for three soil types (means for 1992-2012)Tabelle 3_ Österreichischer grüner Wasser-Fußabdruck (WF) für Sommergerste und Körnermais gruppiert nach jährlicher mittleren Temperatur und Niederschlagssumme für die drei Bodenklassen (Mittelwerte für 1992-2012)
| temperature (°C) | percentage of arable land area | spring barley | grain maize | precipitation (mm) | percentage of arable land area | spring barley | grain maize |
|---|---|---|---|---|---|---|---|
| Soil 1 | |||||||
| <5°C | 2.7% | 0.71 | 2.90 | >500 | 0.4% | 0.55 | 6.53 |
| 5°-6°C | 14.5% | 0.60 | 1.39 | 500-600 | 10.9% | 0.54 | 4.35 |
| 6°-7°C | 26.7% | 0.59 | 1.33 | 600-700 | 12.3% | 0.55 | 2.50 |
| 7°-8°C | 26% | 0.57 | 1.39 | 700-800 | 10.6% | 0.55 | 1.60 |
| 8°-9°C | 15.8% | 0.55 | 1.68 | 800-1000 | 35.6% | 0.57 | 1.39 |
| 9°-10°C | 11% | 0.56 | 4.64 | 1000-1250 | 15.3% | 0.61 | 1.32 |
| >10°C | 3.3% | 0.51 | 3.80 | <1250 | 14.9% | 0.65 | 1.33 |
| Soil 2 | |||||||
| <5°C | 0.9% | 0.68 | 1.54 | >500 | 1.6% | 0.56 | 1.19 |
| 5°-6°C | 7% | 0.57 | 1.06 | 500-600 | 21.2% | 0.55 | 0.93 |
| 6°-7°C | 15.3% | 0.57 | 0.94 | 600-700 | 16.3% | 0.56 | 0.90 |
| 7°-8°C | 21.6% | 0.56 | 0.87 | 700-800 | 12.3% | 0.55 | 0.85 |
| 8°-9°C | 27.2% | 0.55 | 0.83 | 800-1000 | 27.2% | 0.56 | 0.89 |
| 9°-10°C | 22% | 0.57 | 1.00 | 1000-1250 | 11.5% | 0.57 | 0.94 |
| >10°C | 6% | 0.53 | 0.88 | <1250 | 9.9% | 0.59 | 1.01 |
| Soil 3 | |||||||
| <5°C | 1.1% | 0.69 | 1.40 | >500 | 1.9% | 0.56 | 0.85 |
| 5°-6°C | 4.3% | 0.58 | 1.01 | 500-600 | 16.7% | 0.56 | 0.79 |
| 6°-7°C | 10.9% | 0.57 | 0.89 | 600-700 | 11.5% | 0.56 | 0.76 |
| 7°-8°C | 17.5% | 0.57 | 0.83 | 700-800 | 9.0% | 0.56 | 0.76 |
| 8°-9°C | 39.6% | 0.55 | 0.76 | 800-1000 | 36.6% | 0.56 | 0.80 |
| 9°-10°C | 23.0% | 0.58 | 0.82 | 1000-1250 | 16.9% | 0.57 | 0.87 |
| >10°C | 3.6% | 0.53 | 0.72 | <1250 | 7.5% | 0.59 | 0.94 |
Mean yield (t/ha) and Standard Deviation (SD) of the simulated crops in the Marchfeld plain from 1992-2012 for the three soil types under rainfed agricultureTabelle 1_ Mittlerer Ertrag (t/ha) und Standardabweichung (SD) der simulierten Nutzpflanzen im Marchfeld von 1992-2012 für die drei Bodenklassen im Regenfeldbau
| grain maiz | potatoes | spring barley | sugar beet | sunflower | winter wheat | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Soil 1 | Soil 2 | Soil 3 | Soil 1 | Soil 2 | Soil 3 | Soil 1 | Soil 2 | Soil 3 | Soil 1 | Soil 2 | Soil 3 | Soil 1 | Soil 2 | Soil 3 | Soil 1 | Soil 2 | Soil 3 | |
| Mean | 2.5 | 5.0 | 6.0 | 6.6 | 8.9 | 9.2 | 4.7 | 5.3 | 5.4 | 7.5 | 10.3 | 11.0 | 2.3 | 2.9 | 2.9 | 2.6 | 4.6 | 4.8 |
| SD | 1.5 | 1.6 | 1.7 | 1.5 | 0.8 | 0.7 | 1.0 | 0.8 | 0.7 | 3.3 | 1.7 | 1.3 | 0.4 | 0.1 | 0.1 | 1.5 | 0.5 | 0.5 |
