IRAK inhibitor can improve insulin sensitivity in insulin-resistant mice fed with a high-fat diet Cover

IRAK inhibitor can improve insulin sensitivity in insulin-resistant mice fed with a high-fat diet

Open Access
|Dec 2020

Figures & Tables

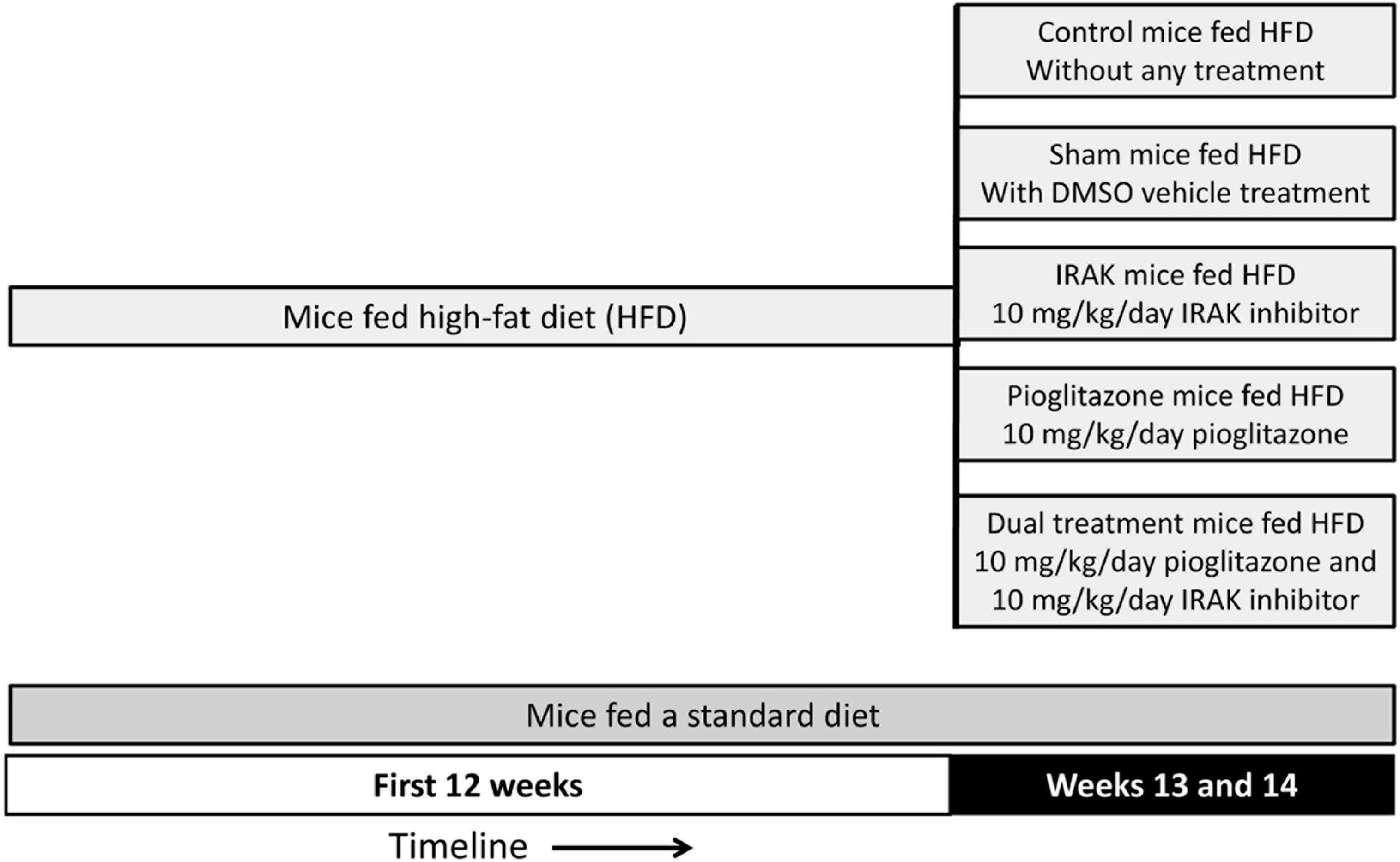

Figure 1

Timeline of treatment of the mice. Mice were treated with their respective diets for 14 weeks. They were treated with the interventional drugs or controls for the final 2 weeks ahead of final measurements.

Figure 2

(A) Weight of the mice at the beginning (light gray) and the end (dark gray) of the study. The mice were treated for 2 weeks with IRAKi, pioglitazone (Pio), or a combination of both (IRAKi+Pio). Control mice received no treatment. (B) Weight gain (n = 8 mice in each group). ***P < 0.0001 compared with the control group (high-fat diet). ###P < 0.0001 compared with the sham group (high-fat diet, DMSO vehicle control treatment). *P < 0.05 compared with the standard diet group.

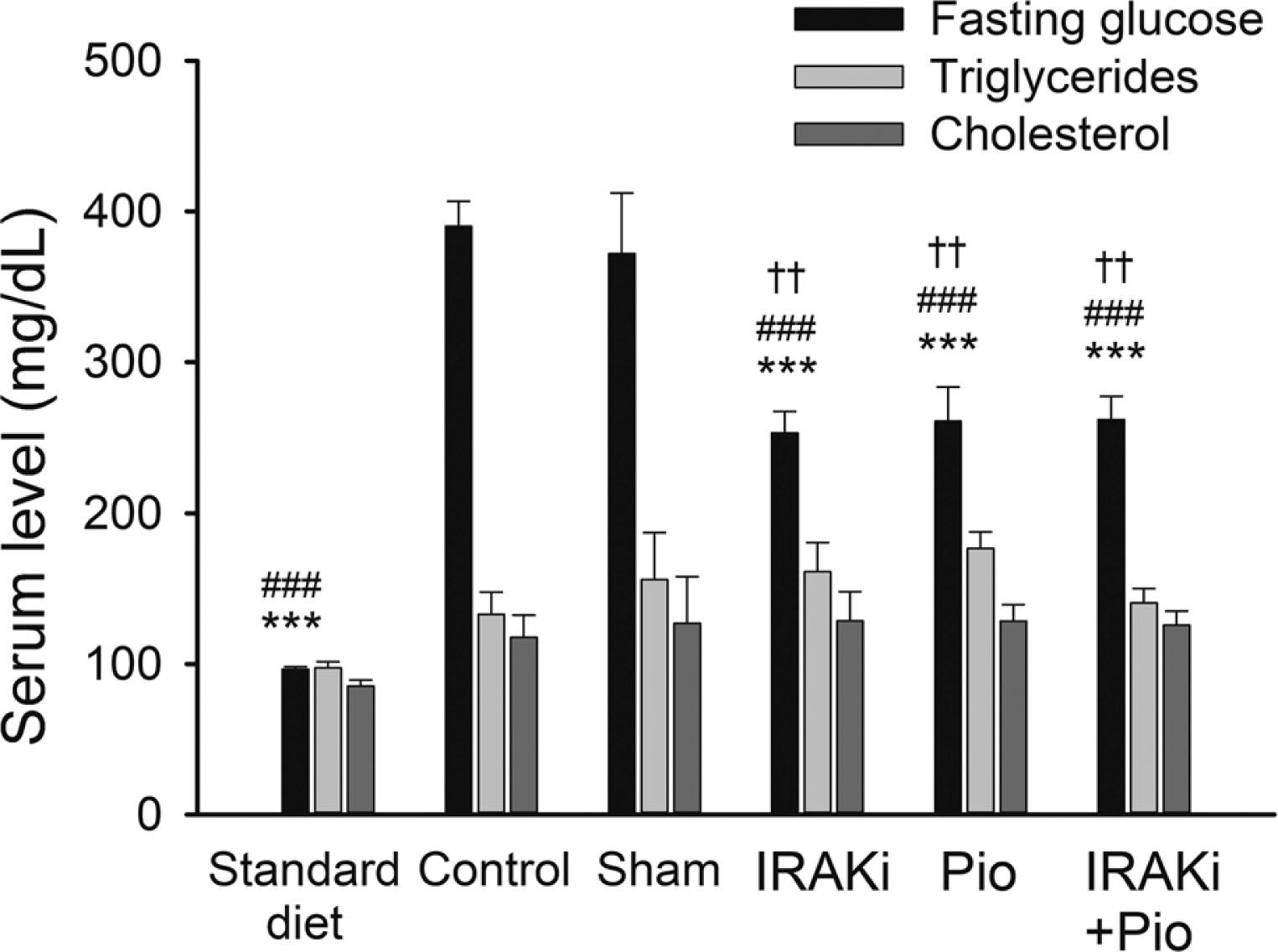

Figure 3

Serum levels of biochemical factors. Insulin resistance was developed in mice fed with the high-fat diet for 12 weeks, and then these mice were treated for 2 weeks with IRAKi, pioglitazone (Pio), or a combination of both (IRAKi+Pio). Glucose, triglyceride, and cholesterol were measured in serum of mice after 12 h fasting. **P < 0.001, ***P < 0.0001 compared with the control group. ##P < 0.001, ###P < 0.0001 compared with the sham group, ††P < 0.001 compared with the standard diet group (n = 8 mice per group).

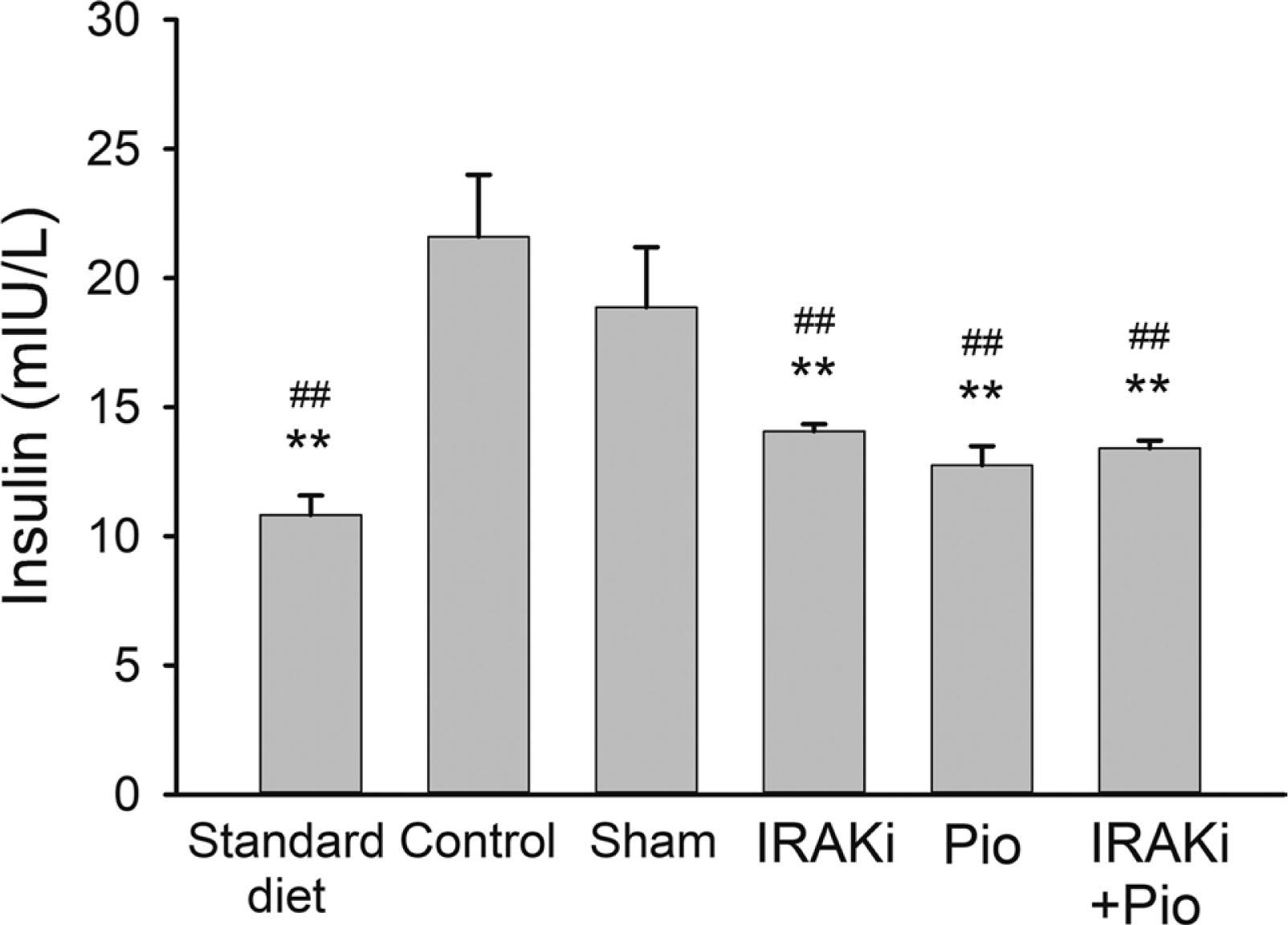

Figure 4

Serum levels of insulin in fasting mice. Insulin resistance developed in mice fed with the high-fat diet for 12 weeks, and then these mice were treated for 2 weeks with the IRAKi, pioglitazone (Pio), or a combination of both (IRAKi+Pio). Blood serum insulin was then measured after 12 h fasting. **P < 0.001 compared with the control group, ##P < 0.001 compared with the sham group (n = 8 mice per group).

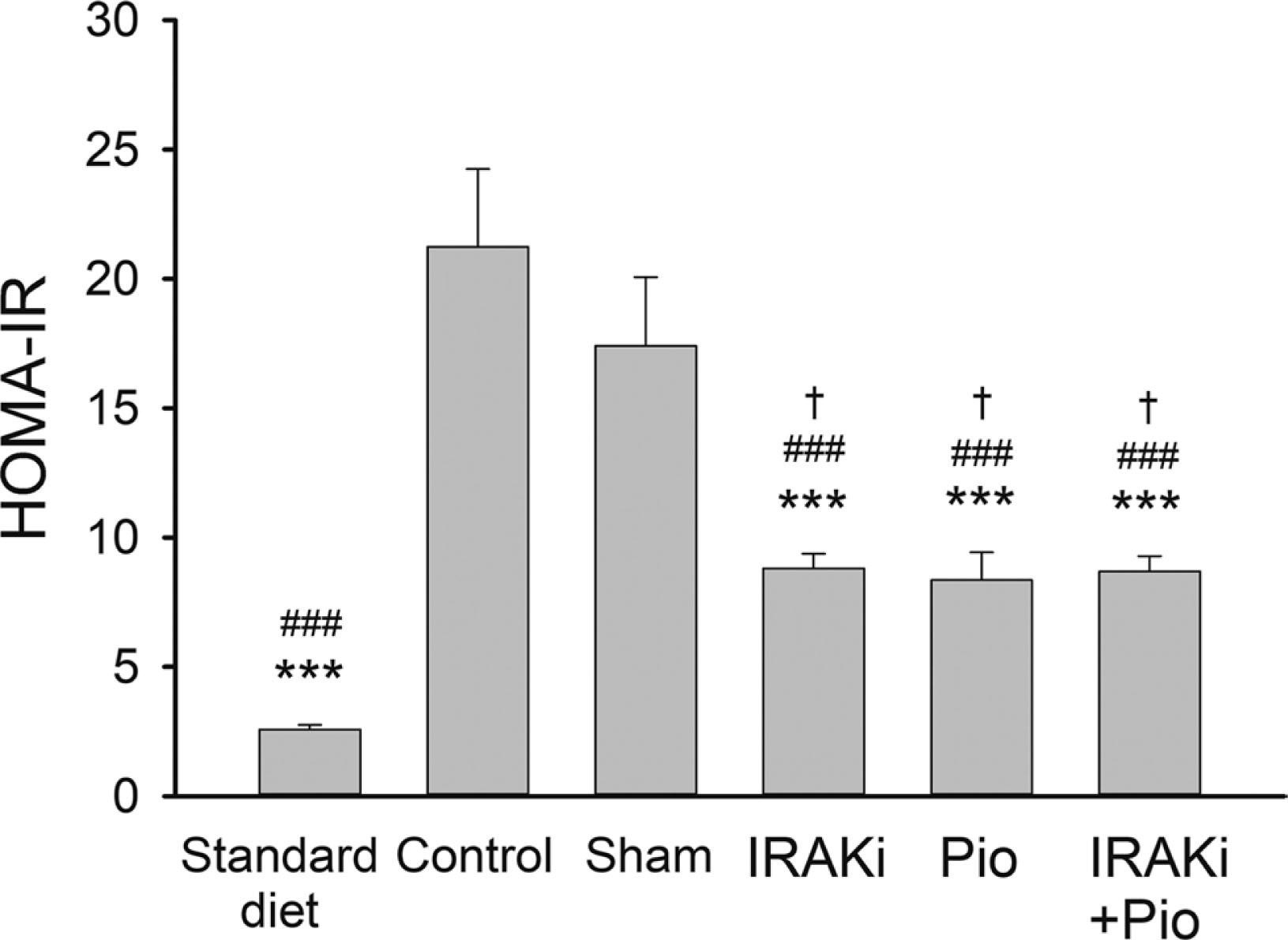

Figure 5

HOMA-IR index in mice after various treatments. Insulin resistance developed in mice fed with the high-fat diet for 12 weeks, and then these mice were treated for 2 weeks with the IRAKi, pioglitazone (Pio), or a combination of both (IRAKi+Pio). HOMA-IR was computed using a standard formula. ***P < 0.0001 compared with the control group. ###P < 0.0001 compared with the sham group. †P < 0.05 compared with the standard diet group (n = 8 mice per group).

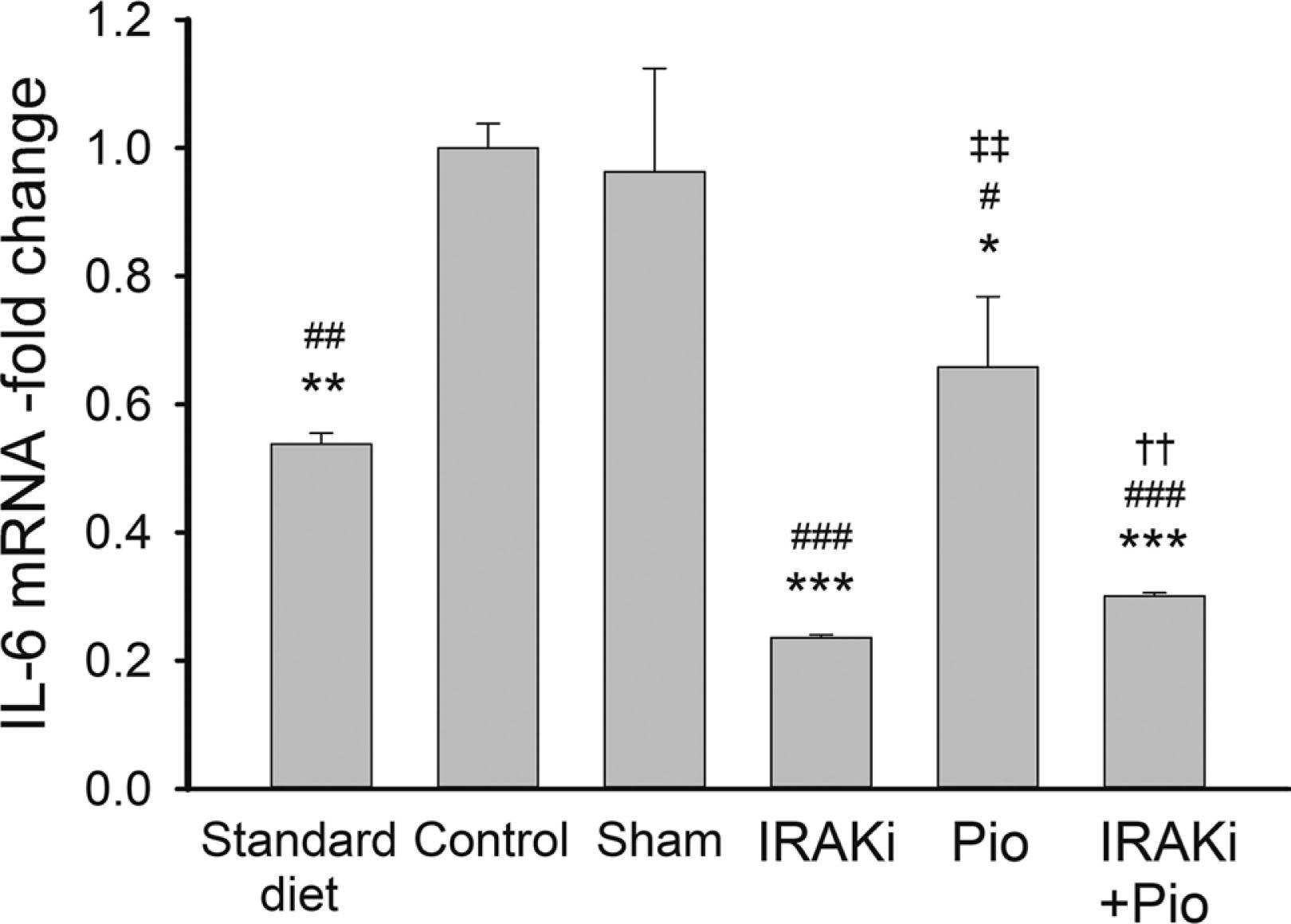

Figure 6

IL-6 mRNA copy numbers in mice after various treatments. Insulin resistance developed in mice fed with the high-fat diet for 12 weeks, and then these mice were treated for 2 weeks with the IRAKi, pioglitazone (Pio), or a combination of both (IRAKi+Pio). qPCR assayed the level of IL-6 gene expression. *P < 0.05, **P < 0.01, ***P < 0.0001 compared with the control group. #P < 0.05, ##P < 0.001, ###P < 0.0001 compared with the sham group. ††P < 0.001 compared with the standard diet group. ‡‡P < 0.001 comparing IRAKi and IRAKi/Pio groups (n = 8 mice per group).

Primer sequences for qPCR

DirectionGAPDHIL-6
Forward primer (5′–3′)CCCATCACCATCTTCCAGGAGCCCTCTGGTCTTCTGGAGTACC
Reverse primer (5′–3′)CCAGTGAGCTTCCCGTTCAGCACTCCTTCTGTGACTCCAGC
DOI: https://doi.org/10.1515/abm-2020-0034 | Journal eISSN: 1875-855X | Journal ISSN: 1905-7415
Language: English
Page range: 253 - 260
Published on: Dec 31, 2020
In partnership with: Paradigm Publishing Services
Publication frequency: 6 issues per year

© 2020 Mostafa Allahyari, Athena Rajaie, Hossein Fallah, published by Chulalongkorn University
This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
