Fig. 1.
Fig. 2.
Fig. 3.
Fig. 4.
Fig. 5.
Compatibility of greenery with the 3-30-300 rule in Wolsztyn city_
| No. | Address | Compliance with the 3-30-300 rule elements | ||||
|---|---|---|---|---|---|---|
| 3 trees | 30% | buffer 300 m | network analysis 300 m | |||
| tree canopy | other forms of greenery | |||||
| 1 | Garbarska 8 St. | yes | No | Yes | No | No |
| 2 | Żeromskiego 21 St. | Yes | Yes | Yes | Yes | No |
| 3 | Bohaterów Bielnika 13 St. | yes | No | Yes | Yes | Yes |
| 4 | Poznańska 20 St. | No | No | No | Yes | Yes |
| 5 | Poniatowskiego 62 St. | Yes | No | Yes | No | No |
| 6 | Konopnickiej 6 St. | Yes | Yes | Yes | No | No |

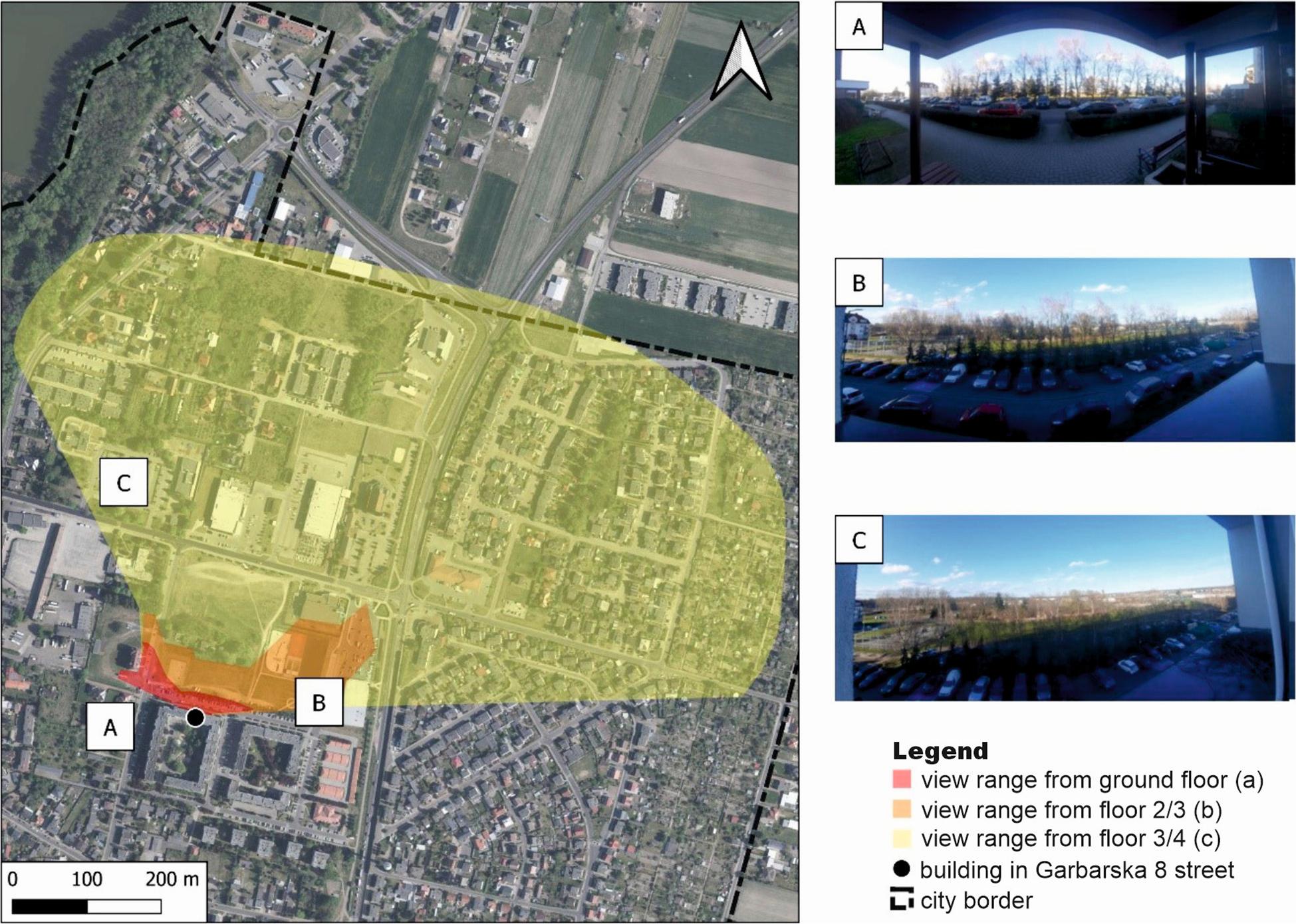

Characteristic residential buildings selected for tree visibility analysis_
| No. | Position | Address / Building type / Floor | View | Trees (No.) |
|---|---|---|---|---|
| 1. | Garbarska 8 St. | 6+ | ||
| 2. | Żeromskiego 21 St. | 15+6 | ||
| 3. | Poznańska 20 St. | 0 | ||
| 4. | Bohaterów Bielnika 13 St. | 16 | ||
| 5. | Poniatowskiego 62 St. | 10+1 | ||
| 6. | konopnickiej 6 St. | 95 |
Analysis of coverage with tree canopy and biologically active surfaces_
| No. | Tree canopy coverage within 30 m of the building | Area covered with tree canopy [%] | Biologically active surfaces within 30 m of the building | Area covered with biologically active surfaces [%] |
|---|---|---|---|---|
| 1. | 22.33% | 33.83% | ||
| 2. | 37.00% | 49.73% | ||
| 3. | 8.07% | 6.02% | ||
| 4. | 15.60% | 30.05% | ||
| 5. | 23.92% | 46.15% | ||
| 6. | 34.13% | 47.57% |
Formal green areas in Wolsztyn city based on BDOT10k (geoportal_gov_pl) and BDL (bdl_stat_gov_pl)_
| Type of green areas | Surface [ha] | Percentage share in total city area [%] |
|---|---|---|
| Parks | 23.30 | 4.87 |
| Green areas | 12.70 | 2.66 |
| Housing estate green areas | 13.29 | 2.78 |
| Promenades and avenues | 0.34 | 0.07 |
| Cemeteries | 6.63 | 1.39 |
| Family allotment gardens | 28.01 | 5.86 |
| Total | 84.27 | 17.63 |
Land cover in Wolsztyn city based on BDOT10k (geoportal_gov_pl)_
| Covering area | Surface [ha] | Percentage share in total city area [%] |
|---|---|---|
| Surface water | 2.53 | 0.53 |
| Development | 249.17 | 52.13 |
| Forest or wooded area | 43.68 | 9.14 |
| Shrubby vegetation | 2.85 | 0.60 |
| Permanent cultivation | 28.83 | 6.03 |
| Grass vegetation and agricultural cultivation including grass vegetation alone | 104.67 | 21.90 |
| Communication area | 14.70 | 3.08 |
| Unused ground | 0.33 | 0.07 |
| Square | 18.14 | 3.80 |
| Other undeveloped areas | 13.08 | 2.74 |
| Total | 477.98 | 100.00 |
