Implementation of Sand cat Swarm Optimization for Uniform T-Way Test Suite Generation

Muhammad Aiman bin Mohd Asyraf; Rozmie Razif Bin Othman; Mohd Zamri Bin Zahir Ahmad; Ahmad Ashraf Abdul Halim; Kentaro Go; Nuraminah binti Ramli; R. Badlishah Ahmad; Latifah Munirah Kamarudin; Murad Muhammad Hasan Salih Al-Walidi

doi:10.14313/jamris-2026-028

.blurhash-client-img { display: none !important; }

Implementation of Sand cat Swarm Optimization for Uniform T-Way Test Suite Generation

Journal of Automation, Mobile Robotics and Intelligent Systems

Volume 20 (2026): Issue 2 (June 2026)

By: Muhammad Aiman bin Mohd Asyraf , Rozmie Razif Bin Othman , Mohd Zamri Bin Zahir Ahmad , Ahmad Ashraf Abdul Halim , Kentaro Go , Nuraminah binti Ramli , R. Badlishah Ahmad , Latifah Munirah Kamarudin and Murad Muhammad Hasan Salih Al-Walidi

Open Access

|Jun 2026

Figures & Tables

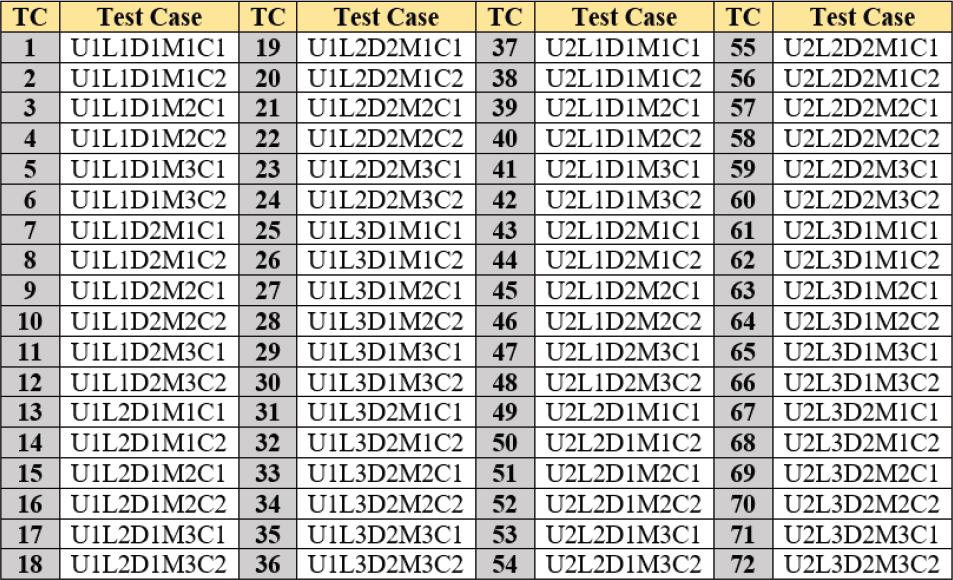

List of generated test cases for exhaustive testing

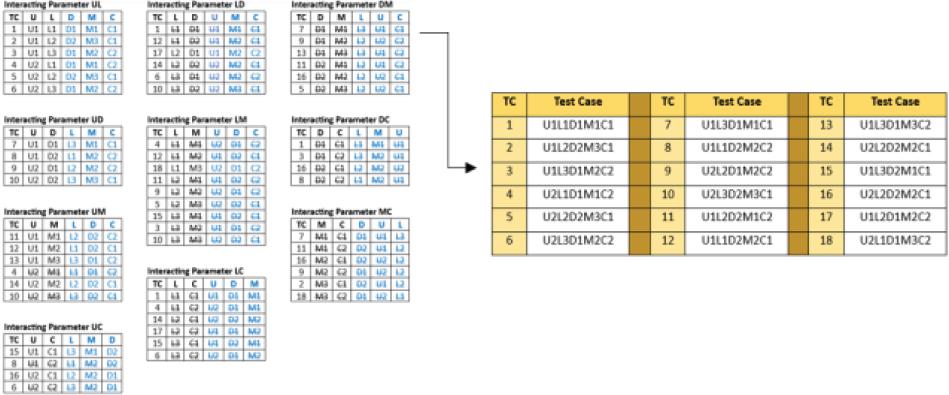

Test case generation for t = 2 and list of test cases for t-way

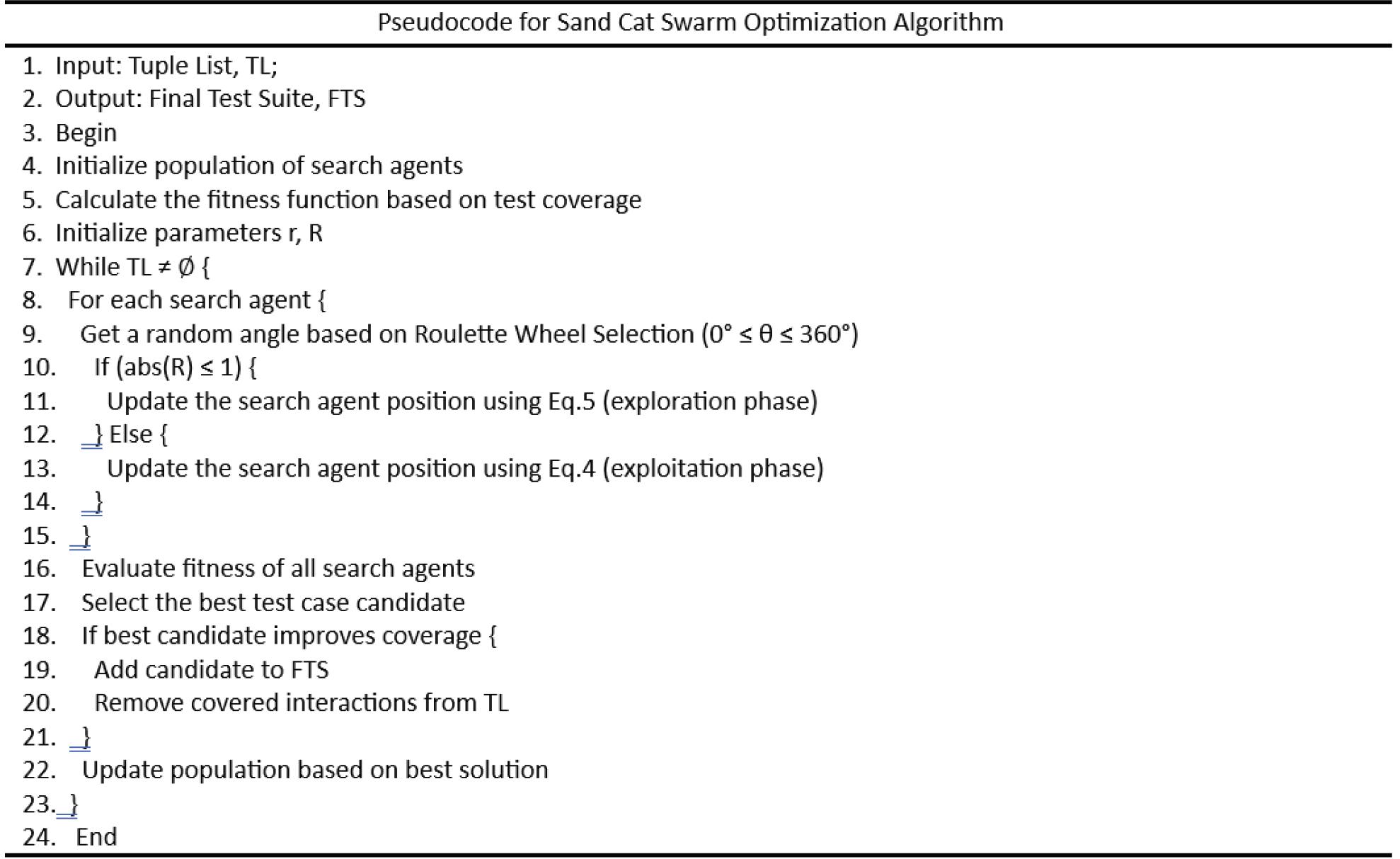

Pseudocode for Sand Cat Swarm Optimization Algorithm

Wilcoxon and Friedman Test for Group 2 and Group 3

No.	Paired Strategy	Test Statistic							Null Hypothesis	Conclusion
		Comparison for SCSO			Total Samples	p-value (Asymp. Sig. (2-tailed))	Friedman Mean Rank Test
		<	=	>			Mean Rank	Rank
1	SCSO vs Improved PSO	4	2	4	10	0.944	SCSO – 2.00	2	retain	no significant difference
							PSO – 1.85	1
2	SCSO vs TConfig	1	1	8		0.086	SCSO – 2.00	2	retain	no significant difference
							TConfig – 3.75	4
3	SCSO vs SITG	3	1	6		0.513	SCSO – 2.00	2	retain	no significant difference
							SITG – 2.50	3
4	SCSO vs IPOG	0	0	10		0.005	SCSO – 2.00	2	reject	SCSO outperforms
							IPOG – 4.90	5
5	SCSO vs ABCVS	1	1	3	5	0.715	SCSO – 1.70	2	retain	no significant difference
							ABCVS – 1.30	1

Wilcoxon and Friedman Test for Group 1 and Group 2

No.	Paired Strategy	Test Statistic							Null Hypothesis	Conclusion
		Comparison for SCSO			Total Samples	p -value (Asymp. Sig. (2-tailed))	Friedman Mean Rank Test
		<	=	>			Mean Rank	Rank
1.	SCSO vs ACOF	18	4	3	25	0.002	SCSO – 5.76	7	reject	ACOF outperforms
							ACOF – 3.32	2
2.	SCSO vs TTSGA	19	3	3		0.002	SCSO – 5.76	7	reject	TTSGA outperforms
							TTSGA – 3.88	3
3.	SCSO vs HHH	18	2	5		0.01	SCSO – 5.76	7	reject	HHH outperforms
							HHH – 2.84	1
4.	SCSO vs HSS	19	1	5		0.005	SCSO – 5.76	7	reject	HSS outperforms
							HSS – 3.92	4
5.	SCSO vs PSTG	16	4	5		0.055	SCSO – 5.76	7	retain	no significant difference
							PSTG – 4.86	6
6.	SCSO vs CS	17	2	6		0.083	SCSO – 5.76	7	retain	no significant difference
							CS – 4.16	5
7.	SCSO vs TVG	0	4	21		0.001	SCSO – 5.76	7	reject	SCSO outperforms
							TVG – 7.92	8
8.	SCSO vs IPOG	2	0	23		0.001	SCSO – 5.76	7	reject	SCSO outperforms
							IPOG – 8.34	9
9.	SCSO vs WFS	8	6	8	22	0.532	SCSO – 2.27	3
							WFS – 2.23	2	retain	no significant difference
10.	SCSO vs GSTG	14	6	2		0.013	SCSO – 2.27	3	reject	GSTG outperforms
							GSTG – 1.50	1
11.	SCSO vs TConfig	14	3	5	22	0.099	SCSO – 1.30	1	retain	no significant difference
							TConfig – 1.70	2
12.	SCSO vs WOA	16	1	0	17	0.001	SCSO – 1.97	2	reject	WOA outperforms
							WOA – 1.03	1
13.	SCSO vs QLSCA	8	2	2	12	0.012	SCSO – 2.50	3	reject	QLSCA outperforms
							QLSCA – 1.63	1
14.	SCSO vs ATBLO	8	2	2		0.012	SCSO – 2.50	3	reject	ATBLO outperforms
							ATBLO – 1.88	2

Result Test Suite Size Performance for Group 1

CA(t,v⁷)		Metaheuristic-based Strategies												Computational-based Strategies
t	v	2026	2024	2023	2022	2020	2019	2018	2017	2016	2011	2010	2009	2010	2007	1990s
		SCSO	WFS	ACOF	GSTG	WOA	TTSGA	QLSCA	ATLBO	HHH	HSS	PSTG	CS	TVG	IPOG	TConfig
2	2	7	7	6	6	6	7	7	7	7	7	6	6	7	8	7
	3	15	15	15	15	14	15	15	15	14	14	15	15	15	17	15
	4	26	27	26	26	25	25	23	23	23	25	26	25	27	28	28
	5	40	40	37	40	36	38	34	34	35	35	37	37	42	42	40
3	2	14	13	12	12	12	12	15	15	15	12	13	12	15	19	16
	3	51	51	48	49	49	49	49	49	49	50	50	49	55	57	55
	4	124	123	117	121	116	118	112	111	112	121	116	117	134	208	112
	5	240	242	230	240	223	228	215	216	216	223	225	223	260	275	239
4	2	30	25	30	26	27	29	31	31	31	29	29	27	31	48	36
	3	158	156	148	155	152	152	149	151	148	155	155	155	167	185	166
	4	497	513	485	499	484	485	477	480	482	500	487	487	559	509	568
	5	1220	X	1174	1217	NA	1175	1150	1166	1153	1174	1176	1171	1385	1349	1320
5	2	52	51	53	52	52	55	X	X	58	53	53	53	59	128	56
	3	434	442	430	430	432	433	X	X	435	437	441	439	464	608	477
	4	1833	1861	1825	1822	1815	1821	X	X	1805	1831	1826	1845	2010	2560	1792
	5	5535	X	5450	X	X	5457	X	X	5413	5468	5474	5479	6257	8091	X
6	2	70	66	64	64	64	68	X	X	64	64	64	66	78	64	64
	3	949	955	970	971	945	957	X	X	853	916	977	973	1016	1281	921
	4	5621	5610	5450	5611	5567	5487	X	X	5478	4096	5599	5610	5978	4096	X
	5	21580	X	21145	X	X	21148	X	X	21107	21748	21595	21597	23218	28513	X
*Total*	0	2	6	4	4	0	5	3	8	4	2	2	0	2	2
*Optimal*	0%	*10%*	*30%*	*20%*	*20%*	0%	*25%*	*15%*	*40%*	*20%*	*10%*	*10%*	0%	*10%*	*10%*

Result Test Suite Size Performance for Group 3

CA(t, 3⁷)	Metaheuristic-based Strategies				Computational-based Strategies
	2026	2022	2019	2015	2007	1990s
t	SCSO	Improved PSO	ABCVS	SITG	IPOG	TConflg
2	15	15	15	15	17	15
3	51	45	49	52	57	55
4	158	152	157	154	185	166
5	434	444	442	436	608	477
6	949	832	944	848	1281	921
*Total*	2	4	1	1	0	1
*Optimal*	*40%*	*80%*	*20%*	*20%*	0%	*20%*

Result Test Suite Size Performance for Group 2

CA(t, 2¹⁰)	Metaheuristic-based Strategies											Computational-based Strategies
	2026	2024	2023	2022	2022	2019	2016	2015	2011	2010	2009	2010	2007	1990s
t	SCSO	WFS	ACOF	GSTG	ImprovedPSO	TTSGA	HHH	SITG	HSS	PSTG	CS	TVG	IPOG	TConfig
2	8	8	8	8	9	8	8	9	7	8	8	10	10	9
3	17	16	16	16	16	16	16	16	16	17	16	17	19	20
4	34	38	39	27	39	36	36	44	37	37	36	41	49	45
5	84	84	74	74	84	76	79	87	81	82	79	84	128	95
6	159	160	153	156	168	155	153	174	158	158	157	168	352	183
*Total*	0	1	3	3	1	1	2	1	2	0	1	0	0	0
*Optimal*	0%	*20%*	*60%*	*60%*	*20%*	*20%*	*40%*	*20%*	*40%*	0%	*20%*	0%	0%	0%

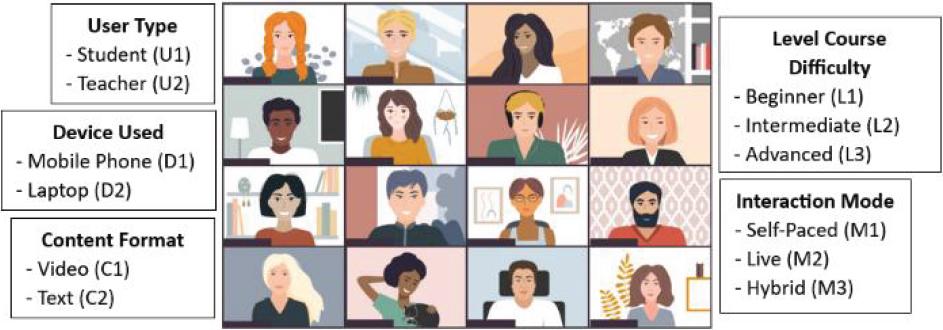

Classification Representation of Input Parameters

Input parameter	U	L	D	M	C
Possible Value	U1	L1	D1	M1	C1
	U2	L2	D2	M2	C2
		L3		M3
