Using Text Mining to Search for Neolithic Vlaardingen Culture Sites in the Rhine-Meuse-Scheldt Delta

2.1 The Vlaardingen Culture data set

Settlements from the Vlaardingen Culture are mainly located in the coastal area of the Netherlands, notably in wetland areas along rivers and the coastal dunes. The most complete overview of Vlaardingen Culture sites so far is presented in the distribution map by Verhart and de Ridder, an overview containing ca. 80 sites (Verhart & de Ridder 2010). This is more than the overview presented five years earlier in The Prehistory of the Netherlands, where it was mentioned that there are about 30 Vlaardingen Culture sites in the Netherlands (Van Gijn & Bakker 2005). Neither of these overviews present us with a list of sites. Furthermore, because the last overview of sites was made in 2010, newly excavated sites are lacking from these existing overviews. Recent discoveries have challenged some of the notions previously held about this period. The excavations at Den Haag Wateringse Binnentuinen zone 3 and Den Haag Noordweg 76 revealed that temporary settlements, previously thought to be a feature exclusively present on sites located on river levees, also occur in the coastal dune area of the Netherlands (Bulten & Stokkel 2017; Raemaekers 2003; Van Zoolingen & Rieffe 2023). Furthermore, the recent excavations at Den Haag Steynhof and Den Haag Wateringse Binnentuinen were amongst the largest and best documented Vlaardingen Culture settlements to date (Bulten & Stokkel 2017; Van Zoolingen & Bulten 2021). The site Veldhoven Habraken demonstrated that permanent Vlaardingen Culture sites can also be expected further inland on the sandy soils of Noord Brabant (Van Kampen 2013). These new discoveries highlight the need for a renewed overview of Vlaardingen Culture sites. An attempt to create such an overview was undertaken by Van den Dikkenberg as part of his current PhD project, which is part of the Putting Life into Late Neolithic Houses project. Based on previously published overview studies, known site reports, and queries in ARCHIS and DANS, an overview was compiled of 129 known Vlaardingen Culture sites in the Netherlands and Belgium. This data set will be compared with the new results, as it is a fair reflection of what information can be found with tools and databases besides AGNES.

2.2 AGNES data set

The aim of this data set is to incorporate all open access documents about Dutch archaeology and neighbouring countries, which is still underway. At the time of this study, just over 188,000 documents are included in AGNES, from the following sources:

• Documents from the DANS archive marked with the ‘Archaeology’ tag, up to December 2021 (https://dans.knaw.nl/nl/archaeology/)

• Documents from the ARCHIS database, up to December 2021 (https://archis.cultureelerfgoed.nl/)

• Documents from the Onroerend Erfgoed archive, up to June 2024 (https://www.onroerenderfgoed.be/)

For all of these sources, we only harvested and indexed PDF files, and these contain a multitude of document types. This includes excavation reports, coring reports, appendices, database descriptions, personal daily reports, maps, find lists and sometimes even photographs stored within PDFs.

3.1 AGNES, text mining, and large language models

As mentioned in the introduction, the original literature search for VLC sites in archives was done by metadata search; searching in e.g. the title, description, and keywords. However, this metadata can be incomplete and/or inaccurate, and is missing detailed information (Habermehl 2024). Think of an excavation of a Roman encampment; the metadata is not going to mention a single Neolithic find (by-catch), but this find is only mentioned in the excavation report. To solve this, we can apply full-text search, searching through all of the text instead of just the metadata. This would be a significant improvement, and is something the DANS archive has since implemented. However, archaeological discourse includes a lot of synonyms and homonyms; multiple words with the same or similar meaning (e.g. medieval and Middle Ages), and words with multiple meanings (‘Flint’ being both a material and a surname), respectively, which makes searching more difficult (Brandsen 2021b). Within AGNES, we try to solve the homonym problem using named entity recognition (NER), a natural language processing technique that finds and extracts certain entity types (Tjong Kim Sang 2002). In our research, we target artefacts, time periods, contexts, species, materials and locations. Once the word ‘flint’ has been identified as a material by NER, we know it’s not the surname flint, and we solve the homonym problem. For time periods, we try to solve the synonym problem by taking detected time period entities, and translating them to a start and end year. This way we can search for e.g. ‘500 to 1500 AD’ and this will return results for both ‘medieval’ and ‘Middle Ages’, as well as sub-periods and single years within this year range.

The NER is done using BERT (Bidirectional Encoder Representations from Transformers), one of the first large language models (Devlin et al. 2019). The rise of LLMs after the introduction of transformers by Vaswani et al. (2017) has had a huge impact on many fields, including archaeology. Transformers made it possible to handle language tasks with more speed and accuracy, thanks to their self-attention mechanism. Unlike traditional methods, these models can understand context, synonyms, and specific terminology, making it easier to find valuable information buried in large data sets. Similar to the newer GPT (Generative Pre-trained Transformer) models, BERT uses large amounts of unlabelled text data to pre-train a model, gaining an understanding of words and their contexts. We took these generic models, and further pre-trained them with texts from the archaeology domain (Brandsen 2021a; Brandsen 2024; Brandsen et al. 2022). This created archaeology specific BERT models for Dutch, English, and German, and finally we fine-tune these with labelled NER data to be able to predict and extract entities. Together with the full text of the documents, these entities are indexed in ElasticSearch, an open source search engine (Gormley & Tong 2015). We built a frontend to query all this information, specifically designed and evaluated with the archaeologists’ needs in mind (Brandsen et al. 2019; Brandsen et al. 2021). The system can be freely accessed via https://agnessearch.nl, and all code/models will be made available open access at the end of the AGNES project.

3.2 Search methodology

In total, eight queries were entered in AGNES resulting in a total of 4532 hits (see Table 1; see supplementary Table 1). These were exported to a single CSV file. Usually we did not use start and end dates for the queries, to expand the number of potential hits. Only for the open query ‘vlaardingen*’ did we include dates to limit the number of hits. We opted to use a broader date range (3800–2000 BCE) than the traditional starting and end dates for the Vlaardingen Culture (3400–2500 BCE) (Raemaekers 2005, 271). This would increase the opportunity to find VLC sites which have date ranges expanding beyond the generally accepted starting and end dates for the VLC. It is worth noting here that the free text query in Table 1 is simply doing a term match in ElasticSearch, while the start date and end date are making use of the time periods detected by BERT. For this particular study, we do not make use of the other entity types, such as artefacts or materials.

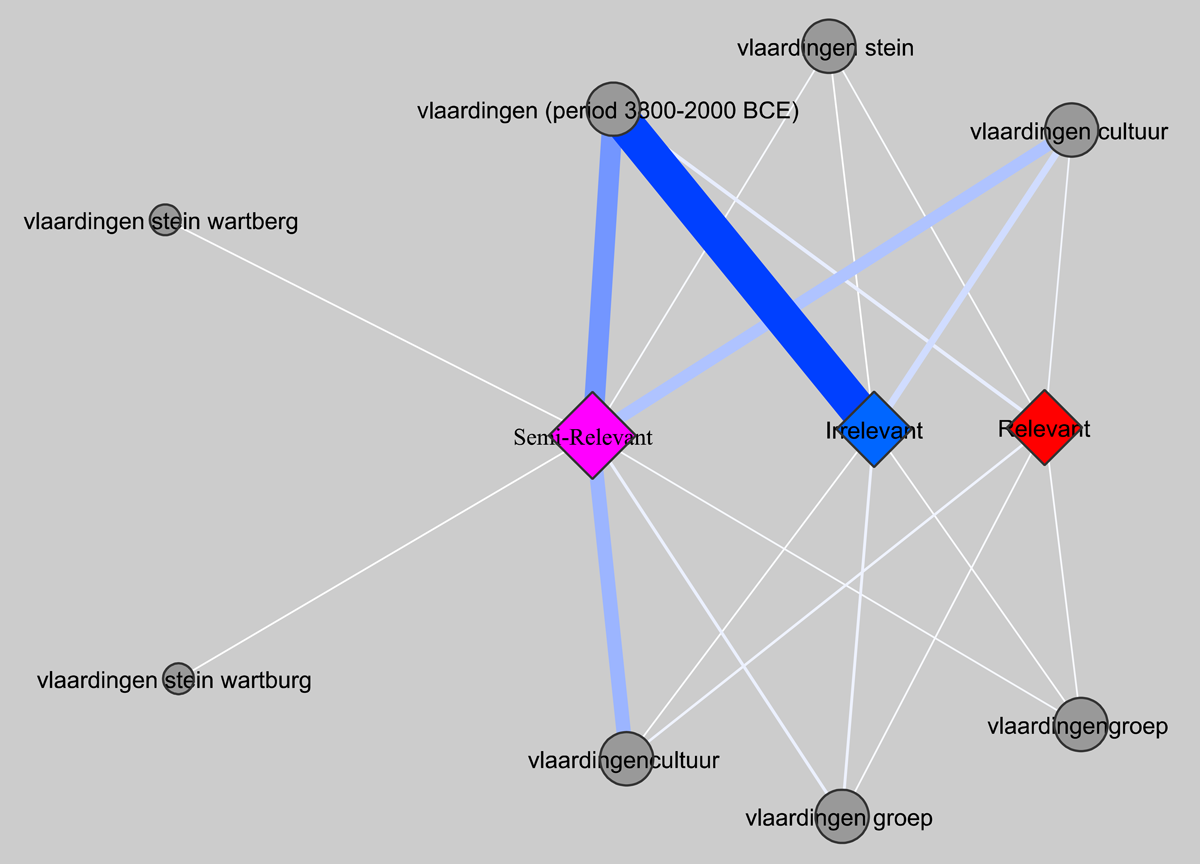

Three additional columns were added to the CSV file to include the query text, a ranking of how relevant the publication was (see Table 2), and lastly a column in which for irrelevant hits the reason was stated for the irrelevance of the hit (see Table 3). Following the methodology presented by Brandsen and Lippok we manually checked the hits. The listed categories are an adapted version of those applied by Brandsen and Lippok (Brandsen & Lippok 2021). Relevant hits consist of site reports on previously unknown Vlaardingen Culture sites (1), previously known Vlaardingen Culture sites (2), as well as reports in which previously unknown Vlaardingen Culture sites are mentioned in the text (3) or the literature lists (4). In these last two instances, the hits indirectly led to the discovery of new sites. In addition to these categories we included three semi-relevant categories. The Stein group and Vlaardingen group are closely related and as a result many reports on Stein sites also discuss the relationships between these groups. This was considered a semi-relevant hit (5) because AGNES correctly identified that the text discussed the Vlaardingen Culture, but the report itself was not about a VLC site. Similarly, other site reports also discussed the Vlaardingen Culture (6) or Vlaardingen Culture sites (7). Research plans for example often mentioned the Vlaardingen Culture, or Vlaardingen Culture sites when describing the archaeological potential of a study area. Such hits were therefore considered to be semi-relevant hits. In the previous study by Brandsen and Lippok, hits in research plans were considered irrelevant hits (Brandsen & Lippok 2021). This makes sense for cremations as the expectation of finding cremation graves can refer to a plurality of periods. However, if research plans specifically mention the Vlaardingen Culture they do refer specifically to what we aimed to find in our queries. Therefore, in this case we often considered these as semi-relevant hits, rather than irrelevant hits. These research plans also often mentioned nearby Vlaardingen Culture sites (7).

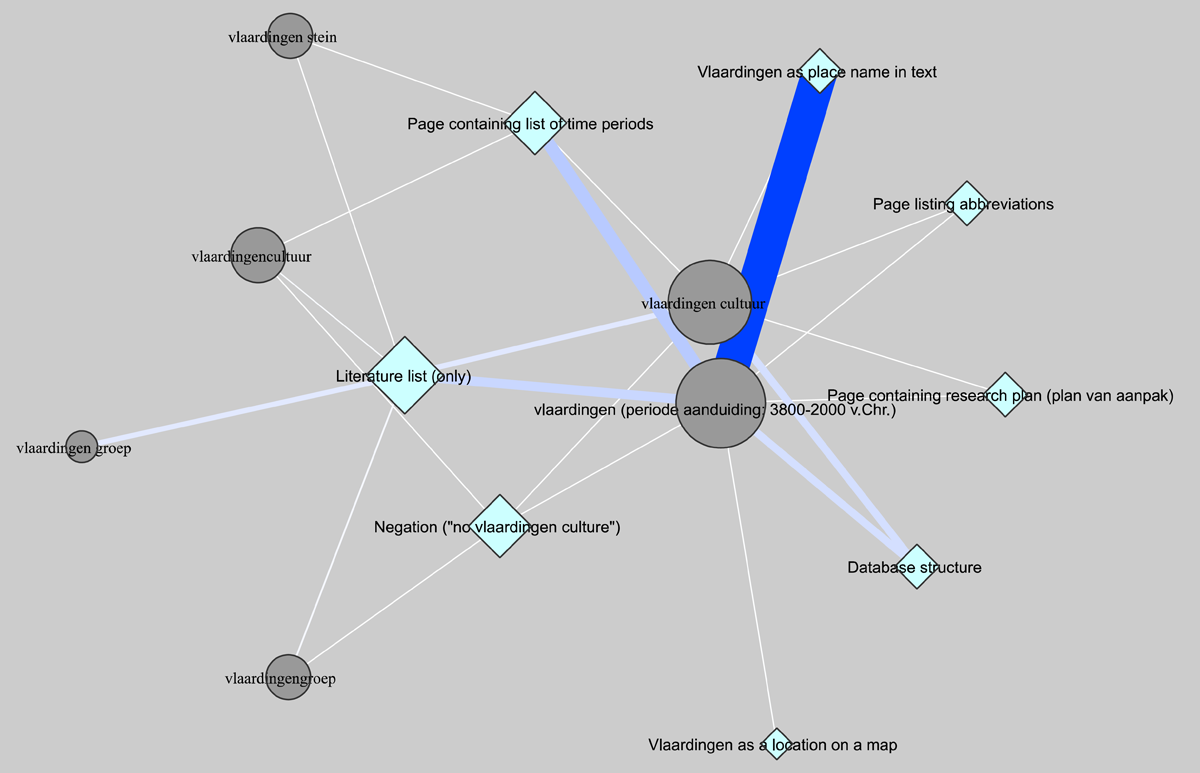

Irrelevant hits (1–9) were classified along the typology presented by Brandsen and Lippok (Brandsen & Lippok 2021). We added three frequently occurring categories. Being a period designation, “vlaardingen cultuur” (Vlaardingen Culture) was frequently mentioned in documents containing a database structure. Therefore, this was added as a separate category (10). The Vlaardingen Culture is named after the type-site Vlaardingen Arij Koplaan (Van Regteren Altena et al. 1962a, 1962b, 1962c). Because of this our hits frequently contained reports which only mentioned the place name ‘Vlaardingen’ (12). Similarly, geographical maps which included the city of Vlaardingen were also considered as a separate category of irrelevant hits (11).

Above we presented different categories of relevant, semi-relevant, and irrelevant hits. This is based on the usefulness of the hits for the archaeological case-study. Such hits are not necessarily incorrect. When a report deals with a Stein site and it mentions the Vlaardingen Culture the hit for the query “vlaardingen cultuur” (Vlaardingen Culture) is correct, but it is irrelevant as the report does not deal with a Vlaardingen Culture site. Similarly, hits in which “vlaardingen cultuur” (Vlaardingen Culture) is only mentioned in the literature list are correct hits in the sense that AGNES correctly identified matching terms, but because it concerns a hit in the literature list it is deemed irrelevant for the case-study.

4.1 Newly discovered sites

The queries yielded information on a total of thirty sites (19% of the total number of sites) which were not previously included in the overview (see Table 6; see: supplementary Table 2 and supplementary file 3 doi.org/10.5281/zenodo.14842975). In 27 instances this included hits on site reports of previously unknown Vlaardingen Culture sites. In three instances the hits consisted of indirect hits. These were site reports or research plans which mentioned previously unknown Vlaardingen Culture sites in their respective study areas.

For 13 of the 89 sites which were not found in AGNES, the publications were present in DANS or ARCHIS. In seven cases this concerned sites published in the monograph by Louwe Kooijmans (1974). These sites were found in the appendix where they were listed under the abbreviation ‘VL’. As this abbreviation was not part of our queries these sites were not found in AGNES, even though the file in which they were listed was available. In one instance the report did not mention a cultural attribution, but the material could be attributed to the VLC based on the characteristics of the finds. For four sites the documents were present in DANS but these were not imported in AGNES due to errors during the PDF text extraction process (De Koning 2010; Eijskoot 2004; Eimermann 2008; Van den Broeke 1993). In one instance the BERT model did not recognise a date correctly (Hiddink 2000: 11). The publication in this case mentions the term ‘Vlaardingen’ along with several other Neolithic cultures and a date range (4000–2000 BCE). But, as the date range was not recognised as a time period, the query incorrectly did not match this page.

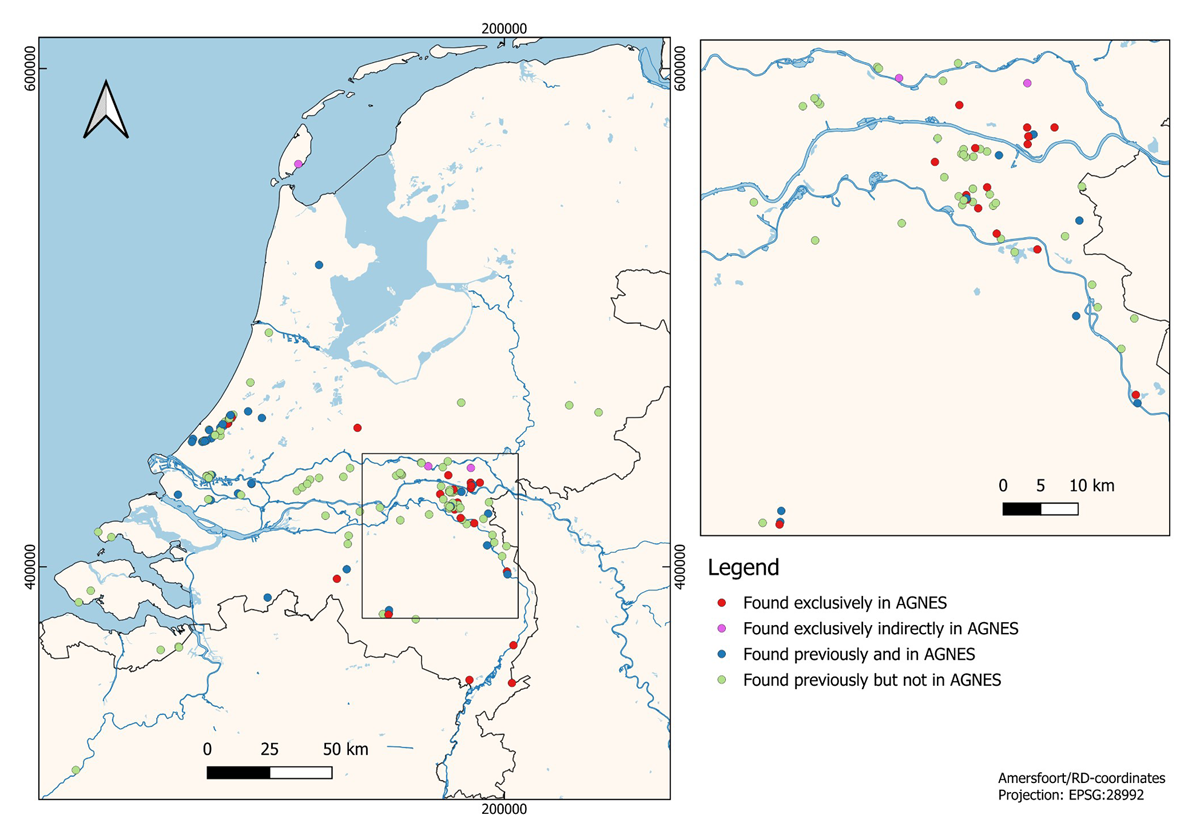

In one instance the unknown site was only mentioned in the bibliography of a report. The article concerned a previously unknown site on the island of Texel (Van Noort 1998). The site was discovered by an amateur archaeologist and it was published in a local historical journal, which explains why it remained unknown despite being published in 1998. This is an interesting find because the site is located much further north (see Figure 4, the most northern purple dot on the map) than the most northern Vlaardingen Culture site known so far: Zandwerven (Van Gijn & Bakker 2005; Verhart & de Ridder 2010). It is located about twenty kilometres north of what is traditionally assumed to be the limit of the distribution of the Vlaardingen Culture (Van Gijn & Bakker 2005). As such the site presents a significant discovery.

Figure 4

Interestingly, many of the newly discovered sites are located in the eastern Netherlands in the area of Nijmegen (see Figure 5). In the 2010 overview it was also noted that this area yielded a high number of Vlaardingen Culture sites (Verhart 2010). At the time this concentration could mostly be attributed to the tireless efforts of the local AWN (Association of Archaeology Volunteers) dependance. Between 1970 and 2000 this group discovered a great deal of sites in the Nijmegen and Wijchen area (Teubner & Tuijn 2010; Verhart & de Ridder 2010). The sites which were newly found in AGNES mostly consist of recent (post 2010) excavations in the area. Often these reports mention the previous studies conducted by local volunteers (‘t Hart, Norde & Tuinstra 2019:12; Heirbaut 2010, 12; Janssen 1989; Janssen & Tuijn 1978). These studies thus led to a better formulation of archaeological expectations, and in turn to a better formulation of research plans. In recent years this led to new excavations which in turn led to new discoveries. It is an excellent example of how citizen science contributed to development-led archaeology.

Figure 5

5.1 Vlaardingen or Stein group?

Regarding the cultural attributions of Vlaardingen Culture sites, we decided to adhere to the conclusions presented by the excavators. In seven cases an exception was made. These consist of sites without a cultural attribution but where the find material is dated to this period; sites where the material is consistent with Vlaardingen Culture material; and sites which are geographically located in the area of the Vlaardingen Culture. This is for example the case with the single find of a flint oval axe in Elshout. Similar finds of single oval flint axes in the western Netherlands are consistently attributed to the Vlaardingen Culture (Dorenbos & Koot 2010; Groenman-van Waateringe & Van Regteren Altena 1966). For the other sites a plurality of cultural attributions was used; Vlaardingen Culture, Vlaardingen group, Vlaardingen-Stein group (or Stein-Vlaardingen group), and Stein-Vlaardingen Complex (see Figure 5). It seems that different terms here are generally not applied based on differing archaeological characteristics. Rather, it seems that terms are regionally dependent. Sites in Zuid Holland (and more generally in the western Netherlands) are usually referred to as Vlaardingen Culture sites. Sites in, and around, the border zone between the Vlaardingen and Stein group are often referred to as “vlaardingen-stein groep” (Vlaardingen-Stein group) or “stein-vlaardingen complex” (see Figure 5).

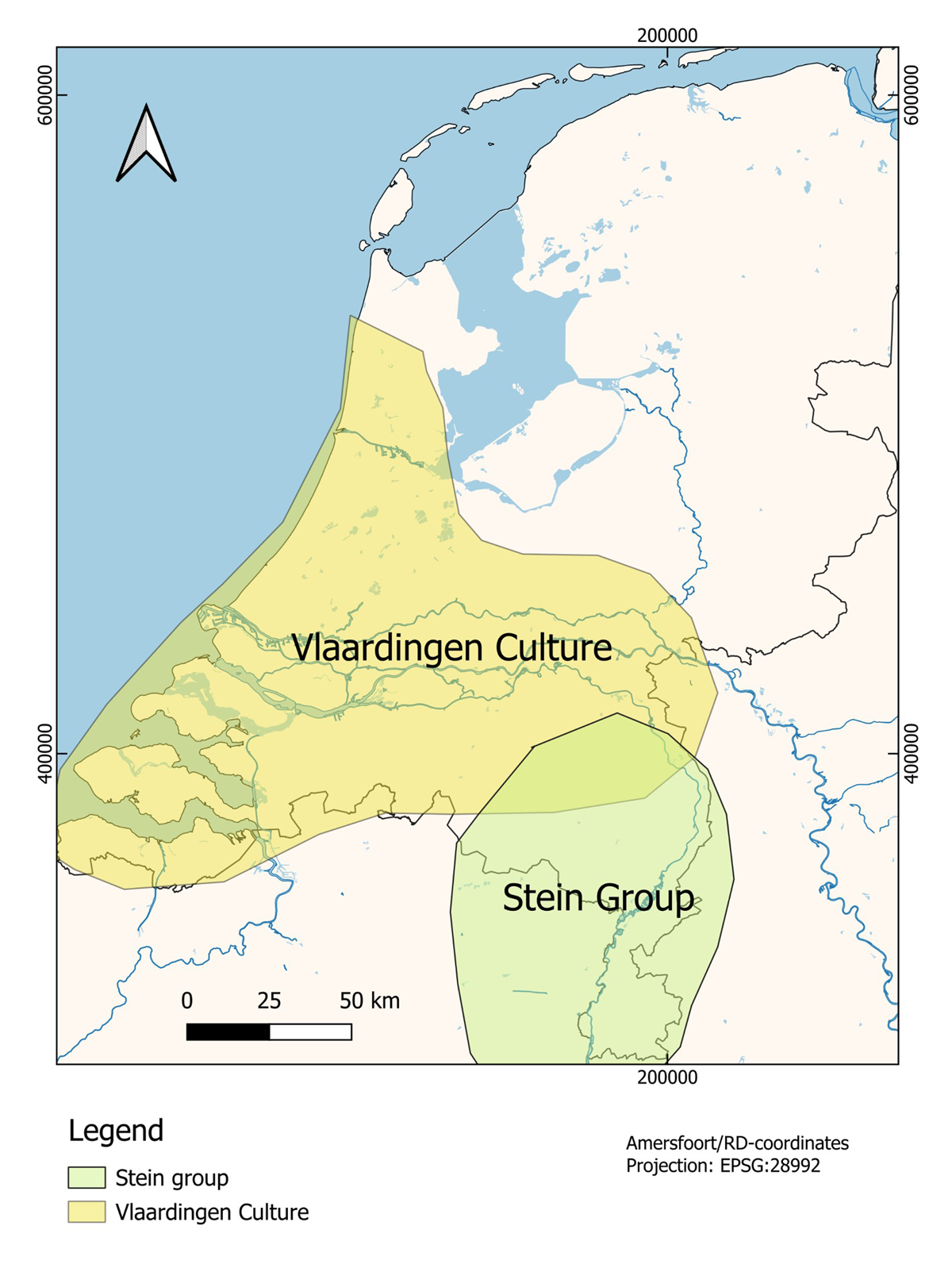

The fact that these cultural attributions in the literature depend more on the geographical location of these sites rather than the archaeological material is occasionally made explicit. The Stein site Schoolstraat in Thorn is for example attributed to the Stein group because ‘the Vlaardingen Culture predominantly occurs in the coastal area of the western and southern Netherlands, as well as the riverine area in the central Netherlands, the site probably represent remains from the Stein group’¹ (De Ridder 2011: 27). This problem was already envisioned in 1983 by Louwe Kooijmans when he first defined the characteristics of the Stein Group ‘The here discussed Late Neolithic find groups display a high degree of affinity with the Vlaardingen Culture, so much so that we believe that, had they been found in the delta region, they would have been, without much trouble, classified as Vlaardingen’² (Louwe Kooijmans 1983: 64). The supposed differences between these groups; the presence of Lousberg axes, blade technologies, and axe production for the Stein group vs. the presence of ceramic baking plates and pottery with perforations under the rim for the Vlaardingen Culture, might be real to some extent (Louwe Kooijmans 1983; Van den Dikkenberg 2024; Verhart 2010). Nevertheless, they are too often absent, making cultural attributions for sites discovered in development-led archaeology difficult.

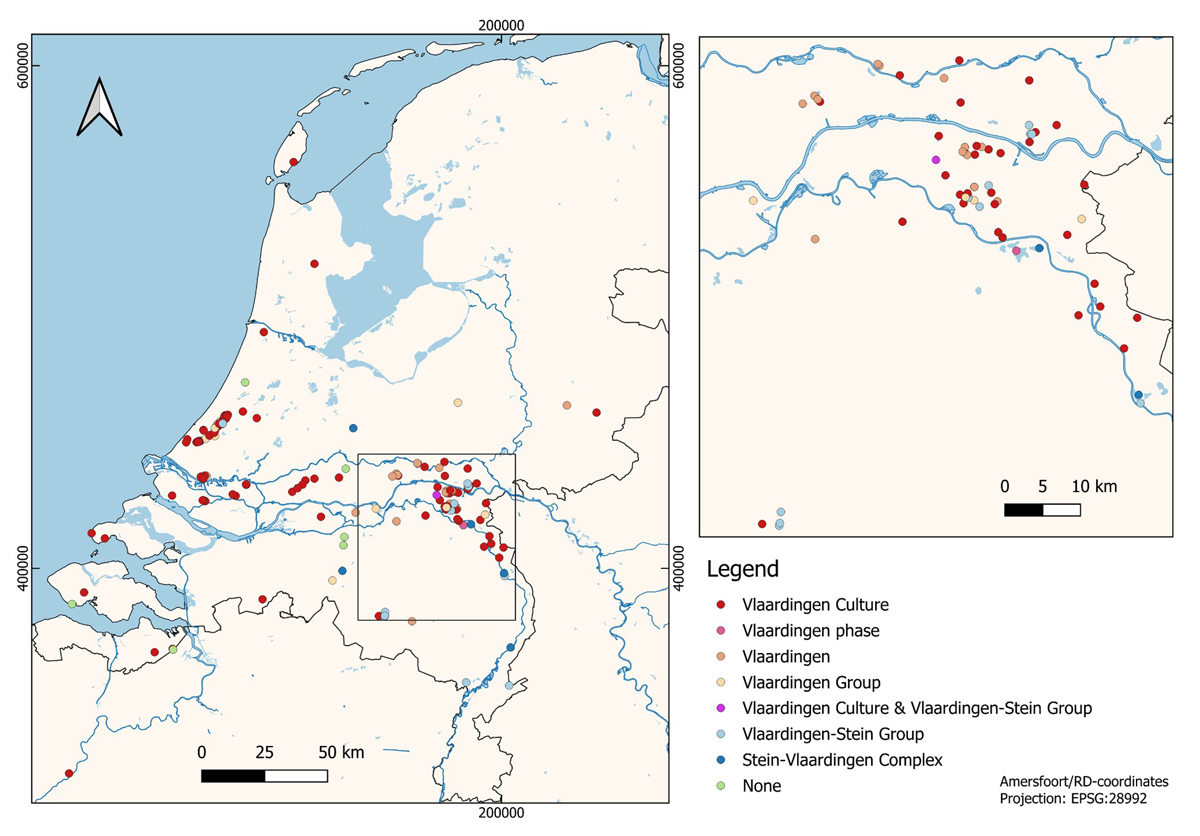

It is noteworthy that the term Vlaardingen-Stein-Wartberg complex is not applied in any of the reports. Based on the irrelevant hits this term also seems to be avoided in lists of abbreviations, periods, and in database structures (see Figure 3). Such lists systematically employ either the term Vlaardingen, or a variant of Vlaardingen Culture. Overall it seems that these are the dominant terms used in development-led archaeology (see Figures 3 and 5).

5.2 Data sets

There are clear regional differences in terms of which sites were found by AGNES. As mentioned before a lot of sites found in AGNES were located in the Nijmegen area. Furthermore, clearly a lot of previously known sites in Zuid Holland were found as well (see Figure 4). Several other areas are however largely missed. None of the sites in Zeeland were for example found in AGNES. This is not entirely surprising as all but one of these sites were excavated in the twentieth century. As such their reports were not deposited in DANS or Archis, and by extension they could not be found in AGNES. Older sites are often published as articles in archaeological journals, rather than as site reports deposited in DANS. This is for example the case with many of the key Vlaardingen Culture sites including the type site Vlaardingen Arij Koplaan and the key sites of Zandwerven, Haamstede Brabers, and Leidschendam Prinsenhof (Clason 1962; Glasbergen, Groenman-van Waateringe & Hardenberg-Mulder 1967; Van Iterson Scholten 1988; Van Regteren Altena 1958; Van Regteren Altena & Bakker 1961; Van Regteren Altena et al. 1962a; Verhart 1992). Similarly, archaeological sites discovered by volunteers are also generally absent in DANS. They are often published in either the Westerheem (now Archeologie in Nederland) or in local AWN reports. This is for example the case with many of the previously mentioned sites discovered by volunteers in the Nijmegen area between 1970 and 2000 (De Jong 1986; 1988; Janssen 1976; 1980; 1989; 1993; Janssen & Tuijn 1978; Koolen 1976). A similar problem applies to many of the sites found in the central part of the Netherlands and eastern parts of Zuid Holland. For example, a series of sites in the municipality Molenlanden were discovered by local AWN volunteers in the 1960’s. These sites were published in the dissertation of Louwe Kooijmans, but they do not have formal published excavation reports (Louwe Kooijmans 1974).

A core strength of AGNES is that it allows us to find ‘by-catch’ in archaeological reports. Many of the previously unknown Vlaardingen Culture sites found in AGNES can be considered to be ‘by-catch’. This is for example the case with the site Nijmegen Park Waaijenstein. The excavation focussed on a Roman period settlement in the area. The metadata of the report in DANS only mention the Roman period settlement. The Vlaardingen Culture remains at the site consist of three ceramic sherds and a few flint artefacts (Daniël 2018). The site Bergharen de Weem presents a similar case, the report titled ‘On the edge of a medieval settlement’³ is focussed on medieval finds. The metadata in DANS mention Neolithic remains but those are not specified. As such they would not be found with the queries such as “vlaardingen cultuur” (Vlaardingen Culture). Only in the full text of the report is it specified that these remains consist of flint and ceramics from the Vlaardingen Culture (Diepeveen & Van Enckevort 2009). It is not surprising that many of these by-catch finds are located in the region of Nijmegen. Nijmegen is the heart of the Roman Netherlands, it is the oldest city in the country, and a major centre during the medieval period. Archaeological excavations frequently yielded large quantities of finds from these periods. It is perhaps unsurprising that a handful of Vlaardingen Culture sherds or flint artefacts on these excavations do not end up in the metadata of these reports. This is also no longer problematic as we were now able to retrieve this kind of information through AGNES.

Unfortunately, we cannot calculate the recall (and by extension, the F1 score), as the total amount of relevant documents in the collection is unknown. We can however make an estimation of the recall of the already known sites, i.e. how many of the known sites that are indexed in AGNES were actually retrieved. This would be a recall of 0.75. The current case-study yielded a precision of 9.7%, in terms of relevant hits. This is a much higher precision than that of the previous case-study which dealt with Merovingian cremation graves. In this case-study only 2.1% of the hits consisted of relevant hits (Brandsen & Lippok 2021). This is a significant improvement, which can partly be attributed to improvements following the recommendations made in 2021, and partly due to the type of queries. As part of the EXALT project several other case-studies will be carried out to further assess the efficiency of the system. It will be interesting to see whether the improved precision is indeed a constant factor or whether this is largely case-dependent.

The original overview which was compiled of Vlaardingen Culture sites took several months to be completed and it has been further refined over the past years. Going through the AGNES queries took about two to three weeks. It is clear that AGNES vastly speeds up the process of compiling such overviews. This can mostly be attributed to the fact that AGNES provides direct access to the relevant literature, and more specifically to the relevant pages contained within those documents.

Finally, two main problems in AGNES were identified during the case study; PDFs not being imported into AGNES due to PDF text extractions errors, and BERT missing a date range. The PDF text extraction process has been updated after the case study to solve this problem, by using a different tool less prone to errors (PyMuPDF⁴). In a future version of AGNES, we will re-index all the documents again, which means these missed documents will be available in the future. Regarding the BERT error, the models currently have an F1 score of around 84% for detecting time periods (Brandsen et al. 2022), meaning that around 16% of time periods are missed or incorrectly classified. In future work, we want to improve on this performance by improving the BERT model, potentially with more training data, or by using newer techniques such as GPT models.
