Table 1
PaNOSC Research Infrastructures implementing DMPs.
| FACILITY NAME | LOCATION | DESCRIPTION | WEBSITE |
|---|---|---|---|
| CERIC-ERIC | Trieste, Italy | The Central European Research Infrastructure Consortium provides access to national research infrastructures in eight European countries for over 1000 users per year. | https://www.ceric-eric.eu/ |
| ELI-ERIC | Prague, Czechia | The Extreme Light Infrastructure is the world’s largest and most advanced high-power laser infrastructure opened for users in 2022. | https://www.eli-laser.eu |
| ESRF | Grenoble, France | The European Synchrotron Radiation Facility is a fourth generation synchrotron facility; approx. 9000 scientists per year come to use the ESRF. | https://www.esrf.eu |
| ESS | Sweden, Lund | The European Spallation Source future world’s most powerful pulsed neutron source is currently under construction in Lund, Sweden. | https://europeanspallationsource.se/ |
| EuXFEL | Schenefeld, Germany | The European X-Ray Free-Electron Laser Facility offers ultrashort X-ray pulses for over 1500 users per year. | https://www.xfel.eu |
| ILL | Grenoble, France | The Institut Laue-Langevin is has been the world’s brightest neutron source for 50 years and has over 2000 users per year. | https://www.ill.eu/ |

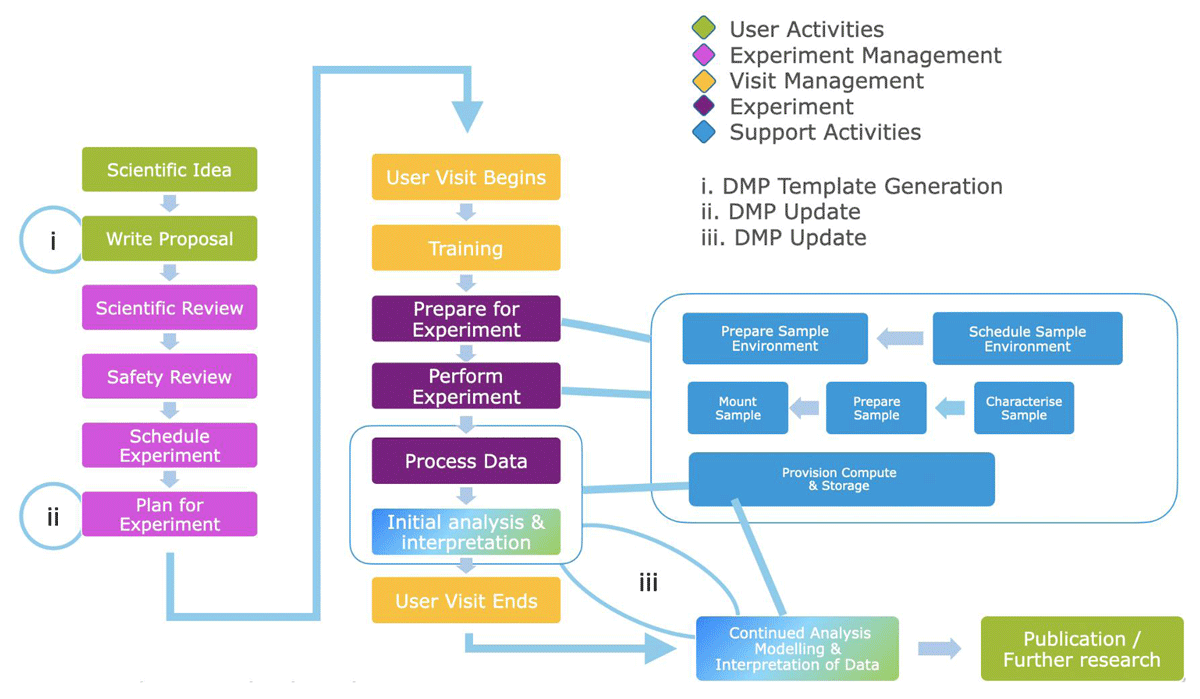

Figure 1
DMP in the PaN facilities workflow.
Table 2
DMP phases.
| DMP Phases | 0 Before proposal submission | Typically knowledge of instrument scientist or RDM team (static parameter) |
| 1 Proposal submission | Typically knowledge of the user, with support by the facility administration and RDM team. | |
| 2 Accepted experiment planning | Typically knowledge of the user, with support from the facility administration and instrument scientist. | |
| 3 Data Collection/Data processing/analysis | Typically knowledge of the user, with support from the instrument scientist. |

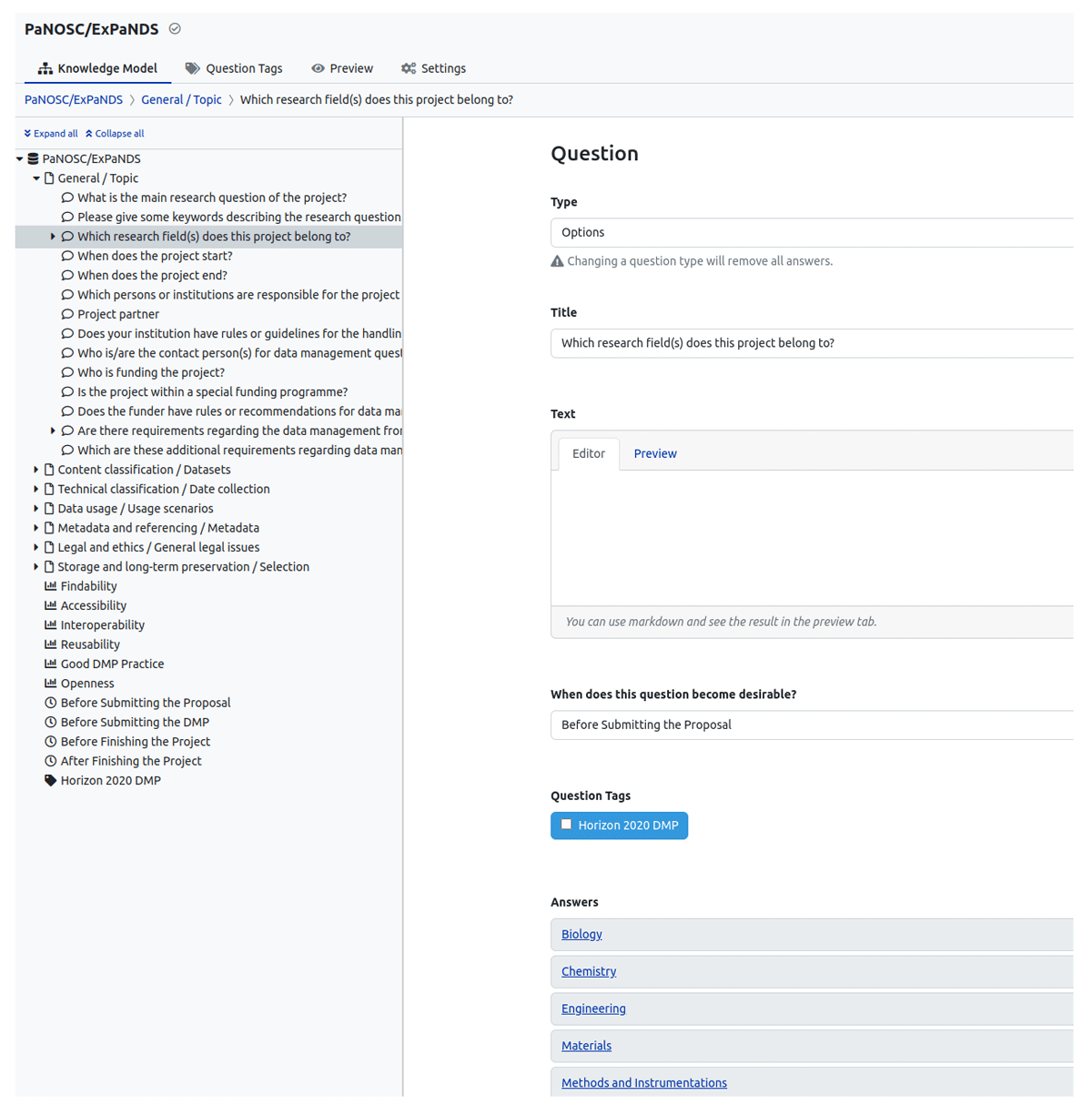

Figure 2
The PaNOSC knowledge model.
Table 3
DMP tools.
| TOOL NAME | OPERATOR |
|---|---|
| DMPonline | Digital Curation Centre (DCC) |
| DMPTool | California Digital Library (CDL) |
| EasyDMP | EUDAT & UNINETT Sigma2 |
| Data Stewardship Wizard (DSW) | Dutch Techcentre for Life Sciences (DTL, ELIXIR NL) and Czech Technical University in Prague (CTU, ELIXIR CZ) |
| Research Data Management Organiser (RDMO) | Operated by many institutions—self-deploy model. Creators are Leibniz-Institut für Astrophysik Potsdam (AIP), Potsdam University of Applied Sciences (FHP), and Karlsruhe Institute of Technology (KIT). |
| Research Data Manager (UQRDM) | University of Queensland |
| DataWiz | Leibniz Institute for Psychology Information and Documentation (ZPID) |
| ezDMP | Interdisciplinary Earth Data Alliance (IEDA) |
| OpenDMP | OpenAIRE & EUDAT |
| ARGOS | OpenAIRE Service in EOSC |

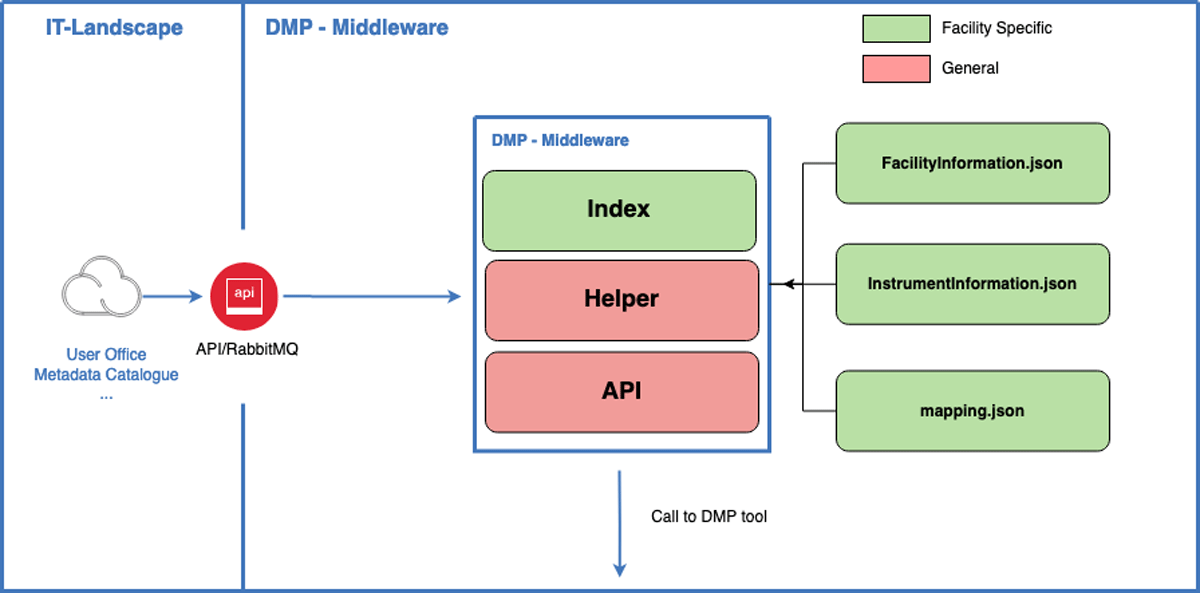

Figure 3
Common software architecture.
Table 4
Overview of approaches for each facility.
| FACILITY | DSW USED | TEMPLATES | DMP MANDATORY | DMP QUESTIONS | DMP PREFILLED | DMP CREATED |
|---|---|---|---|---|---|---|
| CERIC-ERIC | Yes | CERIC | Yes | 21 | 100% | 1 |
| ELI-ERIC | Yes | ELI | Yes | 10–20, depending on the call/facility | 50% | 0 |
| ESRF | Yes | H2020ANRHE | No | 51 | 60% | 1150 |
| ESS | Yes | H2020, RDMO | No | 25 | 80% | 50 |
| EuXFEL | Under evaluation | WIP | Planned | WIP | WIP | WIP |
| ILL | Testing | WIP | WIP | WIP | WIP | WIP |

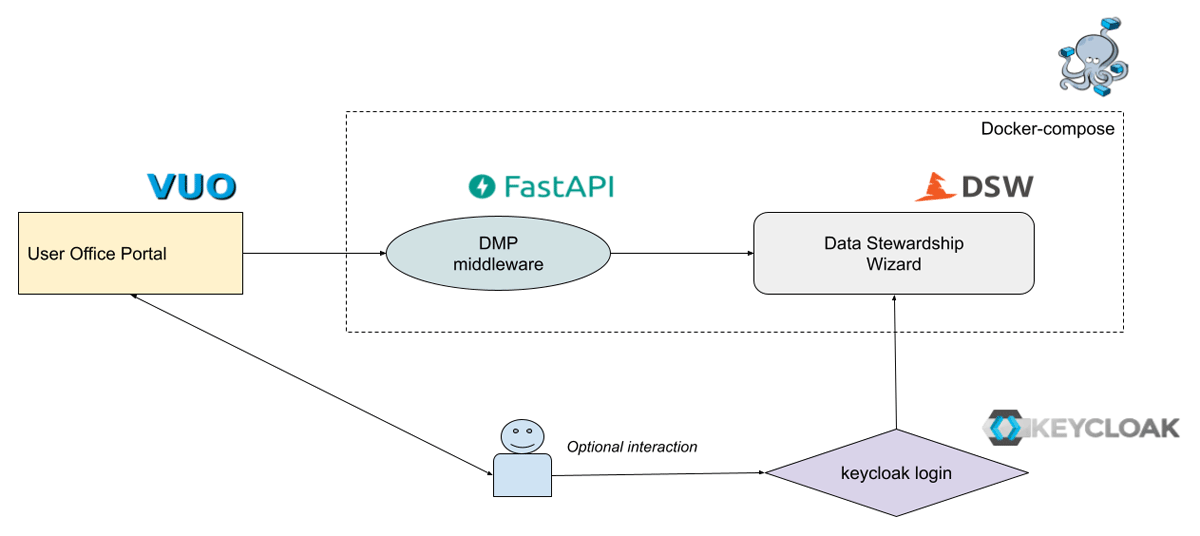

Figure 4
CERIC DMP service overview.

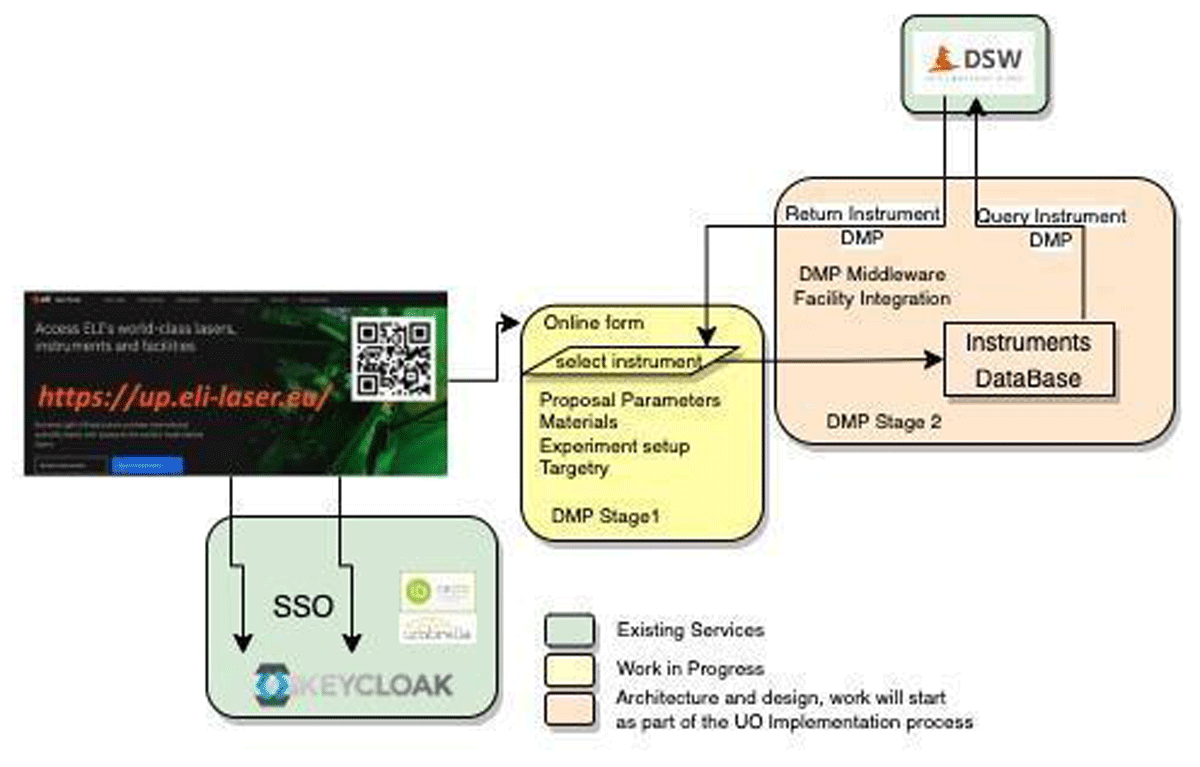

Figure 5
DMP implementation roadmap at ELI-ERIC.

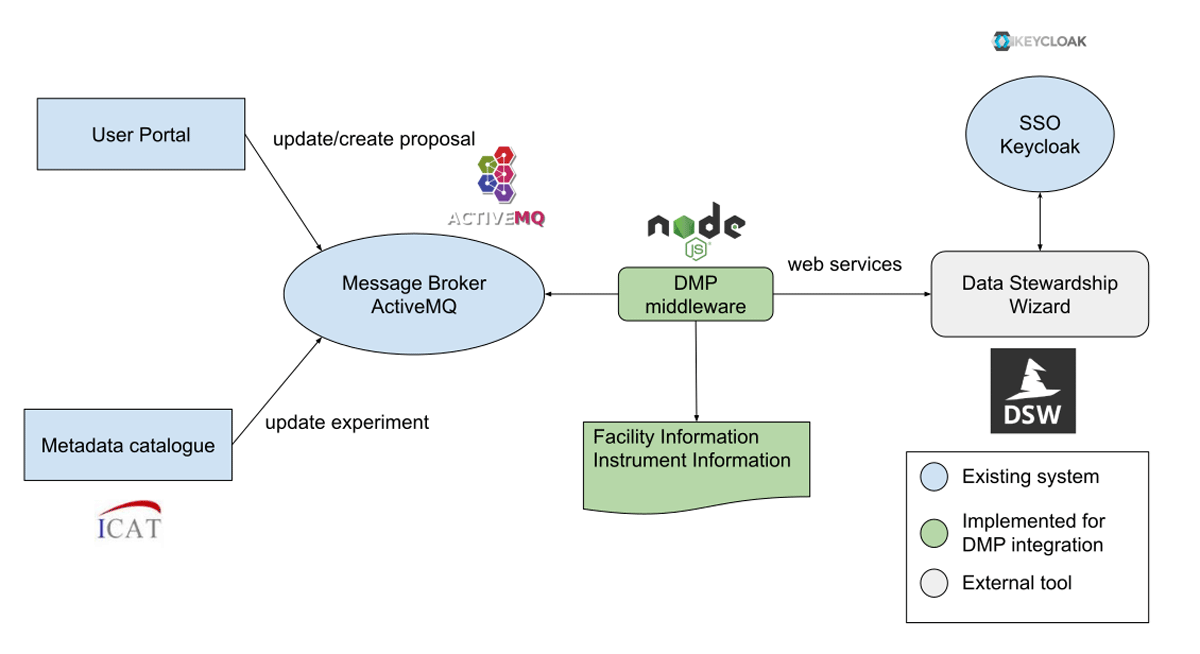

Figure 6
Architecture and DMP data flow at the ESRF.

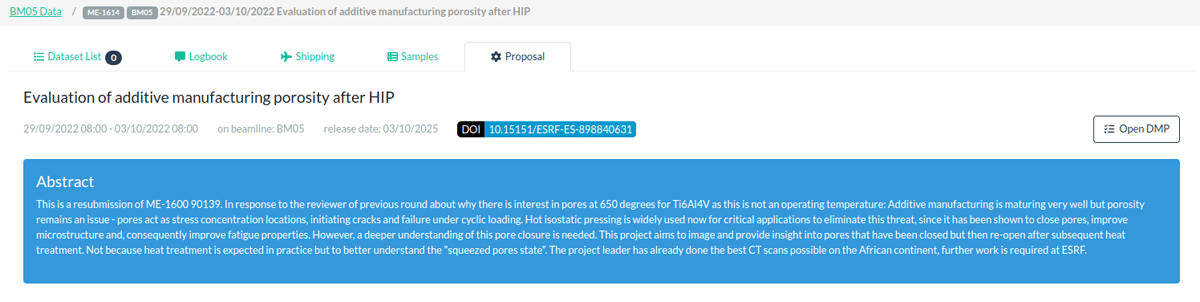

Figure 7
Link to the DMP from the ESRF data portal.
