Primary hyperammonaemia: Current diagnostic and therapeutic strategies Cover

Primary hyperammonaemia: Current diagnostic and therapeutic strategies

Open Access
|Oct 2020

Figures & Tables

Figure 1

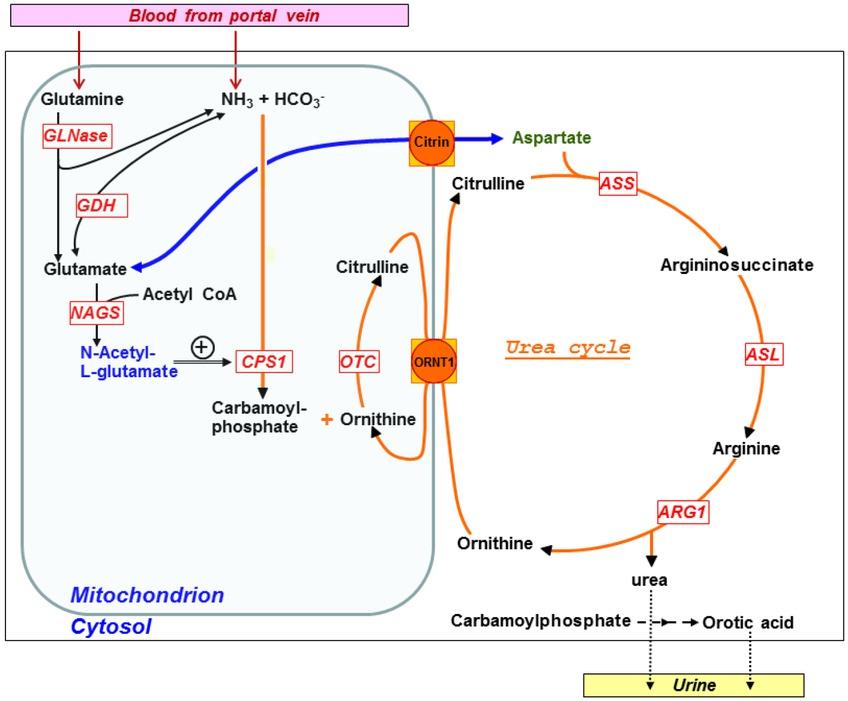

Simplified graph showing the urea cycle in mitochondrion and cytosol of hepatocytes. ARG1, arginase 1; ASL, argininosuccinate lyase; ASS, argininosuccinate synthetase; CPS1, carbamoylphosphate synthetase 1; GDH, glutamate dehydrogenase; GLNase, glutaminase; NAGS, N-acetylglutamate synthase; ORNT1, mitochondrial ornithine transporter (ornithine/citrulline antiporter); OTC, ornithine transcarbamylase.
Simplified graph showing the urea cycle in mitochondrion and cytosol of hepatocytes. ARG1, arginase 1; ASL, argininosuccinate lyase; ASS, argininosuccinate synthetase; CPS1, carbamoylphosphate synthetase 1; GDH, glutamate dehydrogenase; GLNase, glutaminase; NAGS, N-acetylglutamate synthase; ORNT1, mitochondrial ornithine transporter (ornithine/citrulline antiporter); OTC, ornithine transcarbamylase.

Medications used in primary hyperammonaemias

Medications for acute and long-term use in primary hyperammonaemias
SubstanceAcute situationLong-term useRationale
Sodium benzoate (infusion in 10% dextrose)250 mg/kg bw as bolus in 90–120 min, then continuous infusion 250–500 mg/kg/day250–500 mg/kg/dayConjugation with glycine and excretion as non-toxic hippuric acid in urine
Sodium phenylbutyrate/ Sodium phenylacetate (infusion in 10% dextrose)250 mg/kg bw as bolus in 90–120 min, then continuous infusion 250–500 mg/ kg/day250–500 mg/kg/dayConjugation with glutamine and excretion as non-toxic phenylacetylglutamine in urine
Glycerol phenylbutyrateNot indicated8.5 ml/m2/day (9.4 g/m2/day) in patients with body surface <1.3 m2 7 ml/m2/day (8 g/m2/day) in patients with body surface ≥1.3 m2Conjugation with glutamine and excretion as non-toxic phenylacetylglutamine in urine; slower release and uptake than sodium PBA
L-arginine hydrochloride

Contraindicated in arginase deficiency.

(infusion in 10% dextrose)
250 mg/kg bw (1.2 mmol/kg) as bolus in 90–120 min, then continuous infusion 250 mg/kg/day250 mg/kg/dayTo improve the residual function of the urea cycle and avoid arginine deficiency
N-carbamyl-glutamate

For NAGS deficiency.

(tablet for oral/enteral use)
100 mg/kg as oral bolus (or via NG tube), then 25–62.5 mg/kg bw every 6 h25–62.5 mg/kg bw every 6 h (taper to the lowest possible dose)Activation of CPS1

Summary of the main biochemical aspects of primary hyperammonaemias

Primary hyperammonaemia
Enzyme defects of the urea cycle
DisorderMain diagnosticsKey metabolitesPathomechanism
NAGS deficiencyAmino acids in plasmaGlutamine in plasma increased, orotic acid in urine normalEnzymatic block
CPS1 deficiencyAmino acids in plasmaGlutamine in plasma increased, orotic acid in urine normalEnzymatic block
OTC deficiencyAmino acids in plasma, orotic acid in urineGlutamine in plasma increased, orotic acid in urine increasedEnzymatic block
ASS deficiencyAmino acids in plasma, orotic acid in urineGlutamine and citrulline in plasma increased, orotic acid in urine increasedEnzymatic block
ASL deficiencyAmino acids in plasma, orotic acid in urineGlutamine, citrulline and argininosuccinate in plasma and urine increased, orotic acid in urine increasedEnzymatic block
ARG1 deficiencyAmino acids in plasmaArginine in plasma increasedEnzymatic block

Transporter defects of the urea cycle

HHH syndromeAmino acids in plasma and urineOrnithine in plasma increased, homocitrulline in urine increasedDeficiency of mitochondrial ornithine (substrate of OTC)
Citrin deficiencyAmino acids in plasmaCitrulline in plasma increasedDeficiency of cytosolic aspartate (substrate of ASS)
DOI: https://doi.org/10.34763/jmotherandchild.20202402si.2015.000006 | Journal eISSN: 2719-535X | Journal ISSN: 2719-6488
Language: English
Page range: 32 - 38
Published on: Oct 2, 2020
In partnership with: Paradigm Publishing Services
Publication frequency: 1 issue per year

© 2020 Johannes Häberle, published by Institute of Mother and Child
This work is licensed under the Creative Commons Attribution 4.0 License.
