Luffa cylindrica Immobilized with Aspergillus terreus QMS-1: an Efficient and Cost-Effective Strategy for the Removal of Congo Red using Stirred Tank Reactor Cover

Luffa cylindrica Immobilized with Aspergillus terreus QMS-1: an Efficient and Cost-Effective Strategy for the Removal of Congo Red using Stirred Tank Reactor

Open Access
|Jun 2020

Figures & Tables

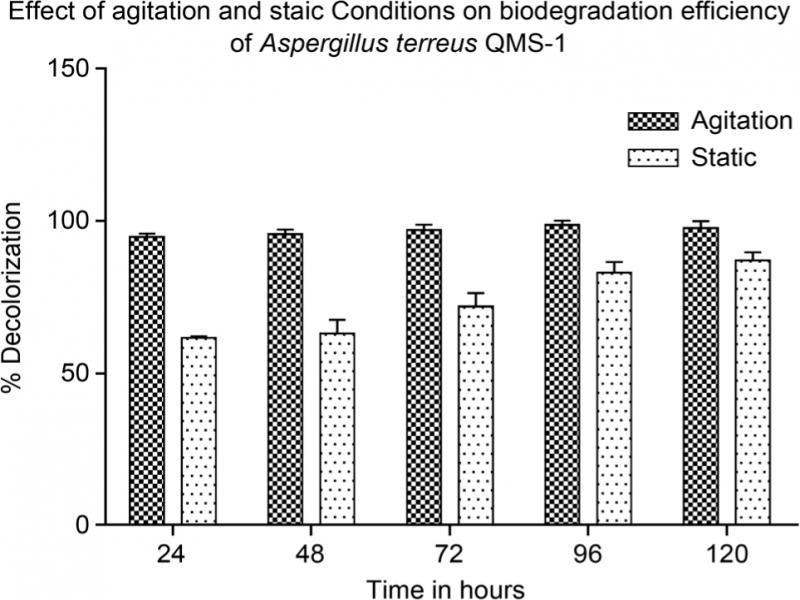

Fig. 1.

Effect of agitation and static conditions on biodegradation efficiency of Aspergillus terreus QMS-1.
Effect of agitation and static conditions on biodegradation efficiency of Aspergillus terreus QMS-1.

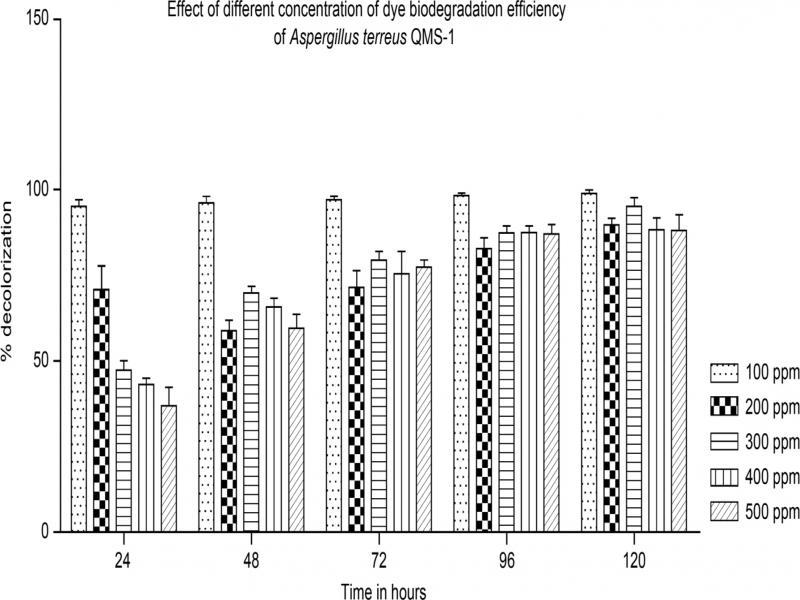

Fig. 2.

Effect of different concentration of dye on biodegradation efficiency of Aspergillus terreus QMS-1.
Effect of different concentration of dye on biodegradation efficiency of Aspergillus terreus QMS-1.

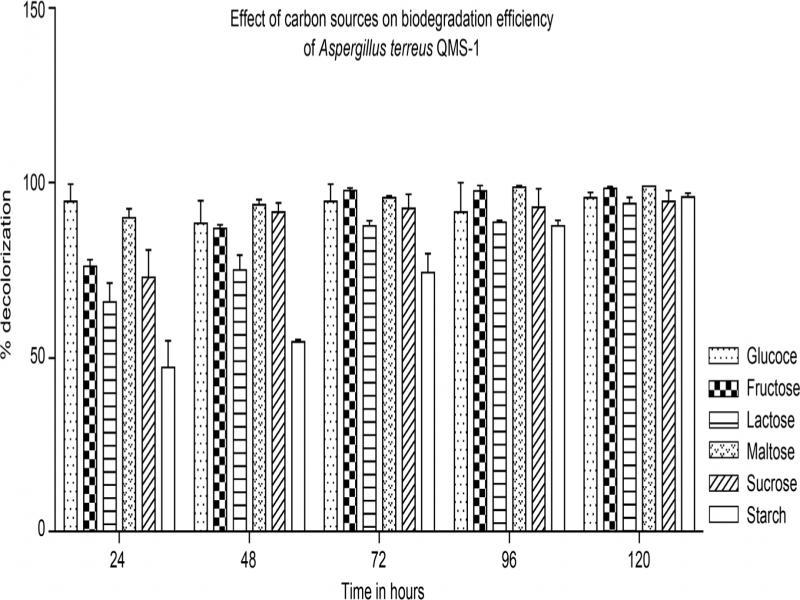

Fig. 3.

Effect of carbon sources on biodegradation efficiency of Aspergillus terreus QMS-1.
Effect of carbon sources on biodegradation efficiency of Aspergillus terreus QMS-1.

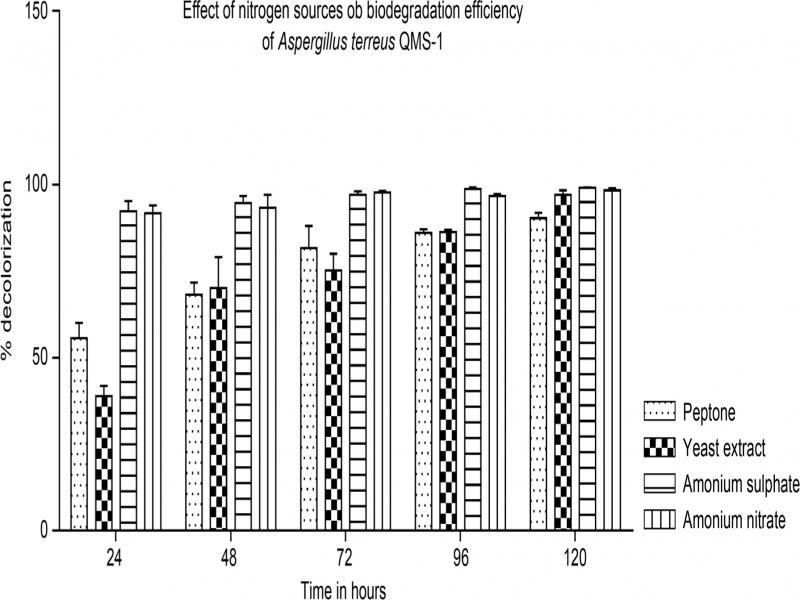

Fig. 4.

Effect of nitrogen sources on biodegradation efficiency of Aspergillus terreus QMS-1.
Effect of nitrogen sources on biodegradation efficiency of Aspergillus terreus QMS-1.

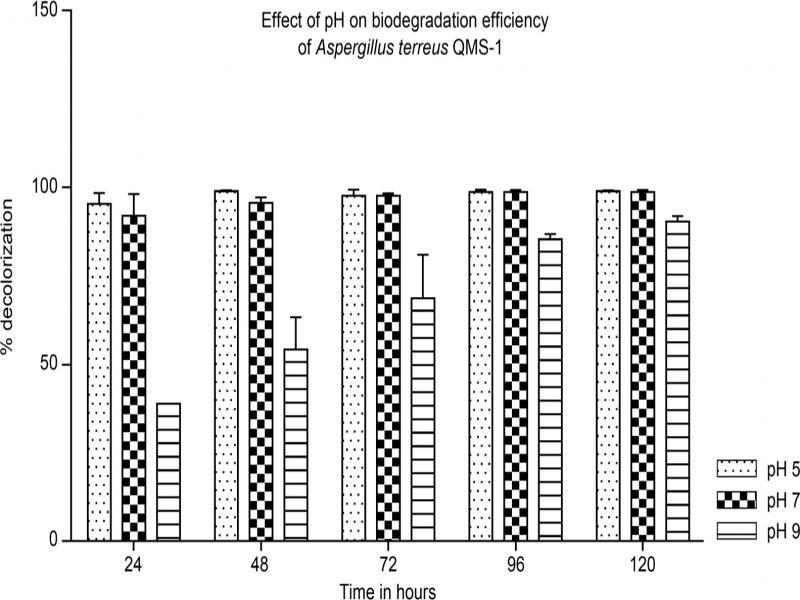

Fig. 5.

Effect of pH on biodegradation efficiency of Aspergillus terreus QMS-1.
Effect of pH on biodegradation efficiency of Aspergillus terreus QMS-1.

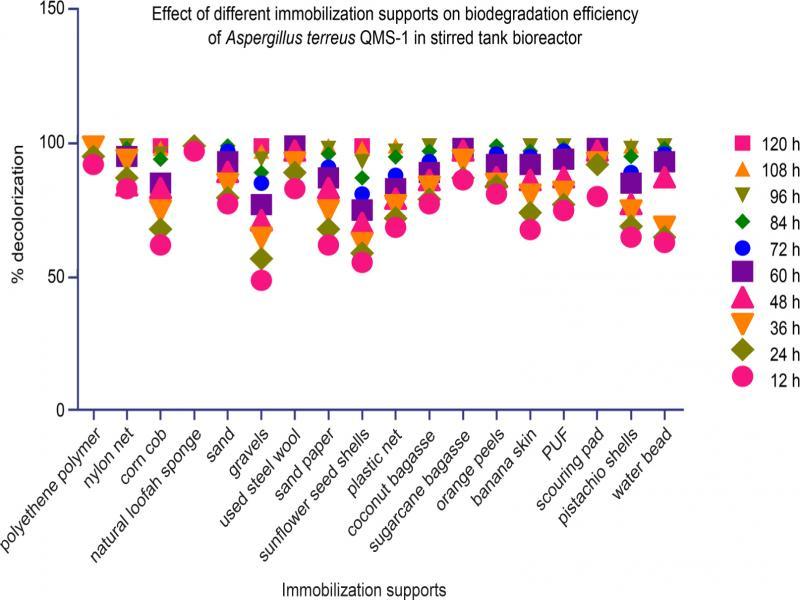

Fig. 6.

Effect of different immobilization supports on biodegradation efficiency of Aspergillus terreus QMS-1 in the stirred tank bioreactor.
Effect of different immobilization supports on biodegradation efficiency of Aspergillus terreus QMS-1 in the stirred tank bioreactor.

Fig. 7.

Luffa cylindrica (a) before and (b) after with immobilization of Aspergillus terreus QMS-1.
Luffa cylindrica (a) before and (b) after with immobilization of Aspergillus terreus QMS-1.

Fig. 8.

SEM micrographs of Luffa cylindrica, a) before and b) after immobilization of Aspergillus terreus QMS-1.
SEM micrographs of Luffa cylindrica, a) before and b) after immobilization of Aspergillus terreus QMS-1.

Identification and screening of fungal isolates for biodegradation potential of Congo red_

Funga isolate numberThe fungi identifiedQualitative screening for Congo red dyeQuantitative screening for Congo red dye (%)
01 Alternaria sp QMS-1
02 Alternaria sp QMS-2+66
03 Aspergillus flavus QMS-1+60
04 Aspergillus flavus QMS-2+55
05 Aspergillus flavus QMS-3+80
06 Aspergillus flavus QMS-4+17
07 Aspergillus flavus QMS-5+80
08 Aspergillus flavus QMS-6
09 Aspergillus flavus QMS-7
10 Aspergillus flavus QMS-8+26
11 Aspergillus flavus QMS-9+42
12 Aspergillus flavus QMS-10+28
13 Aspergillus niger QMS-1
14 Aspergillus niger QMS-2+54
15 Aspergillus niger QMS-3+26
16 Aspergillus niger QMS-4+53
17 Aspergillus niger QMS-5+18
18 Aspergillus niger QMS-6+89
19 Aspergillus niger QMS-7+54
20 Aspergillus terreus QMS-1+92
21 Aspergillus terreus QMS-2+35
22 Aspergillus terreus QMS-3+12
23 Aspergillus terreus QMS-4
24 Aspergillus terreus QMS-5+12
25 Aspergillus terreus QMS-6+31
26 Aspergillus terreus QMS-7+79
27 Cladosporium sp QMS-1+65
28 Cladosporium sp QMS-2+66
29 Cladosporium sp QMS-3+62
30 Curvularia sp QMS-1
31 Curvularia sp QMS-2+56
32 Curvularia sp QMS-3
33 Curularia sp QMS-4
34 Fusarium spQMS-1+43
35 Fusarium sp QMS-2+66
36 Fusarium sp QMS-3+81
37 Helimenthosporium sp QMS-1+74
38 Helimenthosporium sp QMS-2+62
39 Helimenthosporium sp QMS-3+54
40 Mucor sp QMS-1+31
41 Mucor sp QMS-2
42 Mucor sp QMS-3+62
43 Mucor sp QMS-4
44 Mucor sp QMS-5
45 Mucor sp QMS-6+82
46 Penicillium sp QMS-1__
47 Penicillium sp QMS-2+43
48 Penicillium sp QMS-3+83
49 Penicillium sp QMS-4+79
50 Penicillium sp QMS-5+65
51 Penicillium sp QMS-6
52 Rhizopus sp QMS-1+11
53 Rhizopus spQMS-2+25
54 Rhizopus sp QMS-3
55 Rhizopus sp QMS-4+56
56 Rhizopus sp QMS-5+43
