Ultralight and Very Light Helicopter Rotor Data

Transactions on Aerospace Research
Volume 2023 (2023): Issue 2 (June 2023)
By: Vitaly Dudnik and  Victor Karabut
Open Access
|Jun 2023

Figures & Tables

Figure 1.

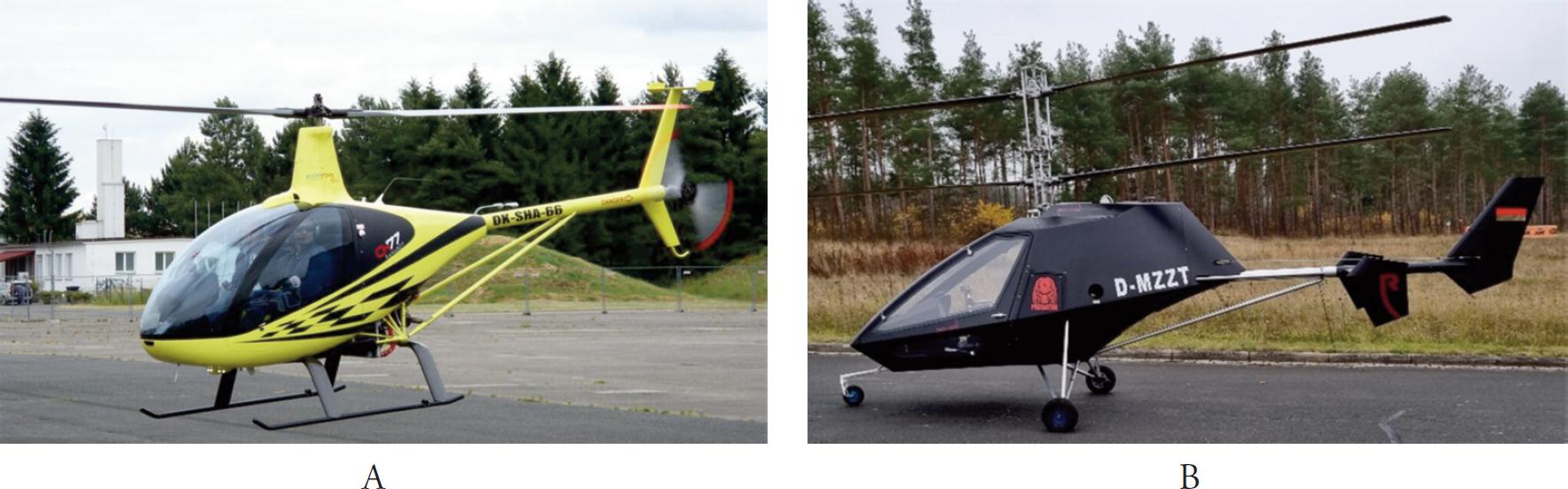

The small weighted helicopter. (A) Single-rotor helicopter ranabot CH-77 (Italy), MtOM-500 kg, (B) coaxial helicopter rotorschmiede VA-250 (Germany), MtOM-500 kg.
The small weighted helicopter. (A) Single-rotor helicopter ranabot CH-77 (Italy), MtOM-500 kg, (B) coaxial helicopter rotorschmiede VA-250 (Germany), MtOM-500 kg.

Figure 2.

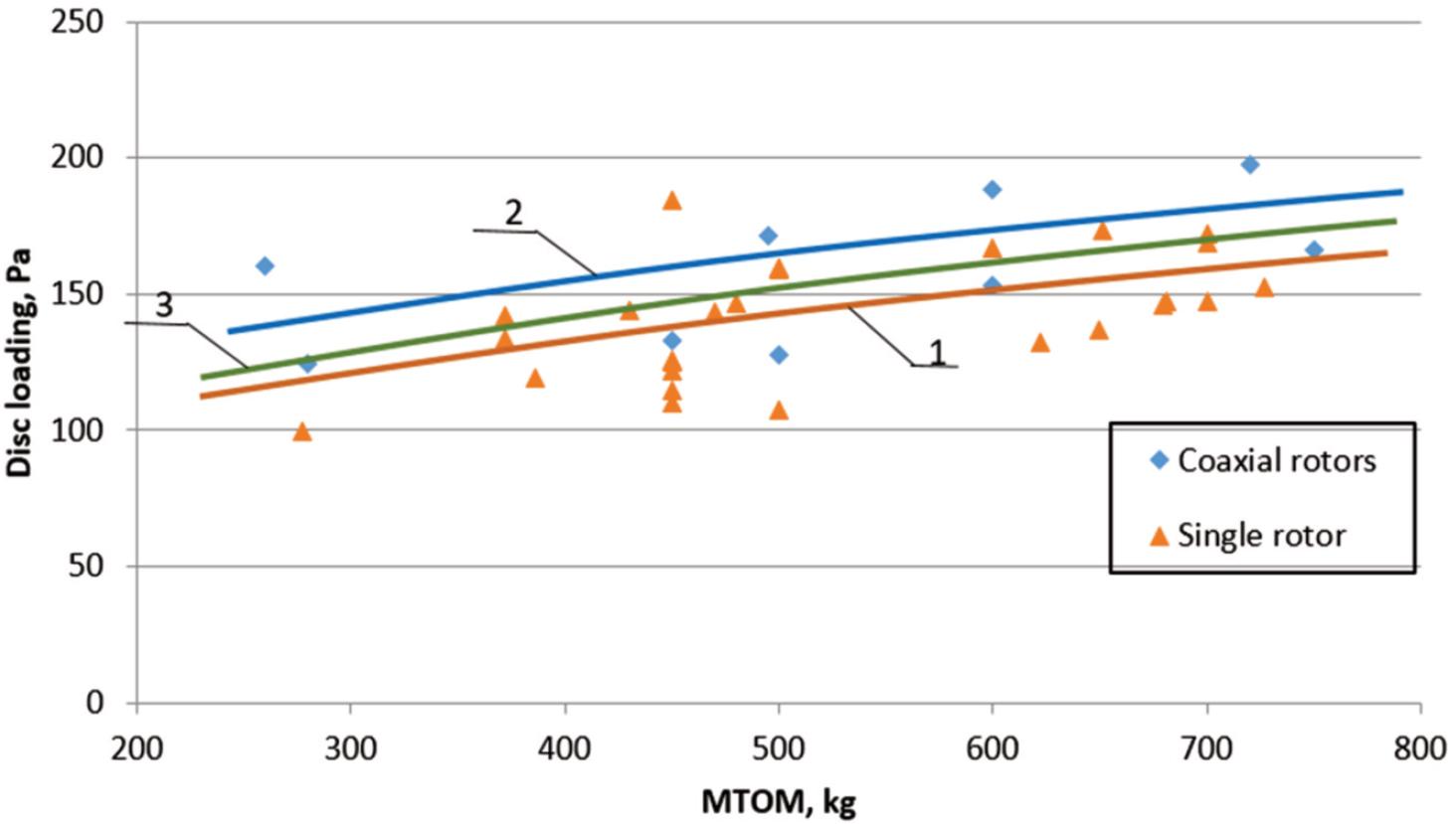

Dependence of discs loading on MTOM (1 – approximation curve for single rotor helicopters, 2 – approximation curve for coaxial helicopters, 3 – disc loading dependence according to [1]).
Dependence of discs loading on MTOM (1 – approximation curve for single rotor helicopters, 2 – approximation curve for coaxial helicopters, 3 – disc loading dependence according to [1]).

Figure 3.

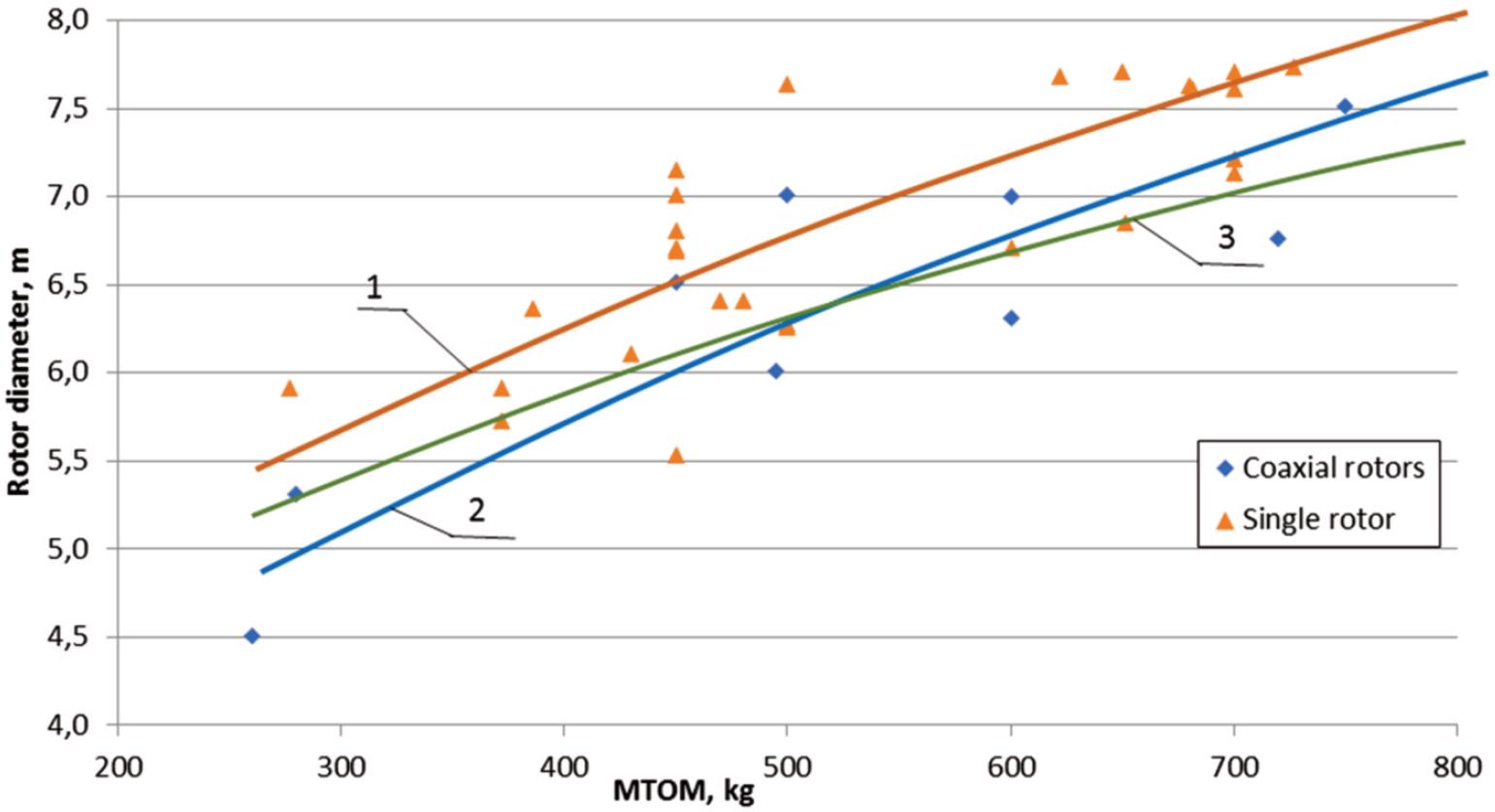

Dependence of the main rotor diameter on MTOM (1 – approximation curve for single rotor helicopters, 2 – approximation curve for coaxial helicopters, 3 – rotor dependence according to [1]).
Dependence of the main rotor diameter on MTOM (1 – approximation curve for single rotor helicopters, 2 – approximation curve for coaxial helicopters, 3 – rotor dependence according to [1]).

Figure 4.

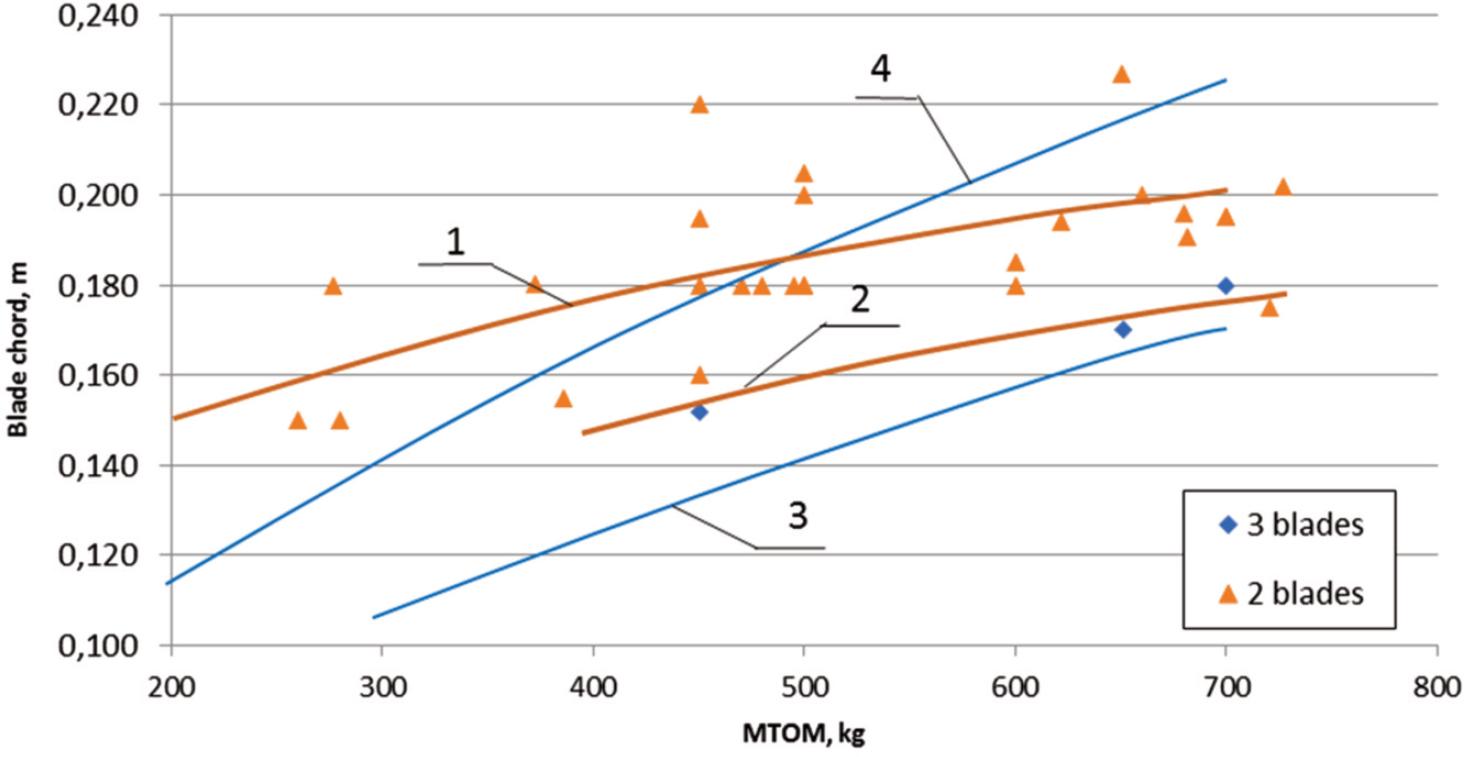

Dependence of the blade chord on MtOM (1 – approximation curve for two-bladed rotors, 2 – approximation curve for three-bladed rotors, 3 – approximation curve for three-bladed rotors according to [1] 4 – approximation curve for two-bladed rotors according to [1]).
Dependence of the blade chord on MtOM (1 – approximation curve for two-bladed rotors, 2 – approximation curve for three-bladed rotors, 3 – approximation curve for three-bladed rotors according to [1] 4 – approximation curve for two-bladed rotors according to [1]).

Figure 5.

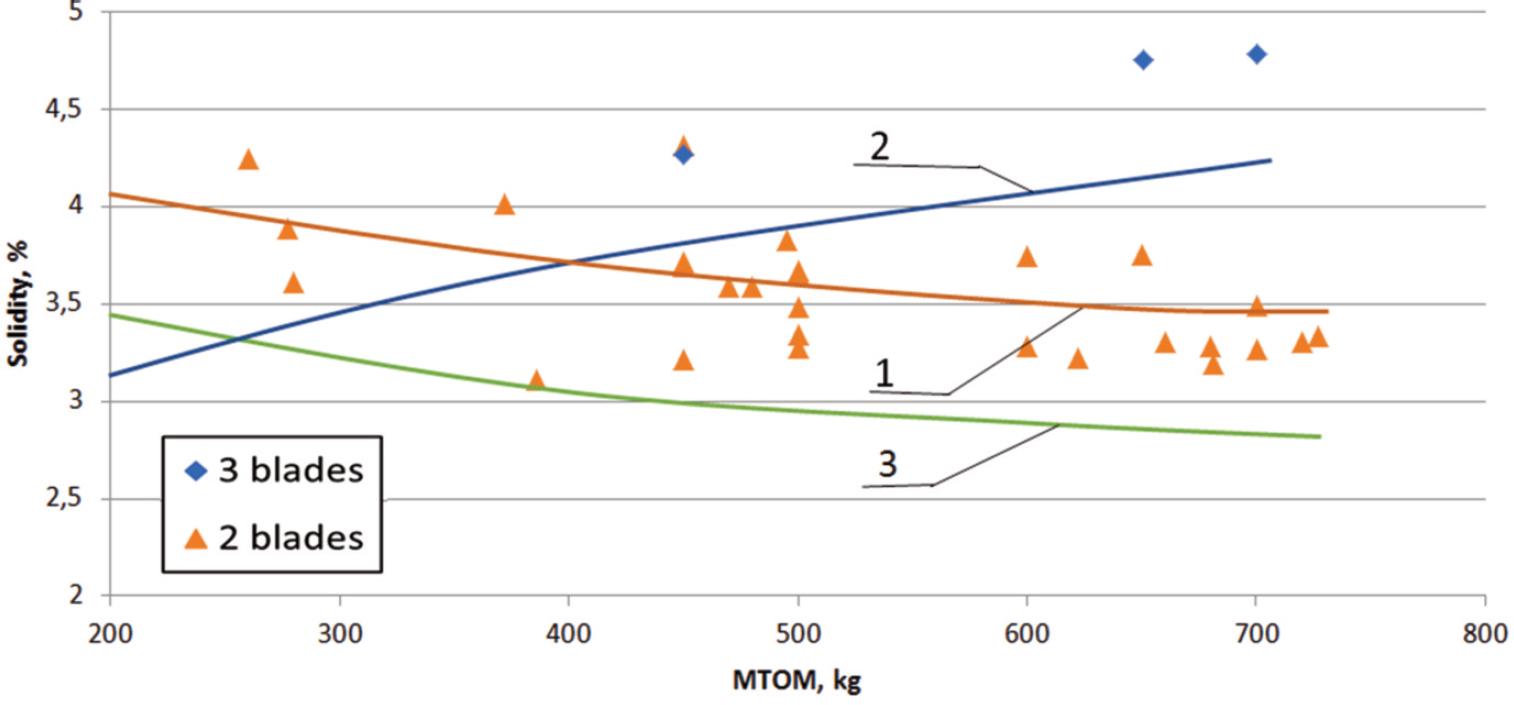

Dependence of the rotor solidity on MtOM (1 – approximation curve for two-bladed rotors, 2 – approximation curve according to [1], 3 – the minimum value of the rotor solidity according to [3]).
Dependence of the rotor solidity on MtOM (1 – approximation curve for two-bladed rotors, 2 – approximation curve according to [1], 3 – the minimum value of the rotor solidity according to [3]).

Figure 6.

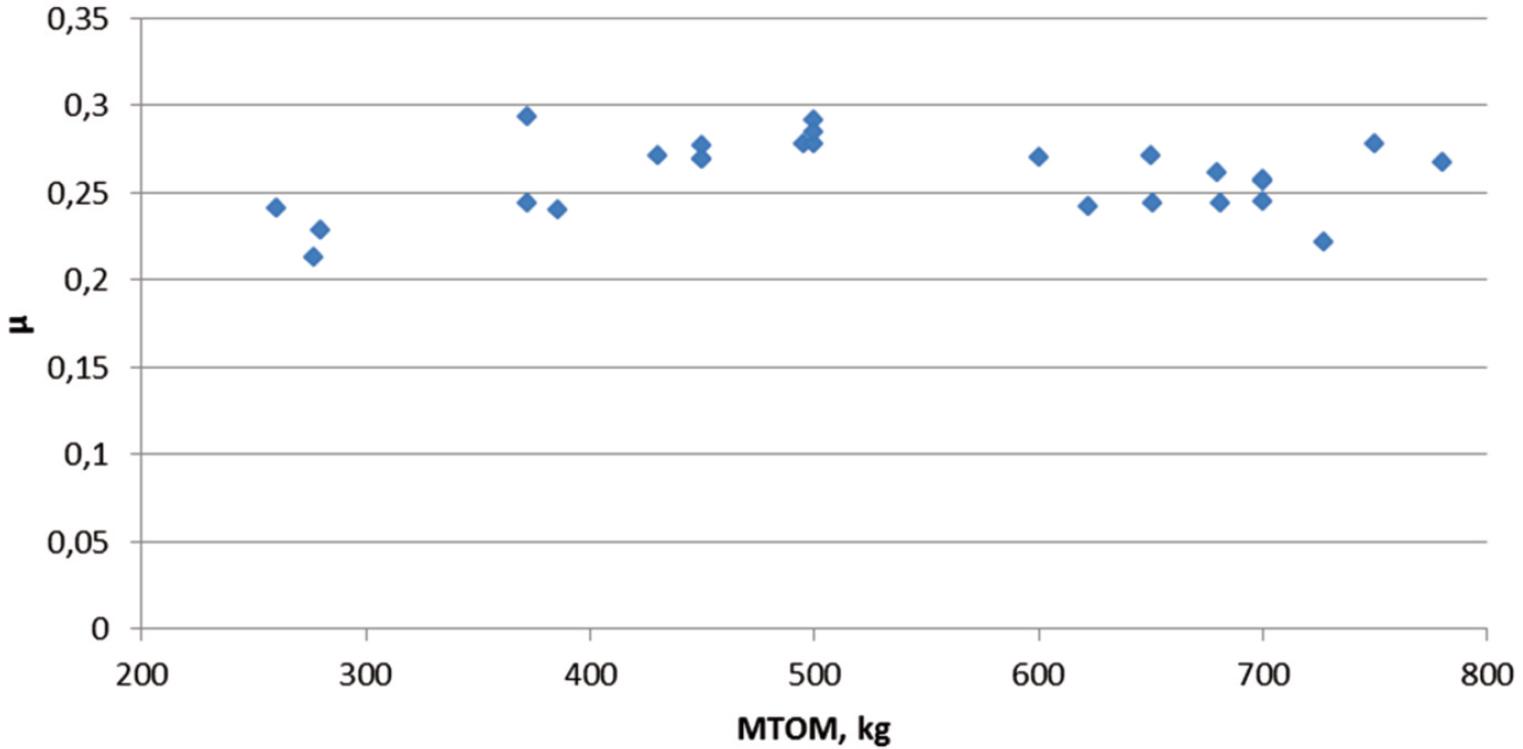

Dependence of the helicopter advance ratio on MtOM.
Dependence of the helicopter advance ratio on MtOM.

Figure 7.

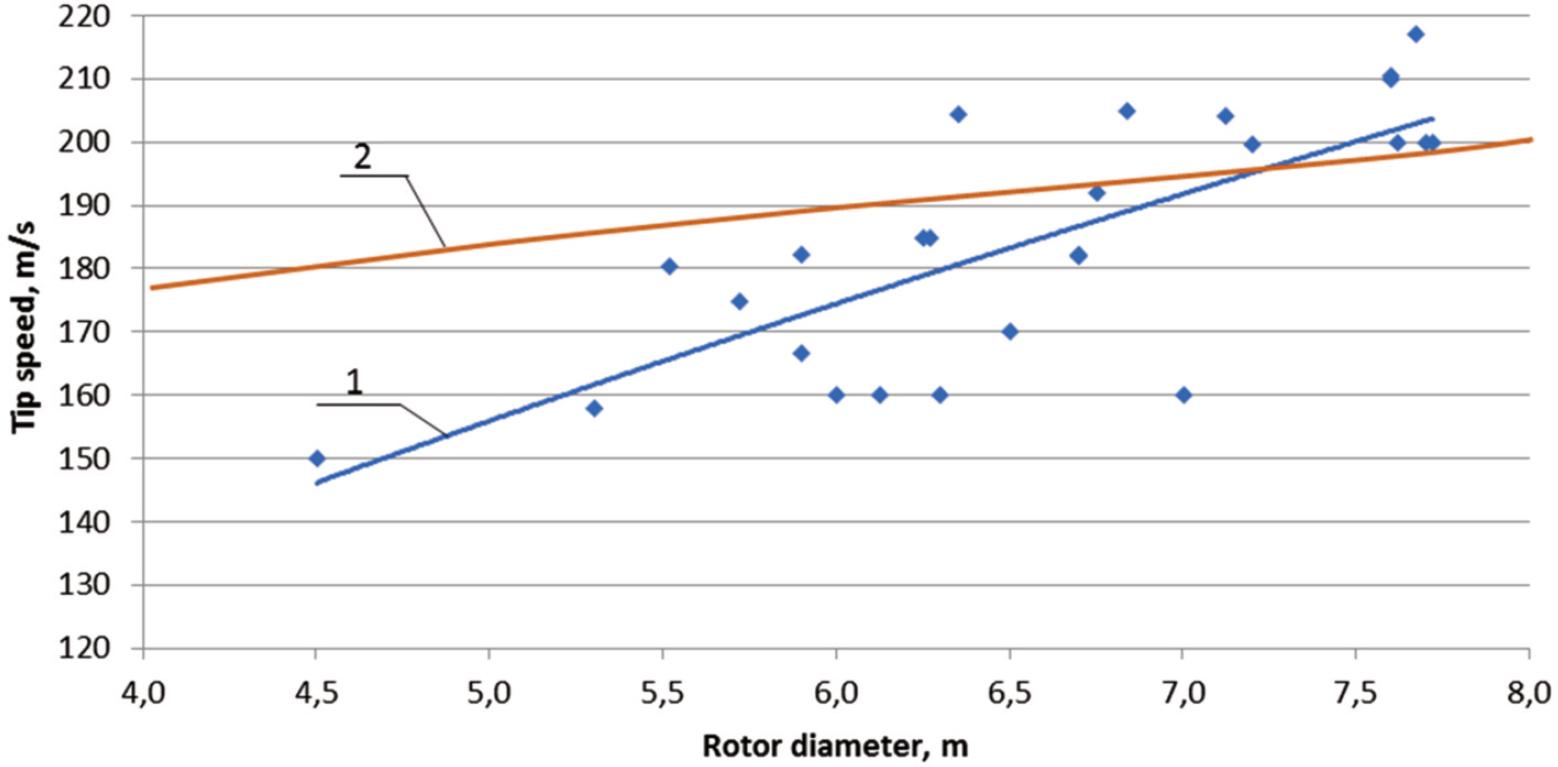

Dependence of the blade tip speed on rotor diameter (1 – approximation curve, 2 – rotor dependence according to [1]).
Dependence of the blade tip speed on rotor diameter (1 – approximation curve, 2 – rotor dependence according to [1]).
