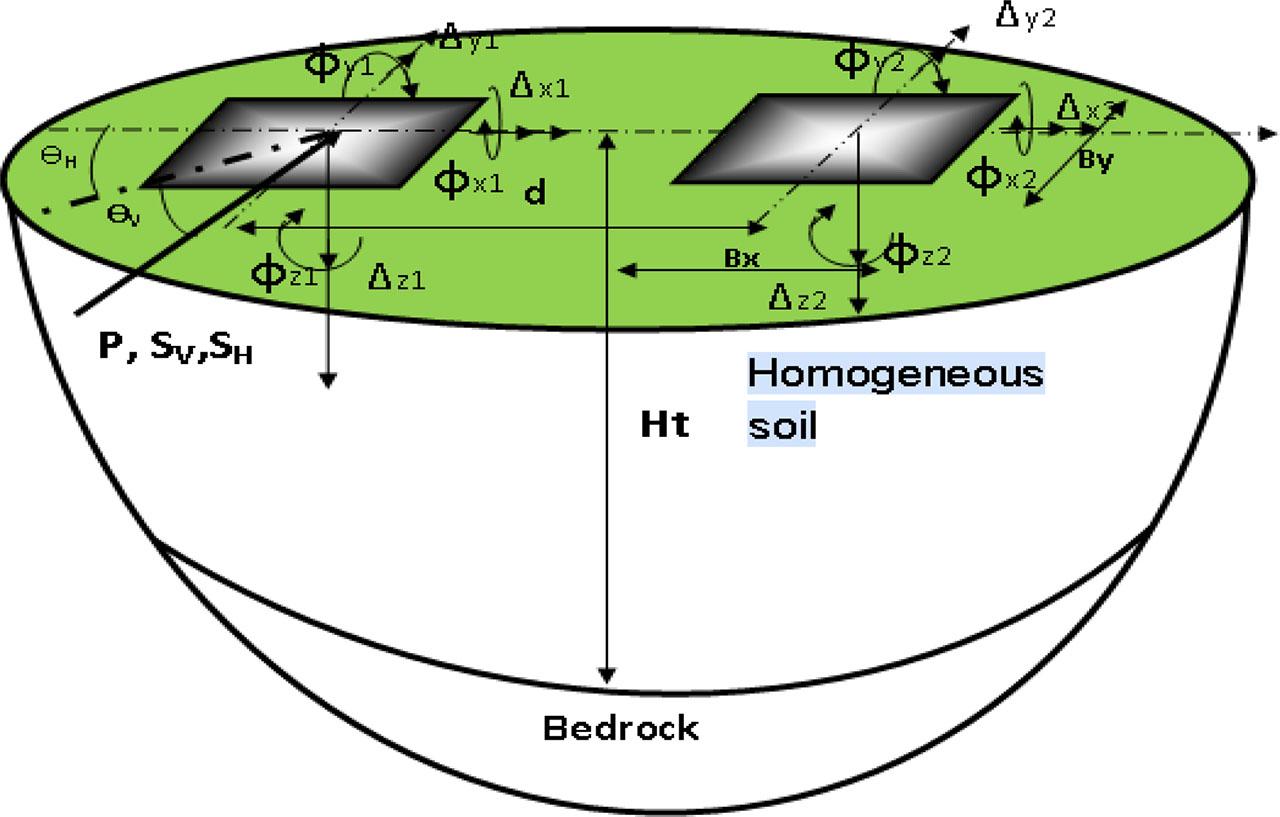

Figure 1:
Geometry of two rigid foundations subjected to harmonic seismic waves.

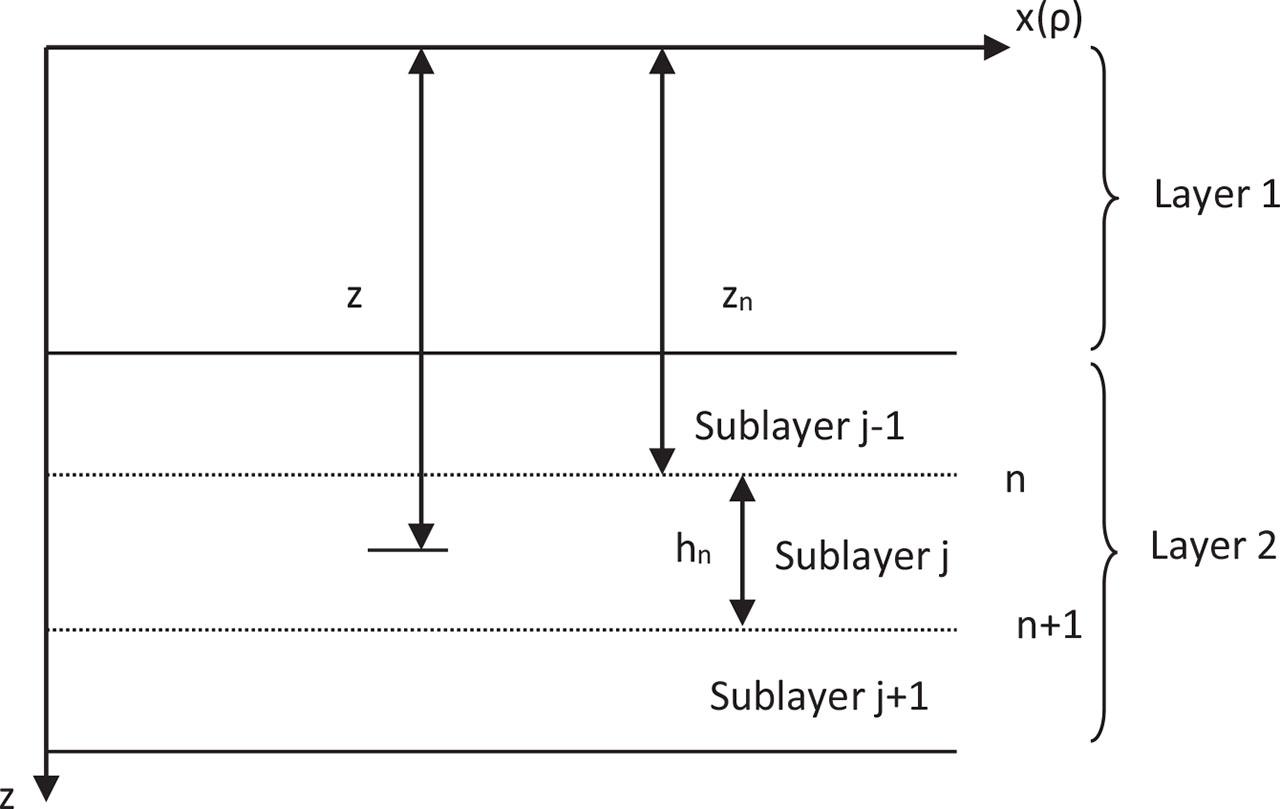

Figure 2a:
Vertical discretization.

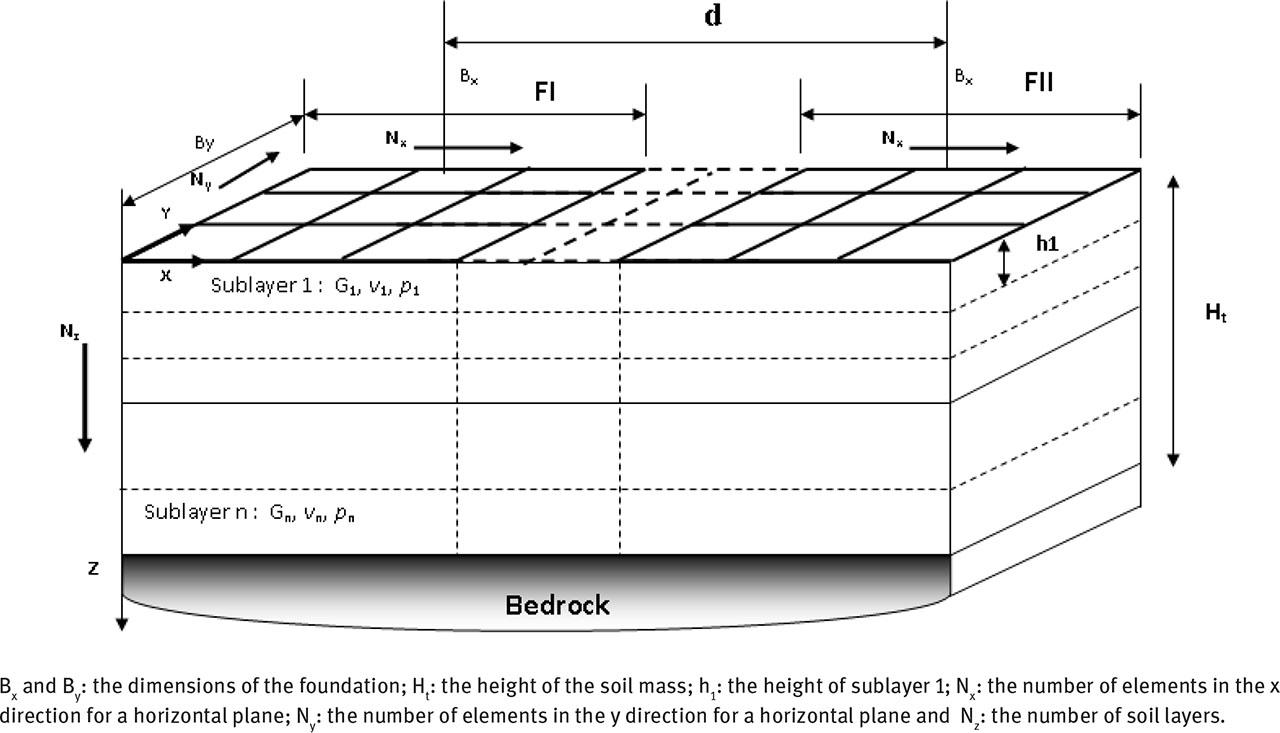

Figure 2b:
Calculation model.

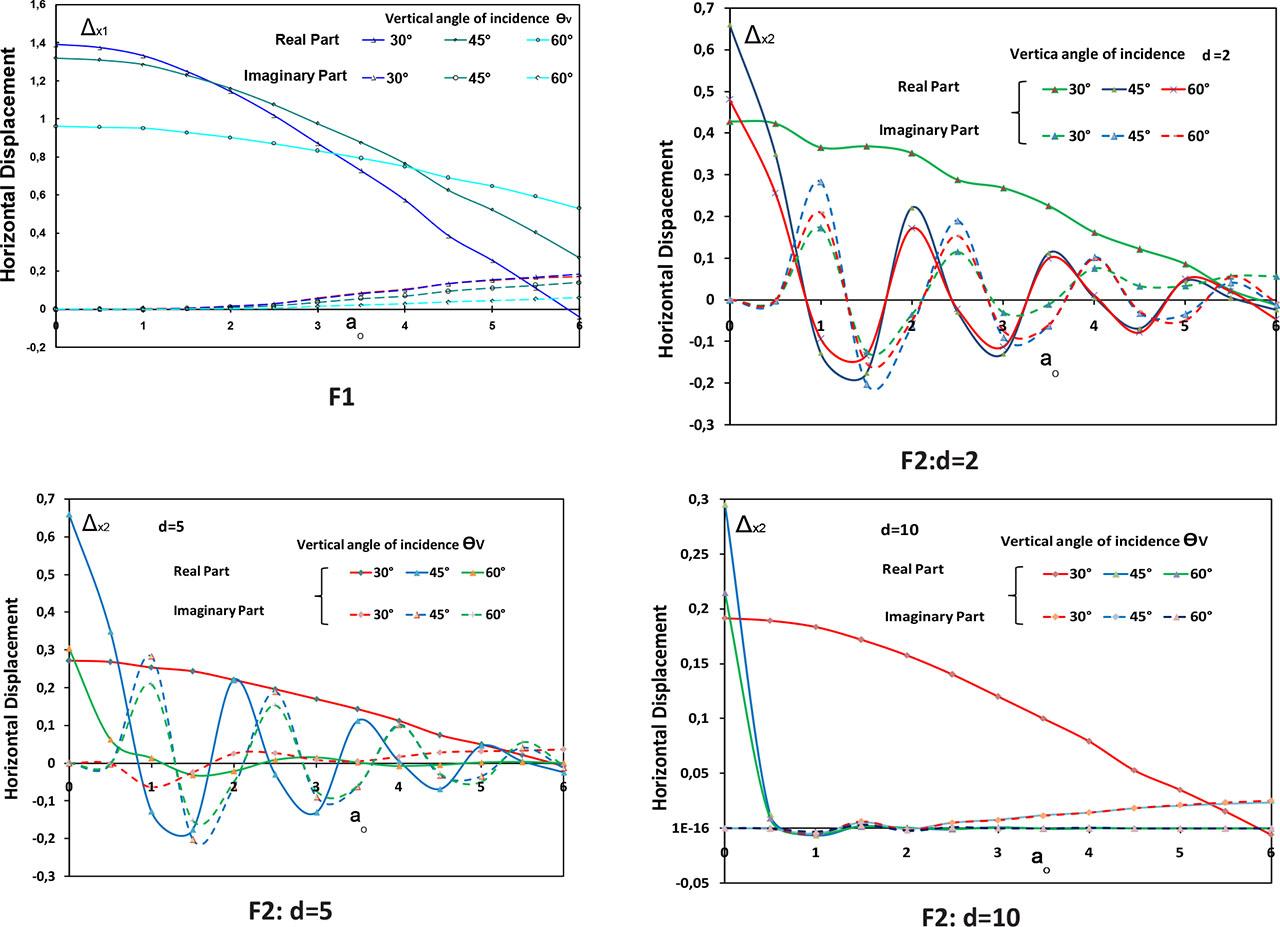

Figure 3:
Influence of the vertical angle of incidence on the horizontal displacement Δx (θH = 0°; wave P). F1, foundation 1; F2, foundation 2.

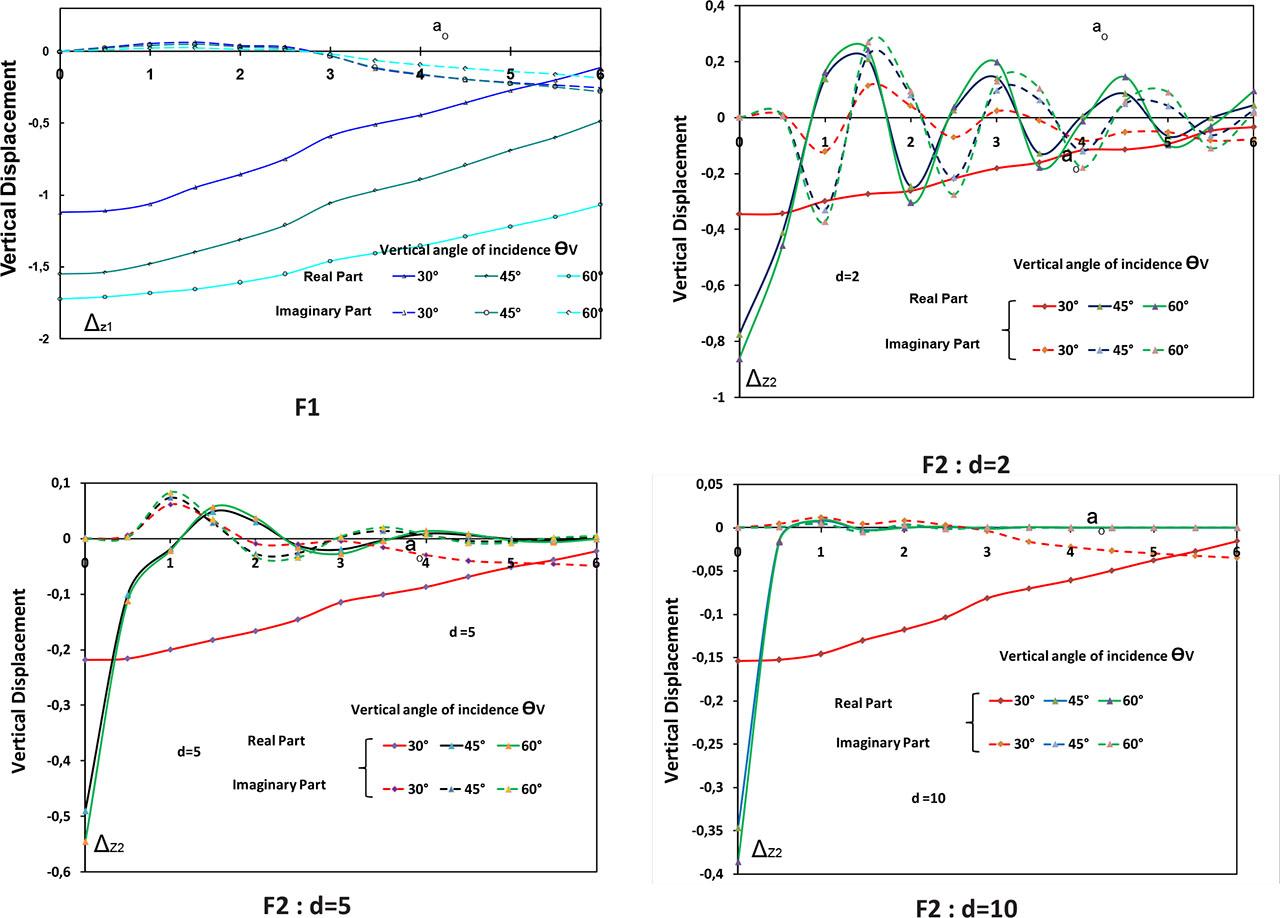

Figure 4:
Influence of the vertical angle of incidence on the vertical displacement Δz (θH = 0°, P wave). F1, foundation 1; F2, foundation 2.

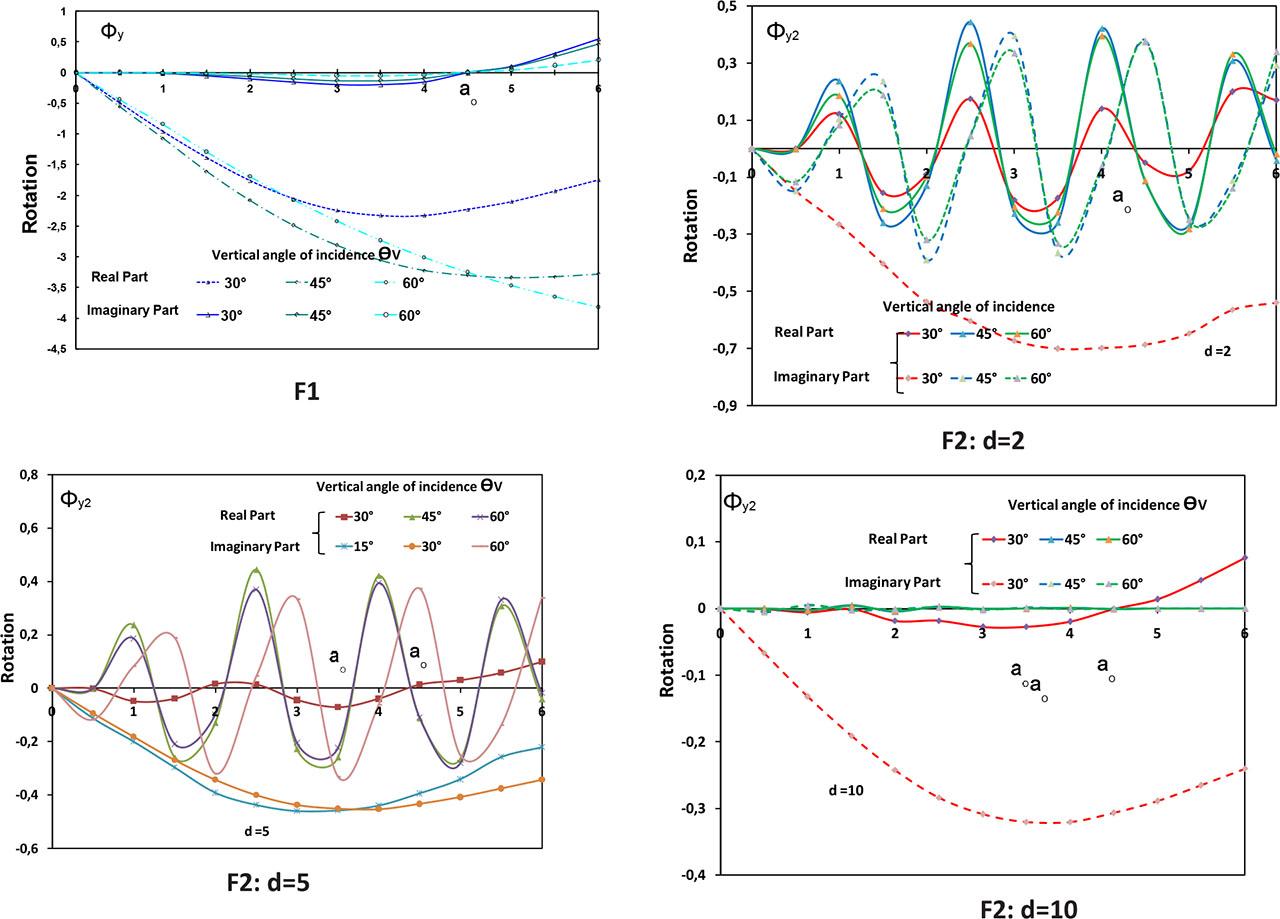

Figure 5:
Influence of the vertical angle of incidence on the rotation Φy (θH= 0°; P wave). F1, foundation 1; F2, foundation 2.

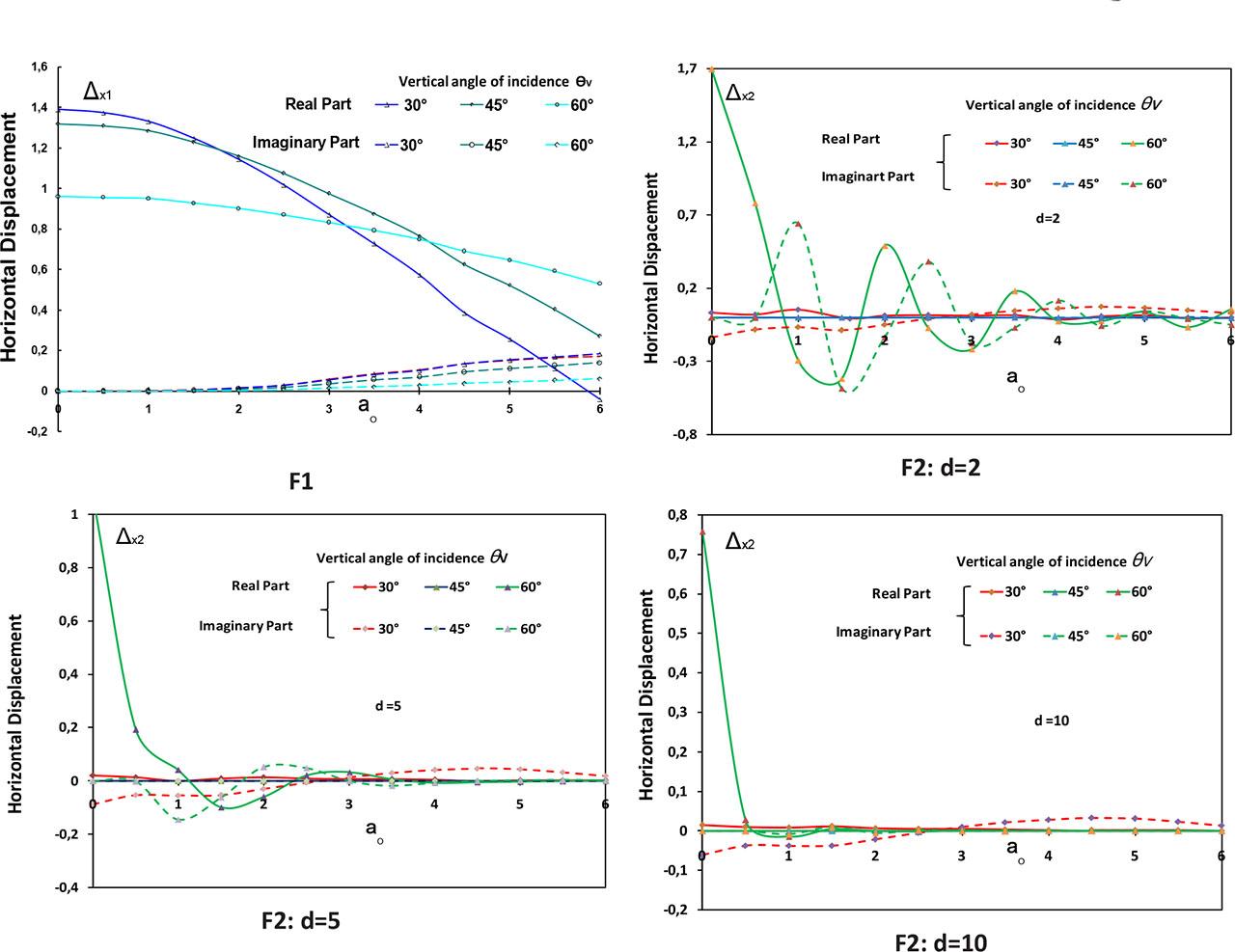

Figure 6:
Influence of the vertical angle of incidence on the horizontal displacement Δx (θH = 0°; SV wave). F1, foundation 1; F2, foundation 2.
Figure 7:
Influence of the vertical angle of incidence on the vertical displacement Δz (θH = 0°; SV wave). F1, foundation 1; F2, foundation 2.

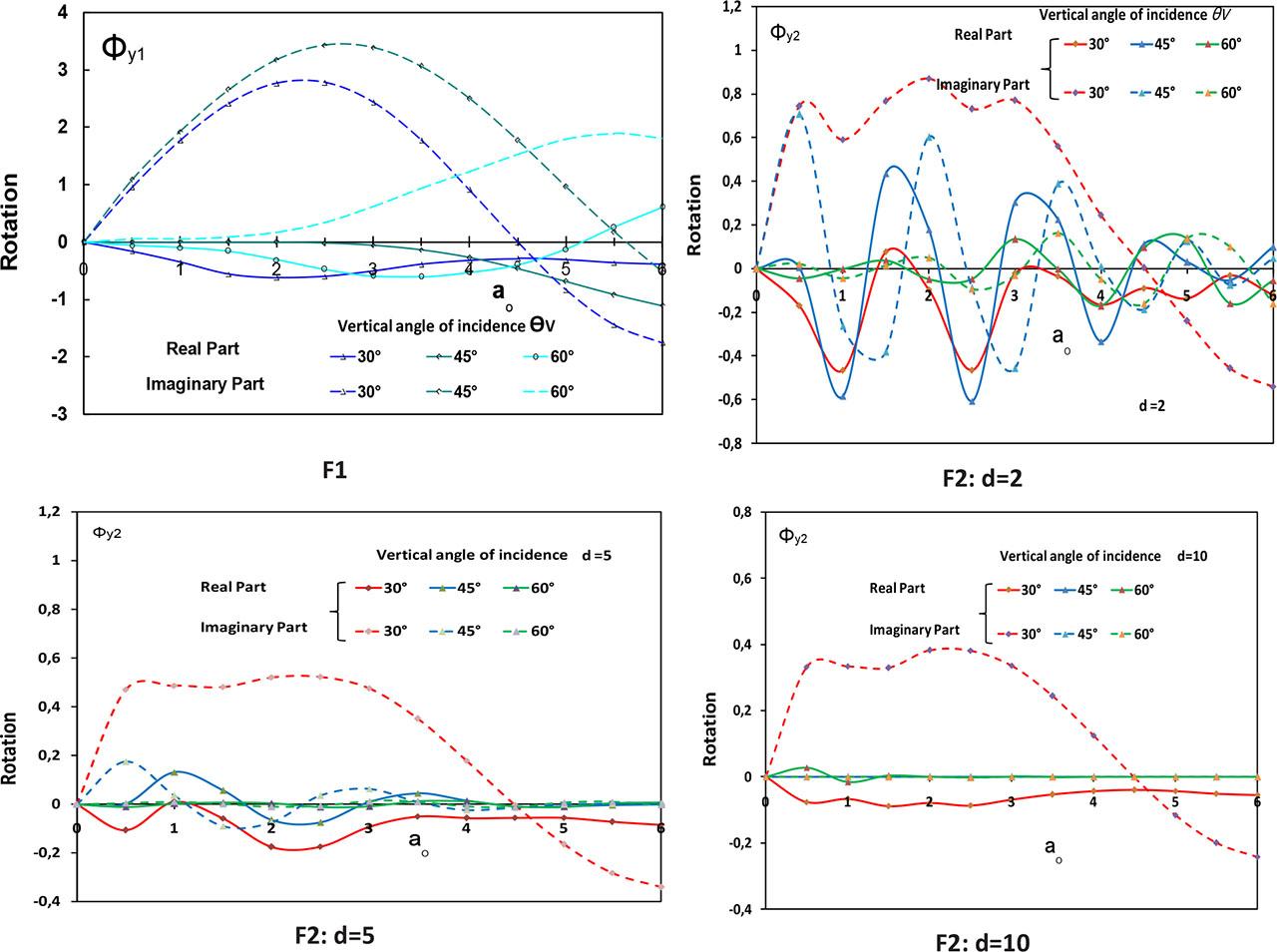

Figure 8:
Influence of the vertical angle of incidence on the rotation Φy (θH=0°; SV wave). F1, foundation 1; F2, foundation 2.

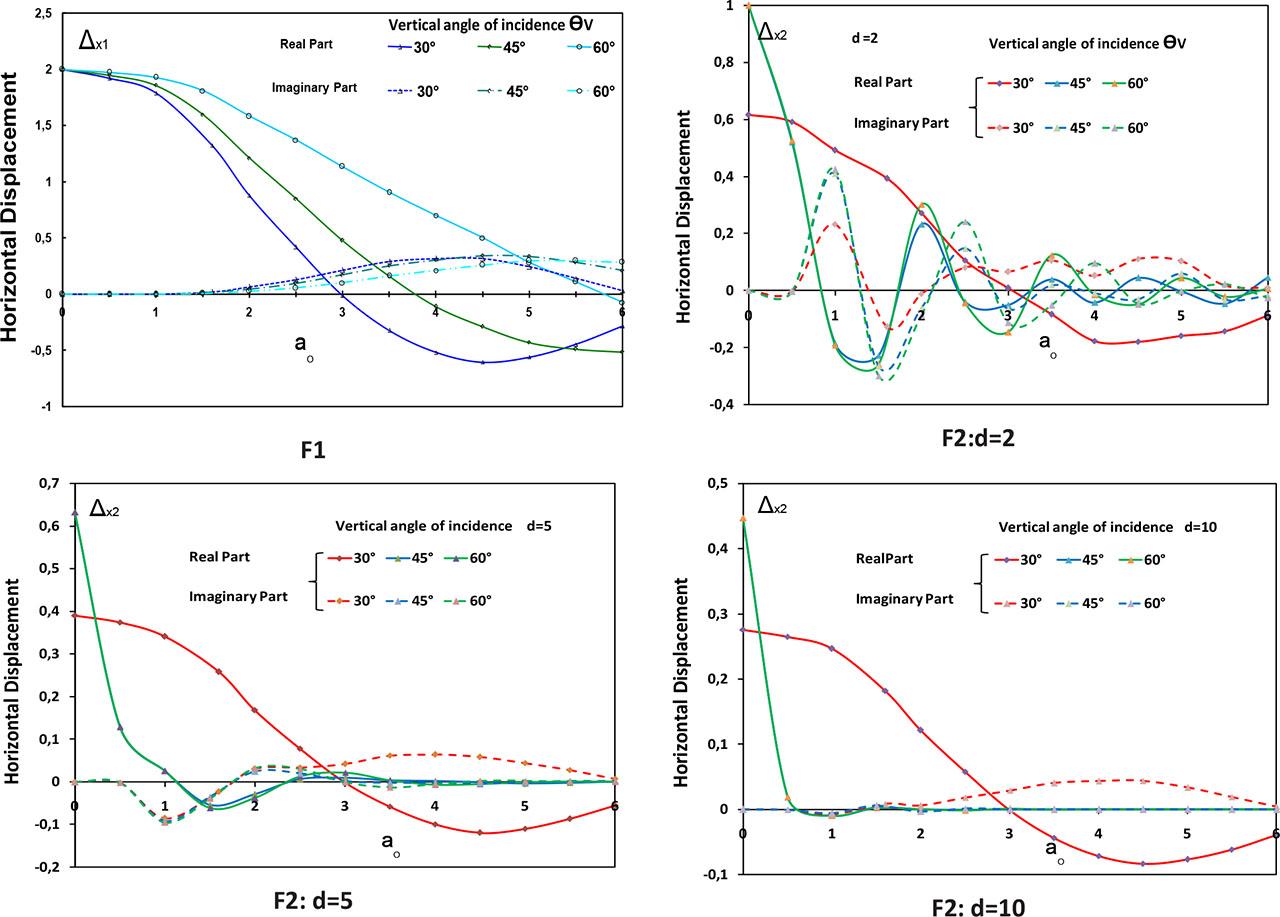

Figure 9:
Influence of the vertical angle of incidence on the horizontal displacement Δx (θH=90°; SH wave). F1, foundation 1; F2, foundation 2.

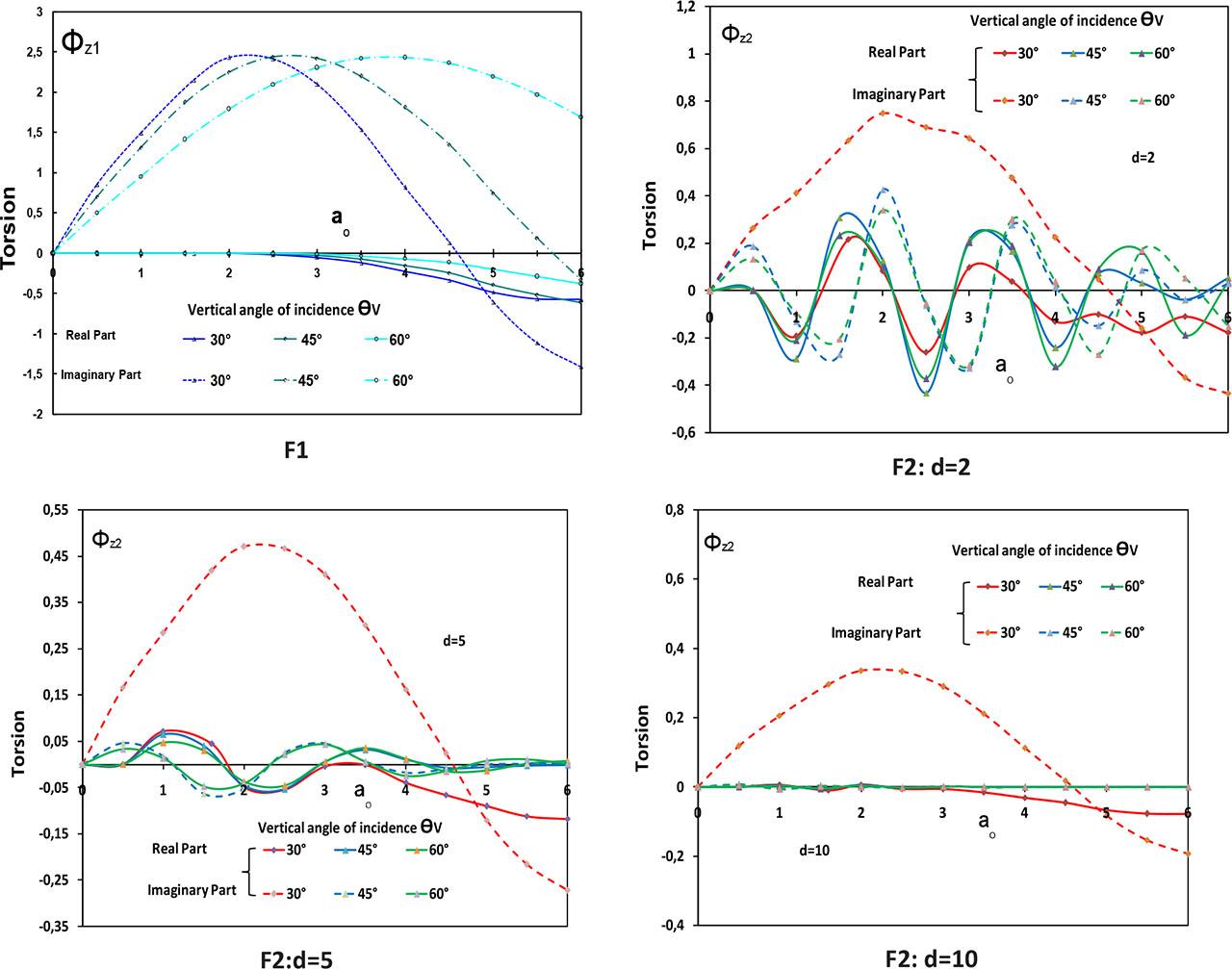

Figure 10:
Influence of the vertical angle of incidence on the torsion Φz (θH = 90°; SH wave). F1, foundation 1; F2, foundation 2.
