Stereophotogrammetry for 2-D building deformation monitoring using Kalman Filter Cover

Stereophotogrammetry for 2-D building deformation monitoring using Kalman Filter

Reports on Geodesy and Geoinformatics
Volume 110 (2020): Issue 1 (December 2020)
By: ,  ,  ,   and
Open Access
|Aug 2020
Figures & tables

Figures & Tables

Figure 1

Study area location

Table 1

Materials used for the study

MaterialData TypeCollection methodAccuracy
Coordinates of Ground control points (GCPs)Primary dataField survey1:3000
Coordinates of photo control points (PCPs)Primary dataOverlapping photographs±0.0001 m
Digital cameraPrimary dataPerspective projection—

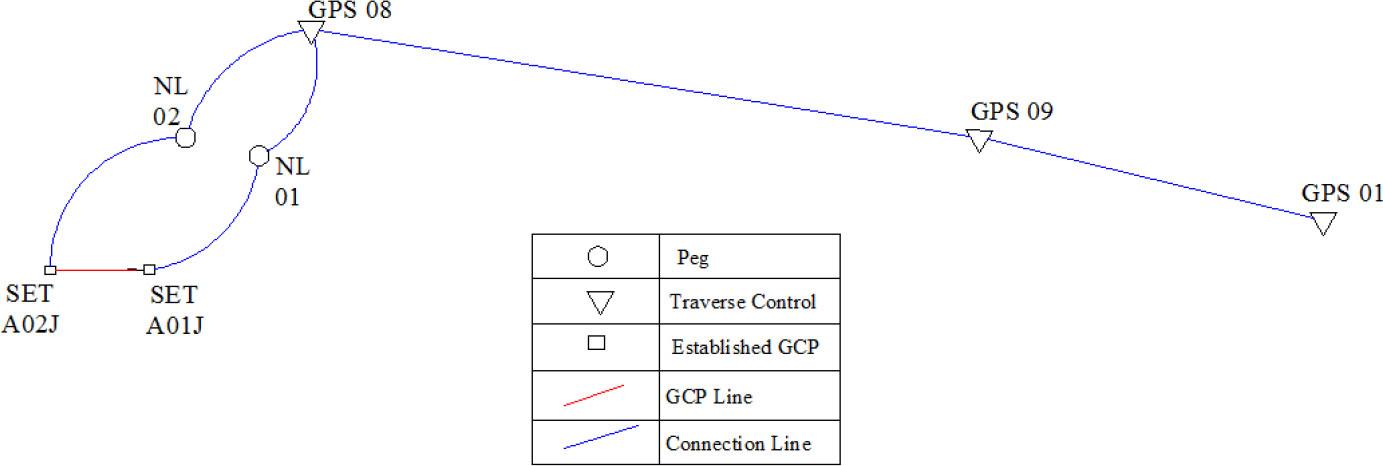

Figure 2

Description of traverse from known stations to selected GCPs

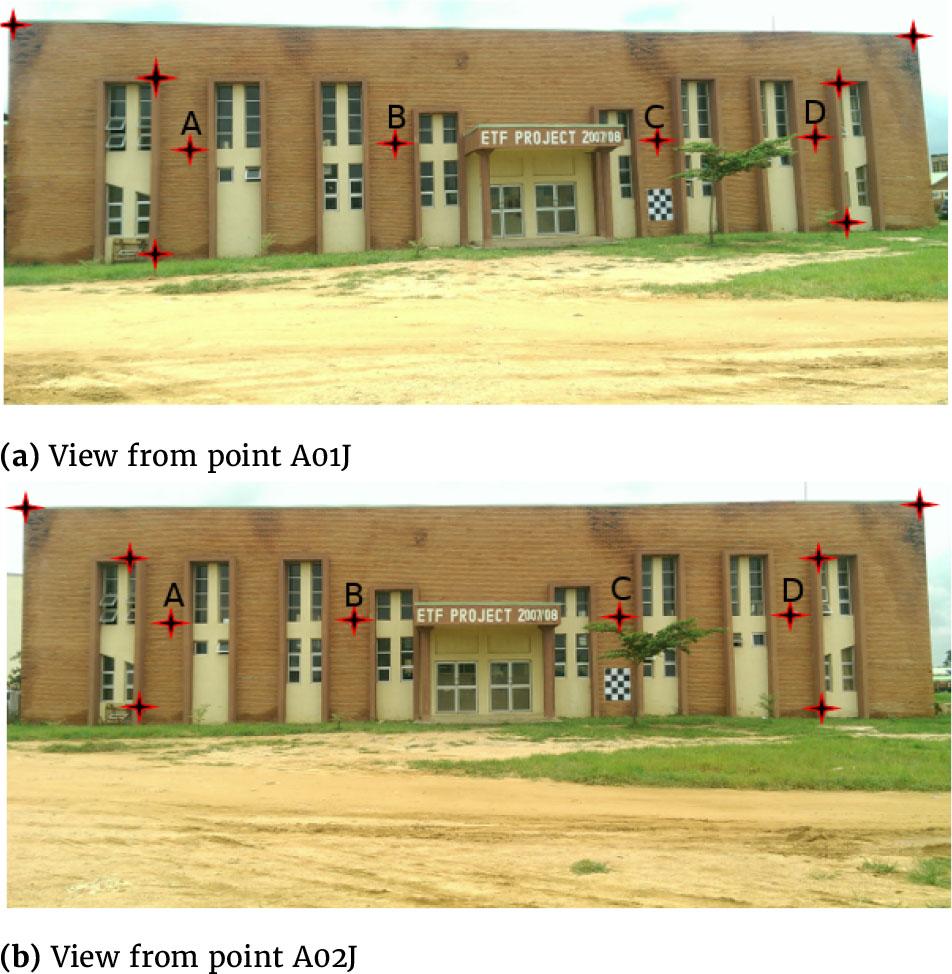

Figure 3

Illustrative view of data acquisition

Table 2

Accuracy of initial traverse for determination of the coordinates of GCPs

ParameterObtainedRemarks
Misclosure in Easting0.005 mAcceptable
Misclosure in Northing−0.045 mAcceptable
Linear Accuracy1:3000Acceptable
Table 3

Parameters of Polynomial Transformation

Easting CoordinateHeight Coordinate
ParameterValueParameterValue
C0220124.628D0243.094
C1−0.04D1−0.000251
C2−0.07D2−0.016352
C30.00008206D30.00000012
Table 4

Observed and photo-generated coordinates for all three observation epochs

PointGround MeasurementPhoto Generated Epoch 1Photo Generated Epoch 2Photo Generated Epoch 3
Easting [m]Height [m]Easting [m]Height [m]Easting [m]Height [m]Easting [m]Height [m]
A220115.351235.907220115.111236.033220115.863235.960220115.199236.084
B220079.639236.513220079.622236.454220079.655236.513220079.123236.743
C220018.515236.567220018.542236.552220018.832236.780220017.728236.214
D219989.901236.071219989.825236.067219989.195236.373219990.067236.079
Table 5

Results of space resection and ground measurement in the first epoch given in metres

PointGround MeasurementPhoto GeneratedResiduals
EastingHeightEastingHeightEastingHeight
A220115.351235.907220115.111236.0330.240−0.126
B220079.639236.513220079.622236.4540.0170.059
C220018.515236.567220018.542236.552−0.0270.015
D219989.901236.071219989.825236.0670.0760.004
Table 6

Results of space resection and ground measurement in the second epoch given in metres

PointGround MeasurementPhoto GeneratedResiduals
EastingHeightEastingHeightEastingHeight
A220115.351235.907220115.863235.960−0.512−0.053
B220079.639236.513220079.655236.513−0.0160.000
C220018.515236.567220018.832236.780−0.317−0.213
D219989.901236.071219989.195236.3730.706−0.302
Table 7

Results of space resection and ground measurement in the third epoch given in metres

PointGround MeasurementPhoto GeneratedResiduals
EastingHeightEastingHeightEastingHeight
A220115.351235.907220115.199236.084−0.1520.177
B220079.639236.513220079.123236.743−0.5160.23
C220018.515236.567220017.728236.214−0.787−0.353
D219989.901236.071219990.067236.0790.1660.008
Table 8

Results of Kalman filter analysis

Initial State VectorNext State VectorFinal State Vector
X220115.111220115.863220116.199
Z236.033235.96236.084
Vx0.00000019840.00000042330.0000011648
Vz0.00000010420.00000004380.0000010805
X2220079.622220079.655220079.123
Z2236.454236.513236.743
Vx0.00000001410.00000001320.0000033623
Vz0.00000004880.0000000000000.000001315311
X3220018.542220018.832220017.728
Z3236.552236.78236.214
Vx0.00000002230.00000026210.0000071106
Vz0.00000001240.00000017610.0000011012
X4219989.825219989.195219990.067
Z4236.067236.373236.079
Vx0.00000006280.00000058370.0000004696
Vz0.00000000330.00000024970.0000009152

[i] X, X2, X3, X4 – Easting [m];

[ii] Z, Z2, Z3, Z4 – Height [m];

[iii] Vx – Horizontal velocity [m/epoch], epoch = 2 months;

[iv] Vz – Vertical velocity [m/epoch],

Table 9

Detected horizontal and vertical motions at the epochs

ABCD
Epoch 1Vx [m/epoch]1.984e-71.41e-82.23e-86.28e-8
Vz [m/epoch]1.042e-74.88e-81.24e-83.3e-9
RemarksStableStableStableStable
Epoch 2Vx [m/epoch]4.233e-71.32e-82.621e-75.837e-7
Vz [m/epoch]4.38e-801.761e-72.497e-7
RemarksIns. Mov.StableIns. Mov.Ins. Mov.
Epoch 3Vx [m/epoch]1.1648e-63.3623e-67.1106e-64.696e-7
Vz [m/epoch]1.0805e-61.3153e-61.1012e-69.152e-7
RemarksIns. Mov.Ins. Mov.Ins. Mov.Ins. Mov.

[i] Ins. Mov – insignificant movement

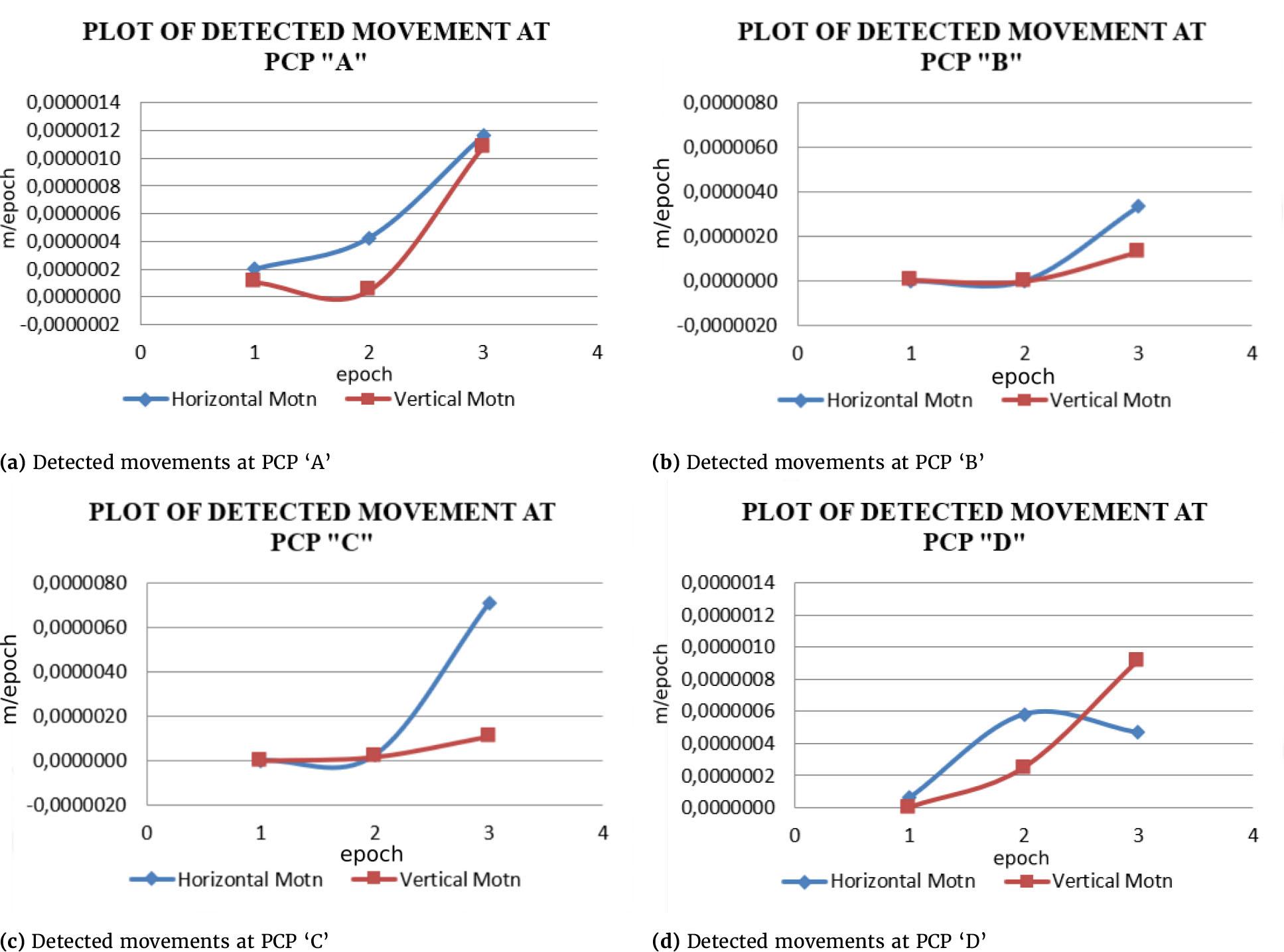

Figure 4

Detected movements at PCP “A”–“D”
