Transarterial embolization of the external carotid artery in the treatment of life-threatening haemorrhage following blunt maxillofacial trauma Cover

Transarterial embolization of the external carotid artery in the treatment of life-threatening haemorrhage following blunt maxillofacial trauma

Radiology and Oncology
Volume 54 (2020): Issue 3 (September 2020)
By: ,  ,  ,  ,  ,   and
Open Access
|May 2020
Figures & tables

Figures & Tables

Figure 1

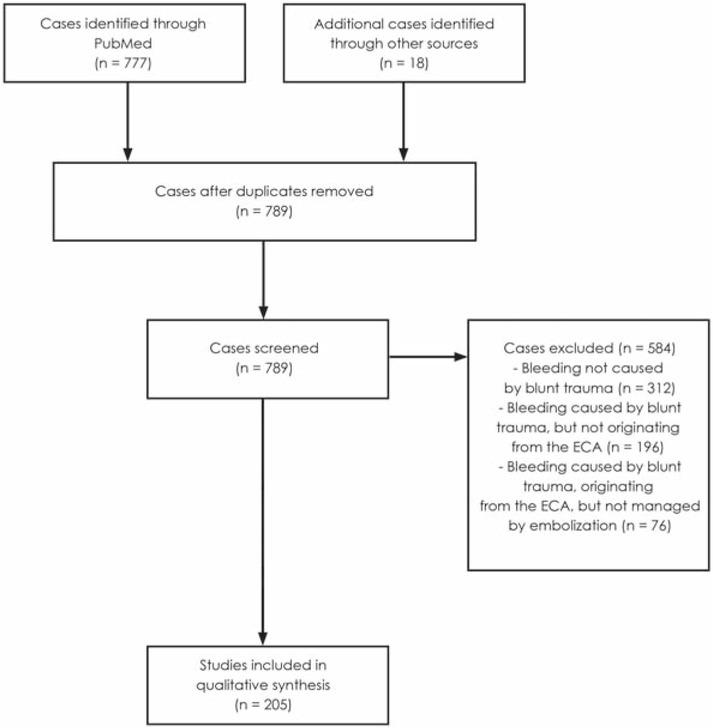

A flow diagram based on simplified Preferred Reporting Items for Systematic Reviews and MetaAnalyses (PRISMA) guidelines depicting the number of cases identified, included and excluded. The reasons for the exclusions are also noted.13

Table 1

Data from studies, case series and case reports pertaining to TAE of the ECA or its branches in the treatment of haemorrhage caused by blunt maxillofacial trauma

First authorYear PublishedCase numberVessel injuredVessel embolizedEmbolization agents usedefficacy (complete cessation of bleeding following TAE of the ECA or its branches)complications
1none identifiedRL ECApartial necrosis tongue
2R IMAR IMAnone
3R IMARL IMAnone
4none identifiedRL ECA above LAnone
5none identifiedRL ECA above LACgroin
Bynoe22003GF100%hematoma
6none identifiedRL ECA above LAPVAnone
7L IMAL IMAnone
8L IMAL IMAgroin hematoma
9L IMAR ECA above LA, L IMAnone
10none identifiedR ECA above LAnone
11R IMA, R STAnot specifiedC GFcould assessed not be
12R IMAnot specifiedCGFnone
13L IMAnot specifiedGFcould assessed not be
Chen12200914R IMAnot specifiedGF100%none
15L IMAnot specifiedGFnone
16RL IMAnot specifiedGFcould assessed not be
17L ECAnot specifiedCGFnone
18L IMAnot specifiedGFnone
Cogbill48200819–39not discernible due to the merging of blunt and penetrating trauma patients' datanot discernible due to the merging of blunt and penetrating trauma patients' dataC
GF		85%none
Kim49201140not specifiedL IMAPVAsuccessnone
41not specifiedR SPAnone
42not specifiedRL SPA, IOA, FAnone
43not specifiedL SPAnone
RL SPA, LPA, ADTA6,
44not specifiedIAA7, FA, LACnone
Komiyama50199845not specifiedRL SPA, FAGF100%none
46not specifiedBL SPA, AAA8PVAcould assessed not be
47not specifiedR STA, FAnone
48not specifiedRL GPA9, EAnone
49not specifiedRL SPA, SPAA10none
12 x IMA
6 x FA
6 x LA
Kuan47201550–765 x MMA11 3 x ECA
1 x APA12		not specifiedC GF PVA NBCA92.3%; data includes one penetrating injuryno serious systemic neurologic or complications
5x other vessels
Note: this statistics also includes one penetrating trauma.
Langel202077LIMA + R SPAL ECA + R SPACPHIL 25successnone
25 x IMA
5 x MMA
4 x ECA
4 x SPA
4 x STA
Liao40200778–1122 x APAnot specifiednot specified79.4%none reported
1 x FA
1 x SALA
1 x IALA
1 x DPA
5 x other
(observed contrast pooling)
Liu32008113L STA + L IMAnot specifiedGFsuccessnone reported
Maiorello512011114L FAL FAOnyx 18successnone
Mauldin521989115R ECAR ECACsuccessnone reported
Mehringer521982116–194not discernible due to the merging of blunt and penetrating trauma patients' datanot discernible due to the merging of blunt and penetrating trauma patients' dataGF
PVA
silastic spheres		100%1x cerebral infarction 2x transient occulomotor nerve palsy
Mehrotra61984195–196R IMAR IMAGF
PVA		successnone reported
L IMAL IMAGFsuccessnone reported
Noy382007197LIMA, RL FALIMA, RL FAMS
NBCA		successnone
Remonda542000198RL IMAnot specifiedC
PVA
NBCA		successTransient trismus
Thiex332011199L FAnot specifiedOnyxsuccessnone
200L STAnot specifiedCnone
201L FAnot specifiedCnone
Wang552015202R STAnot specifiedC100%none
203R STAnot specifiedCnone
204L STAnot specifiedCnone
Wong562013205R IMAR IMANBCAsuccessnone

[i] Anatomical abbreviations: AAA = anterior auricular artery; ADTA = anterior deep temporal artery; APA = ascending pharyngeal artery; DPA = descending palatine artery; ECA = external carotid artery; FA = facial artery; GPA = greater palatine artery; IAA = inferior alveolar artery; IALA = inferior alveolar artery; IMA = internal maxillary artery; IOA = infraorbital artery; L = left; LPA = lesser palatine artery; MMA = middle meningeal artery; R = right; SALA = superior alveolar artery; SPA = sphenopalatine artery; SPAA = superior posterior alveolar artery; STA = superficial temporal artery

Embolization agent abbreviations: C = coils; GF = Gelfoam; MS = microspheres; PHIL = precipitating hydrophobic injectable liquid; PVA = polyvinyl alcohol particles

Figure 2

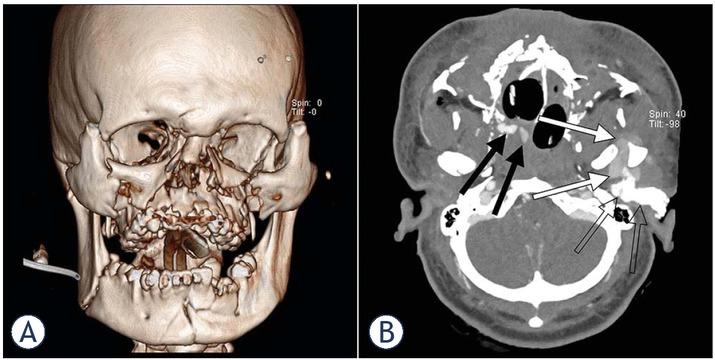

(A) A 3D CT reconstruction showing multiple maxillo-facial fractures. (B) An aortocervical CTA showing two small hematomas in the region of the right pterygopalatine fossa and nasal cavity (black arrows) and a cm 3 × 4 cm hematoma in the region of the left masticatory space and deep parotid space (white arrows). Also visible is a hyperdense material used in left ear tamponade (empty arrows).

Figure 3

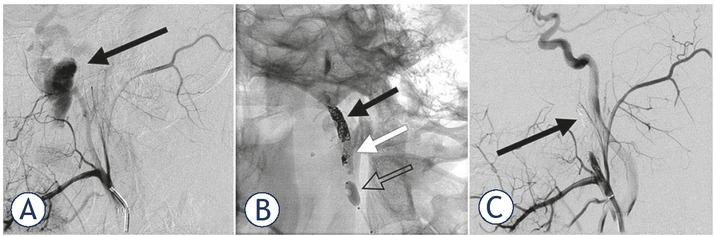

(A) A lateral left ECA angiogram showing ECA laceration with 3 × 4 cm pseudoaneurysm continuing into the proximal part of the left IMA. Contrast extravasation can be observed in the vicinity of the pseudoaneurysm. (B) A fluoroscopic view showing left ECA embolization using coils (black arrow) and PHIL 25 liquid embolization agent (white arrow) under balloon flow control (empty arrow). Also of note area small number of stray coils anchored in the vessel in the region of PHIL application (white arrow). (C) A post-embolization lateral left ECA angiogram showing complete exclusion of the ECA distally to the facial artery (black arrow).

Figure 4

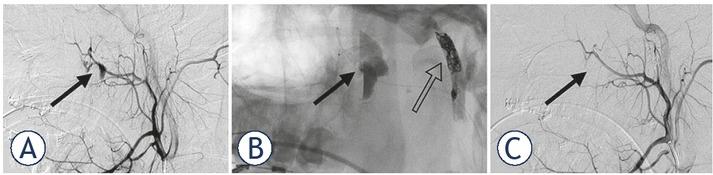

(A) A lateral right ECA angiogram showing two pseudoaneurysms in the region of the right pterygopalatine fossa and nasal cavity (black arrows). (B) Fluoroscopy showing microcatether proximally to the hematoma in the right pterygopalatine fossa (black arrow) prior to PHIL 25 application. Also visible is the embolized contralateral ECA (empty arrow). (C) A post-embolization right ECA angiogram showing complete sphenopalatine artery occlusion (black arrow). Also visible are the patent vessels proximally to the embolization.
