Historical review of Dutch Pectinariidae with Pectinaria belgica as a new taxon for the Netherlands (Annelida: Polychaeta: Pectinariidae) Cover

Historical review of Dutch Pectinariidae with Pectinaria belgica as a new taxon for the Netherlands (Annelida: Polychaeta: Pectinariidae)

By: Ton van Haaren
Open Access
|Sep 2021

Figures & Tables

Figure 1

Basic morphology of Pectinariidae (L. koreni); outside and inside the tube (photo courtesy of Hans Hillewaert). The white line represents 1 cm.
Basic morphology of Pectinariidae (L. koreni); outside and inside the tube (photo courtesy of Hans Hillewaert). The white line represents 1 cm.

Figure 2

Details of the abdominal segment in Lagis koreni showing notopodial hairs and neuropodial uncini (photo courtesy of T. van Haaren)
Details of the abdominal segment in Lagis koreni showing notopodial hairs and neuropodial uncini (photo courtesy of T. van Haaren)

Figure 3

Nereis cylindraria var. belgica, Fig. 3 (tube) and Fig. 5 (animal) in Pallas 1766 (source: Iconographia Zoologica)
Nereis cylindraria var. belgica, Fig. 3 (tube) and Fig. 5 (animal) in Pallas 1766 (source: Iconographia Zoologica)

Figure 4

Two species of Pectinariidae, L. koreni and P. belgica (preserved), both from the Dutch North Sea (Oyster Grounds 9 April 2018; photo courtesy of T. van Haaren)
Two species of Pectinariidae, L. koreni and P. belgica (preserved), both from the Dutch North Sea (Oyster Grounds 9 April 2018; photo courtesy of T. van Haaren)

Figure 5

Live material of P. belgica just after being collected at the Oyster Grounds site (9 April 2018)
Live material of P. belgica just after being collected at the Oyster Grounds site (9 April 2018)

Figure 6

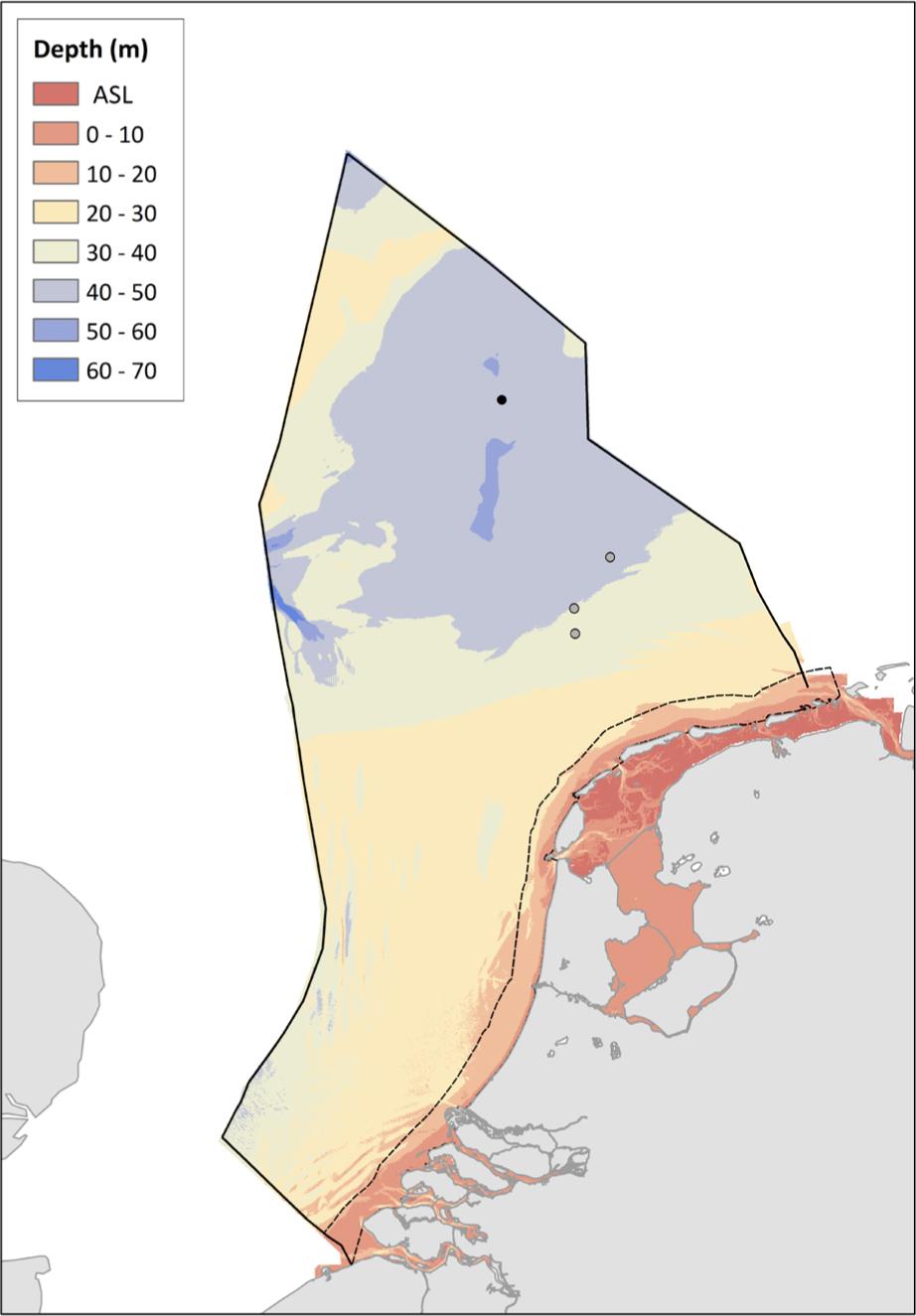

Distribution map of Pectinaria belgica in the Dutch North Sea. The record from 2018 is marked with the black dot (•) and the single specimen from 2019 is located in one of the open dots (o; exact location unknown)
Distribution map of Pectinaria belgica in the Dutch North Sea. The record from 2018 is marked with the black dot (•) and the single specimen from 2019 is located in one of the open dots (o; exact location unknown)

Figure 7

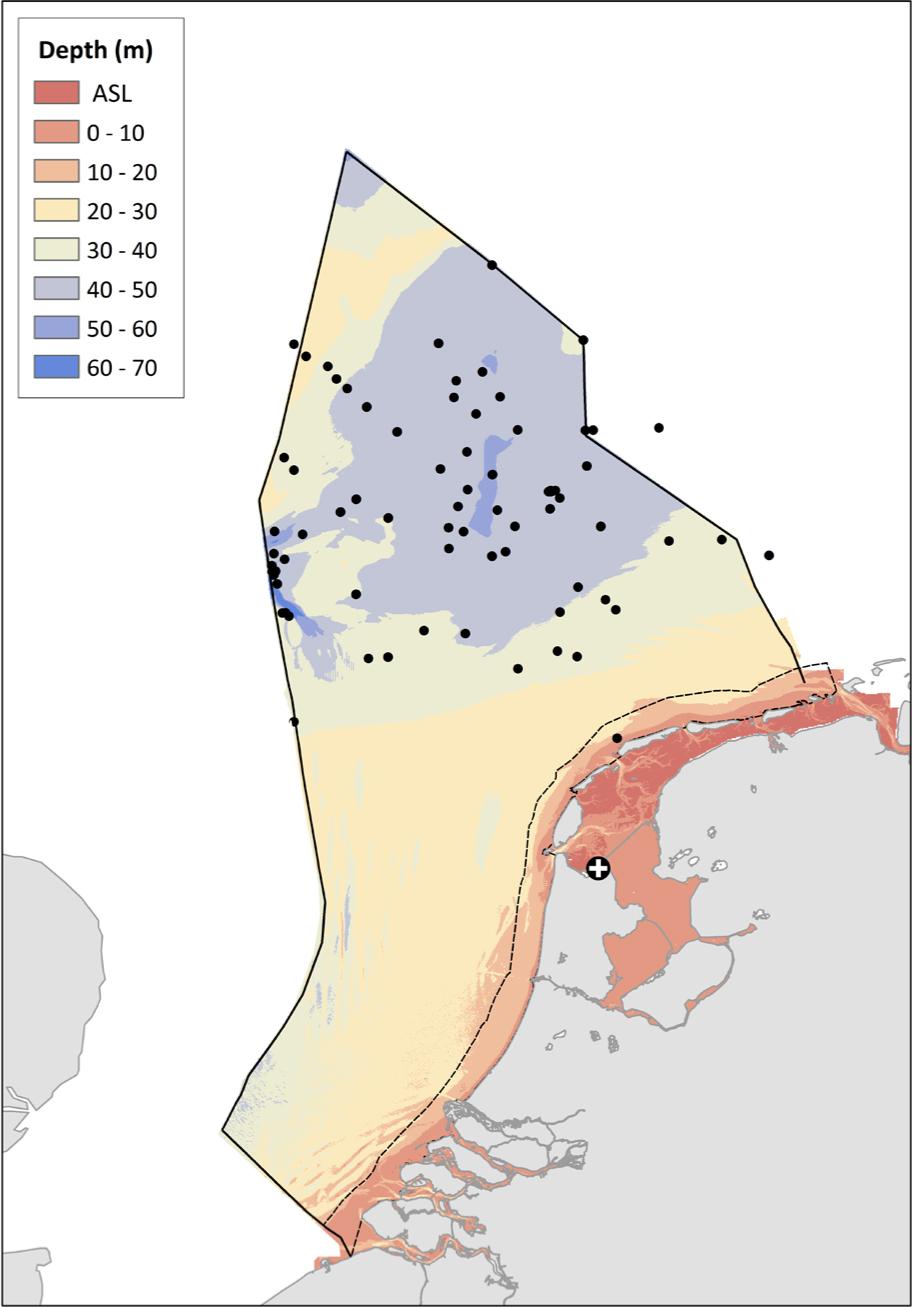

Distribution map of Amphictene auricoma in the Dutch North Sea based on recent records (1991–2019). The original record of A. auricoma from Wieringen (Horst 1898, 1922) is shown on the map with another symbol (+)
Distribution map of Amphictene auricoma in the Dutch North Sea based on recent records (1991–2019). The original record of A. auricoma from Wieringen (Horst 1898, 1922) is shown on the map with another symbol (+)

Figure 8

Distribution map of Lagis koreni in the Dutch North Sea based on recent records (1991–2019). The original record of Nereis cylindraria var. belgica from Scheveningen (Pallas 1766) is shown on the map with another symbol (+)
Distribution map of Lagis koreni in the Dutch North Sea based on recent records (1991–2019). The original record of Nereis cylindraria var. belgica from Scheveningen (Pallas 1766) is shown on the map with another symbol (+)

Species characteristics sensu Malmgren (1866)

SpeciesNumber of notochaetaeNumber of neurochaetaepaleaeOpercular rimCephalic veilOrigin of the material
L. koreni151214 thinsmoothwith cirriW coast of Norway and France, 54–91 m
A. auricoma171311–13 thinserratedwith cirriW coast of Sweden and Norway, 21–183 m
P. belgica171310–12 thinsmoothwith cirriBohuslän, 73–128 m
C. granulata17129(–10) not thinsmoothwith cirriGreenland, 29–146 m
C. hyperborea171212–14 thinsmoothwith cirriSpitsbergen, Greenland, Finnmark, 18–457 m
P. pusilla171411 thinsmoothsmoothBohuslän
