Distribution of Didymosphenia, Gomphonema and Gomphosphenia diatoms (Bacillariophyta) in Turkish inland waters Cover

Distribution of Didymosphenia, Gomphonema and Gomphosphenia diatoms (Bacillariophyta) in Turkish inland waters

Oceanological and Hydrobiological Studies
Volume 50 (2021): Issue 2 (June 2021)
By: Cüneyt Nadir Solak,  Agata Z. Wojtal,  Mateusz Rybak and  Elif Yılmaz
Open Access
|Jun 2021

Figures & Tables

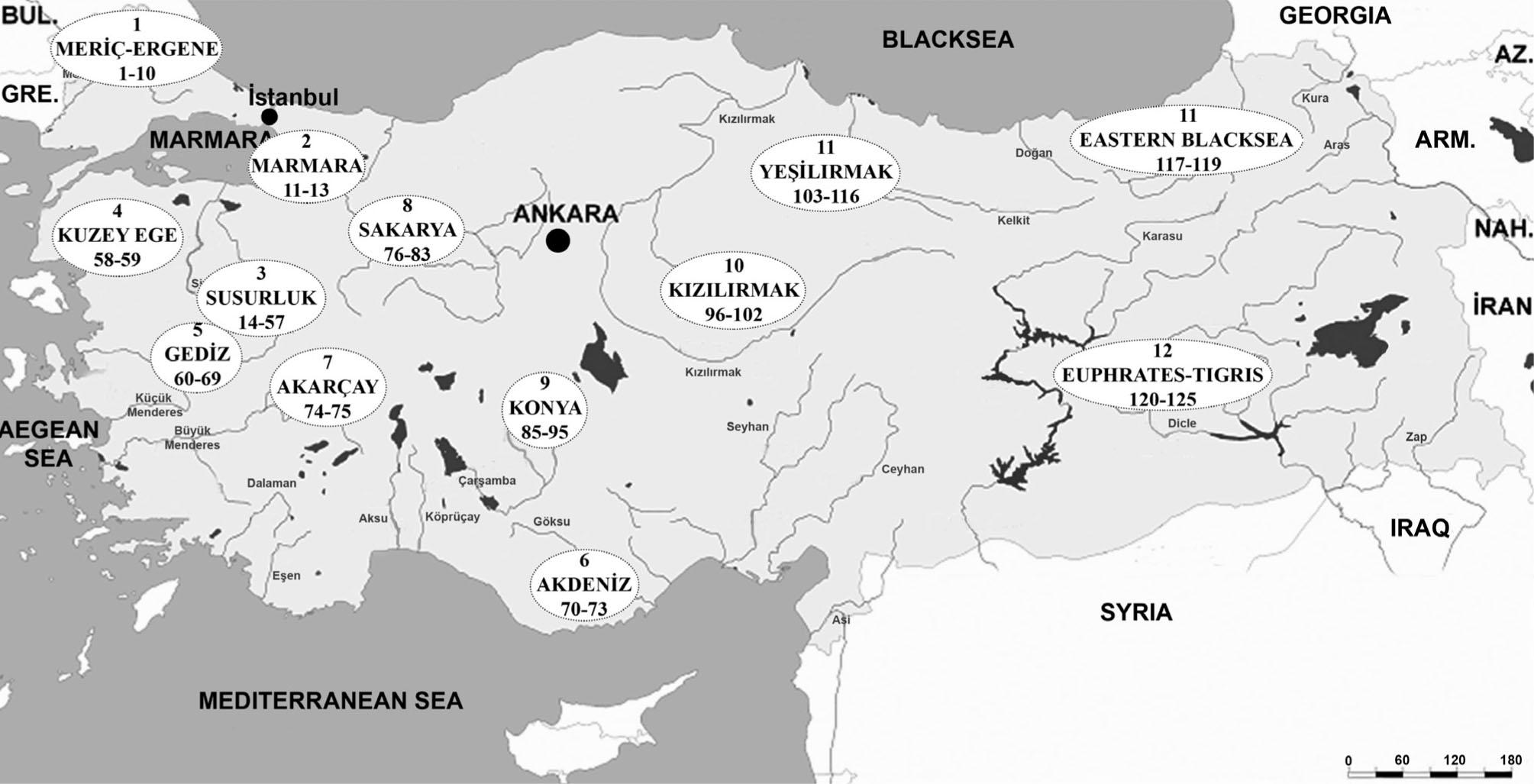

Figure 1

Map of the study area. Sites codes (T1–T125) for each river basin are listed in Table 1.
Map of the study area. Sites codes (T1–T125) for each river basin are listed in Table 1.

Plate 1

2, 3 – Didymosphenia geminata (Lyngbye) M.Schmidt. Scale bar: 10 µm
2, 3 – Didymosphenia geminata (Lyngbye) M.Schmidt. Scale bar: 10 µm

Plate 2

4 – Gomphonema acuminatum Ehrenberg; 5, 6 – G. cf. aequale W. Gregory; 7 – G. affine Kützing; 8, 9 – G. affine var. rhombicum E. Reichardt; 10, 11 – G. angustatum (Kützing) Rabenhorst; 12, 13 – G. angusticephalum E. Reichardt & Lange-Bertalot; 14, 15 – G. angustius E. Reichardt; 16, 17 – G. augur Ehrenberg; 18 – G. brebissonii Kützing; 19, 20 – G. calcifugum Lange-Bertalot & E. Reichardt; 21 – G. capitatum Ehrenberg; 22 – Gomphonema cf. clavatulum E. Reichardt; 23, 24 – G. elegantissimum E. Reichardt & Lange-Bertalot. Scale bar: 10 µm
4 – Gomphonema acuminatum Ehrenberg; 5, 6 – G. cf. aequale W. Gregory; 7 – G. affine Kützing; 8, 9 – G. affine var. rhombicum E. Reichardt; 10, 11 – G. angustatum (Kützing) Rabenhorst; 12, 13 – G. angusticephalum E. Reichardt & Lange-Bertalot; 14, 15 – G. angustius E. Reichardt; 16, 17 – G. augur Ehrenberg; 18 – G. brebissonii Kützing; 19, 20 – G. calcifugum Lange-Bertalot & E. Reichardt; 21 – G. capitatum Ehrenberg; 22 – Gomphonema cf. clavatulum E. Reichardt; 23, 24 – G. elegantissimum E. Reichardt & Lange-Bertalot. Scale bar: 10 µm

Plate 3

25, 26 – Gomphonema exilissimum (Grunow) Lange-Bertalot & E.Reichardt; 27–29 – Gomphonema cf. gracile Ehrenberg; 30 – G. graciledictum E.Reichardt; 31 – G. italicum var. densistriatum Levkov, Mitic-Kopanja & E. Reichardt; 32, 33 – G. cf. latelanceolatum Levkov, Mitic-Kopanja & E. Reichardt; 34–36 – G. lateripunctatum E. Reichardt & Lange-Bertalot; 37, 38 – G. linearoides Levkov; 39 – G. megalobrebissonii D.A.Chudaev, Kociolek & M.A.Golobova; 40, 41 – G. micropus Kützing; 42, 43 – G. minusculum Cleve-Euler; 44, 45 – G. minutum (C.Agardh) C.Agardh; 46, 47 – G. minutum f. syriacum Lange-Bertalot & E. Reichardt; 48 – G. olivaceoides Hustedt; 49 – G. olivaceum (Hornemann) Brébisson; 50, 51 – G. parvulum (Kützing) Kützing; 52, 53 – G. productum (Grunow) Lange-Bertalot & E. Reichardt; 54 – G. cf. pseudaffine Levkov, Mitic-Kopanja & E. Reichardt; 55 – G. pseudoaugur Lange-Bertalot; 56 – G. reediae Levkov, Mitic-Kopanja & E. Reichardt; 57, 58 – G. sarcophagus W. Gregory. Scale bar: 10 µm
25, 26 – Gomphonema exilissimum (Grunow) Lange-Bertalot & E.Reichardt; 27–29 – Gomphonema cf. gracile Ehrenberg; 30 – G. graciledictum E.Reichardt; 31 – G. italicum var. densistriatum Levkov, Mitic-Kopanja & E. Reichardt; 32, 33 – G. cf. latelanceolatum Levkov, Mitic-Kopanja & E. Reichardt; 34–36 – G. lateripunctatum E. Reichardt & Lange-Bertalot; 37, 38 – G. linearoides Levkov; 39 – G. megalobrebissonii D.A.Chudaev, Kociolek & M.A.Golobova; 40, 41 – G. micropus Kützing; 42, 43 – G. minusculum Cleve-Euler; 44, 45 – G. minutum (C.Agardh) C.Agardh; 46, 47 – G. minutum f. syriacum Lange-Bertalot & E. Reichardt; 48 – G. olivaceoides Hustedt; 49 – G. olivaceum (Hornemann) Brébisson; 50, 51 – G. parvulum (Kützing) Kützing; 52, 53 – G. productum (Grunow) Lange-Bertalot & E. Reichardt; 54 – G. cf. pseudaffine Levkov, Mitic-Kopanja & E. Reichardt; 55 – G. pseudoaugur Lange-Bertalot; 56 – G. reediae Levkov, Mitic-Kopanja & E. Reichardt; 57, 58 – G. sarcophagus W. Gregory. Scale bar: 10 µm

Plate 4

59, 60 – G. cf subangustatum Lange-Bertalot, Cavacini, Tagliaventi & Alfinito; 61 – G. subcapitatum (Grunow) E. Reichardt & Levkov; 62, 63 – G. subclavatum (Grunow) Grunow; 64, 65 – G. vibrio Ehrenberg; 66 – Gomphonema sp. 1; 67 – Gomphonema sp. 2; 68, 69 – Gomphonema sp. 3; 70, 71 – Gomphonema sp. 4; 72 – Gomphosphenia holmquistii (Foged) Lange-Bertalot. Scale bar: 10 µm
59, 60 – G. cf subangustatum Lange-Bertalot, Cavacini, Tagliaventi & Alfinito; 61 – G. subcapitatum (Grunow) E. Reichardt & Levkov; 62, 63 – G. subclavatum (Grunow) Grunow; 64, 65 – G. vibrio Ehrenberg; 66 – Gomphonema sp. 1; 67 – Gomphonema sp. 2; 68, 69 – Gomphonema sp. 3; 70, 71 – Gomphonema sp. 4; 72 – Gomphosphenia holmquistii (Foged) Lange-Bertalot. Scale bar: 10 µm

Distribution of the species in Turkey according to Maraşlıoğlu & Gönülol (2019) and the current study_

SpeciesTurkey (Maraşlıoğlu & Gönülol 2019)Our resultsRiver basin
Didymosphenia geminataCREBL (T117, T118)
Gomphonema acuminatumCRKNY (T86); YŞL (T116)
G. cf. aequale RKNY (T86); ET (T120)
G. affineCRMrEr (T3, T4); KZL (T101)
G. affine var. rhombicum* RSSR (T17)
G. angustatumCRKNY (T86, T87)
G. angusticephalum* RSSR (T14); KZL (T99)
G. angustiusRRSSR (T50, T56, T60)
G. augurCRMeEr (T7); SSR (T43); SKR (T77); YŞL (T107)
G. brebissoniiRRKNY (T86)
G. calcifugum* CSSR (T34, T41, T44, T45, T49, T54)
G. capitatumRRKNY (T91)
G. cf. clavatulum RKZL (T99)
G. elegantissimum* RAKR (T73); KNY (T86)
G. exilissimum* CMrEr (T6); SSR (T37, T47, T57); SKR (T82); KNY (T94); YŞL (T115); ET (T123)
G. cf. gracile RKZL (T99); ET (T118)
G. graciledictum* RSSR (T17); GDZ (T62)
G. insignaffineRRGDZ (T60)
G. insigneFRSSR (T53); SKR (T81)
G. italicumRCSSR (T14, T24, T30, T40, T38); GDZ (T62, T65); SKR (T77, T80); KNY (T87); KZL (T99); YŞL (T108; T110)
G. italicum var. densistriatum* RET (T125)
G. cf. latelanceolatum RMeEr (T8); KE (T59)
G. lateripunctatumRRGDZ (T68); KNY (T85, T93); KZL (T112)
G. laticollumRRGDZ (T61); AKR (T74); SKR (T77)
G. linearoides* RYŞL (T106)
G. megalobrebissonii* RKNY (T95)
G. micropusFCMrEr (T7); SSR (T34); GDZ (T66); KNY (T92); YŞL (T115)
G. minusculum* RSSR (T37, T53); SKR (T79, T80)
G. minutumFCMrEr (T4); SSR (T18, T25, T26, T29, T30, T31, T33, T36, T38, T39, T40); YŞL (T103, T105)
G. minutum f. syriacum* RSSR (T19, T22, T23, T42)
G. olivaceoidesFRSSR (T21)
G. olivaceumCRMrEr (T9); SSR (T15); GDZ (T69); KNY (T87); ET (T121)
G. parvulumCCMrEr (T6); SKR (T82); KNY (T84); YŞL (T103, T111); ET (124)
G. productumFRSSR (T51)
G. cf. pseudaffine RKNY (T87); EBL (T118)
G. pseudoaugurRRSSR (T14)
G. pumilumFCMrEr (T10); MR (T12, T13); SSR (T19, T21, T23, T27, T28, T29, T32, T34, T35, T41, T42, T46, T54, T55, T56); ANT (T70); SKR (T76, T77, T78, T81); KNY (T86, T87, T90); KZL (T99, T101); YŞL (T103, T107); ET (T122, T124)
G. pumilum var. rigidumRRSSR (T54)
G. reediae* RGDZ (T61); KNY (T93)
G. sarcophagus* RMR (T11); KNY (T86, T91)
G. stoneiRRSSR (T48)
G. cf. subangustatum RKNY (T86)
G. subcapitatum* RSKR (T83); EBL (T117)
G. subclavatumFREBL (T118, T119)
G. supertergestinumRRMeEr (T6); SSR (T28, T46, T54); SKR (T77); YŞL (T114)
G. tergestinumFCSSR (T52); KZL (T96, T97, T98); YŞL (T103, T108, T114, T115); ET (T121)
G. vibrioFRSSR (T51)
Gomphonema sp. 1 RKZL (T99)
Gomphonema sp. 2 RKZL (101)
Gomphonema sp. 3 RYŞL (T113)
Gomphonema sp. 4 RSSR (T17, T33, T54); SKR (T77)
Gomphosphenia holmquistii* RSSR (T54); KZL (T102)

Sampling sites with the habitats (EPL: Epilithic, EPP: Epipelic, EPF: Epiphytic)

SiteRiver BasinAbbreviationWater body name – SubstrateProvince
T11_Meriç-ErgeneMrErSüloğlu Reservoir – EPPEdirne
T2Meriç River – Edirne Centrum – EPL
T3Meriç River – Küplü Köyü District – EPL
T4Kuleli Stream – EPL
T5Ergene River – Çiftlikköy District – EPL
T6Keşiflik Stream – EPLKırklareli
T7Kaynarlı Stream – EPL
T8Ergene River – EPLTekirdağ
T9Bent Stream – EPL
T10Ergene River – Uzunköprü District – EPL
T112_MarmaraMRÖmerli Reservoir – EPPİstanbul
T12Ilıca District – EPLYalova
T13Gökçedere – EPL
T143_SusurlukSSRUlubat Lake – EPPBursa
T15Demirtaş Reservoir – EPP
T16Nilüfer Reservoir – EPL
T17Susurluk River – Karacabey District – EPL
T18Gölayağı Stream – EPL
T19Gölbaşı Reservoir – EPL
T20Deliçay – Kestel District – EPL
T21Kapıkaya Stream – EPL
T22Nilüfer Stream – Osmangazi District – EPL
T23Orhaneli Stream – Akçabük District – EPL
T24İkizcetepeler Reservoir – EPLBalıkesir
T25Manyas Reservoir – EPP
T26Manyas Reservoir – EPL
T27Susurluk River – Bademli District – EPL
T28Susurluk River – Yeniköy District – EPL
T29Mürüvetler Stream – EPL
T30Simav Stream – Balıklı District – EPL
T31Ovaköy District – EPL
T32Simav Stream – Susurluk District – EPL
T33Kocaçay – Kızılköy District – EPL
T34Değirmendere Stream – EPL
T35Dursunbey Stream – EPL
T36Susurluk River – Sındırgı District – EPL
T37Kayaboğazı Reservoir – EPLKütahya
T38Simav River – Demirci Köyü District – EPL
T39Orhaneli Stream – Esatlar Köyü District – EPL
T40Orhaneli Stream – Hamitabat Köyü District – EPL
T41Aygırlar Stream – Domaniç District – EPL
T42Orhaneli Stream – Domaniç District – EPL
T43Topuk Stream – Domaniç District – EPL
T44Safa Stream – Domaniç District – EPL
T45Topuk/Safa junction – Domaniç District – EPL
T46Kocasu Str., before Kayaboğazı Reservoir – EPL
T47Kocasu Str., after Kayaboğazı Reservoir – EPL
T48Ilıcaksu Deresi – Spring – EPL
T49Karamanca District – EPL
T50Simav River – Spring – EPL
T51Mountainous stream – Egir District – EPL
T52Mountainous stream – Yavru District – EPL
T53Naşa District – EPL
T54Güneyköy District – EPL
T55Domaniç District – EPL
T56Domaniç entrance – EPL
T57Ilıcaksu-branch – EPL
T584_Kuzey EgeKEŞahindere – EPLBalıkesir
T59Azap Lake – EPFAydın
T605_GedizGDZGediz River – Naşa District – EPLKütahya
T61Gördes Reservoir – EPLManisa
T625_GedizGDZMarmara Lake – EPFManisa
T63Demirci Stream – EPL
T64Gediz River – EPL
T65Derbent Stream – EPL
T66Alaşehir Stream – EPL
T67Afşar 2 Reservoir – EPL
T68Murat Stream – EPL
T69Ağıl Stream – EPL
T706-AntalyaANTAksu Stream – EPLAntalya
T71Alara Stream – EPL
T72Eğirdir Lake – EPF
T73Kovada Lake – EPL
T747_AkarçayAKRMilyas Stream – EPLAfyon
T75Kayalı Stream – EPL
T768_SakaryaSKRIlıca Stream – EPLKütahya
T77Porsuk River – before Kütahya – EPL
T78Porsuk River – Gelinkaya District – EPL
T79Felent Stream – Spring – EPL
T80Felent Stream – Köprüören District – EPL
T81Kokar Stream – EPL
T82Altıntaş District – EPL
T83Büyük Akgöl Lake – EPFSakarya
T849_KonyaKNYMamasın Reservoir – EPLAksaray
T85İbrala Reservoir – EPLKaraman
T86Meram District – EPLKonya
T87Beyşehir Lake – Chara sample – EPF
T88Seydişehir District – EPL
T89Kocacay Stream – Spring – EPL
T90Derebucak Reservoir – EPP
T91Büyükköprü Stream – EPL
T92Susuz District – EPL
T93Beysehir Lake – EPL
T94İvriz Reservoir – EPP
T95Dipsiz Lake – EPP
T9610_KızılırmakKZLKızılırmak River – Şarkışla District – EPLSivas
T97Fadlım River – EPL
T98Kızılırmak River – after Sivas – EPL
T99Kesikköprü Reservoir – EPLAnkara
T100Uyuz Lake – EPF
T101Kızılırmak River – Bafra District – EPLSamsun
T102Yay Lake – EPFKayseri
T10311_YeşilırmakYŞLÇakmak Reservoir – EPLSamsun
T104Derinöz Reservoir – EPL
T105Mert River – EPL
T106Yeşilırmak River-1 – EPL
T107Kelkit River – EPL
T108Kurtun River – EPL
T109Elgazi Stream – EPL
T110Karakuş Stream – EPL
T111Terme Stream – EPL
T112Yeşilırmak River-2 – EPLSivas
T113Yeşilırmak River-3 – EPL
T114Çekerek River – EPL
T115Çakraz Stream – EPL
T116Gölbel Lake – EPPÇorum
T11712_Eastern Black SeaEBLMoçar Stream – EPLArtvin
T118Tatos Lake – EPL
T119Uzungöl Lake – EPLTrabzon
T12013_Euphrates–TigrisETGördelli Stream – EPLErzurum
T121Tuzla Stream – EPLErzincan
T122Karasu Stream – EPLGaziantep
T123Altınsu Stream – EPLMardin
T124Murat River – EPLAğrı
T125İnekli Lake – EPLAdıyaman
