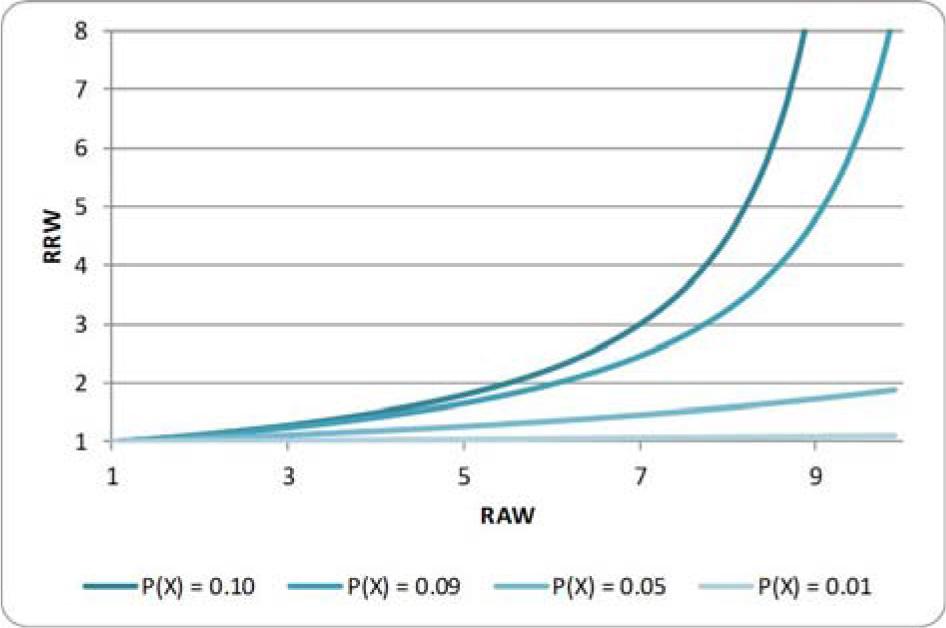

Fig. 1.

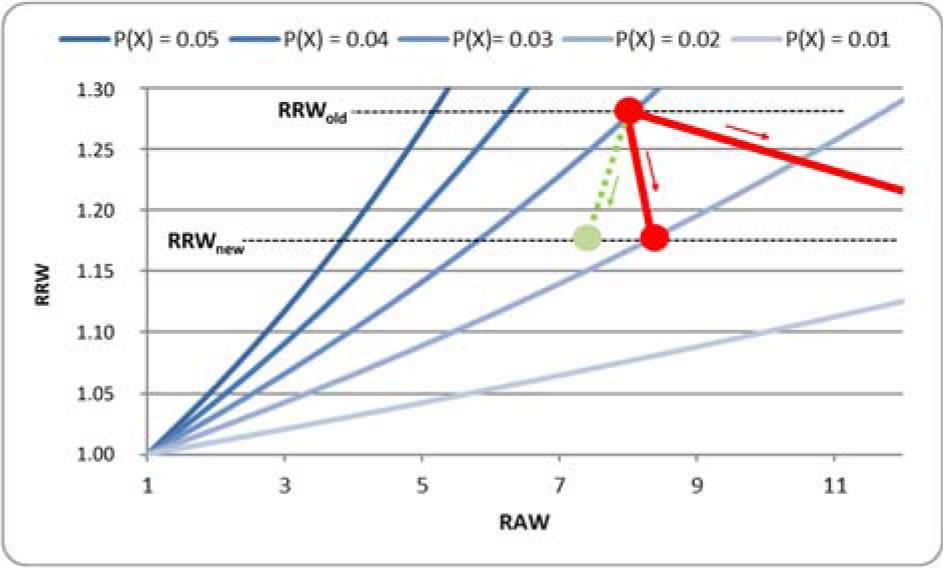

Fig. 2.

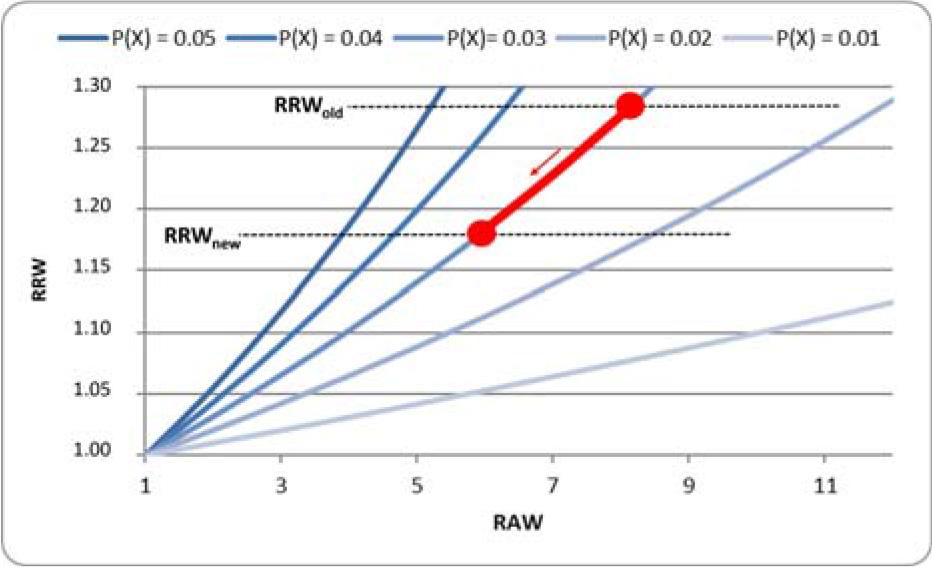

Fig. 3.

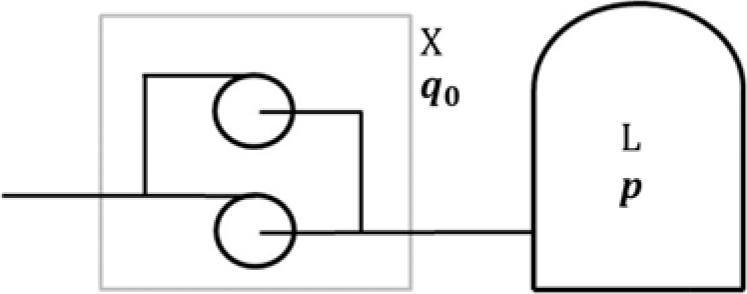

Fig. 4.

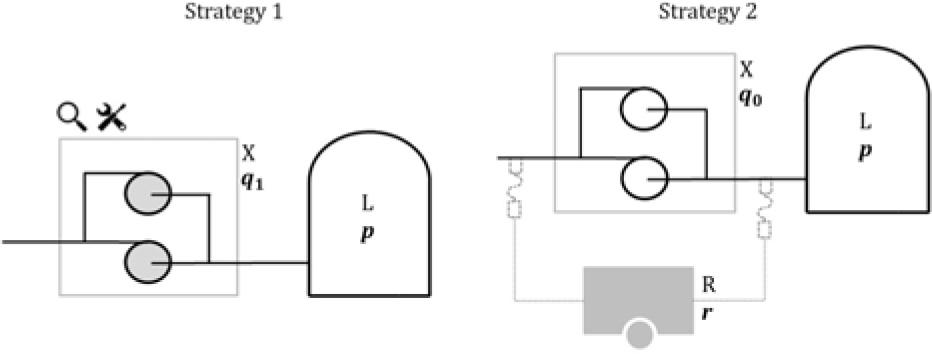

Fig. 5.
Reliability parameters for preselected new risk targets
| Case | Rnew | Strategy 1 q1 | Strategy 2 r |
|---|---|---|---|
| a | 2.00E–04 | 1.00E–04 | 0.10 |
| b | 1.90E–04 | 9.00E–05 | 0.09 |
| c | 1.80E–04 | 8.00E–05 | 0.08 |
| d | 1.70E–04 | 7.00E–05 | 0.07 |
| e | 1.60E–04 | 6.00E–05 | 0.06 |
| f | 1.50E–04 | 5.00E–05 | 0.05 |
RAW and RRW values for the cases from Table 1
| Case | Strategy 1 IRAW,X,1 | Strategy 2 IRAW,X,2 | Strategy ½ IRRW,X |
|---|---|---|---|
| a | 5000.00 | 500.50 | 2.00 |
| b | 5263.16 | 474.21 | 1.90 |
| c | 5555.56 | 445.00 | 1.80 |
| d | 5882.35 | 412.35 | 1.70 |
| e | 6250.00 | 375.63 | 1.60 |
| f | 6666.67 | 334.00 | 1.50 |
Reliability importance measure for the cases from Table 1
| Case | Strategy 1 Irel,X,1 | Strategy 2 Irel,X,2 |
|---|---|---|
| a | 1.00E+00 | 1.00E–01 |
| b | 1.00E+00 | 9.00E–02 |
| c | 1.00E+00 | 8.00E–02 |
| d | 1.00E+00 | 7.00E–02 |
| e | 1.00E+00 | 6.00E–02 |
| f | 1.00E+00 | 5.00E–02 |
