Table 1
Al6061 chemical composition in percentage
| Mg | Si | Fe | Cu | Cr | Zn | Mn | Ti | Al |
|---|---|---|---|---|---|---|---|---|
| 1.20 | 0.80 | 0.70 | 0.40 | 0.35 | 0.25 | 0.15 | 0.15 | 96 |
Table 2
GGBS chemical composition in percentage
| SiO2 | CaO | Al2O3 | Mg O | SO3 | K2O | Fe2O3 | Na2O |
|---|---|---|---|---|---|---|---|
| 34.4 | 33.2 | 21.5 | 9.5 | 0.47 | 0.39 | 0.2 | 0.34 |
[i] GGBS, ground granulated blast furnace slag

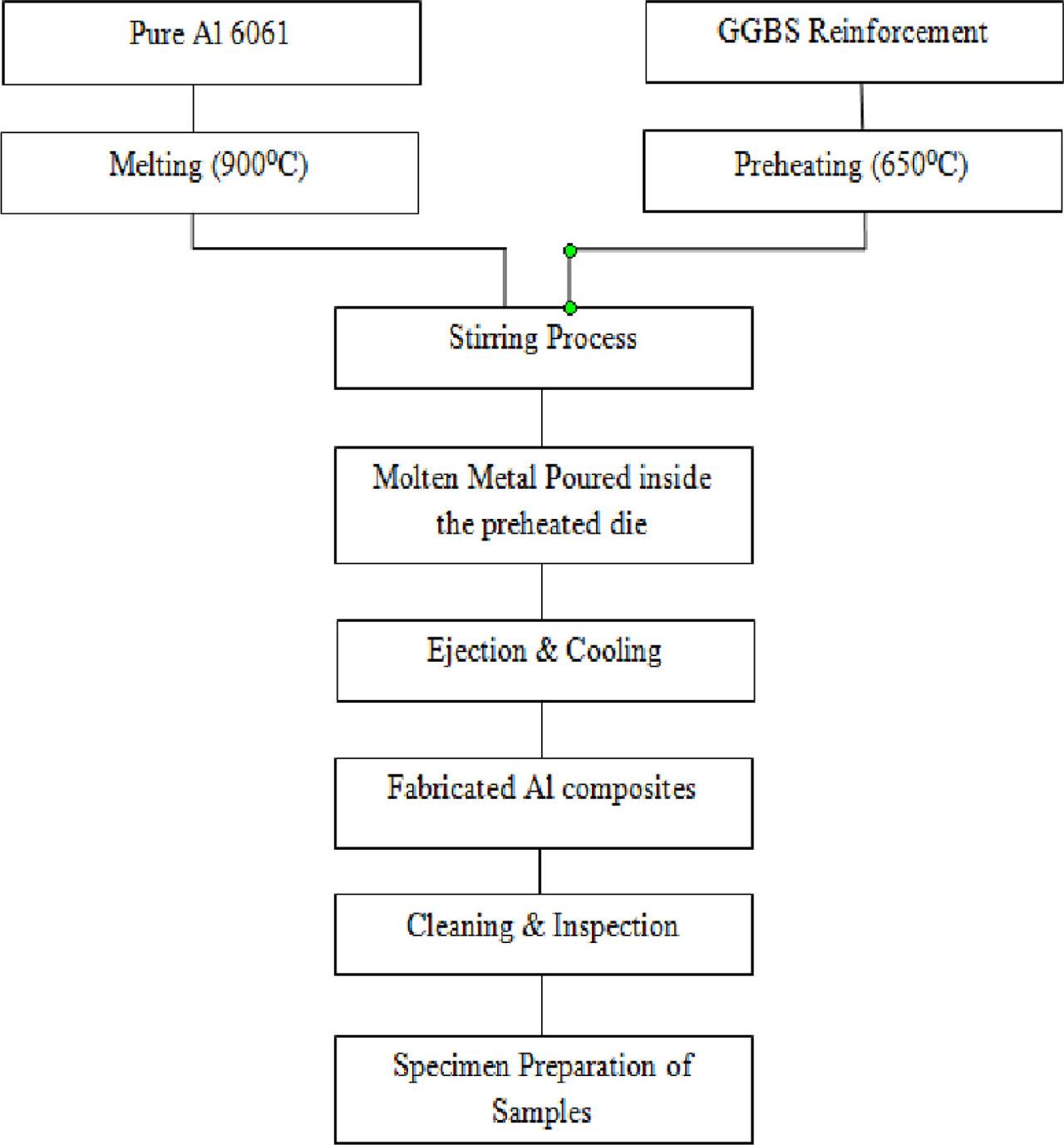

Fig. 1
Representation of Al composite fabrication.
GGBS, ground granulated blast furnace slag

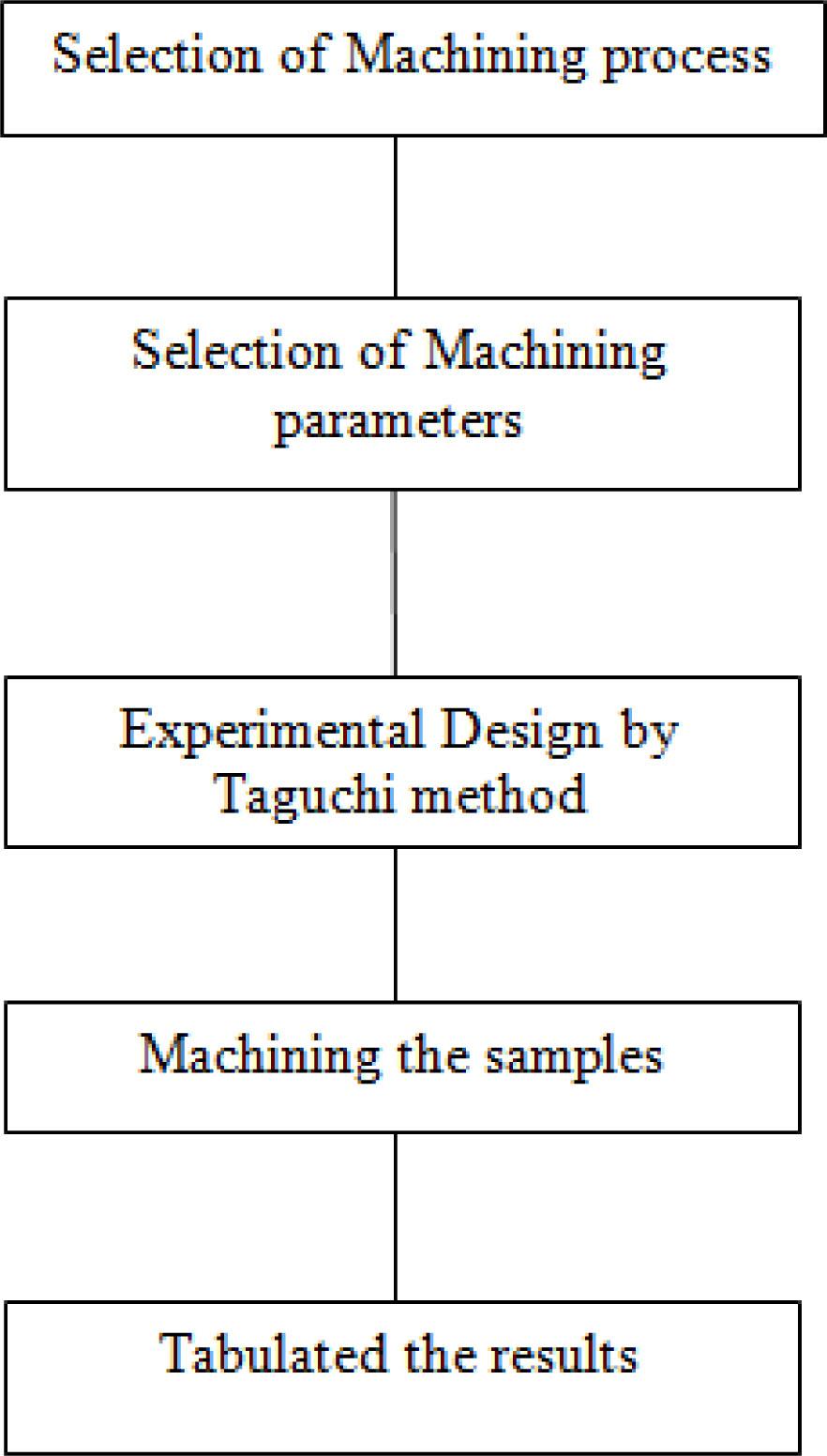

Fig. 2
Steps in machining process

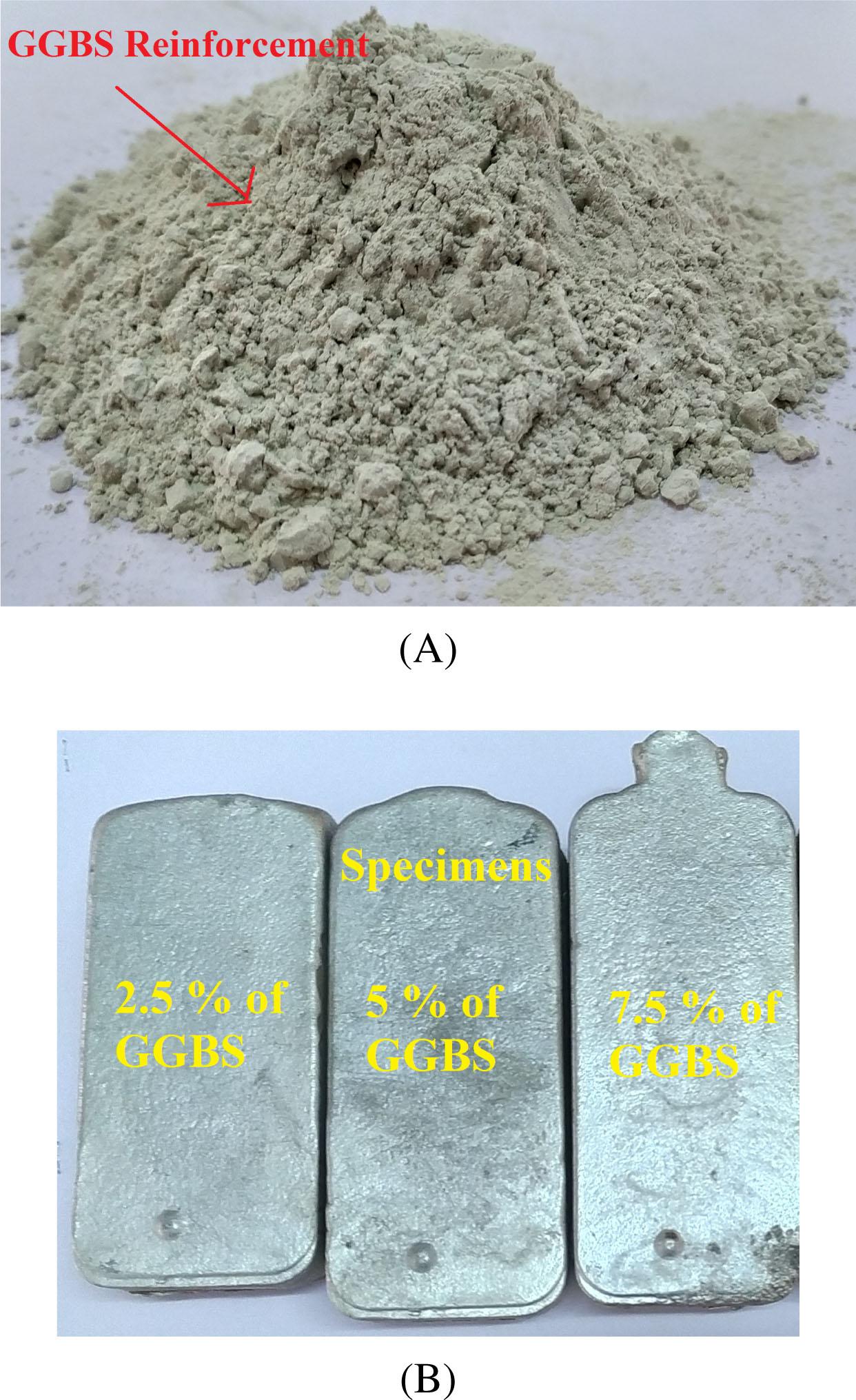

Fig. 3
(A) GGBS reinforcement particles; (B) Different percentages of GGBS. GGBS, ground granulated blast furnace slag
Table 3
The milling process's parameters and their levels
| Symbol | Factors | Level 1 | Level 2 | Level 3 |
|---|---|---|---|---|
| A | Spindle speed (rpm) | 1,000 | 1,250 | 1,500 |
| B | Feed rate (mm/min) | 220 | 240 | 260 |
| C | Depth of cut (mm) | 0.25 | 0.50 | 0.75 |
| D | Percentage of composition | 2.5 | 5.0 | 7.5 |
Table 4
Design of experiment using L9 OA
| Experimental No. | A | B | C | D | MRR (mm3/min) | SR (μm) |
|---|---|---|---|---|---|---|
| 1 | 1000 | 220 | 0.25 | 2.5 | 880 | 0.344 |
| 2 | 1000 | 240 | 0.50 | 5.0 | 1,920 | 0.340 |
| 3 | 1000 | 260 | 0.75 | 7.5 | 3,120 | 0.328 |
| 4 | 1250 | 220 | 0.50 | 7.5 | 1,760 | 0.343 |
| 5 | 1250 | 240 | 0.75 | 2.5 | 2,880 | 0.332 |
| 6 | 1250 | 260 | 0.25 | 5.0 | 1,040 | 0.356 |
| 7 | 1500 | 220 | 0.75 | 5.0 | 2,640 | 0.347 |
| 8 | 1500 | 240 | 0.25 | 7.5 | 960 | 0.347 |
| 9 | 1500 | 260 | 0.50 | 2.5 | 2,080 | 0.314 |
[i] MRR, material removal rate; OA, orthogonal array; SR, surface roughness

Fig. 4

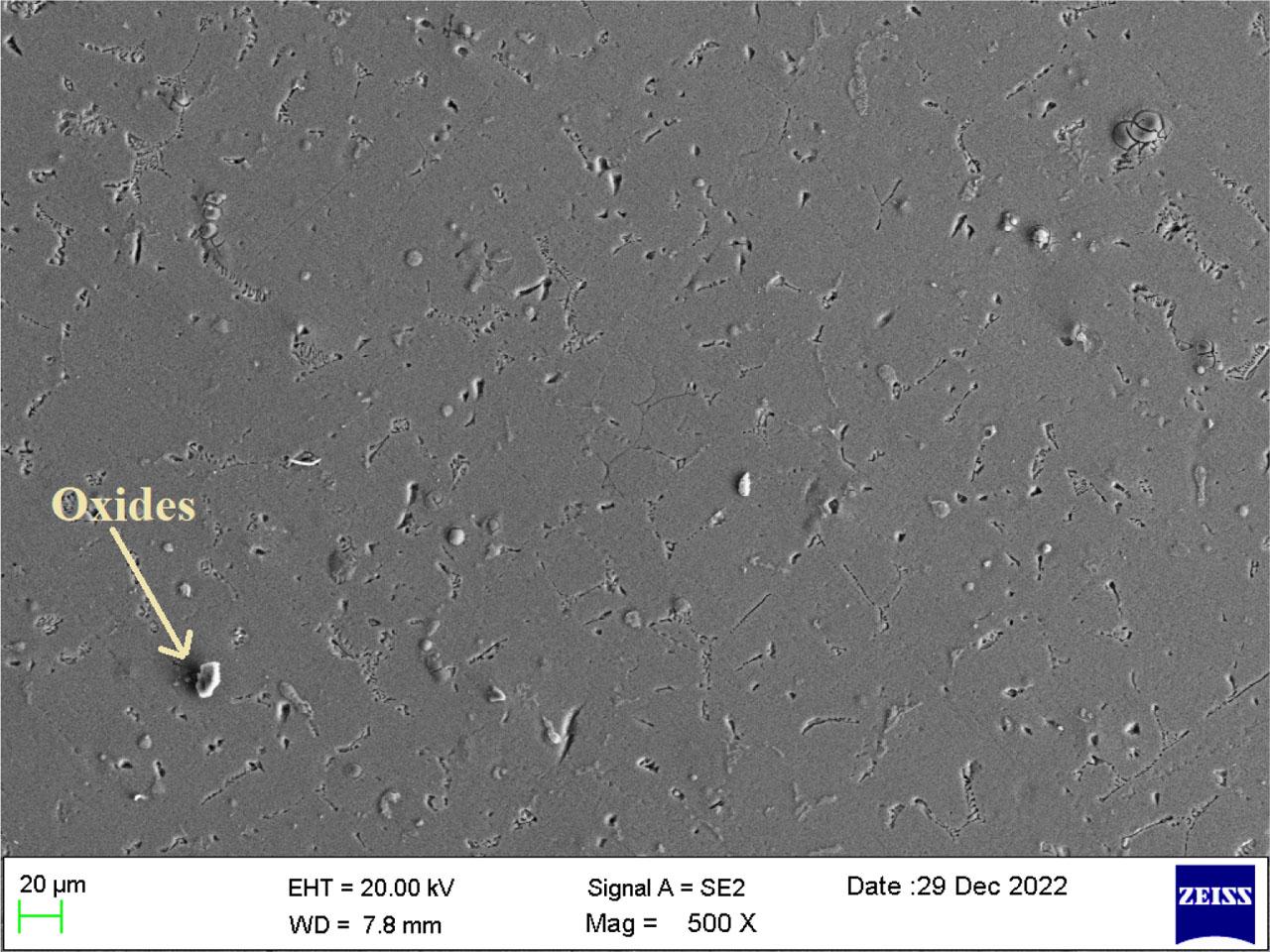

SEM image of Al6061–2.5% of GGBS reinforcement. GGBS, ground granulated blast furnace slag; SEM, scanning electron microscopy

Fig. 5

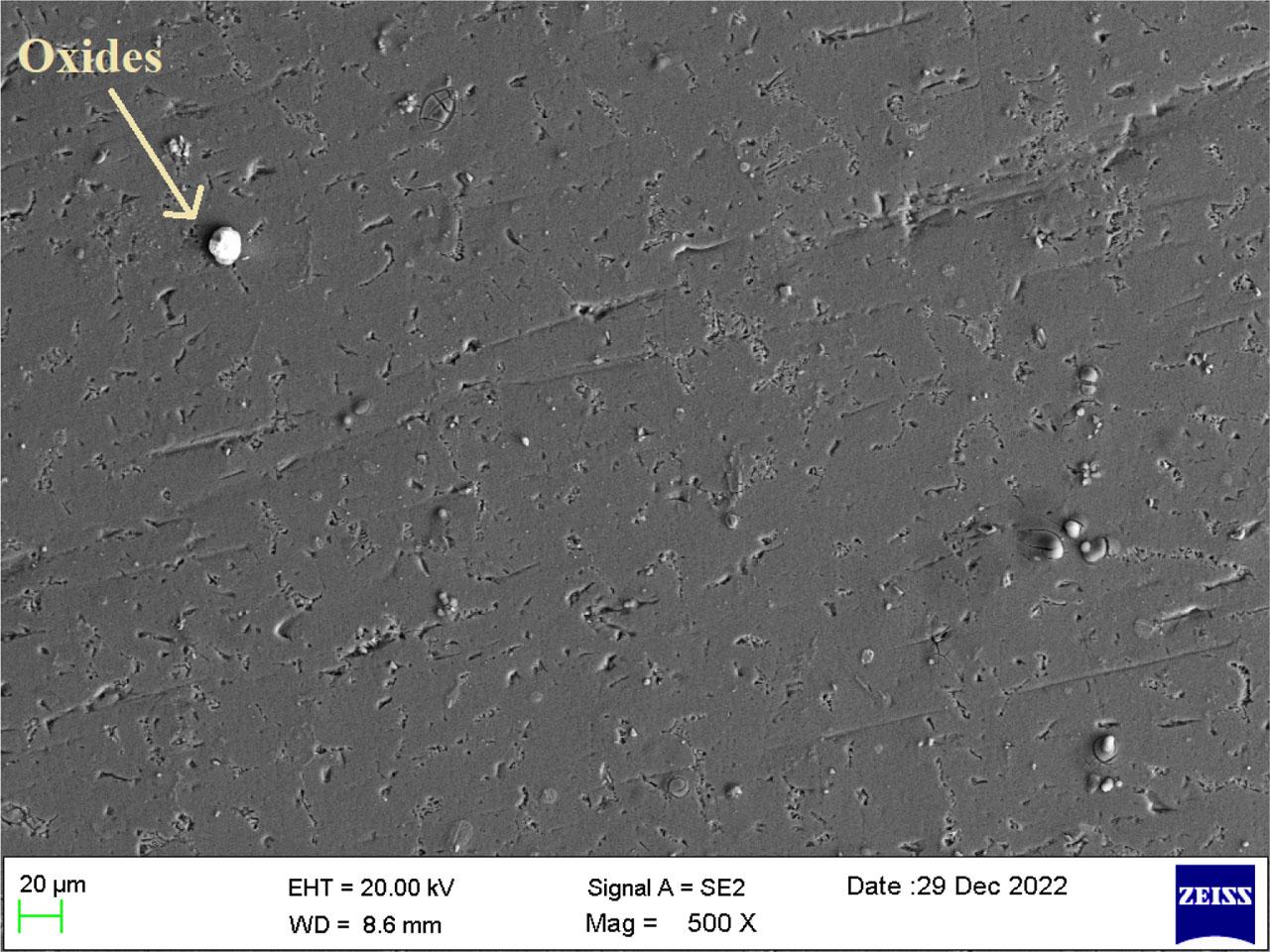

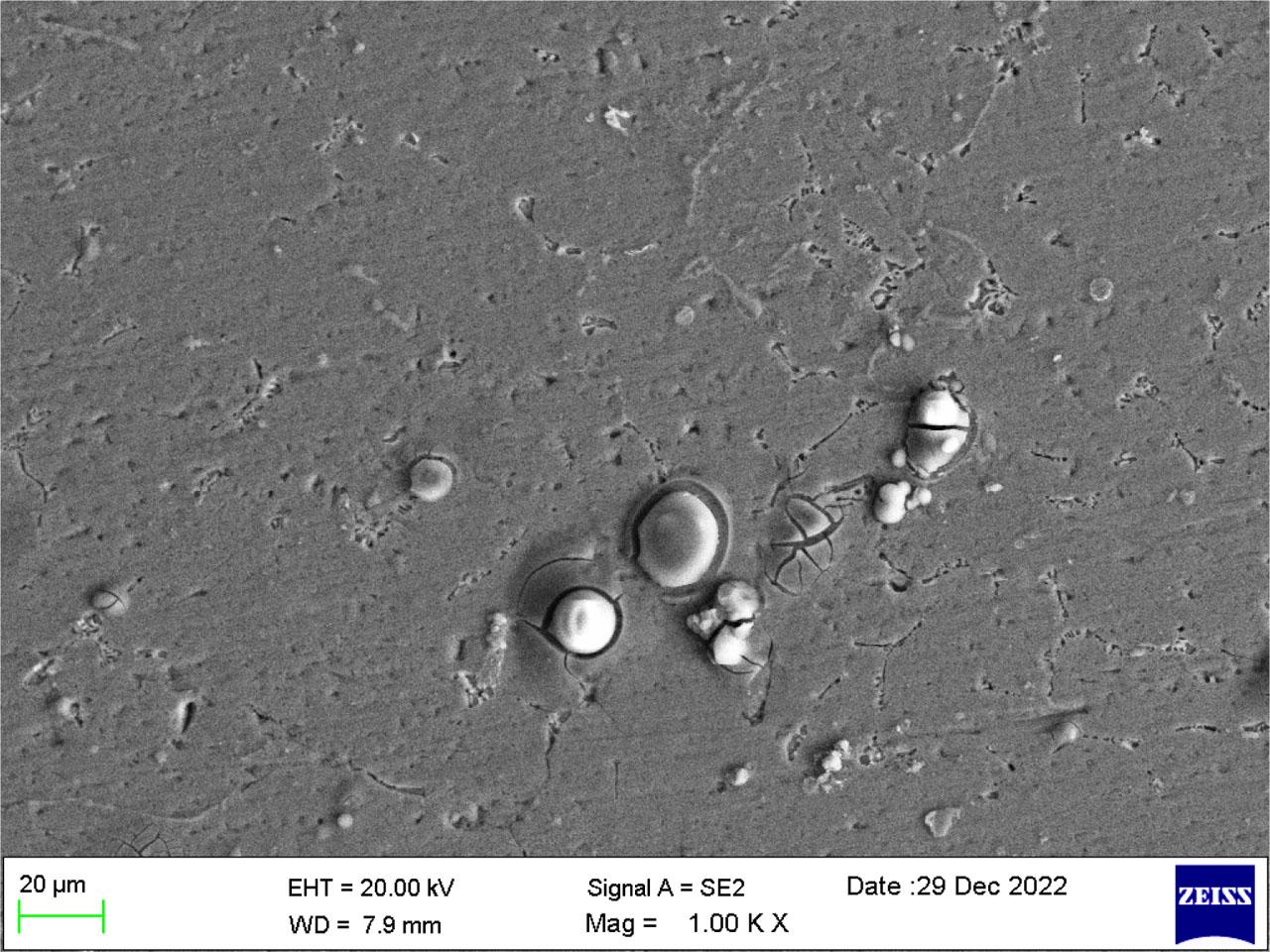

SEM image of Al6061–5% of GGBS reinforcement. GGBS, ground granulated blast furnace slag; SEM, scanning electron microscopy

Fig. 6
SEM image of Al6061–7.5% of GGBS reinforcement. GGBS, ground granulated blast furnace slag; SEM, scanning electron microscopy

Fig. 7

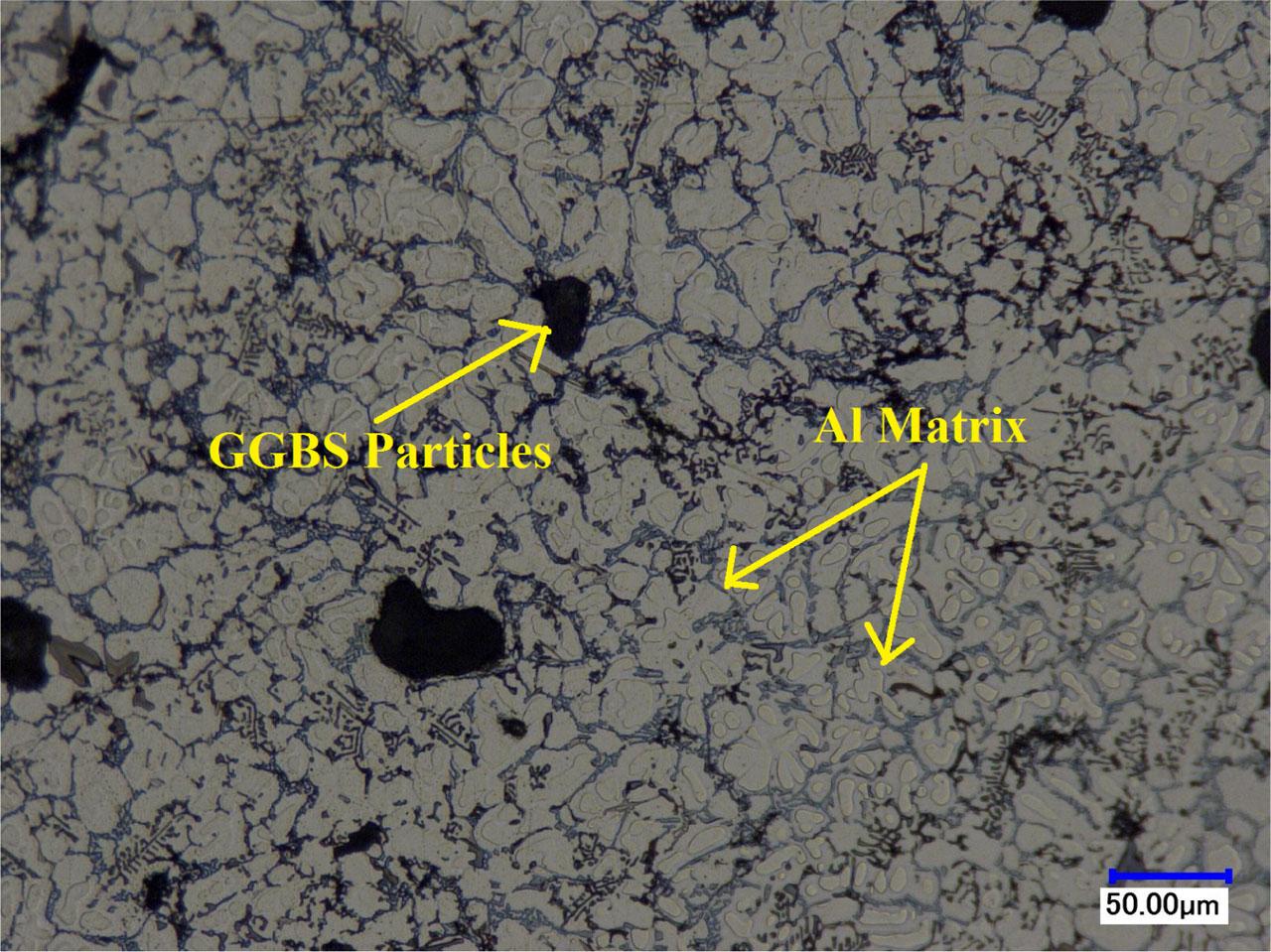

Optical image of Al6061–7.5% of GGBS reinforcement. GGBS, ground granulated blast furnace slag

Fig. 8

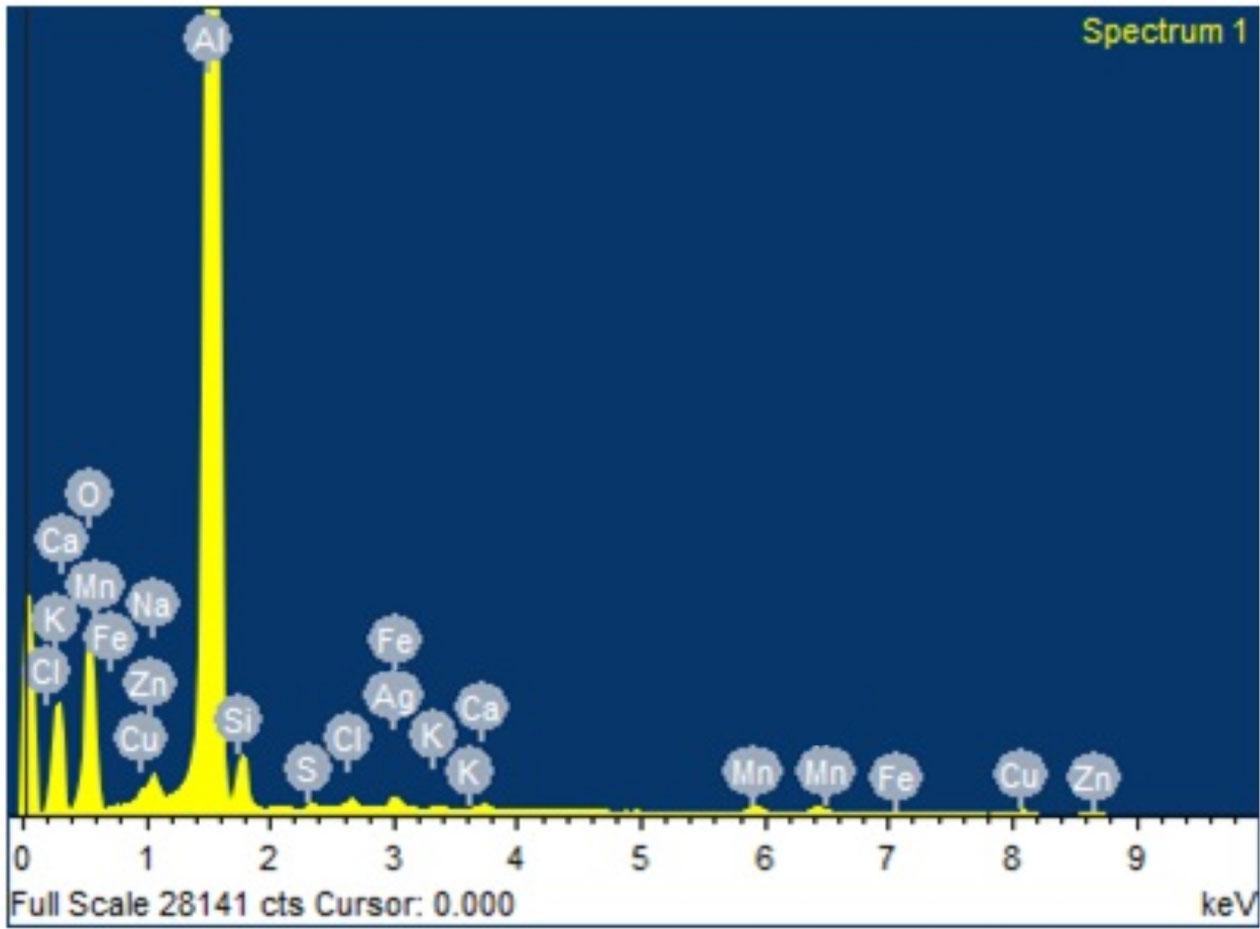

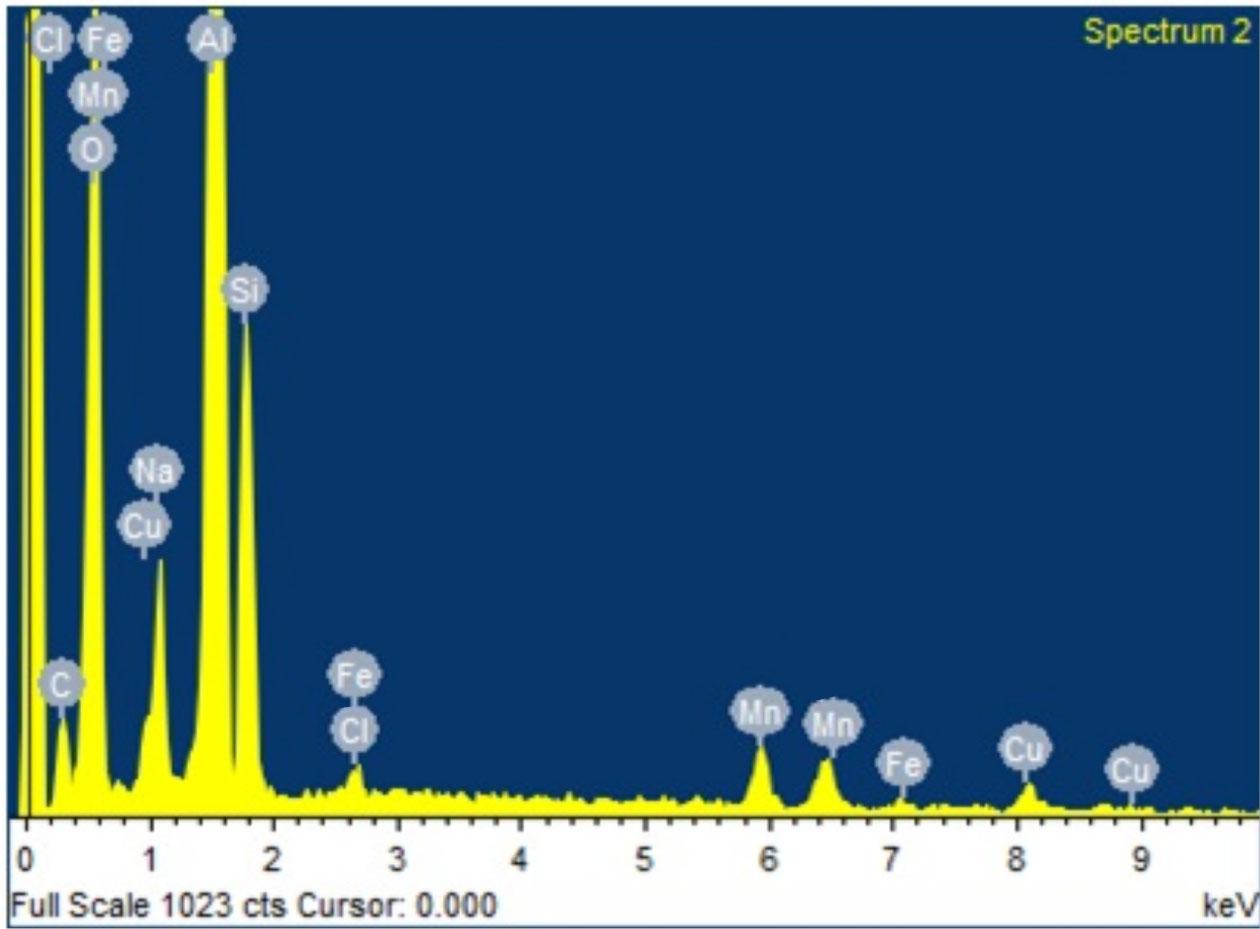

SEM and EDX profile analysis for the surfaces: Al6061–2.5% of GGBS reinforcement. EDX, energy-dispersive X-ray; GGBS, ground granulated blast furnace slag; SEM, scanning electron microscopy

Fig. 9

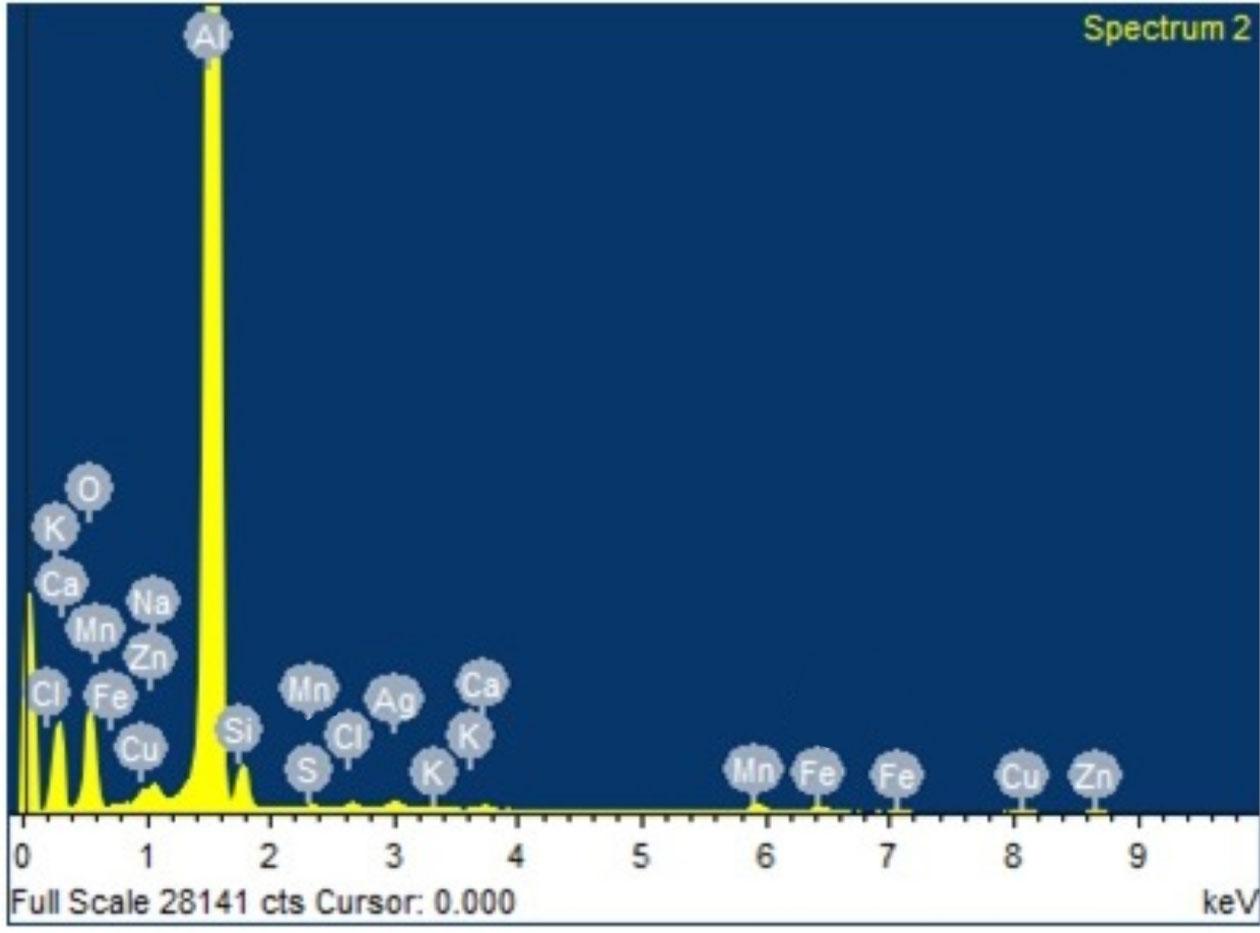

SEM and EDX profile analysis for the surfaces: Al6061–5% of GGBS reinforcement. EDX, energy-dispersive X-ray; GGBS, ground granulated blast furnace slag; SEM; scanning electron microscopy

Fig. 10
SEM and EDX profile analysis for the surfaces: Al6061–7.5% of GGBS reinforcement. EDX, energy-dispersive X-ray; GGBS, ground granulated blast furnace slag; SEM; scanning electron microscopy
Table 5
Elemental results of EDX analysis
| S. No. | Element | 2.5% of GGBS | 5.0% of GGBS | 7.5% of GGBS | |||
|---|---|---|---|---|---|---|---|
| Weight (%) | Atomic (%) | Weight (%) | Atomic (%) | Weight (%) | Atomic (%) | ||
| 1 | O K | 11.23 | 18.27 | 18.27 | 28.22 | 41.44 | 55.62 |
| 2 | Na K | 39.28 | 47.97 | 0.49 | 0.53 | 3.31 | 3.09 |
| 3 | Al K | 33.98 | 24.60 | 71.31 | 65.31 | 42.72 | 34.00 |
| 4 | Si K | 3.05 | 2.59 | 3.67 | 3.23 | 6.41 | 4.90 |
| 5 | Cl K | 6.35 | 4.42 | 0.44 | 0.31 | 0.48 | 0.29 |
| 6 | Mn K | 0.37 | 0.21 | 1.20 | 0.54 | 1.88 | 0.74 |
| 7 | Fe K | 2.00 | 0.71 | 1.05 | 0.47 | 1.82 | 0.70 |
| 8 | Cu K | 1.95 | 0.68 | 0.94 | 0.36 | 1.93 | 0.65 |
[i] EDX, energy-dispersive X-ray; GGBS, ground granulated blast furnace slag

Fig. 11
XRD pattern for the surfaces: Al6061–2.5% of GGBS reinforcement. GGBS, ground granulated blast furnace slag; XRD, X-ray diffraction analysis

Fig. 12

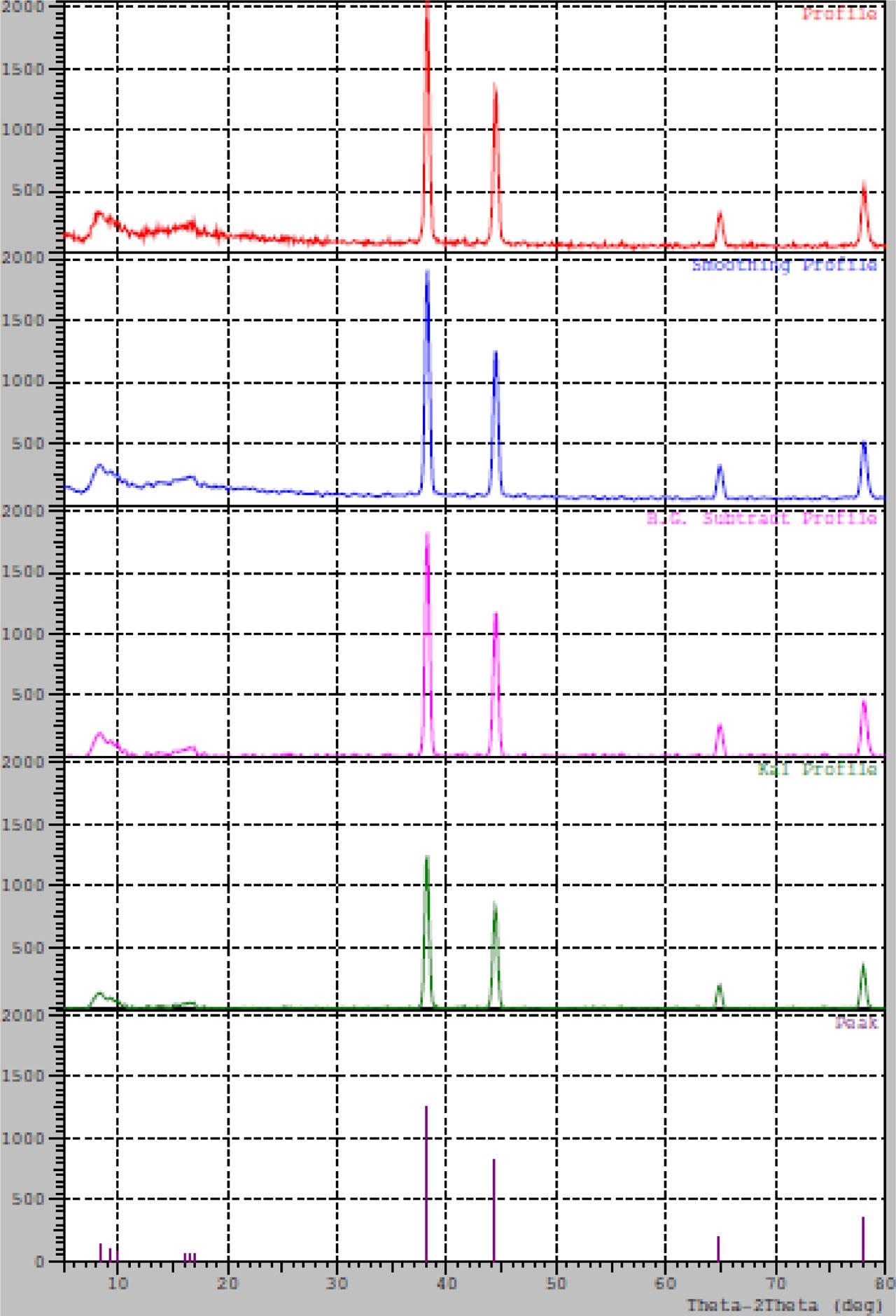

XRD pattern for the surfaces: Al6061–5% of GGBS reinforcement. GGBS, ground granulated blast furnace slag; XRD, X-ray diffraction analysis

Fig. 13

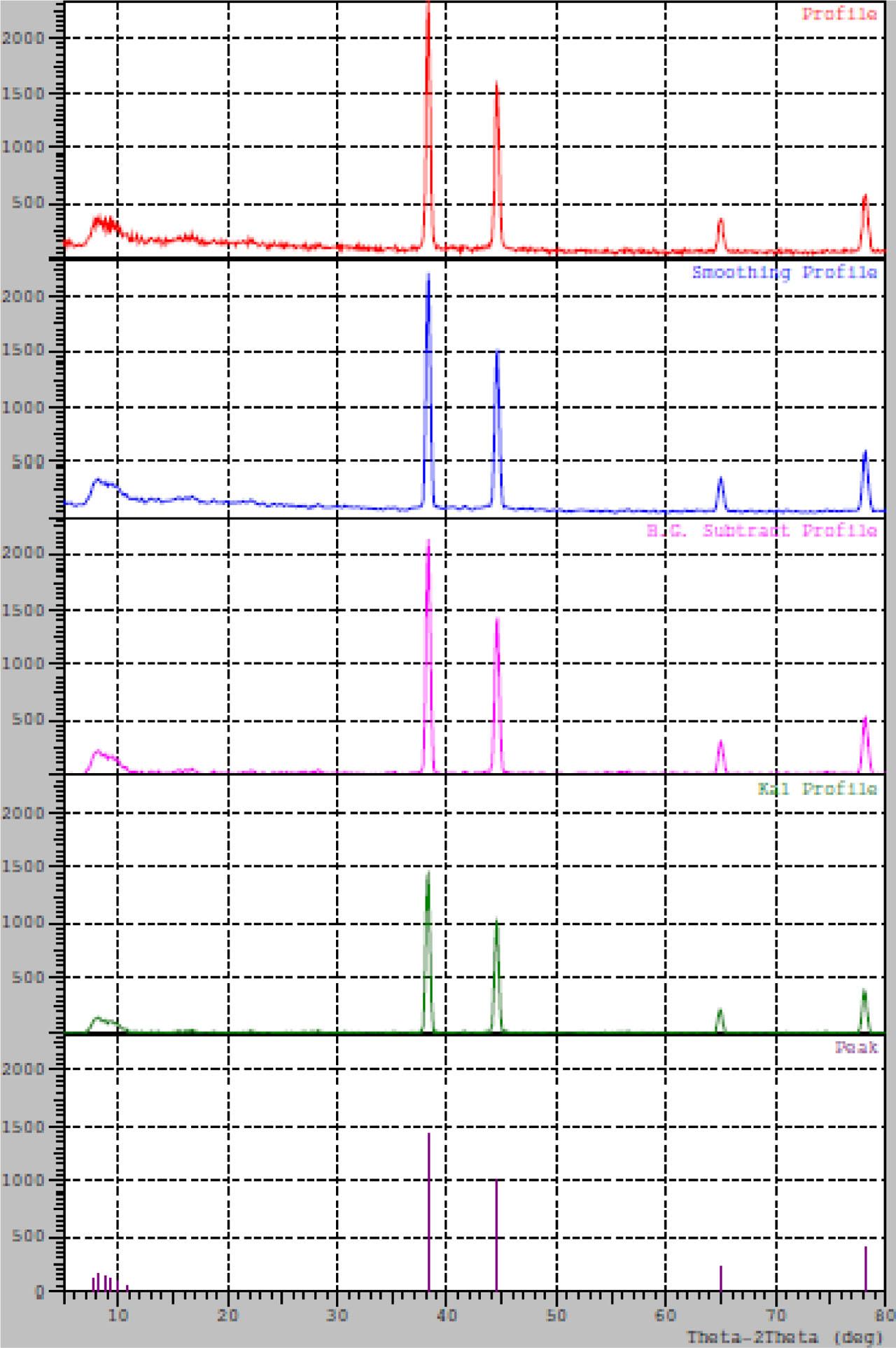

XRD profile analysis for the surfaces: Al6061–7.5% of GGBS reinforcement. GGBS, ground granulated blast furnace slag; XRD, X-ray diffraction analysis
Table 6
S/N ratio for MRR and SR
| Levels | Parameters | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | A | B | C | D | |
| MRR in mm3/min | SR in μm | |||||||
| Level 1 | 64.81 | 64.08 | 59.63 | 64.81 | 9.441 | 9.252 | 9.144 | 9.636 |
| Level 2 | 64.81 | 64.83 | 65.65 | 64.81 | 9.281 | 9.380 | 9.575 | 9.178 |
| Level 3 | 64.81 | 65.53 | 69.17 | 64.81 | 9.483 | 9.572 | 9.484 | 9.390 |
| Delta | 0.00 | 1.45 | 9.54 | 0.00 | 0.202 | 0.320 | 0.431 | 0.458 |
[i] MRR, material removal rate; SR, surface roughness

Fig. 14

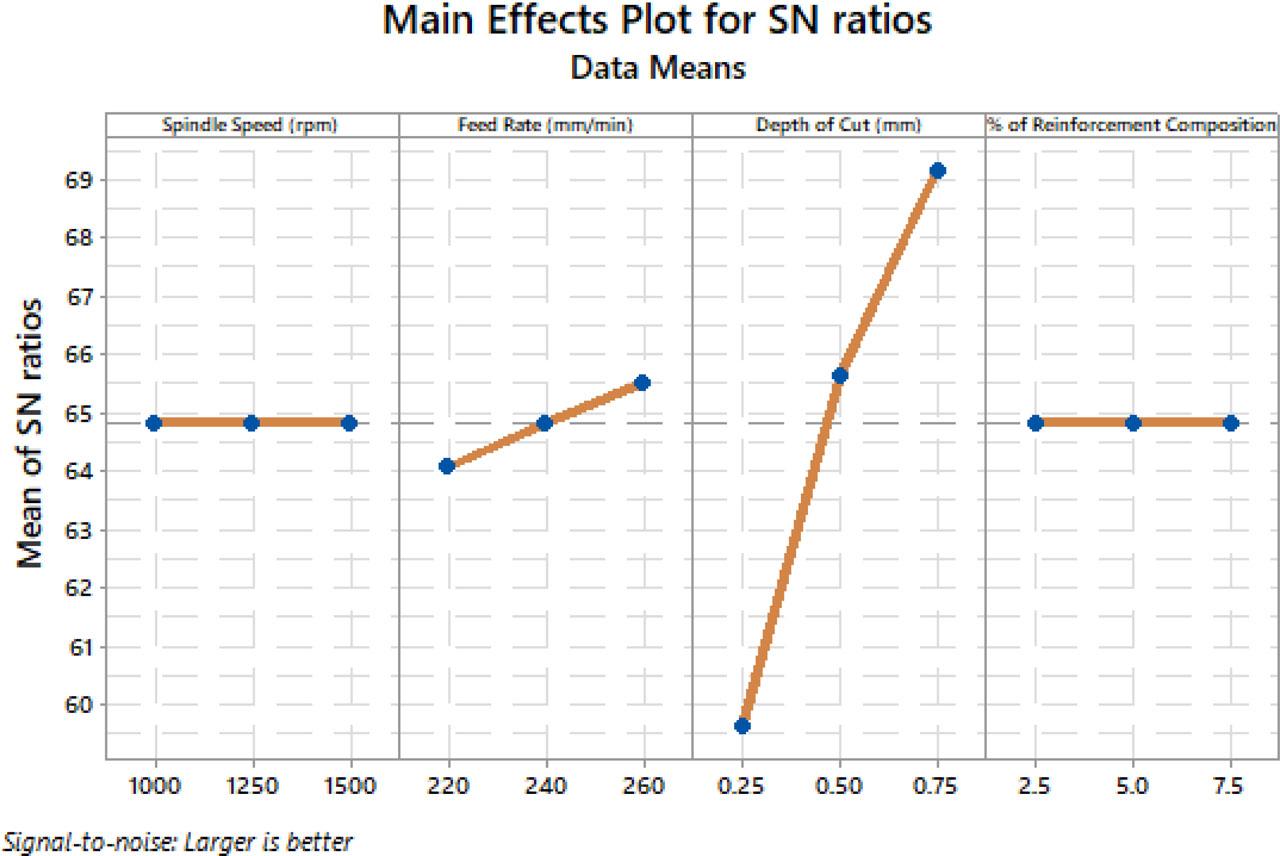

Average S/N ratio for MRR. MRR, material removal rate

Fig. 15

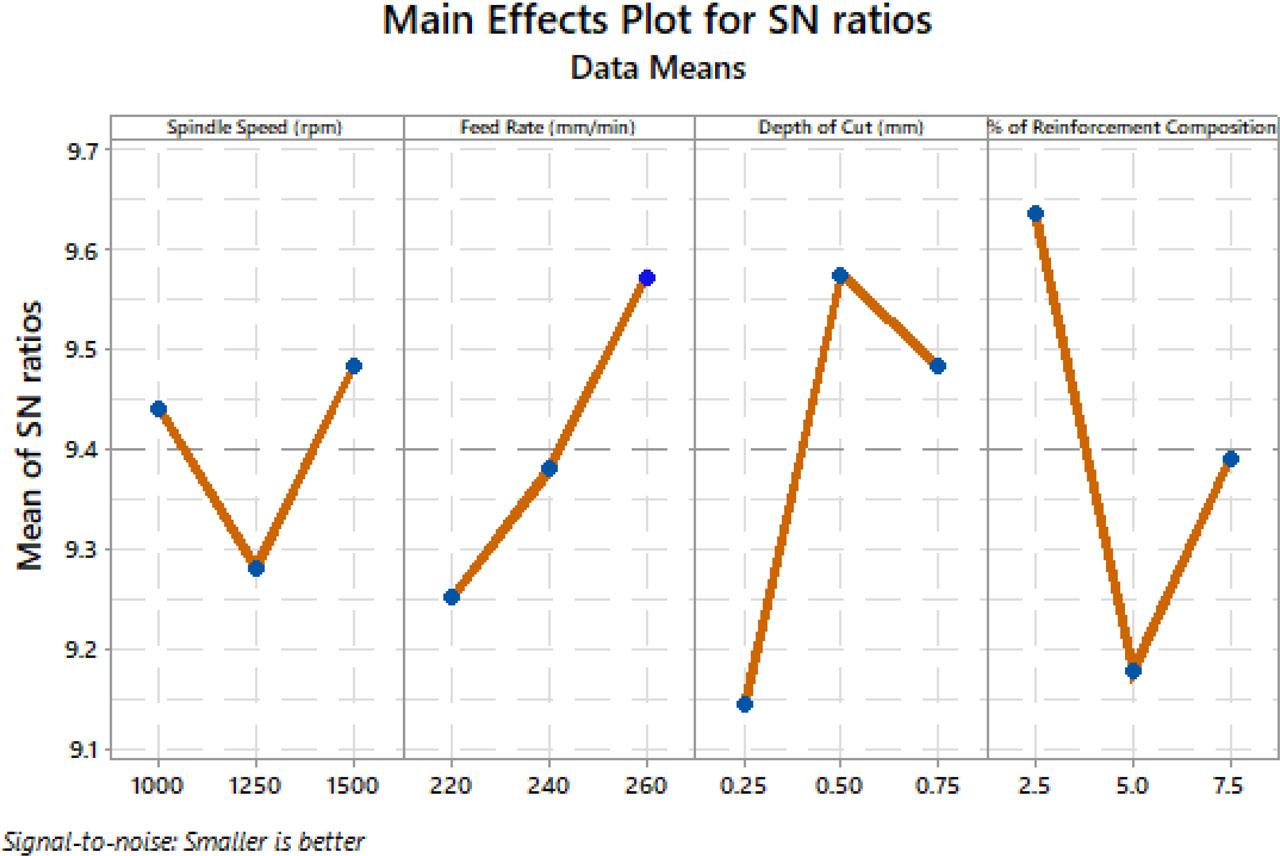

Average S/N ratio for SR. SR, surface roughness

Fig. 16

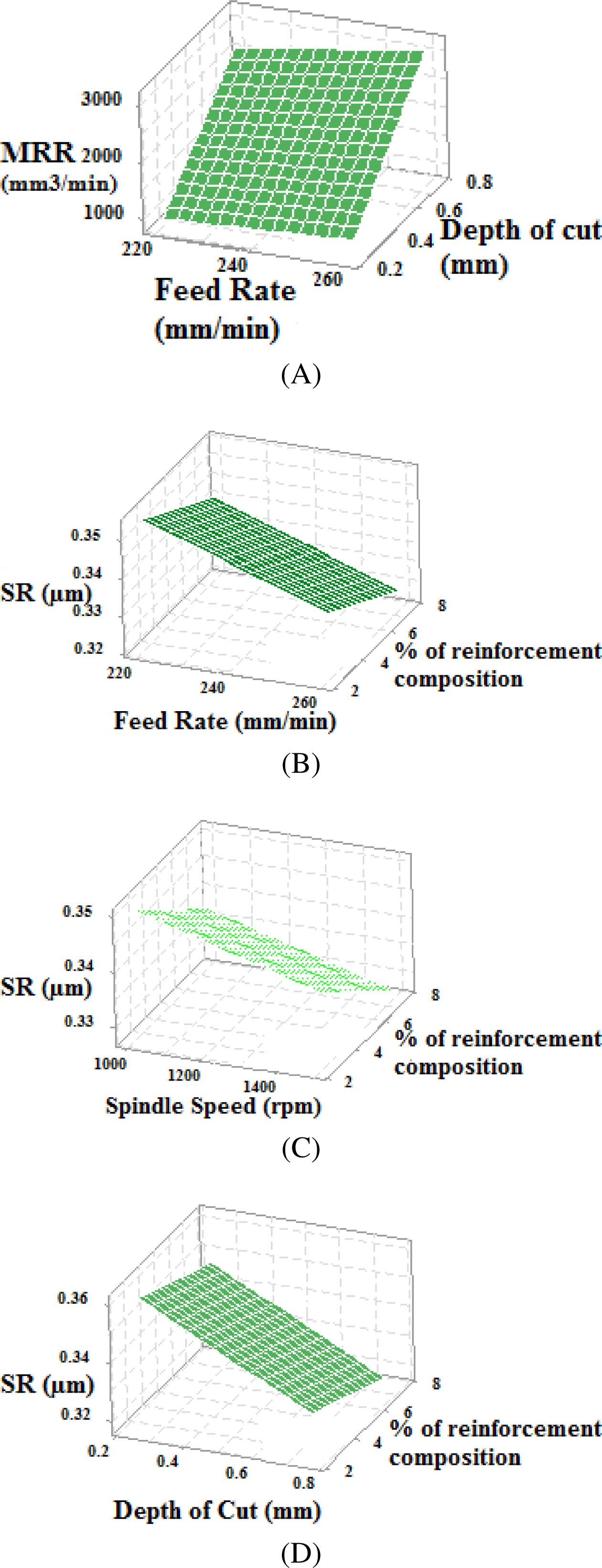

Effect of parameters on (A) feed rate with depth of cut on MRR (B) feed rate with percentage of reinforcement composition on SR (C) percentage of reinforcement composition with spindle speed on SR (D) percentage of reinforcement composition with depth of cut on SR

Fig. 17

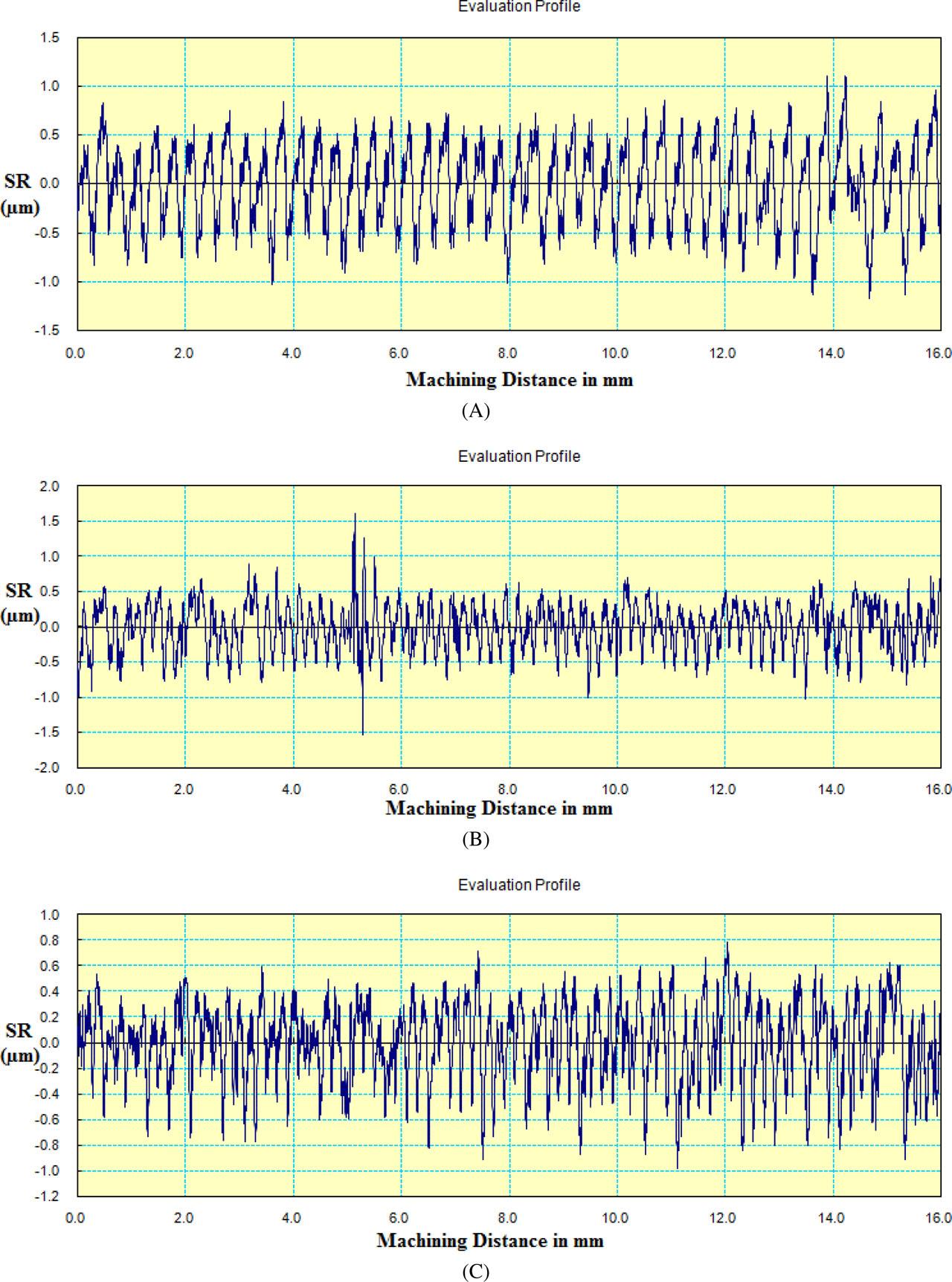

Evaluation profile of SR on (A) 2.5% of reinforcement composition, (B) 5.0% of reinforcement composition, and (C) 7.5% of reinforcement composition. SR, surface roughness
