Formability of laser welded steel/magnesium dissimilar metal with Sn powder-adhesive interlayer Cover

Formability of laser welded steel/magnesium dissimilar metal with Sn powder-adhesive interlayer

Materials Science-Poland
Volume 39 (2021): Issue 1 (March 2021)
By: ,  ,  ,   and
Open Access
|Jul 2021
Figures & tables

Figures & Tables

Fig. 1

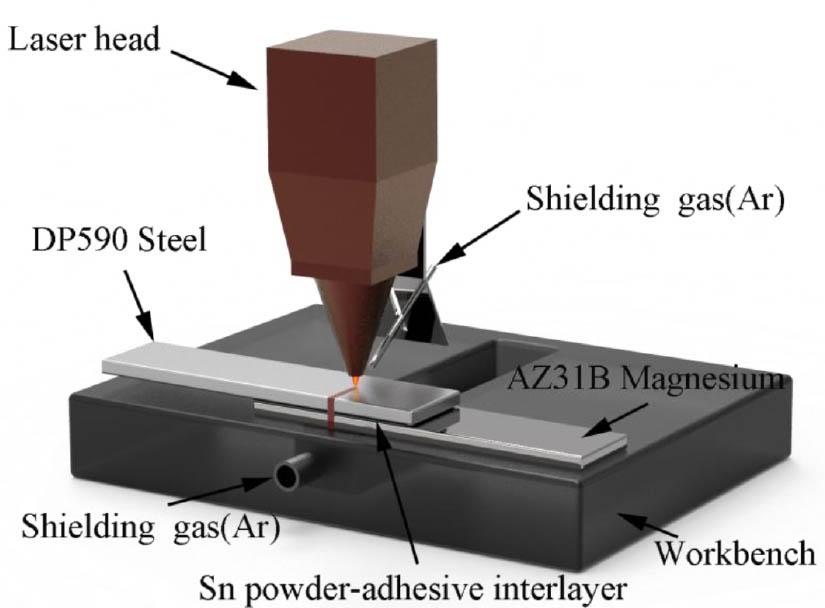

Schematic illustration of the steel/magnesium welding.

Table 1

Composition of welding base material (wt%).

MaterialsAlZnMnSiCSPFeMg
DP5900.02–1.600.04460.0680.0150.011Bal.–
AZ31B3.120.950.150.10–––0.03Bal.
Table 2

Optimized process parameters used in present work.

ParametersValue
Laser power (W)1,500
Laser defocus (mm)+2
Welding speed (mm/s)40
Flow rate of Ar gas (L/min)15

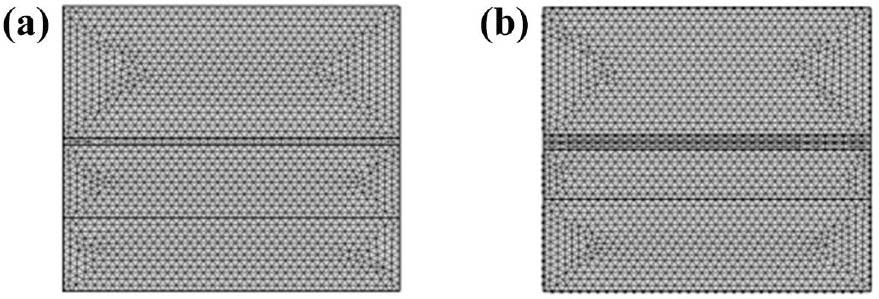

Fig. 2

Finite element model of welding: (A) Sn powder interlayer (B) Sn-adhesive interlayer.

Fig. 3

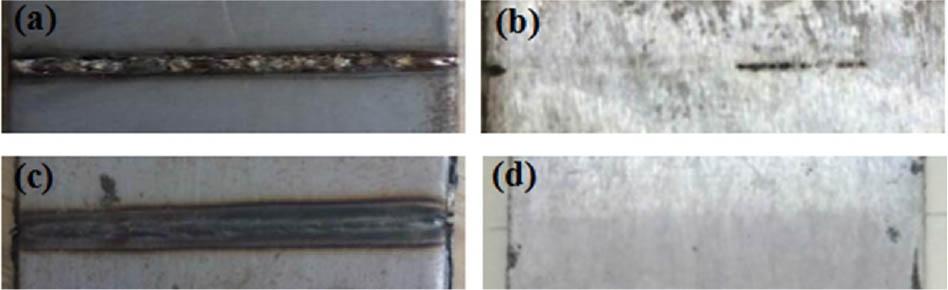

Joint morphologies of Sn powder interlayer laser weld: (A) face (B) root; Joint morphologies of Sn-adhesive interlayer laser weld (C) face (D) root.

Fig. 4

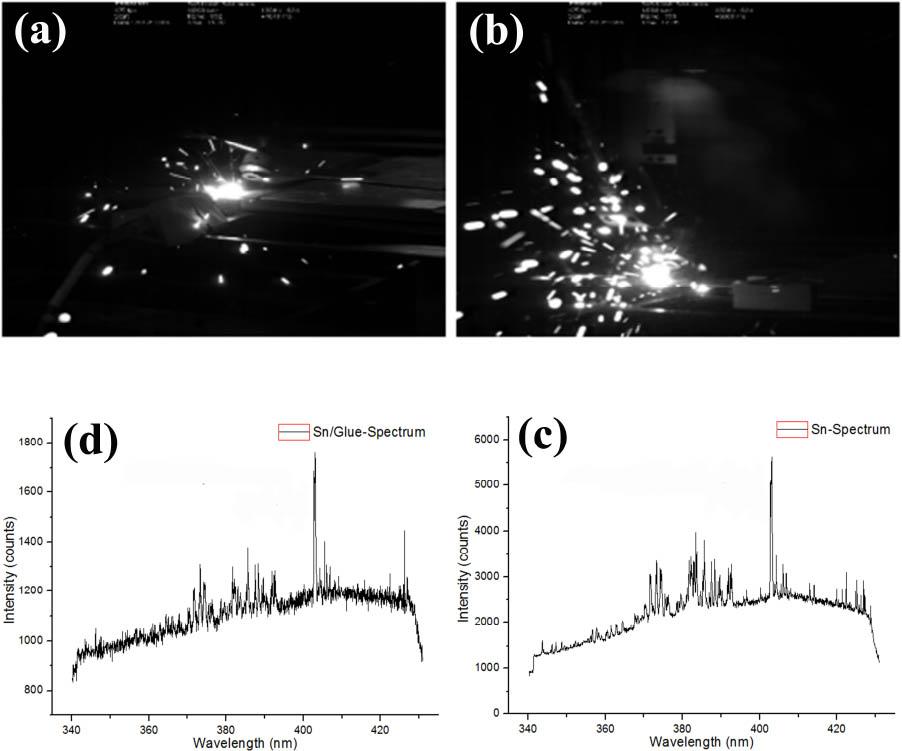

NAC high-speed camera at t = 20 ms: (A) Sn powder interlayer (B) Sn-adhesive interlayer; Infrared spectrum (C) Sn powder interlayer (D) Sn-adhesive interlayer.

Fig. 5

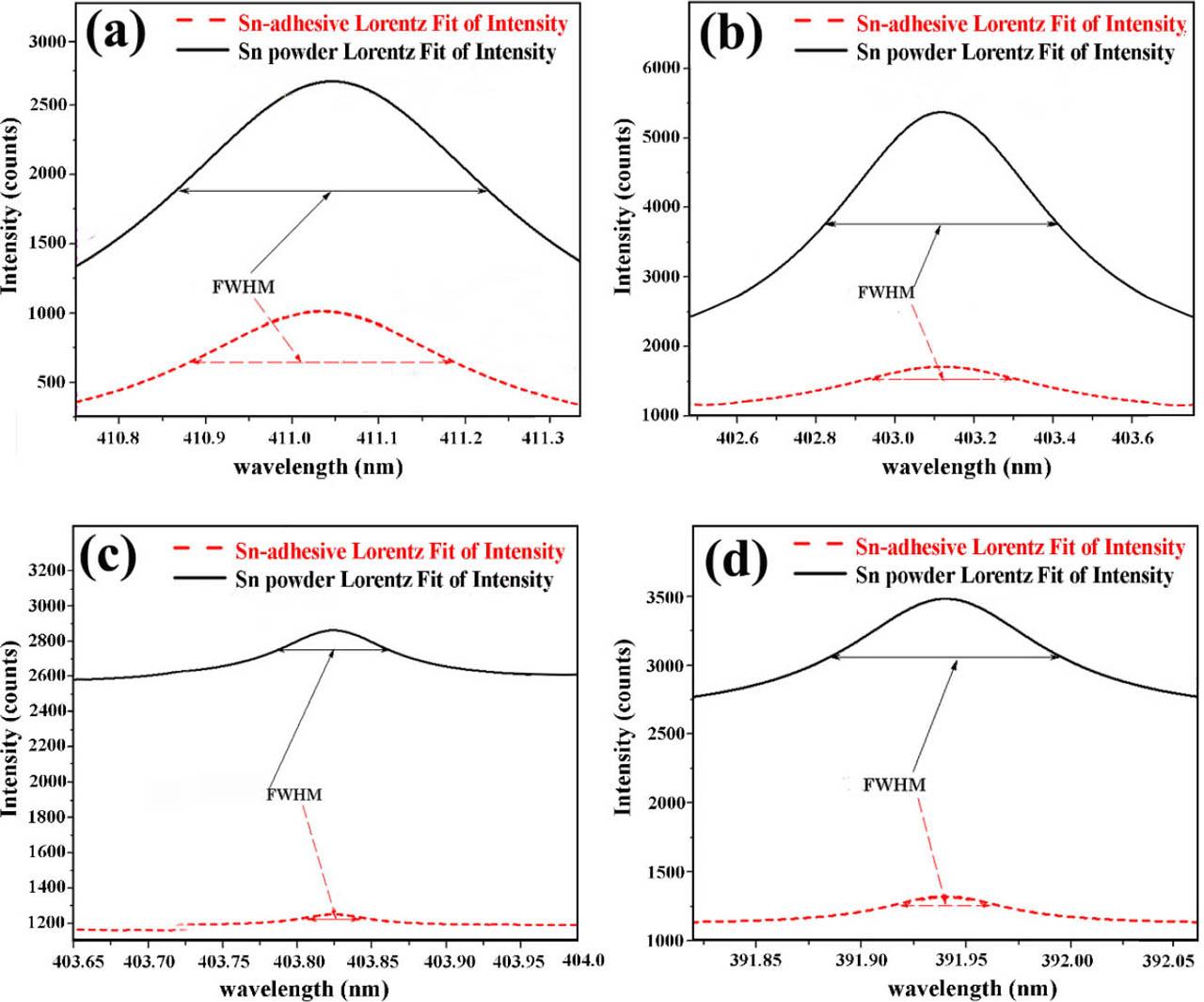

Element fitting spectrum of welding with Sn powder and Sn-adhesive interlayer: (A) Sn (B) Fe (C) Mg (D) C.

Table 3

Electron density of each element in the joints with Sn powder and Sn-adhesive interlayers.

InterlayerFe (1017 cm−3)Sn (1017 cm−3)C (1017 cm−3)Mg (1017 cm−3)
Sn powder6.56634.26960.98260.5347
Sn-adhesive6.32633.42360.60600.8751
Fig. 6

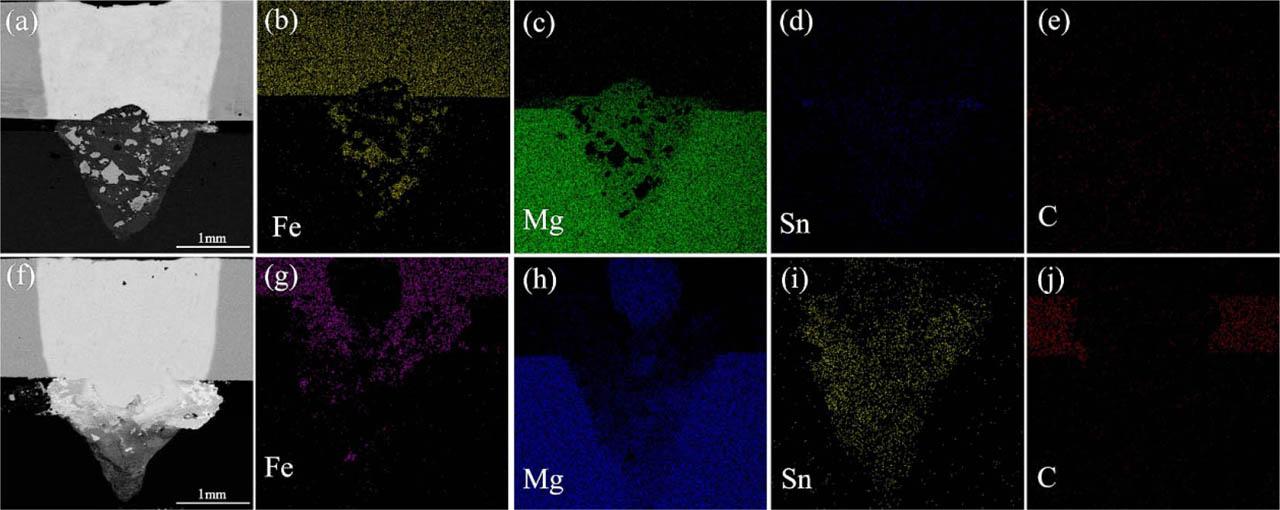

Morphology of welded joints: (A) with Sn inter-layer, (B), (C), (D) and (E) Fe, Mg, Sn, and C mapping; (F) with Sn-adhesive inter-layer, (G), (H), (I) and (J) Fe, Mg, Sn, and C mapping.

Fig. 7

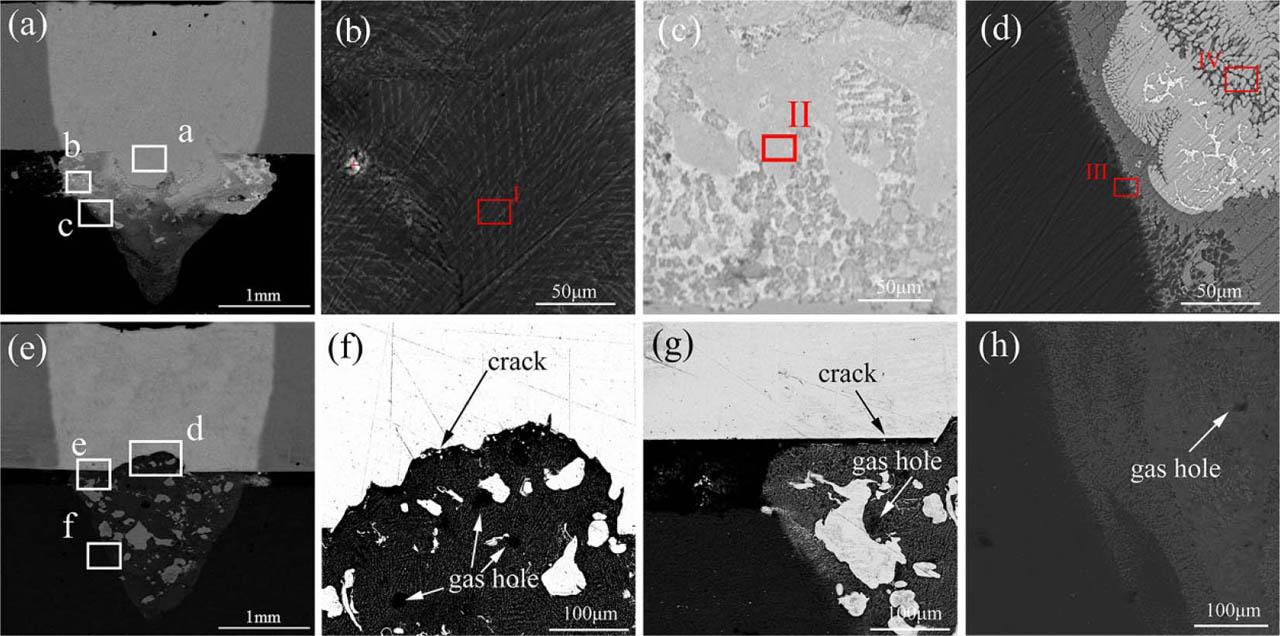

Morphology of joints: (A) with Sn-adhesive inter-layer cross-section (B) region a (C) region b (D) region c; (E) with Sn inter-layer cross-section (F) region d (G) region e (H) region f.

Table 4

EDS spot composition analysis results in Figure 7 (at%).

RegionsFeSnMg
I––100
II63.2336.35–
III–31.6662.63
IV00.3336.4162.85

[i] EDS, energy dispersive X-ray spectrometer.

Fig. 8

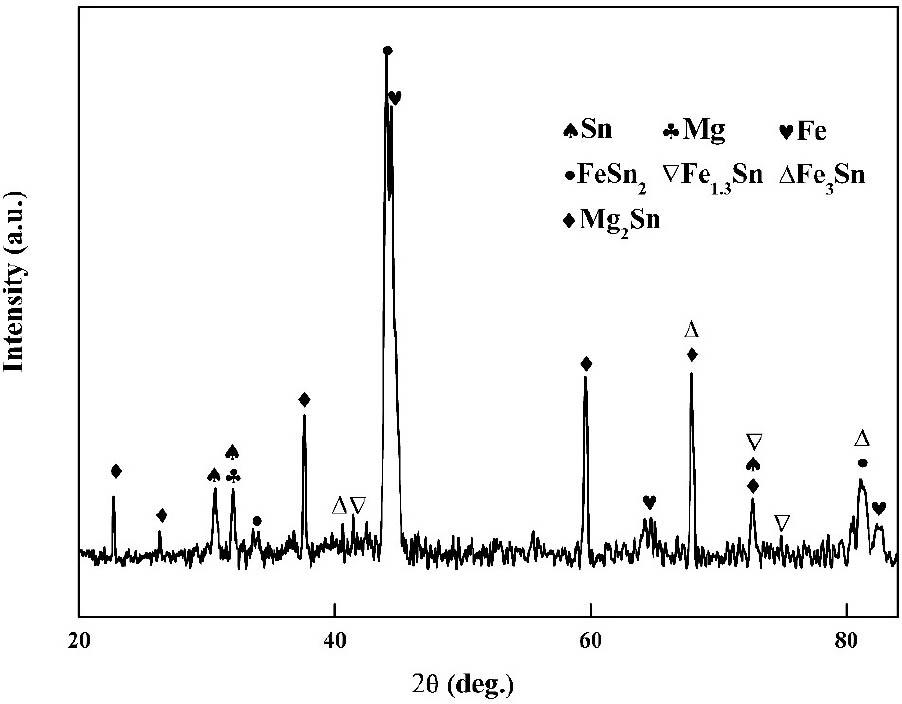

XRD analysis of the weld joints with Sn-adhesive interlayer. XRD, X-ray diffraction.

Fig. 9

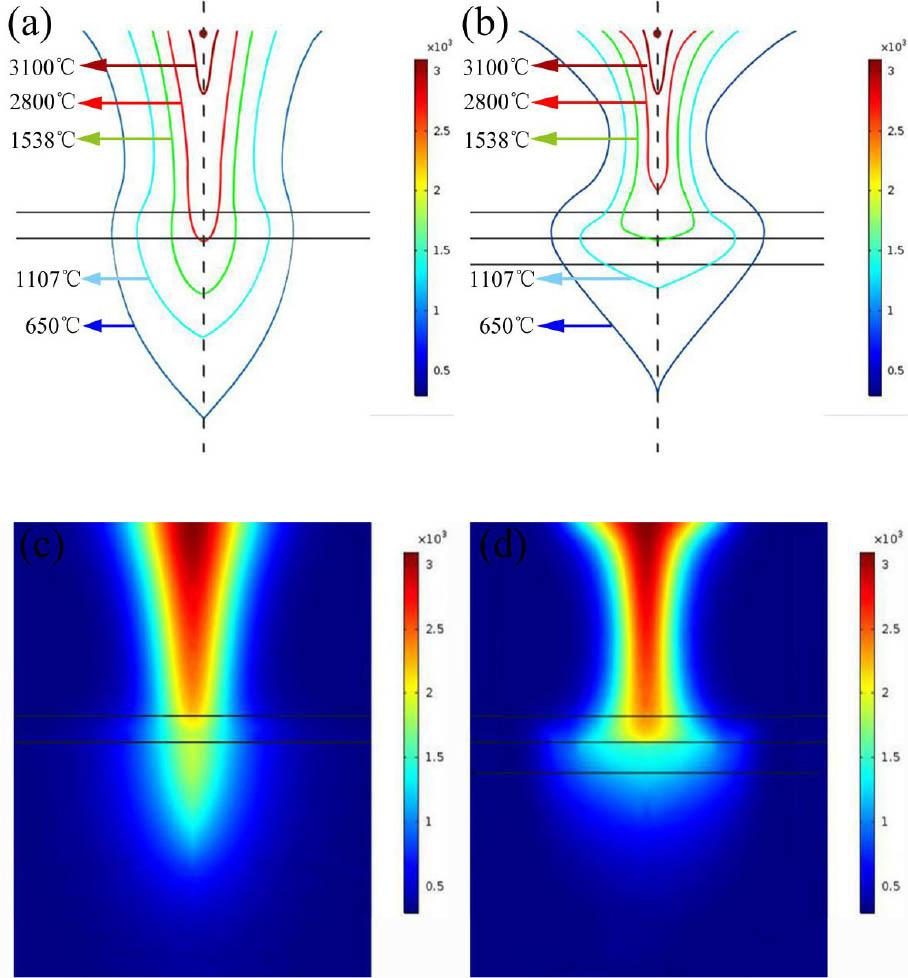

P = 1,500 W, V = 40 mm/s laser welding isotherm diagram (A) with Sn powder interlayer (B) with Sn-adhesive interlayer. P = 1,500 W, V = 40 m/s steel magnesium laser welding temperature cloud distribution (C) with Sn powder interlayer (D) with Sn-adhesive interlayer.

Table 5

Comparison of experimental weld size and simulation results (mm).

P = 1,500, V = 40 mm/sSteel plate surface melt widthMagnesium plate surface melt widthMagnesium plate melt depth
Sn-adhesive interlayerExperimental0.8491.480.997
Simulation0.931.450.89
Sn powder interlayerExperimental0.8271.381.27
Simulation0.901.361.10
