The first complete genome sequence and genetic evolution analysis of bovine norovirus in Xinjiang, China Cover

The first complete genome sequence and genetic evolution analysis of bovine norovirus in Xinjiang, China

Open Access
|Mar 2024

Figures & Tables

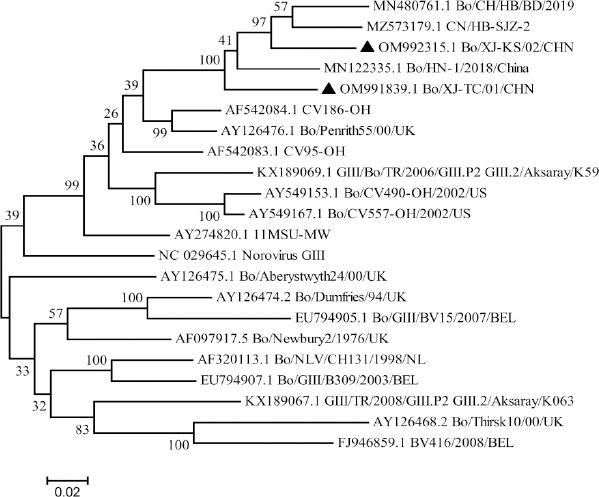

Fig. 1.

Phylogenetic tree of bovine norovirus. Black triangle – isolate obtained in this study; scale bar – nucleotide substitutions
Phylogenetic tree of bovine norovirus. Black triangle – isolate obtained in this study; scale bar – nucleotide substitutions

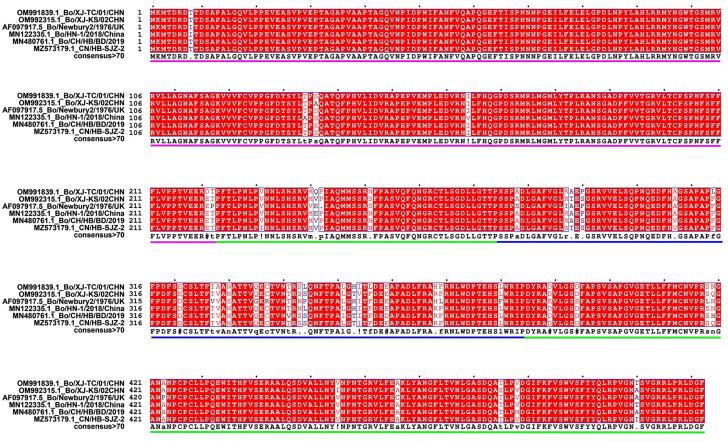

Fig. 2.

Amino-acid mutation of the VP1 protein of bovine norovirus
blue – P2 subdomain; green – P1 subdomain; pink – S domain
Amino-acid mutation of the VP1 protein of bovine norovirus blue – P2 subdomain; green – P1 subdomain; pink – S domain

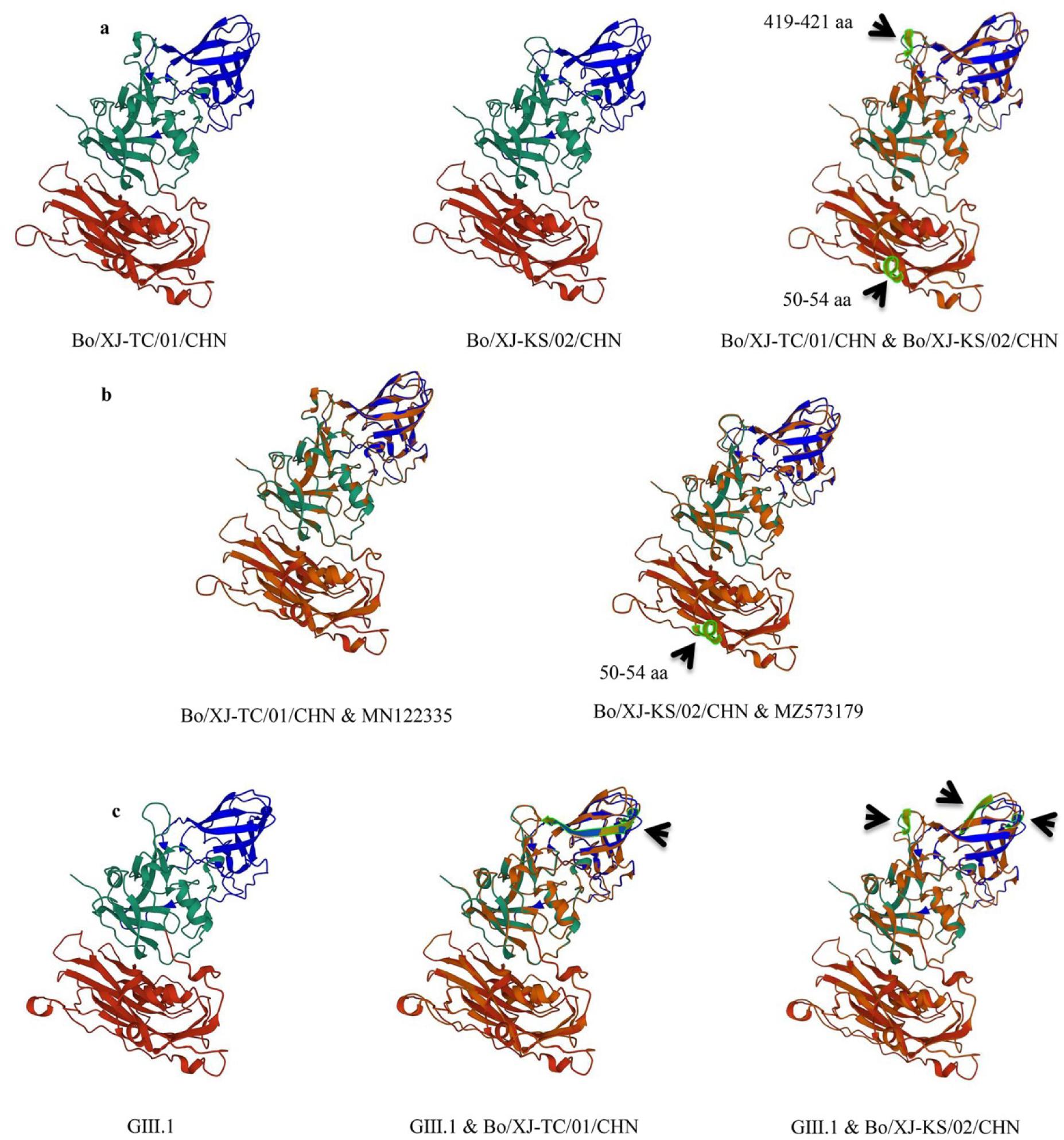

Fig. 3.

Bovine norovirus VP1 protein 3D model
a – VP1 protein 3D models obtained in this study and superposition of the Bo/XJ-TC/01/CHN isolate VP1 protein on that of Bo/XJ-KS/02/CHN;
b – superposition of the Bo/XJ-TC/01/CHN VP1 protein on that of MN122335, and of the Bo/XJ-KS/02/CHN VP1 protein on that of MZ573179;
c – GIII.1 genotype VP1 protein, superposition of the Bo/XJ-TC/01/CHN VP1 protein on that of the GIII.1 genotype, and superposition of the Bo/XJ-KS/02/CHN VP1 protein on that of the GIII.1 genotype; mid-blue – P2 subdomain; mid-green – P1 subdomain; brown – S domain; black arrows – structural differences
Bovine norovirus VP1 protein 3D model a – VP1 protein 3D models obtained in this study and superposition of the Bo/XJ-TC/01/CHN isolate VP1 protein on that of Bo/XJ-KS/02/CHN; b – superposition of the Bo/XJ-TC/01/CHN VP1 protein on that of MN122335, and of the Bo/XJ-KS/02/CHN VP1 protein on that of MZ573179; c – GIII.1 genotype VP1 protein, superposition of the Bo/XJ-TC/01/CHN VP1 protein on that of the GIII.1 genotype, and superposition of the Bo/XJ-KS/02/CHN VP1 protein on that of the GIII.1 genotype; mid-blue – P2 subdomain; mid-green – P1 subdomain; brown – S domain; black arrows – structural differences

Sequence similarity comparison of reference sequences of bovine norovirus with the isolated Bo/XJ-KS/02CHN strain

N/AA (%)MN122335.1MK159169.1OK032546.2EU794907.1MN480761.1MZ573179.1NC029645.1AF097917.5AY126474.2
Complete genome93.06/98.1986.25/94.8385.84/90.5684.97/95.5093.46/98.1993.70/98.3786.6/95.94085.46/95.7685.33/95.57
ORF1P4893.81/96.9693.01/96.3594.02/97.2681.68/89.9794.22/97.2693.52/97.5784.40/93.3181.05/91.1982.14/91.19
NTPase93.74/99.1793.65/99.1794.20/99.4584.90/98.6294.57/10094.66/99.7286.00/98.6287.38/98.9085.82/99.17
p2291.85/97.8392.21/98.9192.39/97.8385.35/97.2589.41/94.5793.12/97.8386.31/96.7284.22/97.2586.28/97.25
VPg95.08/99.1894.54/98.3694.81/97.5483.88/94.2693.72/10092.90/97.5488.71/95.8785.21/95.0884.25/94.21
Pro94.27/99.4494.29/99.4593.92/10085.27/98.3497.24/10095.21/10086.74/97.7986.56/98.3485.82/98.34
RdRp94.66/99.4194.73/99.4193.74/98.6286.76/97.6394.66/99.4194.66/98.8189.53/98.8185.97/97.6386.17/97.43
ORF2VP191.39/96.7469.78/70.3668.39/70.3685.59/94.8392.10/97.5192.93/98.2885.91/94.2586.93/94.2586.11/94.83
ORF3VP291.69/96.7692.77/96.6266.62/63.4384.62/93.0691.54/96.7691.69/97.2284.92/92.1384.92/93.4685.56/92.13

Rate of infection with bovine norovirus among calves under three months old in Xinjiang, China

SeasonRegionTotal (n=974)
Spring(n=274)Summer(n=311)Autumn(n=166)Winter(n=226)Tacheng(n=15)Bortara(n=153)IlI(n=188)Kashga(n=424)Urumuq(n=44)Changji(n=150)
25 (9.12%)64 (20.58%)73 (43.98%)31 (13.72%)9 (60%)20 (13.07%)51 (27.13%)92 (21.70%)2 (4.55%)19 (12.67%)193 (19.82%)

Sequence similarity comparison of reference sequences of bovine norovirus with the isolated Bo/XJ-TC/01/CHN strain

N/AA (%)MN122335.1MK159169.1OK032546.2EU794907.1MN480761.1MZ573179.1NC029645.1AF097917.5AY126474.2
Complete genome93.48/96.7892.40/90.5786.60/90.6484.88/95.0692.81/97.3592.74/97.6086.36/95.4285.45/95.4184.97/95.38
ORF1P4895.03/96.6693.62/96.0595.04/96.9680.79/88.7593.41/96.9693.11/97.2683.79/93.3181.19/90.5881.26/90.58
NTPase93.55/98.3493.28/97.7995.30/98.6284.16/97.5193.74/98.6293.46/98.3485.36/97.2485.45/97.7984.44/98.07
p2291.85/97.2893.48/98.3794.20/97.2885.71/97.8089.05/94.5792.21/98.3784.31/96.1784.22/97.8085.90/96.70
VPg94.81/97.5494.26/97.5493.44/96.7282.51/93.4494.54/98.3691.53/95.9088.80/95.8783.84/94.2683.29/93.39
Pro94.09/98.8995.03/99.4594.11/99.4585.58/98.3494.48/99.4594.11/99.4585.56/97.2487.43/98.3487.29/98.34
RdRp94.80/99.2095.13/99.2094.40/98.4187.17/97.6193.87/99.2093.81/99.0088.47/98.8086.77/97.6185.51/97.41
ORF2VP192.22/97.8979.37/71.3269.02/70.9485.85/95.7991.78/96.7491.20/97.1386.93/94.4487.76/94.8386.62/95.98
ORF3VP291.55/94.4469.30/64.8167.88/65.7485.25/91.2091.72/94.9191.86/95.3786.33/90.2884.49/92.0685.43/92.59
