Evaluation of monitoring critical ill children with traumatic brain injury Cover

Evaluation of monitoring critical ill children with traumatic brain injury

Open Access
|Jan 2025

Figures & Tables

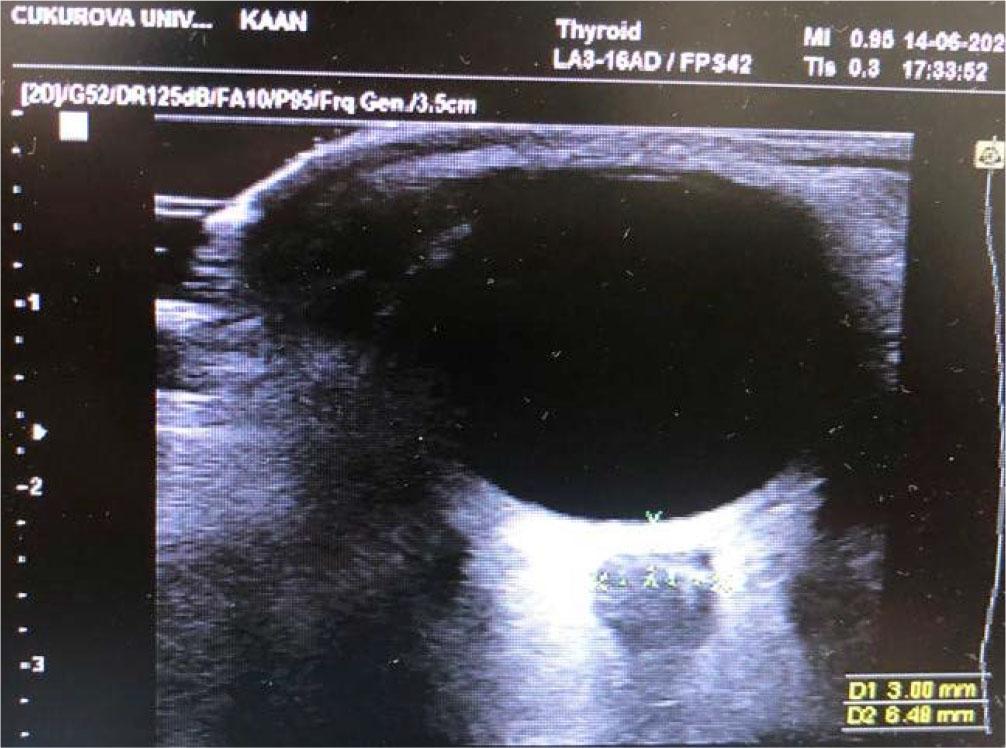

Fig. 1.

Measurement of optic nerve sheath diameter of our patient by ultrasonography

Table 1.

Patients' characteristics

VariableValue
Cause of trauma
Out-of-vehicle traffic accidents42.9 % (n=12)
Falls from a height21.4 % (n=6)
Blunt trauma17.9 % (n=5)
In-vehicle traffic accidents14.3 % (n=4)
Other reasons3.6 % (n=1)
The type of traumatic brain injury
Extraparenchymal injuries53.6 % (n=15)
Intraparenchymal injuries35.7% (n=10)
Bone fractures10.7% (n=3)
The treatments
Neurosurgery25% (n=7)
Antibiotic therapy96.4% (n=27)
Antiepileptic drugs92.9% (n=26)
Anti-edema treatment96.4% (n=27)
Thiopental infusion3.6% (n=1)
Decompressive craniotomy procedure3.6% (n=1)
Normothermia100% (n=28)
Table 2.

Evaluation of the monitoring findings of the patients in the pediatric intensive care unit by days

PICU admission
Mean ± SD
Min - Max
Hospitalization Day1
Mean ± SD
Min - Max
Hospitalization Day2
Mean ± SD
Min - Max
Mean Arterial Pressure (mmHg)82.3 ± 16.879.6 ± 13.279.5 ± 10.7
58–12062–10963–108
Glasgow Coma Scores8.8 ± 2.39.8 ± 2.311.0 ± 2.5
5–136–145–14
Optic Nerve Sheath Diameters (mm) n=24)5.8 ± 0.45.8 ± 0.55.7 ± 0.5
4.7–6.74.6–6.74.6–7.0
NIRS (%)74.3 ± 11.974.2 ± 9.970.4 ± 8.2
50–9155–9555–89
Noninvasive ICP (mmHg)16.1 ±1.915.9 ± 2.115.0 ± 2.5
11.5–20.611–2111–21
Cerebral Perfusion Pressure (mmHg)67.8 ± 16.764.3 ± 11.963.8 ± 7.8
40–10246–8850–80

[i] NIRS: Near Infrared Spectroscopy, ICP: Intracranial pressure, PICU: Pediatric Intensive Care Unit, mmHg: Millimeter of Hg, Hg: Chemical symbol of mercury, mm: millimeter.

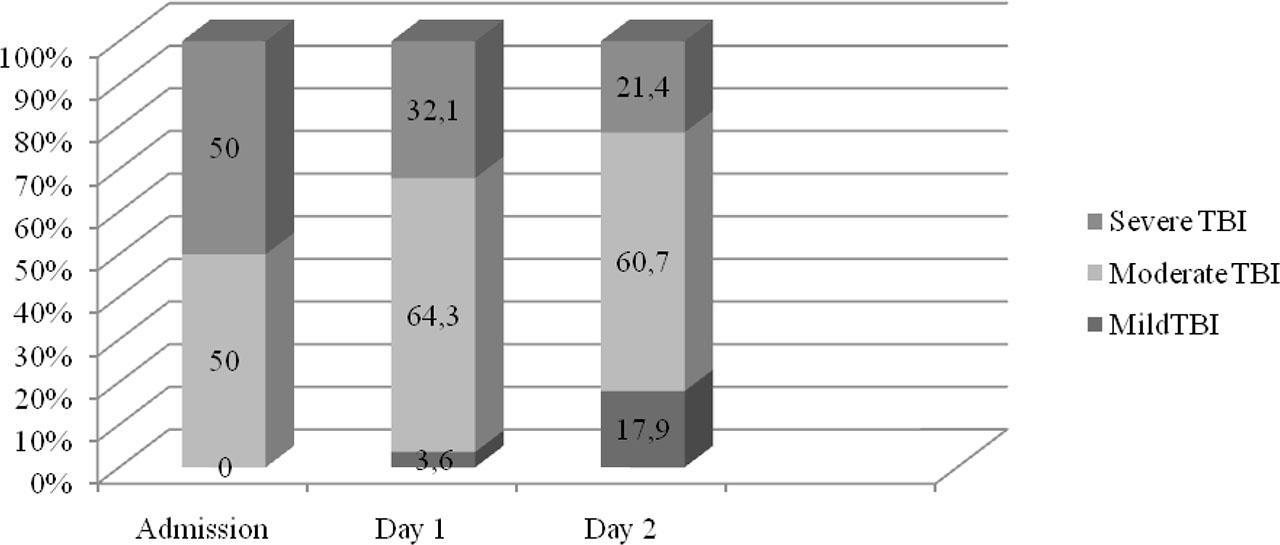

Fig. 2.

The change of traumatic brain injury classification according to the Glasgow coma score of the patients by days (%)

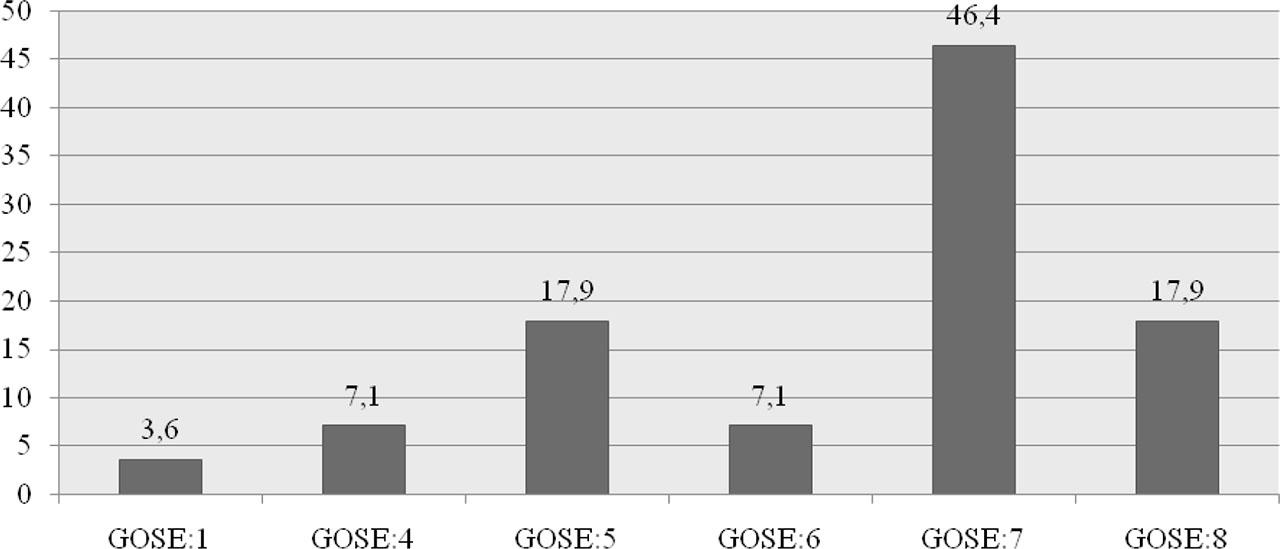

Fig. 3.

Evaluation of patients to Glasgow Outcome Scores-E

Table 3.

Evaluations of the prognosis according to the follow-up variables according to the days of hospitalization in the pediatric intensive care unit

TimeVariablePrognosisMean ± SDp value
PICU admissionNIRSGood(GOSE 7-8) (n=18)73.6±10.80.71
Poor (GOSE 1-6)(n=10)75.4±14.1
ONSDGood (GOSE 7-8)(n=16)5.7±0.40.19
Poor (GOSE 1-6)(n=8)5.9±0.5
nICPGood (GOSE 7-8) (n=16)15.7±1.80.23
Poor (GOSE 1-6) (n=8)16.7±2.3
CPPGood (GOSE 7-8) (n=16)64.6±14.10.20
Poor (GOSE 1-6) (n=8)74.0±20.6
Hospitalization Day1NIRSGood (GOSE 7-8)72.7±10.30.28
Poor (GOSE 1-6)76.9±9.0
ONSDGood (GOSE 7-8)5.7±0.50.01*
Poor (GOSE 1-6)6.1±0.4
nICPGood (GOSE 7-8)15.1±1.80.004*
Poor (GOSE 1-6)17.6±1.1
CPPGood (GOSE 7-8)64.7±11.60.81
Poor (GOSE 1-6)63.4±13.5
Hospitalization Day2NIRSGood (GOSE 7-8)69.1±8.00.29
Poor (GOSE 1-6)72.6±8.5
ONSDGood (GOSE 7-8)5.5±0.40.002*
Poor (GOSE 1-6)6.1±0.5
nICPGood (GOSE 7-8)13.9±1.80.001*
Poor (GOSE 1-6)17.2±2.3
CPPGood (GOSE 7-8)62.9±5.70.43
Poor (GOSE 1-6)65.6±11.1

* t-test; NIRS: Near Infrared Spectroscopy, ONSD: Optic Nerve Sheath Diameter, nICP: Noninvasive Intracranial Pressure, CPP: Cerebral Perfusion Pressure, GOSE: Glasgow Outcome Scale-Extended, PICU: Pediatric Intensive Care Unit.

Table 4.

Comparison of prognosis according to neuromonitorization parameters between days

p value*GOSE 7-8 (Good prognosis)GOSE 1-6 (Poor Prognosis)p value *
Admission NIRS75.4±10.076.6±11.20.572
Day 1 NIRS0.47373.7±10.478.0±7.4
Admission NIRS75.4±10.076.6±11.20.360
Day 2 NIRS0.00969.7±8.274.1±8.3
Day 1 NIRS73.7±10.478.0±7.40.006
Day 2 NIRS0.00369.7±8.274.1±8.3
Admission ONSD5.7±0.46.0±0.40.203
Day 1 ONSD0.5345.7±0.56.1±0.4
Admission ONSD5.7±0.46.0±0.40.449
Day 2 ONSD0.0045.5±0.46.1±0.5
Day 1 ONSD5.7±0.56.1±0.41.000
Day 2 ONSD0.1405.5±0.46.1±0.5
Admission nICP15.7±1.816.7±2.30.243
Day 1 nICP0.09715.1±1.817.6±1.7
Admission nICP15.7±1.816.7±2.30.729
Day 2 nICP<0.00114.0±1.817.2±2.3
Day 1 nICP15.1±1.817.6±1.70.535
Day 2 nICP0.00214.0±1.817.2±2.3
Admission CPP64.6±14.174.0±20.60.240
Day 1 CPP0.98764.7±11.663.4±13.5
Admission CPP64.6±14.174.0±20.60.128
Day 2 CPP0.60462.9±5.765.6±11.1
Day 1 CPP64.7±11.663.4±13.50.687
Day 2 CPP0.48162.9±5.765.6±11.1

* p: paired samples t test; NIRS: Near Infrared Spectroscopy, ONSD: Optic Nerve Sheath Diameter, nICP: Noninvasive Intracranial Pressure, CPP: Cerebral Perfusion Pressure, GOSE: Glasgow Outcome Scale-Extended.
