Deep learning for daily care: medicine recognition and reminder systems for the visually impaired Cover

Deep learning for daily care: medicine recognition and reminder systems for the visually impaired

Open Access
|Jun 2025

Figures & Tables

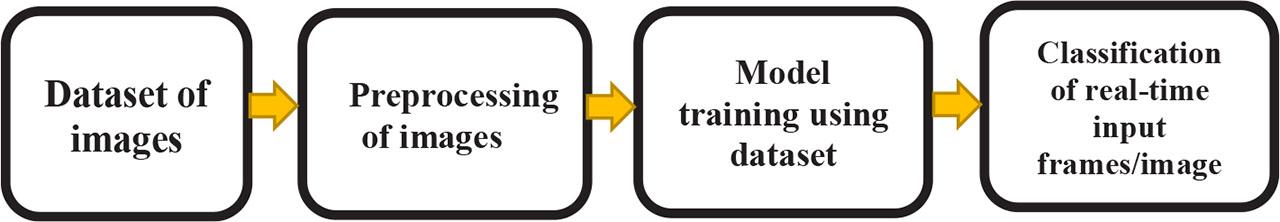

Figure 1:

System block diagram.
System block diagram.

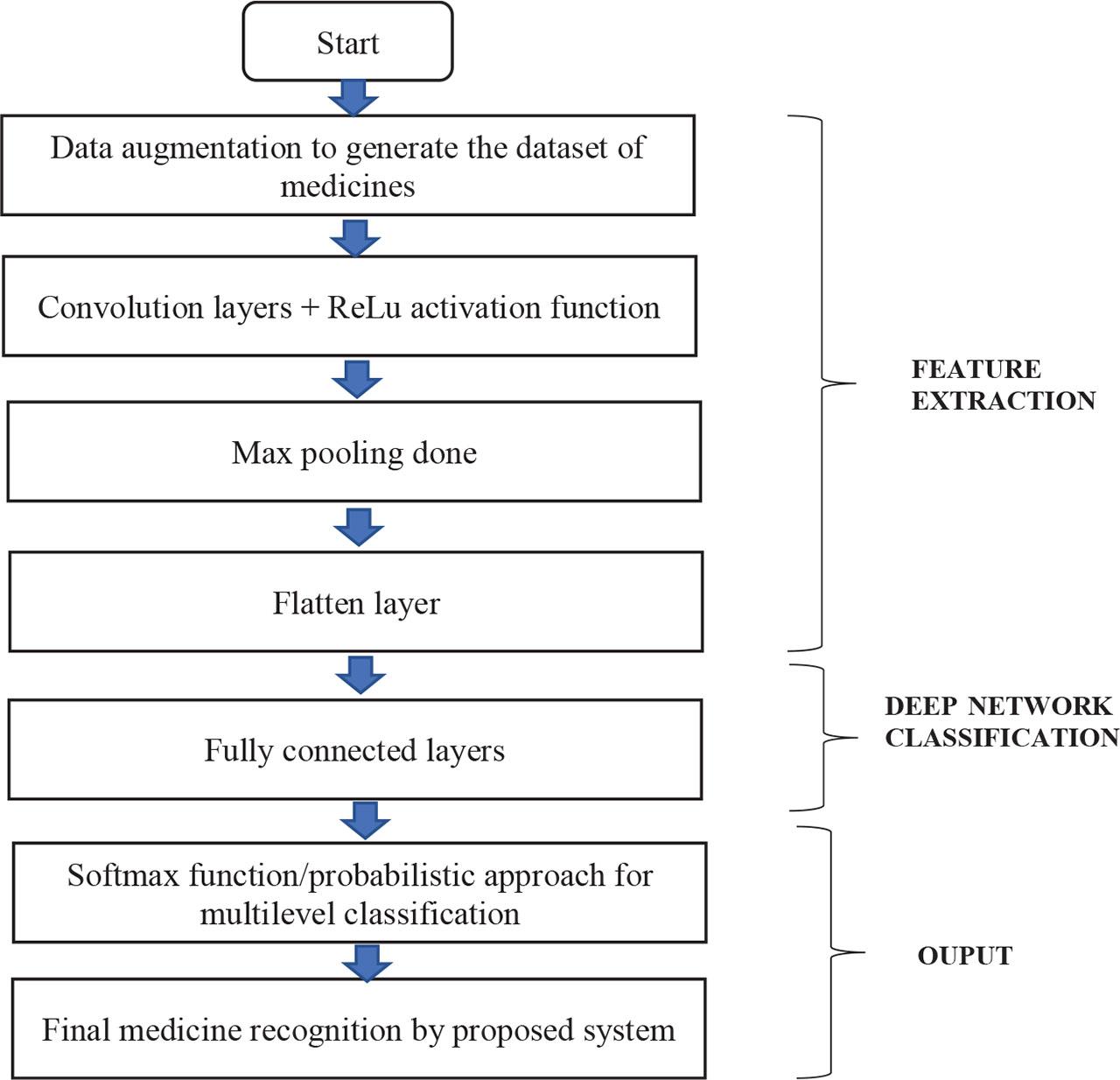

Figure 2:

Flowchart of system/CNN layers. CNN, convolutional neural network.
Flowchart of system/CNN layers. CNN, convolutional neural network.

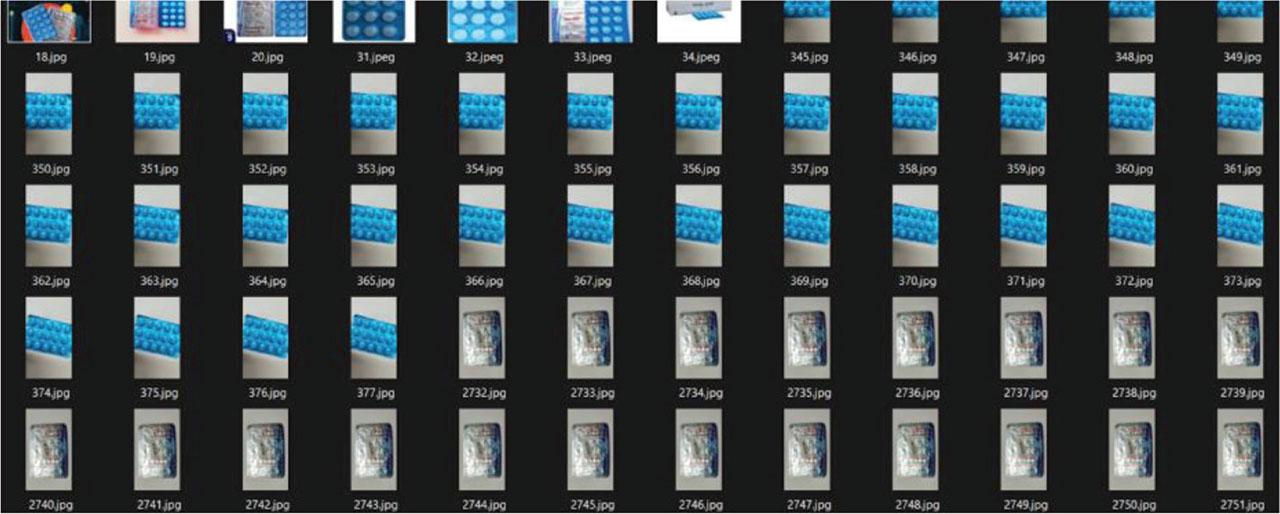

Figure 3:

Dataset of Dolo medicine.
Dataset of Dolo medicine.

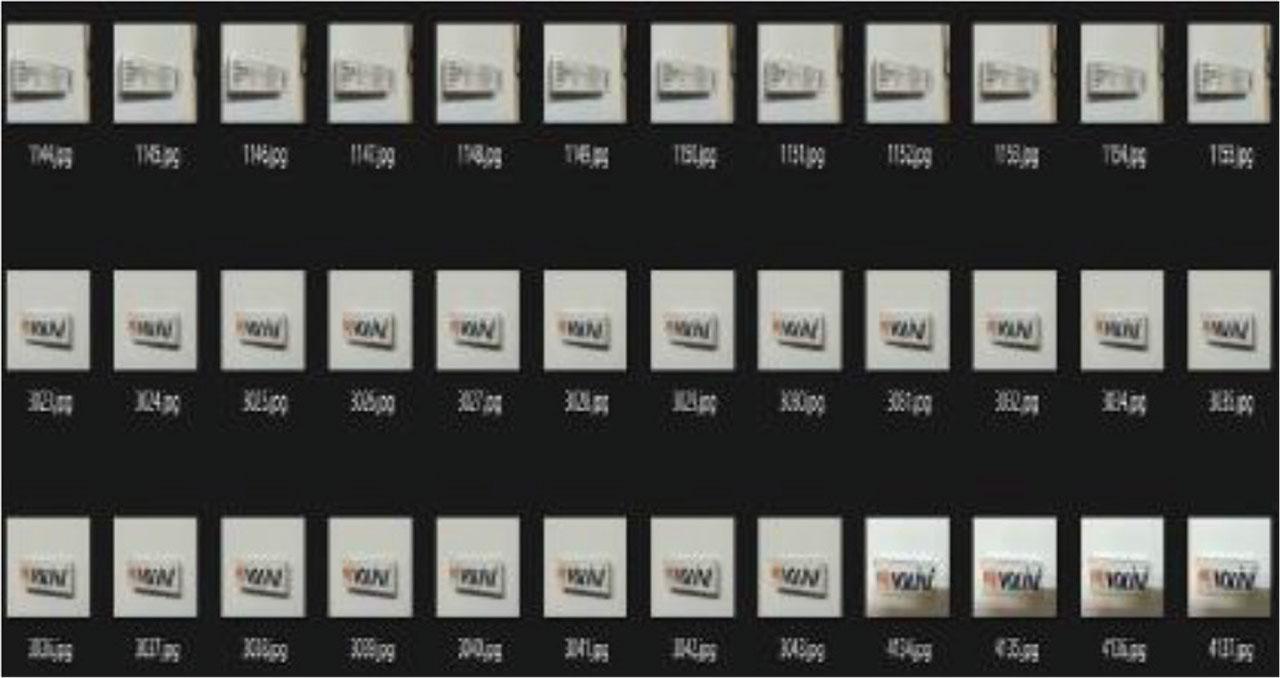

Figure 4:

Dataset of Volini medicine.
Dataset of Volini medicine.

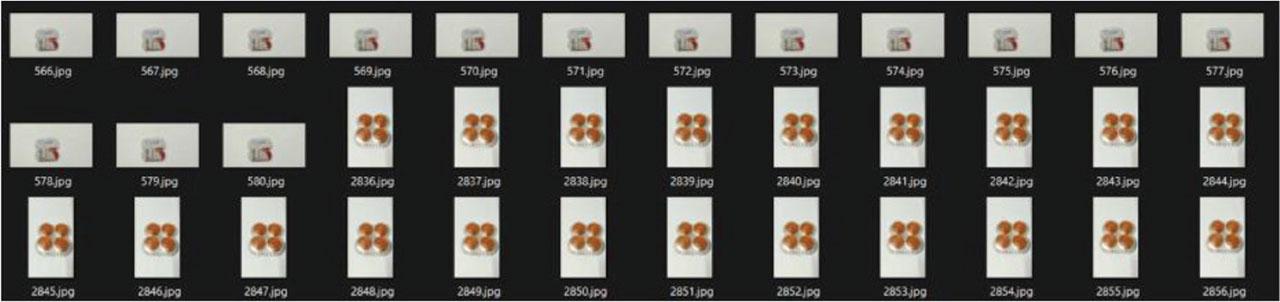

Figure 5:

Dataset of Strepsils medicine.
Dataset of Strepsils medicine.

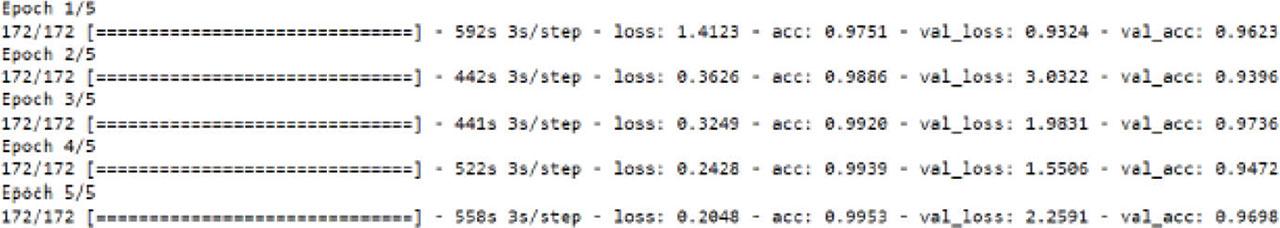

Figure 6:

Epochs result for the inception model.
Epochs result for the inception model.

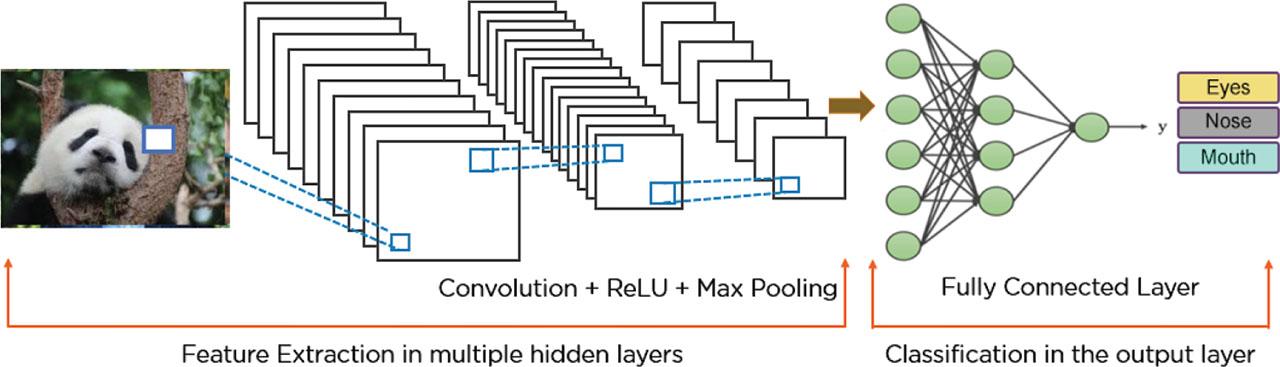

Figure 7:

CNN architecture. CNN, convolutional neural network.
CNN architecture. CNN, convolutional neural network.

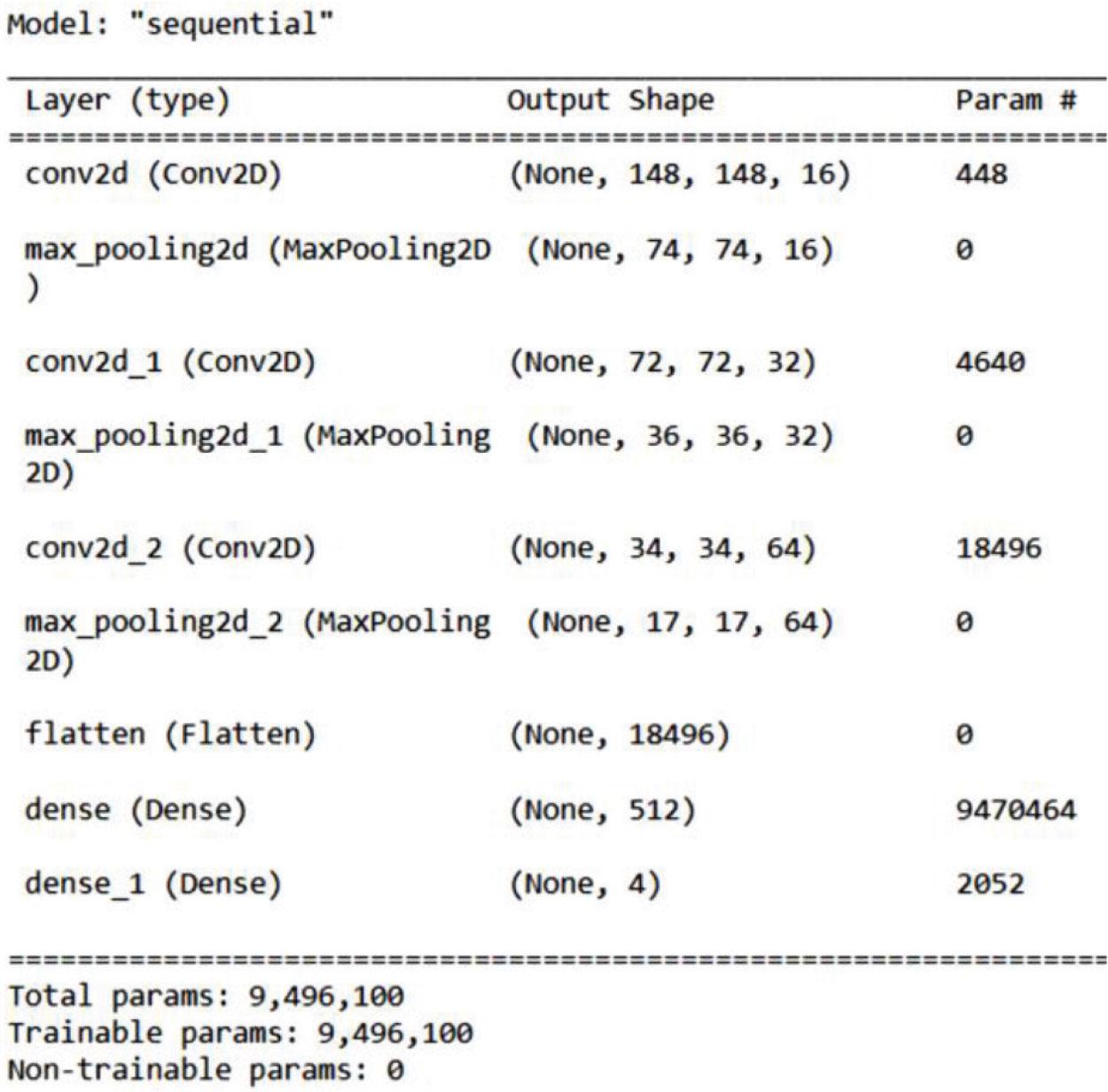

Figure 8:

Summary of parameters and trained CNN model. CNN, convolutional neural network.
Summary of parameters and trained CNN model. CNN, convolutional neural network.

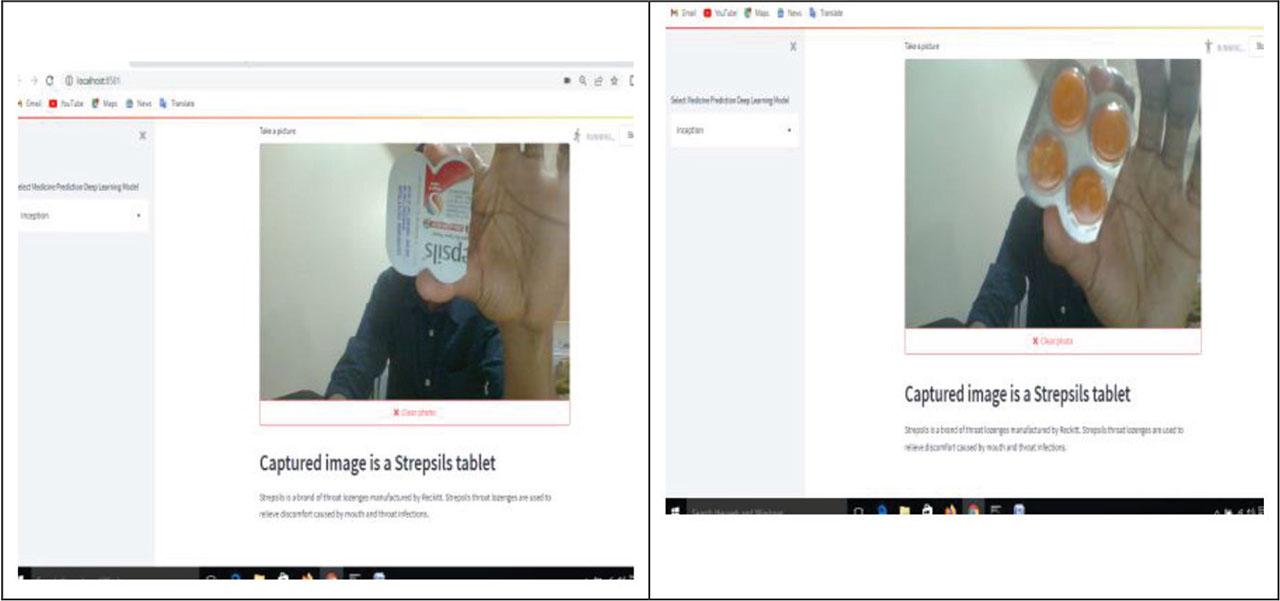

Figure 9:

Output results for Strepsils.
Output results for Strepsils.

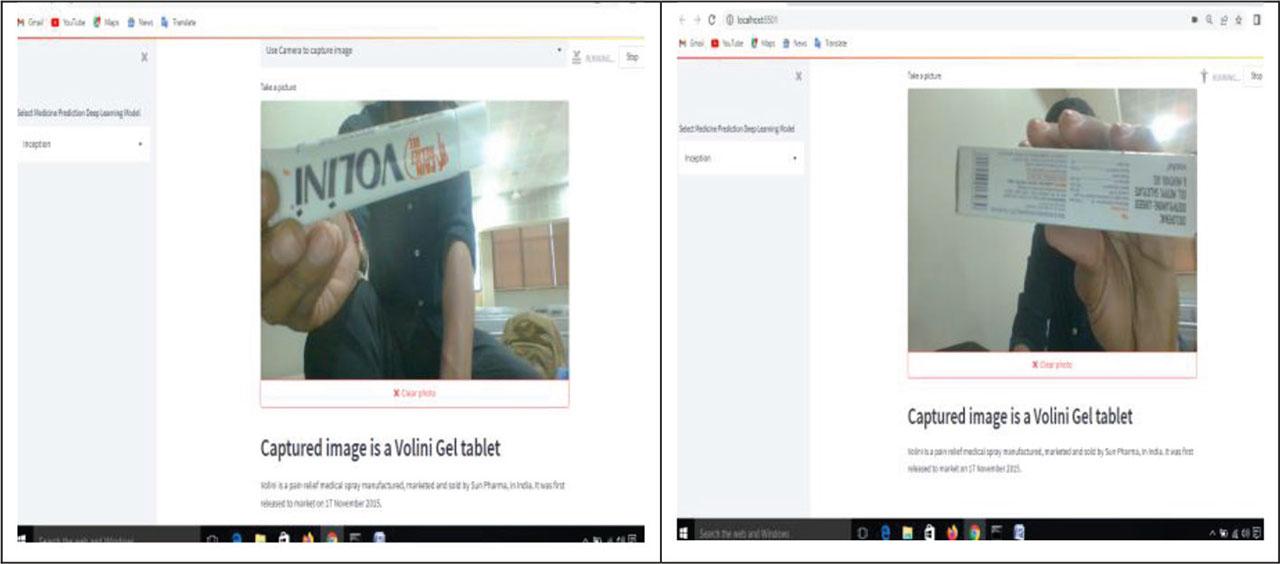

Figure 10:

Output results for Volini gel.
Output results for Volini gel.

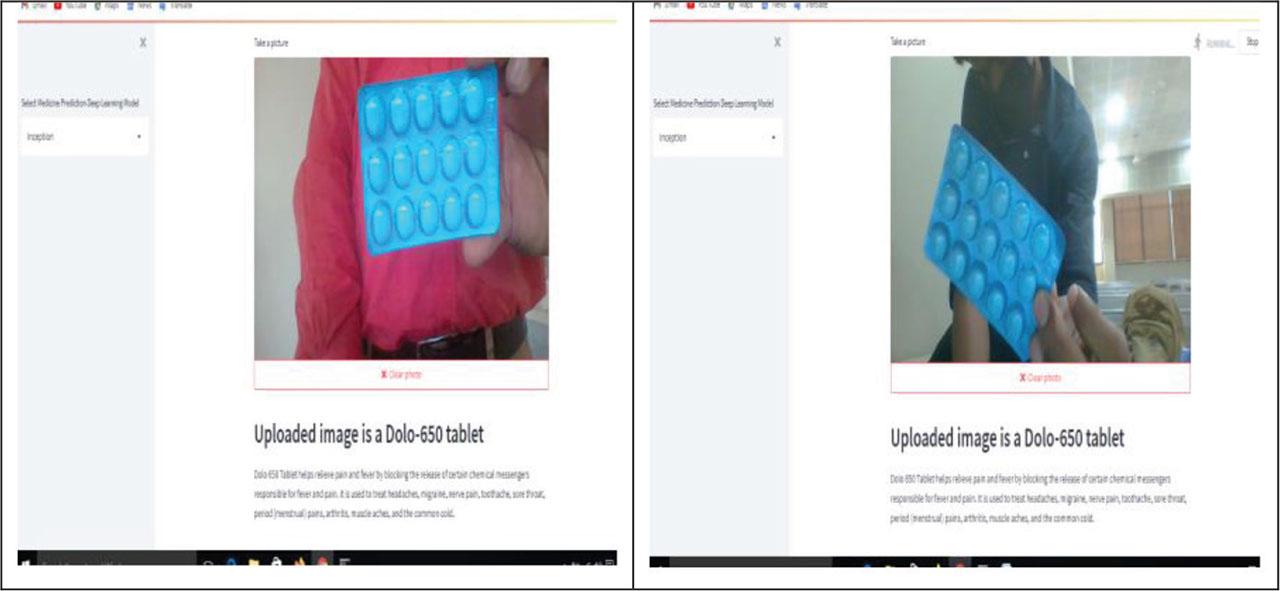

Figure 11:

Output results for Dolo.
Output results for Dolo.

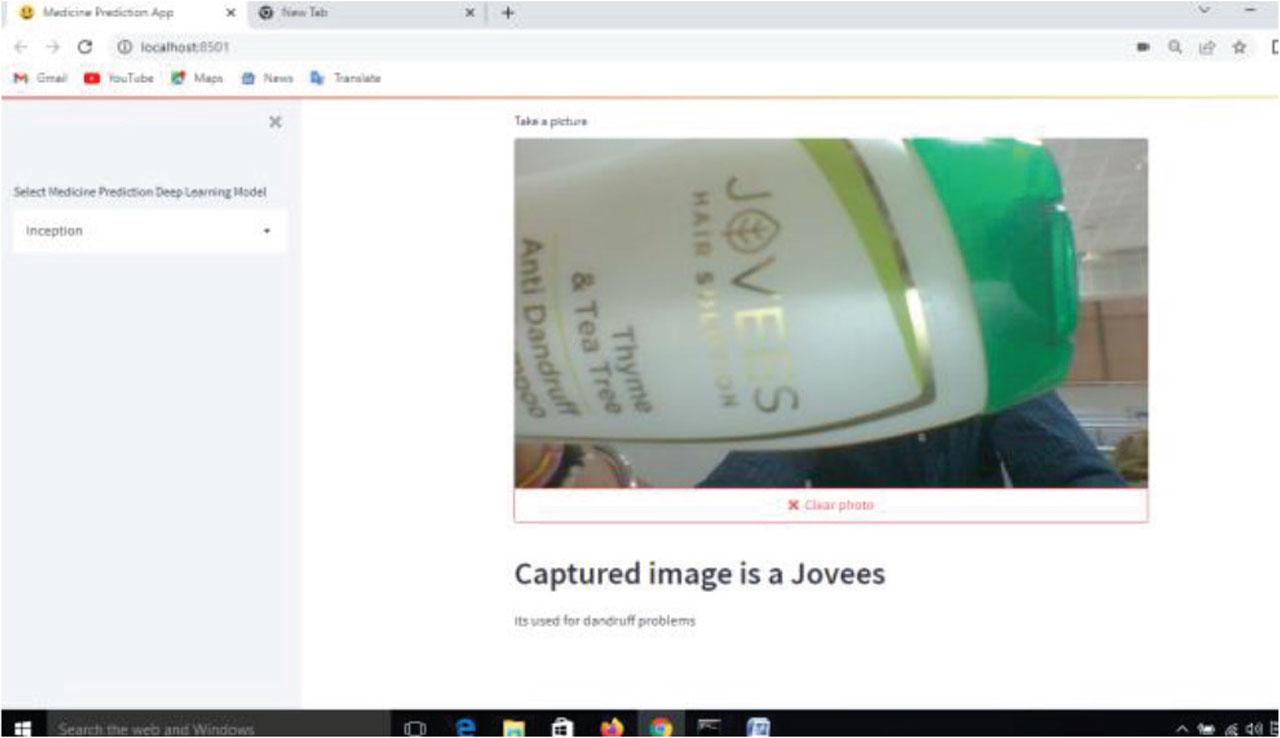

Figure 12:

Output results for Jovees shampoo.
Output results for Jovees shampoo.

Literature review

ReferenceMethod/algorithm usedMeritsDemerits
[1]YOLO and OpenCVProvides real-time object detection and visual replacement for the blind.YOLO may struggle with small or distant objects, and OpenCV's accuracy can vary based on lighting conditions and object complexity.
[2]TensorFlow API, CNN, SSD, and MobileNet V2Achieves high accuracy without needing an Internet connection.May require significant computational resources, especially for training the model.
[3]CNNUtilizes data augmentation to achieve a 94% accuracy rate for banknote recognition.Edge-detected images negatively affect accuracy, indicating a need for larger datasets and varied lighting conditions.
[4]CNNImproves runtime and accuracy for heart rate estimation in large groups.Specific details about the adapted algorithm and its implementation are needed for a thorough evaluation.
[5]YOLO and SSDUses Raspberry Pi devices for a compact travel aid, demonstrating real-world implementation.The system may face limitations in detecting objects in complex environments or under varying lighting conditions.
[6]CNN and LSTMUses Braille and sound bite hearing devices for communication, achieving high accuracy.The system's effectiveness may depend on the user's familiarity and comfort with Braille.
[9]FSP algorithmUtilizes a panoramic camera for pedestrian trajectory prediction, improving real-time performance.The algorithm's accuracy and performance in dynamic or crowded environments need further evaluation.
[10]CNNAchieves 98% accuracy in diagnosing glaucoma using retinal images.The effectiveness of the technique in clinical settings and its generalizability to diverse populations need further validation.
[11]Four-layered CNNDetects and classifies objects with high accuracy and low response time.The device's performance may vary based on the complexity of the environment and the types of objects present.
[12]CNN and fuzzy logicProvides auditory feedback for obstacle detection, enhancing interaction with surroundings.The computational complexity of the algorithms may affect real-time performance.
[13]CNNUses smart glasses to identify medicine, showing promise for real-world implementation.The system's accuracy and reliability in identifying specific medications need further validation.

Comparative study for the success rate of the proposed system with existing work

ReferenceMethod usedDataset sizeAccuracy (%)Medicines handledKey advantage
[13]CNN∼2000 images923Smart glasses integration
[6]CNN + LSTM∼3000 images945Includes Braille output
[3]CNNAugmented banknote data94Not medicine-specificFocused on money recognition
Proposed systemInception CNN16,000 images96.984Audio output + medication reminder

Success rate of the proposed system

Sr. No.Medicine nameNo of trails
Success rate (%)
SucceedFailed
1.Strepsils46492
2.Volini gel48296
3.Dolo47394
Success rate≥94
