Variant slip effects, aspect ratios and steady-state criteria in unsteady cavities with direct PDE simulation of eddies Cover

Variant slip effects, aspect ratios and steady-state criteria in unsteady cavities with direct PDE simulation of eddies

Open Access
|Jun 2024

Figures & Tables

Fig. 1

Lid-driven in 2D analysis [2]
Lid-driven in 2D analysis [2]

Fig. 2

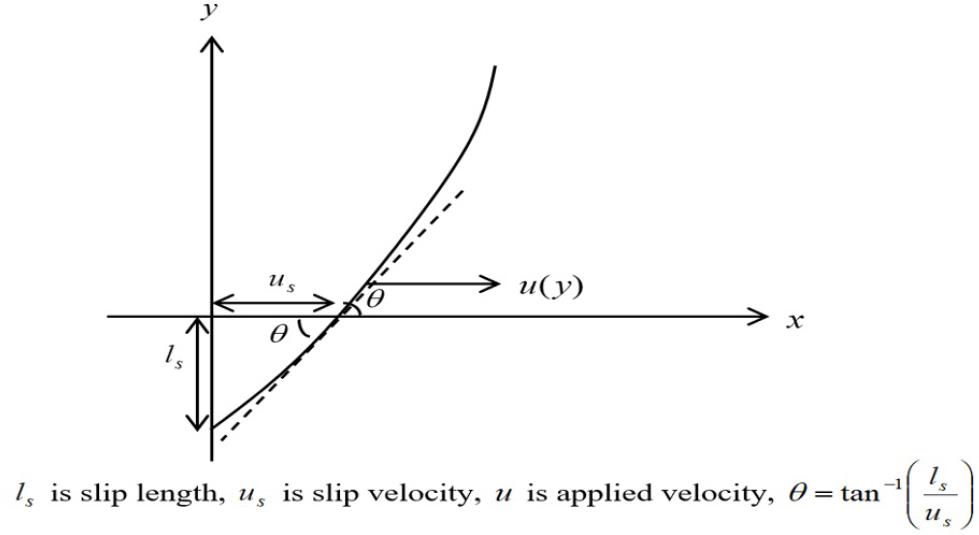

Free-slip BC
Free-slip BC

Fig. 3

Finite difference in explicit form [16]
Finite difference in explicit form [16]

Fig. 4

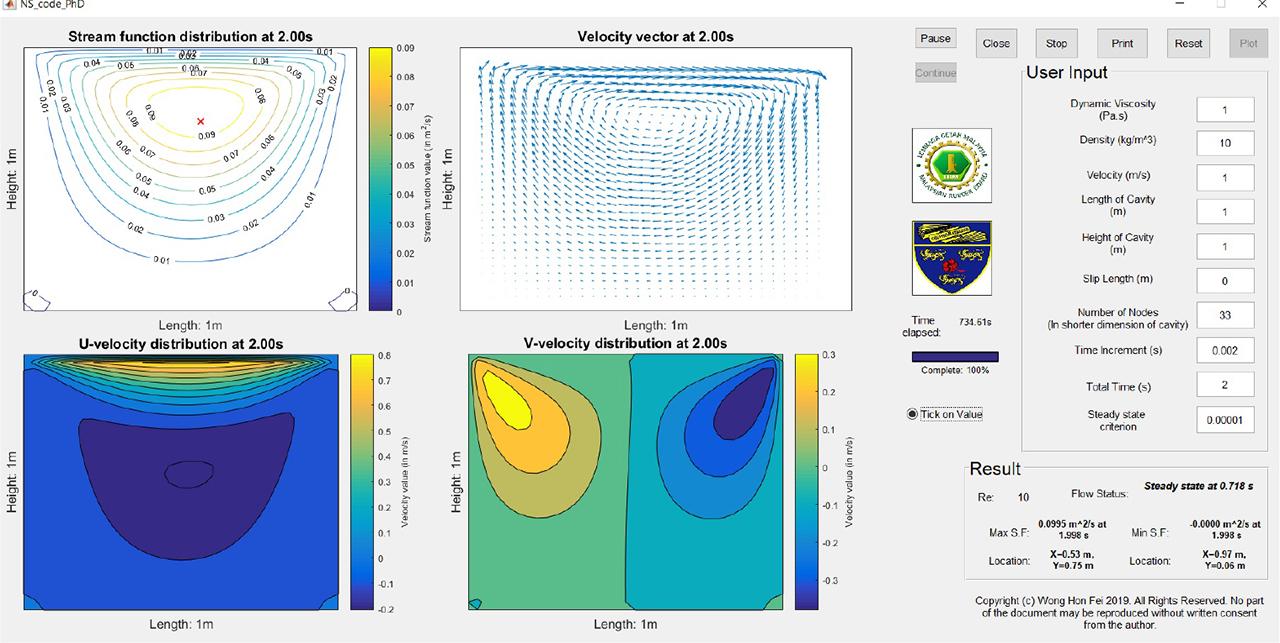

Graphic User Interface (GUI).
Graphic User Interface (GUI).

Fig. 5

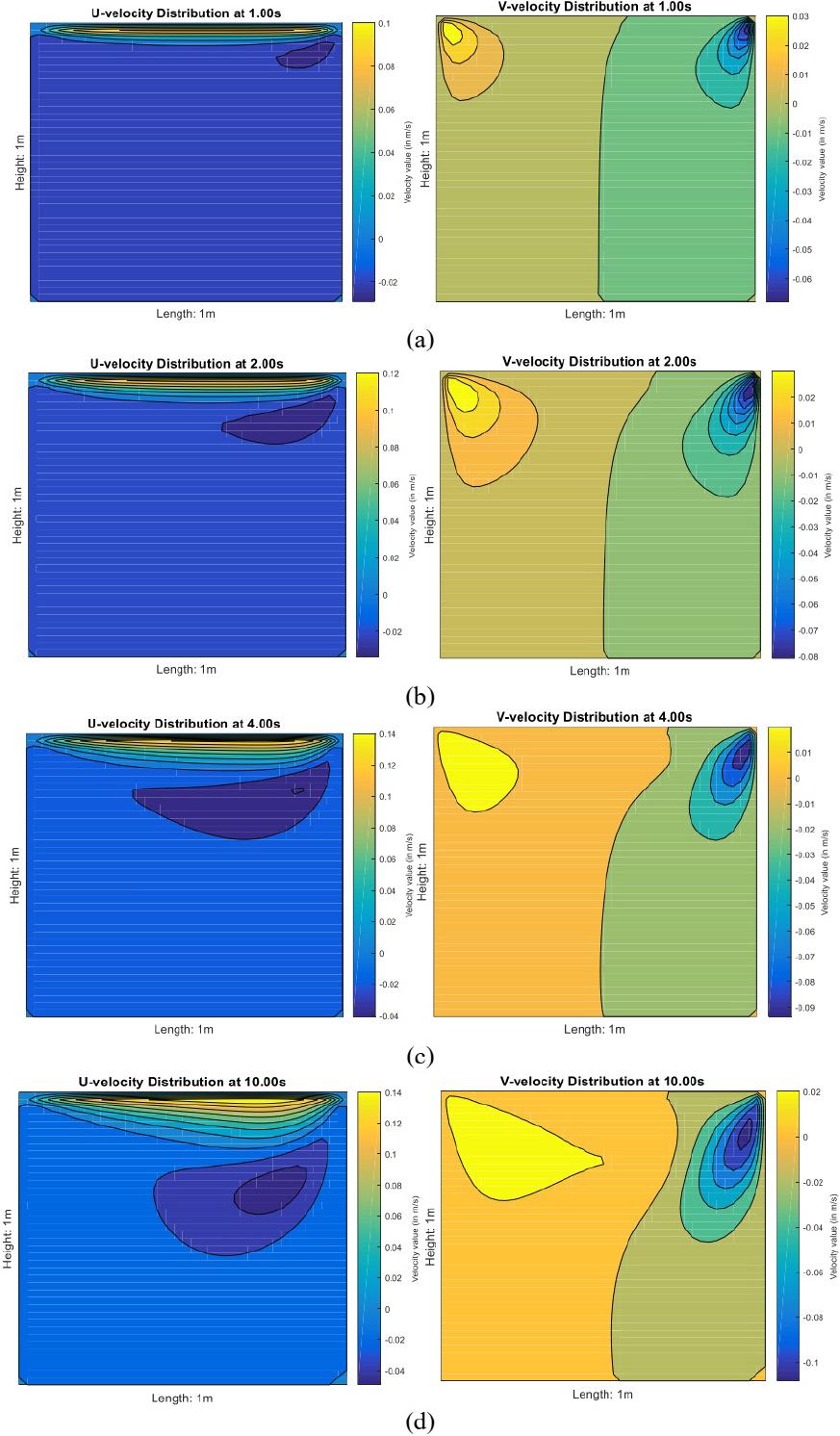

Contour plot of u− and v−velocity distributions at (a) t = 1s (b) t = 2s (c) t = 4s and (d) t = 10s (Re=200 with no-slip BC).
Contour plot of u− and v−velocity distributions at (a) t = 1s (b) t = 2s (c) t = 4s and (d) t = 10s (Re=200 with no-slip BC).

Fig. 6

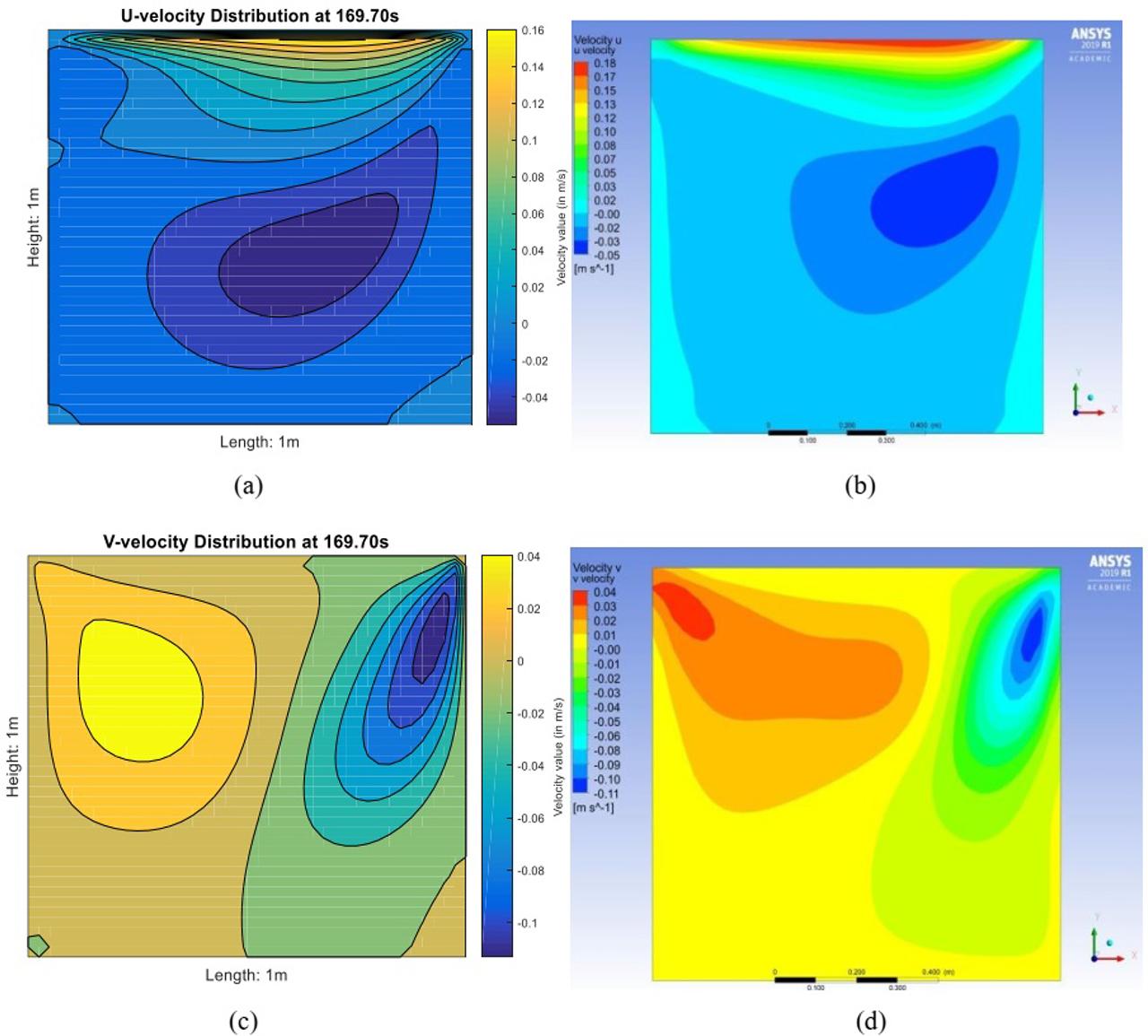

Comparison of contour plot of evolution (Re=200 with no-slip BC) at steady-state condition; (a) u−velocity distribution via FDM, (b) u−velocity distribution via FEM, (c) v−velocity distribution via FDM, (d) v−velocity distribution via FEM.
Comparison of contour plot of evolution (Re=200 with no-slip BC) at steady-state condition; (a) u−velocity distribution via FDM, (b) u−velocity distribution via FEM, (c) v−velocity distribution via FDM, (d) v−velocity distribution via FEM.

Fig. 7

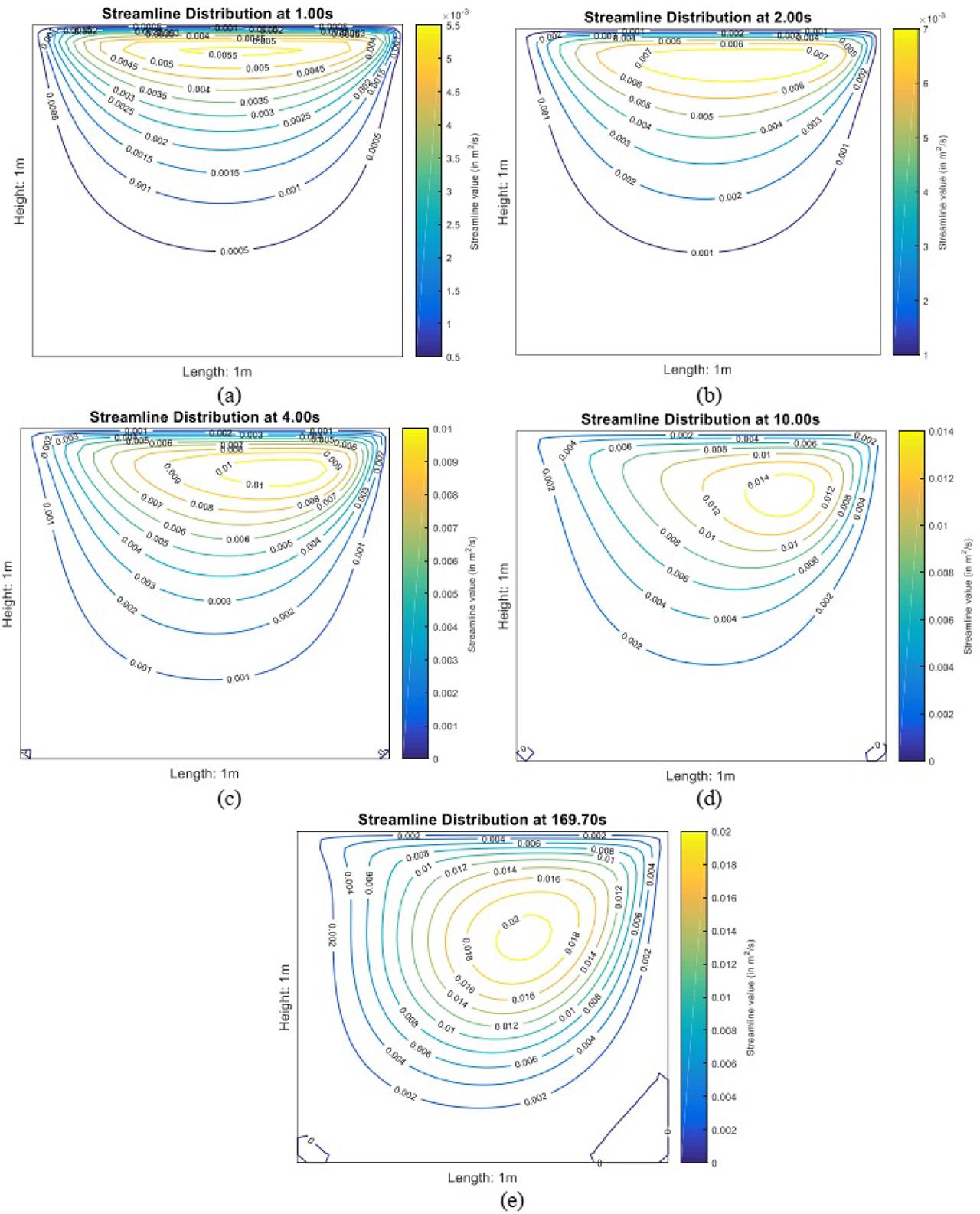

Contour plot of streamline distribution at (a) t = 1 s, (b) t = 2 s, (c) t = 4 s, (d) t = 10 s and, (e) t = 169.70 s (Re=200 with no-slip BC).
Contour plot of streamline distribution at (a) t = 1 s, (b) t = 2 s, (c) t = 4 s, (d) t = 10 s and, (e) t = 169.70 s (Re=200 with no-slip BC).

Fig. 8

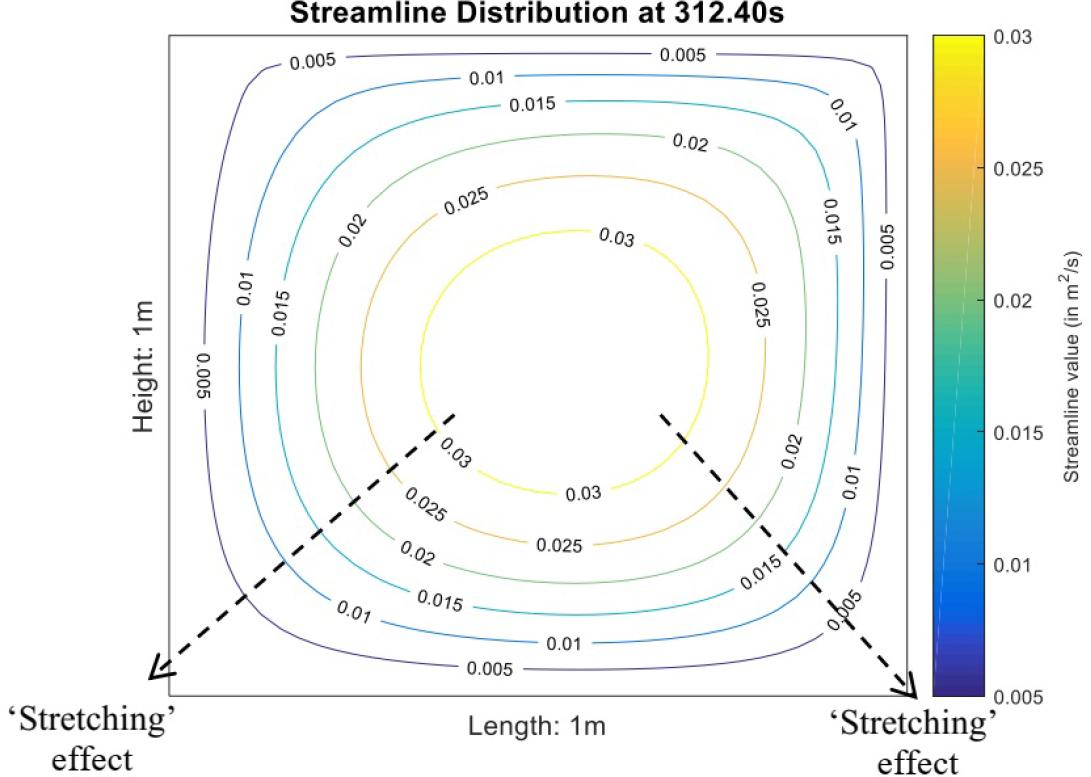

Contour plot of streamline distribution at steady-state condition (Re=200 with free-slip BC).
Contour plot of streamline distribution at steady-state condition (Re=200 with free-slip BC).

Fig. 9

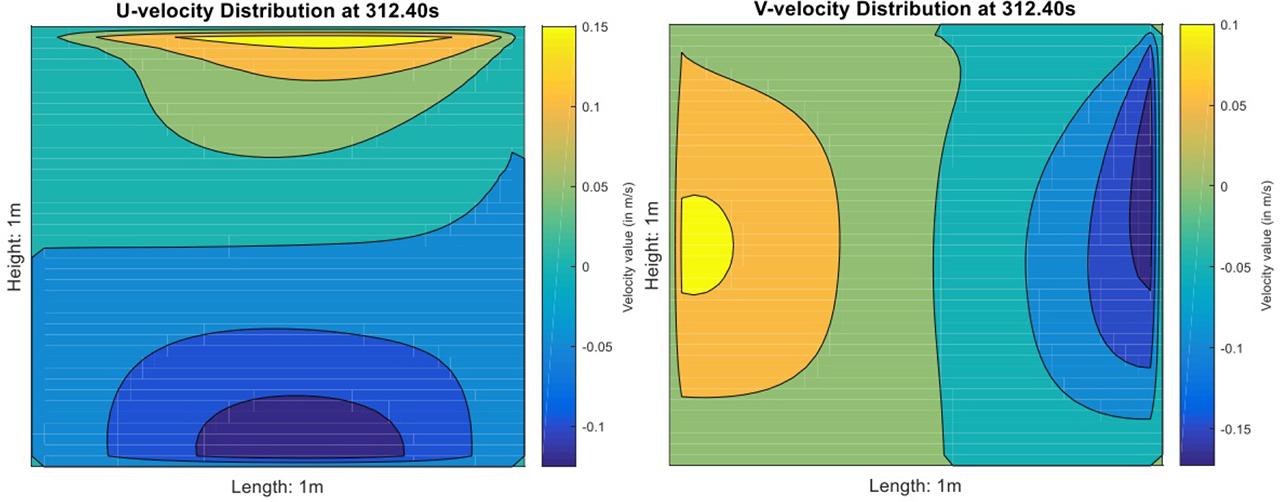

Contour plot of u− and v−velocity distributions at steady-state condition (Re=200 with free-slip BC).
Contour plot of u− and v−velocity distributions at steady-state condition (Re=200 with free-slip BC).

Fig. 10

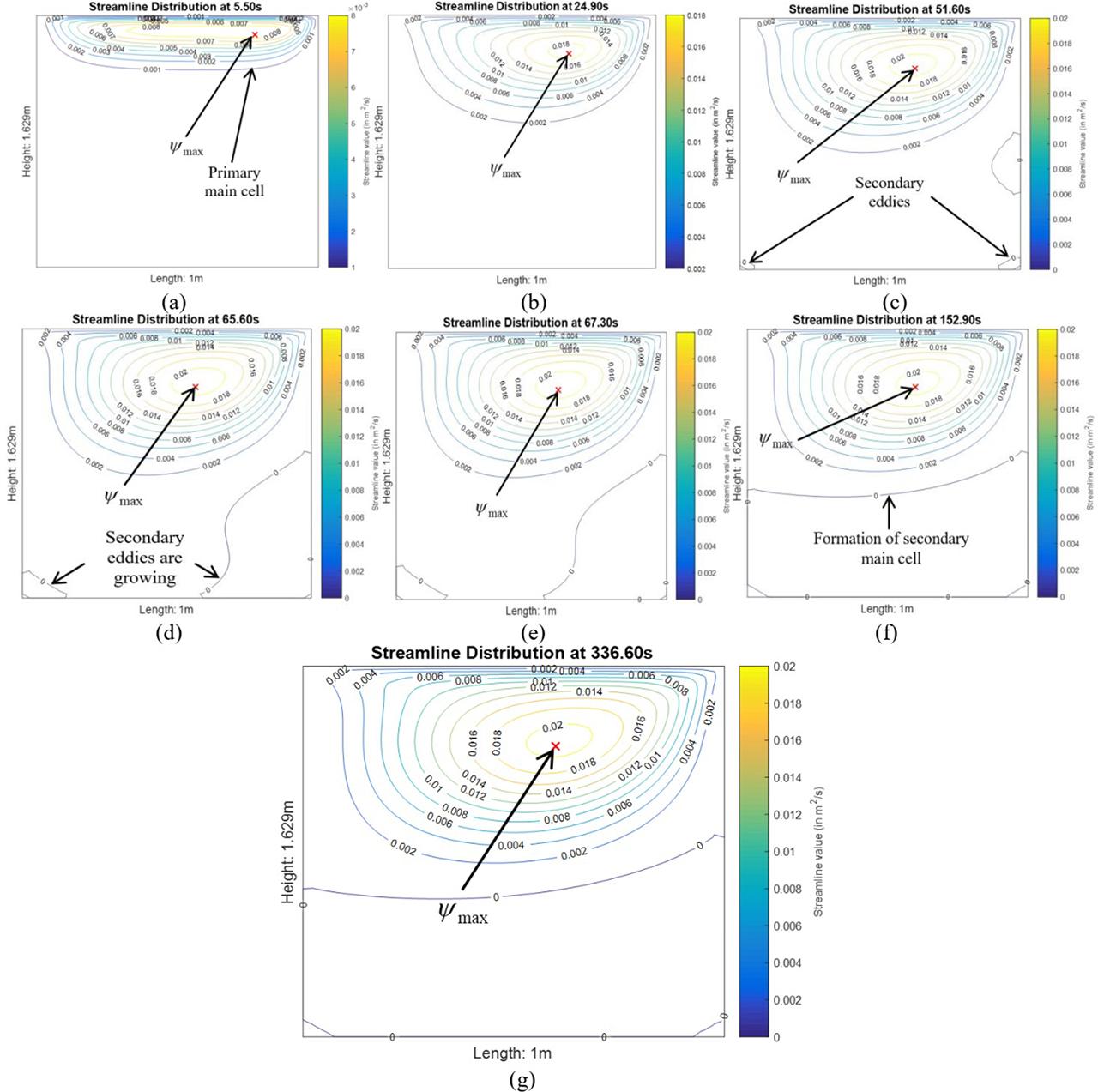

Contour plot of streamline distribution at (a) t = 5.50 s, (b) t = 24.90 s, (c) t = 51.60 s, (d) t = 65.60 s, (e) t = 67.30 s, (f) t = 152.90 s and (g) t = 336.60 s (Re=325.8 with no-slip BC).
Contour plot of streamline distribution at (a) t = 5.50 s, (b) t = 24.90 s, (c) t = 51.60 s, (d) t = 65.60 s, (e) t = 67.30 s, (f) t = 152.90 s and (g) t = 336.60 s (Re=325.8 with no-slip BC).

Fig. 11

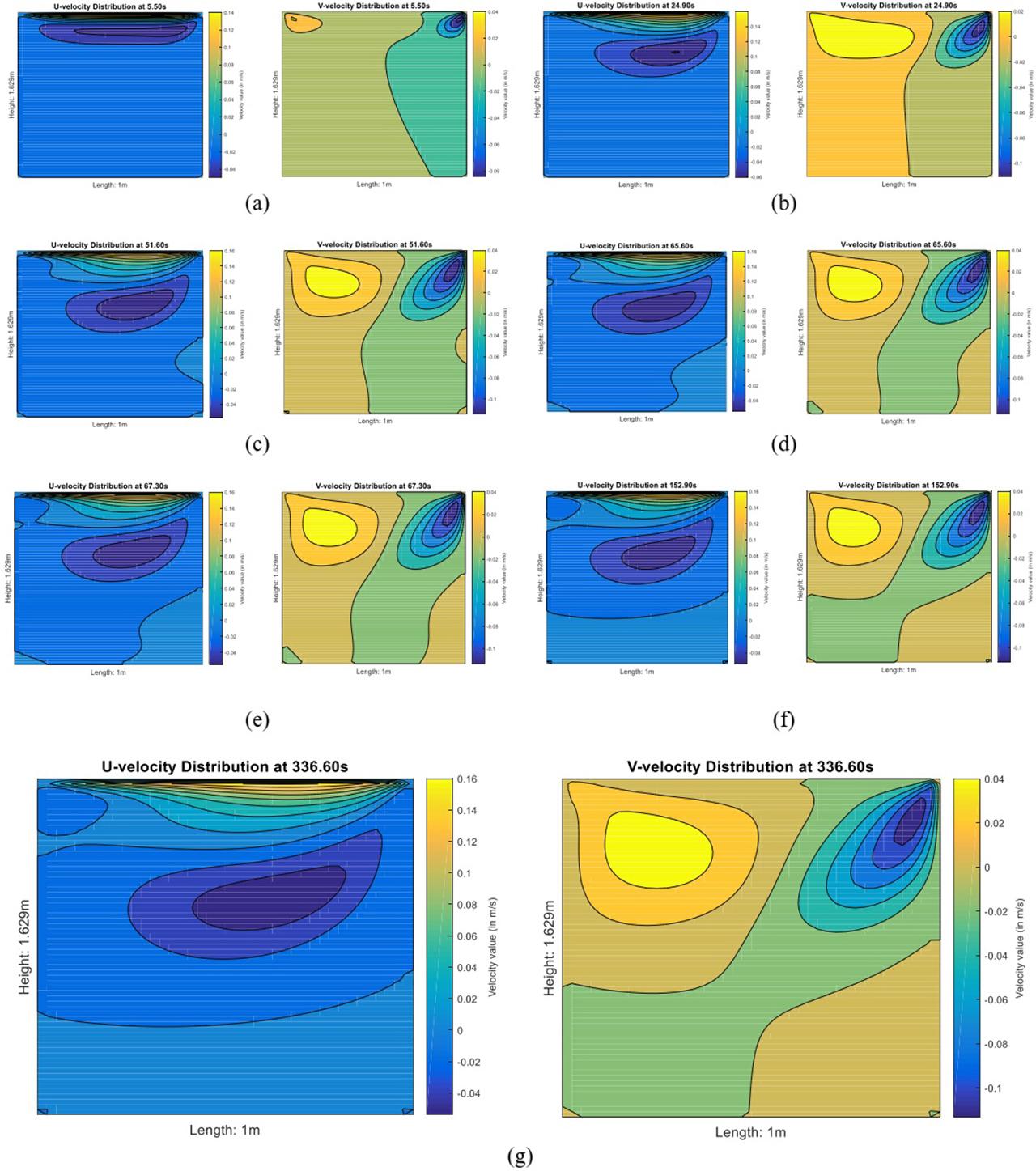

Contour plots of u−and v−velocity distributions at (a) t = 5.50 s, (b) t = 24.90 s, (c) t = 51.60 s, (d) t = 65.60 s, (e) t = 67.30 s, (f) t = 152.90 s and (g) t = 336.60 s (Re=325.8 with no-slip BC).
Contour plots of u−and v−velocity distributions at (a) t = 5.50 s, (b) t = 24.90 s, (c) t = 51.60 s, (d) t = 65.60 s, (e) t = 67.30 s, (f) t = 152.90 s and (g) t = 336.60 s (Re=325.8 with no-slip BC).

Fig. 12

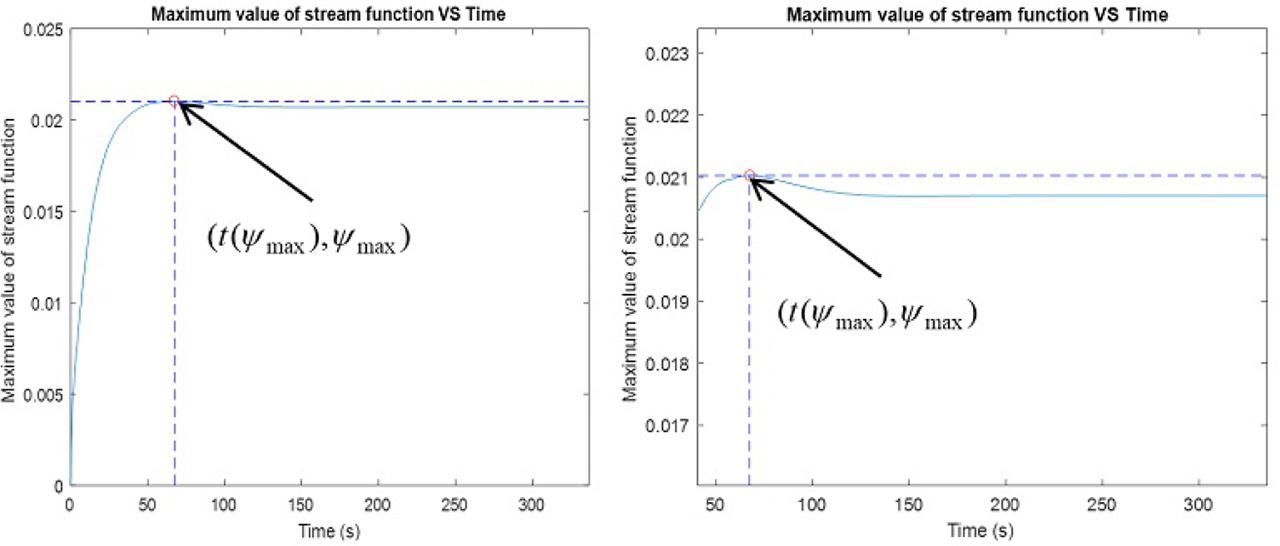

Maximum value of stream function along the iteration (a) Standard view (b) Zoomed view around coordinate (t(ψmax), ψmax).
Maximum value of stream function along the iteration (a) Standard view (b) Zoomed view around coordinate (t(ψmax), ψmax).

Fig. 13

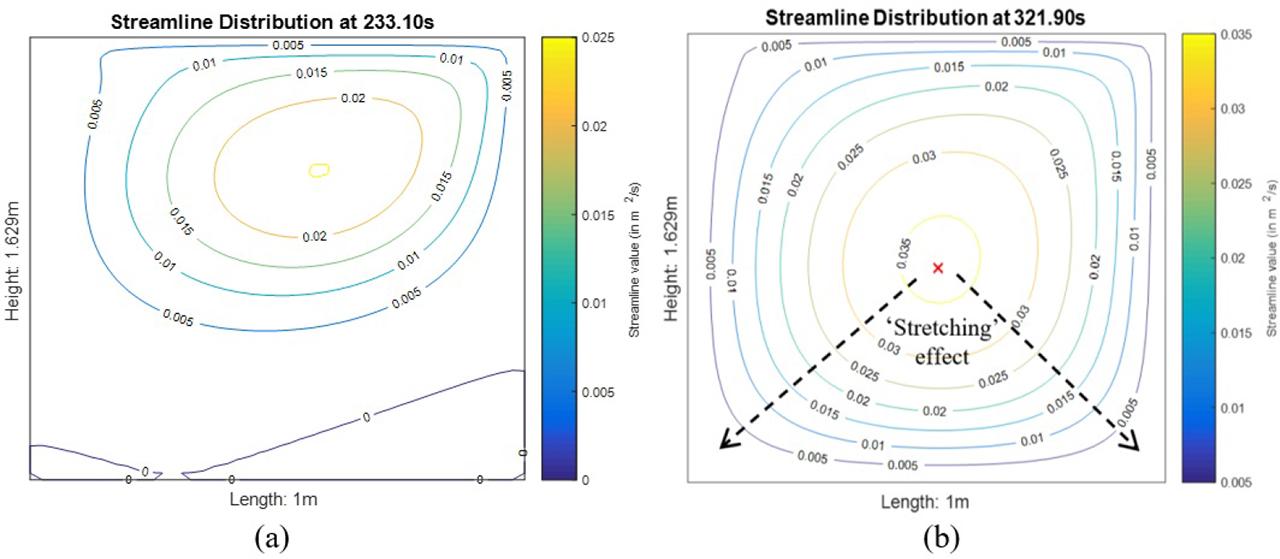

Contour plot of streamline distribution at steady-state condition Re=325.8 with a) threshold free-slip BC and b) significant free-slip BC.
Contour plot of streamline distribution at steady-state condition Re=325.8 with a) threshold free-slip BC and b) significant free-slip BC.

Fig. 14

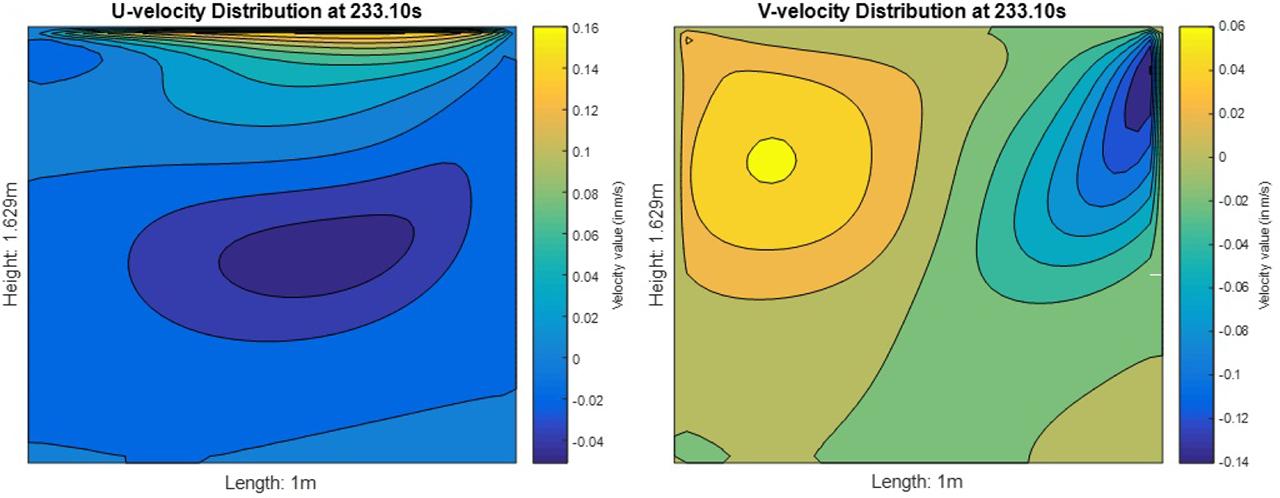

Contour plot of u− and v-velocity distributions at steady-state condition (Re=325.8 with threshold free-slip BC).
Contour plot of u− and v-velocity distributions at steady-state condition (Re=325.8 with threshold free-slip BC).

Fig. 15

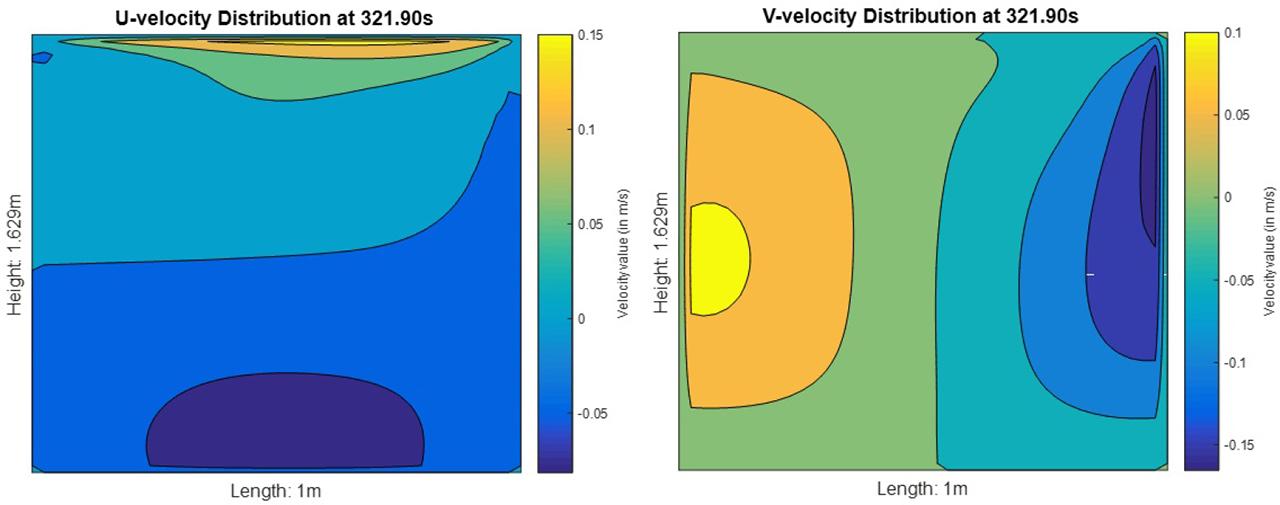

Contour plot of u− and v-velocity distributions at steady-state condition (Re=325.8 with significant free-slip BC).
Contour plot of u− and v-velocity distributions at steady-state condition (Re=325.8 with significant free-slip BC).

Nomenclatures_

SymbolMeaningsSymbolMeanings

ρdensity [kg/m3]ψstream function [m2/s]
Uapplied velocity [m/s]ψmaxmaximum stream function [m2/s]
Llength of cavity [m]Uwallapplied velocity at top wall [m/s]
μdynamic viscosity [Pa.s]nnon-negative integer, number of nodes
ReReynolds numbericolumn
Aaspect ratiojrow
Hheight of cavity [m]Δxstep size [m]
uvelocity in x–direction [m/s]Δystep size [m]
vvelocity in y–direction [m/s]usslip velocity [m/s]
ggravity acceleration [m/s2]lsslip length [m]
uapplied velocity [m/s]gxgravity acceleration in x–direction [m/s2]
θangle [deg]gygravity acceleration in y–direction [m/s2]
ttime [s]Δtstep time [s]
Gradient operatorhstep size [m]
ζtopvorticity at the top [m/s2]s fj,i,nstream function at previous time [m2/s]
ζleftvorticity at the top [m/s2]s fj,i,n+1stream function at previous time [m2/s]
Vvelocity vector [m/s]ζrightvorticity at the right [m/s2]
ζvorticity [m/s2]ζbottomvorticity at the bottom [m/s2]
esteady-state criterion
