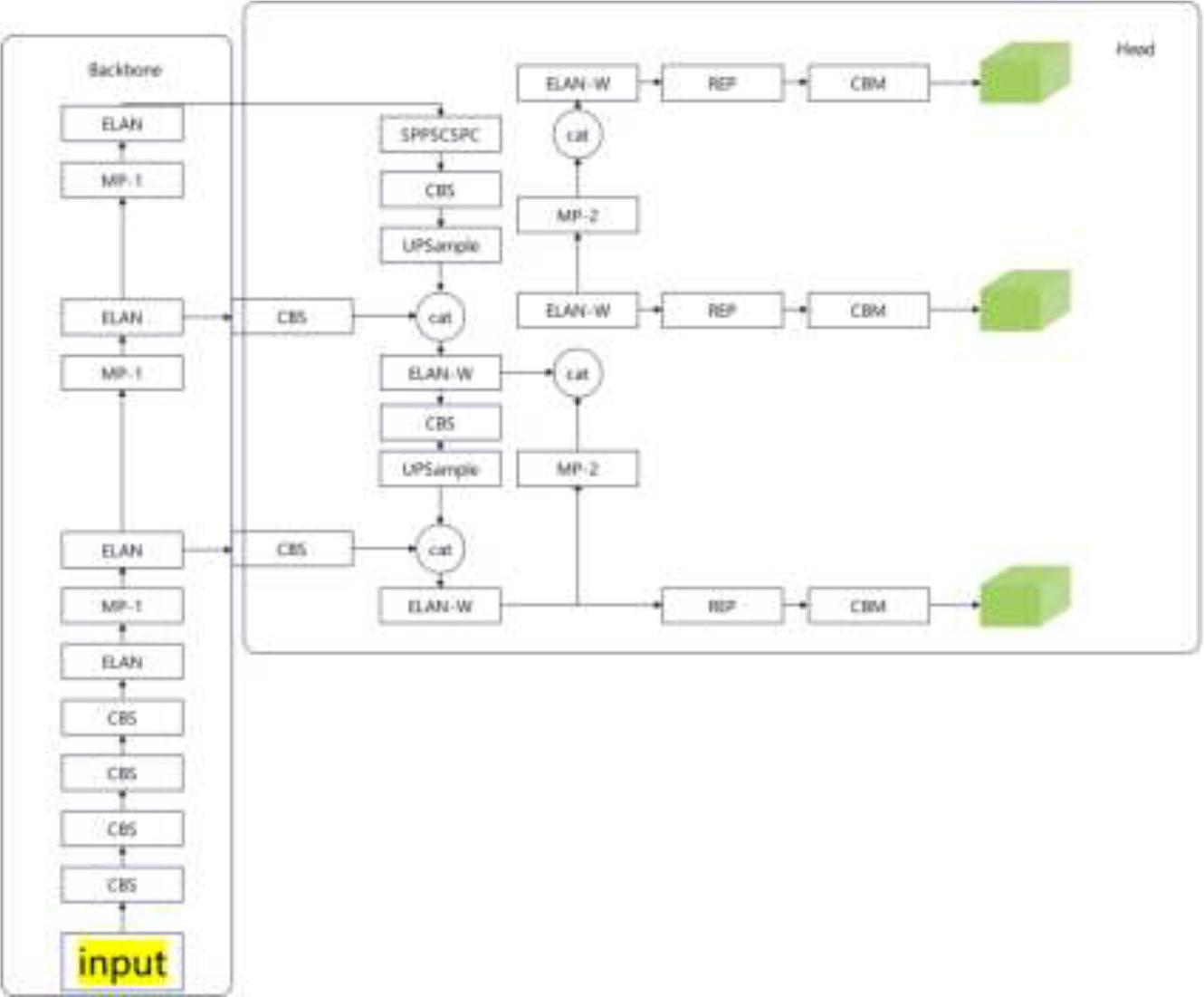

Figure 1.
YOLOv7 network architecture diagram

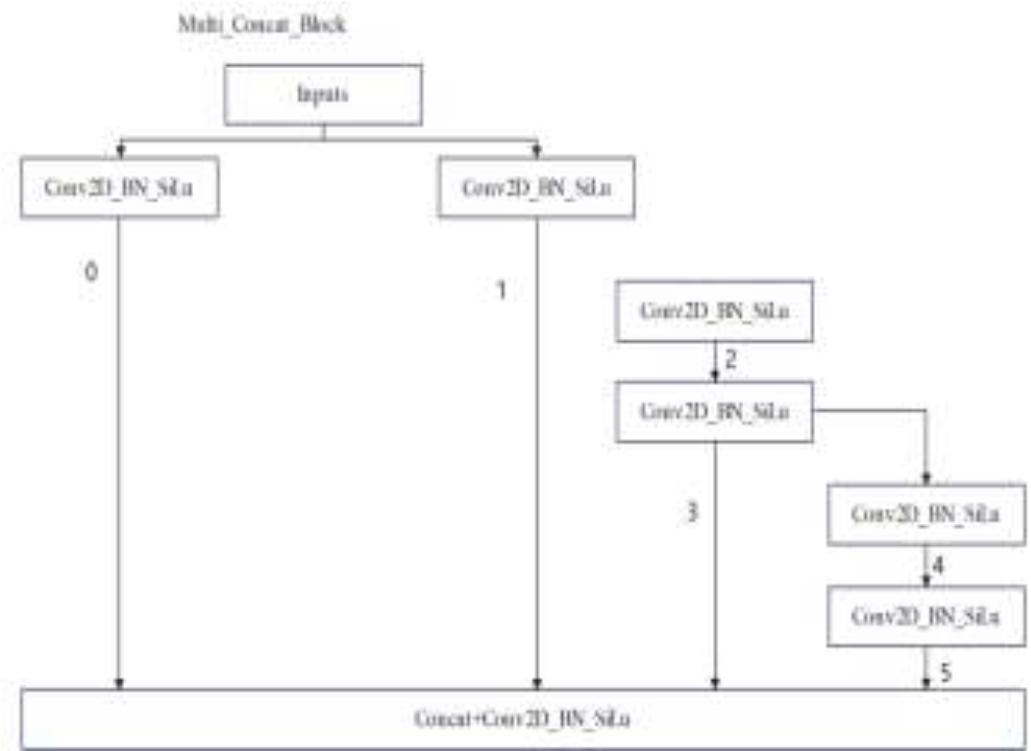

Figure 2.
Schematic diagram of Multi_Concat_Block module

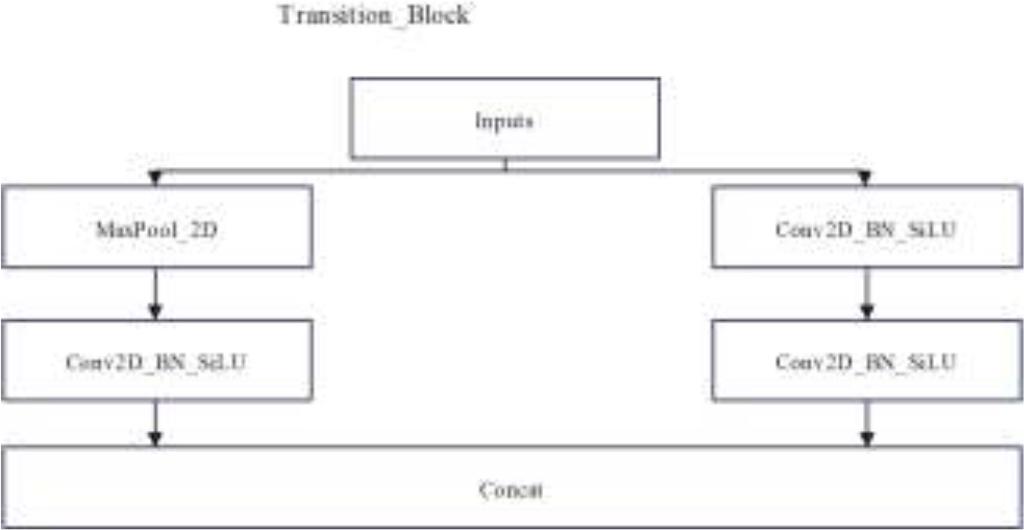

Figure 3.
Schematic diagram of Transition Block module

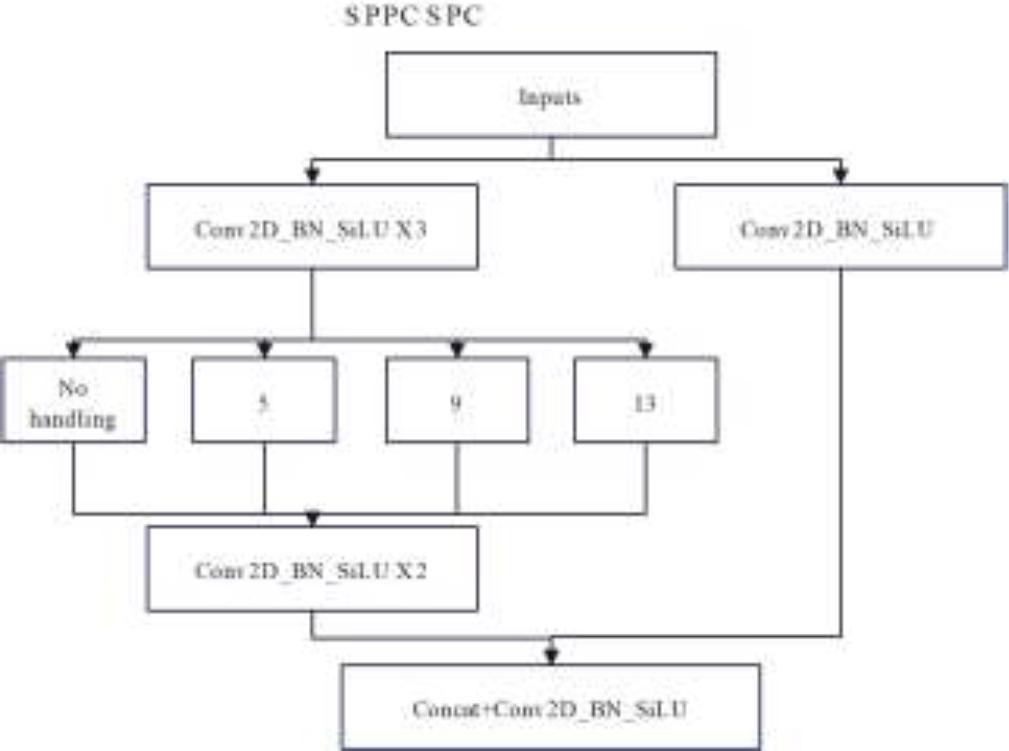

Figure 4.
Sketch of SPPCSPC structure

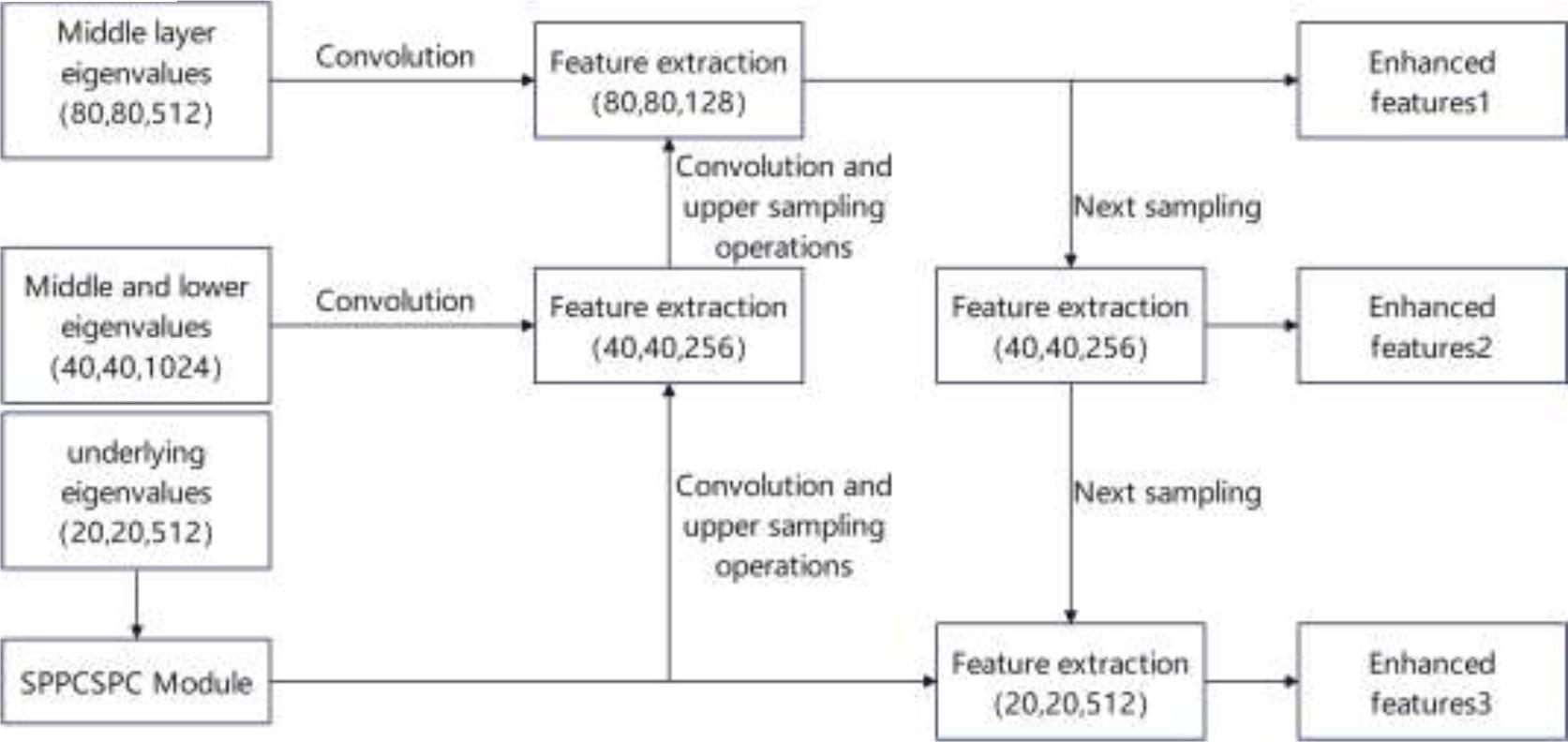

Figure 5.
Feature layer shape change map

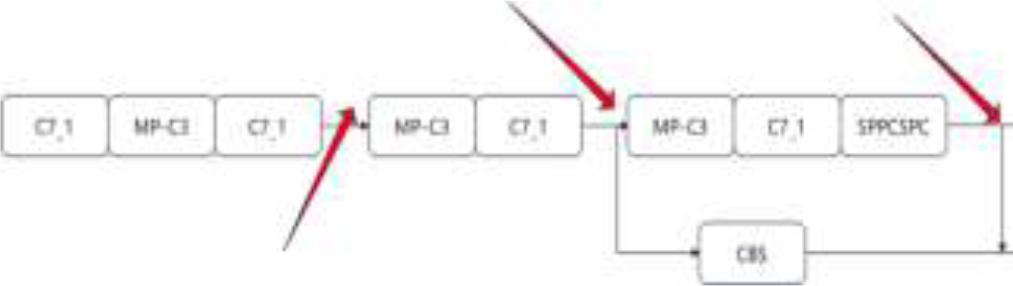

Figure 6.
Map of the location of the introduction of the attention mechanism

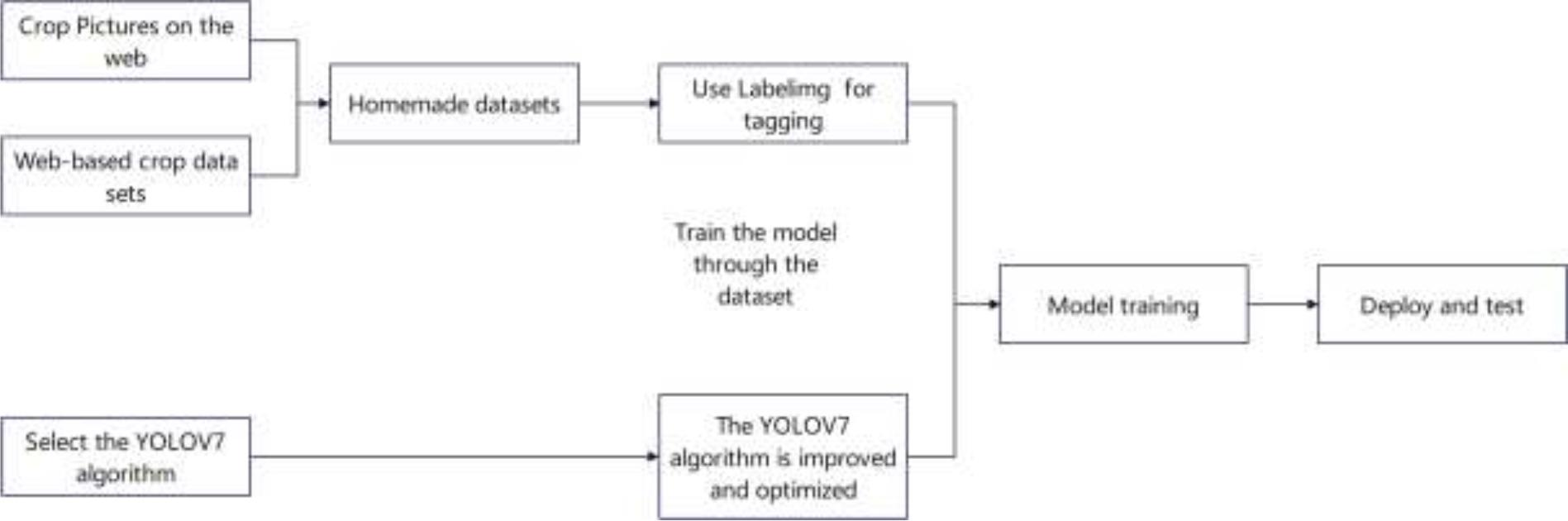

Figure 7.
Roadmap for system realization
TABLE I.
Table of fruit types and corresponding number of pictures
| Name and number of vegetables | Name and number of fruit |
|---|---|
| Cabbage (200) | Apple (200) |
| Capsicum (200) | Banana (200) |
| Carrot (200) | Pear (200) |
| Cauliflower (200) | Pineapple (200) |
| Corn (200) | Pomegranate (200) |
| Eggplant (200) | Grapes (200) |
| Cabbage (200) | Apple (200) |

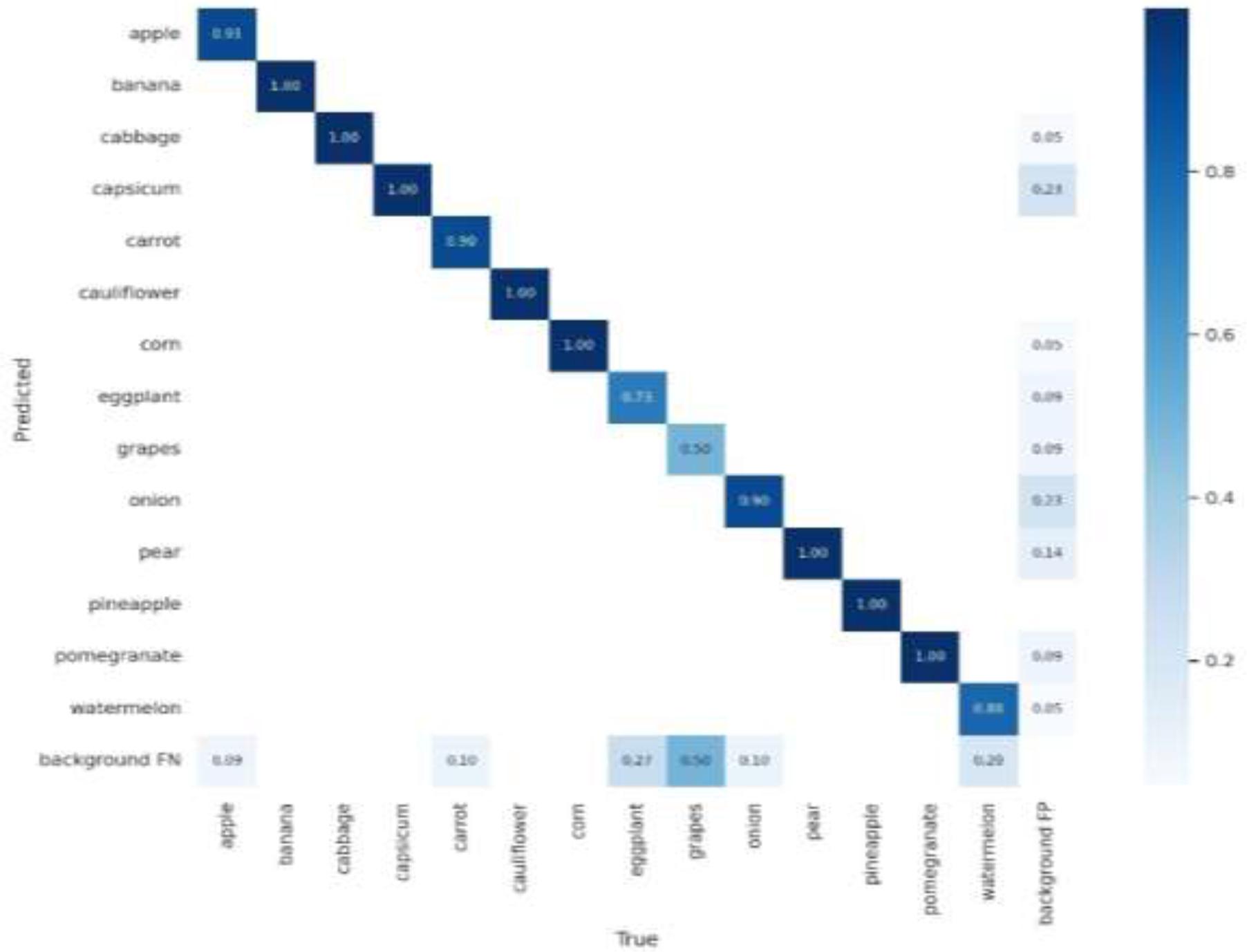

Figure 8.
Confusion matrix diagram

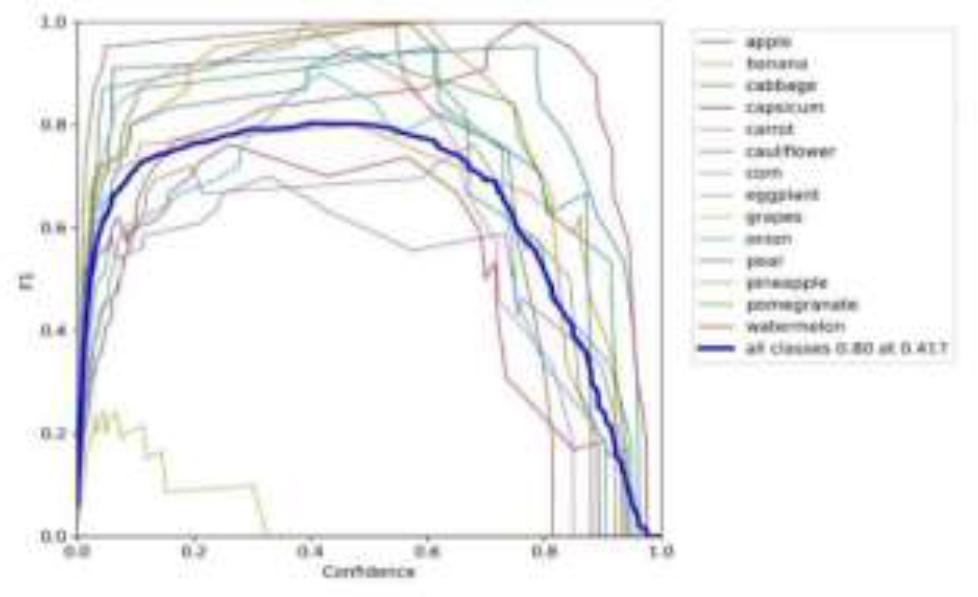

Figure 9.
F1 score graph

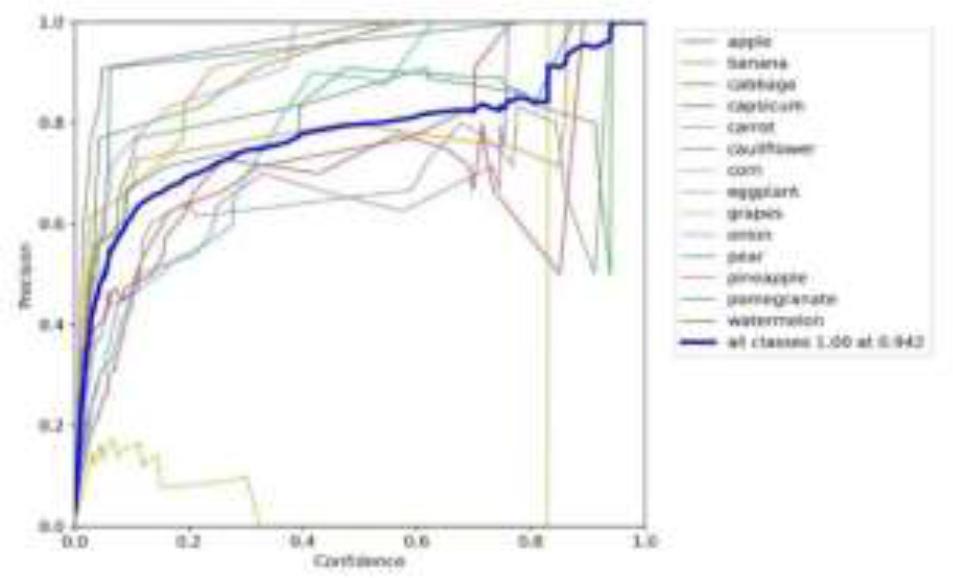

Figure 10.
P_curve

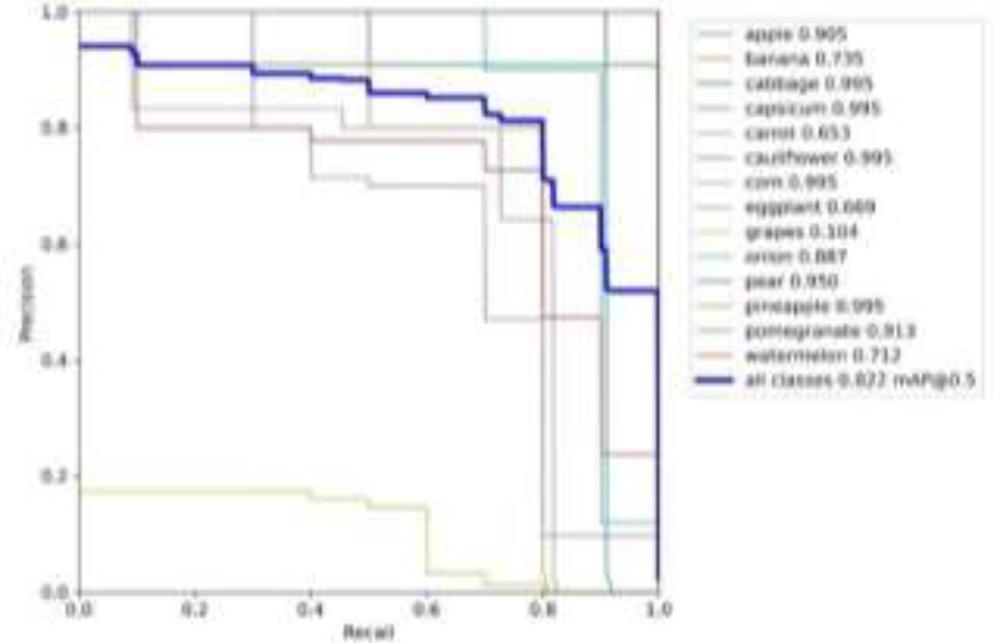

Figure 11.
PR_curve

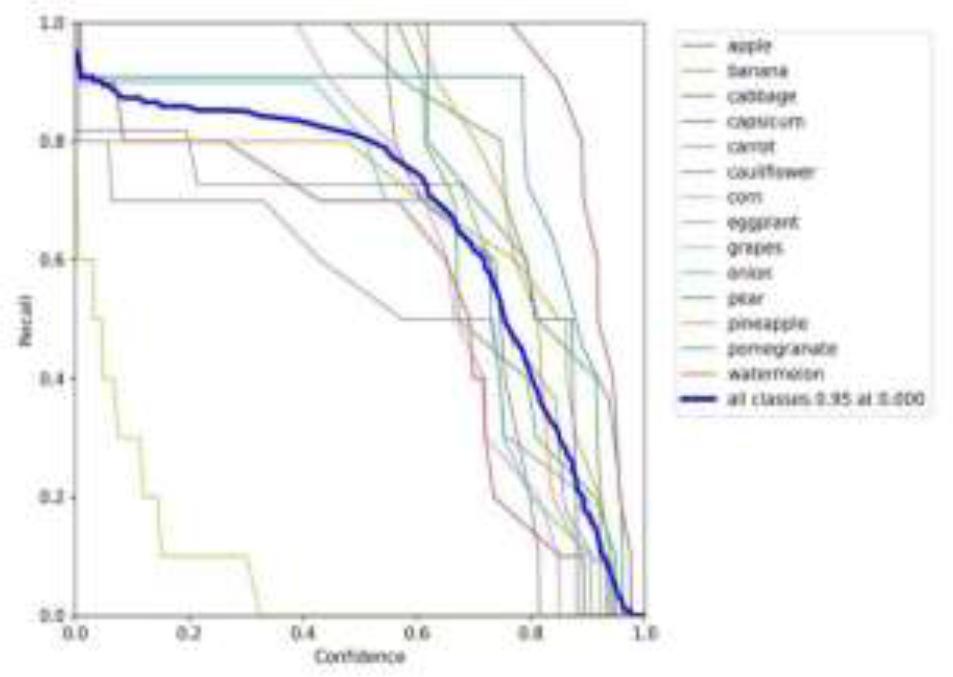

Figure 12.
R_curve
Figure 13.
Apple experiment result
Figure 14.
Results of Onion and Carrot experiments
TABLE II.
Comparison table of detection accuracy
| Type | Evaluation metrics | ||
|---|---|---|---|
| Detection Times | mAP/% (Pre-improved) | mAP/% (Improved) | |
| Apple | 30 | 0.79 | 0.85 |
| Banana | 30 | 0.74 | 0.77 |
| Pear | 30 | 0.79 | 0.81 |
| Pineapple | 30 | 0.81 | 0.79 |
| Pomegranate | 30 | 0.68 | 0.68 |
| Grapes | 30 | 0.50 | 0.57 |
| Watermelon | 30 | 0.73 | 0.78 |
| Cabbage | 30 | 0.89 | 0.91 |
| Capsicum | 30 | 0.55 | 0.58 |
| Carrot | 30 | 0.83 | 0.89 |
| Cauliflower | 30 | 0.55 | 0.64 |
| Corn | 30 | 0.46 | 0.45 |
| Eggplant | 30 | 0.74 | 0.71 |
| Onion | 30 | 0.88 | 0.95 |
