Shielding effectiveness of textile woven fabric with conductive weft in microwave frequency range Cover

Shielding effectiveness of textile woven fabric with conductive weft in microwave frequency range

Fibres & Textiles in Eastern Europe
Volume 32 (2024): Issue 1 (February 2024)
By:
Open Access
|Mar 2024

Figures & Tables

Fig.1.

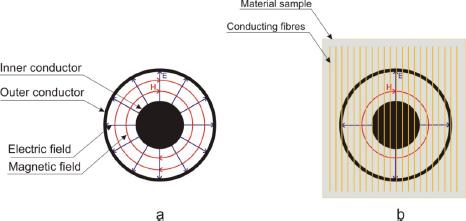

Coaxial probe for shielding effectiveness measurement: a - electric field and magnetic field in coaxial transmission line, b – material sample alignment
Coaxial probe for shielding effectiveness measurement: a - electric field and magnetic field in coaxial transmission line, b – material sample alignment

Fig.2.

Schematic of measurement setup
Schematic of measurement setup

Fig.3.

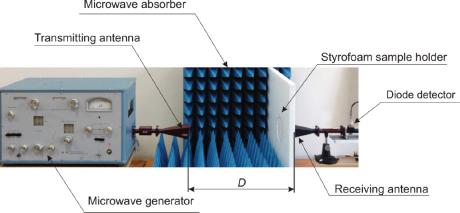

Picture of measurement setup with sample holder and microwave absorbers (antenna distance D not to scale)
Picture of measurement setup with sample holder and microwave absorbers (antenna distance D not to scale)

Fig.4.

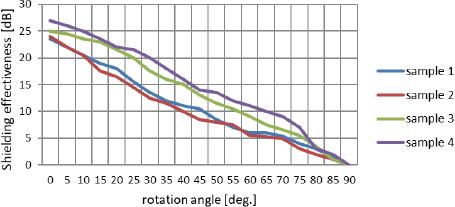

Shielding effectiveness for different rotation angles
Shielding effectiveness for different rotation angles

Shielding effectiveness of samples measured for an electric field parallel to the conducting fibres, j =0°

SampleShielding effectiveness at 8.5 GHz [dB]Shielding effectiveness at 12 GHz [dB]
1. Steel + CNT +Graphene2316
2. Steel + CNT + Ag2417.5
3. Steel + CNT2517
4. Steel2719
