Research on the image design of clothing patterns

Design elements (code)	Sub-elements
Design elements (code)	1	2	3	4	5	6	7	8
Mode of composition (X1)	Central	Arc	Upright	Symmetrical	Scatter	Triangle	Crescentic	L-shape
Outer contour shape (X2)	Square	Circle	Rectangle	Oval	Follow the shape of the object	No contour
Technique of expression (X3)	Realistic	Exaggerate	Symbolize
Theme (pattern content) (X4)	Auspicious pattern	Daily life scene	Folk-tale	Plants and animals	Character	Animals
Line type (X5)	Thick	Thick and fine
Paper-cut techniques (X6)	Yin carving	Yang carving	Yin and Yang carving

Table 2.

Kendall’s W test statistics

Sample capacity	Coefficient of cooperation	Chi-square	Df	Test the probability P value
97	0.8	265.462	12	0.003

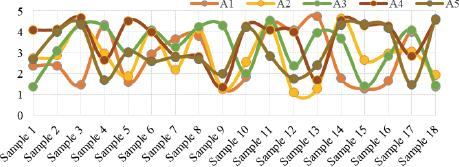

Evaluation results of perceptual image of clothing pattern samples

Table 3.

Analysis results of quantitative class I theory

Design elements	Sub elements	A1			A2			A3			A4			A5
Design elements	Sub elements	Sub elements score	Partial correlation coefficient	Rank	Sub-element score	Partial correlation coefficient	Rank	Sub-elements score	Partial correlation coefficient	Rank	Sub-element score	Partial correlation coefficient	Rank	Sub-element score	Partial correlation coefficient	Rank
X1	X11	-0.413	0.530	3	0.107	0.207	6	-0.187	0.432	2	0.712	0.806	1	0.118	0.426	3
	X12	-0.357			0.053			-0.054			0.473			0.102
	X13	0.126			-0.004			0.108			-0.376			0.036
	X14	-0.462			0.126			0.129			0.879			0.204
	X15	-0.259			0.073			-0.212			0.507			0.027
	X16	0.474			-0.031			0.200			-0.527			-0.118
	X17	0.426			0.060			0.072			0.219			-0.107
	X18	0.337			-0.046			0.017			-0.834			-0.179
X2	X21	-0.324	0.423	4	0.073	0.316	5	-0.010	0.176	6	0.269	0.514	4	0.184	0.371	4
	X22	-0.283			0.187			0.011			0.378			0.206
	X23	-0.135			0.076			-0019			0.197			0.107
	X24	-.0.269			0.121			0.013			0.357			0.123
	X25	-0.272			0.008			-0.016			0.208			0.177
	X26	0.396			-0.158			0.024			-0.463			-0.174
X3	X31	-0.693	0.627	2	0.013	0.521	4	0.027	0.211	5	0.248	0.592	3	0.331	0.706	1
	X32	0.422			-0.162			-0.029			-0.353			-0.292
	X33	-0.431			0.196			0.015			0.296			0.217
X4	X41	-0.363	0.755	1	0.307	0.553	3	0.033	0.265	4	0.562	0.713	2	0.326	0.613	2
	X42	0.187			0.265			-0.068			-0.303			-0.257
	X43	-0.247			-0.126			-0.054			0.501			-0.242
	X44	-0.464			0.221			0.017			0.524			-0.218
	X45	0.489			-0.071			0.076			-0.506			-0.103
	X46	0.652			-0.271			0.008			-0.453			0.219
X5	X51	-0.089	0.294	5	-0.477	0.669	2	-0.327	0.816	1	0.030	0.271	6	0.023	0.192	6
X5	X52	0.137	0.294	5	0.368	0.669	2	0.261	0.816	1	-0.017	0.271	6	-0.036	0.192	6
X6	X61	0.108	0.092	6	-0.625	0.772	1	-0.085	0.342	3	0.026	0.416	5	-0.104	0.277	5
	X62	-0.261			-0.434			-0.177			0.042			0.166
	X63	0.178			0.516			0.134			-0.128			-0.118
Constant term ε		4.771			5.265			3.257			3.174			5.472
Multiple correlation coefficient R		0.832			0.906			0.924			0.896			0.913
Coefficient of determination R²		0.809			0.873			0.903			0.875			0.828

Table 4.

Correlation between perceptual image of clothing pattern and design elements

Design elements	Sub-elements	Image adjectives
Design elements	Sub-elements	Ordinary	Personality	Simple	Complex	Rough	Delicate	Innovative	Traditional	Interesting	Boring
X1	X11	Δ			Δ	Δ			Δ		Δ
	X12
	X13
	X14	▲			▲		Δ		▲		▲
	X15					▲
	X16		▲	Δ			▲	Δ		Δ
	X17		Δ
	X18			▲				▲		▲
X2	X21	▲									Δ
	X22	Δ			▲				▲		▲
	X23					▲
	X24				Δ		Δ		Δ
	X25					Δ
	X26		▲	▲			▲	▲		▲
X3	X31	▲			Δ		▲		Δ		▲
	X32		▲	▲		▲		▲		▲
	X33	Δ			▲		Δ		▲		Δ
X4	X41	Δ			▲		Δ		▲		▲
	X42				Δ	▲		Δ		▲
	X43			Δ		Δ				Δ
	X44	▲							Δ
	X45		Δ				▲	▲
	X46		▲	▲							Δ
X5	X51	▲		▲		▲			▲		▲
X5	X52		▲		▲		▲	▲		▲
X6	X61		Δ	▲		Δ			Δ	Δ
	X62	▲		Δ		▲			▲		▲
	X63		▲		▲		▲	▲		▲

1 Note: The sub-element score with the largest absolute value is labeled as ▲, and the score with the second largest absolute value is labeled as Δ.

Table 5.

Evaluation results of the perceptual image of the design scheme

Design scheme	Ordinary		Personality
Design scheme	1	2	1	2
Perceptual image score	1.374	1.147	4.065	4.369
