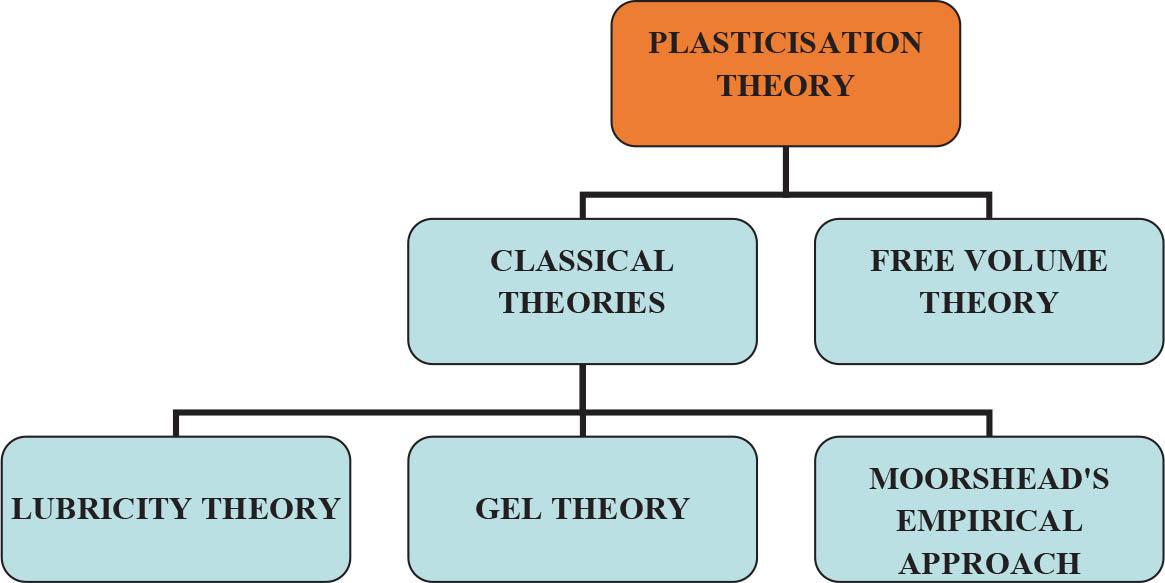

Fig. 1

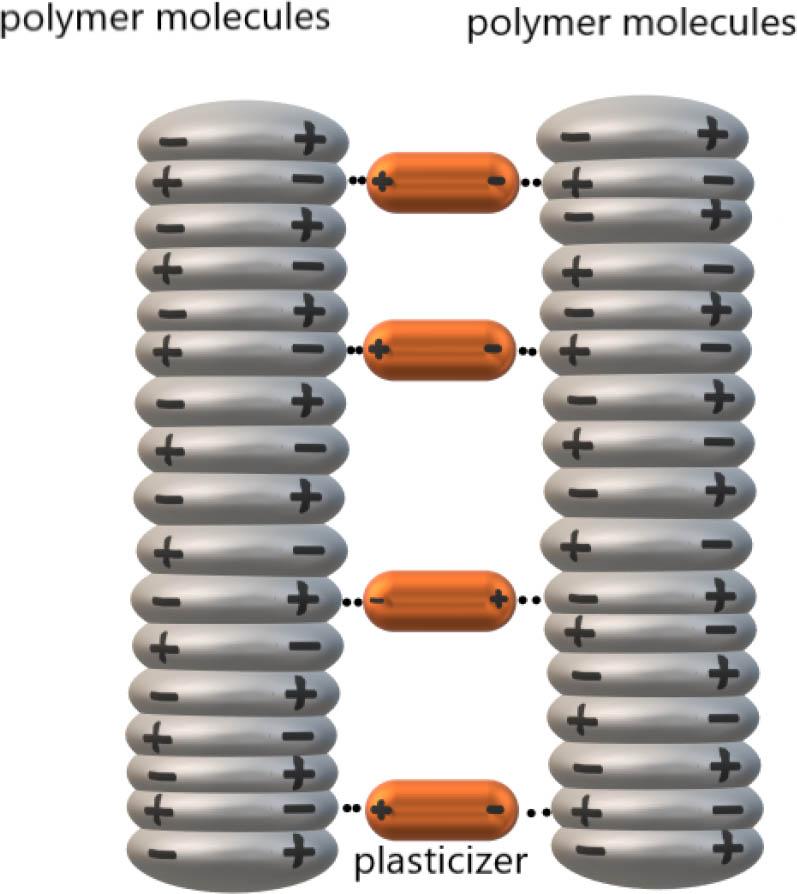

Fig. 2
Fig. 3
![Free volume theory [22, 23]](https://sciendo-parsed.s3.eu-central-1.amazonaws.com/6471db0b215d2f6c89db3264/j_ftee-2022-0027_fig_003.jpg?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Content-Sha256=UNSIGNED-PAYLOAD&X-Amz-Credential=AKIA6AP2G7AKOUXAVR44%2F20251205%2Feu-central-1%2Fs3%2Faws4_request&X-Amz-Date=20251205T052331Z&X-Amz-Expires=3600&X-Amz-Signature=3104711483627171a7248a8b278e416a6df325c40200c217e2e7f650dd615f53&X-Amz-SignedHeaders=host&x-amz-checksum-mode=ENABLED&x-id=GetObject)

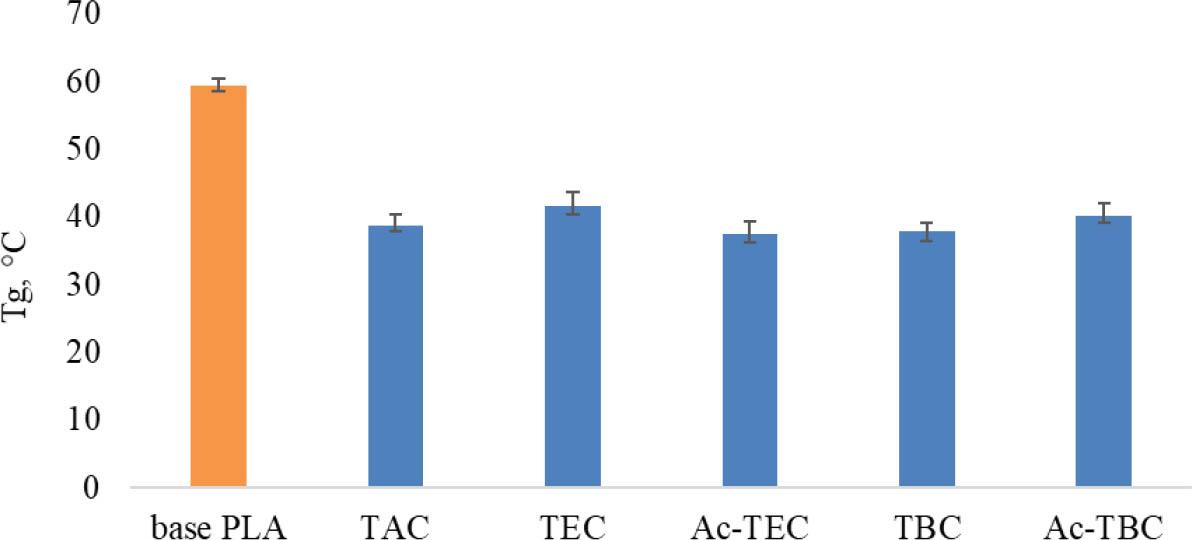

Fig. 4
Fig. 5
Fig. 6
Fig. 7

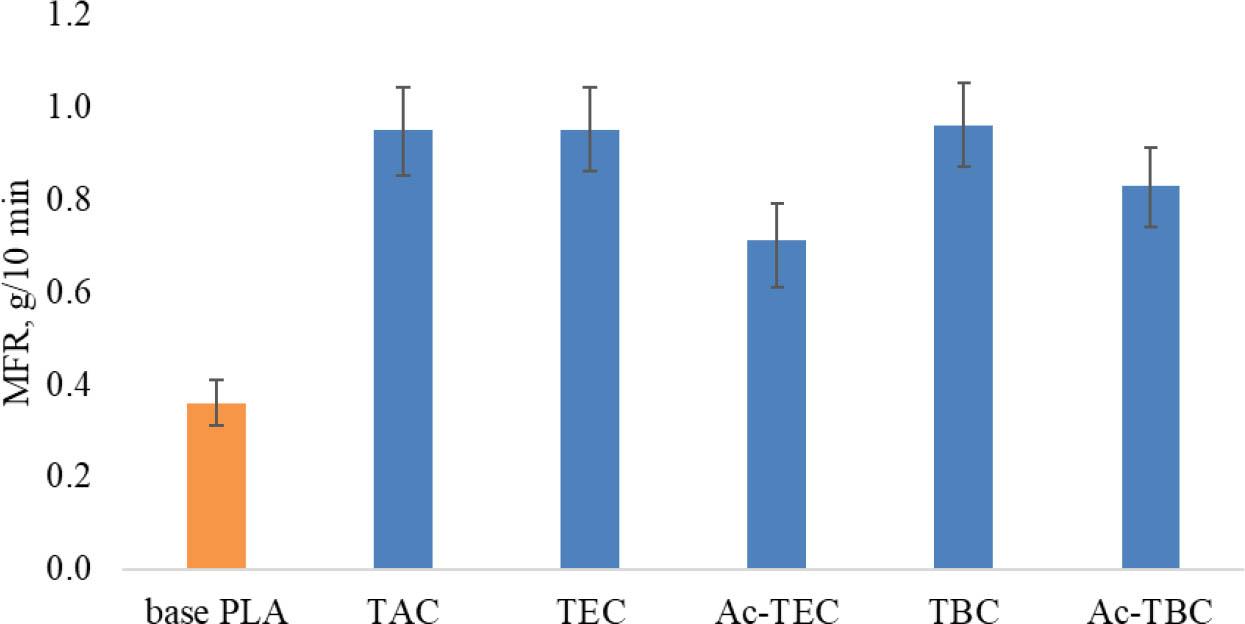

Fig. 8

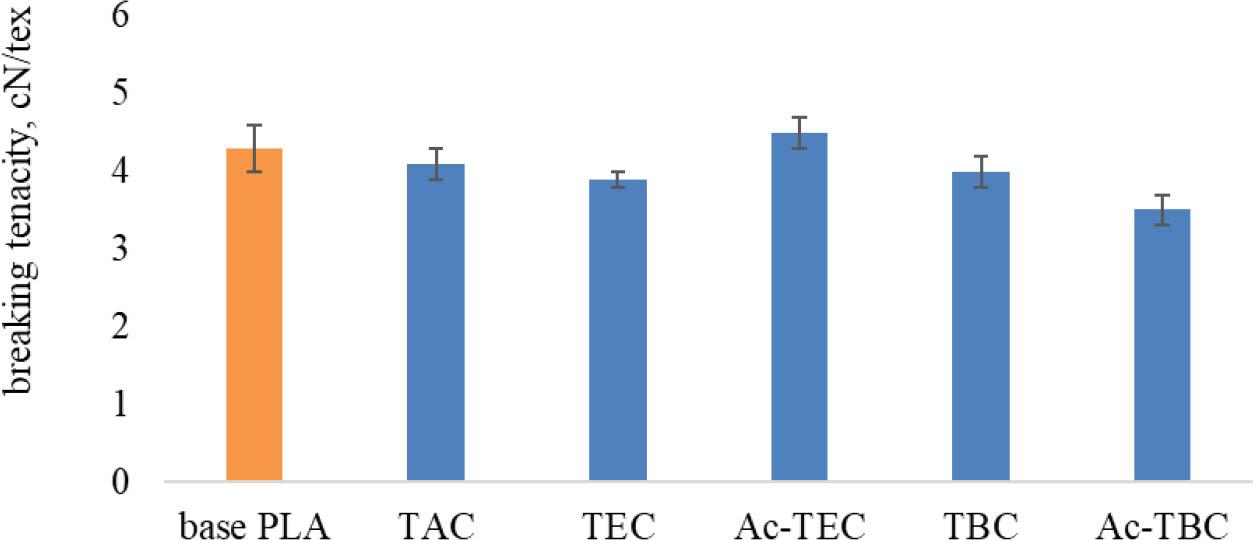

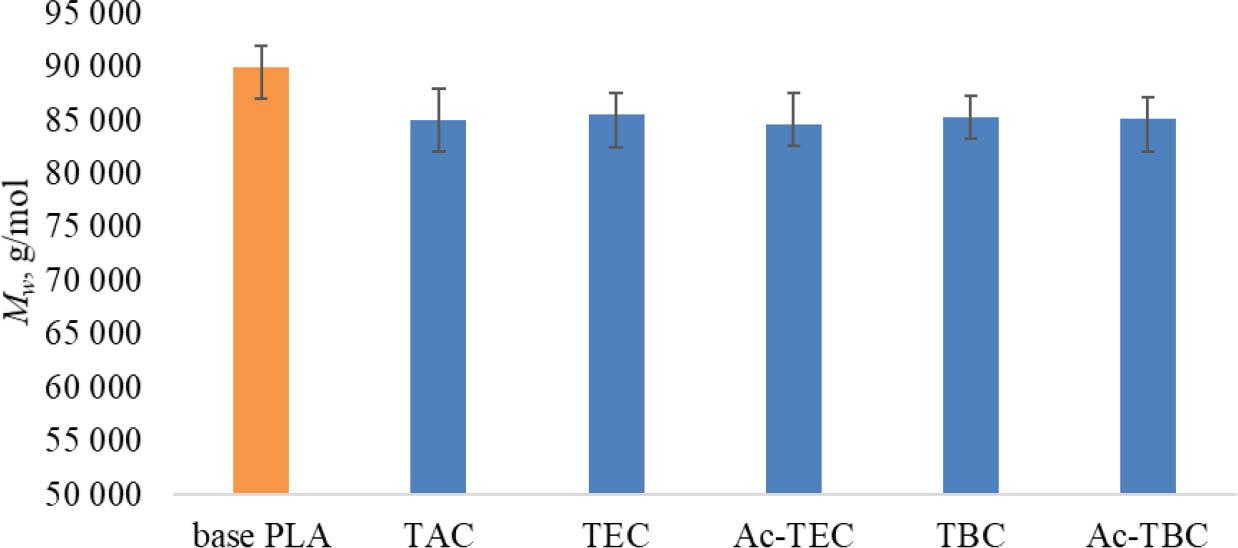

Fig. 9

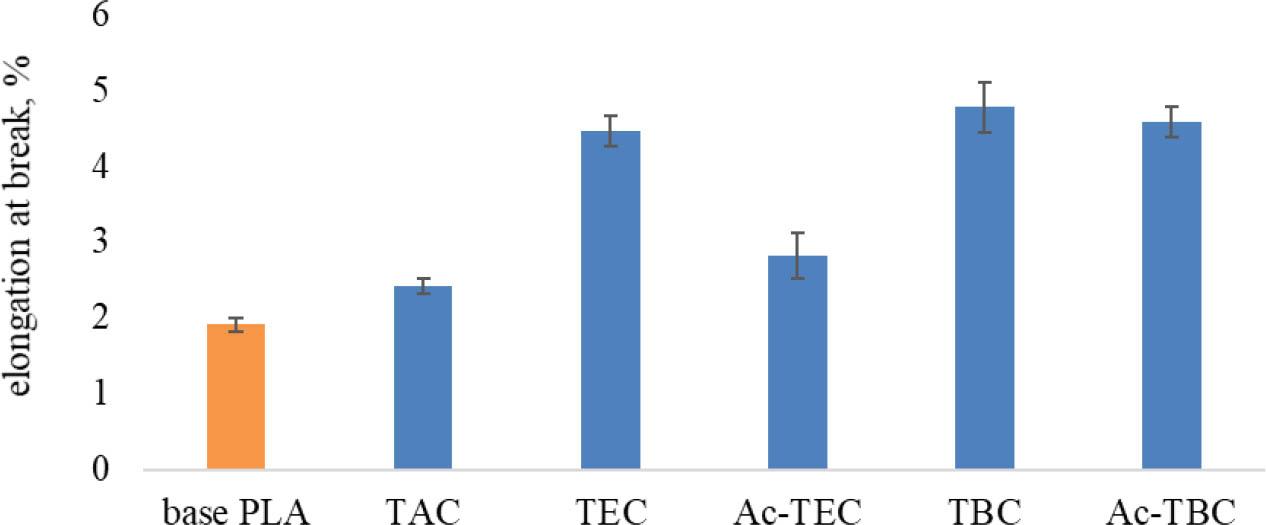

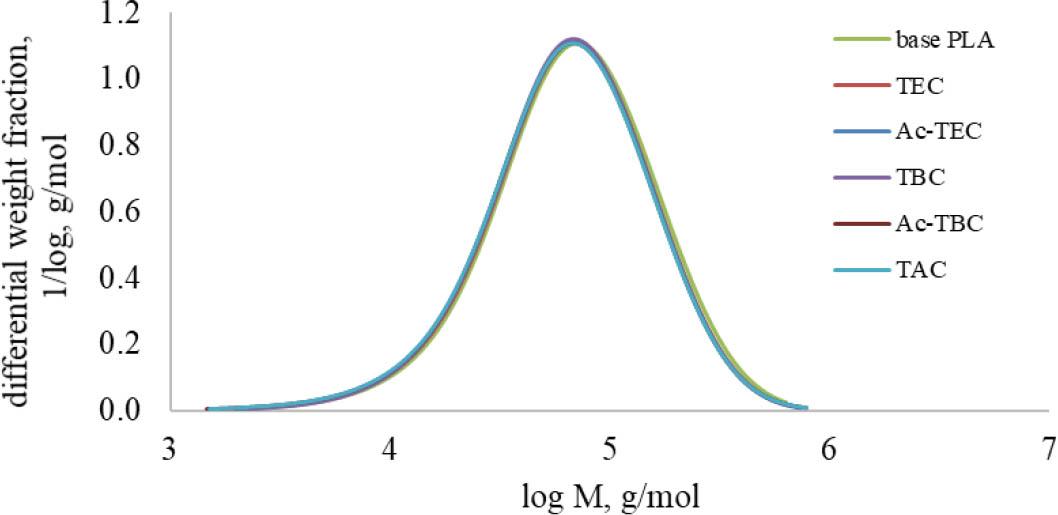

Fig. 10

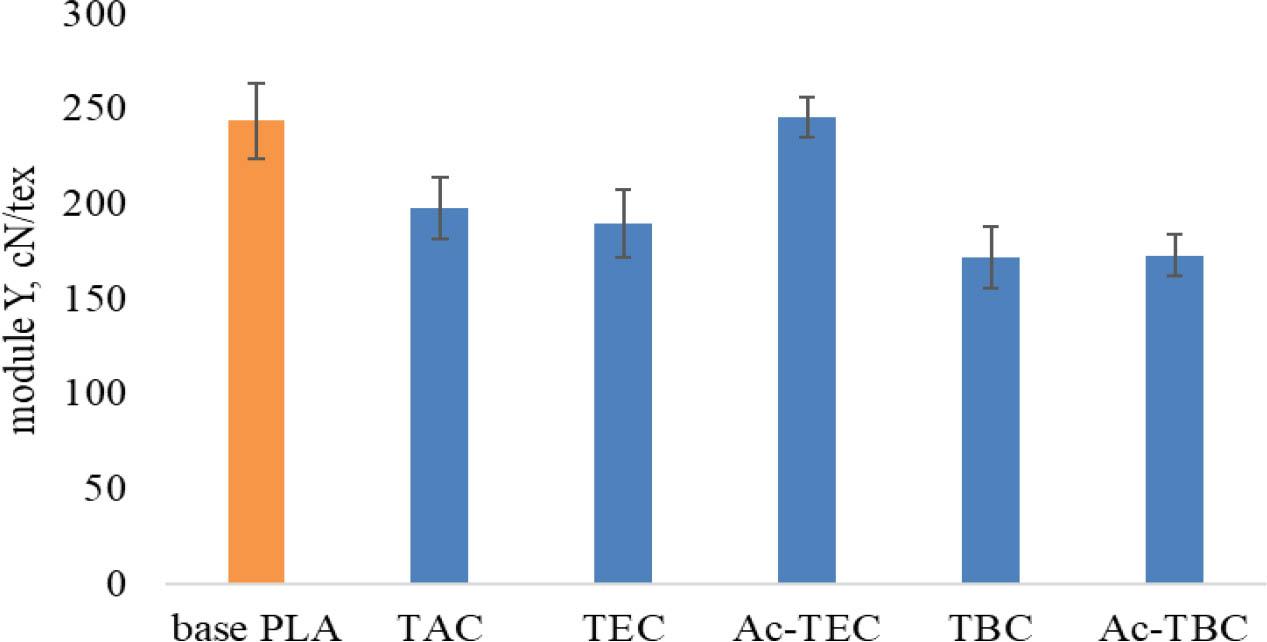

Fig. 11

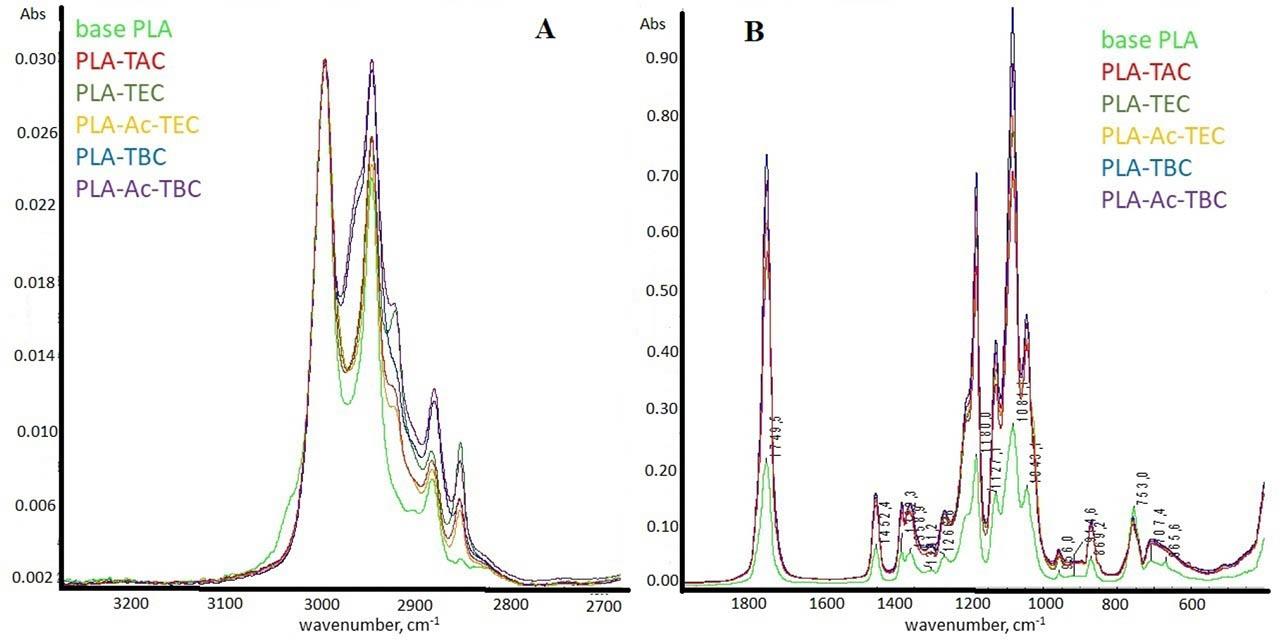

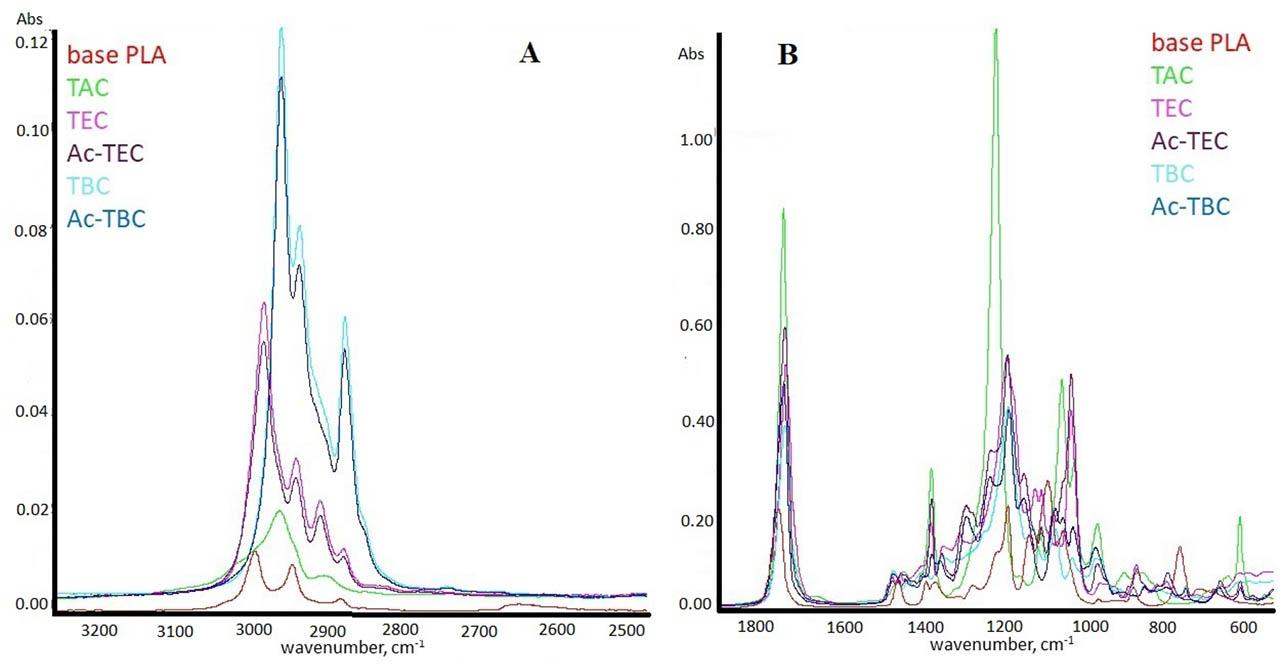

Fig. 12
Substances used in the PLA plasticisation process
| Plasticiser | Producer | Mw′, g/mol | Structure |
|---|---|---|---|
| Glycerol triacetate (TAC) | ThermoFisher Scientific, Germany | 218 | |
| Triethyl citrate (TEC) | Gentham, UK | 276 | |
| Acetyl triethyl citrate (Ac-TEC) | TCI, Japan | 318 | |
| Tributyl citrate (TBC) | Acros, USA | 360 | |
| Acetyl tributyl citrate (Ac-TBC) | Merck, Germany | 402 |
Properties of 6201D PLA according to manufacturer's data
| Property | Value | Method |
|---|---|---|
| Specific gravity, g/cm3 | 1.24 | ASTM D792 |
| Relative viscosity | 3.1 | CD Internal Viscotek Method |
| Melt index (210°C), g/10 min | 15–30 | ASTM D1238 |
| Glass transition temperature, °C | 55–60 | ASTM D3417 |
| Crystalline melt temperature, °C | 160–170 | ASTM D3418 |
Thermal parameters obtained during the second heating
| Sample | Thermal analysis | |||||
|---|---|---|---|---|---|---|
| Tg′, °C | ΔCp′, J/gK | Tcc′, °C | ΔHcc′, J/g | Tm′, °C | ΔHm′, J/g | |
| base PLA | 60.0 | 0.50 | 123.9 | 42.1 | 165.9 | 42.2 |
| Plasticiser | Plasticised PLA | |||||
| TAC | 38.8 | 0.51 | 100.8 | 35.2 | 150.0 | 35.3 |
| TEC | 41.7 | 0.52 | 104.2 | 35.1 | 153.0 | 35.3 |
| Ac-TEC | 37.5 | 0.50 | 101.6 | 34.3 | 149.8 | 34.4 |
| TBC | 37.8 | 0.49 | 93.0 | 34.6 | 148.9 | 34.8 |
| Ac-TBC | 40.1 | 0.52 | 96.0 | 35.0 | 151.0 | 35.0 |
