Monitoring the temporal-spatial changes of vegetation cover and drivers in Tian Shan ecoregions, China

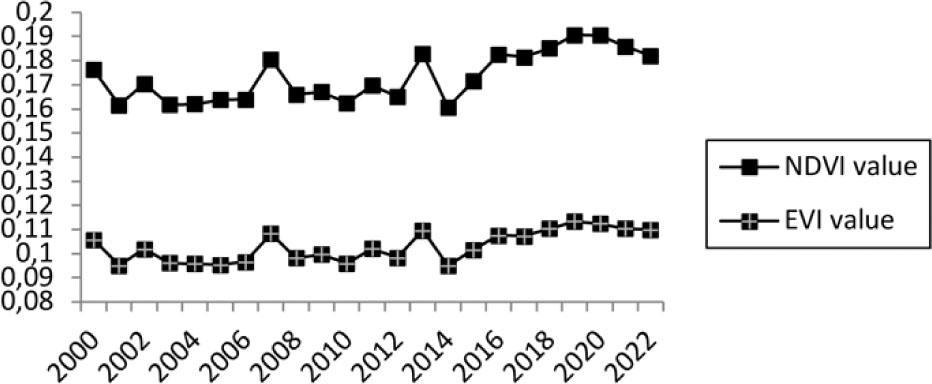

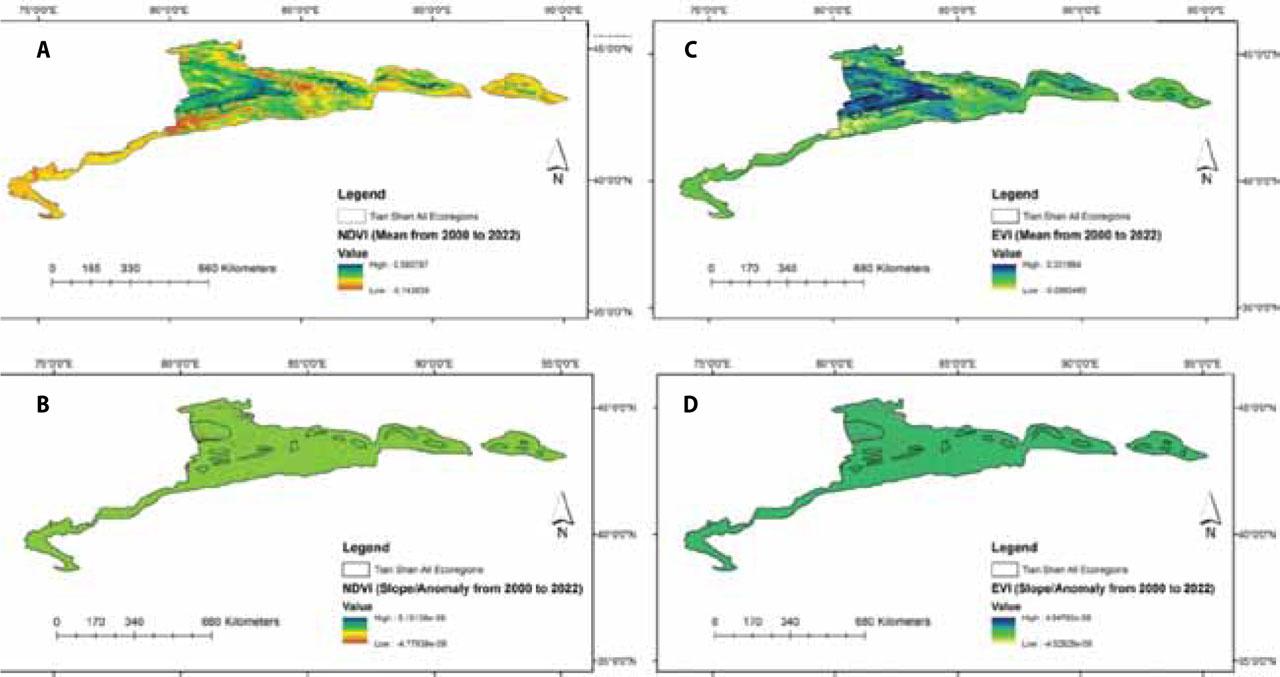

Average value of the vegetation indices and their changes attributed to climate and environment parameters were examined based on annual, pixel-wise trends in NDVI, EVI, LST daytime, total precipitation, air temperature at 2 m, actual evapotranspiration, soil moisture at 10 cm, wind speed, snow water equivalent, and DSR time series.

To the tribute that first the monthly average, then the annual average, and finally the average for all the years of the period in question from 2000 to 2022 were carefully analyzed and visualized. NDVI, EVI, and LST equations are in the following order (Cheng and Liang 2017): (1) NDVI=NIR−REDNIR+RED \[NDVI = \frac{{NIR - RED}}{{NIR + RED}}\] (2) EVI=2.5×NIR−REDNIR+C1×RED−C2×BLUE+L \[EVI = 2.5 \times \frac{{\left( {NIR - RED} \right)}}{{\left( {NIR + {C_1} \times RED - {C_2} \times BLUE + L} \right)}}\] where: Blue, RED, NIR

spectral bands,

LST is also calculated according to the following equation (Ehsanul et al. 2021): (3) TS=BT1+λBTρ.lnε−273.15 \[{T_S} = \frac{{BT}}{{\left\{ {1 + \left[ {\frac{{\lambda BT}}{\rho }} \right].\ln \varepsilon } \right\}}} - 273.15\]

Total precipitation represents the combined amount of rain and snow that descends onto the Earth’s surface. Monthly precipitation is calculated by adding up the daily precipitation values for each month. To determine the monthly average, the total precipitation amounts for all months are summed and divided by the number of months considered within the chosen period of 22 years. The yearly total is obtained by summing the averages of individual months.

2m Temperature refers to the air temperature measured at a height of 2 meters above the Earth’s surface. The 2m Temperature Anomaly indicates the deviation of the forecasted temperature for the current day from the long-term average temperature for the same day of the year. This parameter is measured in Kelvin (K). To convert Kelvin to Celsius, the following conversion relationship is utilized: (4) C=K−273.15 \[{\rm{C}} = {\rm{K}} - 273.15\]

While the size of the degree is the same in Kelvin and Celsius, the two scales are not equal at any point: A Celsius temperature is always higher than a Kelvin temperature.

Actual Evapotranspiration (ETa) is the quantity of water that is removed from a surface due to the processes of evaporation and transpiration and is measured in millimeters (mm). Our remote sensing data have been gradually used to estimate actual evapotranspiration. (5) ET=kc.ET0 \[ET = kc.ET0\] where: ETc

actual evapotranspiration,

Surface soil moisture refers to the water content present in the top 10 cm of soil. A reading of 0 indicates that the soil moisture has reached the wilting point, indicating extreme dryness. Conversely, a reading of 1 signifies that the soil moisture has reached saturation, indicating a state of being highly saturated with water.

It was taken advantage of strong experimental variables such as runoff, snow water equivalent, and wind speed at 10 m, palmer drought, and at the end downward shortwave radiation (DSR) designates solar radiation with a wavelength from 300 to 4000 nm received at the Earth’s surface. It is the driving force of many global ecological, hydrological, biophysical, and biochemical processes and is a key variable in modeling weather and climate systems.

A time series model is a collection of data points arranged chronologically, with time serving as the independent variable. These models are employed to examine and predict future trends. When dealing with time series data, we analyze the patterns and variations over time, allowing us to gain insights into the concept of most time series and observe yearly fluctuations in our research.

The scatter plot (y = mx + b) was also generalized to analyze the correlation of two vegetation variables NDVI and EVI. We already checked the normality of the distribution of data related to plant indicators before the Shapiro–Wilk test.

Relationships between NDVI and EVI were displayed as dependent variables, with other climatic and environmental parameters and human drivers using 3D scatter plots. Indeed, 3D scatter plots are utilized to visually represent data points across three axes, aiming to illustrate the correlation between three variables. Each entry in the dataset is depicted as a marker, positioned based on its corresponding values in the columns assigned to the X, Y, and Z axes.

In order to evaluate the long-term changes in plant and climatic and environmental parameters above, in addition to comparing their mean values, we used linear regression models. In fact, the use of the slope model is a very valuable way to investigate the annual and total period anomalies of the named parameters. Hence, the linear regression slope (anomaly) was computed as follows: (6) Slope=n∑i=1n×NDVIi−∑i=1ni×∑i=1nNDVIin∑i=1ni2−∑i=1ni2 \[Slope = \frac{{n\sum\nolimits_{i = 1}^n { \times NDV{I_i} - \sum\nolimits_{i = 1}^n i \times \sum\nolimits_{i = 1}^n {NDV{I_i}} } }}{{n\sum\nolimits_{i = 1}^n {{i^2} - } {{\left( {\sum\nolimits_{i = 1}^n i } \right)}^2}}}\] where: slope

the trend of vegetation dynamics or climate and environmental variables,

The positive slope counts increasing trends, while negative slope values display declining (decreasing) trends (Piao et al. 2011).

Correlation coefficient formula is given and explained here for all the variables: (7) r=n(∑xy)−(∑x)(∑y)n∑x2−∑x2n∑y2−∑y2 \[r = \frac{{n(\sum xy) - (\sum x)(\sum y)}}{{\sqrt {\left[ {n\sum {x^2} - {{\left( {\sum x} \right)}^2}\left[ {{\rm{n}}\sum {y^2} - {{\left( {\sum y} \right)}^2}} \right]} \right.} }}\] where: r

defines the correlation coefficient,

To assess the relationships between the mentioned variables (Mihretab et al. 2020), the Pearson correlation coefficient (r) and its associated P-value were employed. Specifically, the correlation coefficient (r) was used to gauge the strength of the connections between NDVI, EVI, and climate parameters in an environmental context. A significance level of 95% was chosen to determine the statistical significance of the correlations. The correlation coefficient (r) indicates the magnitude of the linear relationship, while the P-value represents the corresponding probability level. A positive correlation and a p-value below 0.05 indicate a statistically significant relationship between the two variables.

Undoubtedly, the correlation matrix is capable of displaying the correlation coefficient between the aforementioned variables. This matrix reveals the correlation values, which quantify the extent of the linear relationship between each pair of variables. These correlation values can range from –1 to +1. When the two variables tend to increase and decrease together, the correlation value is positive.

Next, as the scenario was determined which parameter had the most impact and how the variables interacted, the area values and percentage of anomalies and changes of the most important NDVI vegetation index were calculated, modeled, and visualized for the first period (2000) and the end of the period in question (2022), and we carefully extracted all the fluctuations of this index, which recounts the process of resuscitation, stillness, and degradation of vegetation with advanced coding. Benefiting from the data of MODIS LULC was also applied to track human activities and calculate the areas of various types of vegetation, forest classification, shrubs, pastures, agricultural lands, and residential areas in 2001 and 2021.

In the research study, a global Night Time Light (NTL) dataset was created by merging and standardizing NTL observations from the DMSP and simulated DMSP-like NTL observations from the VIIRS data (https://gee-community-catalog.org/). The data-set, covering a specific area of interest includes DMSP NTL time-series data from 2000 to 2020, revealing consistent temporal patterns valuable for studying human activities like electricity consumption, land-use changes, urban expansion, and industrialization dynamics. The dataset comprises temporally calibrated DMSP-OLS NTL data from 1992 to 2013 and converted NTL data from VIIRS spanning 2014 to 2020, with a spatial resolution of approximately 30 arc-seconds. The provided code demonstrates how to access and utilize the dataset: https://code.earthengine.google.com/?scriptPath=users/sat-io/awesome-gee-catalog-examples:global-utilities-assets-amenities/HARMONIZED-GLOBAL-NTL

Additionally, the study conducted an analysis within the Tian Shan Ecoregion from 2000 to 2020, calculating the Compounded Night Light Index (CNLI) that incorporates parameters reflecting night light brightness and the extent of lit urban areas, offering insights into urban population dynamics, economic indicators, and urban growth simultaneously (Wei et al. 2014). To compute the CNLI for our specific study area, we utilized the following formula: (8) CNLI Index=I×S \[{\rm{CNLI}}\,{\rm{Index}} = {\rm{I}} \times {\rm{S}}\] where: I

the average night light brightness of all lit pixels in a region.

It illustrates as follows: (9) I=1NL×DNM×∑i≡pDNMDNi×ni \[I = \frac{1}{{{N_L} \times D{N_M}}} \times \sum\nolimits_{i \equiv p}^{D{N_M}} {\left( {D{N_i} \times {n_i}} \right)} \]

In the formula provided, we have several variables and parameters. The variable DN_i represents the DN value associated with the ith gray level. The variable n_i represents the count of illuminated pixels corresponding to that specific gray level. The parameter P denotes the optimal threshold used to identify the illuminated urban areas within the DMSP images. Additionally, DN_M represents the maximum DN value observed, while N_L represents the count of illuminated pixels with DN values ranging between P and DN_M. Finally, the parameter S represents the proportion of illuminated urban areas relative to the total area of a given region. The mathematical representation of S can be expressed as follows: (10) S=AreaNArea \[S = \frac{{Are{a_N}}}{{Area}}\]

In the context provided, we have two variables: Area_N represents the area occupied by illuminated urban areas within a specific region and Area represents the total area of that region.

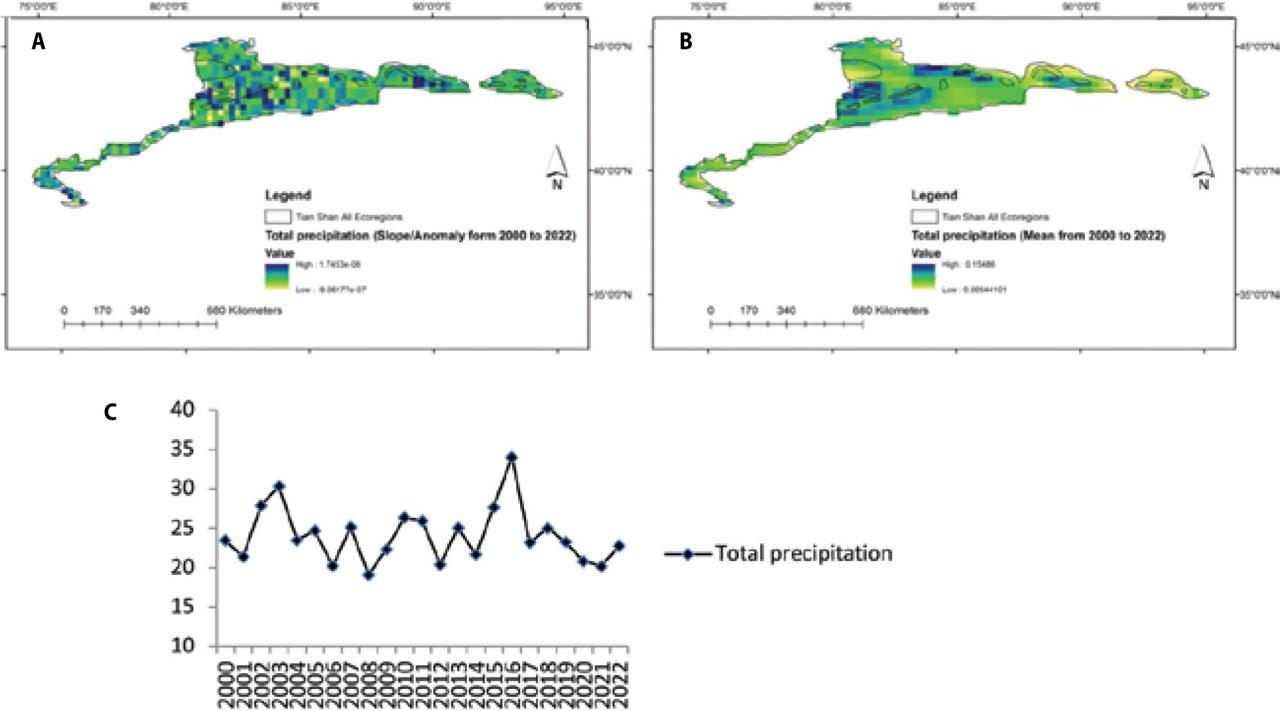

Temporal and spatial patterns of LST day time (kelvin), total precipitation (mm), air temperature at 2 m (kelvin), actual evapotranspiration (mm), soil moisture at 10 cm (mm), downward shortwave radiation (DSR), snow water equivalent (SWE), and wind speed The Tian Shan ecoregion is highly influenced by external drivers like climate parameters owing to its unique geographic location and topography. This study delves into analyzing the climate parameters within the Tian Shan ecological zone from 2000 to 2022 (based on Fig. 5–12). The findings indicate significant variations in precipitation levels over the 23-year period, with 2016 recording the highest precipitation exceeding 35 cm. On average, the region receives more than 154 mm of rainfall, with distinct patterns observed across different parts, particularly in the western, central, northeastern, and southwestern regions (Fig. 5A). The discrepancies in precipitation levels are largely attributed to the elevation differences in these areas (Fig. 5B).

Figure 5.

Figure 6.

Figure 7.

Figure 8.

Figure 9.

Figure 10.

Figure 11.

Figure 12.

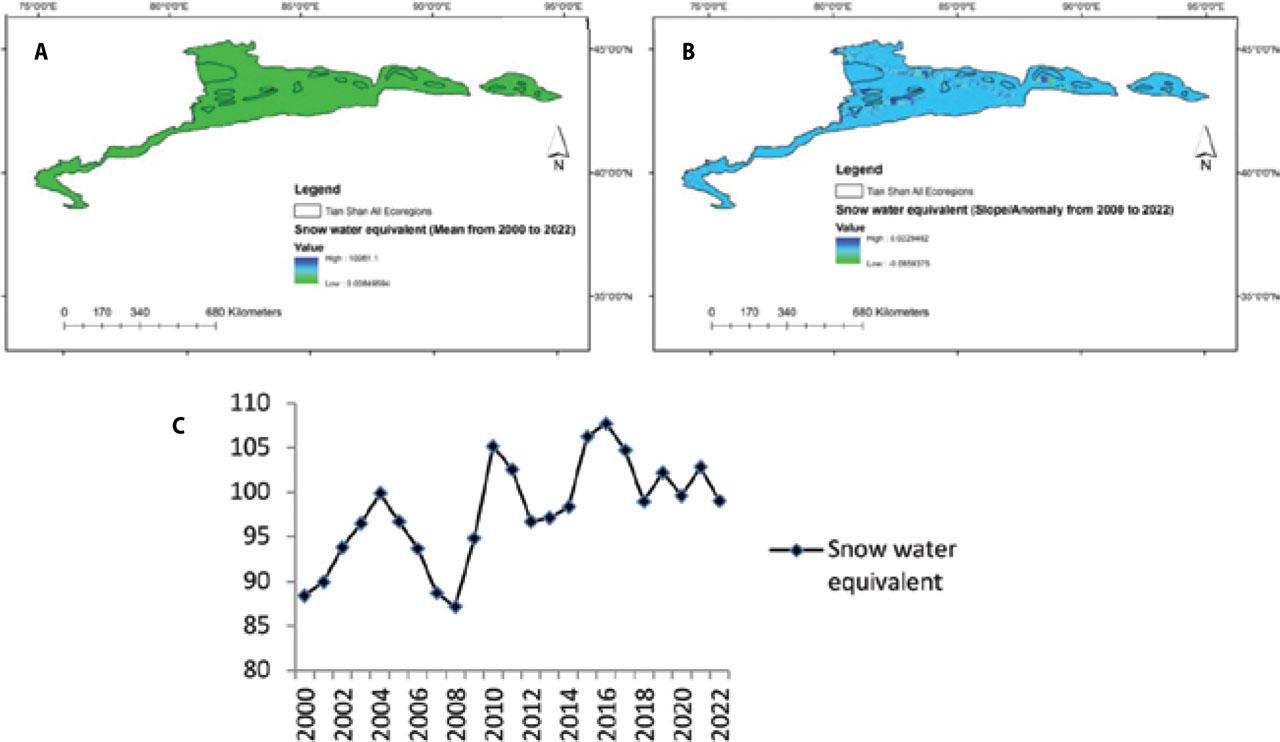

The survey of the Tian Shan indigenous region’s average snow-equivalent water (SWE) reveals that the 23-year average SWE ranges from 0.008 to 10061.1 mm (Fig. 6A). The anomalous slope value falls between 0.022 and −0.085 (Fig. 6B). Over the considered period, this phenomenon has shown an incremental trend, with the minimum value recorded in 2008 and a noticeable increase from 2011 onward (Fig. 6C). Snow plays a crucial role in the cold regions’ ecosystem, connecting wildlife, vegetation, and soil moisture. SWE quantifies the water stored as snow on the Earth’s surface and holds significant importance for water, energy, and geochemical cycles. This relationship between SWE and vegetation will be further explored in the Tian Shan ecoregion.

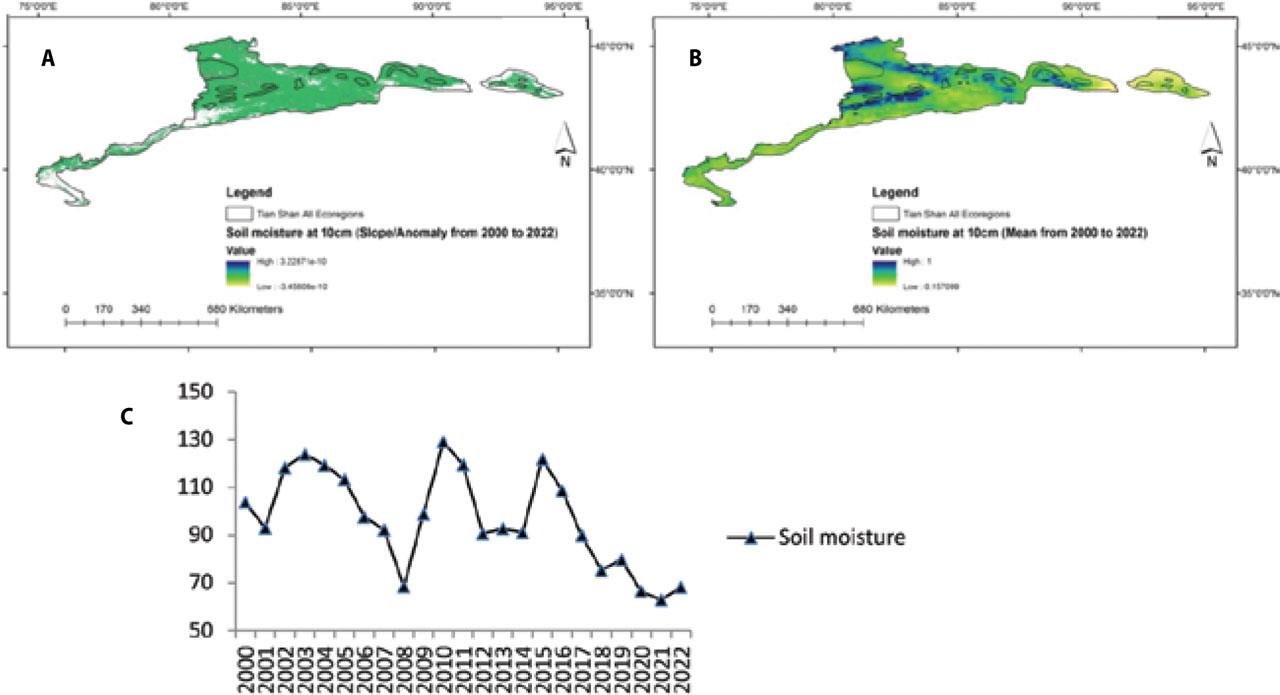

Soil moisture plays a significant role in vegetation growth across different regions. In the Tian Shan ecoregions, the average soil moisture ranges from 1 to 0.157 (Fig. 7A), with the highest levels observed in the western and northern areas. The anomaly value of soil moisture slope varies from 3.2 to –3.3 in this region (Fig. 7B). A soil moisture value of 0 indicates extreme dryness (wilting point), while a value of 1 represents high saturation with water. Optimal conditions for plant growth occur at a soil moisture value of 0.54, while values below 0.2 and above 0.8 indicate drought and excessive moisture stress, respectively. Further analysis will reveal a negative relationship between soil moisture and vegetation indices such as NDVI and EVI. High moisture content (equal to or greater than 0.8) results from snow melting, surface currents, and lakes exposes vegetation to additional moisture stress, leading to vegetation decline. Additionally, high soil moisture in cold seasons can cause soil texture freezing, resulting in problems for the plant root system and vegetation loss. In the southern regions, the slope value for soil moisture reaches its lowest point. The study of average soil moisture changes indicates a decreasing trend from 2015 onward, significantly impacting vegetation growth in the Tian Shan ecoregions (Fig. 7C).

Land surface temperature (LST) is a critical climate parameter that influences vegetation growth and is impacted by vegetation itself. Regions with dense vegetation maintain a surface temperature below 35°C, preventing excessive heat accumulation. Extreme temperature deviations, whether too low or too high, negatively affect vegetation growth and disrupt the plant’s phenological cycle. The study of Tian Shan’s land surface temperature over a 23-year period reveals a range between 250.48 and 303.59 Kelvin (Fig. 8A). The highest average temperatures are observed in the northern and central regions. The abnormal slope value indicates a consistent average temperature across all areas of Tian Shan, varying from 1.25 to –1.17 Kelvin (Fig. 8B). There is a minimal change in the trend of this variable throughout the statistical period, except for a significant increase in 2022 compared to previous years (Fig. 8C).

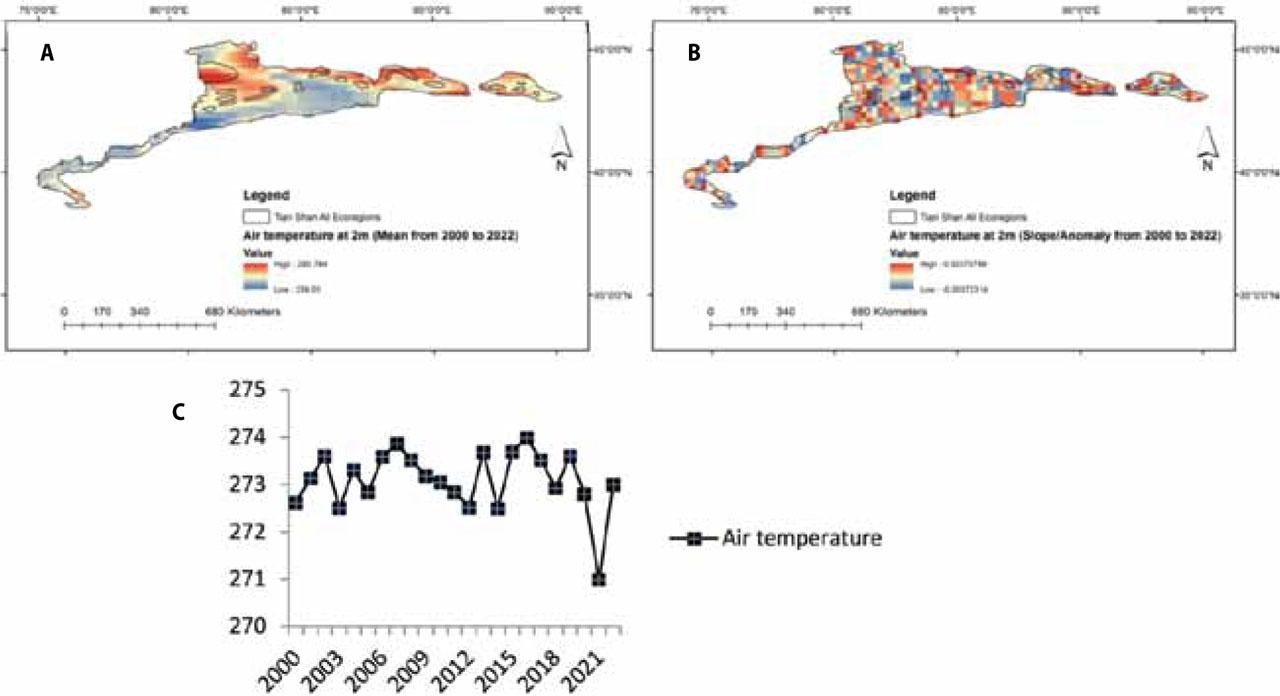

Temperature, along with sunlight availability and water supply, plays a crucial role in shaping global plant growth patterns, influencing the suitability of land for forests, grasslands, or deserts. This relationship is exemplified in the Tian Shan ecoregions, where the connection between 2-meter ground temperature and vegetation cover is scrutinized. The 23-year average temperatures in these regions reveal higher values in the northern, northeastern, and western areas, ranging from 259.03 to 285.4 Kelvin (Fig. 9A). Interestingly, the average anomalous slope remains relatively stable across the region except for a significant temperature drop in 2021, indicating consistent patterns over the years (Fig. 9B and C). This analysis highlights the intricate link between temperature and vegetation cover in the Tian Shan ecoregions, emphasizing the importance of temperature in shaping terrestrial ecosystems.

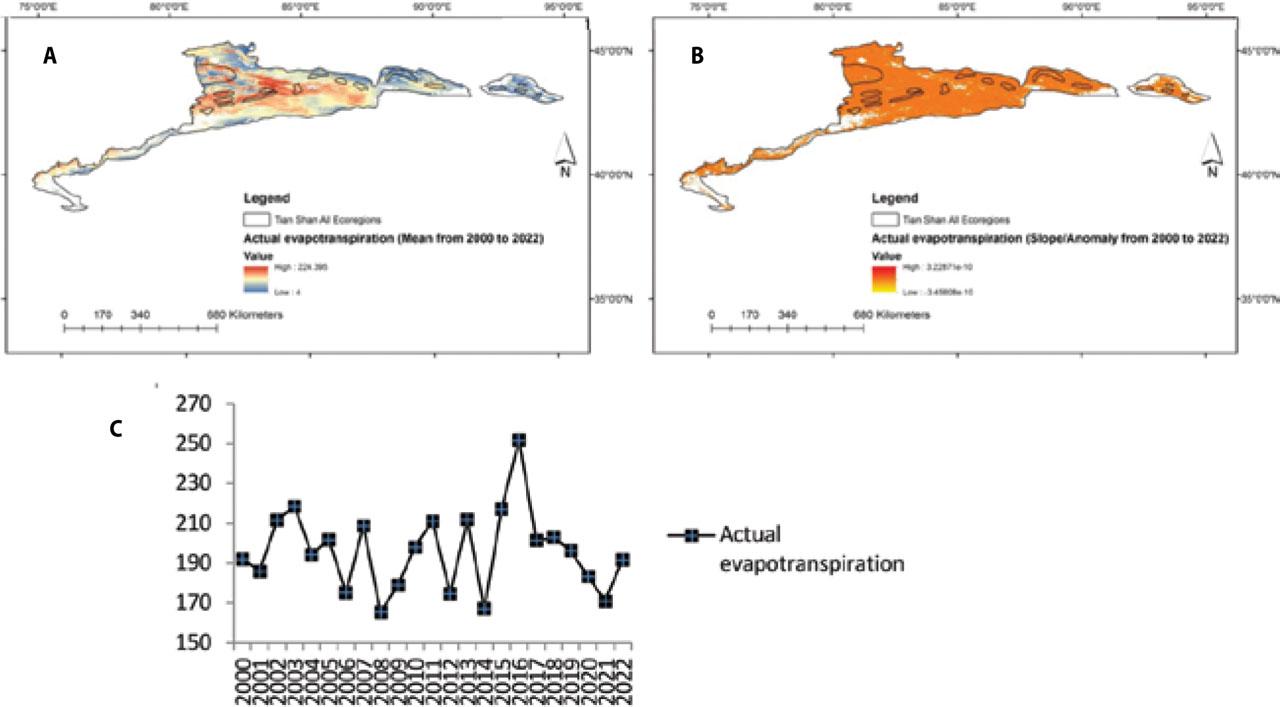

Actual Evapotranspiration (ETa) refers to the amount of water lost from a surface due to evaporation and transpiration. This measurement is expressed in millimeters and provides an estimate of the water requirement for actively growing plants. When vegetation is present, the surface holds more water, leading to higher water loss in the atmosphere, while wastelands experience more heat and stronger winds, resulting in less water to evaporate. The Tian Shan ecoregions have varying levels of ETa, with the central regions experiencing the highest amounts. This parameter has been decreasing from 2016 to 2021, with the anomaly slope being uniform for central, northern, and western regions, but the lowest values have been reported for the southwestern and eastern regions.

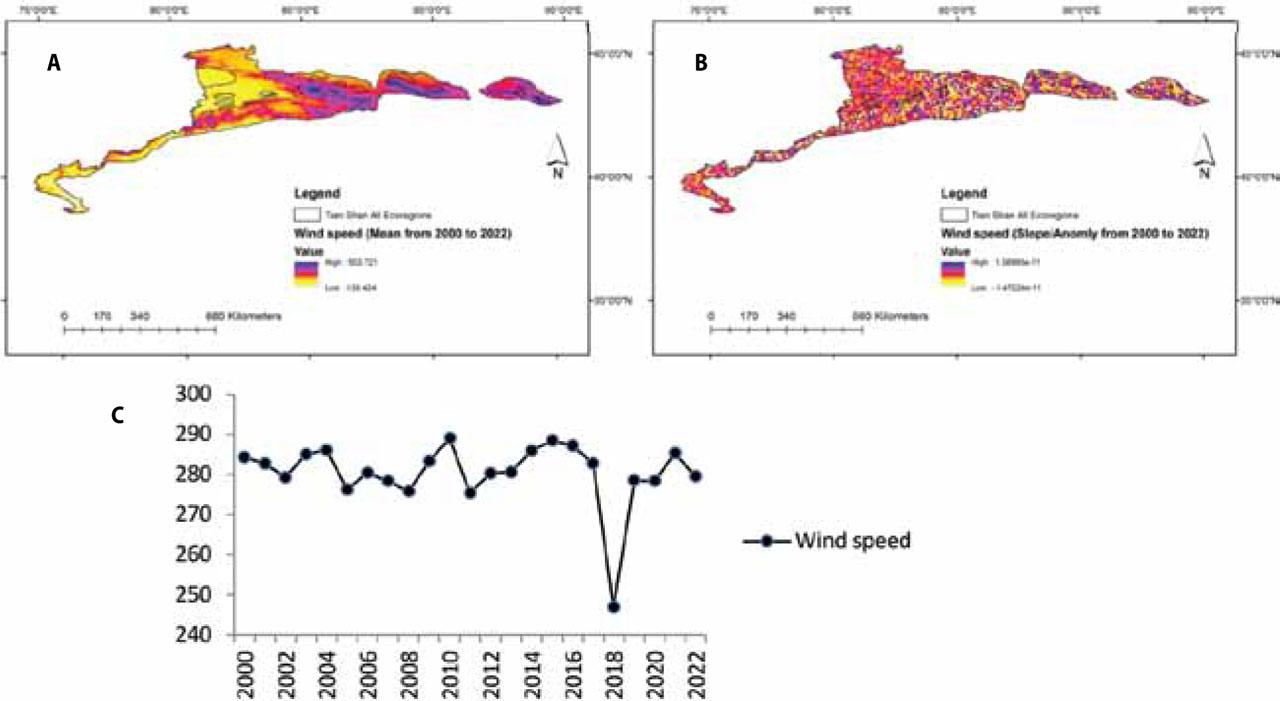

Trees are affected by winds, which impact transpiration, growth rate, and tree shape. Wind increases transpiration and water loss (Clark et al. 2000). Trees can also reduce wind speed. In the Tian Shan ecoregions, the southwest and west regions have the lowest average wind speed, while the southeast and east regions have the highest (Fig. 11A). The slope of wind speed changes is consistent throughout the area, considering the topography (Fig. 11B). The highest average wind speed was recorded in 2010, and the lowest was in 2018 (Fig. 11C).

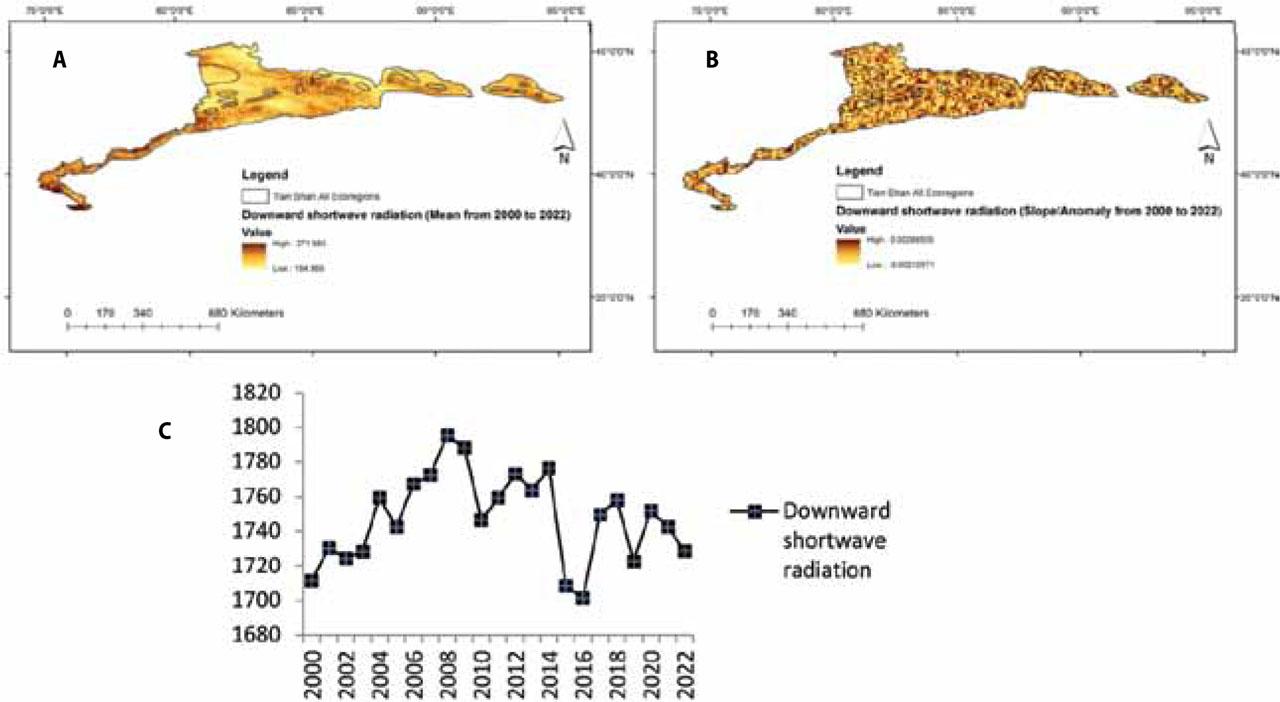

Shortwave radiation is crucial for evaporation, transpiration, and photosynthesis in agricultural systems. In the Tian Shan ecoregion, the central and southwest areas receive higher levels of downward shortwave radiation, while the northern and northwest regions receive comparatively lower levels (Fig. 12A). Patterns of slope and anomalies in downward shortwave radiation are observed in all ecoregions (Fig. 12B). From 2006 to 2009, the highest amount of radiation was observed, but recent years (2020 to 2022) have shown a decreasing trend, reaching the lowest level (Fig. 12C).

Human parameters significantly influence vegetation growth in the Tian Shan ecological zone, as highlighted in the study. Notably, the Light Index and CNLI serve as key indicators of human presence and activities in the region, showing an increasing trend since 2000. In 2019, record-high levels were observed, with the Light Index and CNLI reaching 72% and 11%, respectively (Tab. 3). The changes in CNLI percentages and average DMSP values are graphically depicted in column and circular charts, with the highest average DMSP recorded in 2019 (Fig. 13).

Figure 13.

The study demonstrates the use of nighttime light data from DMSP to simulate human activity intensity and assess its impact on habitat quality, showcasing the feasibility of evaluating human activities’ effects on habitat through such data on a global scale (Zhao et al. 2022). The spatial patterns of DMSP nighttime data from 2000 to 2020 in Tian Shan ecoregions are illustrated in Figure 14, indicating increasing human presence and activity over time. The study suggests a positive correlation between human indicators and plant indicators, showcasing the beneficial influence of human activities on vegetation development in the region. The average DMSP values ranged from 0 to 63, with higher values concentrated in the western, northern, and northeastern areas of Tian Shan, correlating with increased vegetation cover and forestry activities. The study highlights the continuous expansion of human activity and its positive effects on vegetation in the area.

Figure 14.

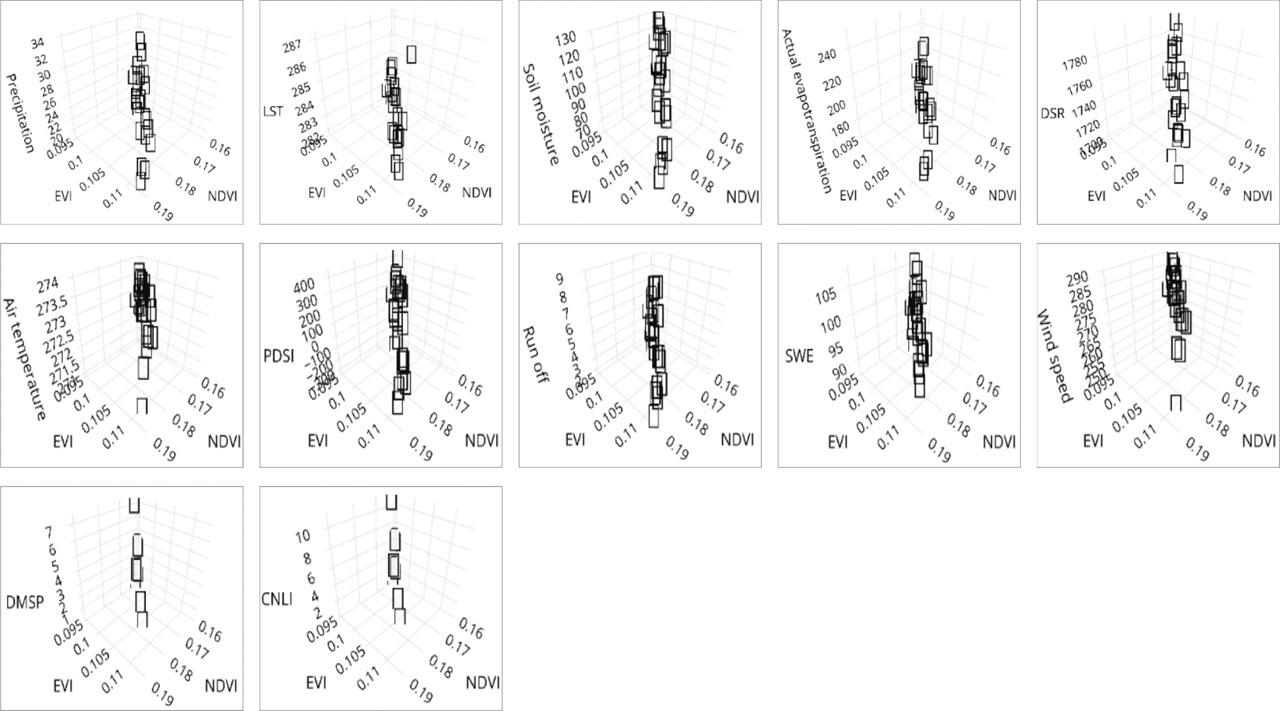

The study depicted in Figure 15 presents 3D scatter plots analyzing the influence of climate, environmental factors, and human activities on NDVI and EVI in the Tian Shan ecoregions. These plots help in assessing data normality and visualizing the complex relationships between the variables. The X and Y axes represent the dependent variables (NDVI and EVI), while the Z axis represents independent variables capturing climatic, environmental, and human drivers. The research underscores that climatic and environmental parameters significantly impact vegetation in the Tian Shan ecoregions, with factors like precipitation, radiation, soil moisture, runoff, and temperature playing crucial roles. The study utilized Pearson correlation and the Matrix network to establish these relationships, highlighting the key role of air temperature and wind speed in affecting NDVI and EVI in the region.

Figure 15.

In a review of trends in 3D LST scattering graphs in Tian Shan ecoregions, it is noted that some data points have been excluded, causing oscillations in the data (Fig. 15). The relationship between LST and vegetation varies throughout the seasons, with a negative correlation in warm seasons and a positive correlation in cold seasons. The preservation of vegetation in Tian Shan winters over a 23-year period is attributed to radiation levels. Wind speed is identified as a factor leading to vegetation loss, showing a negative regression relationship with plant indicators. By utilizing 3D scatter plot models, researchers examine the relationship between vegetation indices, such as NDVI and EVI, with CNLI and DMSP in the Tian Shan ecoregions. The study finds a strong positive correlation (Pearson correlation coefficient >0.73) between these variables. Human presence in the region is linked to vegetation development, water and soil conservation efforts, and mitigation of soil erosion, contributing to the overall improvement of the ecosystem.

A correlation matrix is a tabular representation that displays correlation coefficients between different variables. Each cell in the matrix showcases the correlation between two specific variables. This matrix is utilized for summarizing data, serving as an input for more advanced analyses, and functioning as a diagnostic tool for advanced analytical processes (Tab. 4).

The study analyzed the correlation between various environmental parameters and vegetation indices NDVI and EVI. The results revealed that soil moisture had the most significant negative correlation effects on both NDVI (−0.58) and EVI (−0.57), followed by the wind speed with values of −0.30 and −0.32, and DSR with an inverse correlation to vegetation. SWE and AEa showed weak associations with NDVI and EVI. Runoff had the least impact on the indices. Notably, precipitation and transpiration, as well as precipitation and runoff, exhibited the highest correlation values of 0.94 and 0.92, respectively. These findings highlight the complex interplay between environmental factors and vegetation health (Tab. 4).

The study conducted in the Tian Shan ecoregions reveals a significant positive correlation between human parameters and vegetation indicators, showcasing the impacts of human activities and climatic variables on vegetation dynamics. Table 5 presents the correlation analysis results, demonstrating that NDVI shows a strong positive correlation with human activity proxies CNLI (0.74) and DMSP (0.73), indicating a higher vegetation cover in areas with more human presence and intervention. In contrast, the relationship between EVI and human activity proxies is weaker. The study suggests that NDVI is more sensitive to detecting positive impacts of activities like vegetation restoration, pasture and watershed management, and soil conservation, leading to an expansion of vegetation cover in the region. The findings highlight that human activities have been a dominant driver of vegetation changes, surpassing the influences of climate, and environmental factors, emphasizing the increasing positive impact of human activities on vegetation development in the region over recent years. The matrix model illustrates a strong correlation between the vegetation indicators NDVI and EVI and key human drivers in the Tian Shan ecosystems, suggesting a link between human activities and ecosystem management initiatives like natural resource conservation, forestry, plantation activities, watershed vegetation restoration, ecotourism, and road construction to prevent seasonal fires. This highlights the significant influence of human interventions on the ecological balance in the area.

The Pearson correlation coefficient (r) is a widely used method to measure linear correlations between two variables. It ranges from −1 to 1, indicating both the strength and direction of the relationship. The coefficient is appropriate when the relationship is linear, both variables are quantitative, they follow a normal distribution, and there are no outliers. The correlation value also represents the effect size of the correlation. To interpret the effect size, Cohen’s guidelines (Cohen 1988) are often followed, as shown in Table 6.

Pearson’s test was used to measure the correlation between vegetation indices (NDVI and EVI) and climate parameters and environmental and human drivers in Tian Shan ecoregions. Before applying the test, data normality was checked and confirmed (Fig. 16). The test results indicate a significant correlation between variables when the P-value is less than 0.05 (95% level) and the correlation coefficient (r) measures the influence of parameters. Additionally, residual plots were used to assess homogeneity of variance and detect outliers (>±3). Linear regression was employed to determine the best-fitting line, enabling prediction of output values based on given inputs. Normal probability plots were used to assess normality of the dependent variable data (5).

Figure 16.

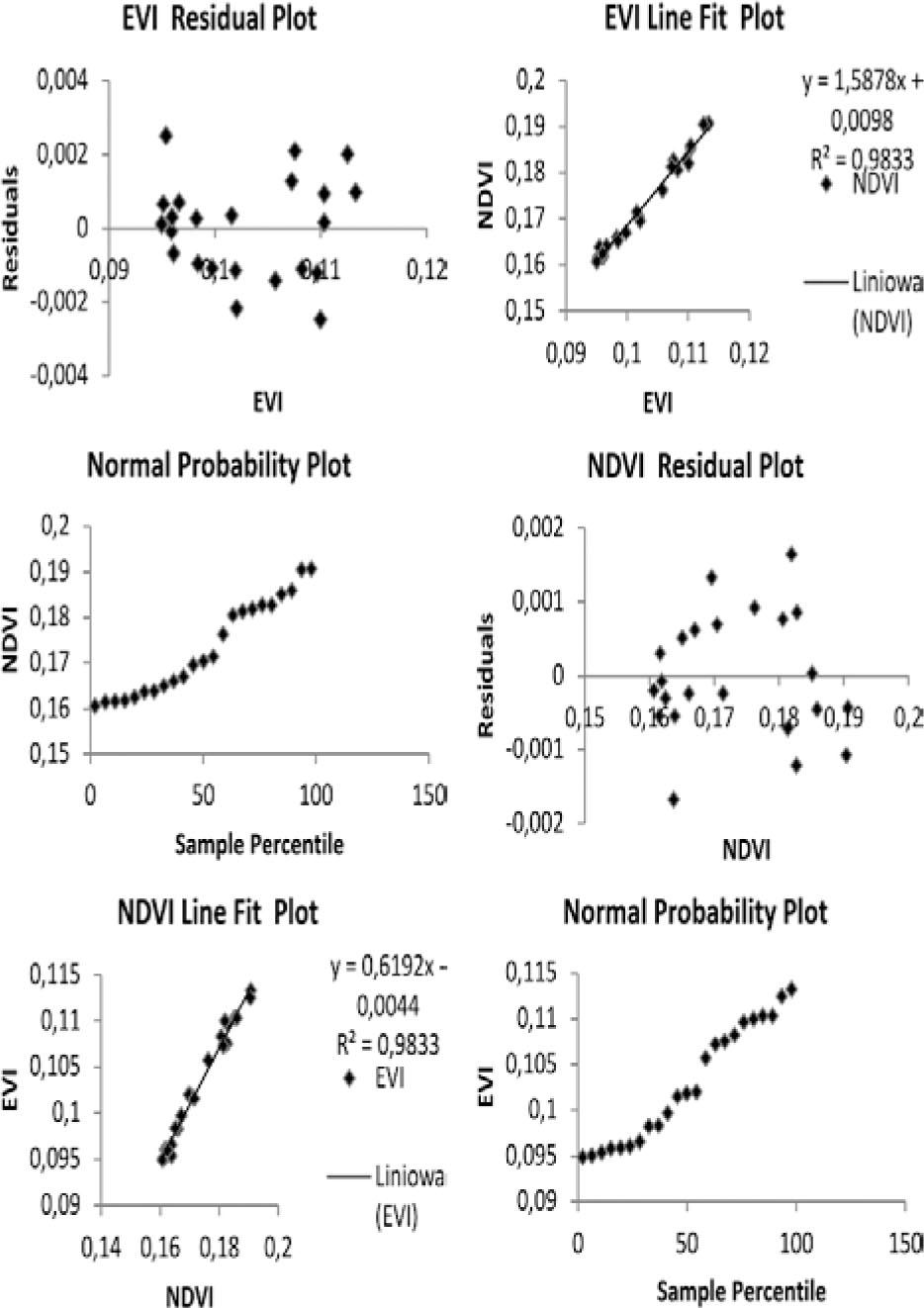

Pearson correlation coefficient showed that NDVI and EVI are perfectly related together with a value of 0.991 (Tab. 7) in Tian Shan ecoregions, although NDVI is very common to calculate vegetation and EVI is much more sensitive to atmospheric errors and is suitable for dense covers.

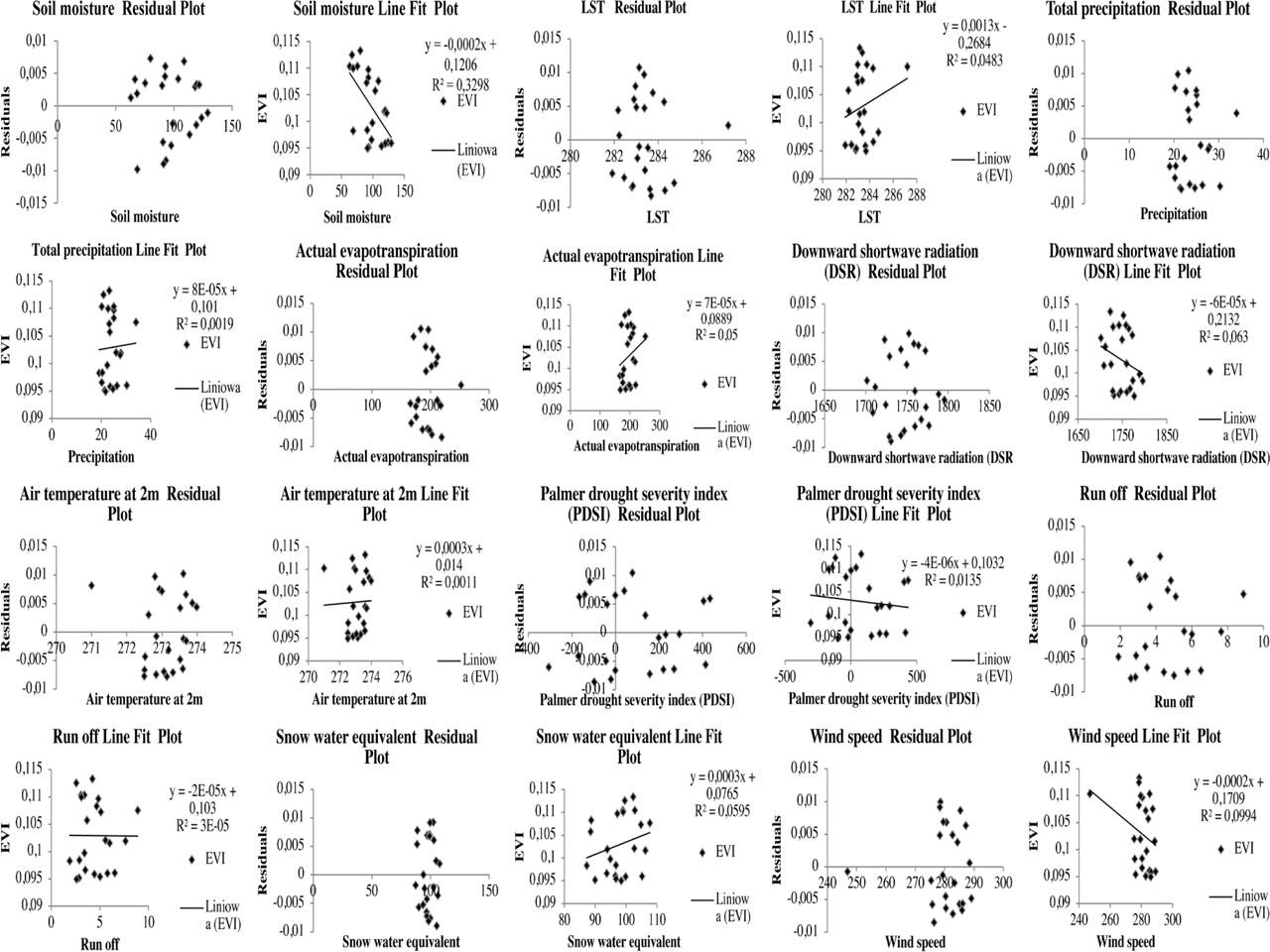

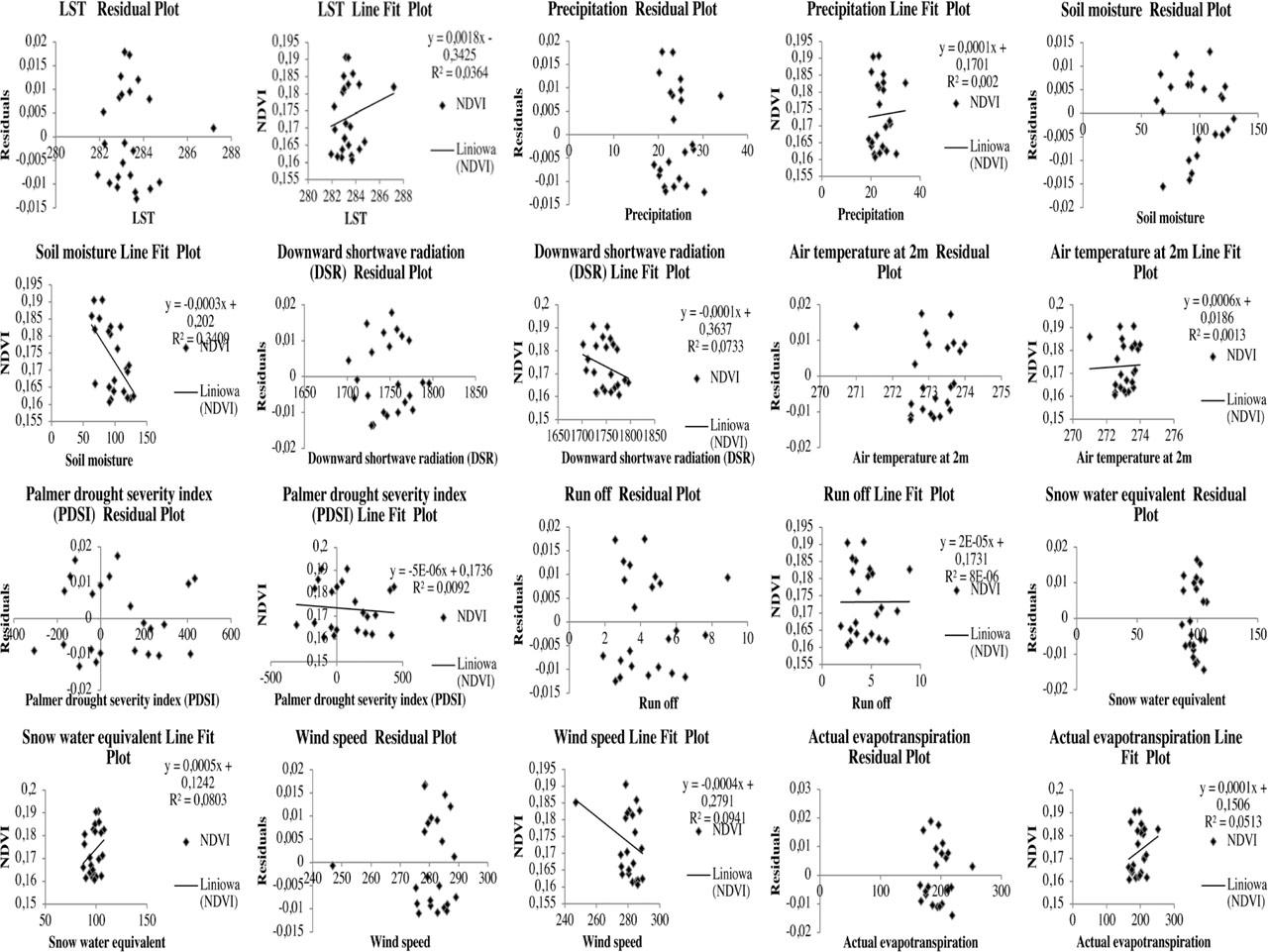

The study conducted in the Tian Shan ecoregions explored the relationship between the NDVI and EVI indices with various climate and environmental parameters, emphasizing the significant correlation with soil moisture (Fig. 17 and 18). Tables 8 and 9 provided a clear indication of the values and effectiveness of these relationships. The analysis revealed a strong negative correlation (Pearson coefficients of −0.58 for NDVI and −0.57 for EVI) between vegetation indicators and soil moisture, suggesting that as soil moisture increases, vegetation indicators decrease due to water-filled stress and saturated soil conditions caused by factors like swamps, rivers, lakes, and snow-covered mountains. The findings underscored the impact of seasonal variations, particularly in the cold seasons, on hindering vegetation growth in the region.

Figure 17.

Figure 18.

The Pearson regression model indicated weak-to-typical correlations between NDVI and EVI with DSR parameters of −0.277 and −0.251, showcasing a negative relationship with the wind speed as well (r = −0.306 and −0.315) as shown in Tables 8 and 9. The negative impact of DSR and wind speed on plant development and growth elucidates these associations. Conversely, Snow Water Equivalent and Actual Evapotranspiration parameters displayed relatively weak to normal positive correlations with NDVI and EVI (r = 0.283, 0.243, 0.226, 0.223), while the LST index exhibited an abnormal relationship with the plant indices. However, the remaining precipitation and temperature parameters, PDSI drought index, and runoff demonstrated weak connections with NDVI and EVI, prompting further discussion and analysis in this area (Tab. 8 and 9).

The vegetation patterns in a region are strongly influenced by environmental factors which have experienced significant fluctuations between dry and wet conditions over time, leading to the current vegetation distribution observed amidst substantial environmental changes (Wang et al. 2005). These interactions between vegetation and environmental factors occur at different temporal scales, with intricate and nonlinear relationships especially prevalent at a regional level (Zhang et al. 2018). The distribution of vegetation types like mountain steppe, seasonal grassland, common steppe, and desert steppe within the region is largely shaped by soil moisture factors, with human activities at a local scale potentially contributing to vegetation changes as well (Shao et al. 2018). Moreover, non-climatic environmental alterations, including variations in soil moisture levels, can impact the correlation between NDVI and EVI, highlighting the need to account for uncertainties when predicting NDVI responses to future changes (Liang and Yang 2016; Pei et al. 2019).

The study revealed a strong correlation between the vegetation indices NDVI and EVI, indicating that they share similarities. Factors such as wind speed, snow water equivalent, DSR, and soil moisture were identified as impactful on these indicators in various alignments. EVI was recognized for its ability to consider atmospheric conditions and reduce canopy background noise, showing higher sensitivity in densely vegetated regions compared to NDVI. The average NDVI over the 23-year period was 0.173, with values ranging from −1.0 to 1.0 indicating different land cover types. The Tian Shan ecoregion exhibited sparse vegetation. Further analysis revealed the relationships between EVI and the environmental driver parameters as follows:

Results of the Pearson correlation indicated that there is a large positive (Relatively strong) relationship between NDVI and DMSP, (r(5) = 0.738, p = 0.048), and a large positive relationship between NDVI and CNLI, (r(5) = 0.748, p = 0.043) (Tab. 10).

Plant indicators in Tian Shan ecoregions show a unique relationship with human presence. Contrary to the expected negative impact of human activities on vegetation cover, it is found that human presence can have a positive and closely related effect on plant indicators in the area. The model suggests that efforts should be directed toward conserving, enhancing, and sustainably utilizing biological resources and the global ecological heritage in these ecoregions.

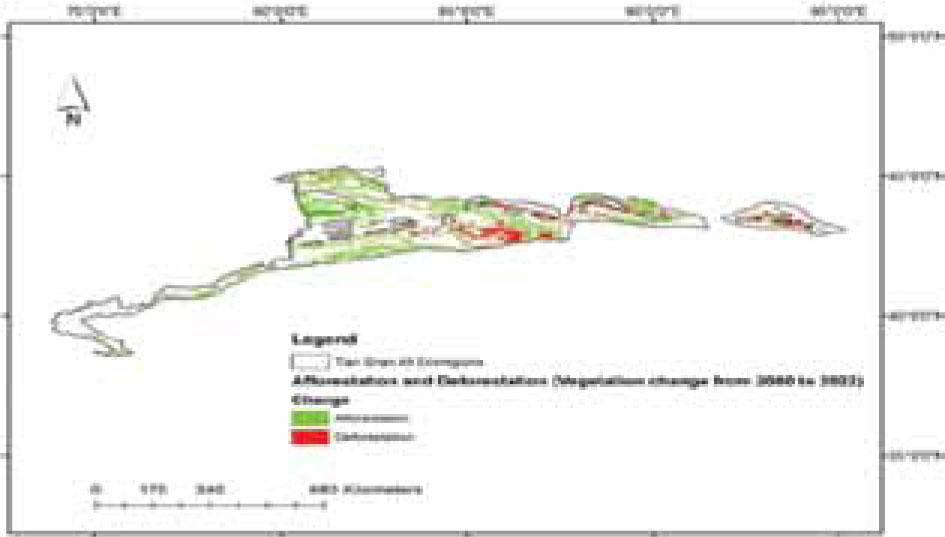

Over a span of 23 years, from 2000 to 2022, the study analyzed and represented the anomalies and transformations in vegetation within the Tian Shan Ecoregions. The findings illustrated in Table 11 and Figure 19 present the extent and ratios of deforestation, afforestation, unchanged vegetation areas, and regions targeted for vegetation rehabilitation efforts. The study indicated that deforestation and vegetation reduction only increased by 3% covering 7190.119633 square kilometers, whereas afforestation activities demonstrated significant growth by 6%, expanding over 12,089.28333 square kilometers. Additionally, a considerable portion of the Tian Shan ecoregions, accounting for 36% with 78,733.91197 square kilometers, maintained unchanged vegetation cover, while 55% with 120,032.6253 square kilometers remained devoid of vegetation.

Figure 19.

According to studies conducted by Li et al. (2020) and Q. Wang et al. (2020), the implementation of the Grain to Green project in Southwest China has contributed to the growth of vegetation. This positive trend has been observed not only in Southwest China but also in various regions across the country, leading to a significant increase in forested areas.

To monitor land-use changes and land cover in the Tian Shan ecoregion, which denotes physical land types like forests or open water, we analyze how resources and land are utilized. By assessing data and land cover maps over time, ecological managers can track land-use patterns and alterations. The study will integrate land cover details for various essential purposes such as evaluating non-point sources of pollution, comprehending landscape variables for environmental analysis, assessing chemical behaviors, and analyzing air pollution impacts

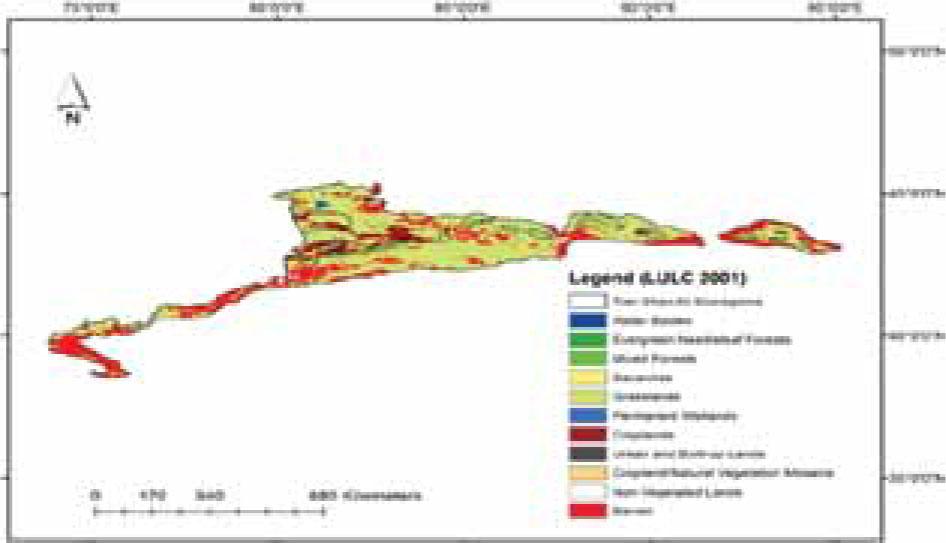

In 2001, the Tian Shan region exhibited distinct land-use and land cover (LULC) classifications. The smallest area was occupied by Evergreen Needleleaf Forests, covering 41.51 square kilometers and dominated by evergreen conifer trees, while the largest area belonged to Grasslands spanning 142,376.597 square kilometers with herbaceous annuals. Grasslands predominantly covered the northwest, central, and northeast regions, forming barren areas in the southwest and southeast. The barren areas were characterized by desert conditions with minimal water and dry grass. Croplands were prevalent in central regions, while the western parts were rich in coniferous and broad-leaved forests, contributing significantly to the biological balance within the Tian Shan ecoregions. These land cover types, along with barren lands and croplands, constituted the primary classifications in the LULC, comprising 65.28%, 25.43%, and 7.7% of the total area in 2001. The diverse LULC patterns in the Tian Shan region play a crucial role in supporting plant and animal species richness, carbon fixation cycles, microclimate improvements, and overall biological stability within the ecoregions (Tab. 12, Fig. 20).

Figure 20.

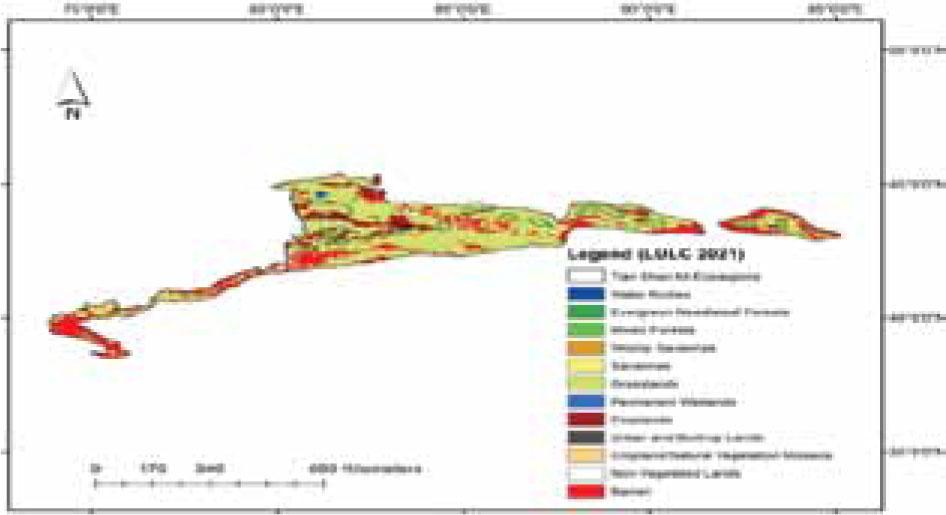

In 2021, the Tian Shan ecoregions database revealed the dominance of grasslands spanning 145,028.7926 square kilometers, representing 66.54% of the total area (Tab. 13), characterized by herbaceous annuals. In contrast, the Evergreen Needleleaf Forests comprised a mere 0.009% of the ecoregions, covering around 21.055089 square kilometers, with over 60% tree cover and exceeding 2 meters in canopy height. Croplands and barren areas accounted for 7.97% and 23.62%, respectively, showcasing significant land-use diversity. The landscape analysis depicted grasslands mostly in central and northern Tian Shan, barren desert regions in the south and southwest, and sporadic broadleaf coniferous forests. Farmlands were prominent in central regions, while other unique classifications added to the visual richness of the ecoregions. This LULC pattern analysis is summarized in Table 12 and visualized in Figure 21.

Figure 21.

The term “Top Three classes” is used in the graphs because these three classes have the highest area ratio and percentage in land-use in 2001 and 2021. The term “Other Unique Classes” refers to ecological reserves and World Heritage sites. One example is the Tian Shan montane conifer forests, which consist of two main forest types: “Evergreen Needleleaf Forests” dominated by evergreen conifer trees with a tree cover exceeding 60%, and “Mixed Forests” with a balance of deciduous and evergreen trees (40–60% of each type) and a tree cover exceeding 60%. From 2001 to 2021, the coniferous community has decreased in extent, while the mixed broadleaf and coniferous community has expanded. The coniferous forest area reduced from 41.5 to 21 square kilometers, while the mixed forest area increased from 248.6 to 173.4 square kilometers.

The Tian Shan ecoregion is a bio-reserve estimated to have a life span of 2.5–7 million years (Carpenter 2000; Su et al. 2007). It is home to unique species such as the endemic karelini subspecies of Argali and Siberian Ibex, as well as endangered species like the Snow leopard. The region also supports dispersed populations of carnivores such as the gray wolf and Himalayan brown bear. Breeding populations of various bird species, including black stork, golden eagle, Houbara bustard, and bearded vulture, are found in Tian Shan. Conservation efforts are ongoing to monitor and protect these species and their habitats. Measures such as monitoring grazing activity, promoting wildlife connectivity, cross-border conservation opportunities, and studying the impacts of climate change on ecosystem cycles can help preserve the region’s biodiversity.
