Fig. 1.
Fig. 2.
Fig. 3.

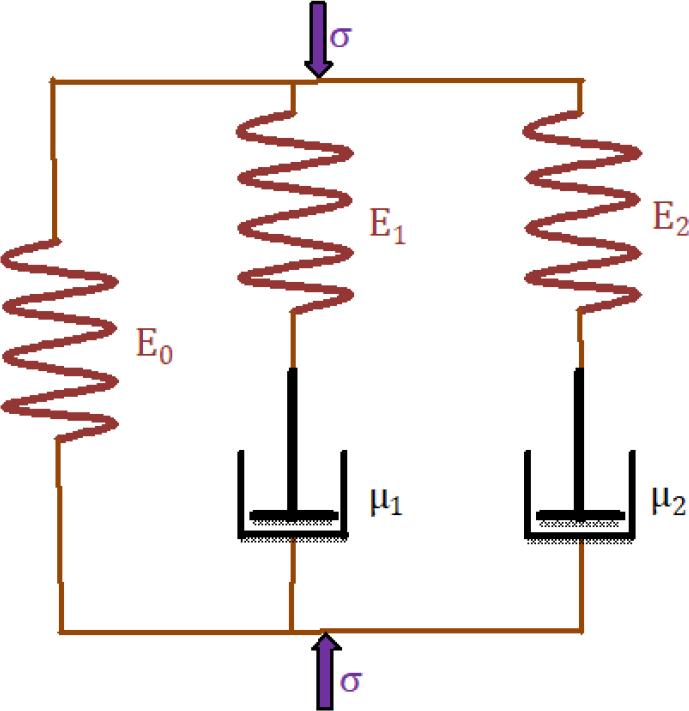

![Mechanical analogy of the five-parameter Maxwell-Wiechert model [14]](https://sciendo-parsed.s3.eu-central-1.amazonaws.com/694828ee7c29e05adc524c36/j_ama-2025-0067_fig_003.jpg?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Content-Sha256=UNSIGNED-PAYLOAD&X-Amz-Credential=ASIA6AP2G7AKHOSRDSYN%2F20251221%2Feu-central-1%2Fs3%2Faws4_request&X-Amz-Date=20251221T232346Z&X-Amz-Expires=3600&X-Amz-Security-Token=IQoJb3JpZ2luX2VjEBoaDGV1LWNlbnRyYWwtMSJGMEQCIBJrAYNgXa0TszaFPyjBdrmbqqwTbPBJcLzR70eUm5qUAiBW%2BrxrJwNeiR3Ftcd0SEFgcv80x4%2Bl7djiHoQJLOrogirEBQjj%2F%2F%2F%2F%2F%2F%2F%2F%2F%2F8BEAIaDDk2MzEzNDI4OTk0MCIMOX4wF%2FDC4s5HS0VaKpgFm14XBePPZB4vVKWuFQteVKqhsT4O06pfK%2B6v2YRYQZ3PA7mkdLZX%2FD3zegleJnvVxbpxOkrnk0dqUJhn4C4Y3%2Fk%2Bh4gIMTS%2Byse91rafH9nvQUZmiAm7Q0IVHlTN3L%2FpzBeSo7DXGNM7eBv8z322sf%2F4I7cT7jeoOeVAqbcowljETlhG16CC%2B90IMl6MbcV76zgmd82o9iO4A0sSLvSfvyEcqh6HGUvkM0W4gkv1e8GTiSXWzXvoxqpPOwib1sL6SP4GjKdThz9z%2FdXFIcyqQn7rRuTAzmbI9FE3hbqLRxxO5fHPRHsdrFI46W%2BQXy0ghw0miVDQcw820oOd5LkIP5Lq6eB7XG6Ee9Rb%2FKvkCnqUMEXwT70lvKThKeq55Ah0KN2bvte8DII9fnz8bG3X%2FNwjbJ54Eedwj970ECryXYx0c7%2BRJSd0vM%2B%2BOZQpY1MWgBGPRLMcgGKWbT9%2FqHfDn37xyBTzyvfGsULzLSjKd19ATQxCywAjPuYWyQfz3KUvz4%2F2qE17K4GKc93fFdZmH6tEo3c8W%2FmwUfQ%2FVpE6CpvBECeW6Ib8HNUCAxWjwtGO2X7YA7rUU9TayJG2NQUw%2Bxu2H3fIcqGRf9je1%2FZjdXmLcKqT820X5LRGu%2B%2FMhdwga1AFL2xXuLcmQ80iGHq8OChEqn3CvIYQ4wZ%2FJvjC1WWgHComwrUWzZl6SfMV7aoHJ6H3ZYNsLzY%2B3fDKFcU6Tn33q115YUo%2Faugp4wx16x90y1eM9r80nnRFX9x2LK23Dzd3NDiolGLXAlND0OaFkuqqg4zkbWG5o36ONBedkoc%2FLPrfP7iZACA8NajlKl%2FJ12YnAjJyCBVVVfAVVXjvA%2F7RBmQD%2Fz5BctsYuAUHuusxUtgjR0NYMTCN6qDKBjqyAVFJNlsndigDgxVQGWhMNFuShqsXGjhAWqa9j0B2S6OmzvcmnZexdbr28%2Fe6AdLWEJmmBLtNemmXTC1ESONFTia3mUOpq9CXwrqLzD1vNt1zgleTqDLB8gcRhG20tW7uZAG2acXZnZajextDNZ4jmrG6T3zPa0T1JFKaiKd8VNR6shHWINNBQiQNY1YCgJQGmUTzbr0vob%2FrFLzaXlC8cijOep1GkMSzOQxEZxvKNCRZ3ug%3D&X-Amz-Signature=4a1e2d85c42271e69454746632190ffe0f935bc2a0b92f4dfb41acdcd9046ebd&X-Amz-SignedHeaders=host&x-amz-checksum-mode=ENABLED&x-id=GetObject)
Fig. 4.
Fig. 5.
Fig. 6.
Fig. 7.
Fig. 8.
Constant technological parameters used in the study
| Parameter | Value |
|---|---|
| Infill density, % | 100 |
| Infill pattern | Rectilinear |
| Speed, mm/s | 30 |
| Bed temperature, °C | 50 |
L27 orthogonal matrix
| No. | A | B | C | D | E |
|---|---|---|---|---|---|
| 1 | 1 | 1 | 1 | 1 | 1 |
| 2 | 1 | 1 | 2 | 2 | 2 |
| 3 | 1 | 1 | 3 | 3 | 3 |
| 4 | 1 | 2 | 1 | 2 | 2 |
| 5 | 1 | 2 | 2 | 3 | 3 |
| 6 | 1 | 2 | 3 | 1 | 1 |
| 7 | 1 | 3 | 1 | 3 | 3 |
| 8 | 1 | 3 | 2 | 1 | 1 |
| 9 | 1 | 3 | 3 | 2 | 2 |
| 10 | 2 | 1 | 1 | 2 | 3 |
| 11 | 2 | 1 | 2 | 3 | 1 |
| 12 | 2 | 1 | 3 | 1 | 2 |
| 13 | 2 | 2 | 1 | 3 | 1 |
| 14 | 2 | 2 | 2 | 1 | 2 |
| 15 | 2 | 2 | 3 | 2 | 3 |
| 16 | 2 | 3 | 1 | 1 | 2 |
| 17 | 2 | 3 | 2 | 2 | 3 |
| 18 | 2 | 3 | 3 | 3 | 1 |
| 19 | 3 | 1 | 1 | 3 | 2 |
| 20 | 3 | 1 | 2 | 1 | 3 |
| 21 | 3 | 1 | 3 | 2 | 1 |
| 22 | 3 | 2 | 1 | 1 | 3 |
| 23 | 3 | 2 | 2 | 2 | 1 |
| 24 | 3 | 2 | 3 | 3 | 2 |
| 25 | 3 | 3 | 1 | 2 | 1 |
| 26 | 3 | 3 | 2 | 3 | 2 |
| 27 | 3 | 3 | 3 | 1 | 3 |

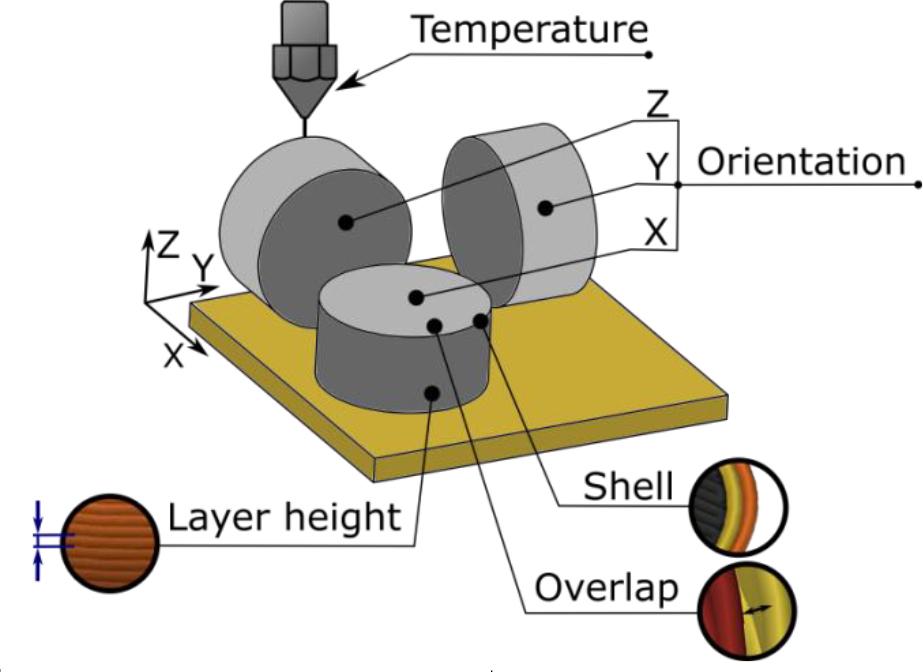

Levels of variability of input factors
| Parameter | Level | |||
|---|---|---|---|---|
| 1 | 2 | 3 | ||
| A | Layer height, mm | 0.1 | 0.2 | 0.3 |
| B | Shell | 2 | 9 | 16 |
| C | Temperature, °C | 190 | 200 | 210 |
| D | Orientation | X | Y | Z |
| E | Overlap | 15 | 40 | 65 |
Modulus of elasticity and dynamic viscosity coefficients in PLA Active material
| Number of the experiment | E0, MPa | E2, MPa | E2, MPa | μ1, MPa · s | μ2, MPa · s |
|---|---|---|---|---|---|
| 1 | 103.3 | 1.1 | 1.0 | 12 | 215 |
| 2 | 98.3 | 1.2 | 1.2 | 14 | 260 |
| 3 | 100.7 | 1.0 | 0.9 | 11 | 188 |
| 4 | 102.9 | 1.2 | 1.2 | 13 | 261 |
| 5 | 104.2 | 1.0 | 1.0 | 12 | 266 |
| 6 | 99.9 | 1.6 | 1.5 | 18 | 328 |
| 7 | 102.5 | 1.3 | 1.7 | 19 | 476 |
| 8 | 101.5 | 1.4 | 1.3 | 16 | 301 |
| 9 | 104.7 | 1.0 | 1.0 | 12 | 266 |
| 10 | 94.3 | 1.4 | 1.4 | 17 | 340 |
| 11 | 104.8 | 1.3 | 1.2 | 14 | 236 |
| 12 | 102.6 | 1.3 | 1.1 | 14 | 201 |
| 13 | 91.7 | 2.5 | 2.3 | 27 | 458 |
| 14 | 102.0 | 1.4 | 1.2 | 15 | 222 |
| 15 | 101.4 | 1.5 | 1.3 | 17 | 264 |
| 16 | 102.4 | 1.3 | 1.1 | 14 | 207 |
| 17 | 98.3 | 1.7 | 1.6 | 20 | 341 |
| 18 | 100.2 | 1.5 | 1.4 | 18 | 332 |
| 19 | 102.9 | 1.3 | 1.2 | 15 | 275 |
| 20 | 91.3 | 2.4 | 2.1 | 25 | 434 |
| 21 | 101.0 | 1.8 | 1.6 | 20 | 317 |
| 22 | 95.7 | 2.4 | 2.8 | 34 | 703 |
| 23 | 92.5 | 2.6 | 2.5 | 35 | 586 |
| 24 | 89.5 | 2.7 | 2.7 | 35 | 608 |
| 25 | 89.8 | 2.7 | 2.4 | 29 | 510 |
| 26 | 85.7 | 2.4 | 2.5 | 30 | 565 |
| 27 | 85.7 | 2.4 | 2.5 | 30 | 565 |
Influence of input factors and their levels of variation on the parameters characterising the Maxwell-Wiechert model
| Par. | Unit | Level | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| E0 | MPa | 1 | 102.0 | 99.9 | 98.4 | 98.2 | 98.3 |
| 2 | 99.7 | 97.7 | 97.6 | 98.1 | 99.0 | ||
| 3 | 92.7 | 96.7 | 98.4 | 98.0 | 97.1 | ||
| E1 | MPa | 1 | 1.2 | 1.4 | 1.7 | 1.7 | 1.8 |
| 2 | 1.6 | 1.9 | 1.7 | 1.7 | 1.5 | ||
| 3 | 2.3 | 1.8 | 1.6 | 1.7 | 1.7 | ||
| E2 | MPa | 1 | 1.2 | 1.3 | 1.7 | 1.6 | 1.7 |
| 2 | 1.4 | 1.8 | 1.6 | 1.6 | 1.5 | ||
| 3 | 2.3 | 1.7 | 1.6 | 1.7 | 1.7 | ||
| μ1 | MPa·s | 1 | 14.1 | 15.8 | 20.2 | 19.9 | 21.0 |
| 2 | 17.4 | 23.0 | 20.0 | 19.6 | 18.0 | ||
| 3 | 28.2 | 20.9 | 19.4 | 20.2 | 20.6 | ||
| μ2 | MPa·s | 1 | 284.5 | 273.9 | 382.8 | 352.9 | 364.7 |
| 2 | 288.9 | 410.6 | 356.5 | 349.3 | 318.2 | ||
| 3 | 506.9 | 395.8 | 341.0 | 378.1 | 397.4 |

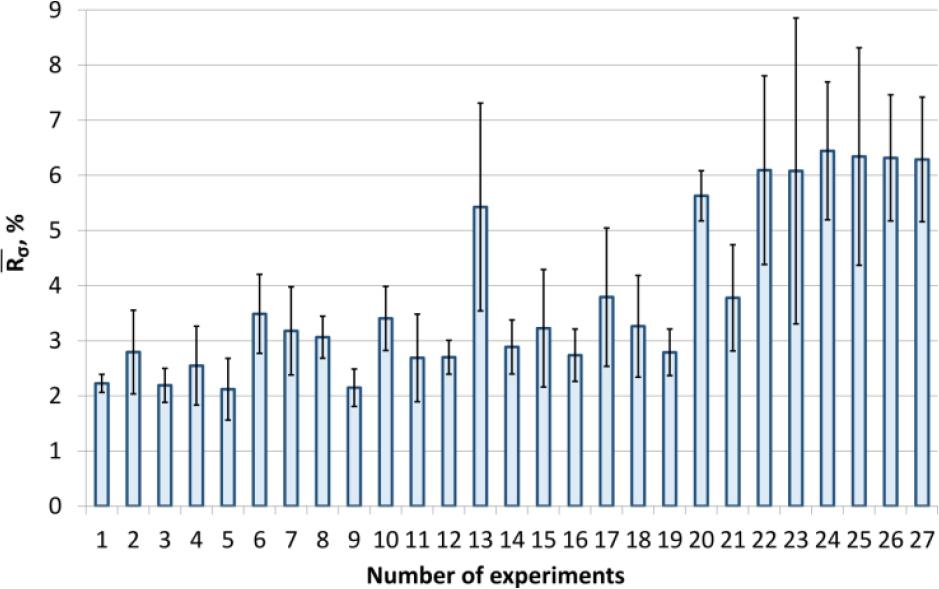

Influence of input factors and their levels of variation on the percentage decrease in stress over time
| Param. Level | 1 | 2 | 3 |
|---|---|---|---|
| A | 2.64 | 3.35 | 5.53 |
| B | 3.13 | 4.26 | 4.13 |
| C | 3.86 | 3.93 | 3.73 |
| D | 3.90 | 3.79 | 3.82 |
| E | 4.04 | 3.49 | 3.99 |
PLACTIVE properties [36]
| Mechanical properties | Value | Test method |
|---|---|---|
| Tensile Yield Strength | 60 MPa | D882 |
| Tensile Strength at Break | 53 MPa | |
| Tensile Modulus | 3.6 GPa | |
| Tensile Elongation | 6 % | |
| Flexural Strength | 83 MPa | D790 |
| Flexural Modulus | 3.8 GPa |
