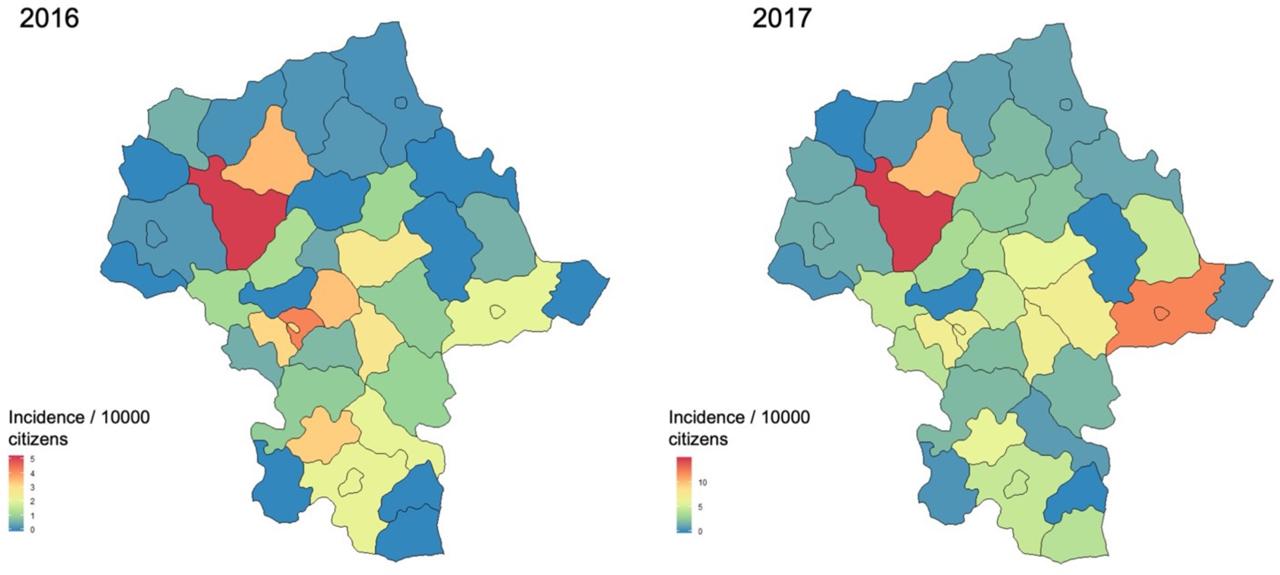

Fig. 1

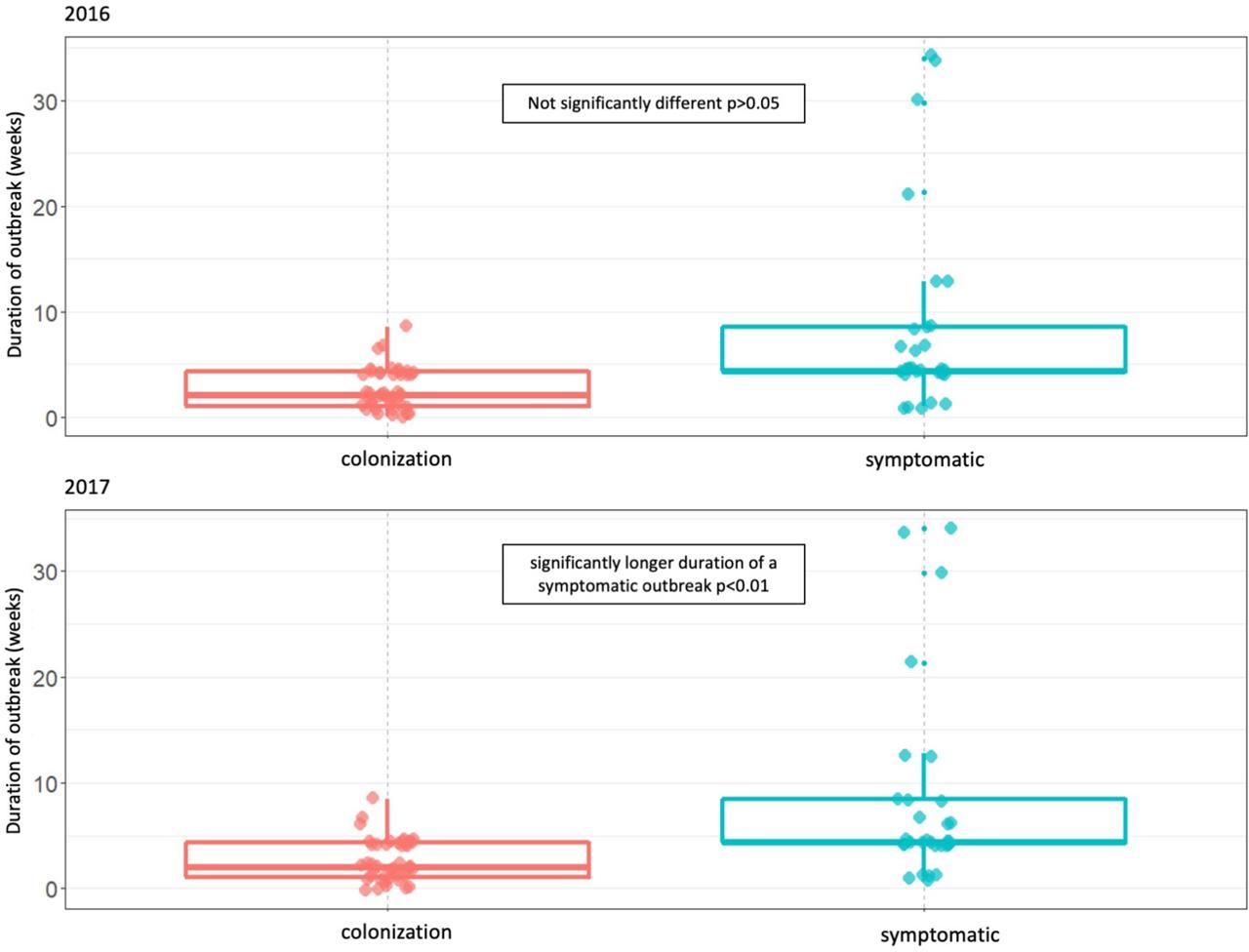

Fig. 2
Fig. 3
Transmission of K_ pneumoniae NDM in the Mazovian Voivodeship in 2016–2017
| K. pneumoniae NDM transmissions and number of affected patients | 2016 | 2017 |
|---|---|---|
| Transmissions | 50 (100%) | 74 (100%) |
| Symptomatic transmissions | 19 (38%) | 31 (42%) |
| Colonization transmissions | 31 (62%) | 43 (58%) |
| Patients with transmission of infection | 360 (100%) | 602 (100%) |
| Symptomatic patients | 79 (22%) | 138 (23%) |
| Patients with transmission of colonization | 281 (78%) | 464 (77%) |
The occurrence of K_ pneumoniae NDM transmissions by hospital department in 2016–2017
| 2016 | 2017 | |||
|---|---|---|---|---|
| Department | Number of symptomatic transmissions | Number of colonization transmissions | Number of symptomatic transmissions | Number of colonization transmissions |
| Total | 19 (100%) | 31 (100%) | 31 (100%) | 43 (100%) |
| Surgery | 3 (15.8%) | 8 (25.8%) | 3 (9.68%) | 7 (16.3%) |
| Neurology | 7 (36.8%) | 1 (3.2%) | 4 (12.90%) | 5 (11.6%) |
| Neonatology | 0 (0%) | 1 (3.2%) | 0 (0%) | 1 (2.3%) |
| Intensive care unit | 0 (0%) | 5 (16.1%) | 13 (41.9%) | 9 (20.9%) |
| Psychiatry | 1 (5.3%) | 2 (6.4%) | 1 (3.2%) | 1 (2.3%) |
| Internal medicine | 8 (42.1%) | 14 (45.2%) | 10 (32.3%) | 20 (46.5%) |
