Influence of Organic Solvents and β-cyclodextrins on Capillary Zone Electrophoresis Separation of Five Biogenic Amines and Two B Vitamins Cover

Influence of Organic Solvents and β-cyclodextrins on Capillary Zone Electrophoresis Separation of Five Biogenic Amines and Two B Vitamins

European Pharmaceutical Journal
Volume 69 (2022): Issue 1 (January 2022)
By: ,  ,  ,  ,  ,   and
Open Access
|Aug 2022
Figures & tables

Figures & Tables

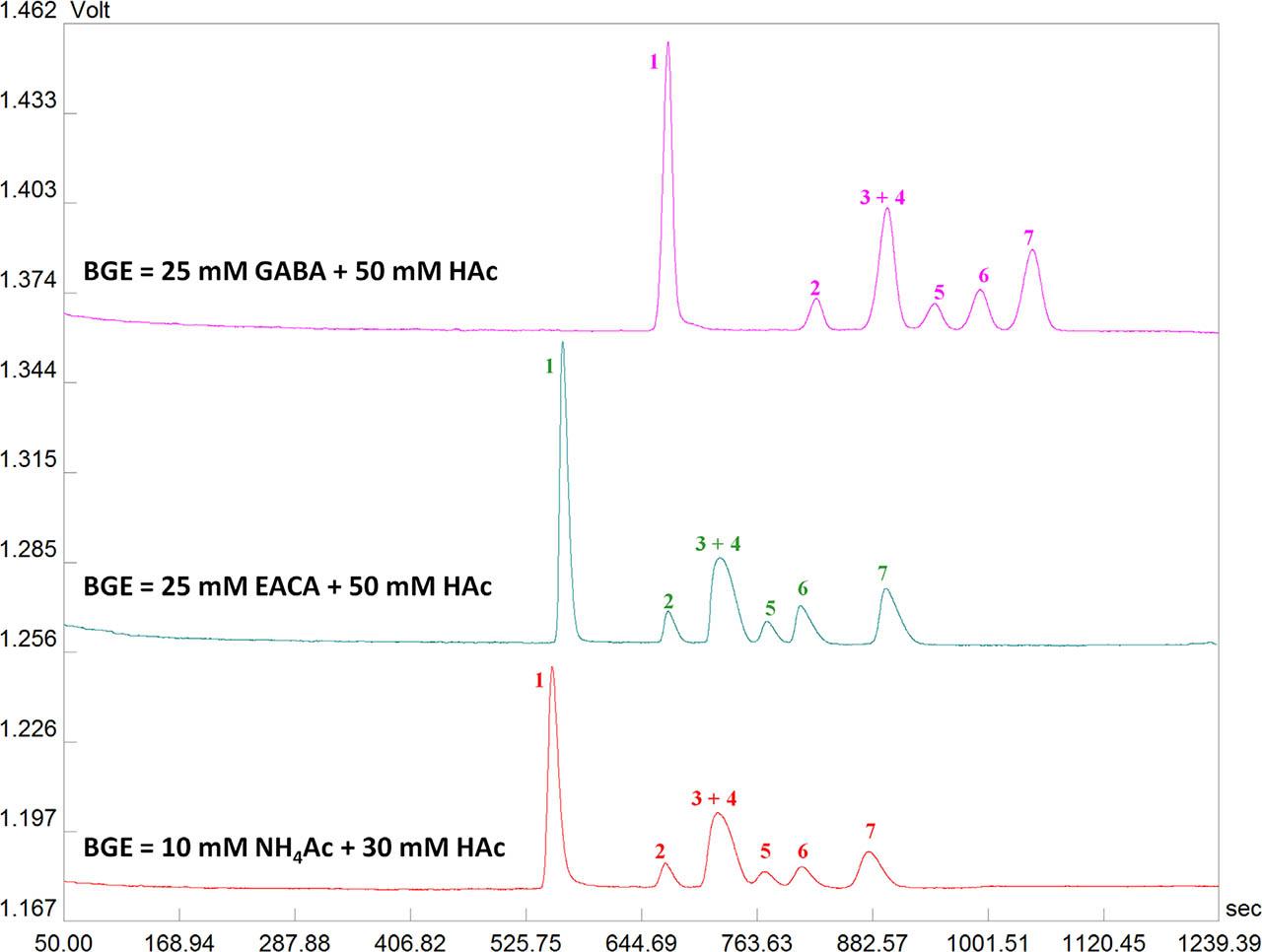

Figure 1

Optimisation of the background electrolyte (BGE) composition. 1 = thiamine hydrochloride (THI), 2 = tyramine hydrochloride (TYR), 3 = dopamine hydrochloride (DOP), 4 = 5-hydroxytryptamine hydrochloride (5-HT), 5 = noradrenaline hydrochloride (NOR), 6 = adrenaline hydrochloride (ADR), 7 = pyridoxine hydrochloride (PYR). Concentration of the analytes in the sample was 10 μg/mL−1. Applied separation current was 50 μA. For more operation conditions see the part Instrumentation.

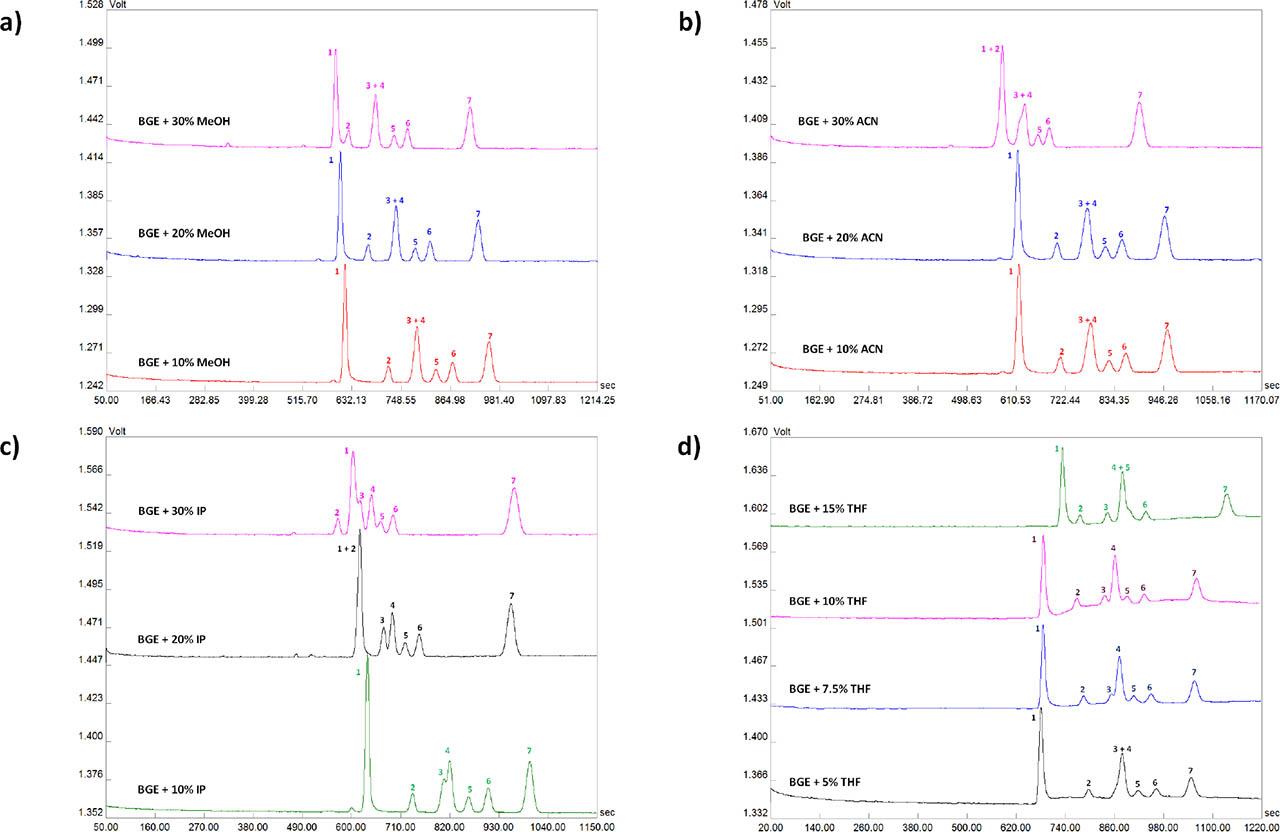

Figure 2

Effect of organic solvent addition into the background electrolyte (BGE) on the simultaneous separation of five biogenic amines and two B vitamins. (a) Addition of methanol (MeOH); (b) addition of acetonitrile (ACN); (c) addition of isopropanol (IP); (d) addition of tetrahydrofuran (THF). BGE = 25 mM GABA + 50 mM HAc + 0.1% mHEC. Concentration of the analytes in the sample was 10 μg/mL−1. Applied separation current was 50 μA. 1 = thiamine hydrochloride (THI), 2 = tyramine hydrochloride (TYR), 3 = dopamine hydrochloride (DOP), 4 = 5-hydroxytryptamine hydrochloride (5-HT), 5 = noradrenaline hydrochloride (NOR), 6 = adrenaline hydrochloride (ADR), 7 = pyridoxine hydrochloride (PYR). For more operation conditions, see the “Instrumentation” section.

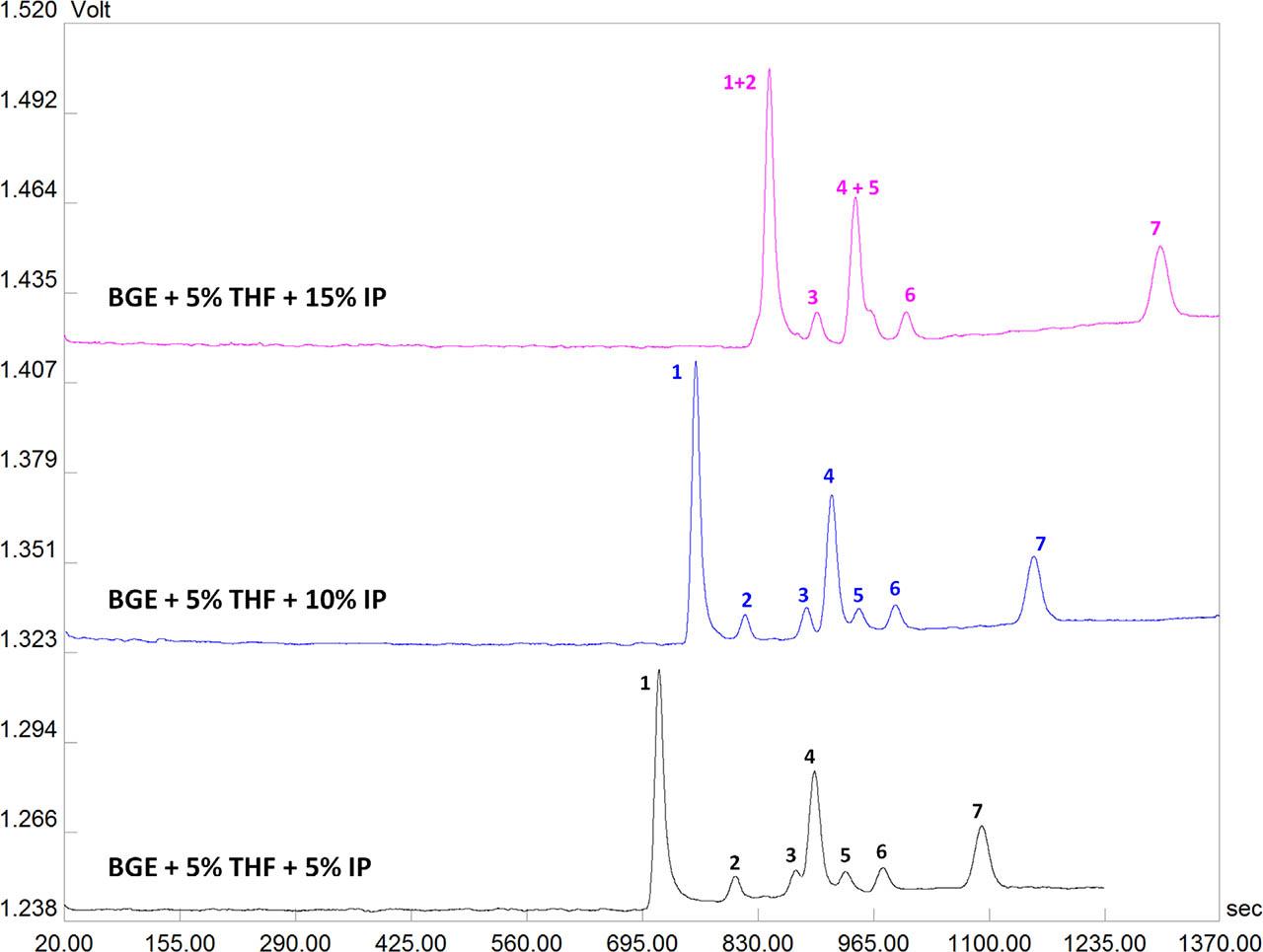

Figure 3

Effect of simultaneous addition of tetrahydrofuran (THF) and isopropanol (IP) into the background electrolyte (BGE) on the separation of five biogenic amines and two B vitamins. BGE = 25 mM GABA + 50 mM HAc + 0.1% m-HEC. Concentration of the analytes in the sample was 10 μg/mL−1. Applied separation current was 50 μA. 1 = thiamine hydrochloride (THI), 2 = tyramine hydrochloride (TYR), 3 = dopamine hydrochloride (DOP), 4 = 5-hydroxytryptamine hydrochloride (5-HT), 5 = noradrenaline hydrochloride (NOR), 6 = adrenaline hydrochloride (ADR), 7 = pyridoxine hydrochloride (PYR). For other operation conditions, see the “Instrumentation” section.

Figure 4

Effect of CE-β-CD addition into the background electrolyte (BGE) on the simultaneous separation of five biogenic amines and two B vitamins. (a) Addition of CE-β-CD at various concentration levels; (b) addition of CE-β-CD at 1 mg/mL−1 concentration level and isopropanol; (c) addition of CE-β-CD at 2 mg/mL−1 concentration level and isopropanol; (d) addition of CE-β-CD at 2.5 mg/mL−1 concentration level and isopropanol. BGE = 25 mM GABA + 50 mM HAc + 0.1% mHEC. Concentration of the analytes in the sample was 10 μg/mL−1. Applied separation current was 50 μA. 1 = thiamine hydrochloride (THI), 2 = tyramine hydrochloride (TYR), 3 = dopamine hydrochloride (DOP), 4 = 5-hydroxytryptamine hydrochloride (5-HT), 5 = noradrenaline hydrochloride (NOR), 6 = adrenaline hydrochloride (ADR), 7 = pyridoxine hydrochloride (PYR). For more operation conditions, see the “Instrumentation” section.

Figure 5

Effect of HP-β-CD addition into the background electrolyte (BGE) on the simultaneous separation of five biogenic amines and two B vitamins. (a) Addition of HP-β-CD at various concentration levels; (b) addition of HP-β-CD at 5 mg/mL−1 concentration level and isopropanol; (c) addition of HP-β-CD at 10 mg/mL−1 concentration level and isopropanol; (d) addition of HP-β-CD at 15 mg/mL−1 concentration level and isopropanol. BGE = 25 mM GABA + 50 mM HAc + 0.1% mHEC. Concentration of the analytes in the sample was 10 μg/mL−1. Applied separation current was 50 μA. 1 = thiamine hydrochloride (THI), 2 = tyramine hydrochloride (TYR), 3 = dopamine hydrochloride (DOP), 4 = 5-hydroxytryptamine hydrochloride (5-HT), 5 = noradrenaline hydrochloride (NOR), 6 = adrenaline hydrochloride (ADR), 7 = pyridoxine hydrochloride (PYR). For more operation conditions, see the “Instrumentation” section.

Table 1

Selected operation and validation parameters of the proposed CZE-UV method.

THITYRDOP5-HTNORADRPYR
tm (min)12.0912.9514.0914.6015.0615.7318.44
RSDtm (%), n=60.240.020.110.120.100.070.21
RSDarea (%), n=61.824.308.215.474.764.271.67
Calibration equationy=104.03x + 77.112y=15.15x − 3.721y=9.64x + 8.563y=44.70x + 11.626y=7.27x − 8.347y=12.43x − 5.641y=38.48x − 3.648
r20.99940.99910.99570.99960.99240.99790.9995
Linear range0.5 – 502.5 – 502.5 – 500.5 – 502.5 – 502.5 – 500.5 – 50
LOD (μg.mL−1)0.151.251.250.251.251.250.25
LOQ (μg.mL−1)0.52.52.50.52.52.50.5
N31729287532781328162298802232727182
R2.993.571.471.321.766.27

[i] tm – migration time, RSDtm – relative standard deviation of migration time, RSDarea – relative standard deviation of peak area, LOD – limit of detection, LOQ – limit of quantification, N – separation efficiency, R – resolution. Separation efficiency (N) was calculated according to the equation N = 5.545*(tm/w1/2)2, where tm is the migration time and w1/2 is the full width at half maximum of the peak. Resolution (R) was calculated according to the equation R = 1.18*(tmB – tmA)/(w1/2A + w1/2B), where tmA and tmB represent migration times of analyte A and B, and w1/2A and w1/2B represent the full width of the peaks A and B at their half maximum. The calibration curve is expressed by the equation y = b.x + a. RSDtm and RSDarea were calculated from the samples at LOQ concentration level. LOD and LOQ were calculated as the signal (S) to noise (N) ratios to be 3xS/N and 10xS/N, respectively.

Table 2

Accuracy and precision data obtained by the CZE-UV method.

Intra-day, n = 5
Found (μg.mL−1)RSD (%)% Nom.
Nominal (μg.mL−1)THITYRDOP5-HTNORADRPYRTHITYRDOP5-HTNORADRPYRTHITYRDOP5-HTNORADRPYR
0.50.54--0.43--0.568.2--10.7--15.5108.1--86.8--112.1
11.09--1.02--0.9913.1--8.2--10.6108.5--101.6--99.4
2.52.772.642.072.422.952.842.5911.08.615.14.28.94.45.4110.7105.582.997.0117.8113.5103.7
54.975.004.955.064.974.995.103.58.27.71.913.43.33.899.4100.198.9101.299.599.8101.9
109.239.2110.219.779.719.549.221.21.58.02.72.34.81.792.392.1102.197.797.195.492.2
2525.4725.9926.1525.5124.0825.1125.011.01.66.50.41.20.41.7101.9104.0104.6102.096.3100.5100.0
5049.9149.6549.4249.7950.4850.0250.100.42.13.41.22.64.00.599.899.398.999.6101.0100.1100.2
Inter-day, n = 15
Found (μg.mL−1)RSD (%)% Nom.
Nominal (μg.mL−1)THITYRDOP5-HTNORADRPYRTHITYRDOP5-HTNORADRPYRTHITYRDOP5-HTNORADRPYR
0.50.57--0.44--0.5910.7--15.0--13.4113.5--87.6--117.8
10.96--1.02--1.0014.7--11.7--8.195.7--102.3--99.6
2.52.612.602.152.423.022.982.4910.114.818.33.86.212.56.9104.5103.985.896.8120.8119.299.6
55.215.054.764.865.335.345.235.65.68.84.811.111.112.0104.3100.993.897.1106.6106.9104.6
109.729.5610.6210.119.709.189.655.74.18.84.32.67.15.697.295.6106.2101.197.091.896.5
2525.5425.4426.1925.4223.4024.7824.810.93.25.50.96.62.01.7102.2101.8104.7101.793.699.199.2
5049.7749.8649.3649.7950.7950.2250.140.42.02.71.02.43.00.999.599.798.799.6101.6100.4100.3
Table 3

Stability study of the analytes performed under various storage conditions.

% difference from the initial concentration, n = 5
20°C4°C−20°C−80°C
c (μg.mL−1)2.515302.515302.515302.51530
THI−8.60.70.6−0.9−4.4−1.30.26−2.43.80.50.20.2
TYR−13.86.5−2.49.88.1−4.23.114.52.51.01.4−4.6
DOP−9.4−0.60.42.4−2.60.33.3−2.44.2−8.6−0.71.0
5−HT2.40.10.74.2−1.21.20.50.72.60.43.31.6
NOR2.02.76.3−2.8−0.49.1−5.01.52.7−14.66.55.0
ARD−1.11.42.4−1.0−7.1−1.63.32.72.0−7.07.52.3
PYR1.8−1.2−3.43.1−9.0−1.0−2.8−10.7−1.40.7−8.1−0.6
