Digital Survey of the Late 1960's Villa in Ustroń: Creating a Virtual Model of a Heritage Site of Polish Post-War Modernist Architecture Cover

Digital Survey of the Late 1960's Villa in Ustroń: Creating a Virtual Model of a Heritage Site of Polish Post-War Modernist Architecture

Architecture, Civil Engineering, Environment
Volume 15 (2022): Issue 3 (September 2022)
By: Jakub Bródka and  Magdalena Wałek
Open Access
|Nov 2022

Figures & Tables

Figure 1

UAV photography showing the location of the General Jerzy Ziętek's Villa in Ustroń. Source: Elaborated by the authors
UAV photography showing the location of the General Jerzy Ziętek's Villa in Ustroń. Source: Elaborated by the authors

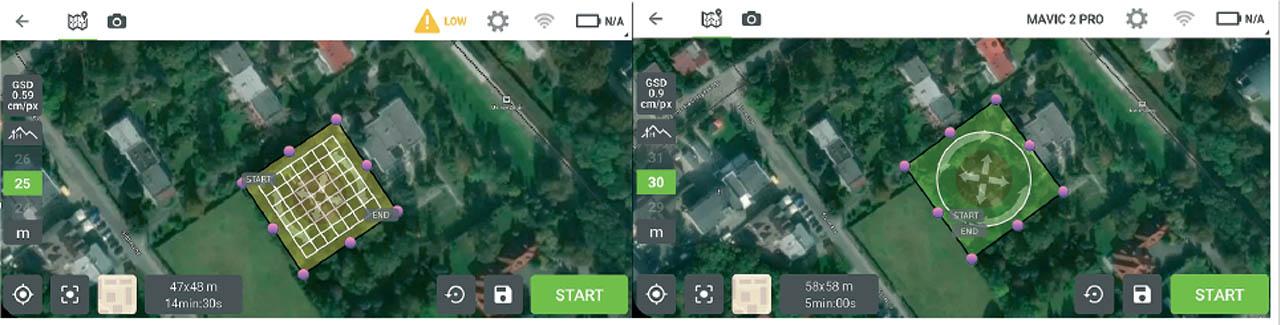

Figure 2

UAV flight plans in Pix4D software. Source: Elaborated by the authors
UAV flight plans in Pix4D software. Source: Elaborated by the authors

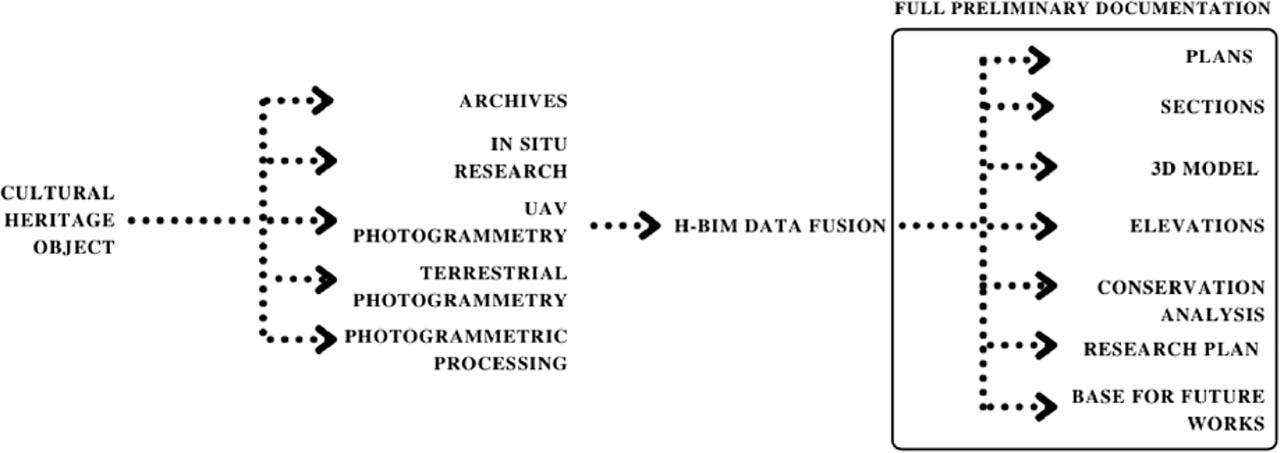

Figure 3

Diagram of the workflow for preliminary research. Source: Elaborated by the authors
Diagram of the workflow for preliminary research. Source: Elaborated by the authors

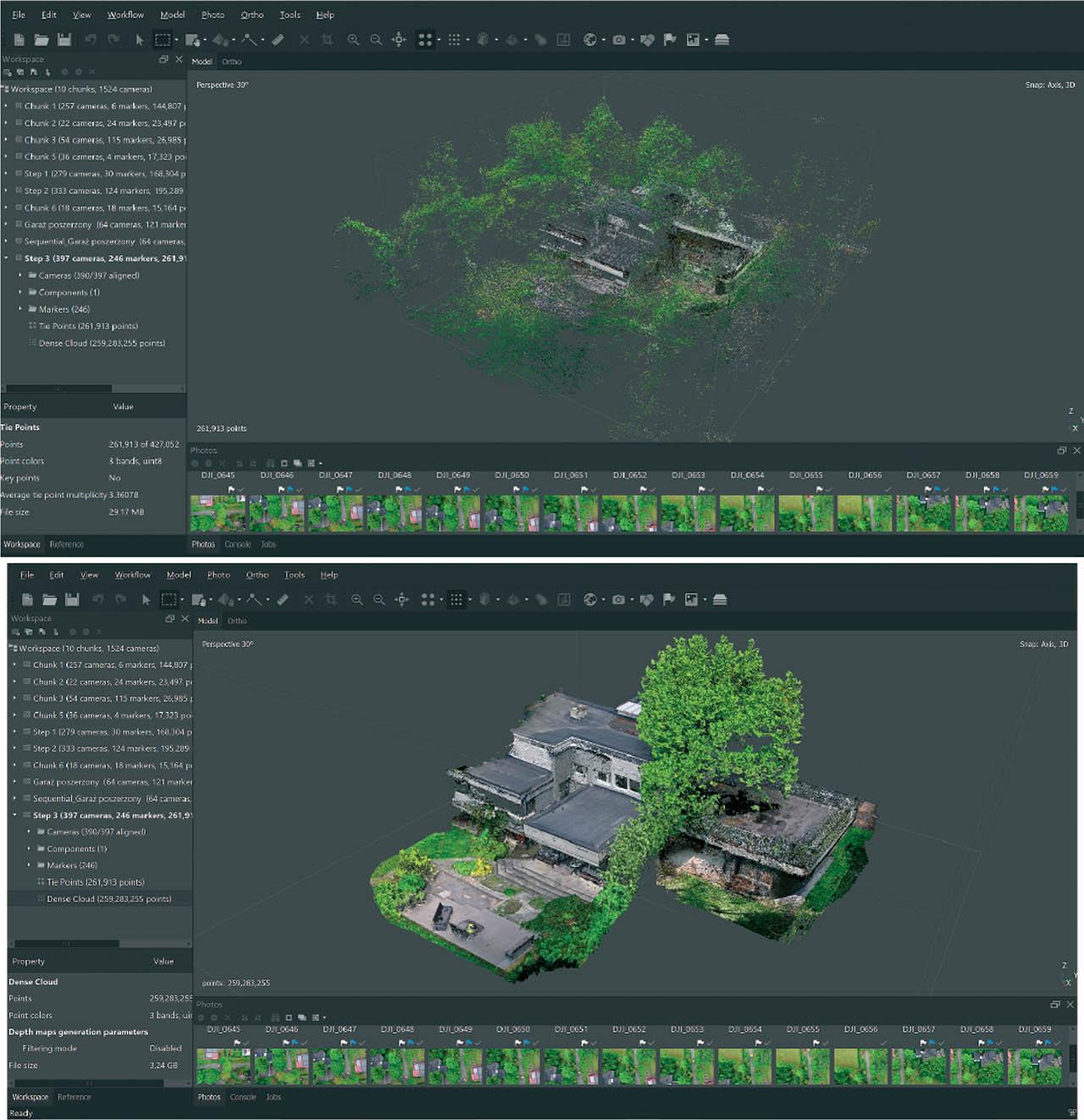

Figure 4

Photogrammetric model View of Tie Points and Dense Cloud. Source: Elaborated by the authors
Photogrammetric model View of Tie Points and Dense Cloud. Source: Elaborated by the authors

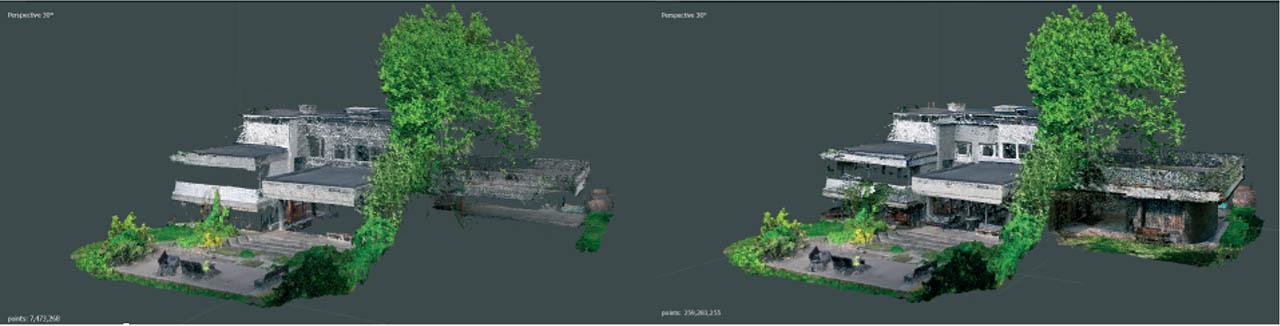

Figure 5

UAV model and combination of UAV and terrestrial point cloud. Source: Elaborated by the authors
UAV model and combination of UAV and terrestrial point cloud. Source: Elaborated by the authors

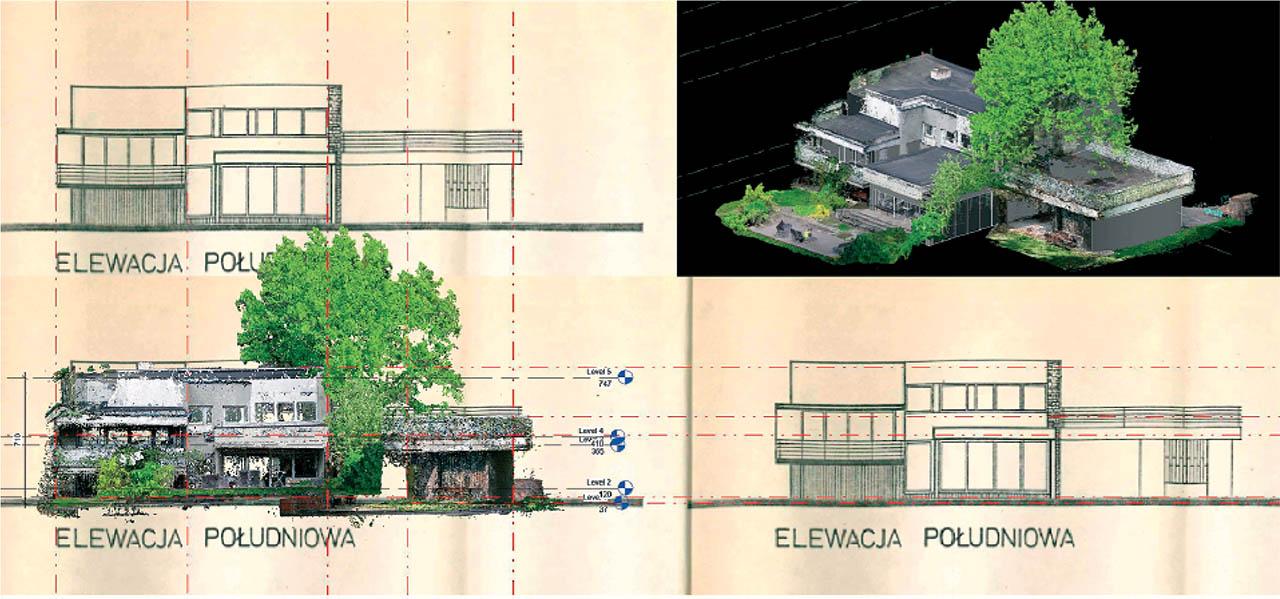

Figure 6

HBIM model obtained on the basis of point cloud and archival documentation
HBIM model obtained on the basis of point cloud and archival documentation

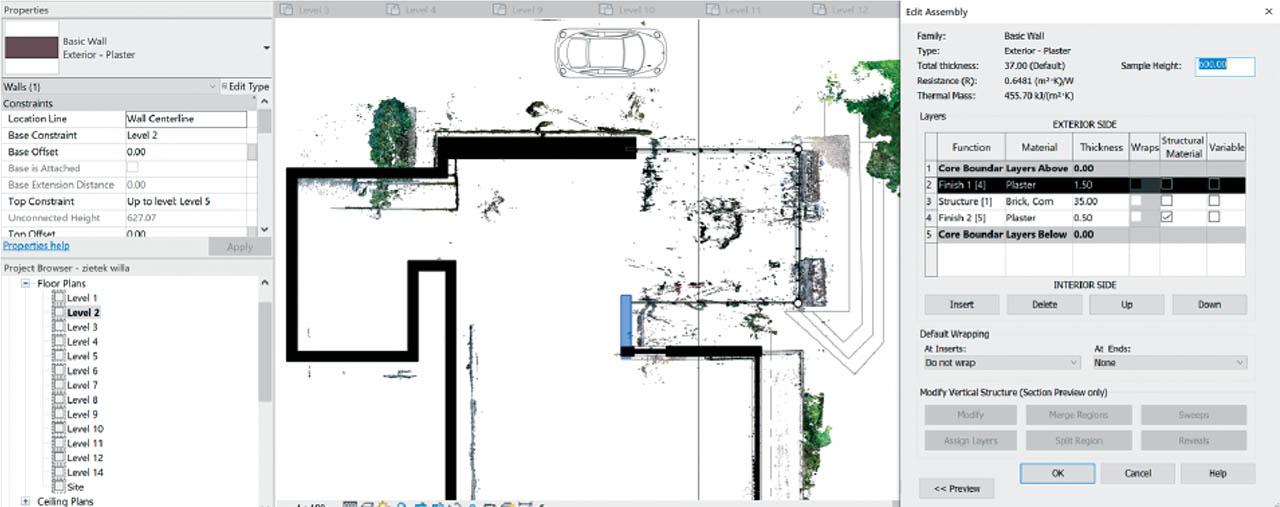

Figure 7

Wall family example
Wall family example

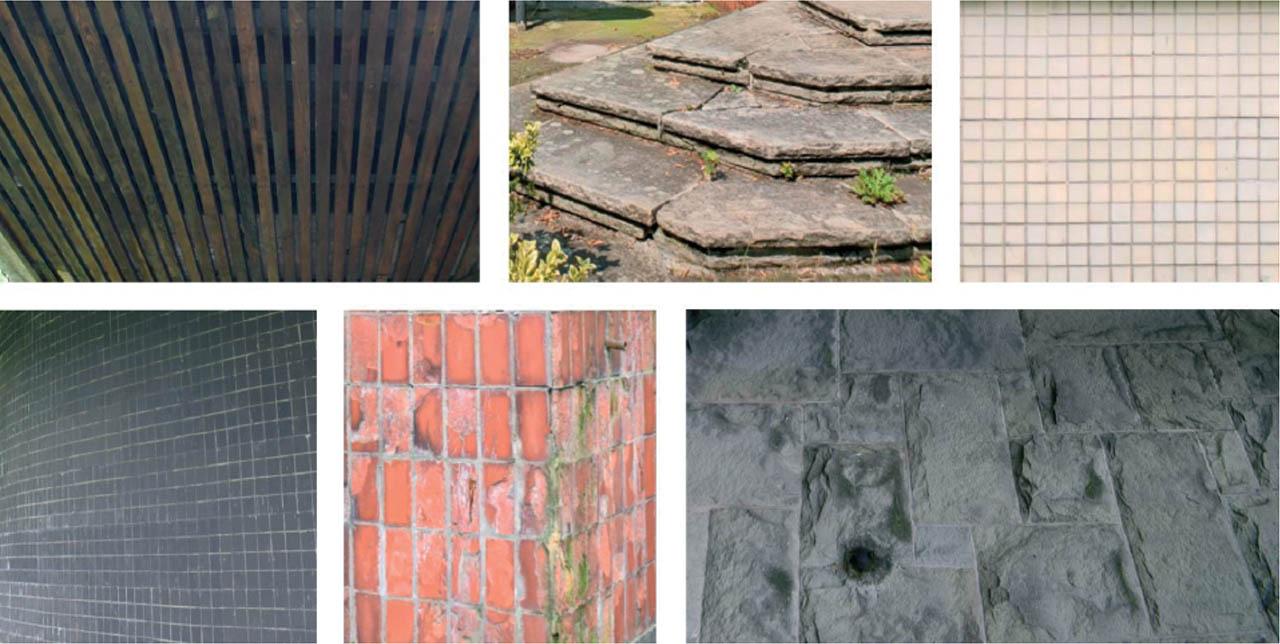

Figure 8

Richness of exterior surfaces. Source for Fig. 6–8: Elaborated by the authors
Richness of exterior surfaces. Source for Fig. 6–8: Elaborated by the authors

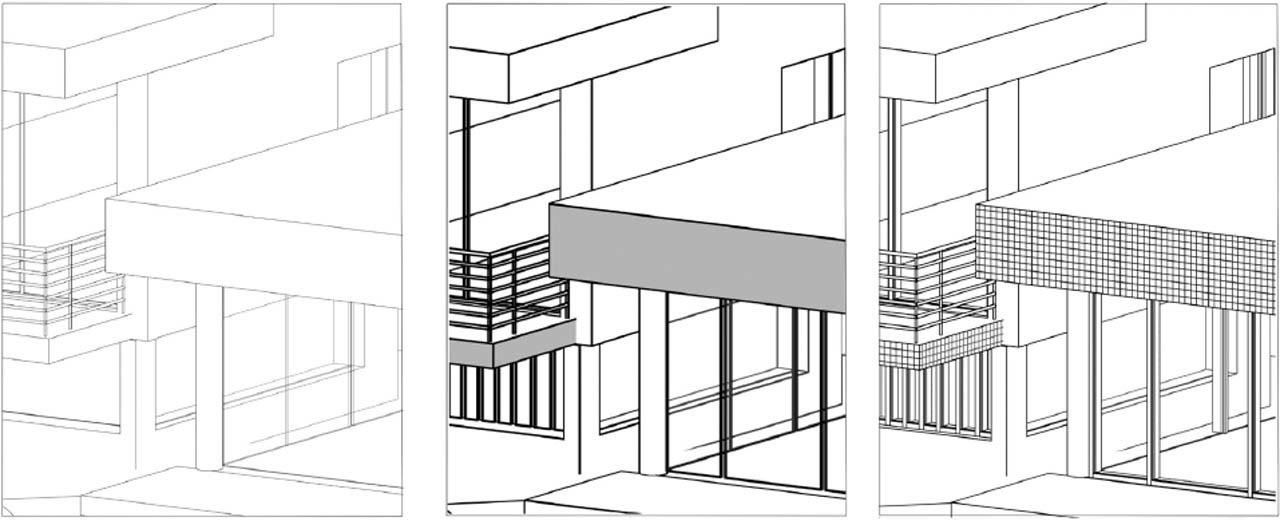

Figure 9

The three levels of graphic detail: generic, defined and detailed level. Source: Elaborated by the authors
The three levels of graphic detail: generic, defined and detailed level. Source: Elaborated by the authors

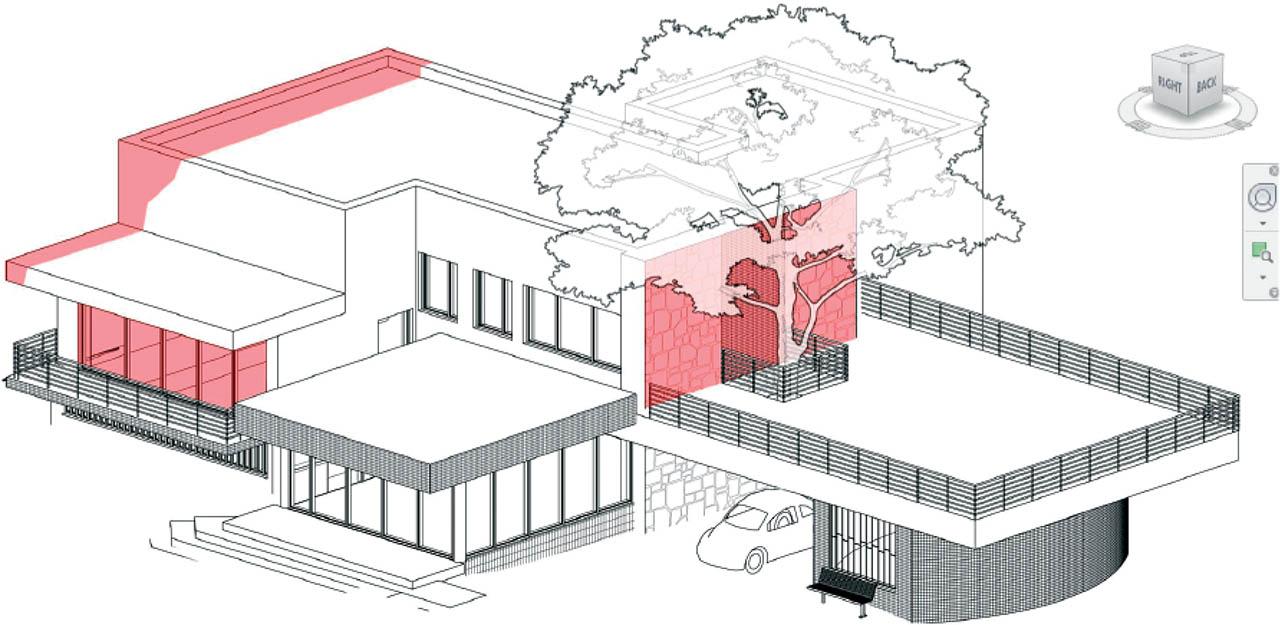

Figure 10

HBIM model of the villa with color marking of modelling assumptions. Source: Elaborated by the authors
HBIM model of the villa with color marking of modelling assumptions. Source: Elaborated by the authors

Comparison between UAV and Terrestrial Photogrammetry

ParticularsUAV PhotogrammetryTerrestrial Photogrammetry
Data acquisitionManual/Automatic/AssistedManual
Image resolutionHighHigh
Ground coveragem2 – km2m2
VisibilityHighly positioned elements, rooftops, walls, limited when it comes to hidden objects.Walls up to the rooftop, allows photographing hidden objects, no visibility of rooftops.
FlexibilityWeather – dependent, cannot fly to close to the objects around, problematic with too much greenery.Applicable in hazardous areas, works in cloudy, drizzly weather.
Price and operating costModerateLow – moderate
Geo-registration possibilityHigh qualityMedium quality
DOI: https://doi.org/10.2478/acee-2022-0027 | Journal eISSN: 2720-6947 | Journal ISSN: 1899-0142
Journal RSS Feed
Language: English
Page range: 13 - 22
Submitted on: Feb 1, 2022
Accepted on: Sep 2, 2022
Published on: Nov 11, 2022
Published by: Silesian University of Technology
In partnership with: Paradigm Publishing Services
Publication frequency: 4 issues per year
Keywords:
Architectural survey,
Cultural heritage,
HBIM,
Modernist architecture,
Photogrammetry,
Single-family housing,
UAV
