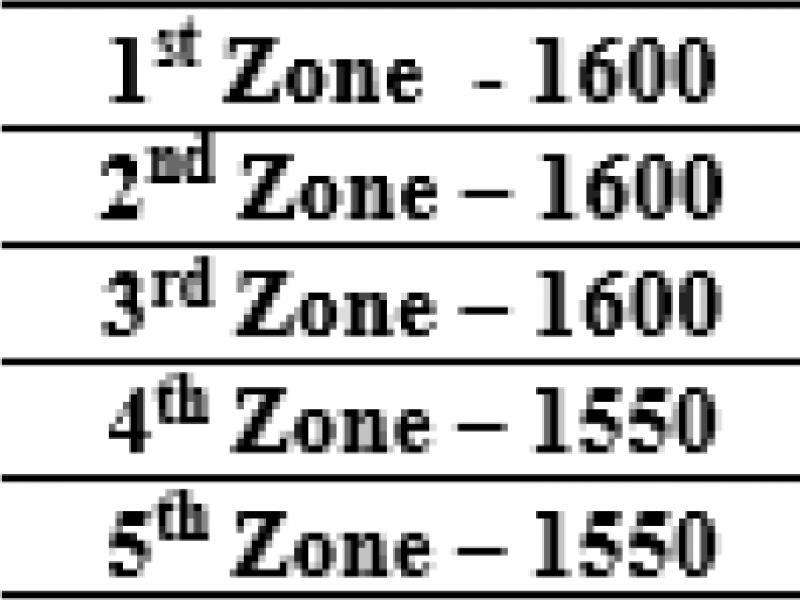

Figure 1.

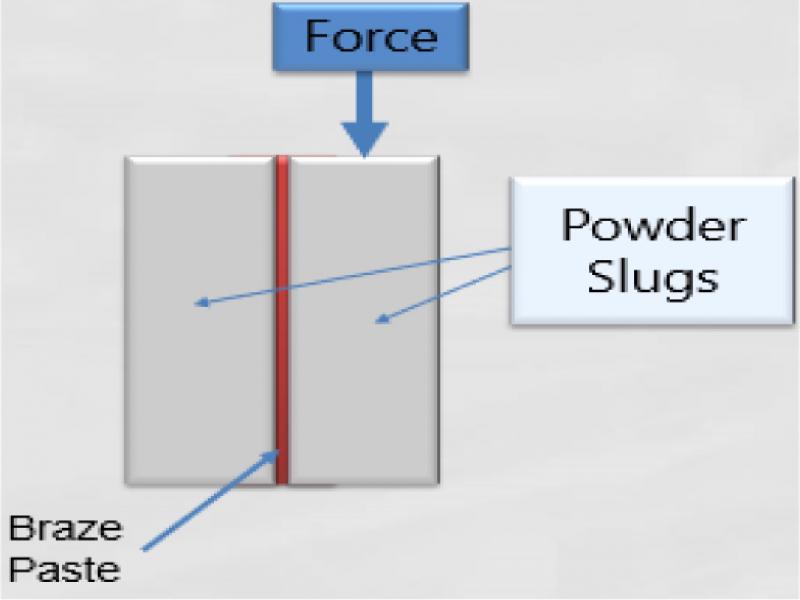

Figure 2.
MOLYBDENUM-NICKEL STEEL—PRE-ALLOYED—HEAT-TREATED
| Chemistry | Typical properties | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GRADE | C | Mn | Mo | Ni | Cu | Density g/cm3 | Tensile Strength ksi(MPa) | Yield Strength ksi(MPa) | Elongation % | Unnotched Impact Energy ft-lb (J) | Apparent Hardeness HRB |
| FL-4405-HT | 0.4-0 7 | 0.05-0.30 | 0.75-0.95 | – | – | 6.70 | 110(760) | ~UTS | <1 | 5.5 (7) | 24 |
DESCRIPTION OF TWO TESTING METAL POWDERS
| TYPE | GRADE | Description |
|---|---|---|
| Pre-alloyedSteel | FL-4405 | Low alloy steel with pre alloyed manganese, molybdenum and nickel content for better hardenability. |
| Hybrid-alloySteel | FLN2-4405, FLN4-4400, FLN4-4405, FLN6-4405, FLNC-4405, | Low alloy steel with pre alloyed molybdenum and admixed nickel and copper for better compressibility. |
MOLYBDENUM- NICKEL-STEEL- PRE ALLOYED- AS SINTERED
| Chemistry | Typical properties | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GRADE | C | Mn | Mo | Ni | Cu | Density g/cm3 | Tensile Strength ksi(MPa) | Yield Strength ksi(MPa) | Elongation % | Unnotched Impact Energy ft-lb (J) | Apparent Hardeness HRB |
| FL-4405 | 0.4-07 | 0.05-0.30 | 0.75-0.95 | – | – | 6.70 | 52 (360) | 42 (290] | 1 | 6(3) | 60 |
SHEAR STRENGTH OF DIFFERENT JOINTS
| Shear Strength (psi) Summary | ||
|---|---|---|
| Powder | 714080-99 RoHS Compliant | EXP6778-99 |
| 1000101 | 2643.4 | 5018.3 |
| 1000101HT | 2405.6 | 6230.5 |
| 1000111 | 3998.5 | 7118.6 |
