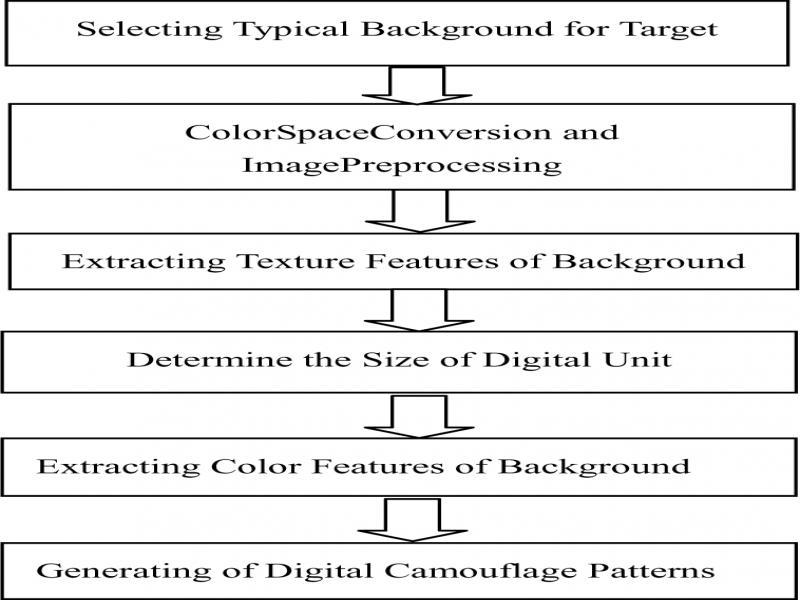

Figure 1.
Design flow of Digital Camouflage
TABLE I.
FORMULATION OF INORGANIC PIGMENT PRINTING COATING ON WOODLAND TYPE
| Camouflage type | Woodland | ||||
|---|---|---|---|---|---|
| Item | Forest green (g) | Medium green (g) | Kelly (g) | Black (g) | |
| Raw material | Polyacrylate emulsion | 40 | 40 | 40 | 40 |
| Homemade green pigment | 35 | 30 | 28 | 15 | |
| Iron yellow | / | 5 | 7 | / | |
| Iron red | / | / | / | / | |
| Iron black | / | / | / | 20 | |
| Additive | 8 | 8 | 8 | 8 | |
| Water | 17 | 17 | 17 | 17 | |

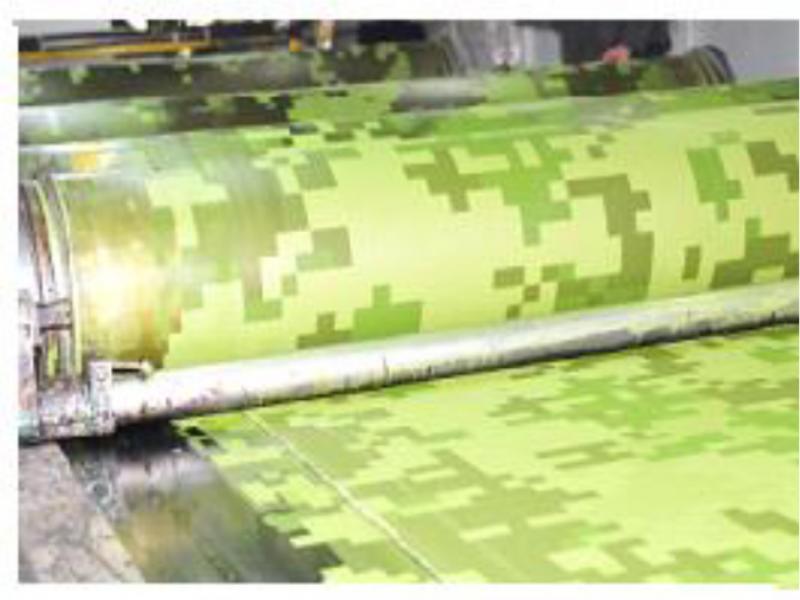

Figure 2.
Paint printing of tent cloth

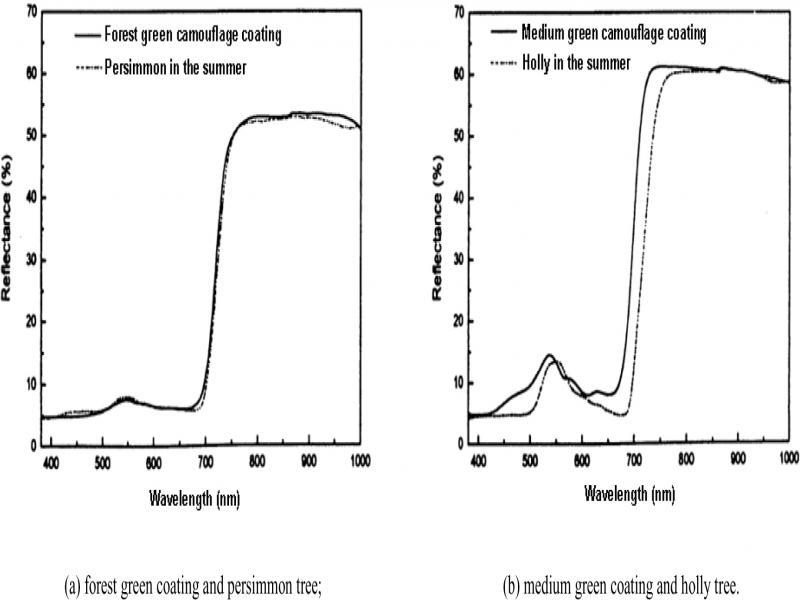

Figure 3.
Spectral reflectance of forest/medium green coatings and plants.
Figure 4.
Woodland type camouflage effect
