Finding the ‘Magic’ in Programming Games: A Critical Digital Humanities Approach to Studying Video Game Code

Phase	Step	Description
1	Play Analysis	Playing the game and noting what affordances are offered to the player in order to be able to play the game.
	Formation of Ludemes	Reviewing notes and clustering of mechanical and aesthetic aspects into small units of gameplay.
2	Distant Reading Code	Exploring the entire codebase with the help of text manipulation tools according to the ludemic vocabulary.
	Mapping Ludemes in Code	Sorting the findings into a format which can be reviewed and analysed towards its structures.
3	Close Reading Code	Reading through findings regarding stylistic and semantic values.
	Analysis of Findings	Contextualising findings and relating them within the given structures and their paratextual material. Critical analysis in relation to the research questions and semiotic transfers.

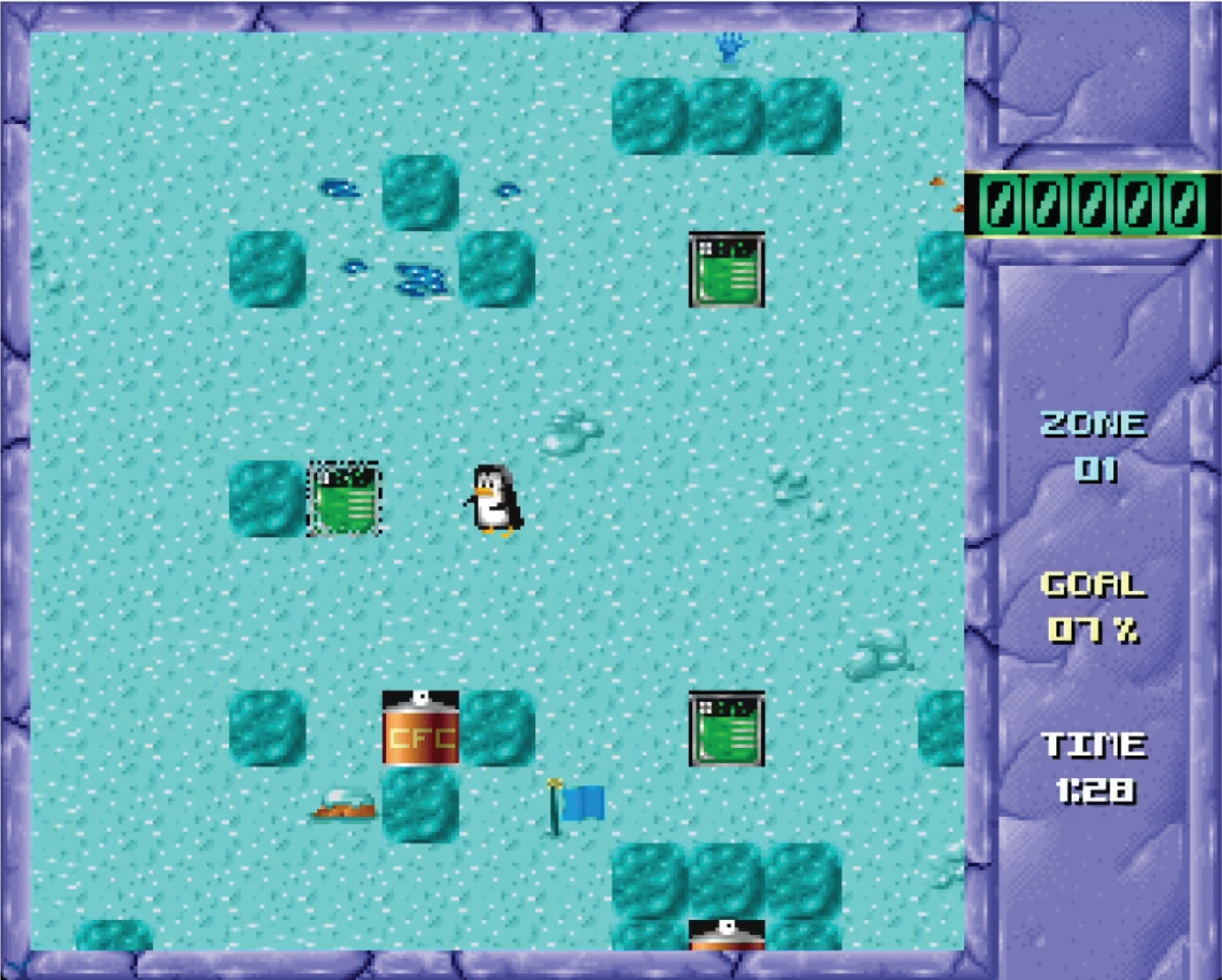

Zozo crushing the green chemicals block into a non-functional block in order to clean up the environment and win this level. Screenshot by the author.

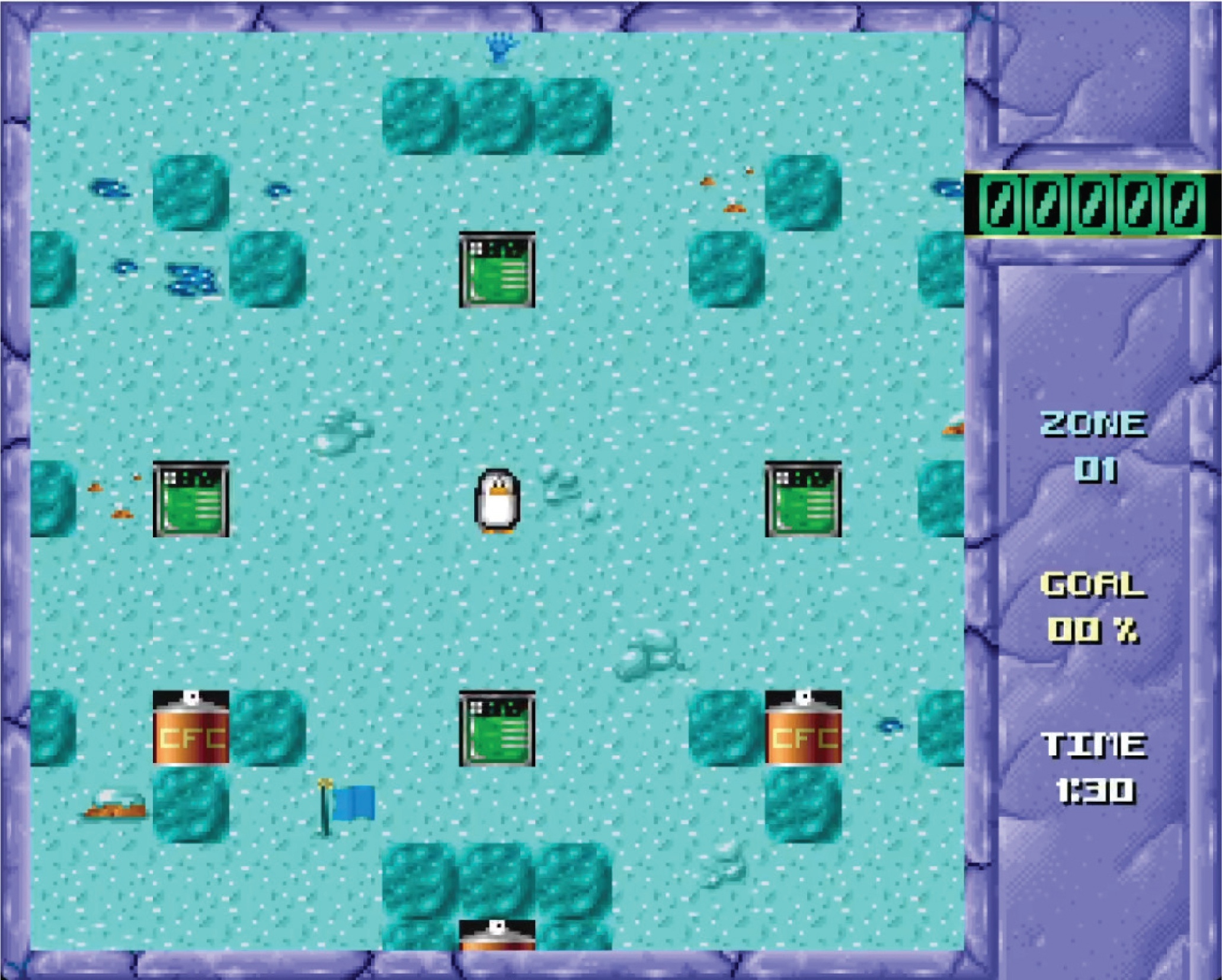

Zozo looking at us, awaiting further instructions. Screenshot by the author.

Table 2

List of the constructed ludemes and their descriptions.

Ludeme	Description
Avatar	The character that we control during gameplay: Zozo.
Moving	Moving our character through keyboard or other hardware input.
Exploring	A game loop in which we move our character around to learn more about the environment and how we relate to it.
Blocks	The main object with which we interact in order to reach the game’s given goals is by removing some of them.
Pushing	The main way of interacting with blocks.
Removing	Removing is a core mechanic of the game, but it depends on moving and pushing the right way. In more complex arrangements, removing a block involves several steps, akin to a puzzle, to successfully close this game loop.
Monsters	These non-player characters create additional challenges, since a collision with them knocks the avatar out, and make the moving and pushing mechanics more difficult. They can be removed by pushing blocks into them.
Evading	The act of trying to accomplish the core goal of removing enough blocks while not being hindered by the monsters.
Heads-up Display	This user interface on the right side tracks vital metrics about our progress toward our goal of removing enough blocks within the given time. It is an extradiegetic ludeme that is nonetheless crucial for playing the game.

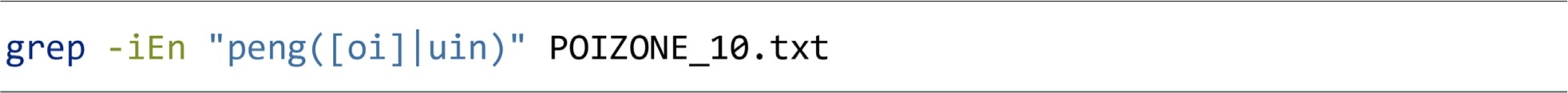

Example of the *grep* command to search the code for the avatar.

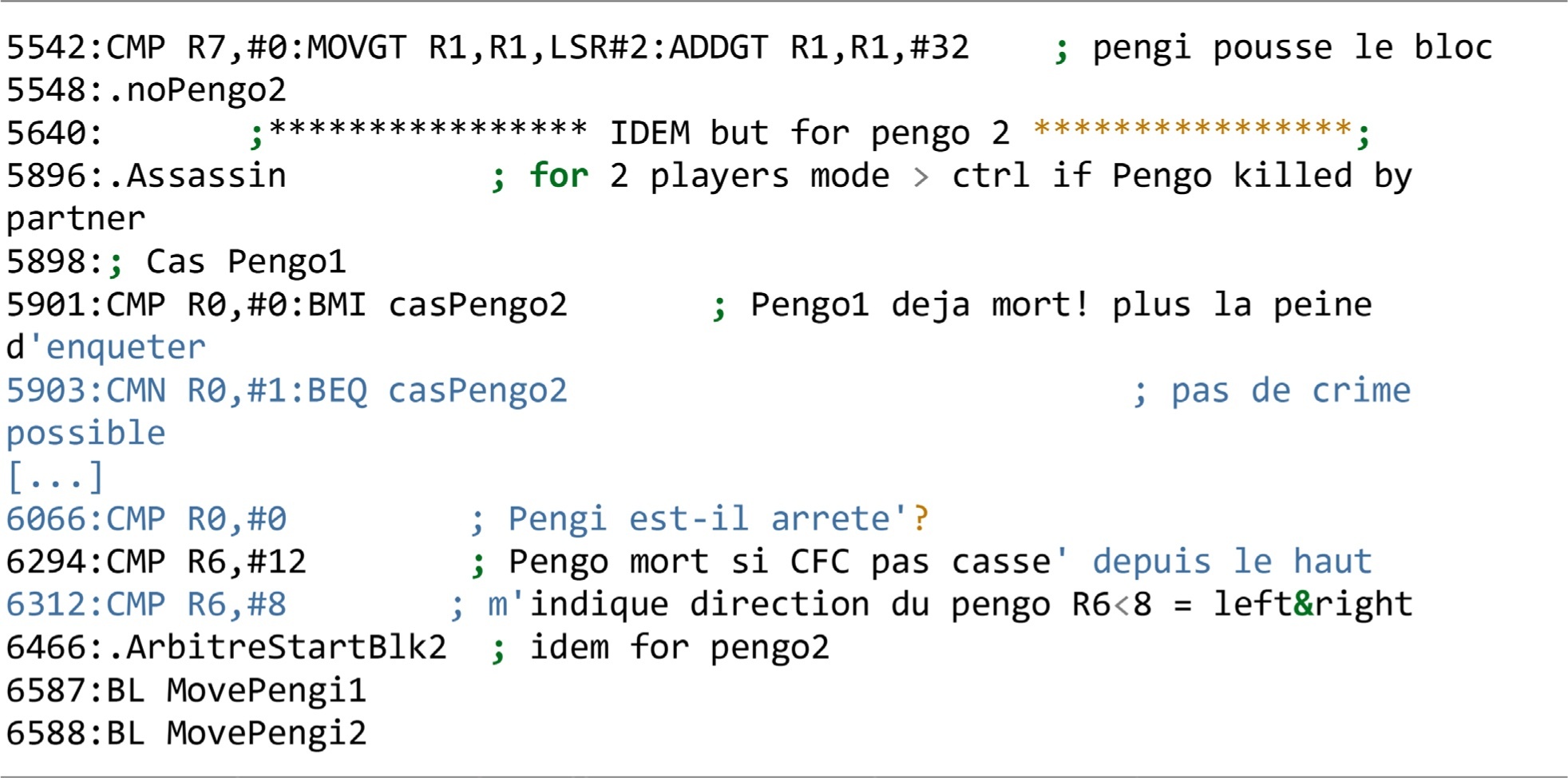

Abbreviated output of the *grep* search command. The number on the left is the command output, which indicates the line number in the code.

Table 3

List of relevant pieces of the assembly code regarding the ludemes. Commentaries in quotes are verbatim taken as found in code, whereas the rest are notes made by the author.

Ludeme	Lines	Commentary
Avatar	254	Coordinates variables
	689	‘dessine un sprite sous controle du Controller’
	1349	‘Sprite Controller (interface pour l’utilisateur) (max. 20 sprites)’
Moving	272	Moving and pushing variables
	652	Collision control
	4224	Joystick routines
	4353	Input flags that keep the player’s choice of direction
	4411	Reading input keys or controller
Transporter	6060	‘Transporter’, which is a teleporter
Teleporting	6155	Teleportation
Blocks	885	‘Dessine tout l’ecran de jeu (Background+Blocks)’
	6238	Block rules
Pushing	272	Moving and pushing variables
	4430	Reading push and checking if pushable
	4905	Initiate destroying block ‘.ArbitreCrash’

Table 4

Analogous to Table 3 for the Python source code.

Ludeme	File	Lines	Commentary
Avatar	poizone.py	1175	Rendering Zozo
Moving	poizone.py	799	Reading direction input
Transporter	globals.py	151	Teleporters are initiated via land data
Teleporting	penguin.py	390	Check if on the teleporter and react accordingly
Block(s)	constants.py	115	Block class and types
	penguin.py	102	Block rules
	poizone.py	623	Rendering background and blocks
Pushing	poizone.py	842	Reading controls
	penguin.py	61	Push block

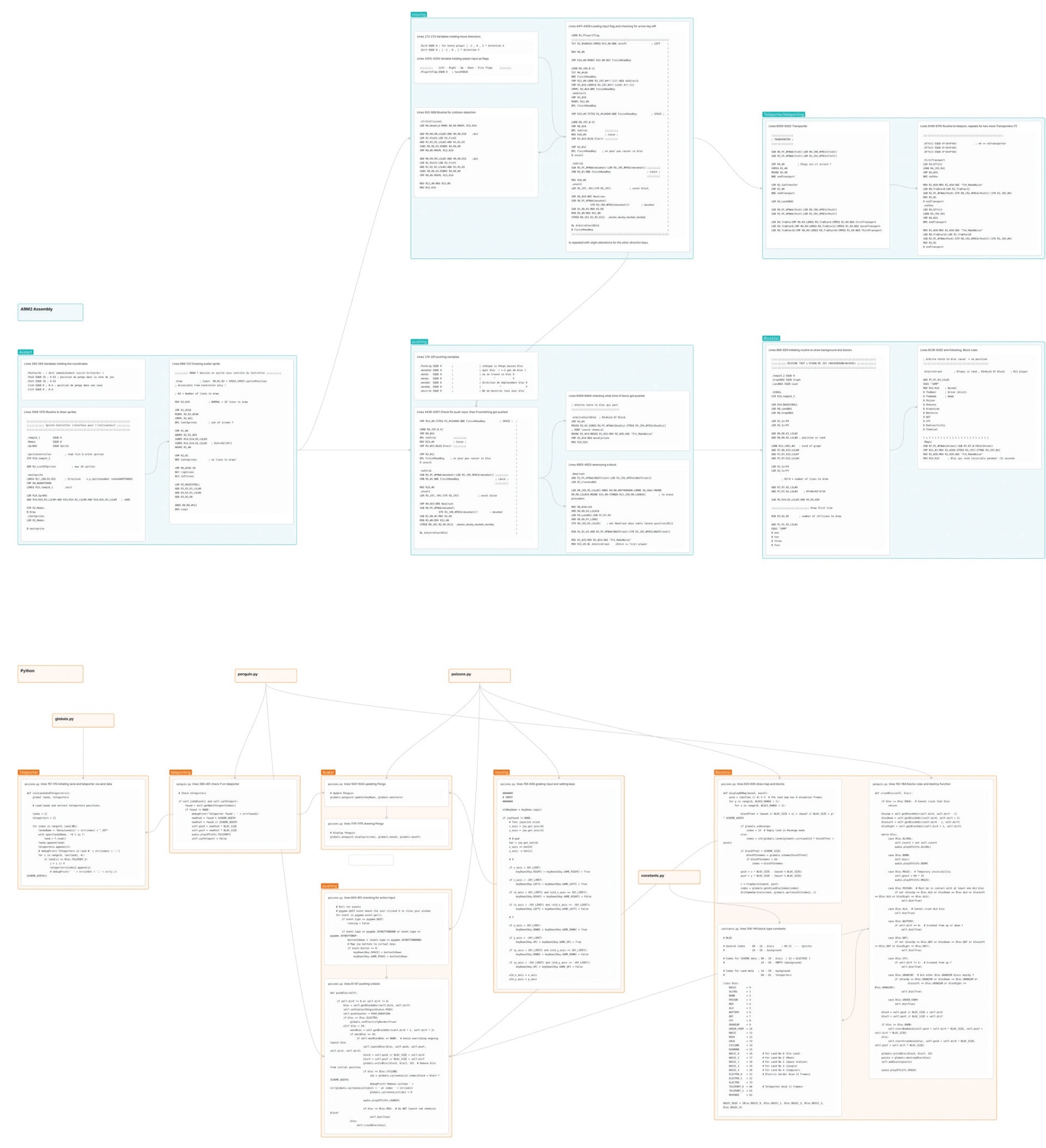

An example of a visual mapping. Above are code snippets and their connections to the original game’s codebase; below are the corresponding samples from the ported version. The ludemes visualised here are avatar, moving, blocks, and teleportation. A large-scale version of this mapping is accessible in the accompanying open-access analysis data repository.

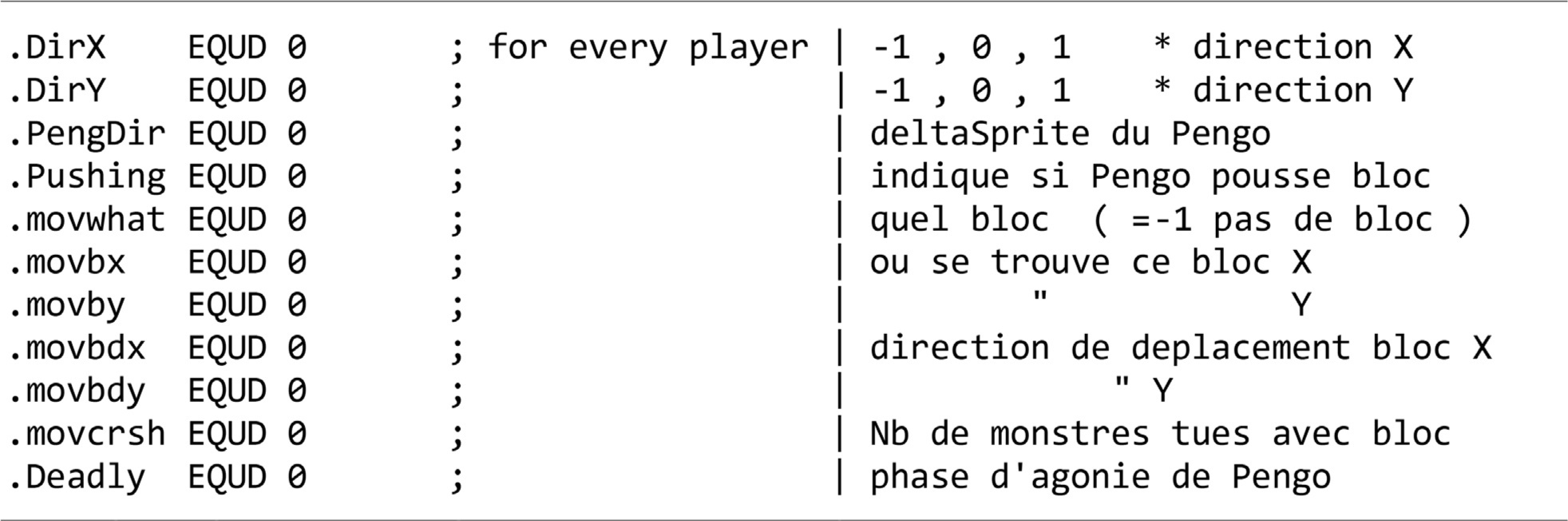

Example of comments and variables in the original game’s assembly code.

Table 5

List of the lines of code that relate to the moving around ludeme.

Lines	Commentary
4224–4250	Checking if the player has a joystick plugged into the computer and is using it.
4284–4305	Reading the input of the joystick.
4325–4338	Defining which keyboard keys would be used for which of Zozo’s actions.
4353–4356	Initiating the player flag. This variable is used to track which keys the player pressed.
4379–4419	The ‘.MovePengi1’ routine prepares the game to move Zozo by putting all the variables in place.
4411–4412	Preparing the player flag before checking which keys were pressed.
4412–4459	These roughly 50 lines of code in the ‘.LEFT’ routine were copied and minimally modified for all four directions Zozo can move. They check whether Zozo can move in that direction as well as whether the penguin is colliding with a monster. There is also a check for whether there is a block in that direction and how we interact with it.

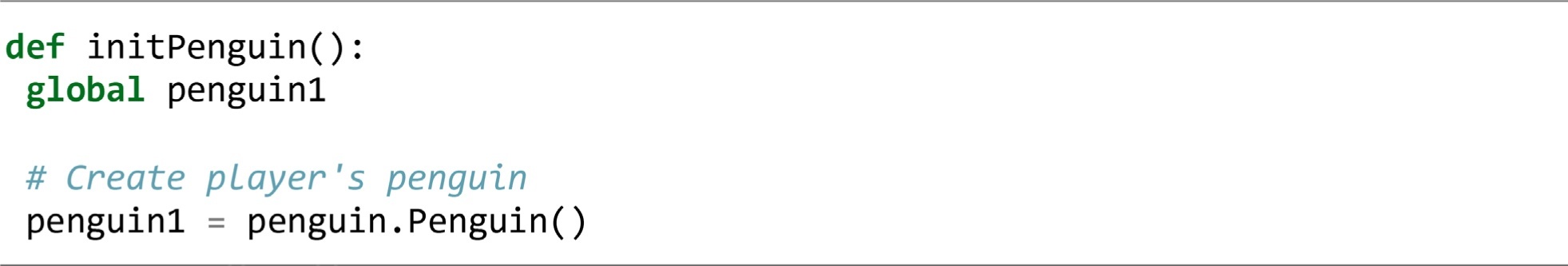

Example of the commenting style in the ported game’s Python code.

Table 6

List of the lines of code that relate to moving Zozo, but this time in the game’s ported version.

File	Lines	Commentary
poizone.py	759–772	Checking if a joystick or joypad is connected and remembering that relation in the ‘joy’ variable.
poizone.py	799–807	Asking for the current state of the input device. This simply saves the directions the player pressed in ‘keyDown’.
poizone.py	1041	Player intention is fed into the avatar’s ‘update’ function.
penguin.py	279–479	Handling all the logic that is related to moving.
poizone.py	1175	Re-rendering Zozo on screen.
