Integrated structure–function design of 3D-printed porous polydimethylsiloxane for superhydrophobic engineering

In this study, the x–y plane and z-direction were defined as the in-plane and height direction of the 3D-printed PDMS, respectively (Figure 1a). The customized high-viscosity PDMS ink was extruded through the nozzle of the 3D printing (direct-ink writing) system in the form of filaments [53]. The filaments were printed layer by layer according to the planned lay-down patterns at the corresponding printing speed to form a porous cross-hatched structure (Figure 1b). The 3D-printed structure was then cured and molded by placing it in an oven at 125°C for 24 h. Finally, the sample was peeled off from the substrate for further characterization. The PDMS surface had a filament diameter and filament spacing of 0.37 and 0.8 mm, respectively. It had four layers with 90° angle steps between two successive layers. When water droplets were placed onto the porous PDMS surface, they remained spherical, indicating that the surface showed good superhydrophobicity, with a WCA of approximately 151.5° (Figure 1c).

Figure 1

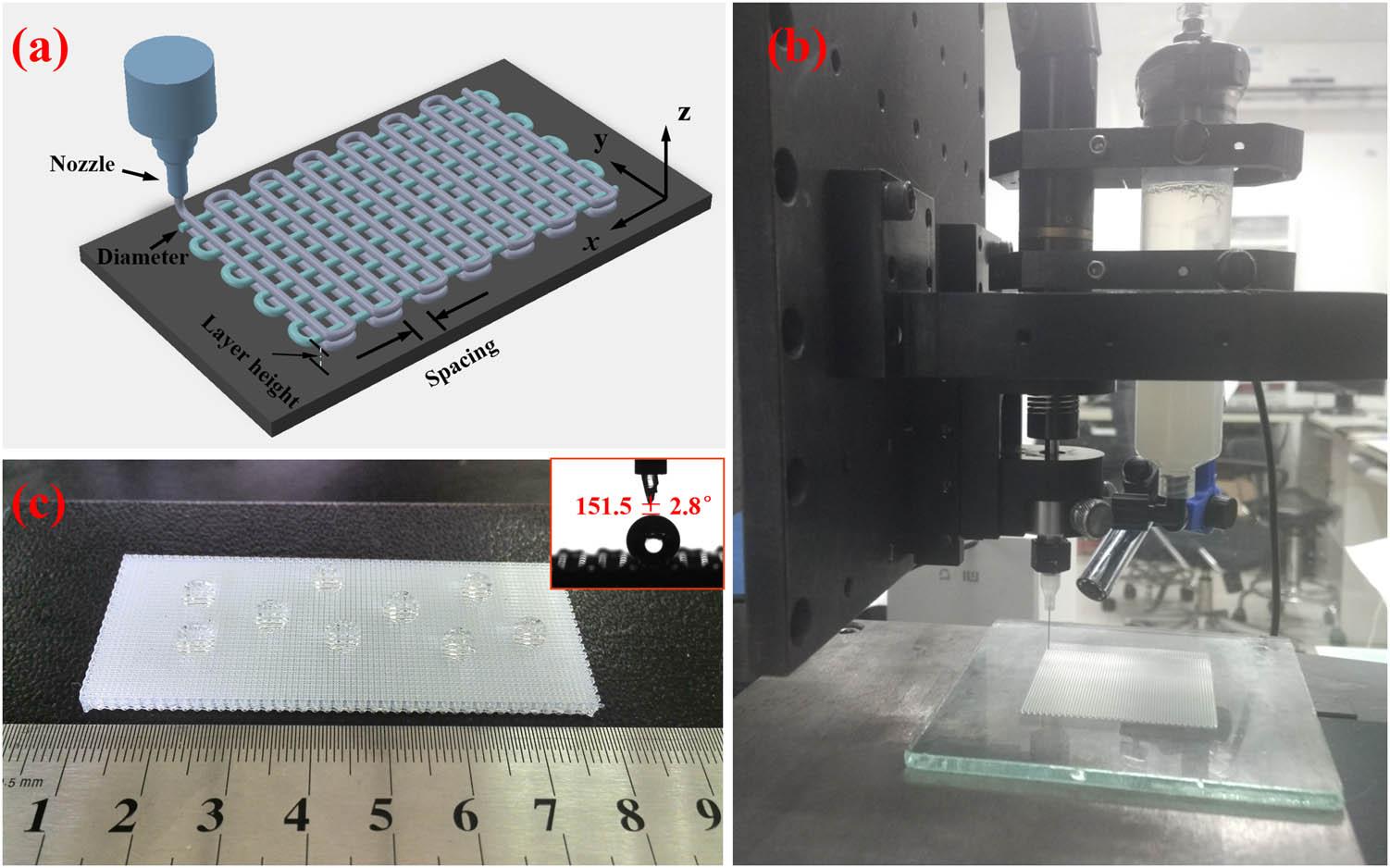

3D printing of porous PDMS with a cross-hatched structure. (a) Schematic representation of the extruded filaments written on the substrates with the tooling path. (b) Fabrication of porous PDMS on the 3D printing platform. (c) PDMS foam sample with superhydrophobicity fabricated by 3D printing. The insert image is the profile of water droplets (5 μL) on the porous PDMS surface, with a WCA of approximately 151.5°.

Based on our previous work [57] and the classical Gibson-Ashby model for porous materials [58], the porosity (φ) of the 3D-printed PDMS sample had a direct impact on its mechanical properties, shown in Eq. (1). As the material porosity φ increased, its compressive or tensile modulus (E ^*) gradually decreased. (1) E ⁎ E S = C ρ ⁎ ρ S n = C ( 1 − ϕ ) n , \frac{{E}^{\ast }}{{E}_{\text{S}}}=C{\left(\frac{{\rho }^{\ast }}{{\rho }_{\text{S}}}\right)}^{n}=C{(1-\phi )}^{n}, where E _S and E ^* are the modulus of elasticity of the solid and 3D-printed porous PDMS, respectively; C and n are the fitting coefficients; and ρ _S and ρ* are the density of the solid and 3D-printed porous PDMS, respectively [55].

Particularly, φ was correlated with the diameter (d), center-to-center spacing of the filaments (l), and height of the adjacent printed layers (h). According to the geometry of the porous PDMS fabricated by 3D printing, the solid volume V ₁ of the model was extracted by the software and then divided by the volume V (length × width × height) of the rectangular model. Finally, the model porosity φ of the PDMS sample was calculated using the formula φ = 1 − V ₁/V. The results are theoretical and presented in Table 1.

As previously reported [53], the superhydrophobicity of 3D-printed porous PDMS was optimal when the filament diameter and spacing were 0.37 and 0.8 mm, respectively (Figure 1c). Therefore, we set the filament diameter d to 0.37 mm. Because the superhydrophobicity of the porous PDMS fabricated by 3D printing was primarily controlled by the top-layer structures of the porous PDMS [54], this study focused on the integrated structure and mechanical property design of the porous PDMS fabricated by 3D printing for superhydrophobic engineering. Even if the 3D-printed PDMS foams had the same porosity (same values for filament diameter, filament spacing, and layer height), the mechanical properties could still be regulated by adjusting the layer pattern (e.g., filament orientation and staggered structure) [59,60]. To demonstrate the universality of our strategy for modulating the mechanical properties, such as compressive and tensile, through the design of specific layered patterns, the filament spacing parameters were adjusted to 0.6, 0.8, and 1.0 mm. The raster angles were adjusted with 30° (0°/30°/60°/90° for four layers), 45° (0°/45°/90°/135° for four layers), and 90° (0°/90°/180°/270°) angle steps for a typical and gradual change of the intersection angle between two successive layers. The working parameters are shown in Table 1.

The superhydrophobic properties of the porous PDMS fabricated by 3D printing were primarily related to the filament spacing and diameter of the top layer [53,54]. Therefore, the mechanical properties were regulated by adjusting the lay-down patterns, and the spacing and diameter of the filaments remained unchanged. The architectures were designed by plotting filaments with angle steps of 30°, 45°, and 90° between two sequential layers, denoted 0/30, 0/45, and 0/90 configurations [61], respectively (Figure 2a–c). For the staggered pattern, every other layer was shifted orthogonally to the filament direction by half the spacing relative to the previous, yielding cross-hatched structures, labeled S-0/30, S-0/45, and S-0/90 configurations, respectively (Figure 2d–f). Notably, the pore architecture depended on the filament orientation and layer stagger. For example, a filament deposition angle of 90° created quadrangular pores (Figure 2c and f), whereas angles of 30° or 45° generated polygonal pores (Figure 2a, b, d, and e).

Figure 2

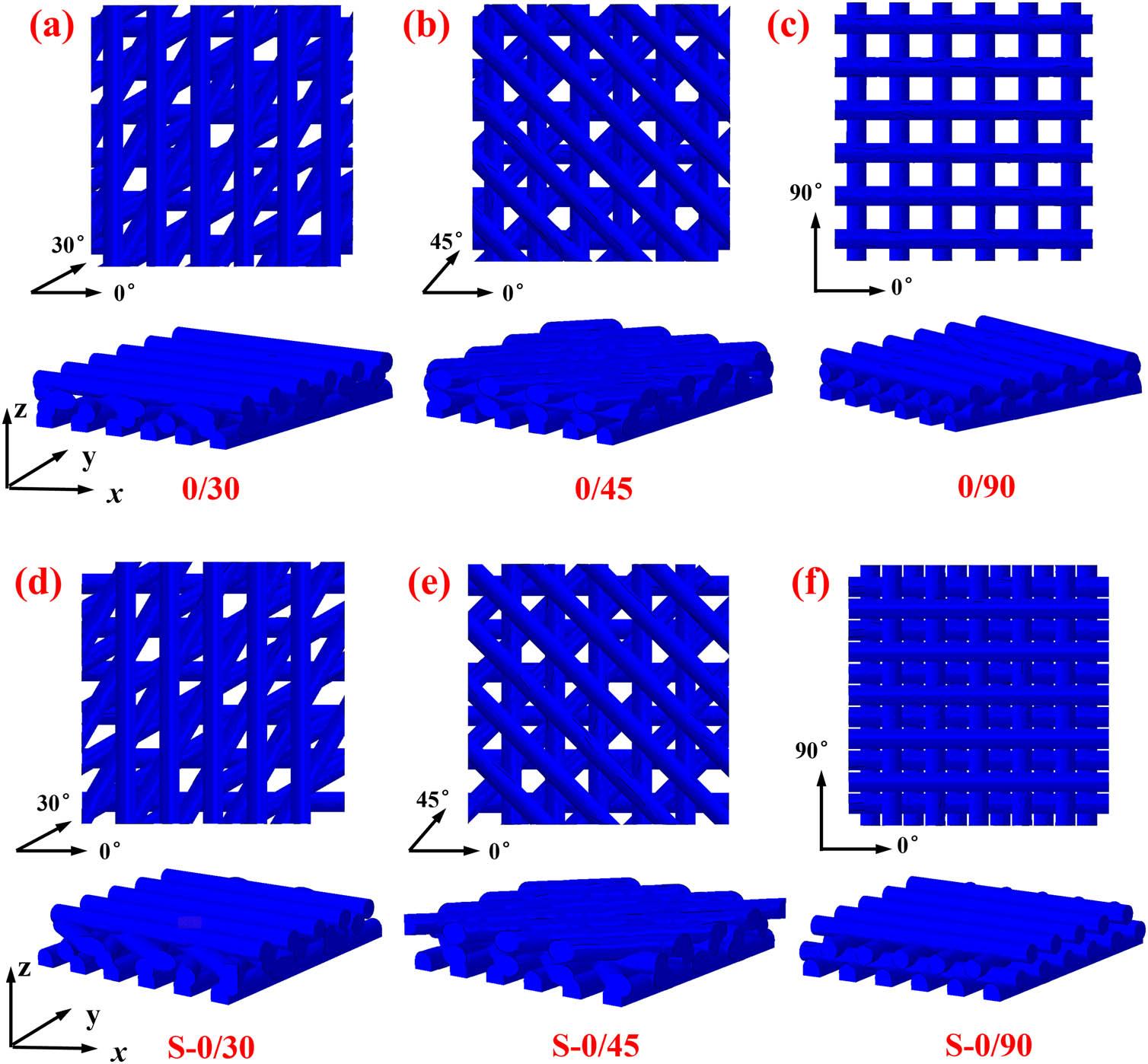

3D-printed porous PDMS with cross-hatched structures. These printed patterns were labeled according to the 3D printing angle of the two successive layers: (a) 0/30, (b) 0/45, and (c) 0/90 configurations and (d) 0/30 (S-0/30), (e) 0/45 (S-0/45), and (f) 0/90 (S-0/90) shifted patterns.

For porous PDMS, compression and tension are the two most common mechanical stress states; thus, this study used these two stress models to evaluate the relationship between layer parameters and the mechanical performance of the porous PDMS fabricated by 3D printing. To further reveal the mechanism of strain and internal stress distribution in the 3D-printed PDMS with a cross-hatched structure under compressive or tensile load, the design models mentioned in Section 2.1 were created using FE analysis in ABAQUS. The PDMS filaments were cylindrical apart from those of the first layer, and a total of four layers were constituted with six filaments per layer (Figure 2). The upper layer of the cylindrical filaments was rotationally stacked at a set angle with respect to the neighboring lower layer. Since the value of the print layer height parameter was smaller than the diameter of the PDMS filament, there was an overlapping region between the upper and lower print layers. The overlap area of the top and bottom layers was smoothed by a Boolean operation, and the porous PDMS model was treated as a single entity [55]. Free boundary conditions were imposed on these models. To study the compressive and tensile properties of the porous PDMS, we applied displacement loads in the z and y directions of these models, respectively. In addition, the mechanical properties of the porous PDMS fabricated by 3D printing were analyzed using the Mooney–Rivlin model [55,62], as expressed by the following equation: (2) U = C 10 ( I 1 − 3 ) + C 01 ( I 2 − 3 ) + 1 D 1 ( J − 1 ) 2 , U={C}_{10}({I}_{1}-3)+{C}_{01}({I}_{2}-3)+\frac{1}{{D}_{1}}{(J-1)}^{2}, where U is the strain energy of the materials, C ₁₀ and C ₀₁ are the fitted material coefficients, D ₁ is the compressibility of the material, I ₁ and I ₂ are the first and second invariants of the strain bias, respectively, and J is the elastic volume ratio [55]. Based on the constitutive model, the measured compressive nominal stress–strain data of the PDMS cylinder, with a diameter and height of 29.5 and 12.5 mm, respectively, have been modeled with the relevant parameters C ₁₀, C ₀₁, and D ₁ [55]. These three fitted parameters, which were accessed by the analysis program in the FE software ABAQUS following our previous publication [55], were 0.203741993, 0.08319049733, and 0.177210526, respectively.

In addition, due to the superelastic characteristics of PDMS materials, these 3D-printed foams had a large mechanical deformation capacity in both compression and tensile directions, which was sufficient to meet the engineering design requirements. The compression and tension properties can be found in the following section.

Figure 3 shows the z-axis compressive modulus E _c of the different porous PDMS samples with crosshatched geometries. The compressive modulus decreased with increasing filament spacing l, primarily because of filament spacing on the porosity φ. Thus, the mechanical properties of the porous structures were directly related to their porosity. In addition, the porous PDMS exhibited the highest compressive modulus when the filament angle was 90° (0/90). However, the corresponding staggered structure had the lowest compressive modulus (S-0/90). The ratios between the compressive moduli of these structures were 219, 411, and 686% for the l values of 0.6, 0.8, and 1.0 mm, respectively (Figure 3a–c). However, for the other cross-hatched structures with 0°/30° and 0°/45° filament angles, the compressive modulus remained in the same range.

Figure 3

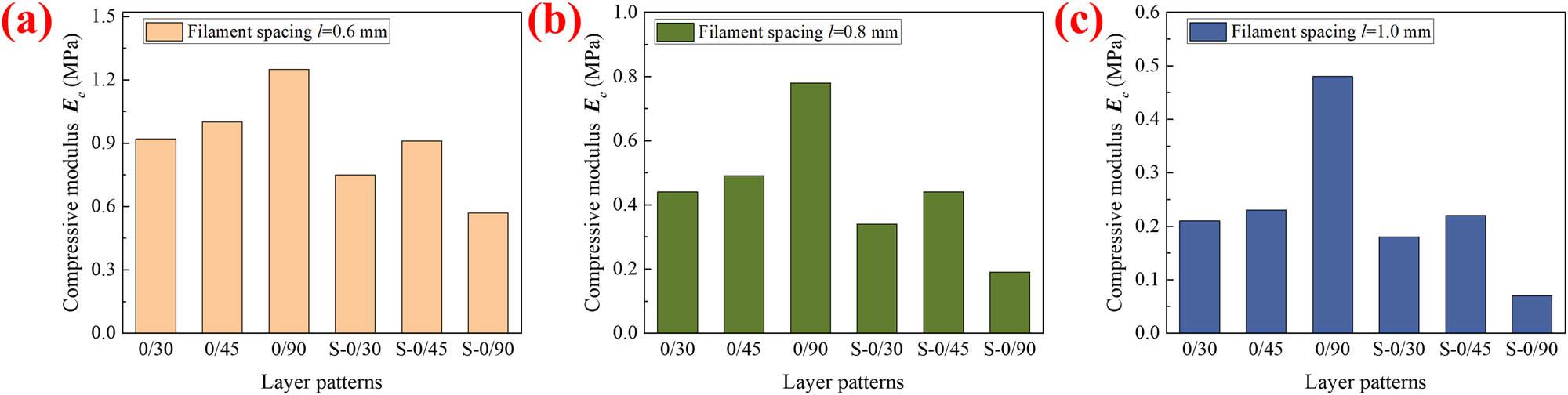

Effect of layered configurations on the E _c of porous PDMS fabricated by 3D printing with filament spacings of (a) 0.6, (b) 0.8, and (c) 1.0 mm.

The differences in the compressive modulus were closely related to the deformation mechanism in the initial linear elastic stage of these porous PDMS structures under compressive loading. To illustrate the compressive deformation mechanism of the porous structures fabricated by 3D printing with an l of 0.8 mm, the stress clouds of the x–z section of the models were obtained, as shown in Figure 4. The compressive stresses of the 0/90-0.8 model in the z-direction were primarily transferred to a columnar pattern (yellow or green area in Figure 4c) along the intersection surface of contiguous filament layers from top to bottom [55]. The compressive stress in this region was obviously higher than that in the non-overlapping region for the PDMS model. Therefore, the compressive modulus of the 3D-printed PDMS with a 0°/90° layered pattern was primarily a result of the axial compressive deformation mechanism of these columns [55]. The corresponding staggered structure (Figure 4f) did not exhibit the stress column effect. Moreover, the upper layer of the filaments was squeezed, while the lower layer of the filaments experienced a bending deformation mechanism, resulting in a lower compressive modulus. For the other cross-hatched structures with 0°/30° and 0°/45° layered patterns (Figure 4a, b, d, and e), certain overlapping regions formed by adjacent layers of the filaments exhibited a stress column effect, resulting in compressive moduli being between those of 0/90-0.8 and S-0/90-0.8.

Figure 4

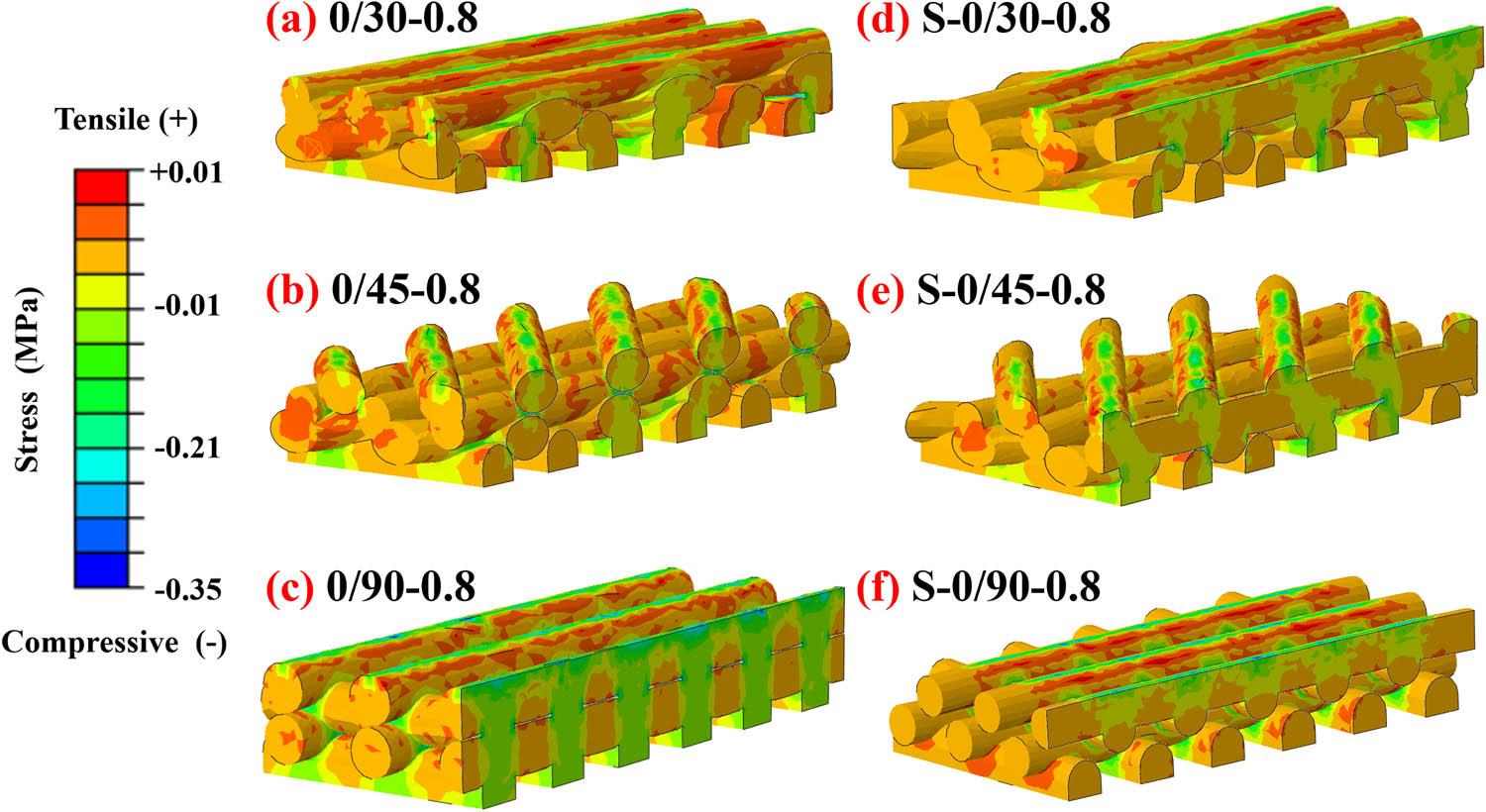

Stress distribution graphs in the x–z section of the models at 10% compressive strain: (a) 0/30-0.8, (b) 0/45-0.8, (c) 0/90-0.8, (d) S-0/30-0.8, (e) S-0/45-0.8, and (f) S-0/90-0.8.

The compressive mechanical behavior of this 3D-printed PDMS was analogous to that of typical foams [55,57]. In the region of small and moderate deformation, the stress slowly increased, and the whole model completely entered the densified state, resulting in an exponential expansion of the compressive stress (Figure 5) [55,58]. In addition, the layered pattern had the same effect on the hyperelastic compressive behavior of the porous PDMS fabricated by 3D printing with the same porosity as that on E _c. For cross-hatched structures with 0°/30° and 0°/45° layered patterns, the compressive behavior of the porous PDMS fabricated by 3D printing with the same porosity was more consistent (Figure 5a and b), regardless of whether a staggered layer design was used or not. However, a significant difference was observed between the compressive behaviors of the 0/90 and S-0/90 models. The staggered design enabled the porous PDMS, with a layer angle of 0°/90° (S-0/90) to recover better (Figure 5c). Thus, it exhibited lower stress levels over a relatively long compression interval.

Figure 5

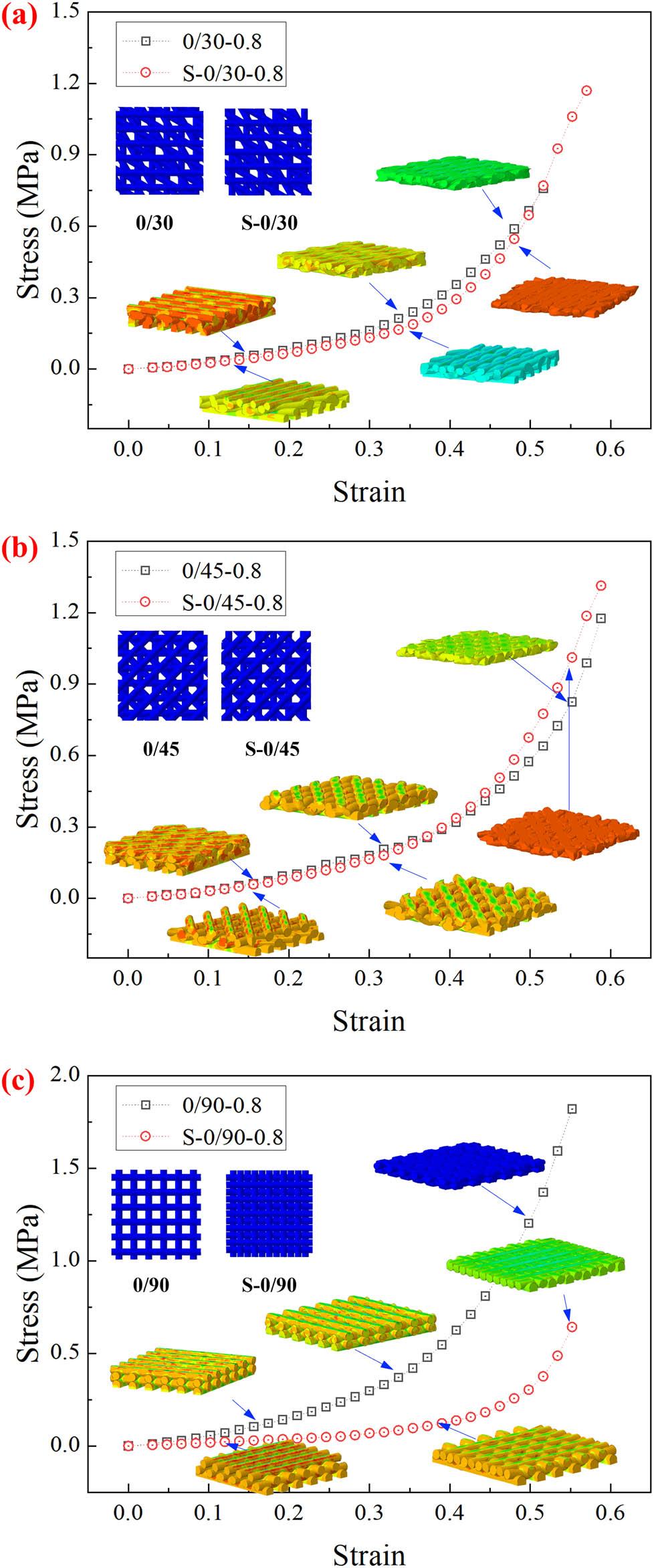

Influence of layered staggering on the compressive behavior of the porous PDMS fabricated by 3D printing with filament raster angles of (a) 0°/30°, (b) 0°/45°, and (c) 0°/90°.

The uniaxial tensile simulation calculations of the porous PDMS fabricated by 3D printing with different cross-hatched structures were conducted using FE analysis. Figure 6 shows the y-axis tensile modulus (E _t) of the porous PDMS fabricated by 3D printing with different values of l. The tensile modulus decreased with increasing l. This phenomenon was observed because the porosity of the PDMS sample increased with increasing l (Table 1). Consistent with the compression simulation results, the structure with the higher porosity exhibited a significantly lower tensile modulus than the other structures. In addition, the layered pattern regulated the tensile modulus of the porous PDMS fabricated by 3D printing with different porosities in a similar manner. As the filament angle increased (i.e., as the upper and lower layers of the adhesive filaments tended to orthogonality), their corresponding tensile moduli gradually increased. Furthermore, the porous PDMS with an l of 0.6 mm and a 0°/90° (0/90-0.6) layered pattern exhibited the highest tensile modulus, while the 3D-printed structures with 0°/30° and 0°/45° filament orientations exhibited reduced tensile moduli of 37 and 30%, respectively (Figure 6a). A similar change was observed for samples with filament spacing l of 0.8 and 1.0 mm printed with a 0°/90° (0/90-0.8 and 0/90-1.0) layered pattern, as shown in Figure 6b and c. However, the staggered layer design had no significant effect on the tensile moduli of these cross-hatched structures (S-0/30, S-0/45, and S-0/90), which remain in the same range as those of the 0/30, 0/45, and 0/90 models, respectively (Figure 6a–c).

Figure 6

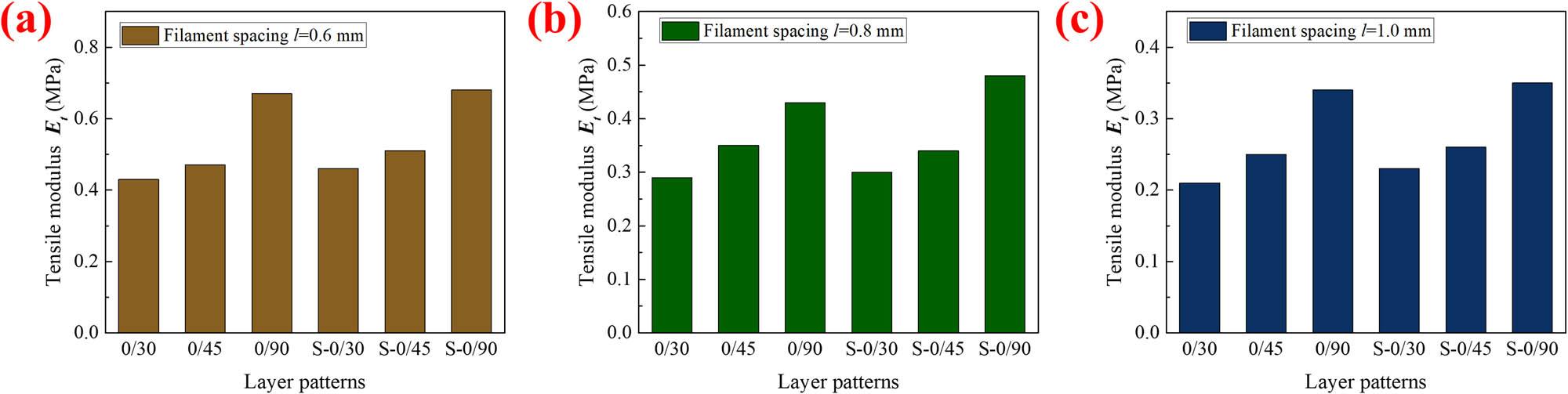

Influence of layer configurations on the E _t of the porous PDMS fabricated by 3D printing with filament spacings of (a) 0.6, (b) 0.8, and (c) 1.0 mm.

The differences in the tensile modulus were closely related to the deformation mechanism in the initial linear elastic stage of these structures under tensile loading. To illustrate the tensile deformation mechanism of the 3D-printed architectures at this stage, we obtained the Von-Mises stress clouds of the x–z sections of the models with a filament spacing of 0.8 mm (Figure 7). Because the direction of the filament layup was aligned with the tensile direction (y-axis), the stress in the 0/90-0.8 and S-0/90-0.8 models was primarily transferred in the filament orientation (green area in Figure 7c or f) [55]. The stress of this region was obviously higher than that of the porous PDMS fabricated by 3D printing with the 0°/30° and 0°/45° layered patterns (Figure 7a, b, d, and e). Thus, the tensile modulus of the porous PDMS fabricated by 3D printing with a cross-hatched structure was due to the contribution of the axial tensile deformation mechanism of 3D-printed PDMS filaments. As the raster angle increased (i.e., the filament direction of these adjacent layers tended to orthogonality), the closer the filament orientation was to the tensile direction, the higher the tensile modulus of the corresponding porous PDMS fabricated by 3D printing. Therefore, the 3D-printed PDMS with a layer angle of 0°/90° exhibited the highest tensile modulus because the printing direction of the PDMS filament was parallel to the direction of the tensile load, which could bear more tensile stress. However, the staggered design (S-0/30, S-0/45, and S-0/90) did not change the raster angle for the corresponding porous architecture (0/30, 0/45, and 0/90), resulting in its inability to regulate the tensile properties of the porous PDMS fabricated by 3D printing.

Figure 7

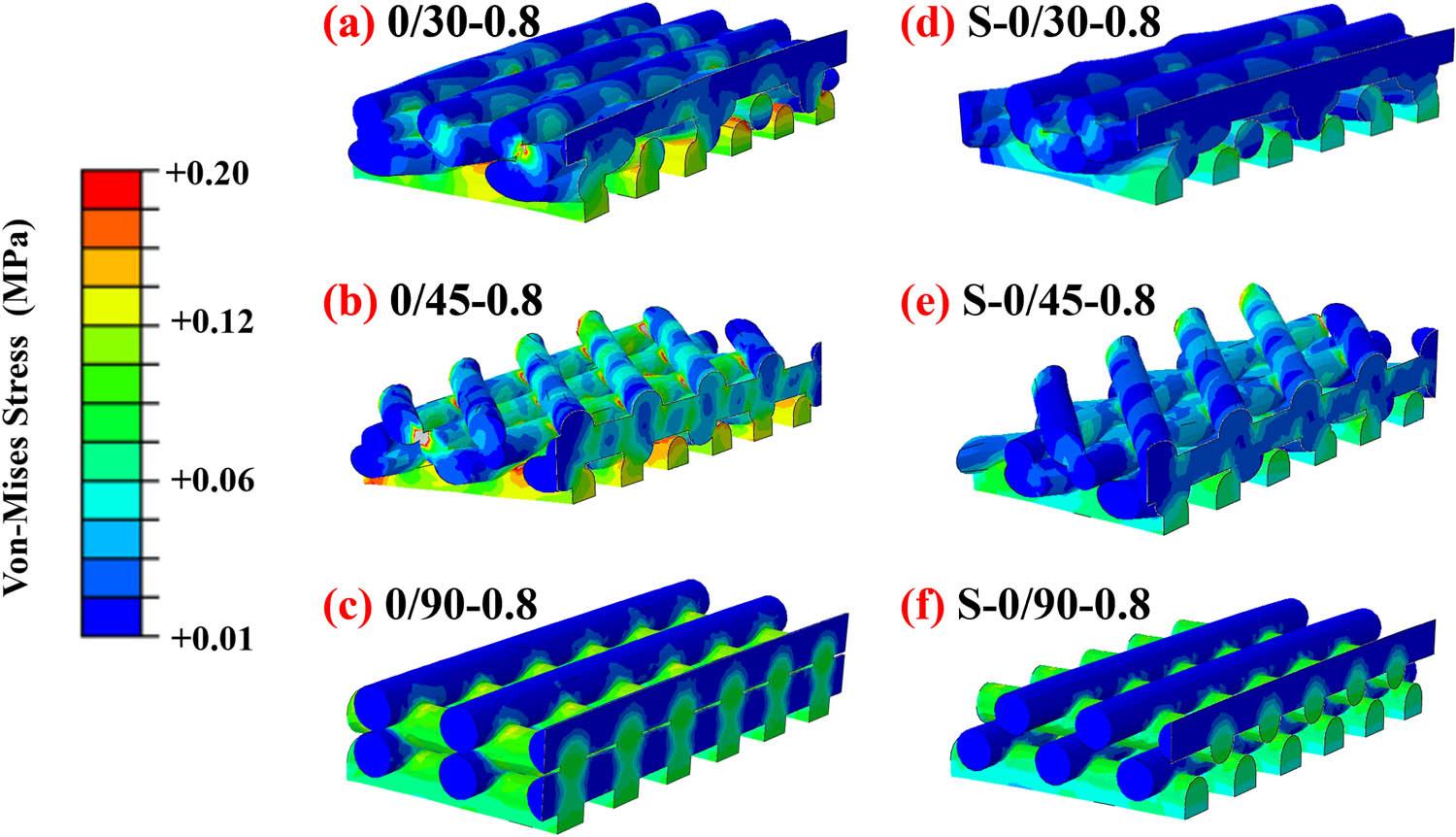

Von-Mises stress distributions of the models in the x–z section at 5% tensile strain in the y-direction: (a) 0/30-0.8, (b) 0/45-0.8, (c) 0/90-0.8, (d) S-0/30-0.8, (e) S-0/45-0.8, and (f) S-0/90-0.8.

The staggered design could not modulate the hyperelastic tensile mechanical behavior of the porous PDMS, and a significant difference was observed between the tensile stresses of the FE models with different raster angles. As shown in Figure 8a and b, the tensile behaviors of the porous structures were better regulated by the layer angle of the filaments than by the staggered design. As the raster angle of the filaments increased (i.e., the upper and lower filaments tended toward orthogonality), the tensile modulus gradually increased, and the tensile properties of the 3D-printed PDMS improved. The improved tensile stress was beneficial to both the mechanical stability of porous structures and superhydrophobicity.

Figure 8

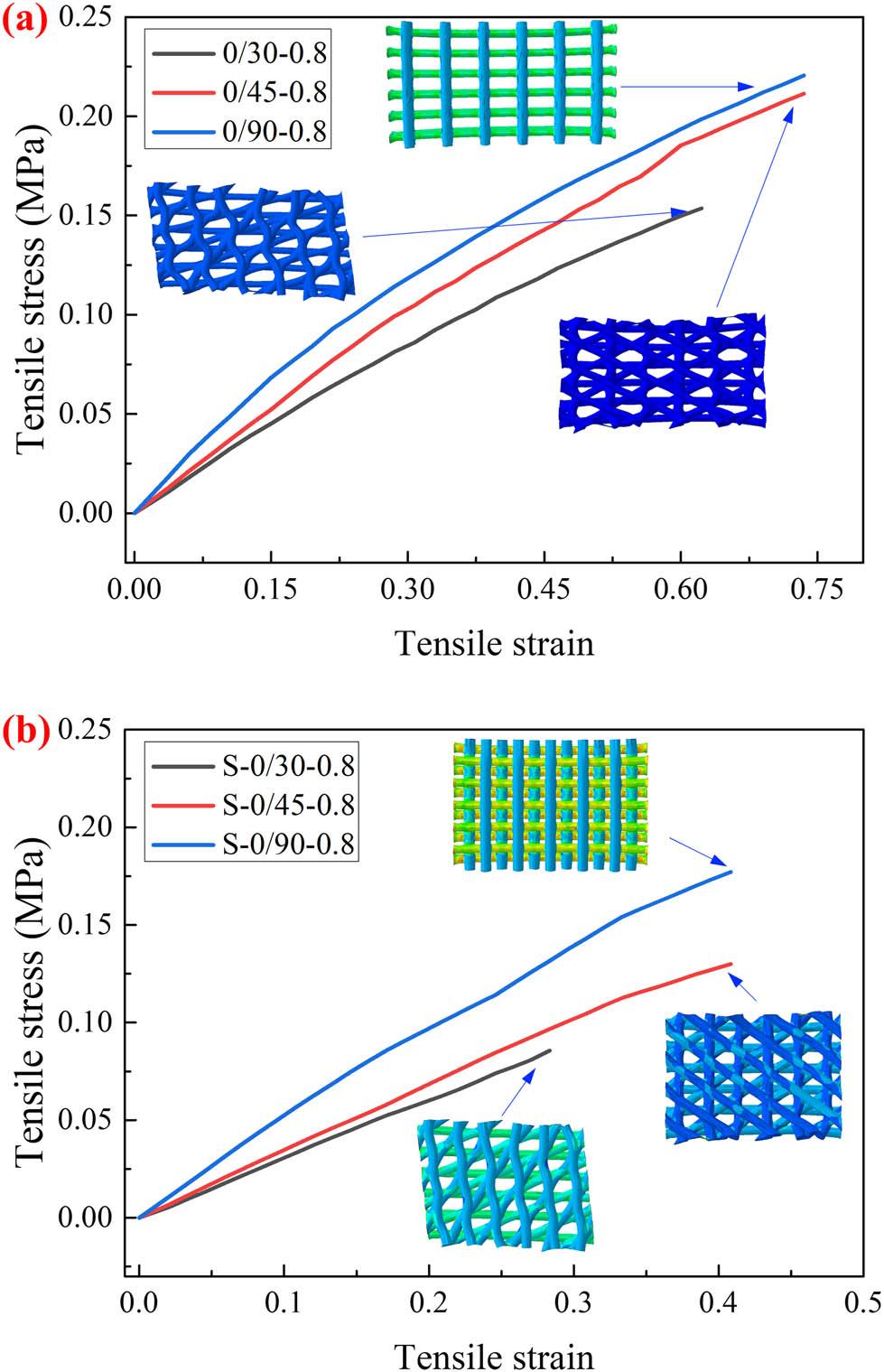

Influence of filament orientation on the tension behavior of the porous PDMS fabricated by 3D printing with (a) cross-hatched and (b) staggered structures.
