Temporal and spatial variability of heavy metals in Marudu Bay, Malaysia

Soon, Tan Kar; Denil, Delta Jenetty; Ransangan, Julian

doi:10.1515/ohs-2016-0032

Figures & Tables

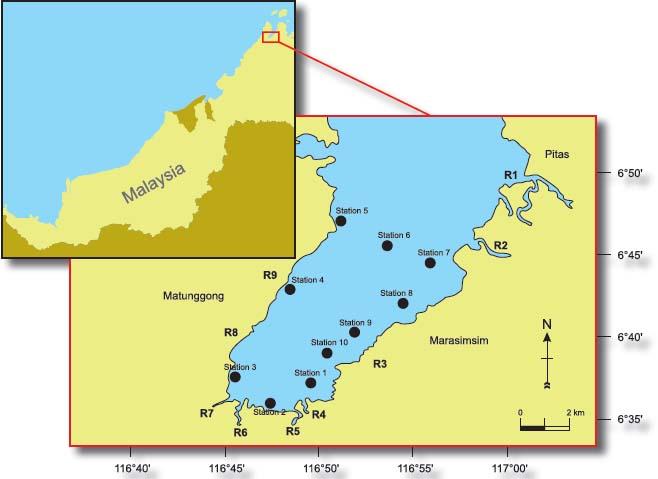

Location of the ten sampling stations in Marudu Bay. Note: R1= Pitas River; R2= Bangkoka River ; R3= Marasimsim River ; R4= Taritipan River ; R5= Raku River ; R6= Sumbilingan River ; R7= Marudu River ; R8= Karangawan River ; R9=Matunggong River

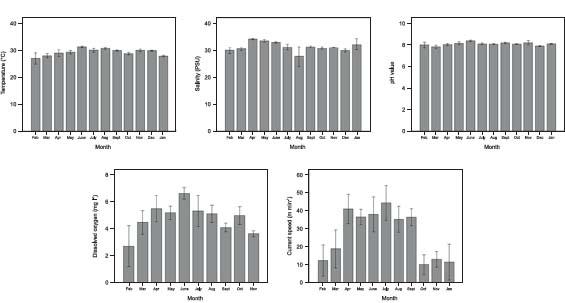

Temporal variations of environmental parameters (mean ±SD) in Marudu Bay from February 2014 to April 2015

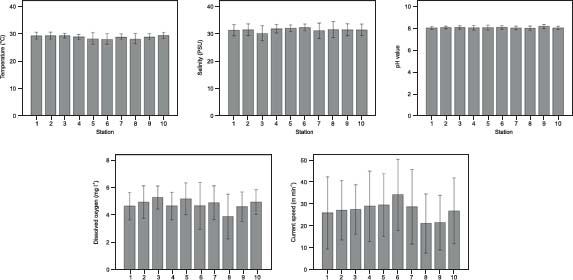

Spatial variations of environmental parameters (mean ±SD) in Marudu Bay from February 2014 to April 2015

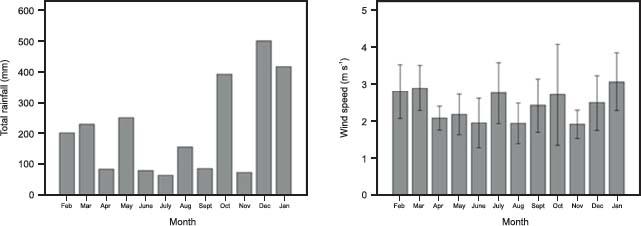

Total rainfall and mean wind speed (mean± SD) in Marudu Bay from April 2014 to April 2015

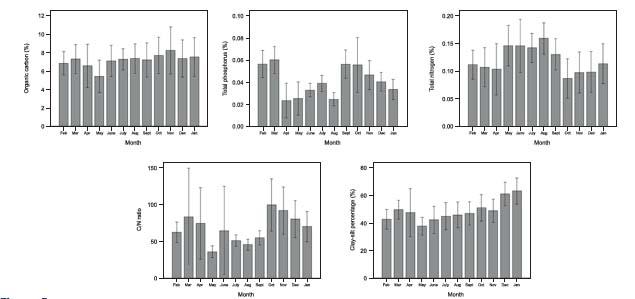

Temporal variations of nutrients and clay-silt percentage (mean± SD) of sediment in Marudu Bay from February 2014 to April 2015

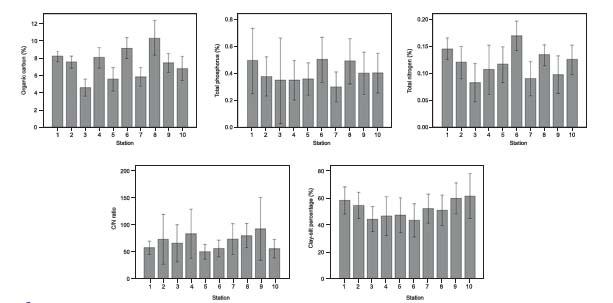

Spatial variations of nutrients and grain size (mean ±SD) of sediment in Marudu Bay from February 2014 to April 2015

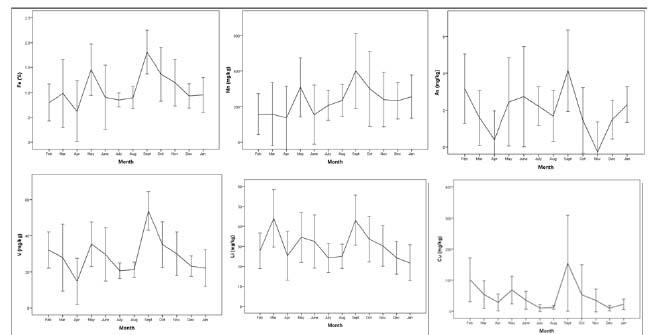

Temporal variations of heavy metal concentration in Marudu Bay

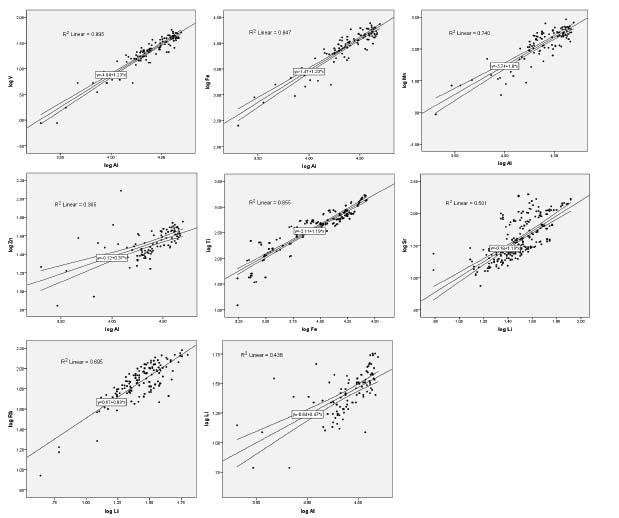

Scatter plots of metals with a suitable reference element in the coastal sediment of Marudu Bay. The solid line represents the regression line with p<0.05, while dashed lines represent the 95% confidential intervals.

Linear regression equations for various trace metals and the reference elements and the corresponding calculated baseline concentration in the sediment

Element	N	n	Sample removed	Formula	Background
V	330	329	1	log₁₀V= -3.99 + 1.22*log₁₀Al	26.74 mg kg^-1
Mn	326	300	26	log₁₀Mn= -5.68 + 1.80*log₁₀Al	205.31 mg kg^-1
Zn	326	284	42	log₁₀Zn= -1.62 + 0.71*log₁₀Al	34.09 mg kg^-1
Fe	326	319	7	log₁₀Fe= -1.40 + 1.20*log₁₀Al	1.04 mg kg^-1
Ti	188	174	14	log₁₀Ti= -1.83 + 1.12*log₁₀Fe	507.61mg kg^-1
Rb	138	94	44	log₁₀Rb= 0.59+ 0.9*log₁₀Li	93.25 mg kg^-1
Sr	266	190	76	log₁₀Sr= -0.74 + 1.51*log₁₀Li	37.56 mg kg^-1
Cr*
Cu*
Cd*
Ag*
Ni*
As*
Li*
Pb*

Metals enrichment

	V	Mn	Zn	Ti	Rb	Sr
S1	1.07	1.22	2.39	0.67	0.61	0.60
S2	1.08	1.01	1.50	0.67	0.64	0.54
S3	1.12	0.75	2.35	0.66	0.96	1.00
S4	1.11	1.19	1.36	0.63	0.92	0.99
S5	1.07	1.18	1.93	0.69	0.52	0.65
S6	0.98	1.20	1.47	0.64	1.29	1.53
S7	1.11	0.52	1.72	0.70	0.87	0.80
S8	1.09	1.43	1.33	0.80	0.38	0.52
S9	1.09	1.34	1.40	0.70	0.25	0.31
S10	1.08	1.30	1.35	0.55	0.79	0.77

Pearson's correlation coefficients between environmental parameters after logarithmic transformation and the concentration of trace metals

	V	Mn	Zn	As	Ti	Rb	Sr	Cr	Cu	Cd	Ag	Ni	Pb	Li	Fe	Al
PC1		.12 * p<0.05	-.30 ** The significant coefficients: p<0.01;				-.15 * p<0.05		-.14 * p<0.05				-.32 ** The significant coefficients: p<0.01;		.12 * p<0.05
PC2			.25 ** The significant coefficients: p<0.01;	-.21 ** The significant coefficients: p<0.01;		.40 ** The significant coefficients: p<0.01;		.16 ** The significant coefficients: p<0.01;		-.77 ** The significant coefficients: p<0.01;		.34 ** The significant coefficients: p<0.01;	.21 ** The significant coefficients: p<0.01;	.21 ** The significant coefficients: p<0.01;
PC3	.25 ** The significant coefficients: p<0.01;	.31 * p<0.05	.12 * p<0.05	-.13 * p<0.05	.20 ** The significant coefficients: p<0.01;	.376 ** The significant coefficients: p<0.01;	.46 ** The significant coefficients: p<0.01;	.26 ** The significant coefficients: p<0.01;				.42 ** The significant coefficients: p<0.01;		.43 ** The significant coefficients: p<0.01;	.23 ** The significant coefficients: p<0.01;	.25*
Clay-silt			.13 * p<0.05	-.16 * p<0.05		.23 ** The significant coefficients: p<0.01;	-.17 ** The significant coefficients: p<0.01;	.17 ** The significant coefficients: p<0.01;		-.742 * p<0.05		.32 ** The significant coefficients: p<0.01;
DO	-.20 ** The significant coefficients: p<0.01;	-.14 ** The significant coefficients: p<0.01;	-.21 ** The significant coefficients: p<0.01;		-.26 ** The significant coefficients: p<0.01;		-.18 ** The significant coefficients: p<0.01;	-.18 ** The significant coefficients: p<0.01;	-.31 ** The significant coefficients: p<0.01;			-.22 ** The significant coefficients: p<0.01;
Current			-.29 ** The significant coefficients: p<0.01;	.14 * p<0.05		-.19	-.18 ** The significant coefficients: p<0.01;	-.26 ** The significant coefficients: p<0.01;	-.13 ** The significant coefficients: p<0.01;			-.22 ** The significant coefficients: p<0.01;	-.23 ** The significant coefficients: p<0.01;
Sal.
pH	.13 * p<0.05	.15 ** The significant coefficients: p<0.01;	-.18 * p<0.05	.23 ** The significant coefficients: p<0.01;						-.68 * p<0.05	.54 * p<0.05		-.36 ** The significant coefficients: p<0.01;		.13 * p<0.05	.22 * p<0.05
Temp.		.18 ** The significant coefficients: p<0.01;	-.29 ** The significant coefficients: p<0.01;				-.23 ** The significant coefficients: p<0.01;		-.18 ** The significant coefficients: p<0.01;		.52 * p<0.05
Organic	.18 ** The significant coefficients: p<0.01;	.23 ** The significant coefficients: p<0.01;	.16 ** The significant coefficients: p<0.01;	-.26 ** The significant coefficients: p<0.01;		.38 ** The significant coefficients: p<0.01;	.44 ** The significant coefficients: p<0.01;	.20 ** The significant coefficients: p<0.01;				.41 ** The significant coefficients: p<0.01;		.46 ** The significant coefficients: p<0.01;	.19 ** The significant coefficients: p<0.01;	.22 * p<0.05

Concentrations of metals in the sediment of Marudu Bay

	S1	S2	S3	S4	S5	S6	S7	S8	S9	S10
Al(%)	3.02 ± 1.29	3.08 ±	2.14 ± 0.92	2.54 ± 1.03	2.15 ± 1.73	3.81 ± 1.18	2.43 ± 1.02	2.98 ± 1.18	2.92 ± 1.11	2.86 ± 1.20
Fe (%)	1.22 ± 0.67	1.24 ± 0.60	0.90 ± 0.42	0.90 ± 0.44	0.88 ± 0.54	1.18 ± 0.53	0.93 ± 0.52	1.40 ± 0.86	1.33 ± 0.77	1.32 ± 0.54
Mn (mg kg^-1)	275.60 ± 204.90	231.80 ± 134.80	119.40 ± 90.20	224.78 ± 126.64	188.71 ± 232.11	341.65 ± 176.60	93.71 ± 75.86	318.22 ± 222.28	291.50 ± 218.56	277.50 ± 167.94
Zn (mg kg^-1)	89.30 ± 91.60	57.30 ± 38.80	62.20 ± 60.50	42.77 ± 21.74	51.33 ± 30.63	69.20 ± 50.50	51.81 ± 35.60	49.18 ± 20.80	50.57 ± 19.41	47.86 ± 19.02
As (mg kg^-1)	2.19 ± 1.96	2.57 ± 2.01	2.93 ± 2.04	2.98 ± 2.01	2.77 ± 2.21	2.62 ± 1.72	3.76 ± 2.19	0.66 ± 1.42	0.00 ± 1.43	2.62 ± 2.19
Ti (mg kg^-1)	364.1 ± 450.20	347.0 ± 415.1	246.8 ± 246.3	236.18 ± 266.87	251.63 ± 288.83	316.76 ± 337.46	271.31 ± 324.69	468.66 ± 598.90	388.01 ± 575.39	300.51 ± 385.30
Cd (mg kg^-1)	0.00 ± 0.43	0.00 ± 0.38	0.00 ± 0.36	0.27 ± 1.62	0.00 ± 0.61	0.00 ± 0.36	0.00 ± 0.38	0.00 ± 0.40	0.00 ± 0.66	0.00 ± 0.39
V (mg kg^-1)	31.38 ± 16.17	32.20 ± 16.88	23.31 ± 12.65	27.38 ± 13.56	22.26 ± 16.38	36.31 ± 17.02	26.26 ± 14.58	31.59 ± 22.97	30.92 ± 17.63	29.90 ± 16.74
Rb (mg kg^-1)	78.90 ± 19.30	78.49 ± 18.53	61.43 ± 23.46	82.96 ± 29.64	68.13 ± 34.11	110.45 ± 21.83	71.29 ± 26.54	72.33 ± 24.48	67.98 ± 27.04	94.00 ± 27.71
Sr (mg kg^-1)	31.20 ± 8.40	26.60 ± 7.50	25.82 ± 10.20	35.95 ± 11.68	33.98 ± 14.88	52.67 ± 15.06	26.35 ± 8.08	40.20 ± 15.05	33.27 ± 9.96	37.10 ± 11.89
Li (mg kg^-1)	47.60 ± 23.30	44.60 ± 24.30	23.46 ± 24.86	33.12 ± 31.69	47.84 ± 65.71	31.28 ± 28.94	29.95 ± 32.34	70.03 ± 45.07	98.02 ± 56.97	43.48 ± 39.54
Cr (mg kg^-1)	0.00 ± 0.43	0.00 ± 0.38	0.00 ± 0.36	0.27 ± 1.62	0.00 ± 0.61	0.00 ± 0.36	0.00 ± 0.38	0.00 ± 0.40	0.00 ± 0.66	0.00 ± 0.39
Cu (mg kg^-1)	57.40 ± 58.00	115.80 ± 169.30	59.56 ± 52.48	61.60 ± 68.39	61.49 ± 76.73	53.69 ± 57.96	57.92 ± 71.63	95.83 ± 143.35	79.80 ± 76.99	56.30 ± 64.58
Ag (mg kg^-1)	0.00 ± 0.95	0.00 ± 0.90	0.00 ± 0.60	0.00 ± 0.66	0.00 ± 0.80	0.00 ± 0.68	0.00 ± 0.70	0.00 ± 1.03	0.00 ± 0.88	0.00 ± 0.65
Ni (mg kg^-1)	71.90 ± 24.70	65.30 ± 29.40	24.47 ± 23.33	37.29 ± 40.31	36.48 ± 31.15	41.47 ± 22.94	30.46 ± 17.75	109.21 ± 54.56	135.09 ± 54.62	66.00 ± 27.97
Pb (mg kg^-1)	4.7 ± 5.0	3.20 ± 6.24	1.78 ± 6.72	4.87 ± 6.53	4.98 ± 5.17	2.78 ± 5.89	2.90 ± 7.02	3.29 ± 4.19	3.13 ± 3.61	6.16 ± 2.44

Principal component analysis: Varimax rotated component matrix

	PC1	PC2	PC3
Temperature	0.85	0.07	0.05
pH	0.70	-0.20	0.20
Salinity	0.37	-0.24	-0.01
Current	0.84	-0.01	-0.14
Dissolved oxygen	0.70	0.18	-0.37
Particle size	0.09	-0.94	0.03
Clay-silt composition	-0.02	0.93	0.02
Organic content	-0.04	0.15	0.92
Total variation explained (%)	28.5	27.0	13.6

Granulometric characteristics of the sediments from each station in Marudu Bay

	Clay (% ±SD)	Silt (% ±SD)	Sand (% ±SD)
SI	2.8 ± 0.7	57.1 ± 8.7	40.5 ± 8.6
S2	2.6 ± 0.7	53.7 ± 8.9	44.0 ± 8.8
S3	2.2 ± 0.6	40.3 ± 7.9	66.1 ± 13.8
S4	2.6 ± 0.7	44.5 ± 14.5	61.9 ± 19.0
S5	2.4 ± 0.8	45.3 ± 13.1	61.1 ± 18.3
S6	2.2 ± 0.9	39.0 ± 17.8	67.6 ± 20.4
S7	2.5 ± 0.8	50.3 ± 10.6	47.5 ± 10.6
S8	2.3 ± 0.7	47.9 ± 8.4	52.5 ± 7.8
S9	2.6 ± 0.7	58.4 ± 11.0	39.3 ± 10.7
S10	3.0 ± 0.9	56.5 ± 16.3	40.9 ± 15.9
