The effect of pressure and alloying on half-metallicity of quaternary Heusler compounds CoMnYZ (Z = Al, Ga, and In)

Materials Science-Poland

Volume 34 (2016): Issue 4 (December 2016)

By: M. Rahmoune, A. Chahed, A. Amar, H. Rozale, A. Lakdja, O. Benhelal and A. Sayede

Open Access

|Dec 2016

Figures & Tables

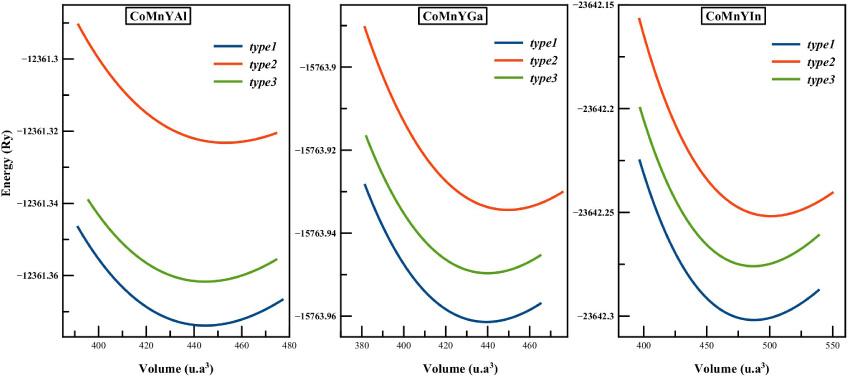

Total energy as a function of volume per formula unit (f.u.) in the three atomic arrangements: type 1, type 2 and type 3 for the CoMnYZ (Z = Al, Ga, and In) compounds. The curves correspond to the FM state.

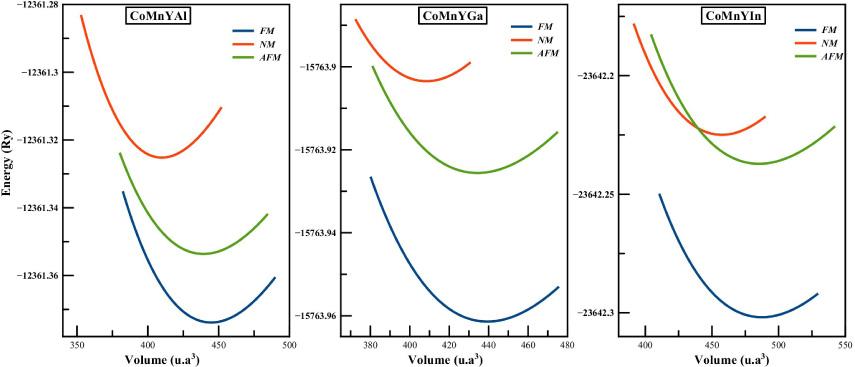

Total energy as a function of volume per formula unit (f.u.) in the three magnetic states FM, AFM and NM for the CoMnYZ (Z = Al, Ga, and In) compounds. The curves correspond to the type 1 structure.

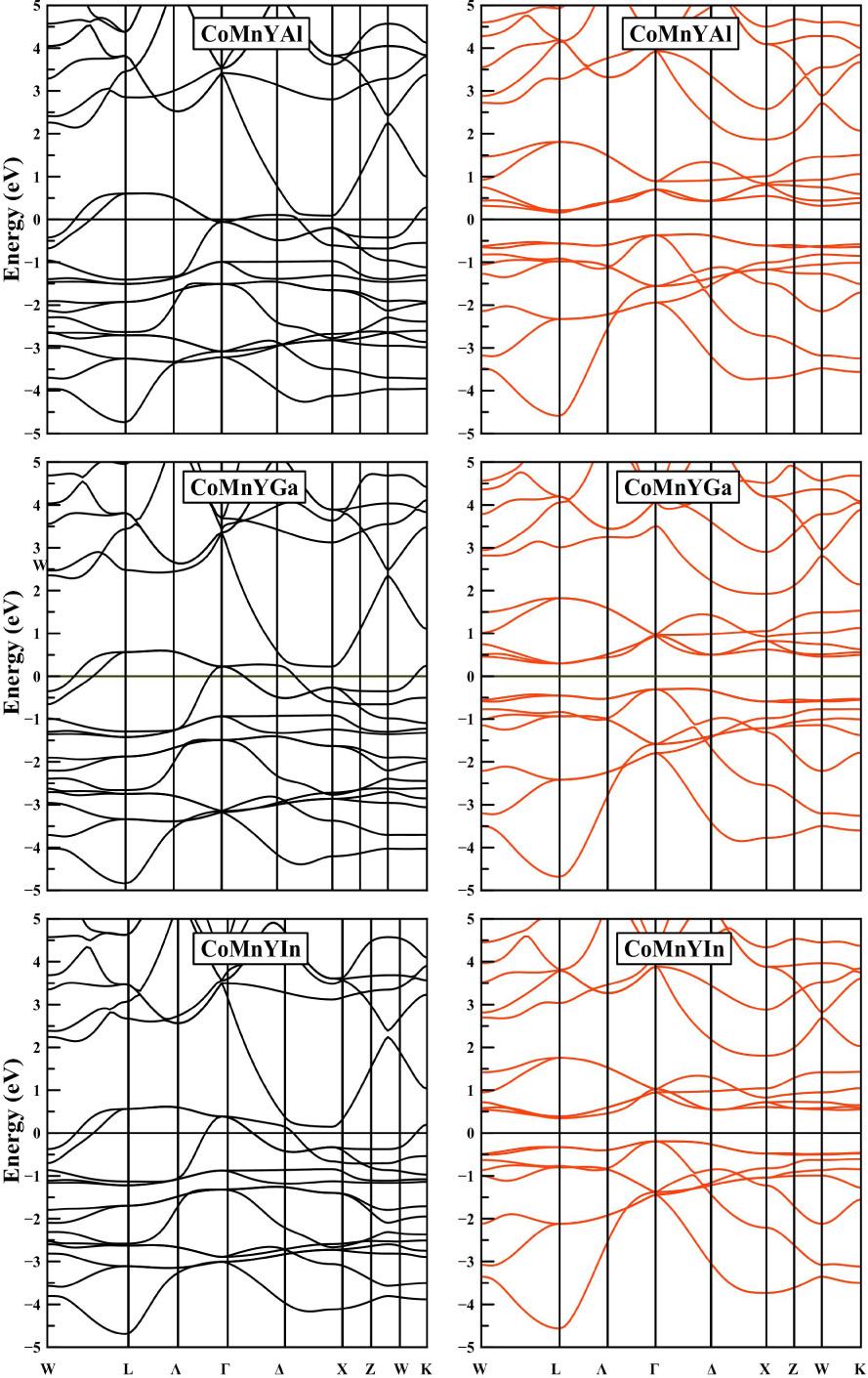

Spin polarized band structure of CoMnYZ (Z = Al, Ga and In) at their equilibrium lattice constant. The red lines correspond to the majority spin bands (minority spin bands).

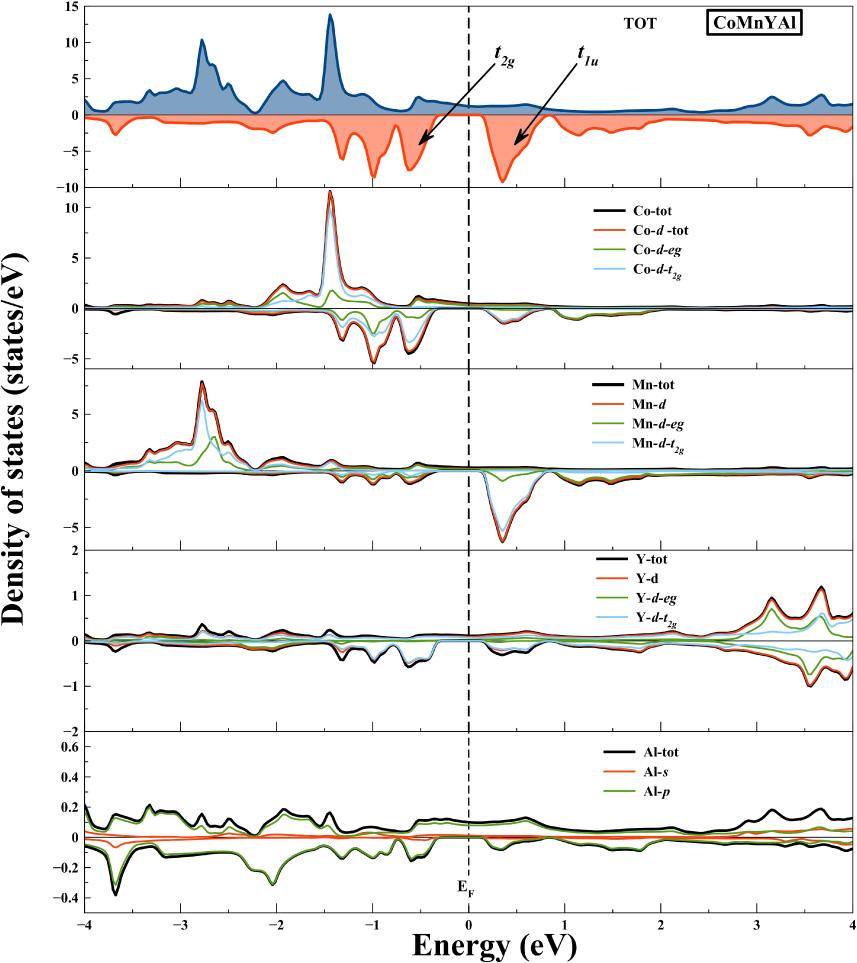

Spin-polarized total and partial densities of states (DOS) of CoMnYAl.

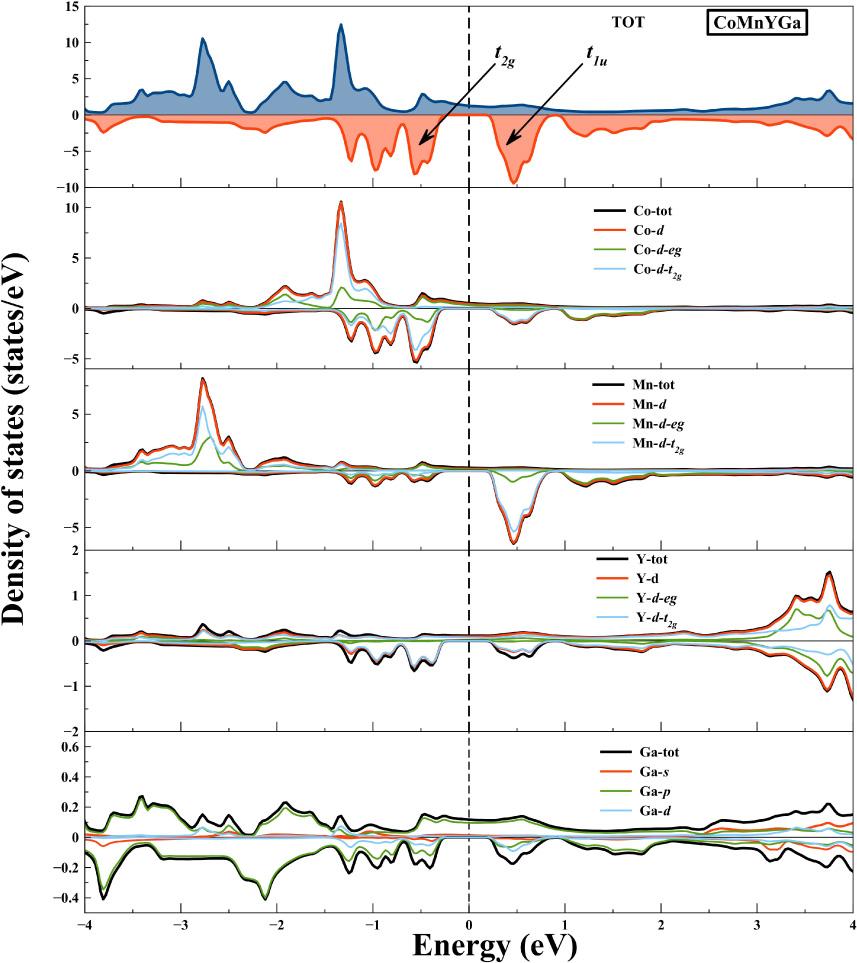

Spin-polarized total and partial densities of states (DOS) of CoMnYGa.

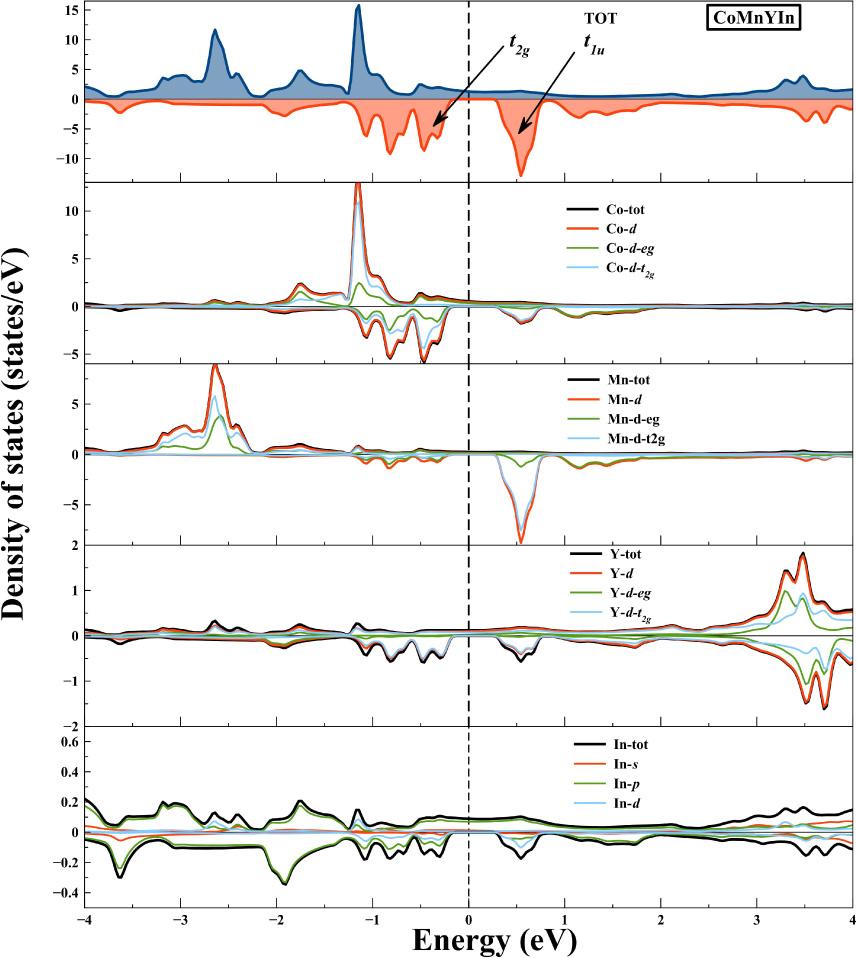

Spin-polarized total and partial densities of states (DOS) of CoMnYIn.

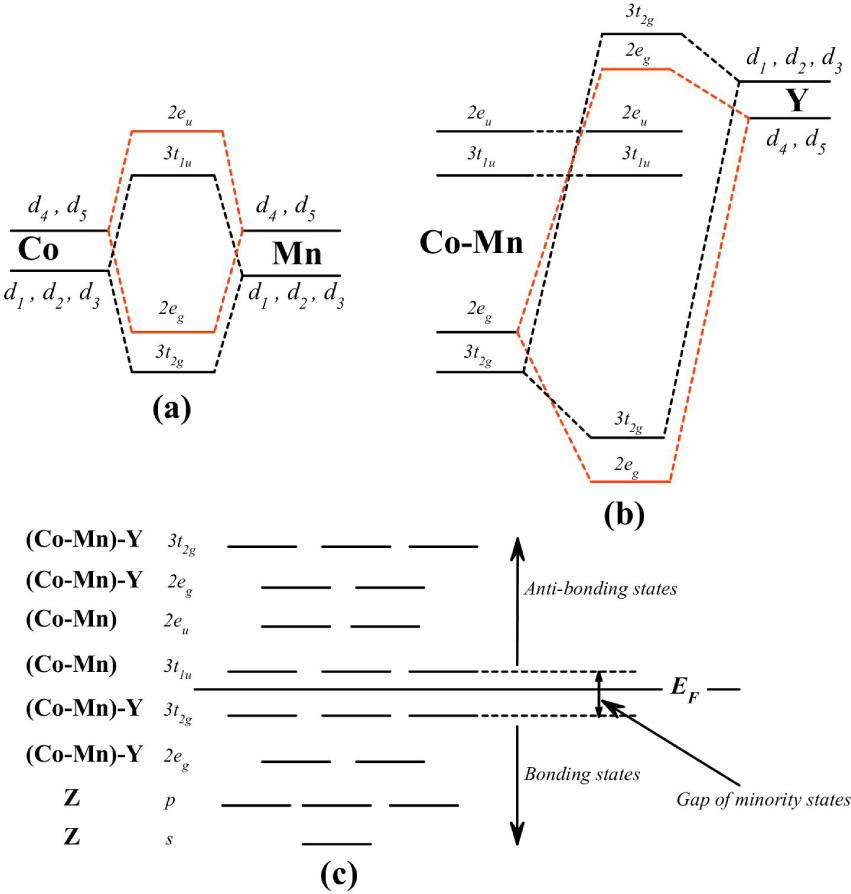

Schematic illustration of the origin of the gap in the minority band in CoMnYZ alloy: d1, d2, d3, d4 and d5 denote the dxy, dyx, dzx, dz2, dx2− y2 orbitals, respectively.

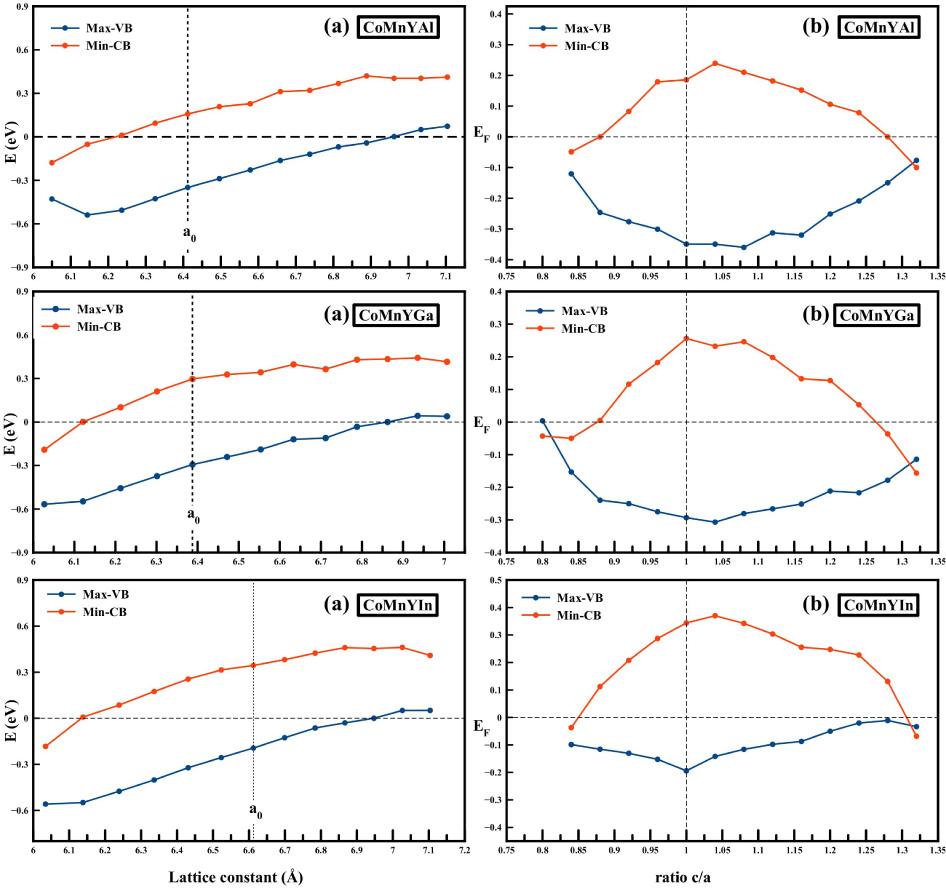

Dependence of the HM state on the lattice constant (uniform strain) (a) and at the c/a ratio (tetragonal distortion) (b) of CoMnYZ (Z = Al, Ga, and In). The blue lines correspond to the valence bands maxima and the red lines correspond to the conduction band minima in the minority spin states (spin-down states).

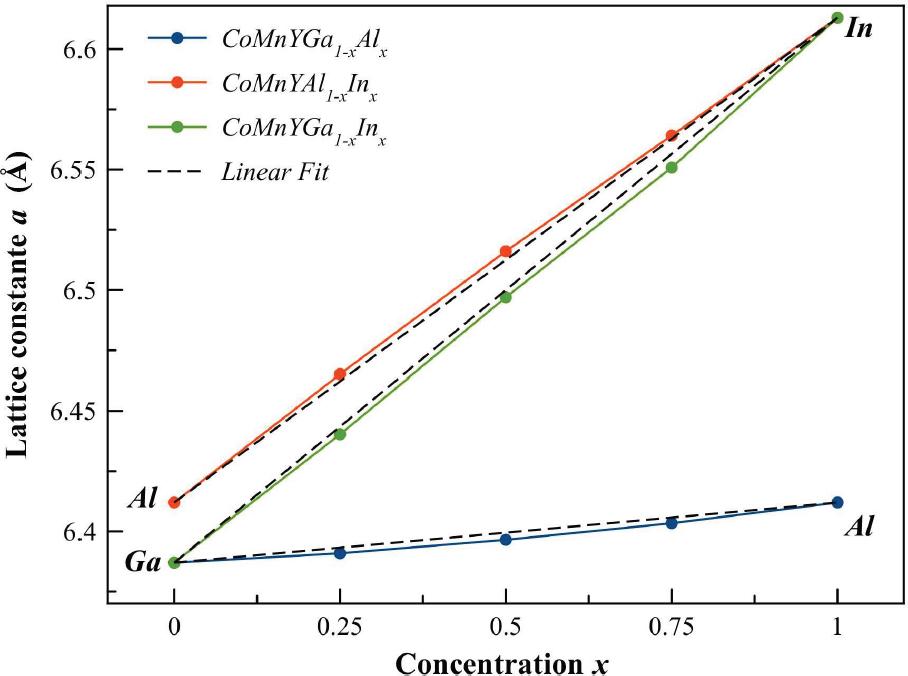

The variation of the lattice parameter with concentration x of CoMnYGa1−xAlx, CoMnYGa1−xInx and CoMnYAl1−xInx Heusler alloys (dotted line is the linear fit).

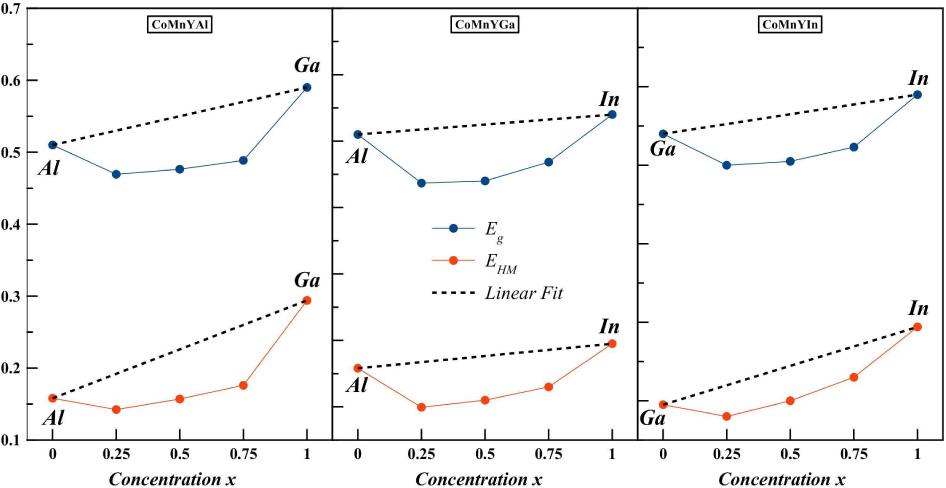

Variation of the band gap Eg and half-metallic gap EHM with concentration x of CoMnYGa1−xAlx, CoMnYGa1−xInx and CoMnYAl1−xInx Heusler alloys (dotted line is the linear fit).

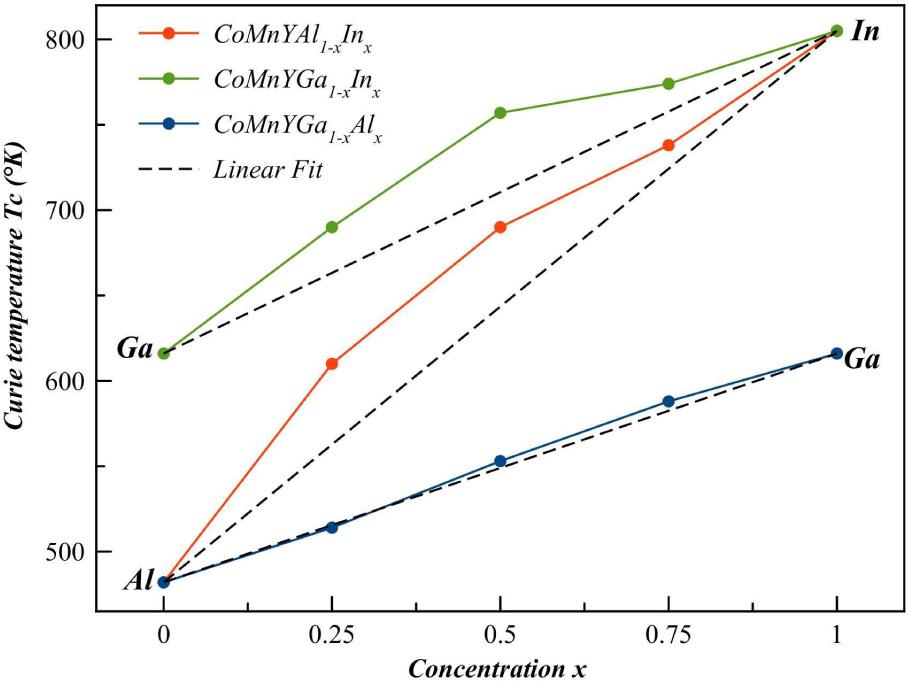

Variation of Curie temperature with concentration x of CoMnYAl1−xGax, CoMnYGa1−xInx and CoMnYAl1−xInx Heusler alloys (dotted line is the linear fit).

Semiconducting gap Eg, half-metallic gap EHM, total magnetic moment μtot and Curie temperature Tc of CoMnYAl1−x Inx alloys_

x	a	E_g	E_HM	μ_tot	T_c
	[Å]	[eV]	[eV]	[μ_B]	[K]
0	6.412	0.51	0.158	4	482
0.25	6.4652	0.43684	0.0993	4	610
0.5	6.5161	0.44	0.11	4	690
0.75	6.5641	0.4685	0.13	4	738
1	6.613	0.54	0.195	4	805

Semiconducting gap Eg, half-metallic gap EHM, total magnetic moment μtot, magnetic moment per atom (Co, Mn, Y, Al, Ga, In), magnetic moment in the interstitial region μint in CoMnYAl, CoMnYGa and CoMnYIn compounds_

Compound	E_g [eV]	E_HM [eV]	μ_tot [μB]	μCo	μMn	μY	μX	μ_int
CoMnYAl	0.51	0.158	4	0.827	3.5	−0.108	μ0.08	μ0.139
CoMnYGa	0.59	0.294	4	0.8	3.555	μ0.111	μ0.072	μ0.09
CoMnYIn	0.54	0.195	4	0.75	3.6	μ0.137	μ0.058	μ0.16

Semiconducting gap Eg, half-metallic gap EHM, total magnetic moment μtot and Curie temperature Tc of CoMnYGa1−x Inx alloys_

x	a	E_g	E_HM	μ_tot	T_c
	[Å]	[eV]	[eV]	[μ_B]	[K]
0	6.387	0.59	0.294	4	616
0.25	6.4403	0.54	0.23	4	690
0.5	6.497	0.5231	0.2	4	757
0.75	6.5508	0.505	0.18	4	774
1	6.613	0.54	0.195	4	805

Calculated total energies Etot per formula unit, equilibrium lattice constant a0, bulk modulus B and formation energy Ef for CoMnYZ (Z = Al, Ga, In) compounds in their different structure types and magnetic configurations_

Compound Structure		E_tot [Ry]			a₀ [Å]	B₀ [GPa]	E_f [Ry])
		NM	FM	AFM	FM	FM	FM
CoMnYAl	Type 1	−12361.325192	−12361.373842	−12361.353614	6.412	100.212	−1.294
	Type 2	−12361.227488	−12361.323233	−12361.280855	6.453	95.178	−1.243
	Type 3	−12361.325135	−12361.369712	−12361.342789	6.422	102.798	−1.288
CoMnYGa	Type 1	−15763.903474	−15763.961374	−15763.925582	6.387	95.621	−1.228
	Type 2	−15763.831806	−15763.934409	−15763.854632	6.436	93.368	−1.142
	Type 3	−15763.903455	−15763.949612	−15763.925582	6.389	98.016	−1.189
CoMnYIn	Type 1	−23642.224948	−23642.301847	−23642.237173	6.613	92.844	−1.168
	Type 2	−23642.137606	−23642.251825	−23642.185687	6.672	83.238	−1.101
	Type 3	−23642.225186	−23642.275945	−23642.275869	6.609	94.409	−1.148

Semiconducting gap Eg, half-metallic gap EHM, total magnetic moment μtot and Curie temperature Tc of CoMnYGa1−xAlx alloys_

x	a	E_g	E_HM	μ_tot	T_c
	[Å]	[eV]	[eV]	[μ_B]	[K]
0	6.387	0.59	0.294	4	616
0.25	6.3909	0.4886	0.176	4	593
0.5	6.3965	0.4763	0.157	4	553
0.75	6.4034	0.4693	0.14234	4	514
1	6.412	0.51	0.158	4	482
