Have a personal or library account? Click to login

Electrospinning synthesis of 3D porous NiO nanorods as anode material for lithium-ion batteries

Materials Science-Poland
Volume 34 (2016): Issue 2 (June 2016)
By:
Open Access
|May 2016

Figures & Tables

Fig. 1

XRD patterns of NiO nanofibers sintered at different temperatures.
XRD patterns of NiO nanofibers sintered at different temperatures.

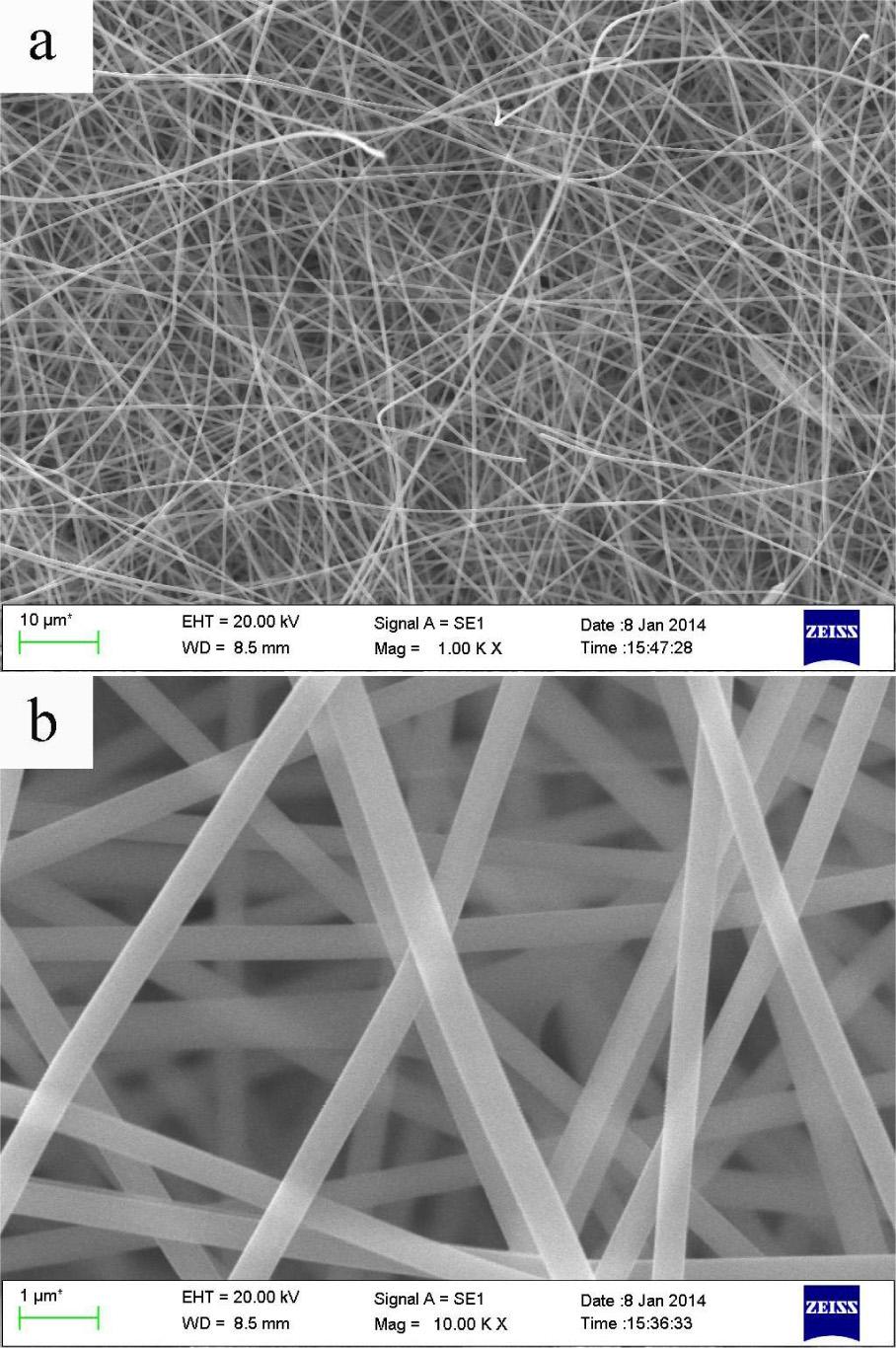

Fig. 2

SEM images of precursor nanofibers.
SEM images of precursor nanofibers.

Fig. 3

SEM images of NiO nanofibers sintered at different temperatures: 400 °C (a, b), 500 °C (c, d) and 600 °C (e, f). EDS mappings of Ni (g) and O (h) of the sample calcined at 500 °C.
SEM images of NiO nanofibers sintered at different temperatures: 400 °C (a, b), 500 °C (c, d) and 600 °C (e, f). EDS mappings of Ni (g) and O (h) of the sample calcined at 500 °C.

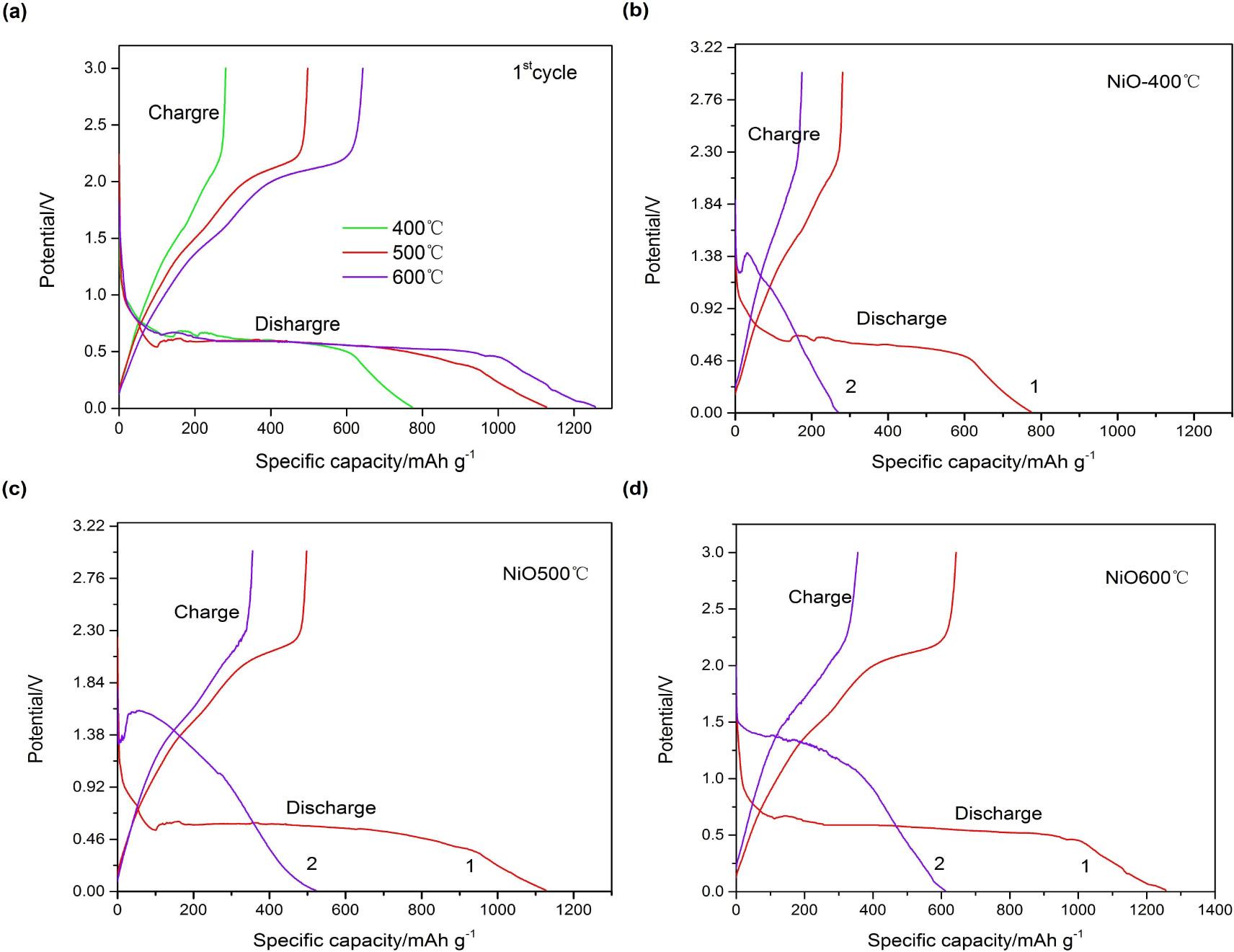

Fig. 4

Charge-discharge curves of samples at different temperatures (current density: 50 mA·g−1).
Charge-discharge curves of samples at different temperatures (current density: 50 mA·g−1).

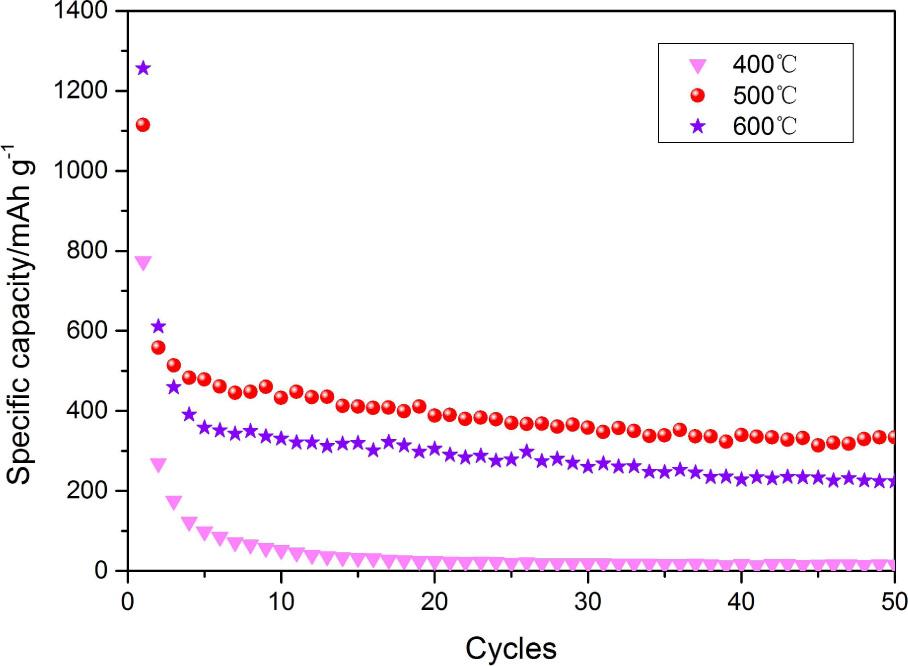

Fig. 5

Cycling performance of samples at different temperatures.
Cycling performance of samples at different temperatures.

Fig. 6

C-V curves of samples calcined at 500 °C (scan rate: 0.05 mV·s−1).
C-V curves of samples calcined at 500 °C (scan rate: 0.05 mV·s−1).
DOI: https://doi.org/10.1515/msp-2016-0040 | Journal eISSN: 2083-134X | Journal ISSN: 2083-1331
Journal RSS Feed
Language: English
Page range: 227 - 232
Submitted on: Jan 27, 2015
Accepted on: Jan 26, 2016
Published on: May 24, 2016
Published by: Wroclaw University of Science and Technology
In partnership with: Paradigm Publishing Services
Publication frequency: 4 issues per year
Keywords:
Li-ion battery,
anode,
charging/discharging,
NiO,
nanorod
Related subjects:
Materials sciences,
Materials sciences, other,
Nanomaterials,
Functional and smart materials,
Materials characterization and properties

© 2016 Xiang Wei Kong, Rong Liang Zhang, Sheng Kui Zhong, Ling Wu, published by Wroclaw University of Science and Technology
This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.

Previous articleVolume 34 (2016): Issue 2 (June 2016)Next article
