Have a personal or library account? Click to login
Structural and electrical properties of chromium substituted nickel ferrite by conventional ceramic method Cover

Structural and electrical properties of chromium substituted nickel ferrite by conventional ceramic method

Materials Science-Poland
Volume 34 (2016): Issue 1 (March 2016)
By:
Open Access
|Apr 2016

Figures & Tables

Figure 1

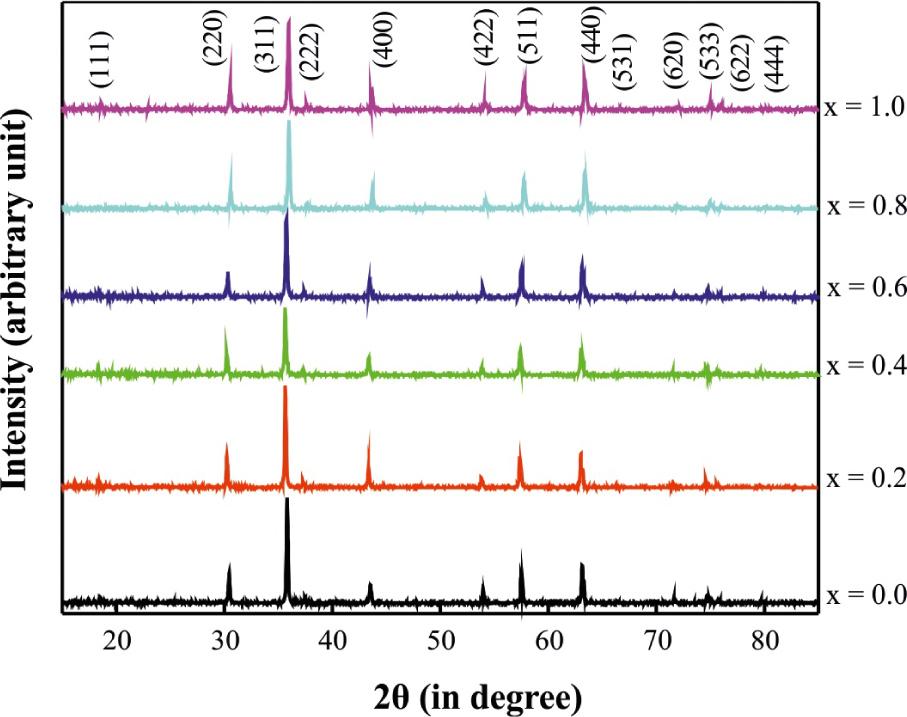

X-ray diffraction pattern for the NiCrxFe2−xO4 system sintered at 1350 °C.
X-ray diffraction pattern for the NiCrxFe2−xO4 system sintered at 1350 °C.

Figure 2

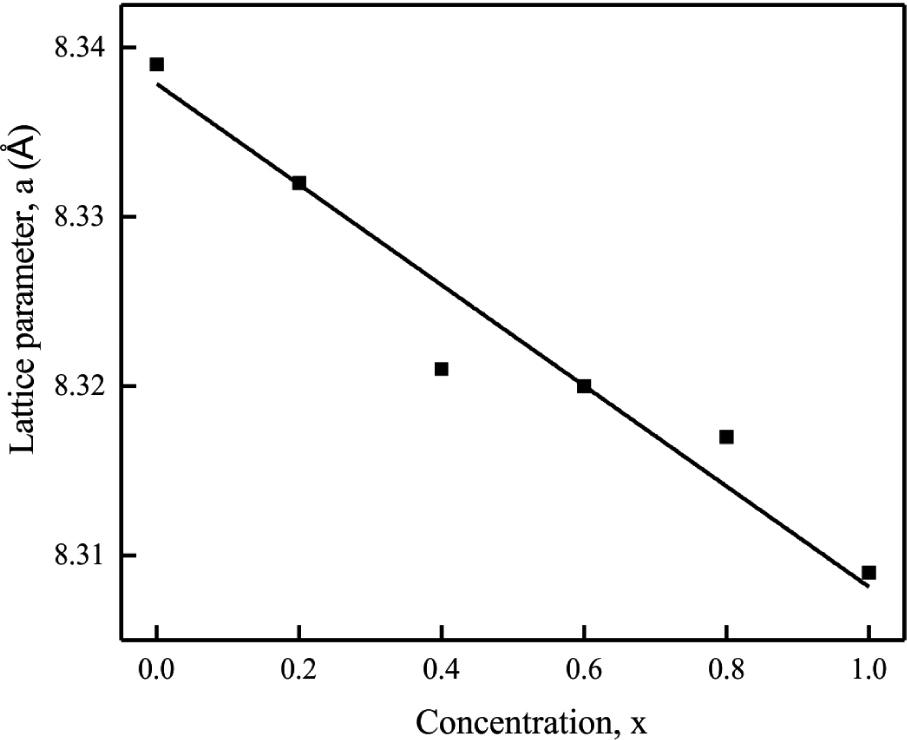

Variation of lattice parameters with the concentration of Cr for the NiCrxFe2−xO4 system sintered at 1350 °C.
Variation of lattice parameters with the concentration of Cr for the NiCrxFe2−xO4 system sintered at 1350 °C.

Figure 3

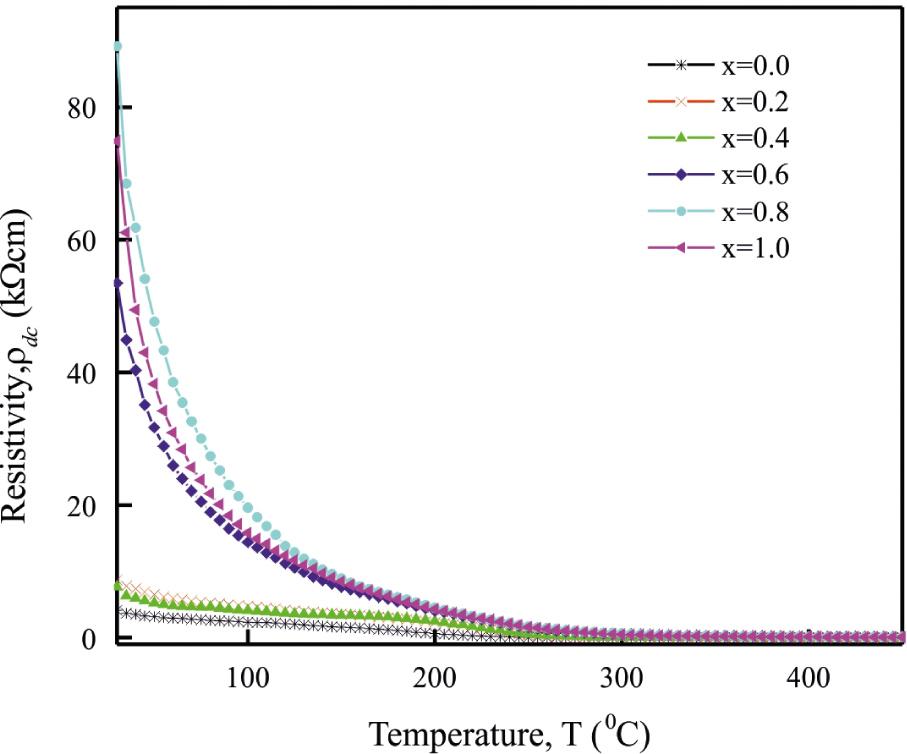

Variation of DC resistivity with temperature for the NiCrxFe2−xO4 system sintered at 1350 °C.
Variation of DC resistivity with temperature for the NiCrxFe2−xO4 system sintered at 1350 °C.

Figure 4

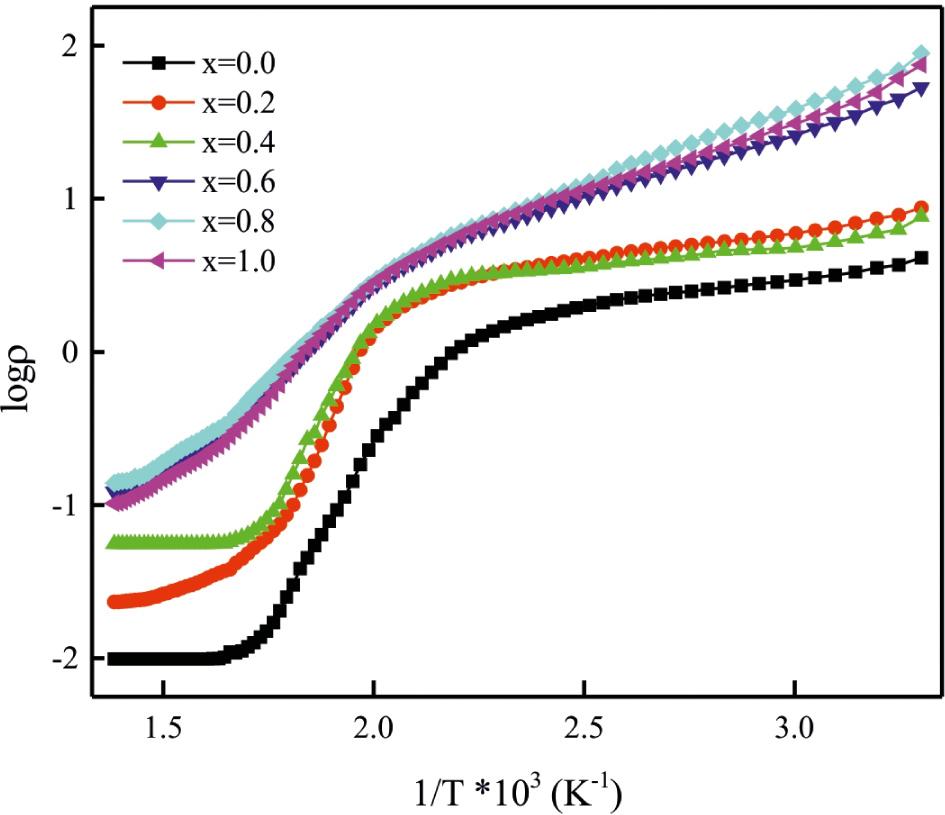

logρ vs. 1/T curve of the NiCrxFe2−xO4 system sintered at 1350 °C for measuring the activation energy.
logρ vs. 1/T curve of the NiCrxFe2−xO4 system sintered at 1350 °C for measuring the activation energy.

Figure 5

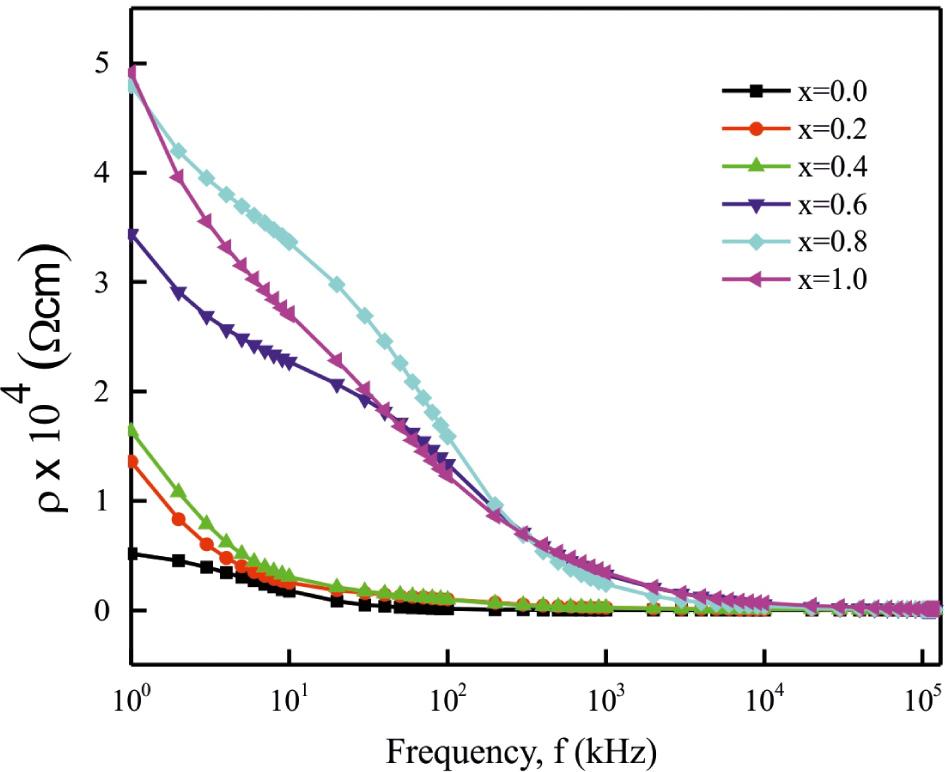

Variation in AC resistivity with frequency for all the samples of the NiCrxFe2−xO4 system sintered at 1350 °C.
Variation in AC resistivity with frequency for all the samples of the NiCrxFe2−xO4 system sintered at 1350 °C.

Figure 6

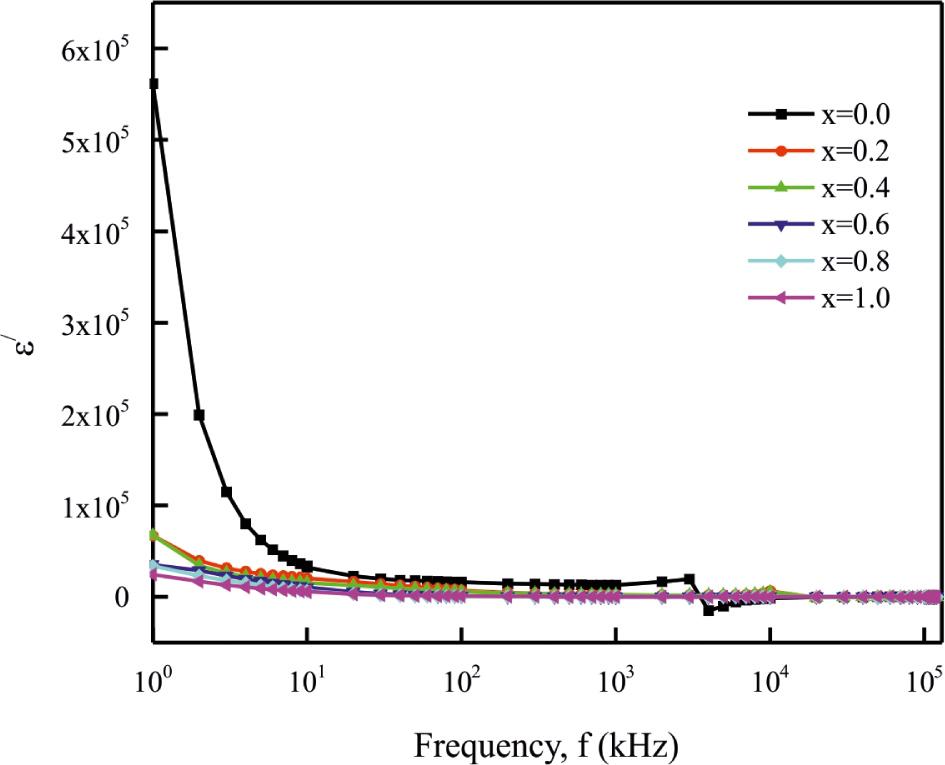

Variation of dielectric constant with frequency of the NiCrxFe2−xO4 system sintered at 1350 °C.
Variation of dielectric constant with frequency of the NiCrxFe2−xO4 system sintered at 1350 °C.

Figure 7

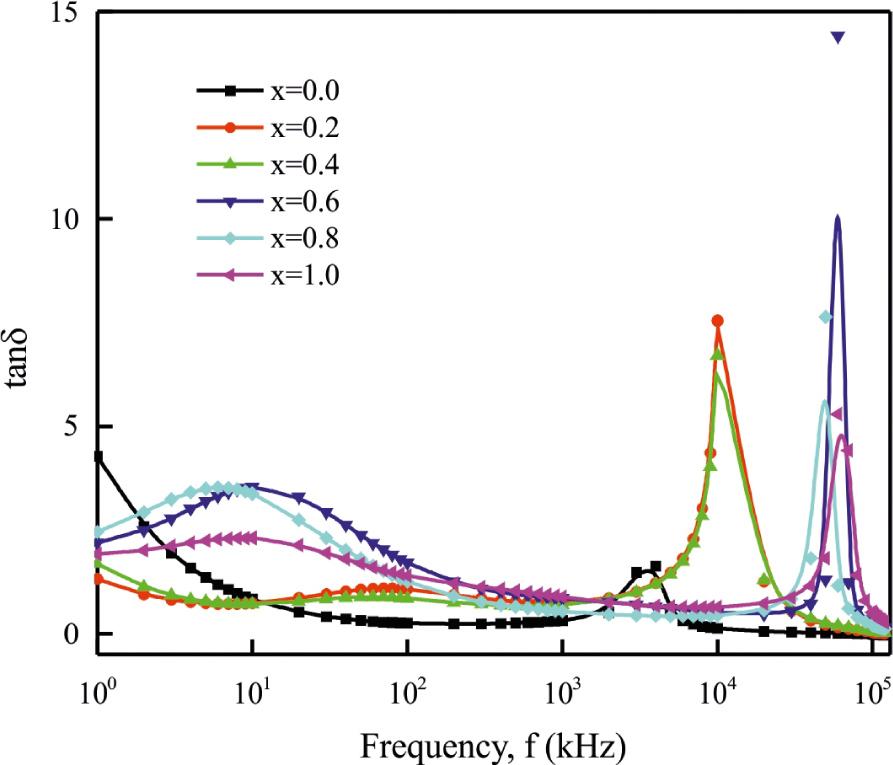

Variation of loss tangent with frequency for the NiCrxFe2−xO4 system sintered at 1350°C.
Variation of loss tangent with frequency for the NiCrxFe2−xO4 system sintered at 1350°C.

Lattice parameter, X-ray density, bulk density, porosity and activation energy for NiCrxFe2−xO4 sintered at 1350°C_

ConcentrationLattice parameterX-ray densityBulk densityPorosityActivation energy
x a [ Å]ρx [g/cm3]ρb [g/cm3]P [%]EfEpΔE = Ep − Ef
0.08.3395.4524.51517.200.141.741.60
0.28.3325.4454.57715.940.132.312.18
0.48.3215.4454.39819.230.101.941.84
0.68.3205.4254.27221.260.340.960.62
0.88.3175.4104.28420.810.401.030.63
1.08.3095.4044.09024.320.361.190.83
DOI: https://doi.org/10.1515/msp-2016-0028 | Journal eISSN: 2083-134X | Journal ISSN: 2083-1331
Journal RSS Feed
Language: English
Page range: 185 - 191
Submitted on: Dec 2, 2015
Accepted on: Jan 5, 2016
Published on: Apr 27, 2016
Published by: Sciendo
In partnership with: Paradigm Publishing Services
Publication frequency: 4 times per year
Related subjects:
Materials sciences,
Materials sciences, other,
Nanomaterials,
Functional and smart materials,
Materials characterization and properties

© 2016 Nusrat Jahan, Faruque-uz-Zaman Chowdhury, A.K.M Zakaria, published by Sciendo
This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.

Previous articleVolume 34 (2016): Issue 1 (March 2016)Next article
