Erratum to: Chuan Lai, Xiaogang Guo, Jian Wei, Bin Xie, Like Zou, Xiaolong Li, Zongxin Chen, Changmao Wang, Investigation on Two Compounds of O, O’-dithiophosphate Derivatives as Corrosion Inhibitors for Q235 Steel in Hydrochloric Acid Solution, 2017, 15, 263-271, 10.1515/chem-2017-0034
The original version of the article was published in Open Chem. 2017, 15 (1) pp. 263-271. Unfortunately, the original version of this article contains mistakes in the caption of the y-axis of Figure 1 and 7. Additionally, the actual units of the charge transfer resistance should be Rct (Ω cm2), not Rp (Ω cm -2). Corrected versions of the Figures and Table are presented below.

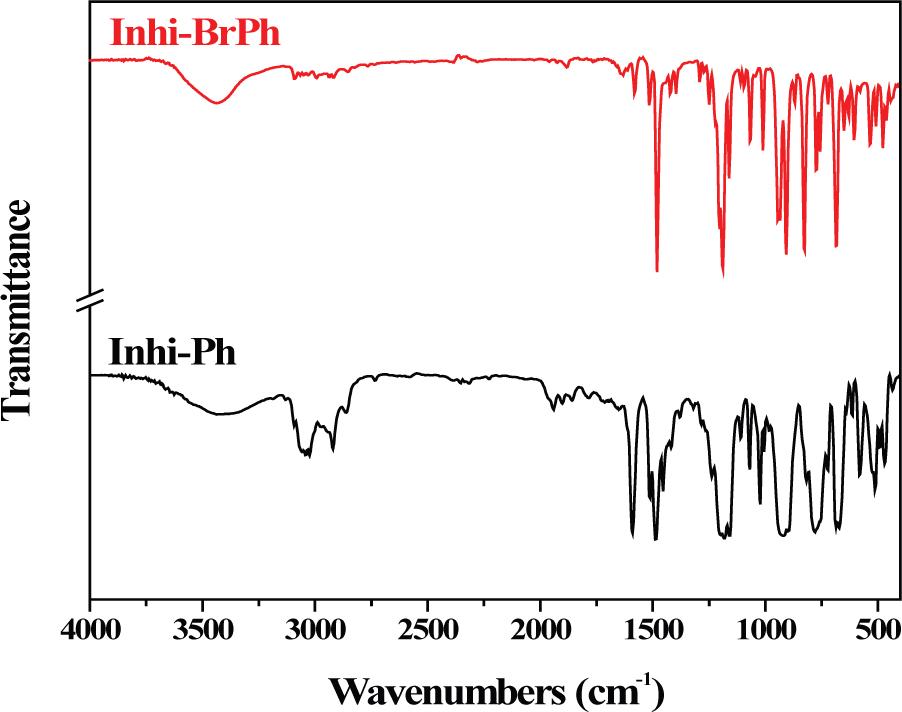

Infrared spectra of Inhi-Ph and Inhi-BrPh.

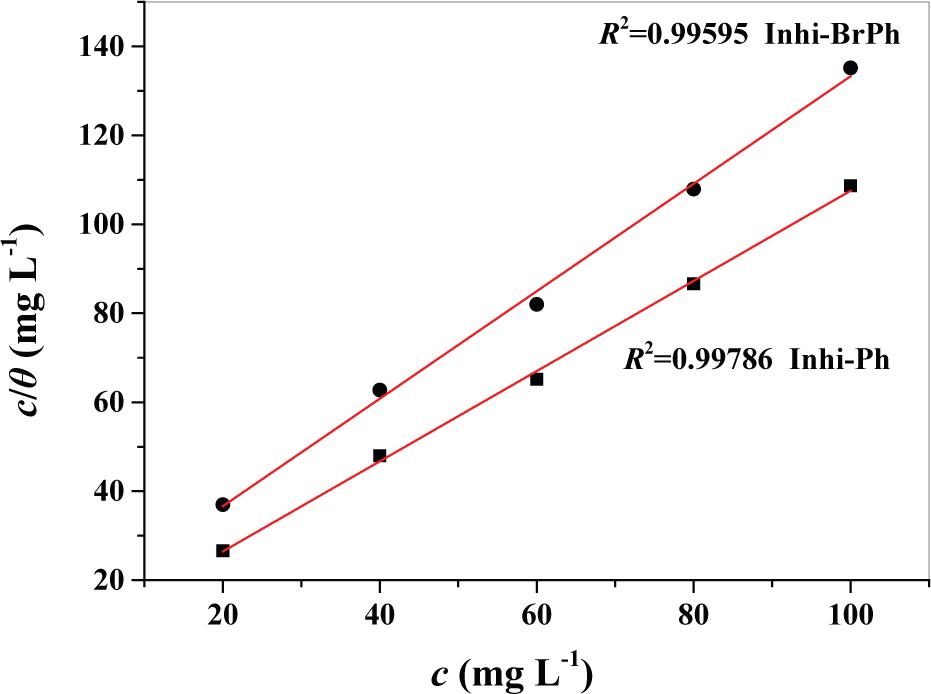

Langmuir adsorption isotherm for Inhi-Ph and Inhi-BrPh on Q235 steel in 1.0 M HCl at 30°C.
The electrochemical parameters of impedance and the corresponding inhibition efficiency of Q235 steel in 1.0 M HCl with various concentration of Inhi-Ph and Inhi-BrPh at 30°C.
| Inhibitor | C (mg L-1) | Rct (Ω cm2) | Cdl (μF cm-2) | ηE (%) |
|---|---|---|---|---|
| Blank solution | 0 | 25.44 | 78.36 | – |
| Inhi-Ph | 20 | 86.53 | 20.43 | 70.60 |
| 40 | 92.89 | 19.48 | 72.61 | |
| 60 | 139.7 | 10.14 | 81.79 | |
| Inhi-BrPh | 20 | 57.75 | 60.02 | 55.95 |
| 40 | 76.02 | 38.59 | 66.54 | |
| 60 | 96.77 | 25.37 | 73.71 |
